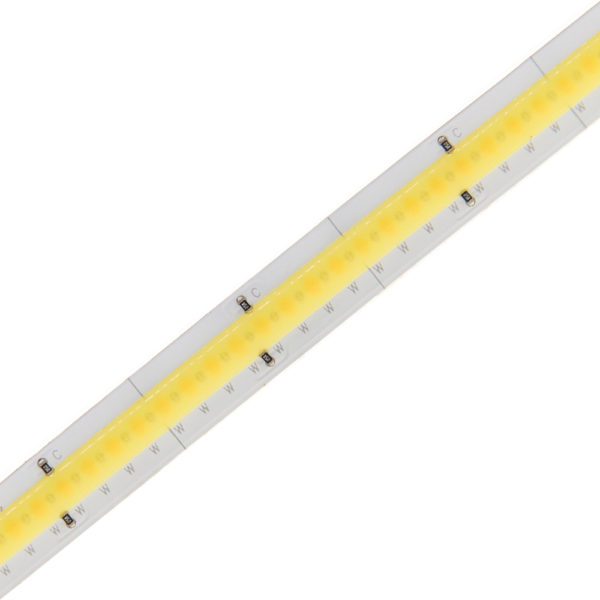

Anywhere COB LED Strip
LW-COB068/LW-COB070
1meter
Quantity
- Voltage Options: Available in 12V and 24V.
- Chip Type: Uses high-brightness COB (Chip on Board) chips, along with SMD2018.
- PCB Width: Options include 8mm, 10mm, and 12mm.
- LED Count: 320, 400, 480, 512, 528 LEDs per meter.
- CRI (Color Rendering Index): Greater than 90 for high color accuracy and uniform lighting.
- Color Temperatures: Available in 2700K, 3000K, 4000K, and 6500K.
- Power Options: 10W or 14W available.
- Cutting Feature: Can be cut per single LED, allowing for flexible customization.
- Lifespan: Up to 50,000 hours with low energy consumption.
- Waterproof Levels: Available in IP20 (non-waterproof), IP65, IP67, and IP68 (waterproof for outdoor use).
- Installation: Easy to install and bend, with 3M adhesive on the back.
- Customization: PCB width, voltage, power, color temperature, and CRI can be customized according to specific needs.
Competitive products
COB LED Strip
Addressable Led Strip
Neon LED Strip
Product Description
Product characteristic:
- Voltage Options: Available in 12V and 24V.
- Chip Type: Uses high-brightness COB (Chip on Board) chips, along with SMD2018.
- PCB Width: Options include 8mm, 10mm, and 12mm.
- LED Count: 320, 400, 480, 512, 528 LEDs per meter.
- CRI (Color Rendering Index): Greater than 90 for high color accuracy and uniform lighting.
- Color Temperatures: Available in 2700K, 3000K, 4000K, and 6500K.
- Power Options: 10W or 14W available.
- Cutting Feature: Can be cut per single LED, allowing for flexible customization.
- Lifespan: Up to 50,000 hours with low energy consumption.
- Waterproof Levels: Available in IP20 (non-waterproof), IP65, IP67, and IP68 (waterproof for outdoor use).

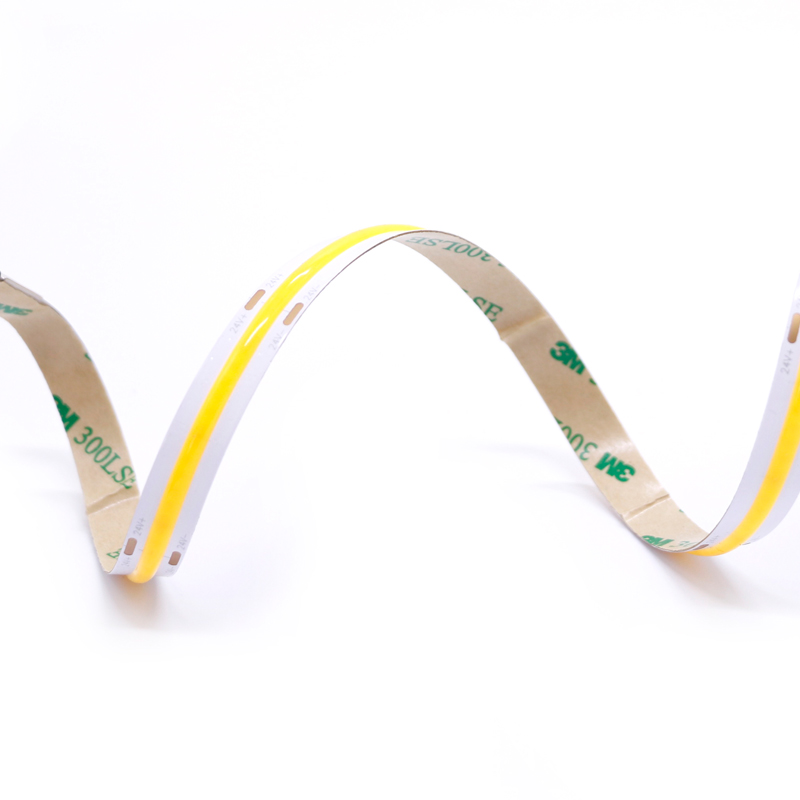

- Installation: Easy to install and bend, with 3M adhesive on the back.
- Customization: PCB width, voltage, power, color temperature, and CRI can be customized according to specific needs.
Product Specifications: | |||||||
Advantage: | 1, Free Cut COB strip | 1, Free Cut COB strip | |||||
Part NO: | LW-COB068 | LW-COB070 | |||||
LED Qty: | 480pcs per meter | 480pcs per meter | |||||
CRI (RA) | 90 | 80 | |||||
PCB Width IP20: | 8mm width | 8mm width | |||||
Input Voltage: | DC24V | DC24V | |||||
Watts: | 10W | 10W | |||||
Luminous Flux: | 100LM / W | 90LM / W | |||||
Color: | 2700/3000/4000/6000K | 2700/3000/4000/6000K | |||||
PCB color: | White | White | |||||
IP Grade: | IP20 | IP20 | |||||
Operating temperature: | .-25 to 45℃ | .-25 to 45℃ | |||||
Beam angle: | 180 degree | 180 degree | |||||
Certification: | CE; RoHS | CE; RoHS | |||||
Max Run: | 5M | 5M | |||||
Min Run: | FREE CUT | FREE CUT | |||||
Productdetails:

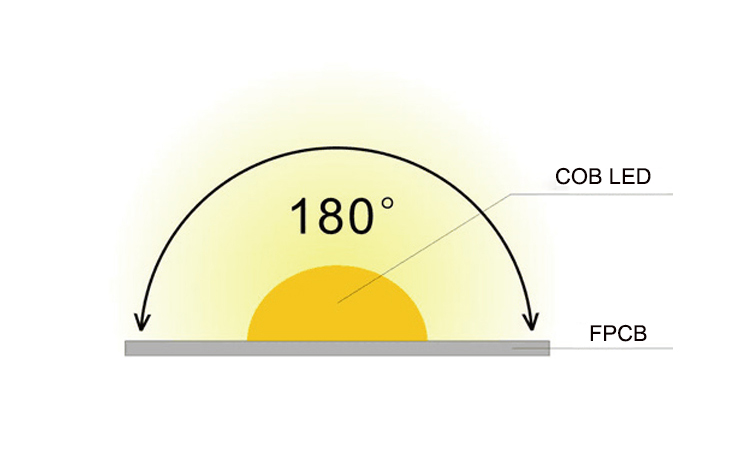

Wide viewing Angle up to 180 degree.
COB led strip are 180 degree viewing angle. SMD LED Strip type is normally 120 degree viewing angle.
Put the chips on board then put Phosphor on chips let the viewing angle bigger, then it’s less dark zone
Put the chips on board then put Phosphor on chips let the viewing angle bigger, then it’s less dark zone
Non waterproof type

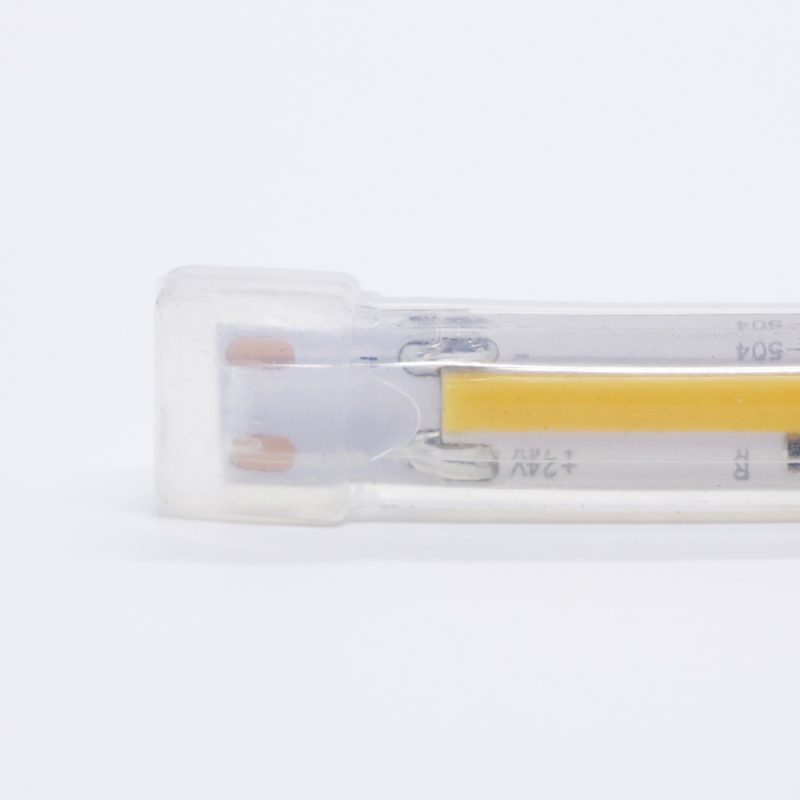

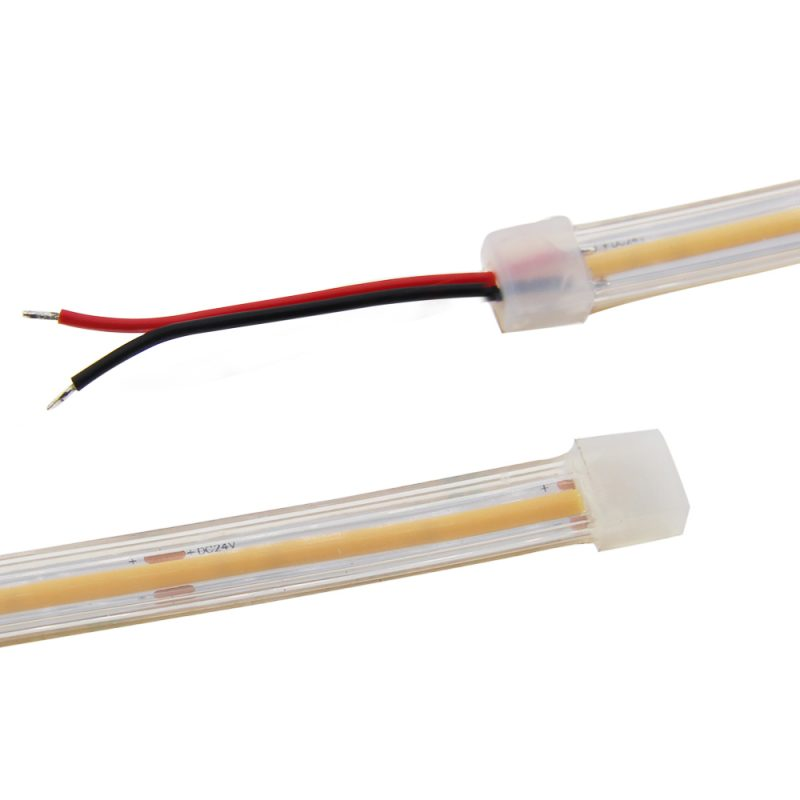

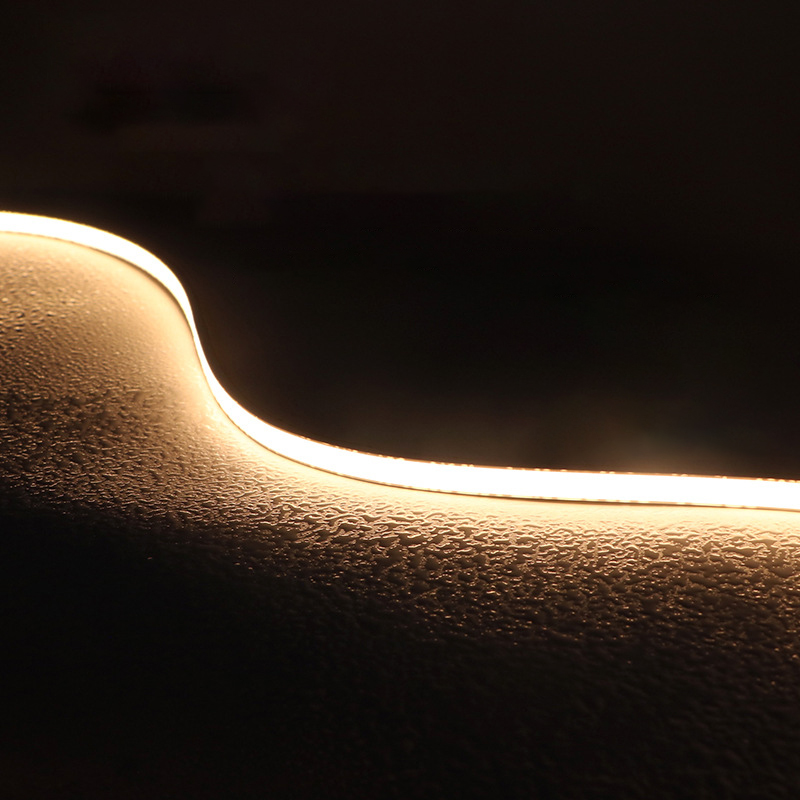

Extruded Silicone waterproof

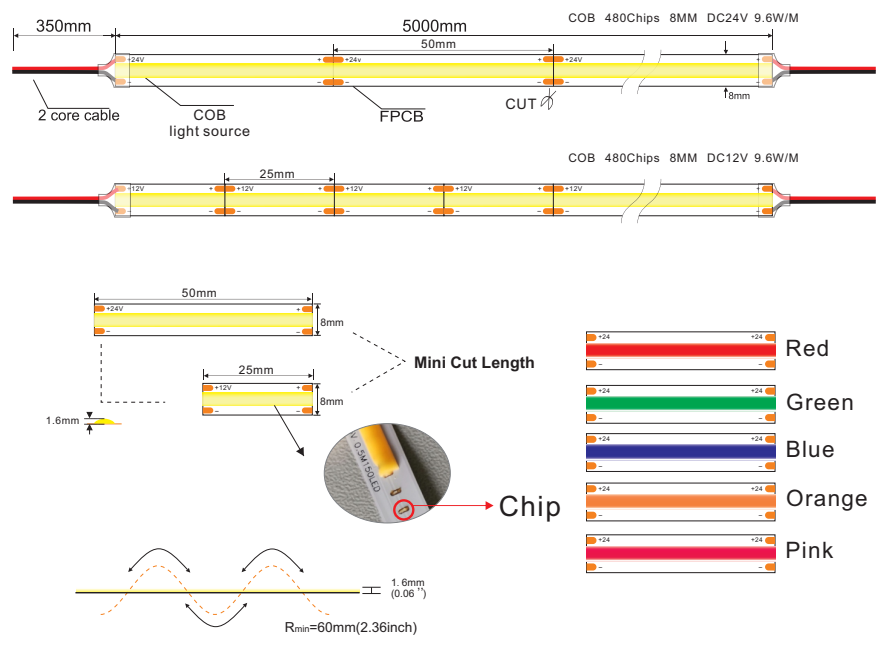

Dimensions:

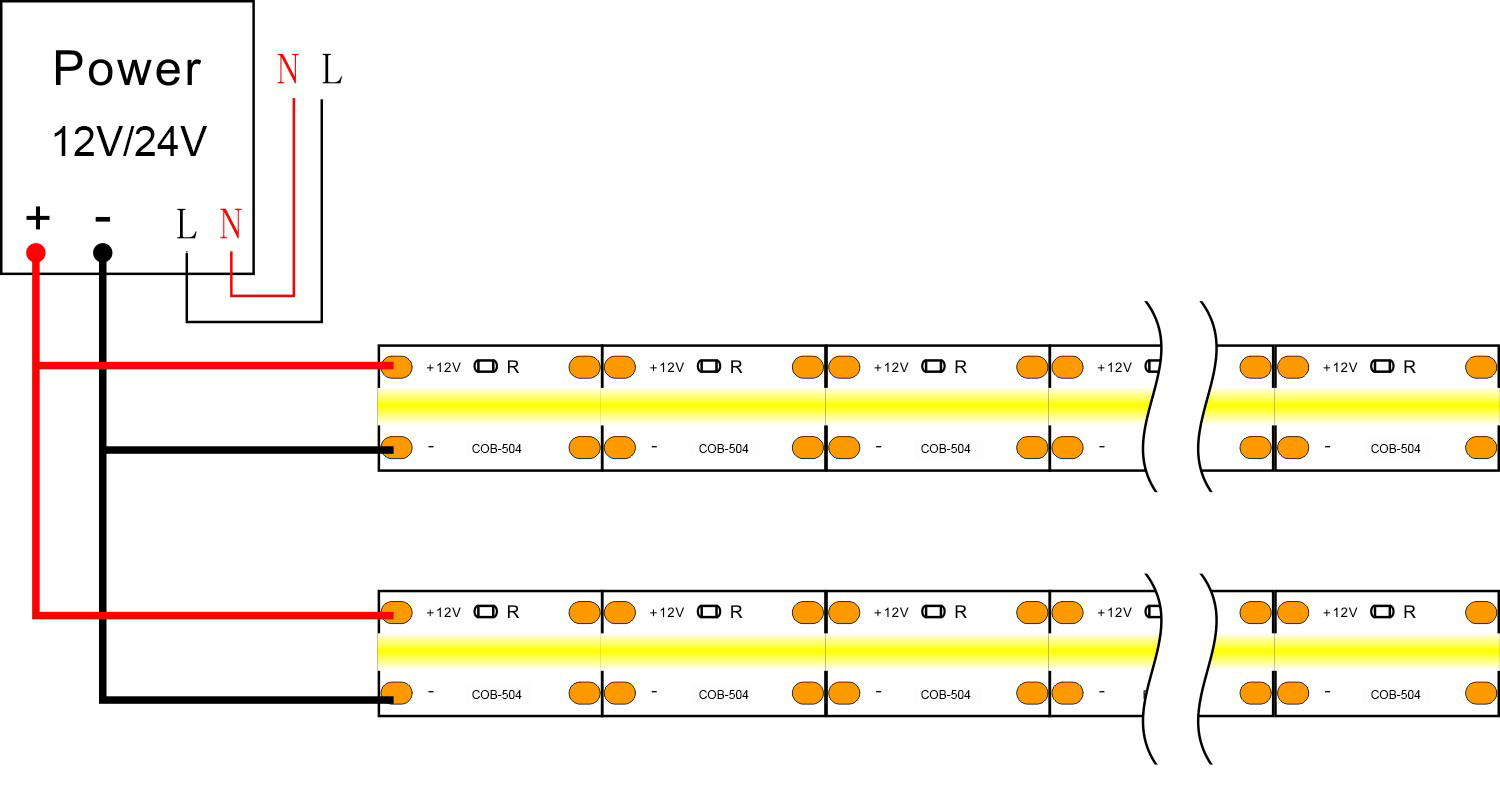

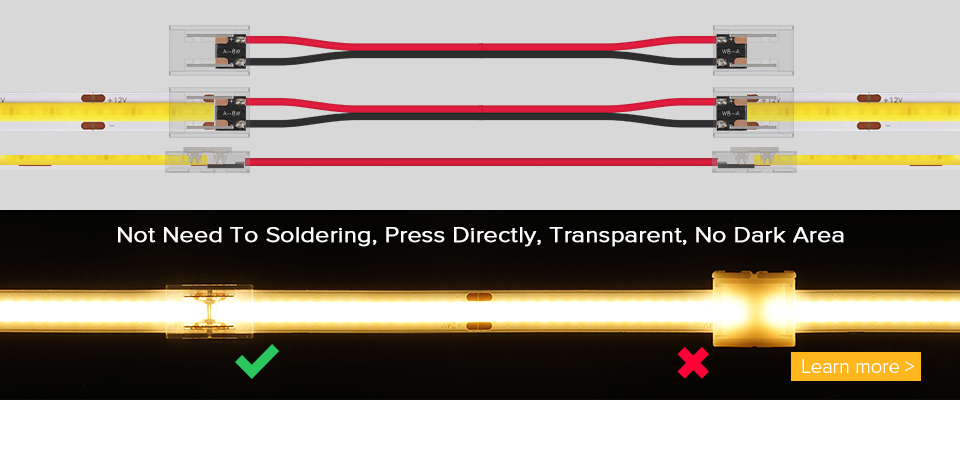

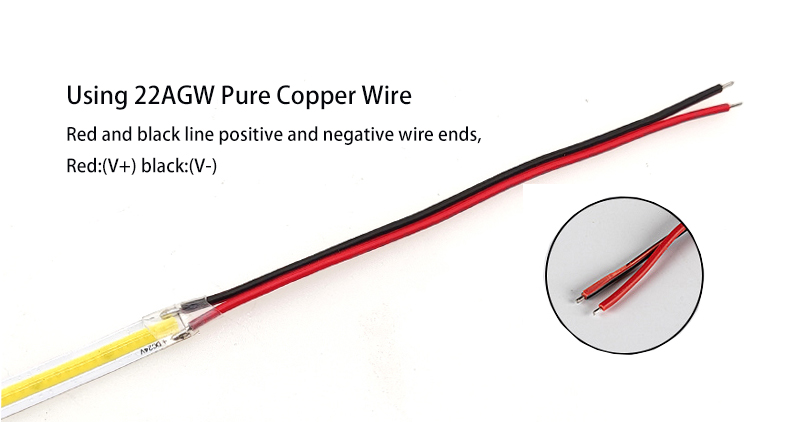

Connect drawing:

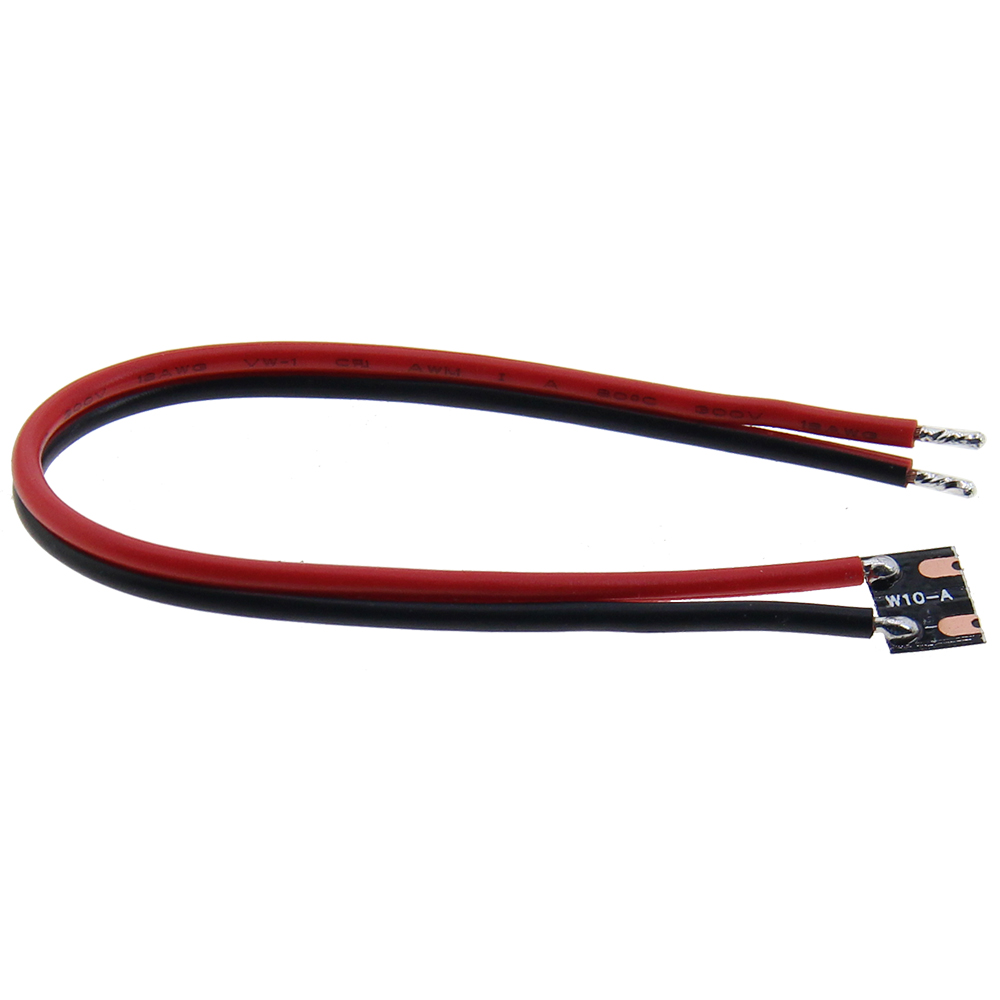

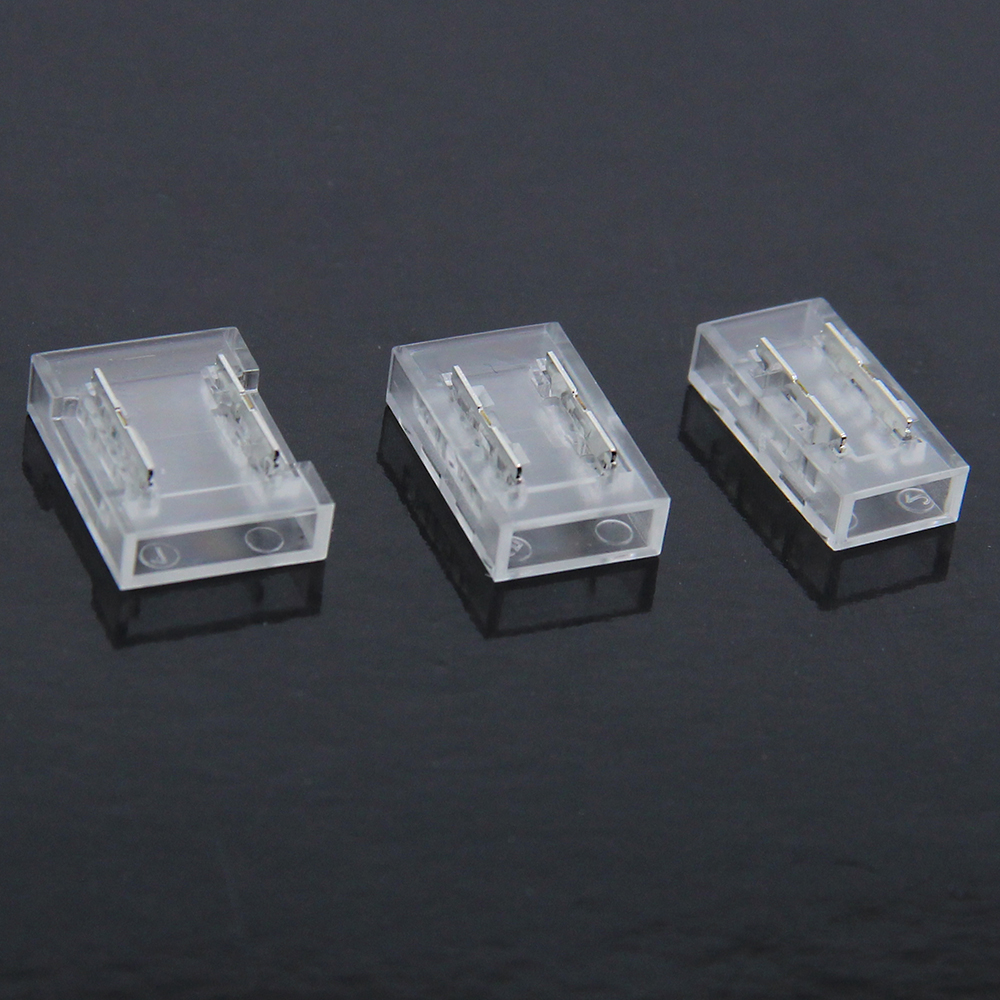

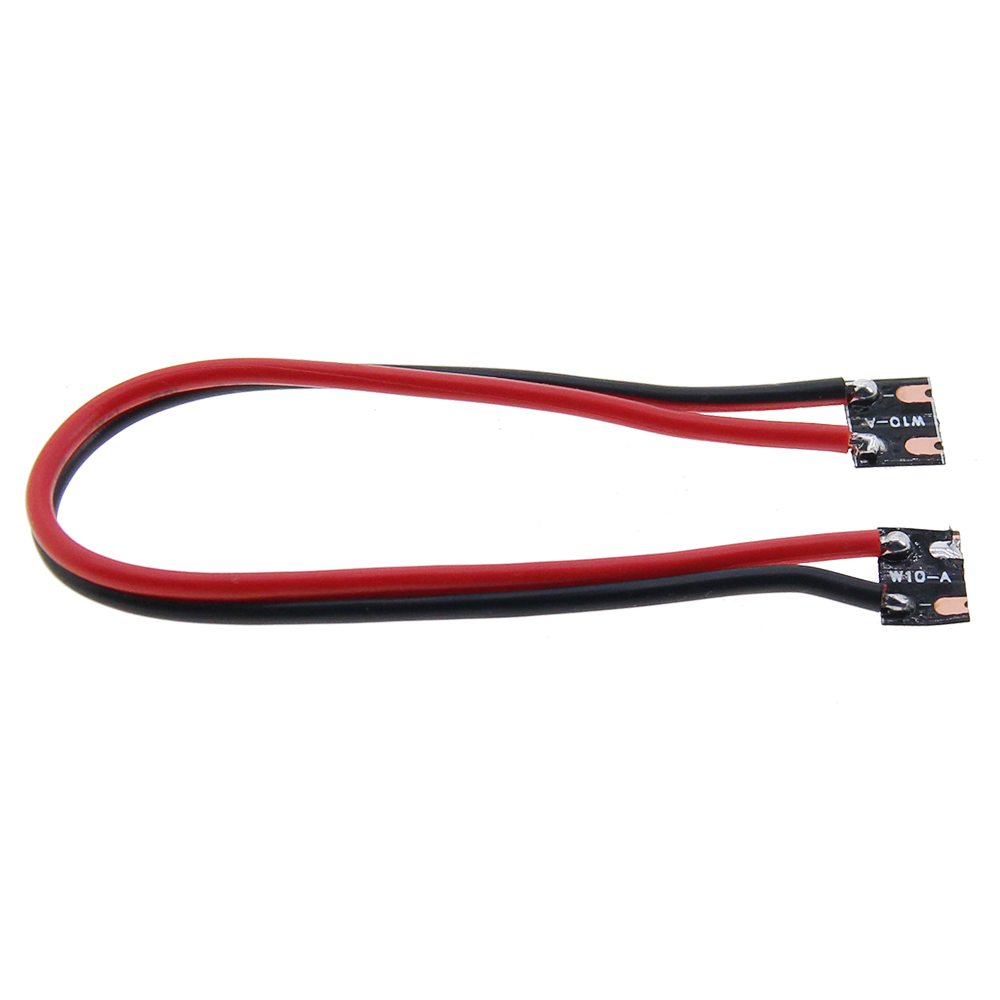

Accessories:
Please Attention
WhyLEDworker Lighting :
1,NICE QUALITY.
2,ONLINE PAYMENT.
3,FULL LINE PRODUCTS.
4,AFTER SALES SERVICES 24/7.
5.FACTORY DIRECT PRICE. PRICE EFFECTIVE.
6,EXPERIENCES SALES, EASY COMMUNICATION.
7,NO MOQ , 1PCS OK . SMALL ORDER WELCOME.
8,QUICK SHIPPING WITHIN 3 - 5 DAYS. SAMPLES HAVE STOCK.
We are not just say it. We really do it !!!

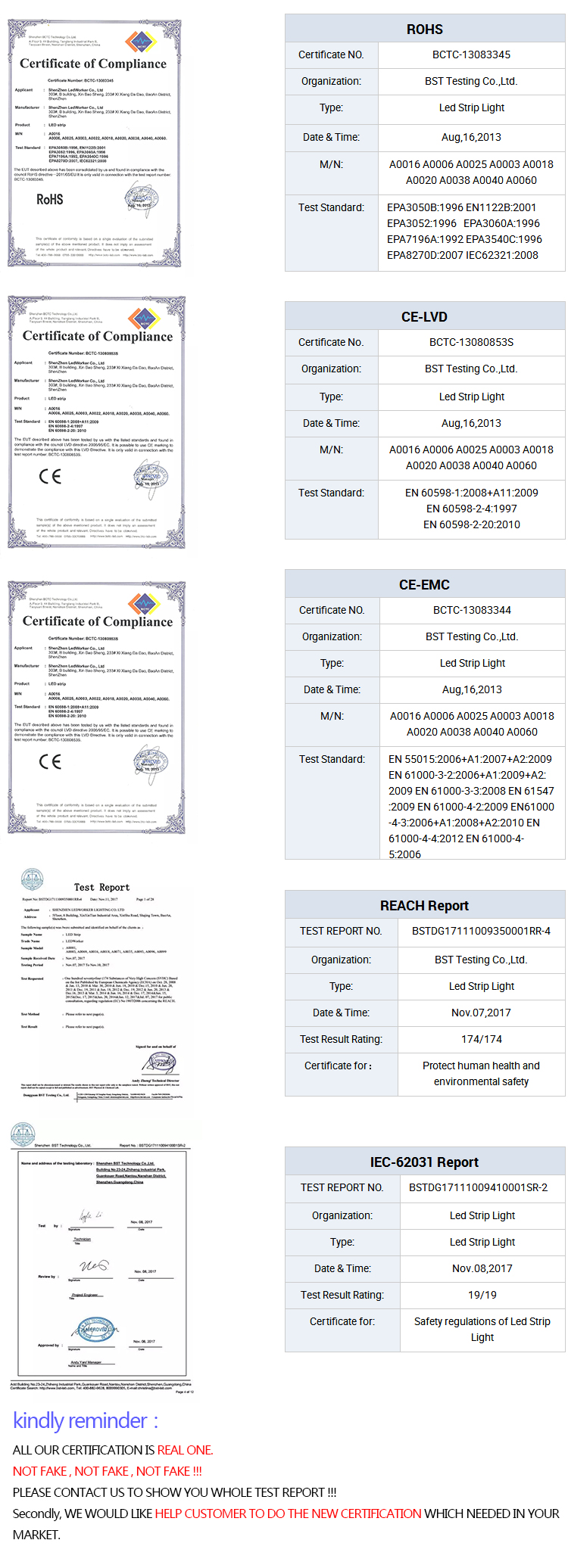

Certifications

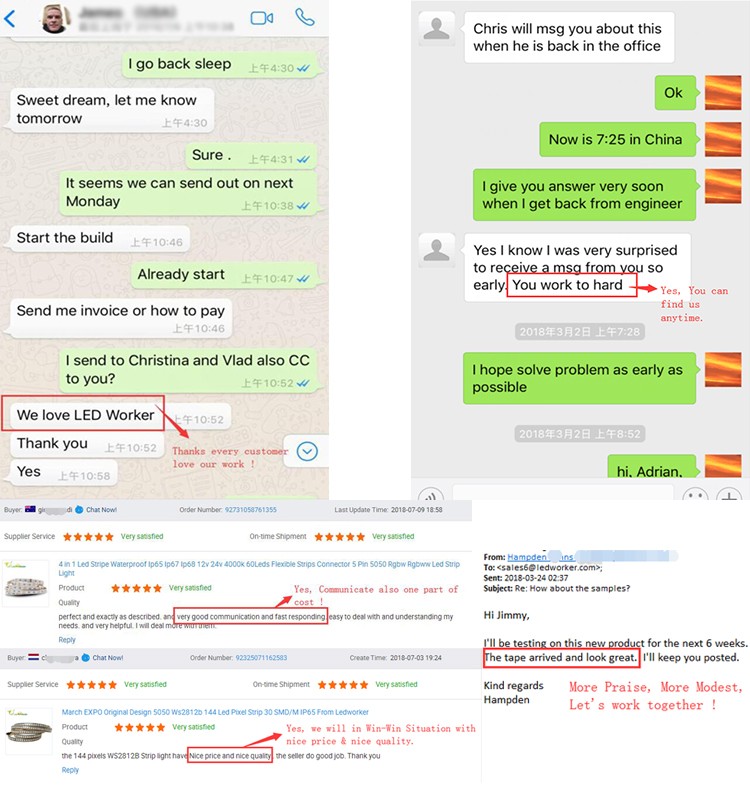

Feedback:
WORLD -WIDE CUSTOMERS COMMENTS & FEEDBACK
Here is some of comments from our world-wide customers.
You can check all the comments at our company profile .
Please visit www.ledworker.en.alibaba.com --> Click"Company profile
--> choose"Rating&Reviews"
Then you can see all comments from our clients.
Please note : all our customer comments is real one , NOT FAKE .
[ TRUST YOU WILL LIKE OUR SERVICES, QUALITY AND PRICE ]

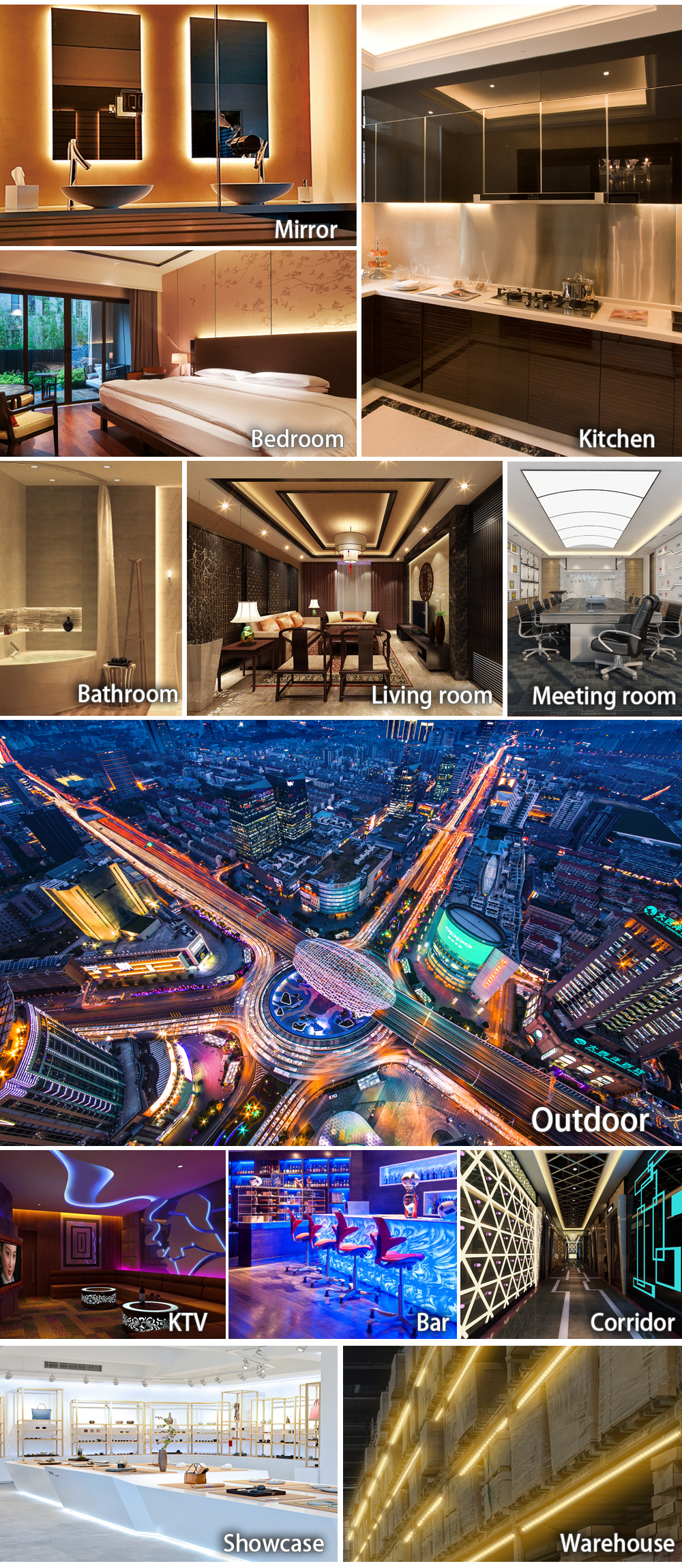

Application
Our Company
Hot Sales

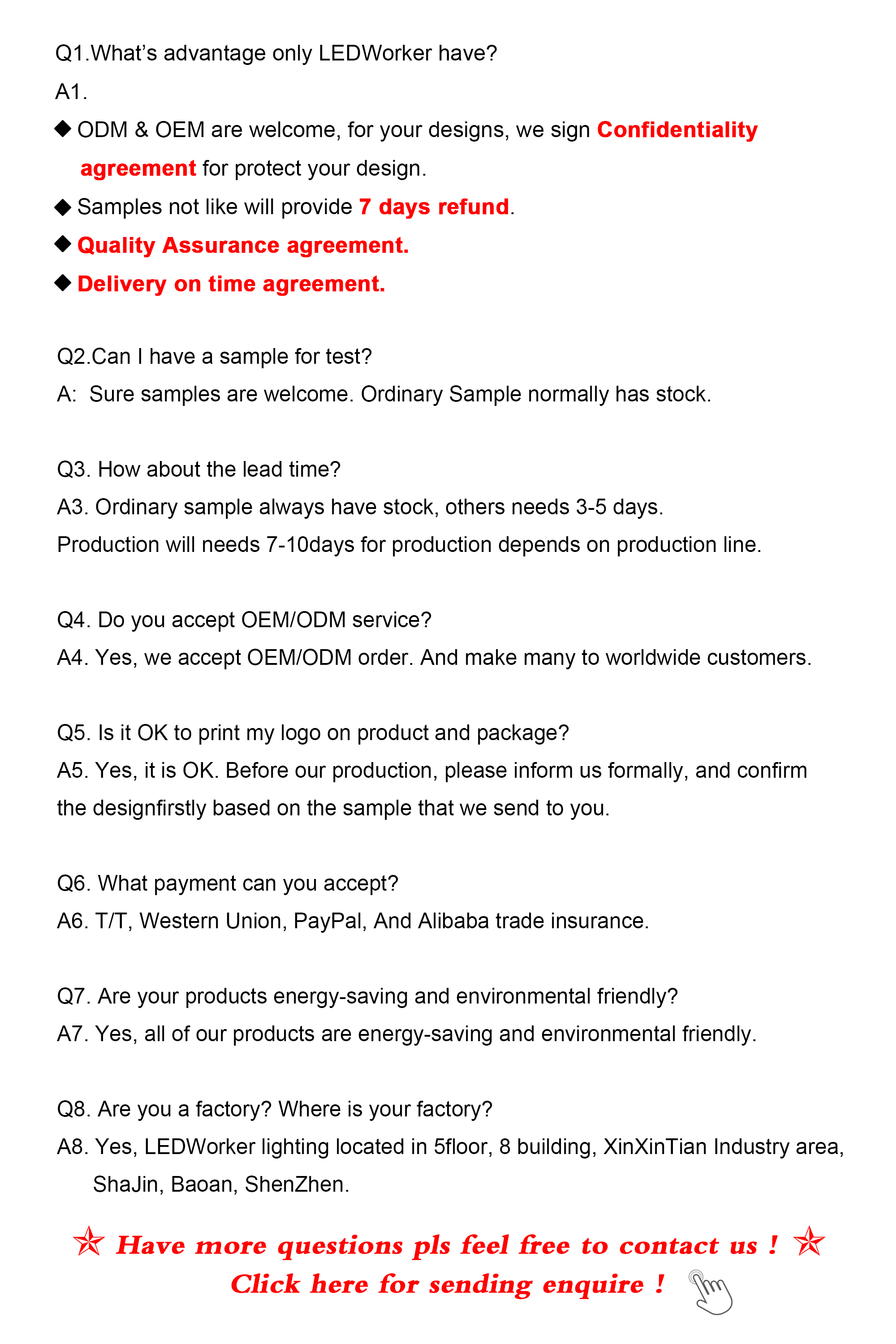

FAQ
