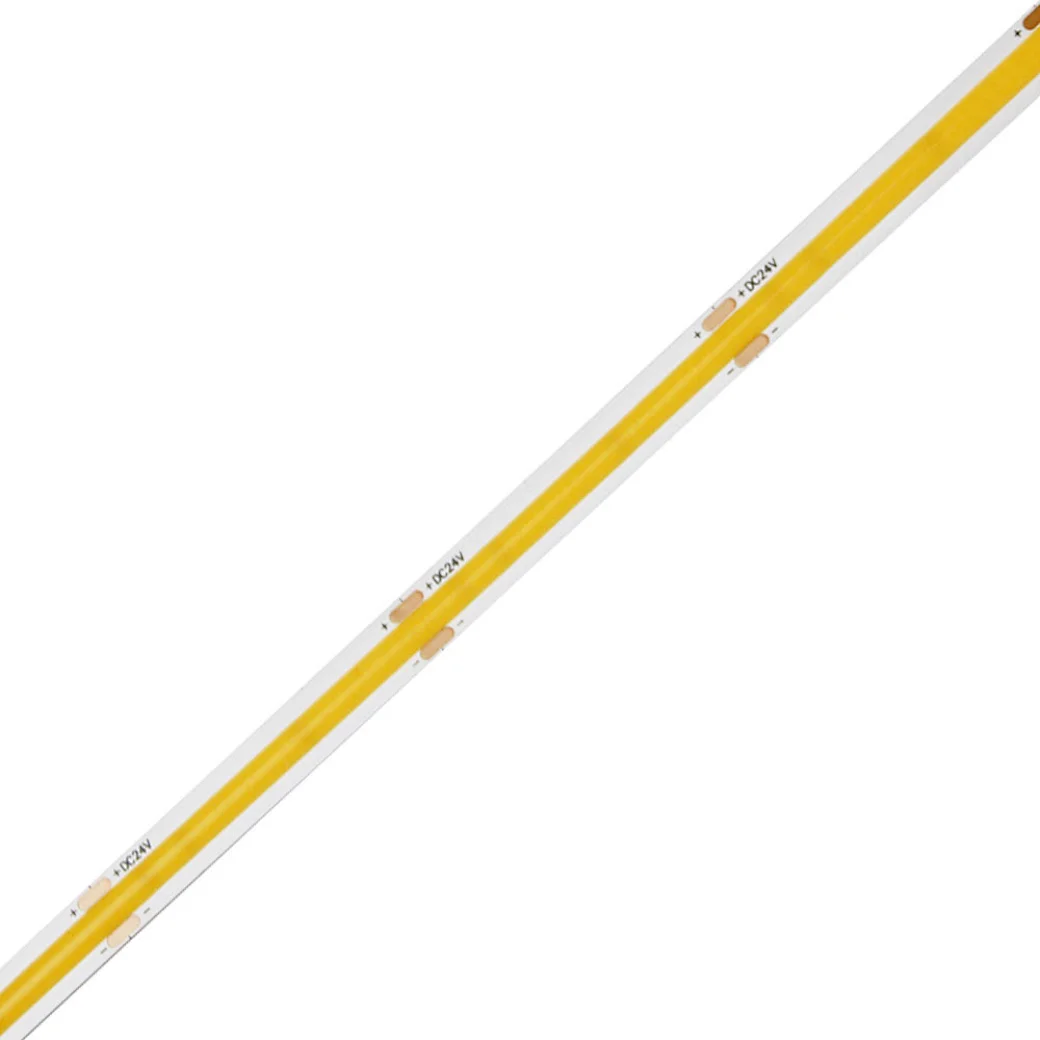

China hot selling Warm White red green rgb 6mm 10mm ip67 5M house outdoor Cob led strip light
LW-COB013
Minimum order quantity:
1
Quantity
- IP Rank:IP20,IP67
- Color:CW,WW,
- Type::Flexible COB Led Strip
- Voltage:DC 12/24V
- LED Quantity:480leds/m
- Application:Decorative Lighting
- Product Name:Cob led strip
- PCB Color:white,
- Warranty:2years
- Lamp Luminous Efficiency(lm/w):100
- Color Rendering Index(Ra):90
- Support Dimmer:Yes
- Lighting solutions service:Lighting and circuitry design
- Lighting solutions service:Project Installation
- Working Time (hours):50000
- Lamp Body Material:Copper
- Certification:ce
- Certification:EMC
- Certification:FCC
- Certification:LVD
- Certification:RoHS
- Certification:Reach
- Certification:Saa
- Certification:VDE
- Application:Hotel
- Light Source:LED
- Switch Mode:Remote Control
- IP Rating:Ip20
- Place of Origin:CN
- Input Voltage(V):DC 24V
- CRI (Ra>):90
- Working Temperature(℃):-20 - 60
- Working Lifetime(Hour):50000
- Brand Name:ledworker
- Model Number:LW-COB013
- Warranty(Year):2-Year
Competitive products

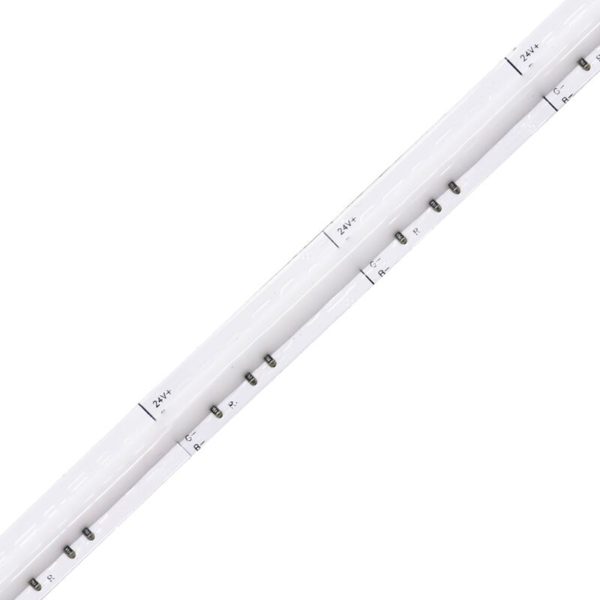

Dual Color strip cob rgb 2812 rgb
Product Description
Advantage: | 1, 378pcs COB strip 2, High effective LM | 1, 480pcs COB strip 2, Economy type | 1, 480pcs COB strip 2, Three different 6/8/10mm width Choose | 1, 504pcs COB strip 2, High brightiness | 1, 512pcs COB strip 2, Single Red, Single Blue, Single Green |
Part NO: | LW-COB003 | LW-COB012 | LW-COB013 | LW-COB005 | LW-COB014 |
LED Qty: | 378pcs per meter | 480pcs per meter | 480pcs per meter | 504pcs per meter | 512pcs per meter |
CRI (RA) | 90 | 80 | 90 | 90 | 90 |
PCB Width IP20: | 10mm width | 8mm width | 10mm width | 10mm width | 8mm width |
Input Voltage: | DC24V /12 | DC24V /12 | DC24V /12 | DC24V | DC24V |
Watts: | DC24V=14W /12V=10W | 9W | DC24V=14W /12V=10W | DC24V=14W | DC24V=10W |
Luminous Flux: | 100LM / W | 90LM / W | 100LM / W | 100LM / W | .– |

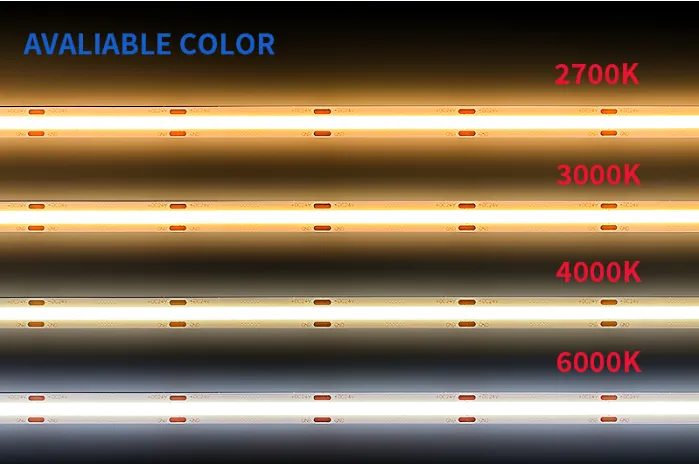

Color: | 2700/3000/4000/6000K | 2700/3000/4000/6000K | 2700/3000/4000/6000K | 2700/3000/4000/6000K | R or G or B |
PCB color: | White | White | White | White | Red, Green, Blue |
IP Grade: | IP20 | IP20 | IP20 | IP20 | IP20 |
Operating temperature: | .-25 to 45℃ | .-25 to 45℃ | .-25 to 45℃ | .-25 to 45℃ | .-25 to 45℃ |
Beam angle: | 180 degree | 180 degree | 180 degree | 180 degree | 180 degree |
Certification: | CE; RoHS | CE; RoHS | CE; RoHS | CE; RoHS | CE; RoHS |
Max Run: | 5M | 5M | 5M | 5M | 5M |
Min Run: | 24V 55.5mm 12V 23.8mm | 24V 50mm 12V 25mm | 24V 50mm 12V 25mm | 24V 41.67mm 12V 23.8mm | 24V 62.5mm |
Productdetails:

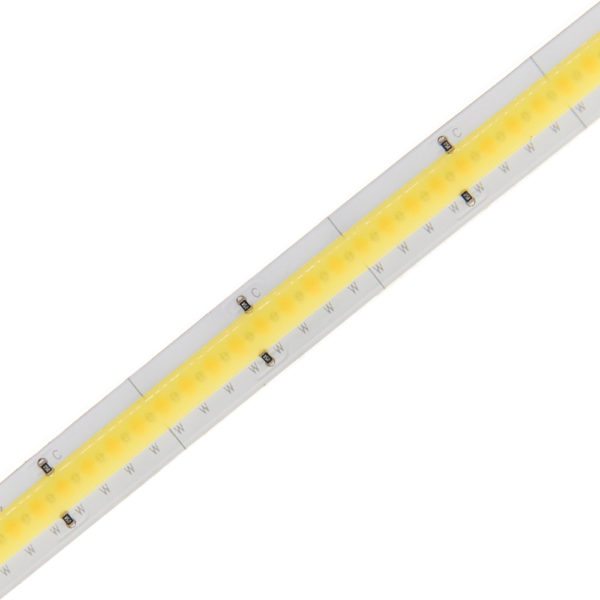

1. New Technology, Chips On PCB Directly. Dot Free type.
2. High Color Efficiency, Uniform Illumination.
3. Single Color: 2700k, 3000k, 4000k, 6000k , Red, Green, Blue, Yellow. Also have RGB COB, Dual color type, 360 degree COB Led
Strip. Constant current /High Voltage Type is developing.
4. All of Materials Are Accord With Rohs / CE / REACH Standards.
5. Easy to Install and Preserve;can Be Bent Freely; With 3m Adhesive Tape On the Backside.

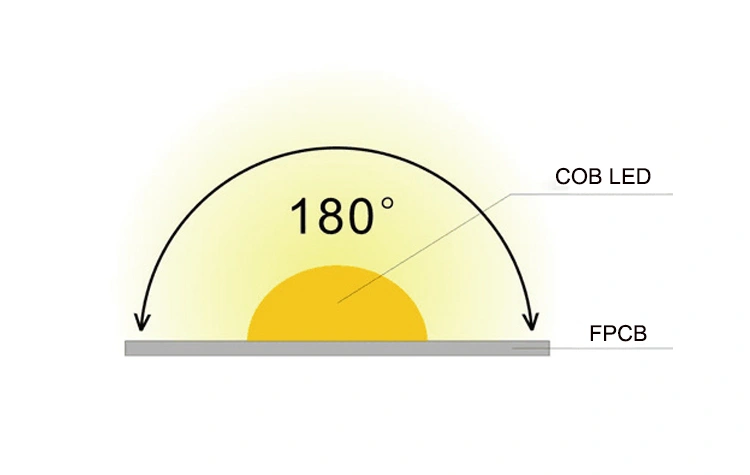

6. Beam Angle 180°.
7. As a manufacturer, we can customize different lengths, board width, voltage, power, color temperature and color rendering index
according to customer requirements.
2. High Color Efficiency, Uniform Illumination.
3. Single Color: 2700k, 3000k, 4000k, 6000k , Red, Green, Blue, Yellow. Also have RGB COB, Dual color type, 360 degree COB Led
Strip. Constant current /High Voltage Type is developing.
4. All of Materials Are Accord With Rohs / CE / REACH Standards.
5. Easy to Install and Preserve;can Be Bent Freely; With 3m Adhesive Tape On the Backside.
6. Beam Angle 180°.
7. As a manufacturer, we can customize different lengths, board width, voltage, power, color temperature and color rendering index
according to customer requirements.

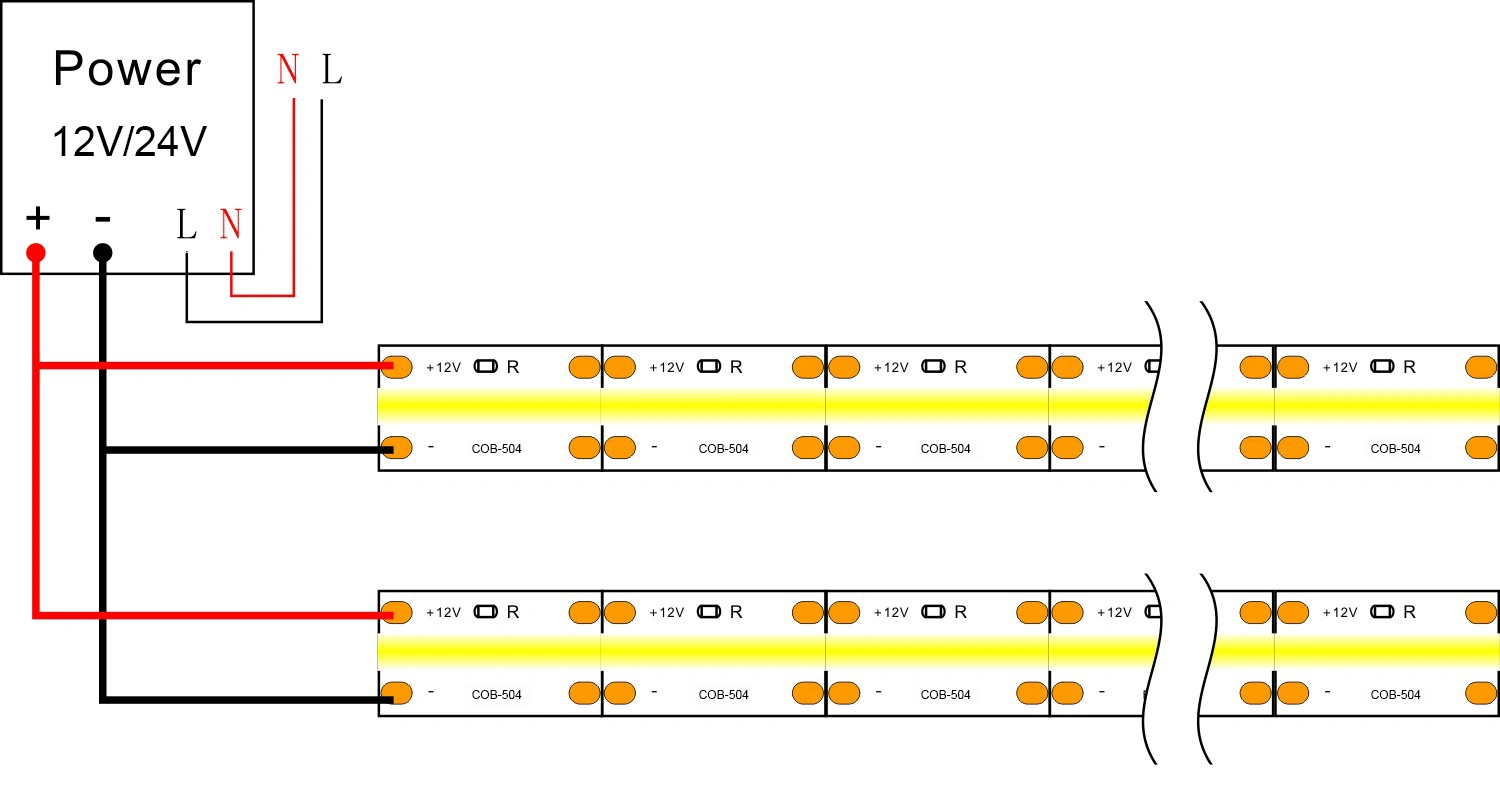

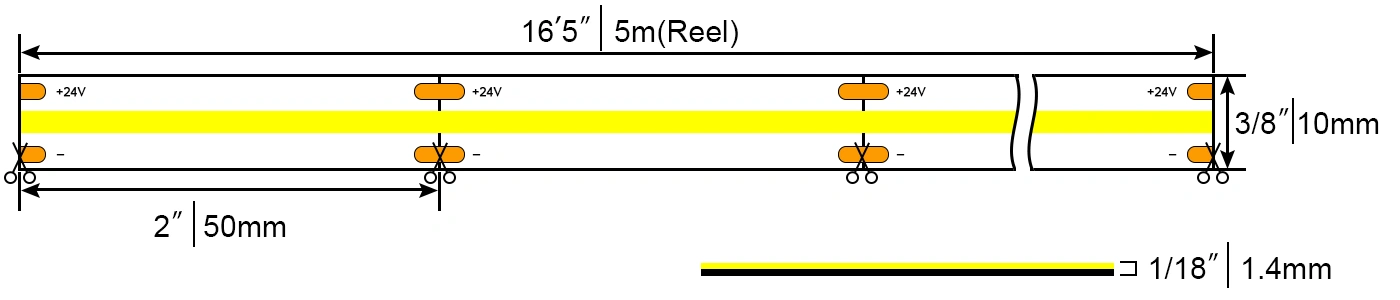

Connect drawing:

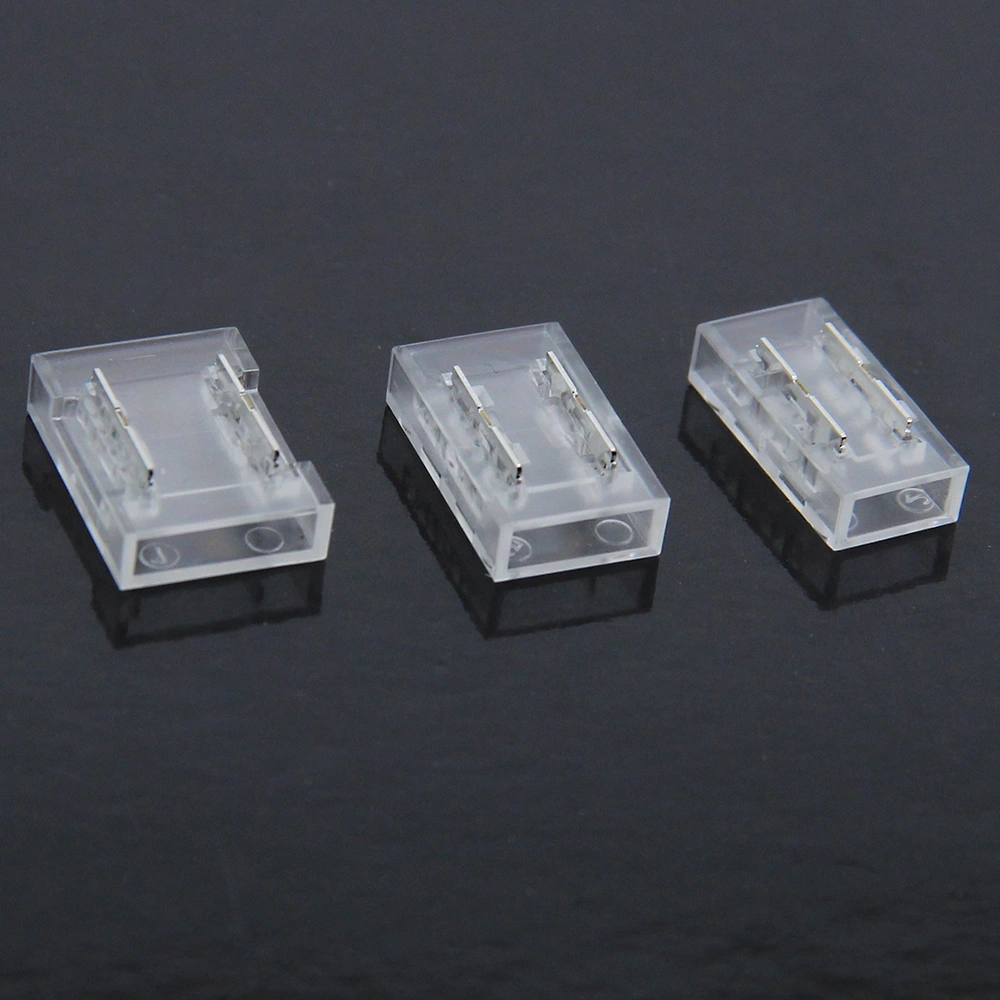

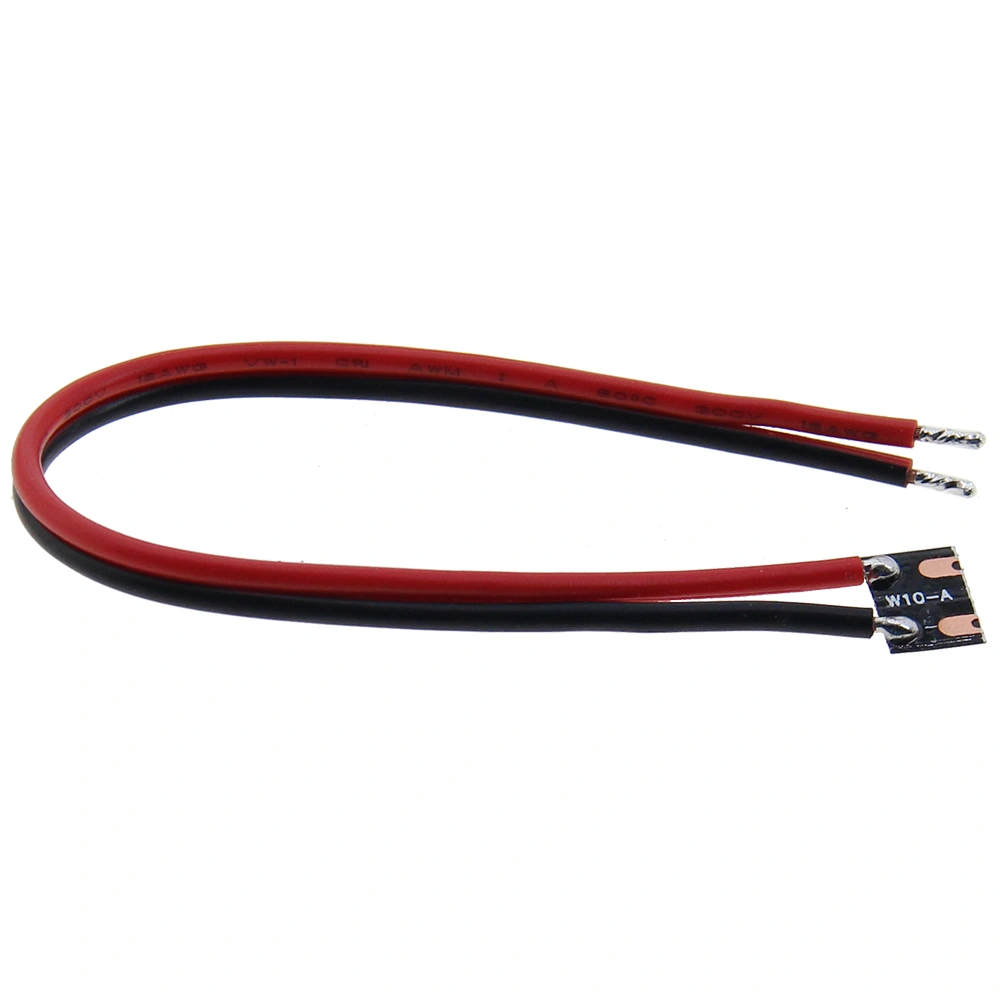

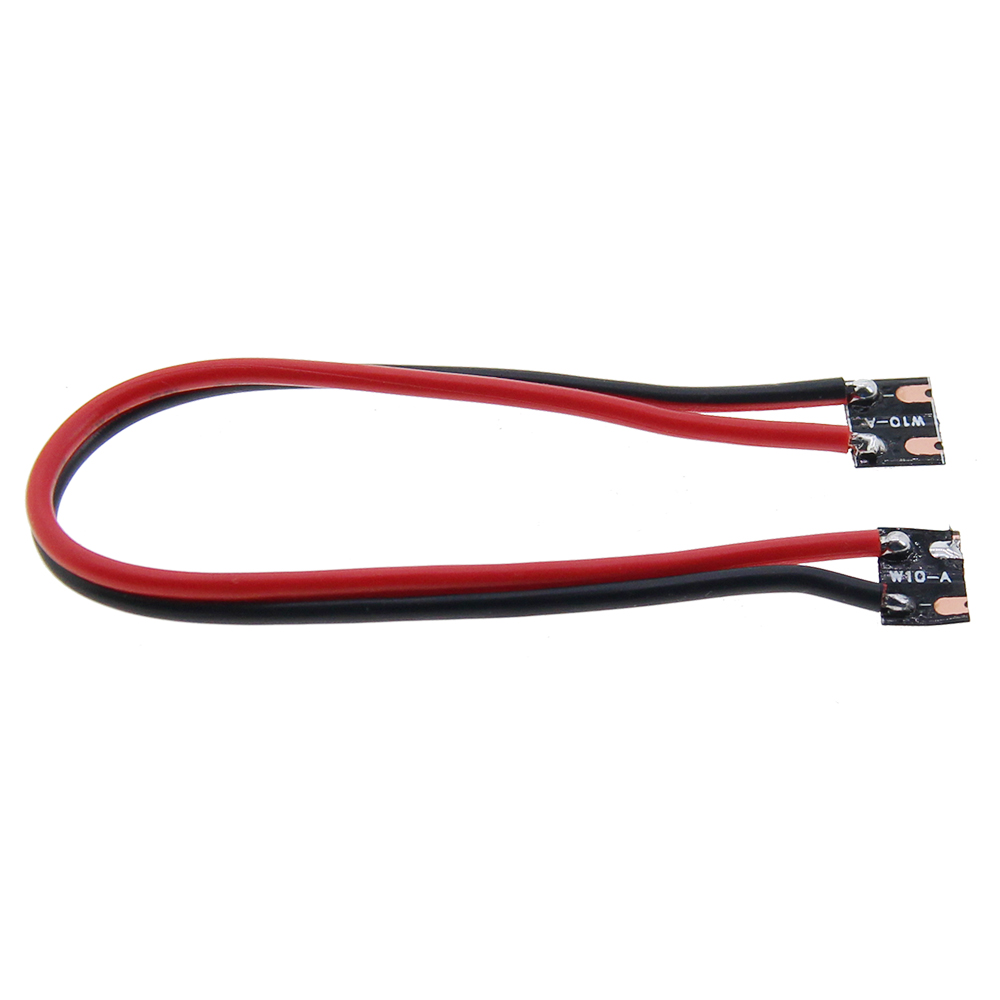

Accessories:

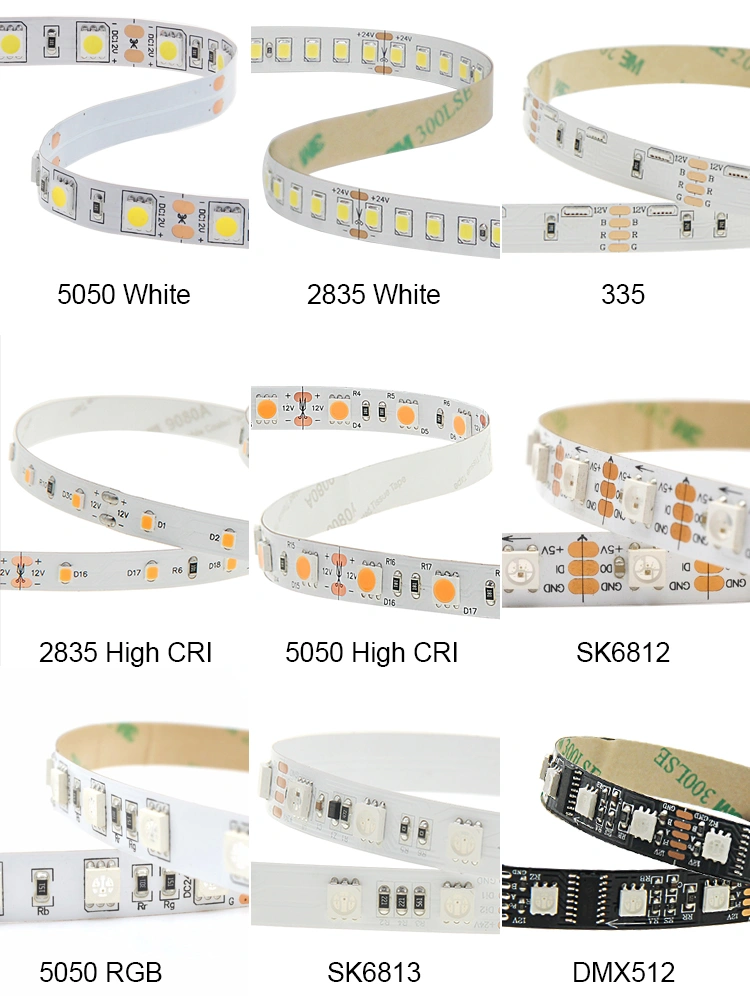

Variety of led strips:
3528/5050/3014/335/5730/2835 led strip,IP20/IP40/IP65/IP67/IP68 led strip,Neon Flex,Normal brightness/High brightness/Super brightness/High CRI/Hybrid brightness led strip,Unique led strip,Colorful / white led strips...
2835SMD High CRI >95 | ||||||||||||
2835 60SMD/M 2835 120SMD/M | IP20 | 2600-2800K 2900-3200K 3800-4300K 5000-5500K 6000-6500K | 5000*8*2.3mm | 12V/24V DC | 72W±10% | |||||||
IP65 | 5000*8*2.3mm | |||||||||||
IP67 | 5000*10*4.3mm | 12V DC | 144W±10% | |||||||||
IP68 | 5000*10*4.3mm | |||||||||||
5050SMD High CRI >95 | ||||||||||||
5050 60SMD/M | IP20 | 2600-2800K 2900-3200K 3800-4300K 5000-5500K 6000-6500K | 5000*8*2.3mm | 12V/24V DC | 60W±10% | |||||||
IP65 | 5000*8*2.3mm | |||||||||||
IP67 | 5000*10*4.3mm | |||||||||||
IP68 | 5000*10*4.3mm | |||||||||||
2835SMD Led Strip | ||||||||||||
2835 60SMD/M 2835 120SMD/M | IP20 | 2600-2800K 2900-3200K 3800-4300K 5000-5500K 6000-6500K 7000-9000K | 5000*8*2.3mm | 12V/24V DC | 60W±10% | |||||||
IP65 | 5000*8*2.3mm | |||||||||||
IP67 | 5000*10*4.3mm | 144W±10% | ||||||||||
IP68 | 5000*10*4.3mm | |||||||||||
3528SMD Led Strip | ||||||||||||
3528 30SMD/M 3528 60SMD/M 3528 120SMD/M | IP20 | 2600-2800K 2900-3200K 3800-4300K 5000-5500K 6000-6500K 7000-9000K | 5000*8*2.3mm | 12V/24V DC | 10W±10% 20W±10% 40W±10% | |||||||
IP65 | 5000*8*2.3mm | |||||||||||
IP67 | 5000*10*4.3mm | |||||||||||
IP68 | 5000*11*4.3mm | |||||||||||
5730SMD Led Strip | ||||||||||||
5730 60SMD/M | IP20 | 2600-2800K 2900-3200K 3800-4300K 5000-5500K 6000-6500K 7000-9000K | 5000*10*2.3mm | 12V/24V DC | 60W±10% | |||||||
IP65 | ||||||||||||
IP67 | ||||||||||||
IP68 | ||||||||||||
335SMD Led Strip | ||||||||||||
335 60SMD/M | IP20 | 2600-2800K 2900-3200K 3800-4300K 5000-5500K 6000-6500K 7000-9000K | 5000*10*2.3mm | 12V DC | 20W±10% | |||||||
IP65 | 5000*10*2.3mm | |||||||||||
IP67 | 5000*10*4.3mm | |||||||||||
Please Attention
WhyLEDworker Lighting :
1,NICE QUALITY.
2,ONLINE PAYMENT.
3,FULL LINE PRODUCTS.
4,AFTER SALES SERVICES 24/7.
5.FACTORY DIRECT PRICE. PRICE EFFECTIVE.
6,EXPERIENCES SALES, EASY COMMUNICATION.
7,NO MOQ , 1PCS OK . SMALL ORDER WELCOME.
8,QUICK SHIPPING WITHIN 3 - 5 DAYS. SAMPLES HAVE STOCK.
We are not just say it. We really do it !!!

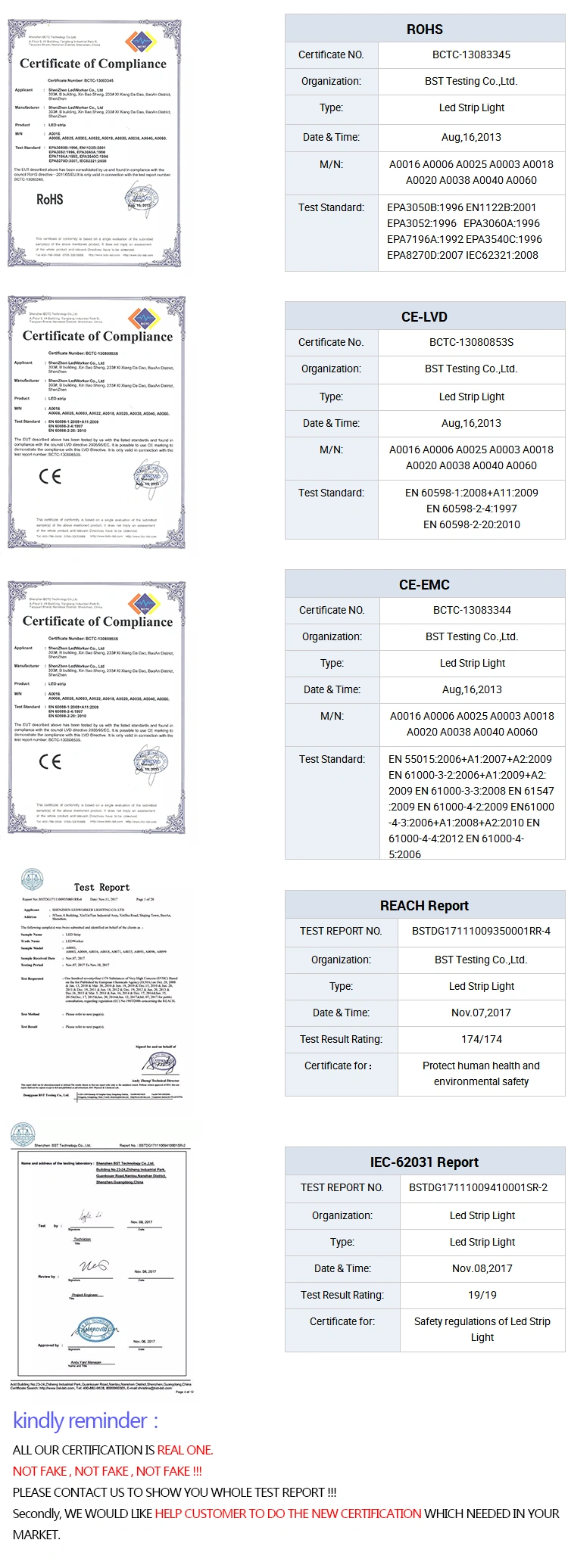

Certifications
Feedback:
WORLD -WIDE CUSTOMERS COMMENTS & FEEDBACK
Here is some of comments from our world-wide customers.
You can check all the comments at our company profile .
Please visit www.ledworker.en.alibaba.com --> Click"Company profile
--> choose"Rating&Reviews"
Then you can see all comments from our clients.
Please note : all our customer comments is real one , NOT FAKE .
[ TRUST YOU WILL LIKE OUR SERVICES, QUALITY AND PRICE ]

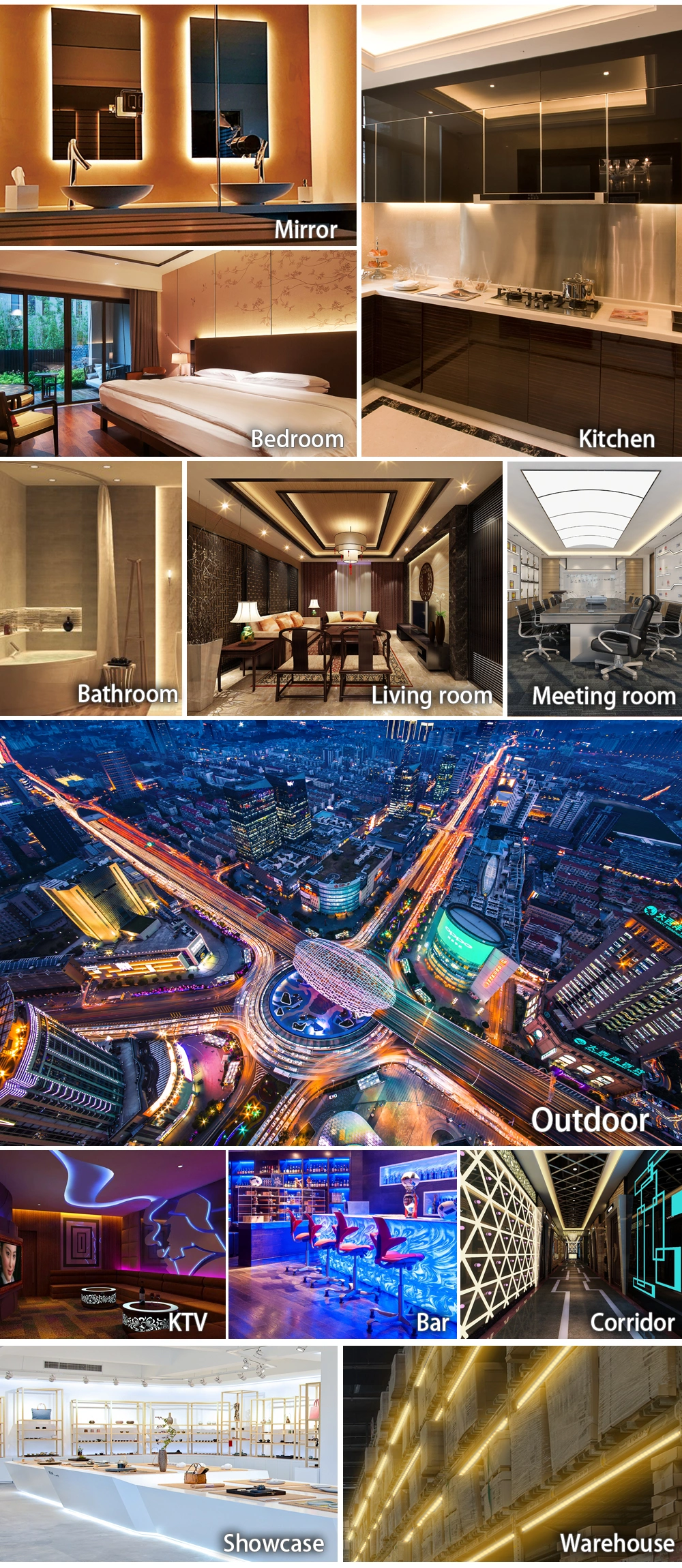

Application
