Model NO.
cob
Quantity:
  • IP Rank:IP20,IP65,IP67,IP68
  • Color:CW,WW,PW
  • PCB Color:white,black,brown
  • Product Name:Flexible LED Strip
  • LED Quantity:60leds/m
  • Application:Decorative Lighting
  • LED Type:Smd 5050 Led Chip
  • IP Rating:IP20/IP65/IP67/IP68
  • Warranty:2years
  • Voltage:DC24V/12V
  • Support Dimmer:Yes
  • Lighting solutions service:Lighting and circuitry design
  • Lighting solutions service:Project Installation
  • Lamp Body Material:Copper
  • Certification:ce
  • Certification:EMC
  • Certification:FCC
  • Certification:LVD
  • Certification:RoHS
  • Certification:Reach
  • Certification:Saa
  • Certification:VDE
  • Application:Hotel
  • Light Source:LED
  • Warranty(Year):3-Year
  • IP Rating:IP67
  • IP Rating:Ip20
  • Place of Origin:CN
  • Input Voltage(V):DC 12V/24V
  • Lamp Luminous Flux(lm):18-20lm/led
  • CRI (Ra>):80
  • Working Temperature(℃):-20 - 60
  • Working Lifetime(Hour):50000
  • Brand Name:ledworker
  • Model Number:cob
Product Description

Parameters:

Advantage:

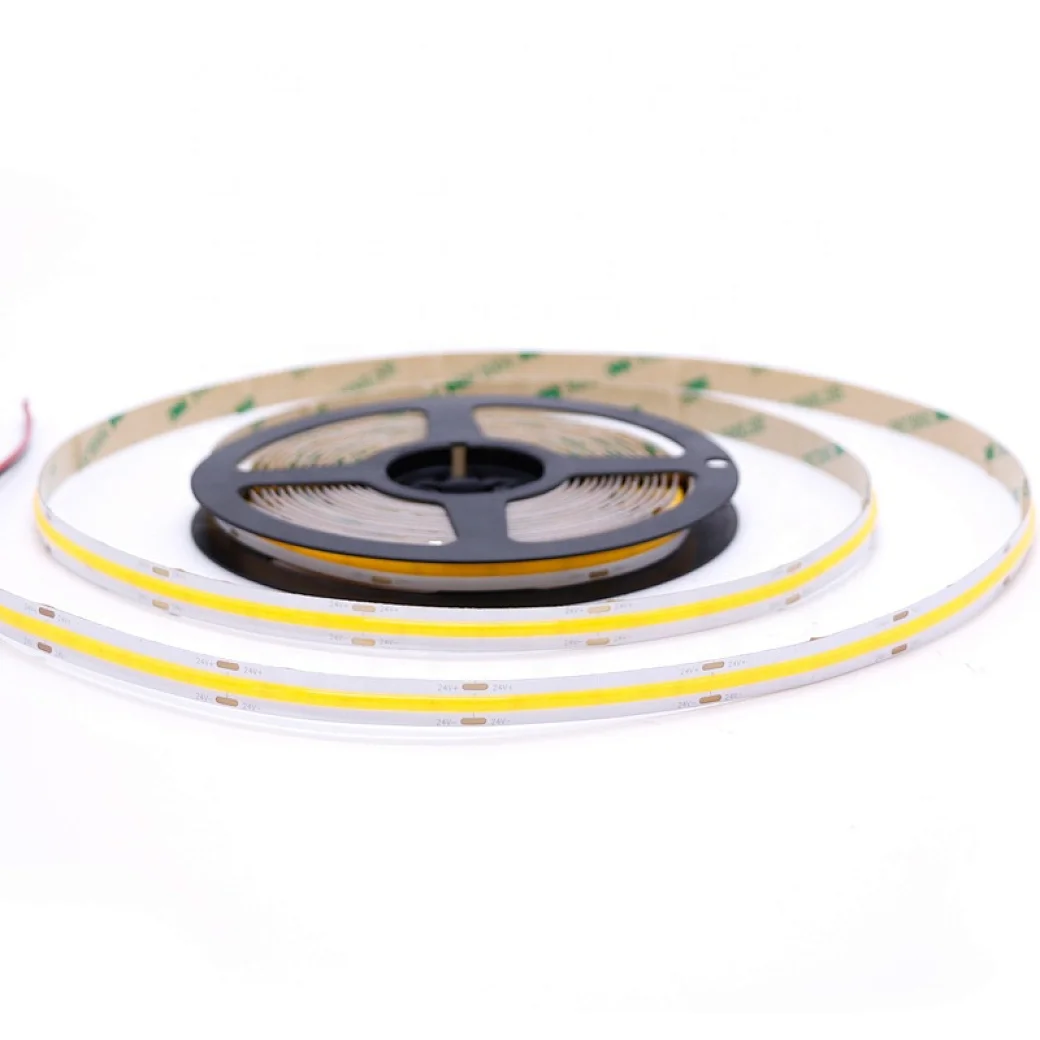

1, 378pcs COB strip
1, 480pcs COB strip
1, 480pcs COB strip
1, 504pcs COB strip
1, 512pcs COB strip
Part NO:
LW-COB003
LW-COB012
LW-COB013
LW-COB005
LW-COB014
LED Qty:
378pcs per meter
480pcs per meter
480pcs per meter
504pcs per meter
512pcs per meter
CRI (RA)
90
80
90
90
90
PCB Breite IP20:
10mm width
8mm width
10mm width
10mm width
8mm width
Eingangsspannung:
DC24V /12
DC24V /12
DC24V /12
DC24V
DC24V
Watts:
DC24V=14W /12V=10W
9W
DC24V=14W /12V=10W
DC24V=14W
DC24V=10W
Luminous Flux:
100LM / W
90LM / W
100LM / W
100LM / W
.–
Farbe:
2700/3000/4000/6000K
2700/3000/4000/6000K
2700/3000/4000/6000K
2700/3000/4000/6000K
R or G or B
PCB Farbe:
White
White
White
White
Red, Green, Blue
IP Grade:
IP20
IP20
IP20
IP20
IP20
Betriebstemperatur:
.-25 to 45℃
.-25 to 45℃
.-25 to 45℃
.-25 to 45℃
.-25 to 45℃
Abstrahlwinkel:
180 degree
180 degree
180 degree
180 degree
180 degree
Zertifizierung:
CE; RoHS
CE; RoHS
CE; RoHS
CE; RoHS
CE; RoHS
Max Run:
5M
5M
5M
5M
5M
Min Run:
24V 55.5mm
24V 50mm
24V 50mm
24V 41.67mm
24V 62.5mm
12V 23.8mm
12V 25mm
12V 25mm
12V 23.8mm

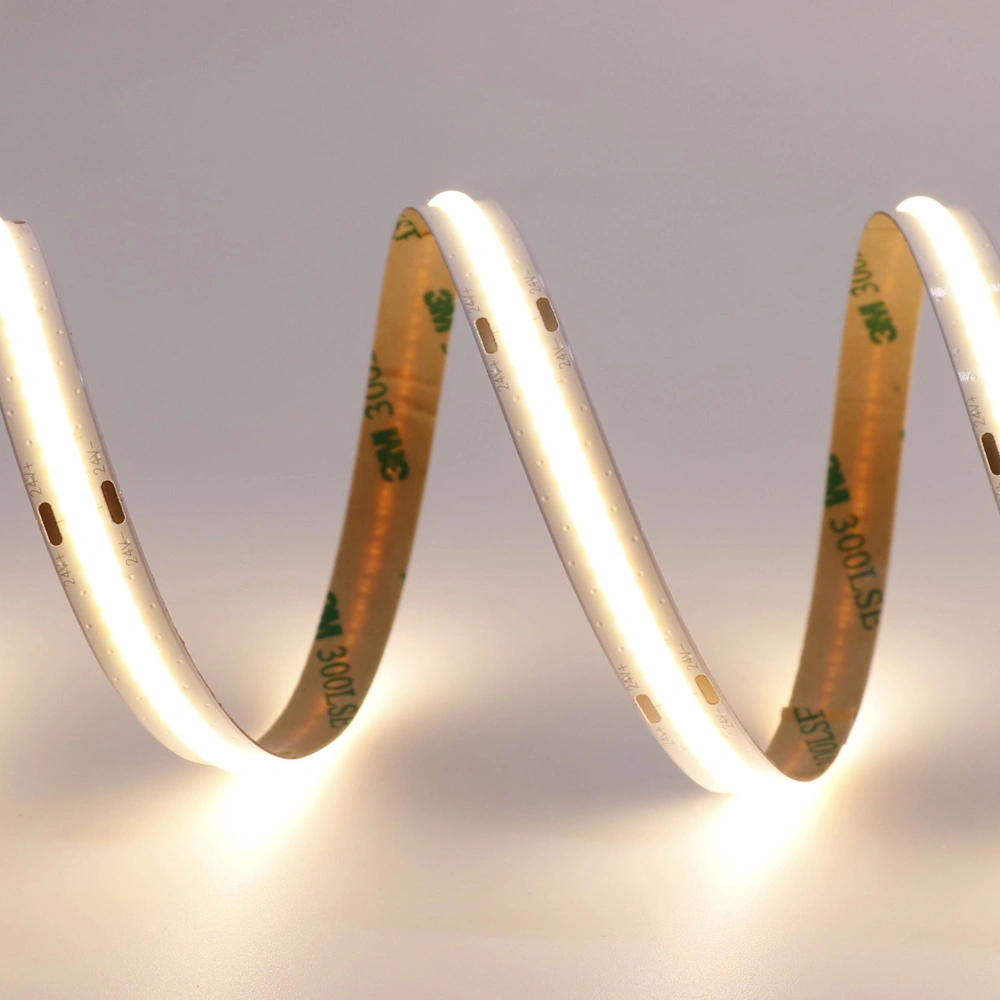

Product Characteristic:

1.Color:2700K、3000K、4000K、6000K .
2.All of materials are accord with RoHS standards.
3.Easy to install and preserve;can be bent freely; with 3M adhesive tape on the backside.
4.High color efficiency, uniform illumination.
5.Beam angle 180°.

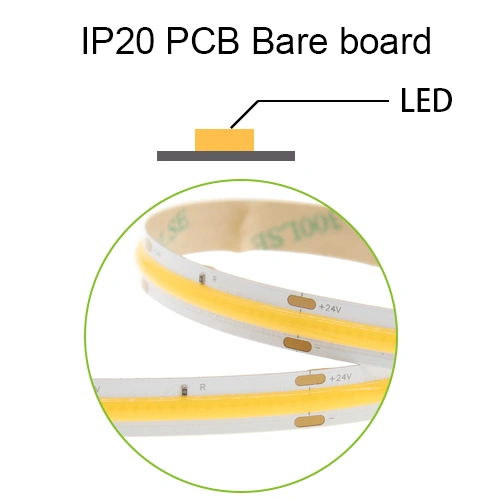

6.IP20-- non-waterproof

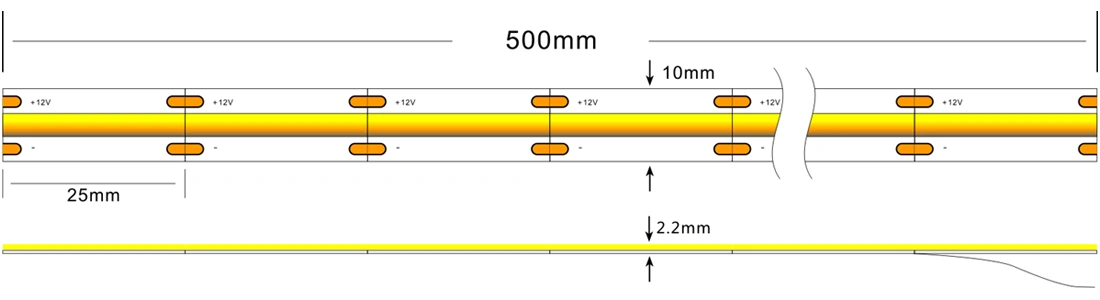

12V- 10mm
24V- 10mm

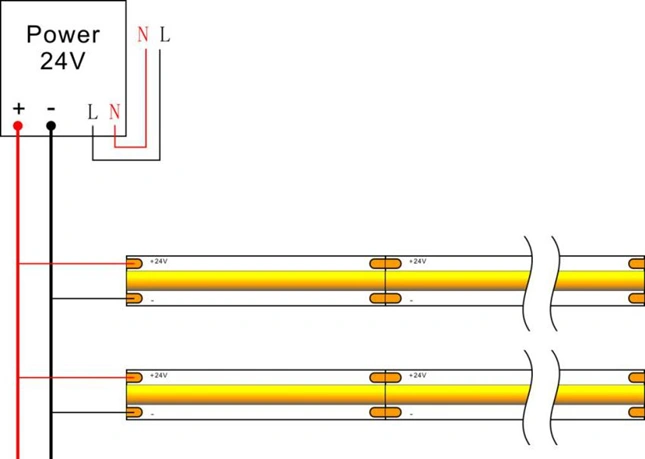

Connect Drawing:

What is high CRI?

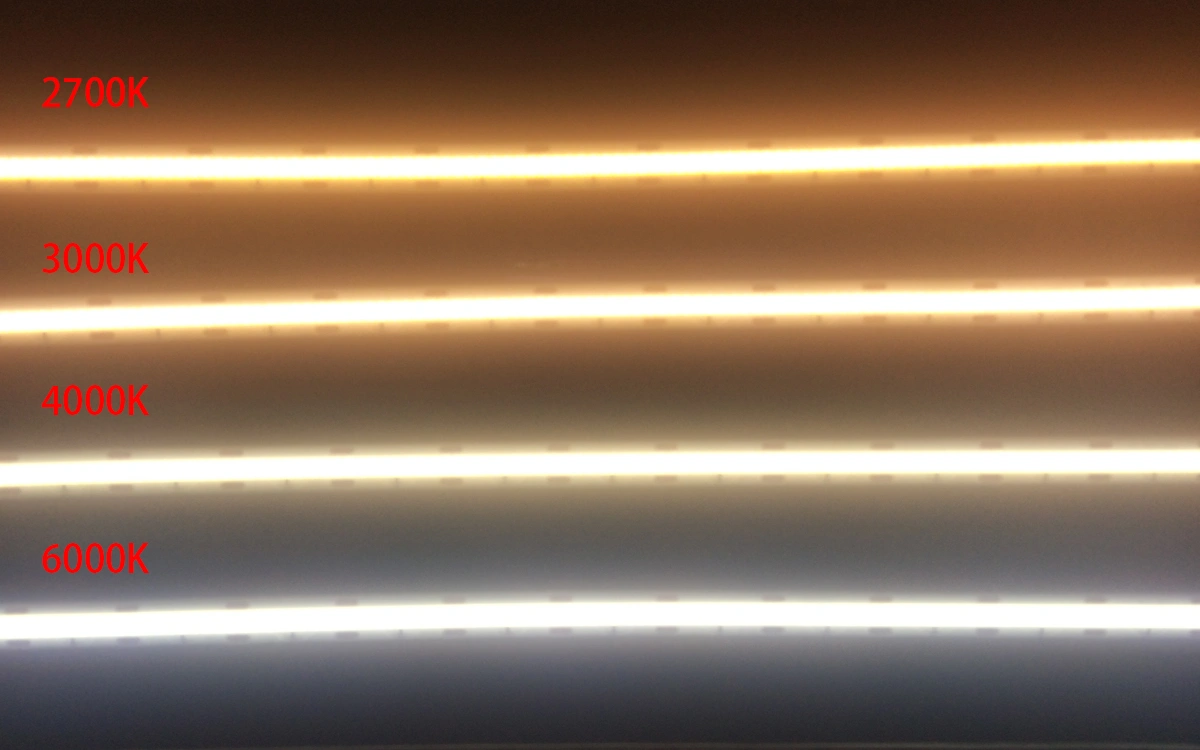

Color temperture:

COB led strip only suggest Non waterproof type.

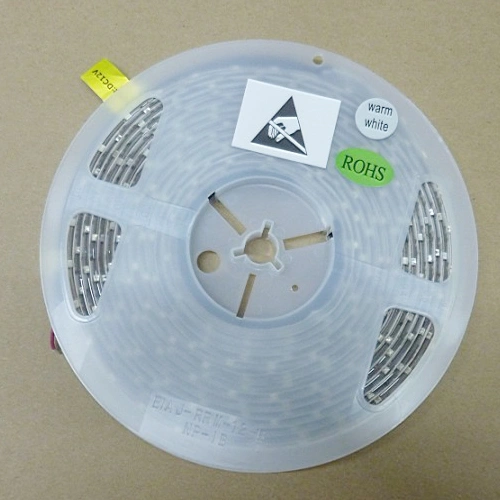

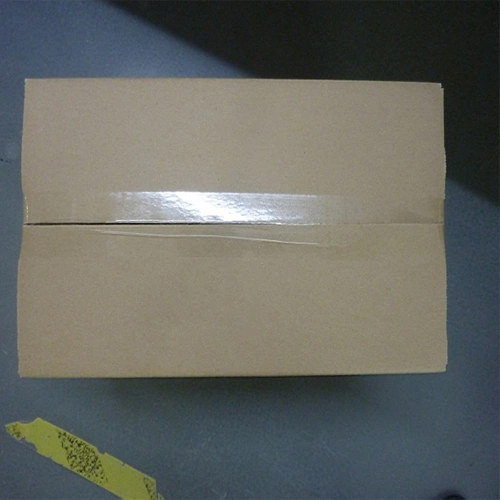

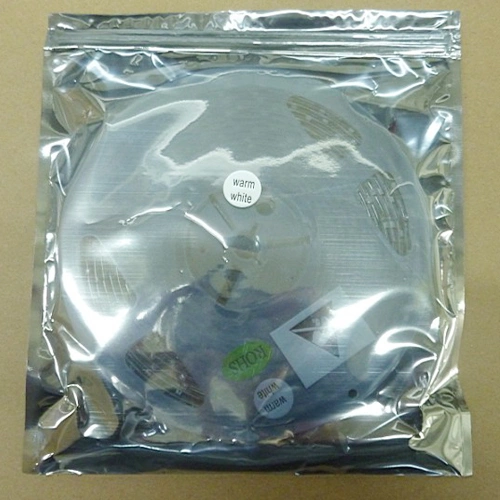

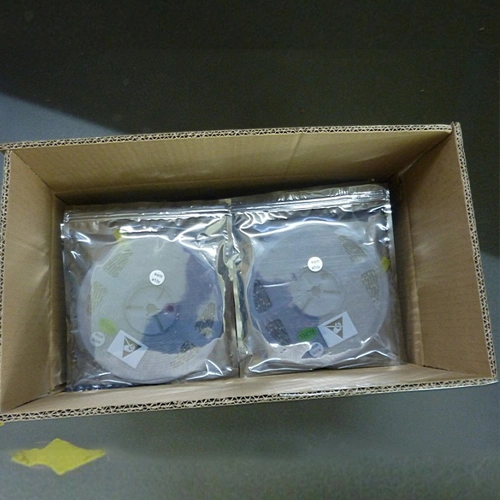

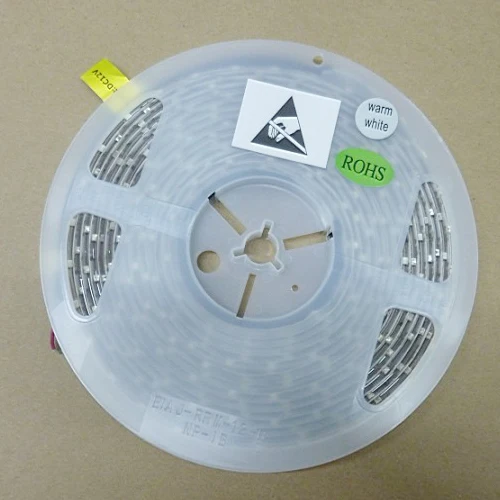

Packaging:
Please Attention

WhyLEDworker Lighting :

1,NICE QUALITY.
2,ONLINE PAYMENT.
3,FULL LINE PRODUCTS.
4,AFTER SALES SERVICES 24/7.
5.FACTORY DIRECT PRICE. PRICE EFFECTIVE.
6,EXPERIENCES SALES, EASY COMMUNICATION.
7,NO MOQ , 1PCS OK . SMALL ORDER WELCOME.
8,QUICK SHIPPING WITHIN 3 - 5 DAYS. SAMPLES HAVE STOCK.

We are not just say it. We really do it !!!

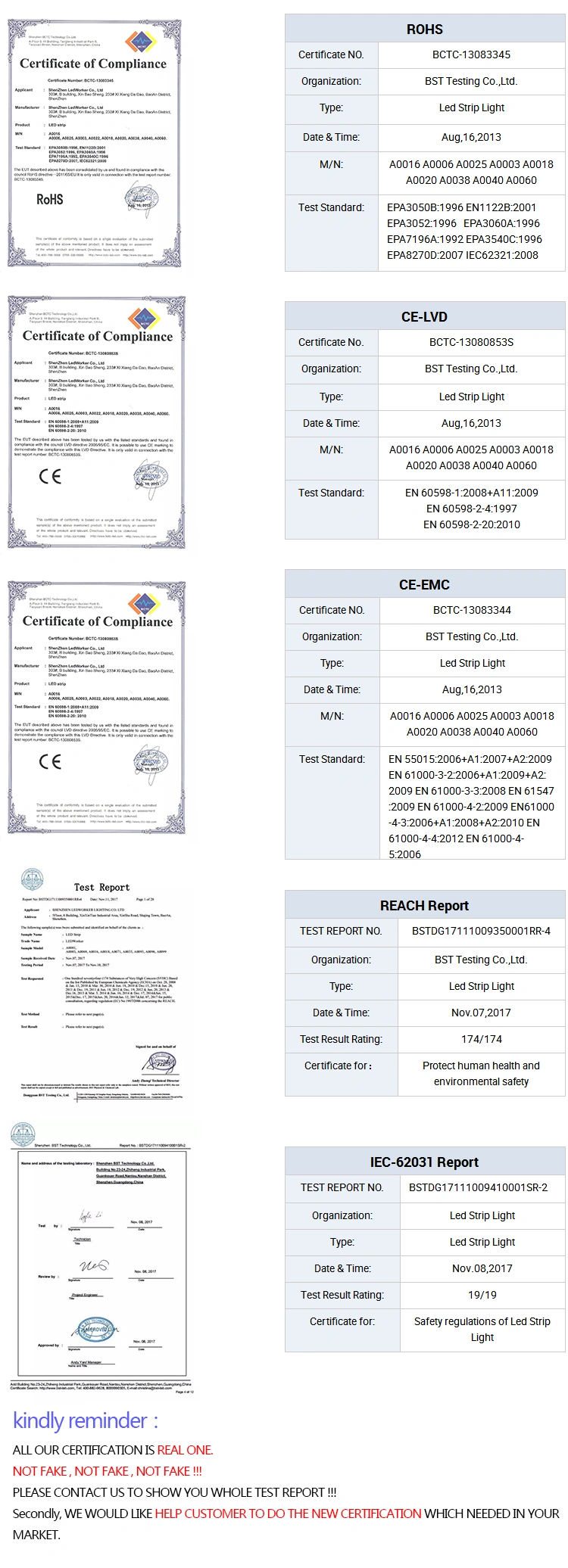

Certifications

Feedback:

WORLD -WIDE CUSTOMERS COMMENTS & FEEDBACK

Here is some of comments from our world-wide customers.
You can check all the comments at our company profile .

Please visit www.ledworker.en.alibaba.com --> Click"Company profile
--> choose"Rating&Reviews"
Then you can see all comments from our clients.

Please note : all our customer comments is real one , NOT FAKE .

[ TRUST YOU WILL LIKE OUR SERVICES, QUALITY AND PRICE ]

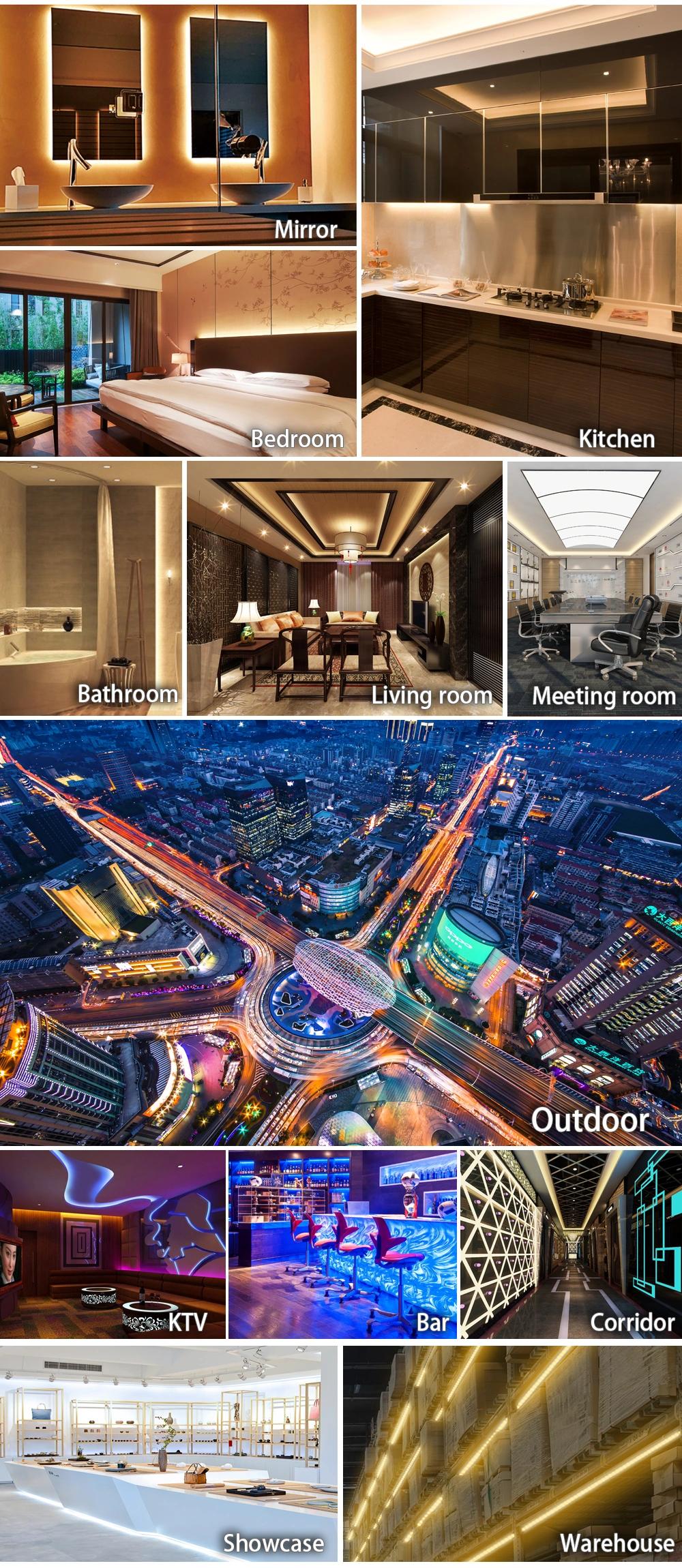

Application
Our Company
New Design

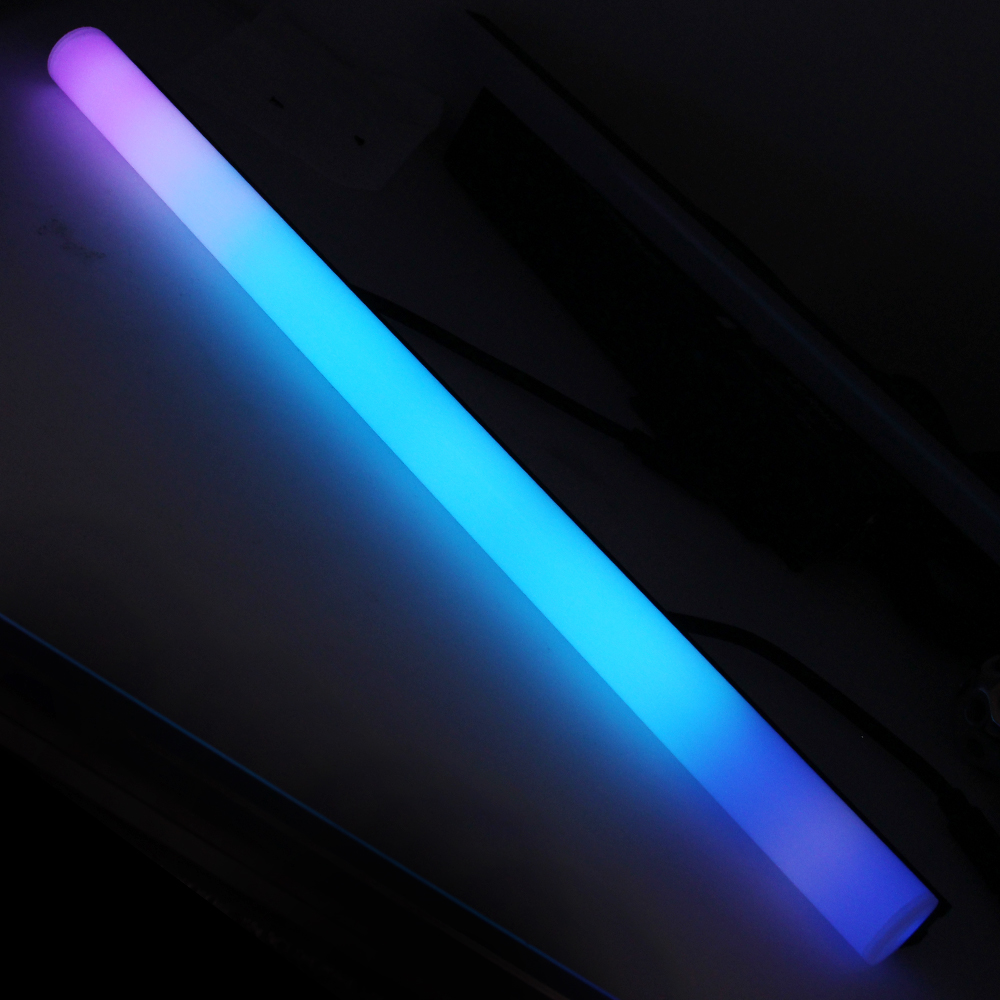

Pixel Bar
24V individual strip
High Speed HD107S
Hot Sales

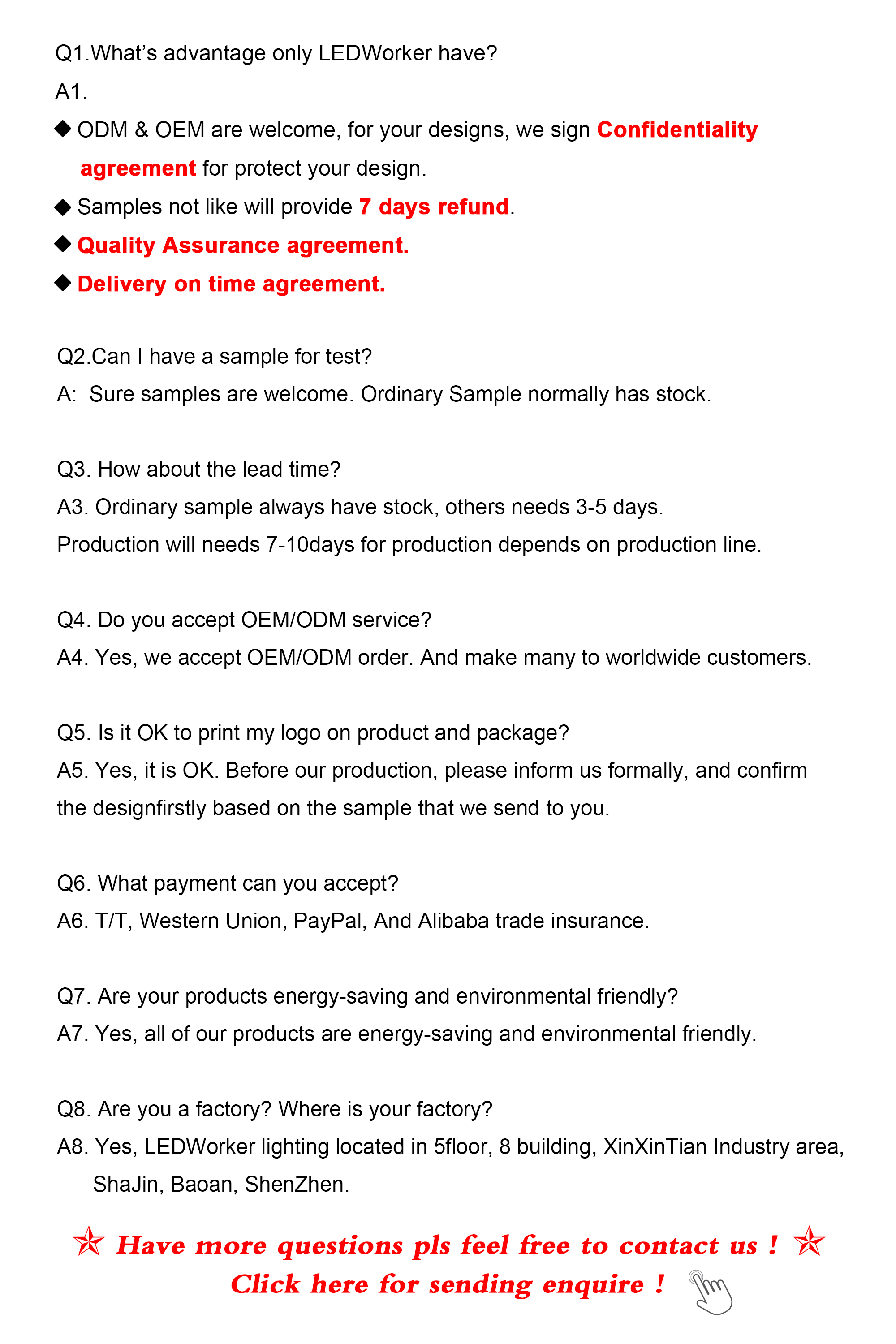

FAQ
