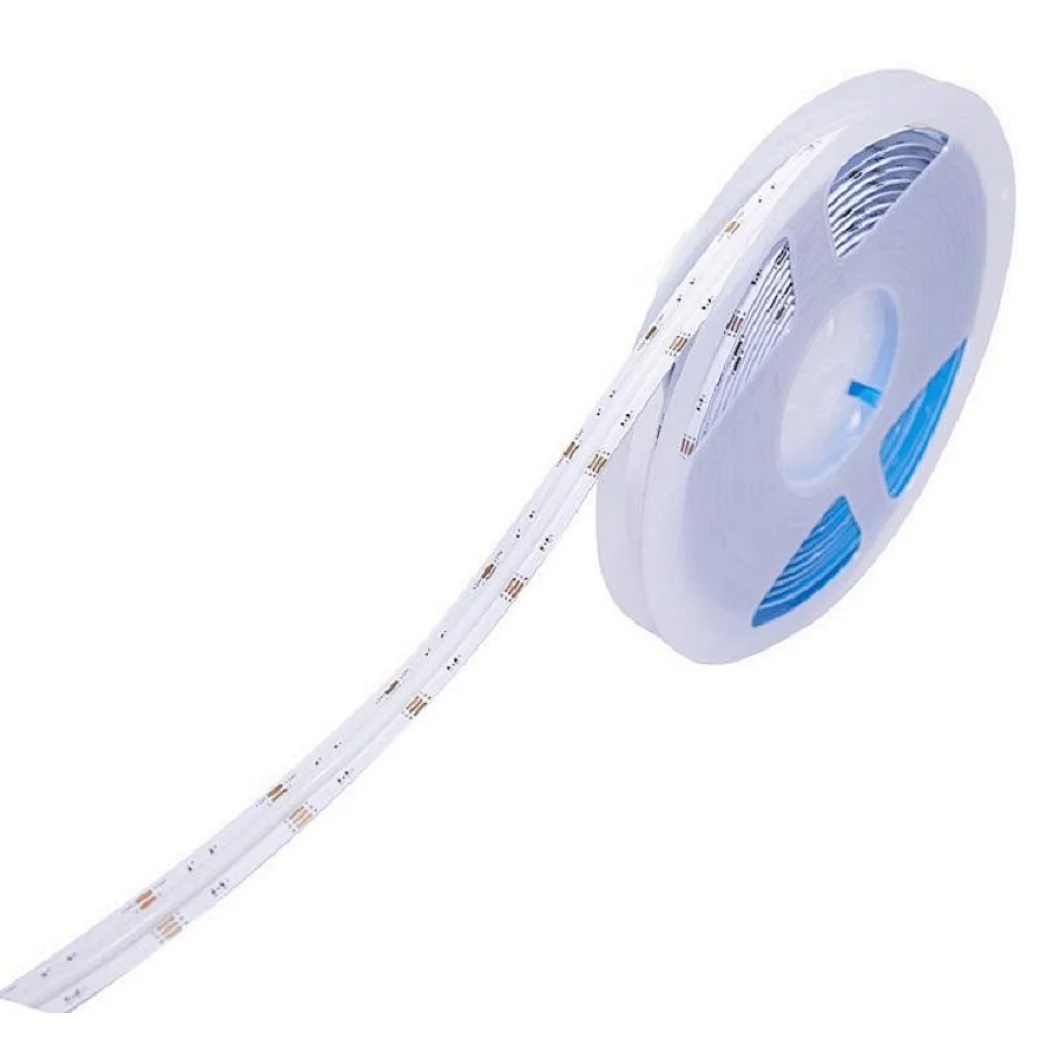

DC 24V 220v 12w 9w cob rgbw led strip cob led strip light
DC 24V 220v 12w 9w cob rgbw led strip cob led strip light
DC 24V 220v 12w 9w cob rgbw led strip cob led strip light
DC 24V 220v 12w 9w cob rgbw led strip cob led strip light
DC 24V 220v 12w 9w cob rgbw led strip cob led strip light
DC 24V 220v 12w 9w cob rgbw led strip cob led strip light
DC 24V 220v 12w 9w cob rgbw led strip cob led strip light
DC 24V 220v 12w 9w cob rgbw led strip cob led strip light
DC 24V 220v 12w 9w cob rgbw led strip cob led strip light
DC 24V 220v 12w 9w cob rgbw led strip cob led strip light
DC 24V 220v 12w 9w cob rgbw led strip cob led strip light
DC 24V 220v 12w 9w cob rgbw led strip cob led strip light
DC 24V 220v 12w 9w cob rgbw led strip cob led strip light

DC 24V 220v 12w 9w cob rgbw led strip cob led strip light

Price:
$ 2.00-5.00 / meter
Minimum order quantity:
1 meter
Quantity:
  • Place of Origin:Guangdong, China
  • Brand Name:ledworker
  • Application:Hotel, Decorative Lighting
  • Color Temperature(CCT):RGBW
  • Lamp Body Material:Copper
  • Input Voltage(V):DC 24V
  • Lamp Luminous Efficiency(lm/w):100
  • Lamp Luminous Flux(lm):100
  • Warranty(Year):3-Year
  • Working Lifetime(Hour):50000
  • Working Temperature(℃):-20 - 40
  • Color Rendering Index(Ra):90
  • Light Source:LED
  • Support Dimmer:Yes
  • Lighting solutions service:Lighting and circuitry design
  • Lifespan (hours):30000
  • Working Time (hours):50000
  • Product Weight(kg):0.15
  • Control Mode:APP Control

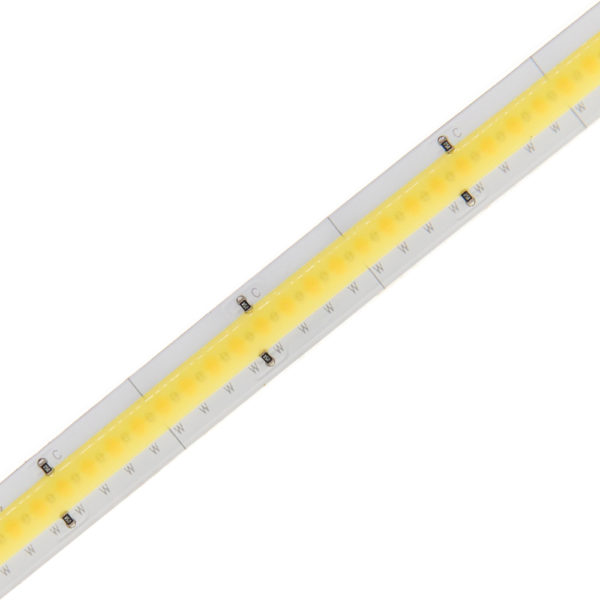

  • Product Name:Cob led strip
  • IP Rank:IP20
  • Color:RGBW
  • Voltage:DC 12/24V
  • LED Quantity:840leds/m
  • PCB Color:white,
  • Warranty:2years
  • Keyword:24v COB Strip Light
Competitive products
COB LED Strip
Addressable LED Strip
Neon LED Strip
Product Description

Product characteristic:

◆ COB led strip have 24V, 12V type.
◆ Main chips quantity per meter is 360, 378, 480, 504, 512,576 and others.
◆ CRI have 80, 90, 95
◆ The PCB width is 6mm, 8mm, and 10mm.
◆ PCB width VS Watts :
6mm width 12V=6W/M 24V=8W/M
8mm width 12V=8W/M 24V=10W/M
10mm width 12V=10W/M 24V=14W/M

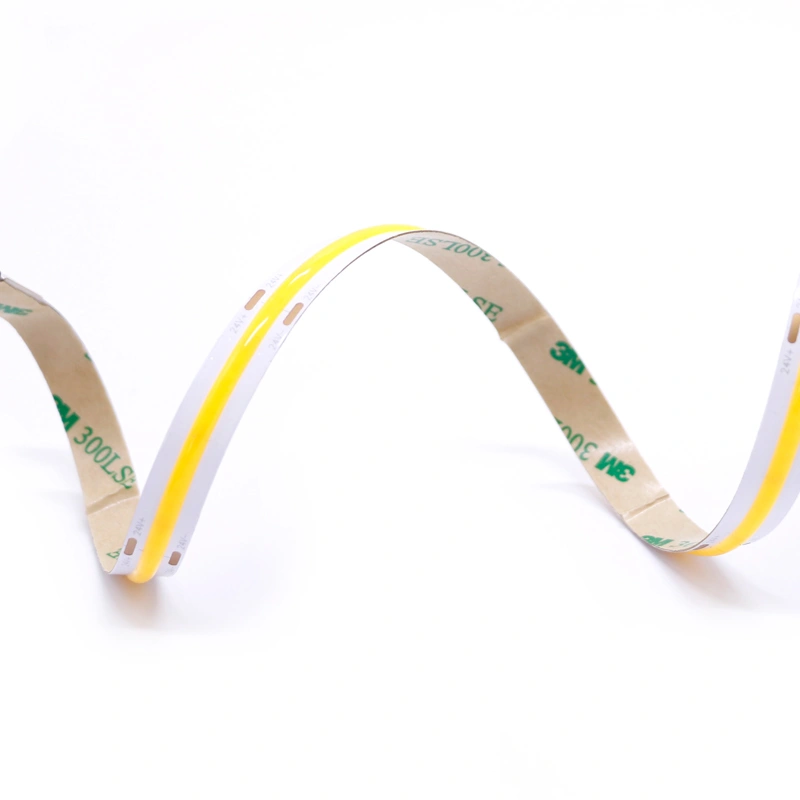

◆ The backing 3M can be another type as you want. Normal use is 3M 300MP.
◆ Waterproof IP: IP20 and IP65
◆ Main color is: 2700+/- 150K; 3000+/- 200K; 4000+/- 250K; 6000K+/- 350K.

Product Specifications:
Advantage:
1, 378pcs COB strip
2, High effective LM
1, 480pcs COB strip
2, Economy type
1, 480pcs COB strip
2, Three different 6/8/10mm width Choose
1, 504pcs COB strip
2, High brightiness
1, 512pcs COB strip
2, Single Red, Single Blue, Single Green
Part NO:
LW-COB003
LW-COB012
LW-COB013
LW-COB005
LW-COB014
LED Qty:
378pcs per meter
480pcs per meter
480pcs per meter
504pcs per meter
512pcs per meter
CRI (RA)
90
80
90
90
90
PCB Width IP20:
10mm width
8mm width
10mm width
10mm width
8mm width
Input Voltage:
DC24V /12
DC24V /12
DC24V /12
DC24V
DC24V
Watts:
DC24V=14W /12V=10W
9W
DC24V=14W /12V=10W
DC24V=14W
DC24V=10W
Luminous Flux:
100LM / W
90LM / W
100LM / W
100LM / W
.–
Color:
2700/3000/4000/6000K
2700/3000/4000/6000K
2700/3000/4000/6000K
2700/3000/4000/6000K
R or G or B
PCB color:
White
White
White
White
Red, Green, Blue
IP Grade:
IP20
IP20
IP20
IP20
IP20
Operating temperature:
.-25 to 45℃
.-25 to 45℃
.-25 to 45℃
.-25 to 45℃
.-25 to 45℃
Beam angle:
180 degree
180 degree
180 degree
180 degree
180 degree
Certification:
CE; RoHS
CE; RoHS
CE; RoHS
CE; RoHS
CE; RoHS
Max Run:
5M
5M
5M
5M
5M
Min Run:
24V 55.5mm
12V 23.8mm
24V 50mm
12V 25mm
24V 50mm
12V 25mm
24V 41.67mm
12V 23.8mm
24V 62.5mm


Productdetails:

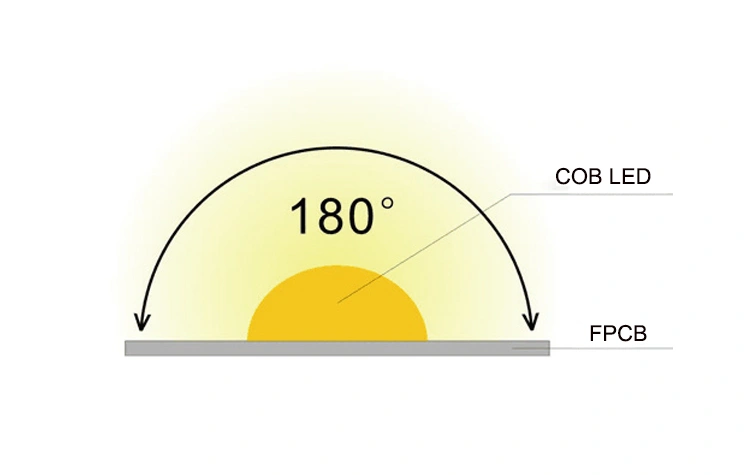

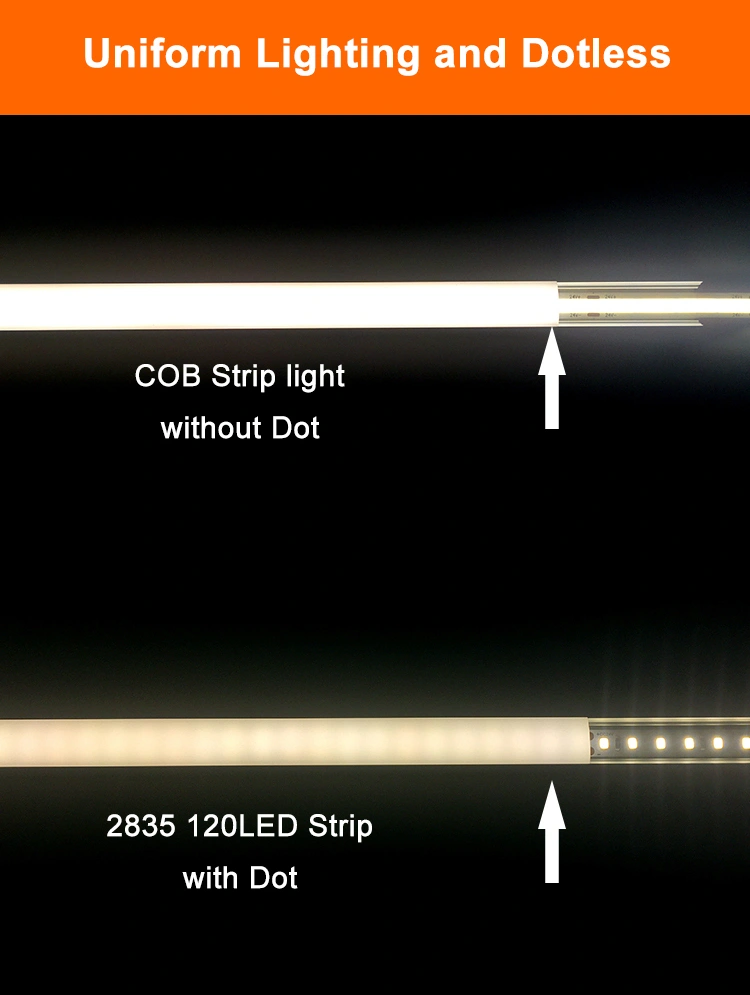

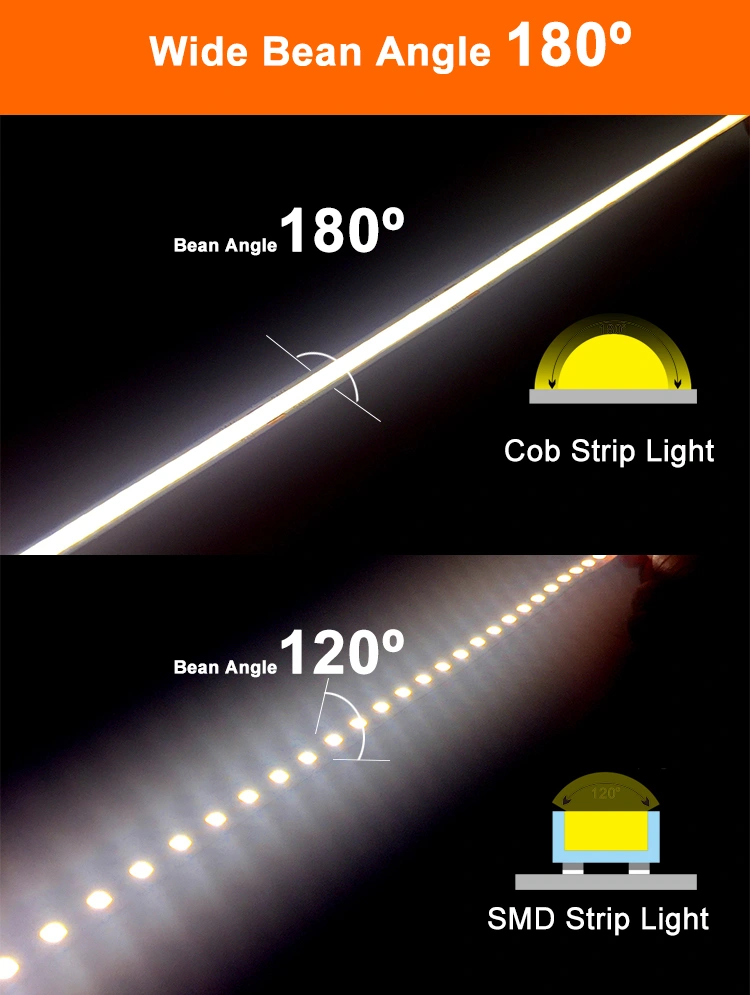

Wide viewing Angle up to 180 degree.
COB led strip are 180 degree viewing angle. SMD LED Strip type is normally 120 degree viewing angle.
Put the chips on board then put Phosphor on chips let the viewing angle bigger, then it’s less dark zone

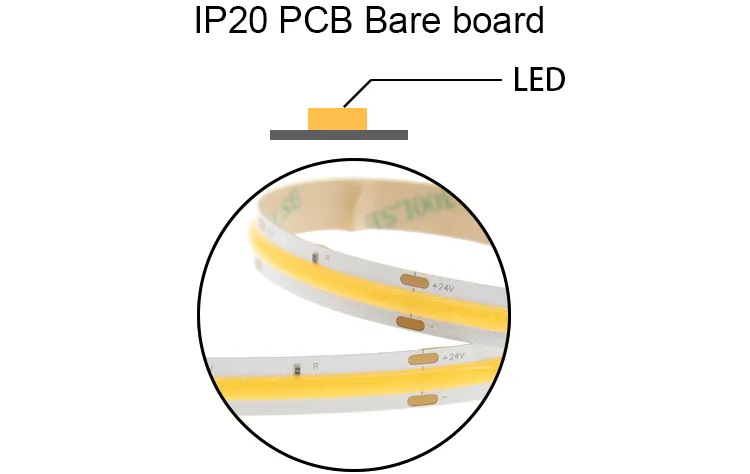

Non waterproof type

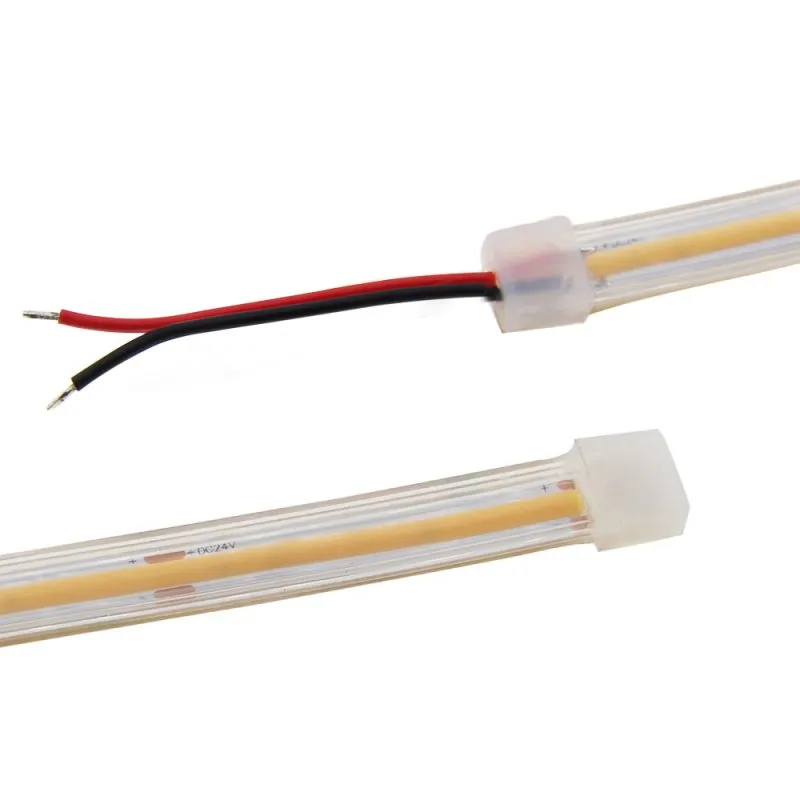

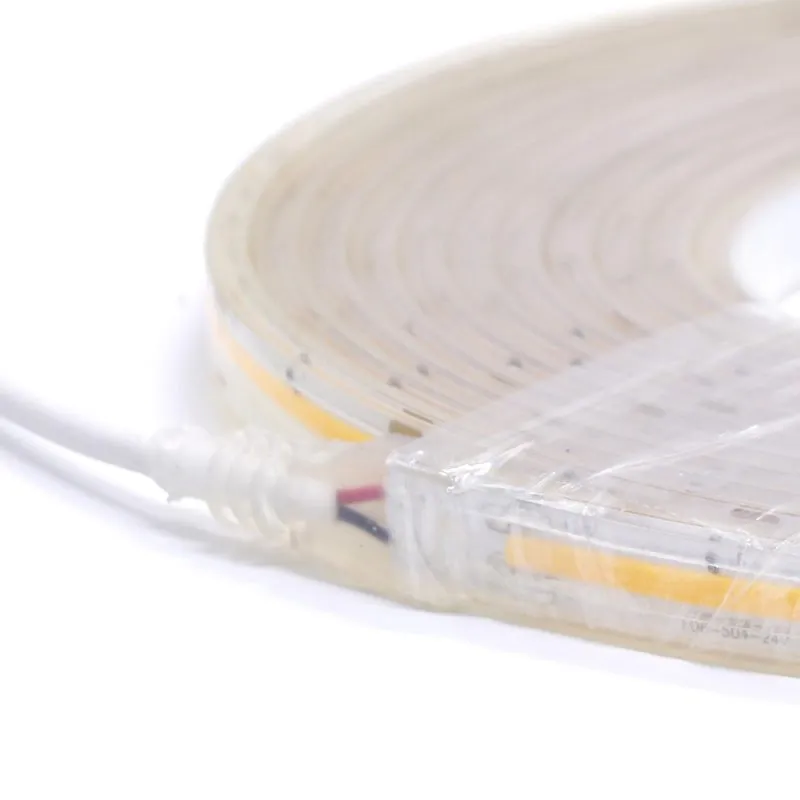

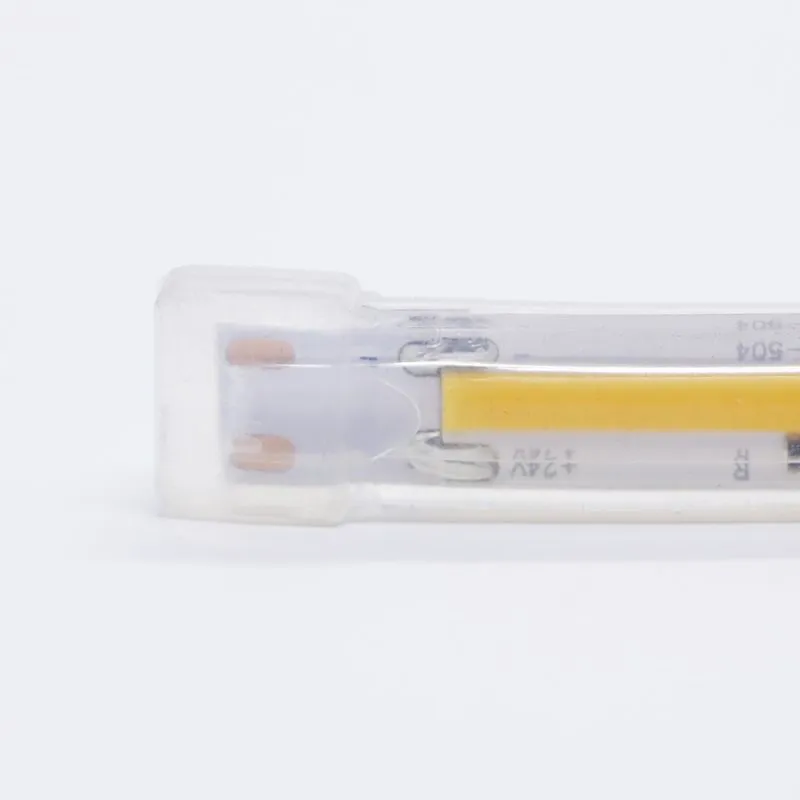

Extruded Silicone waterproof

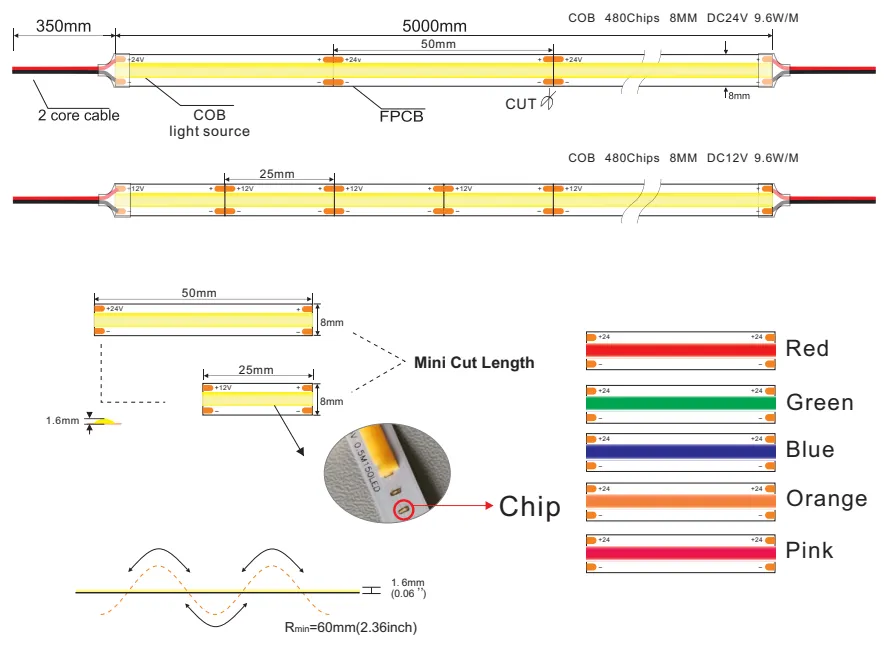

Dimensions:

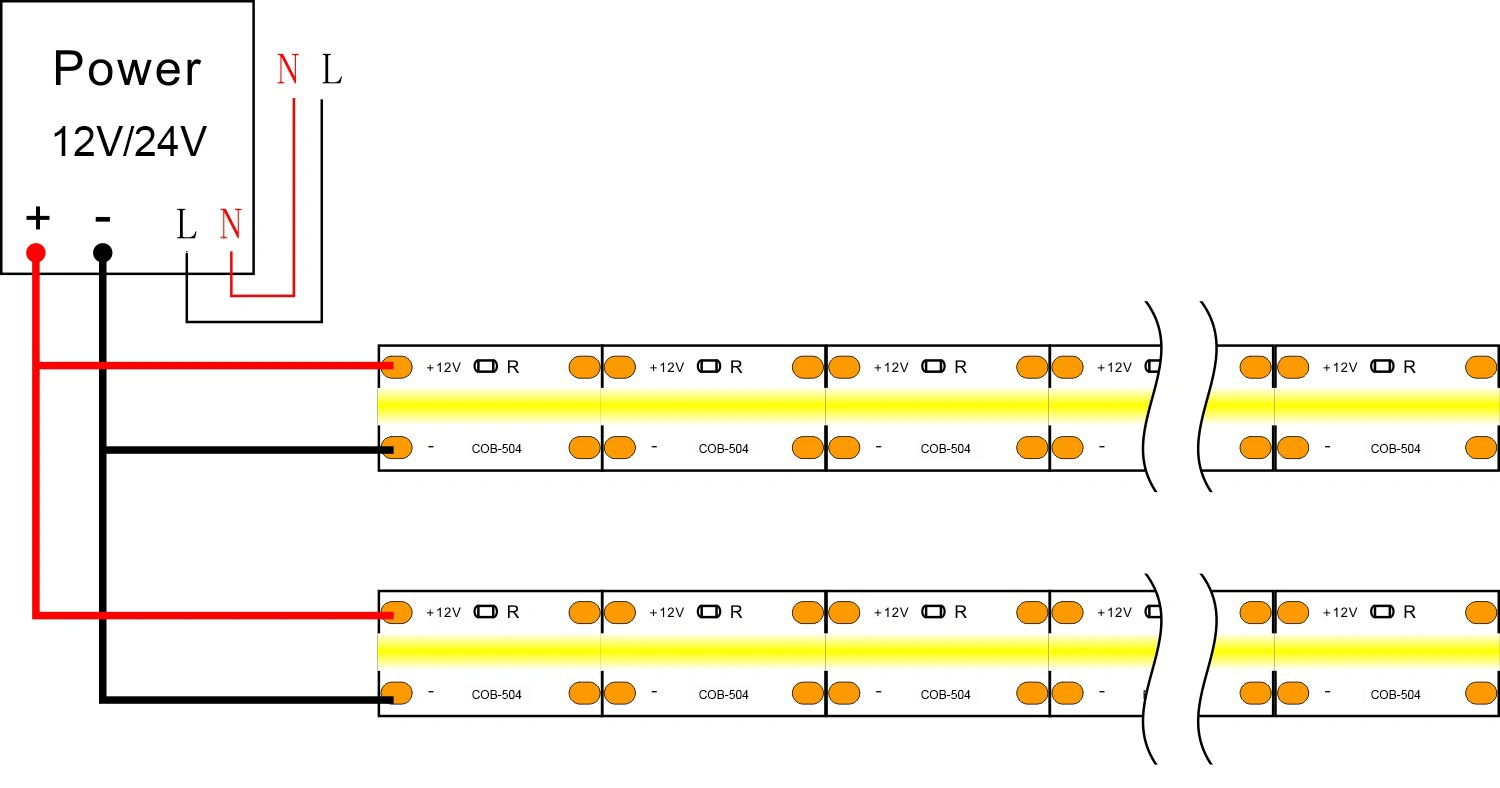

Connect drawing:

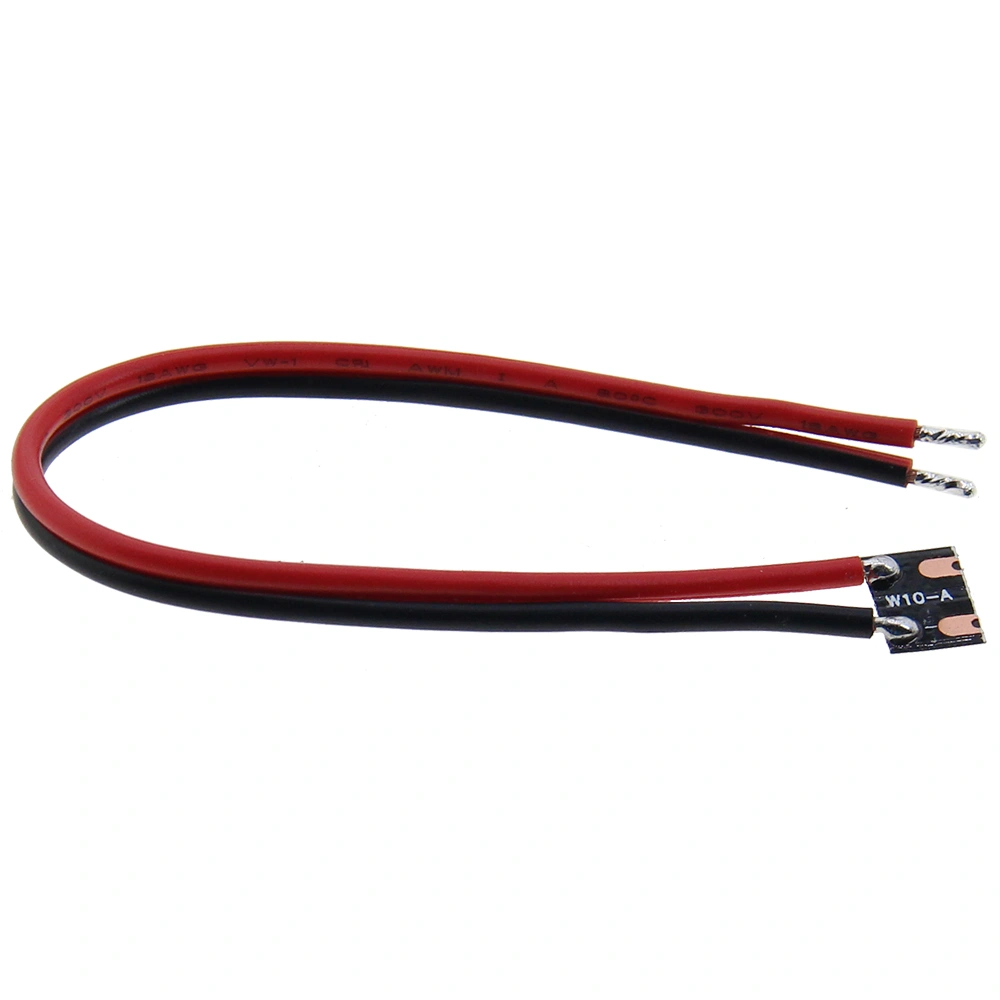

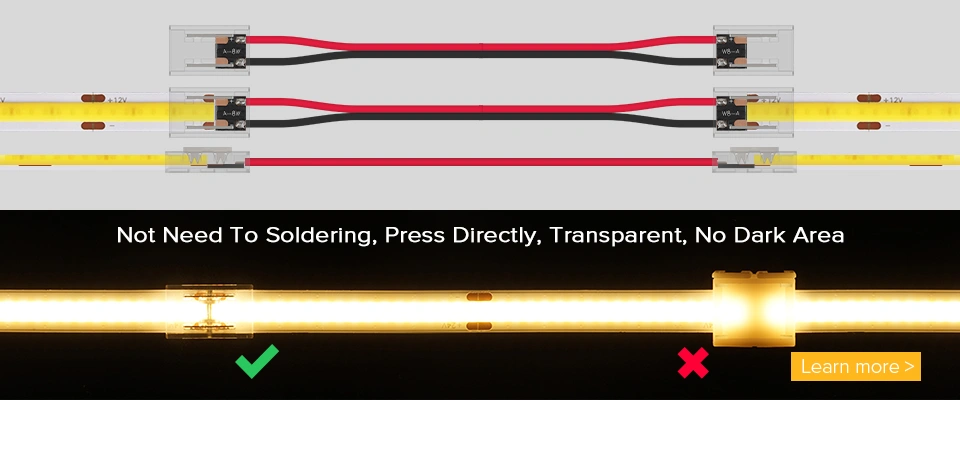

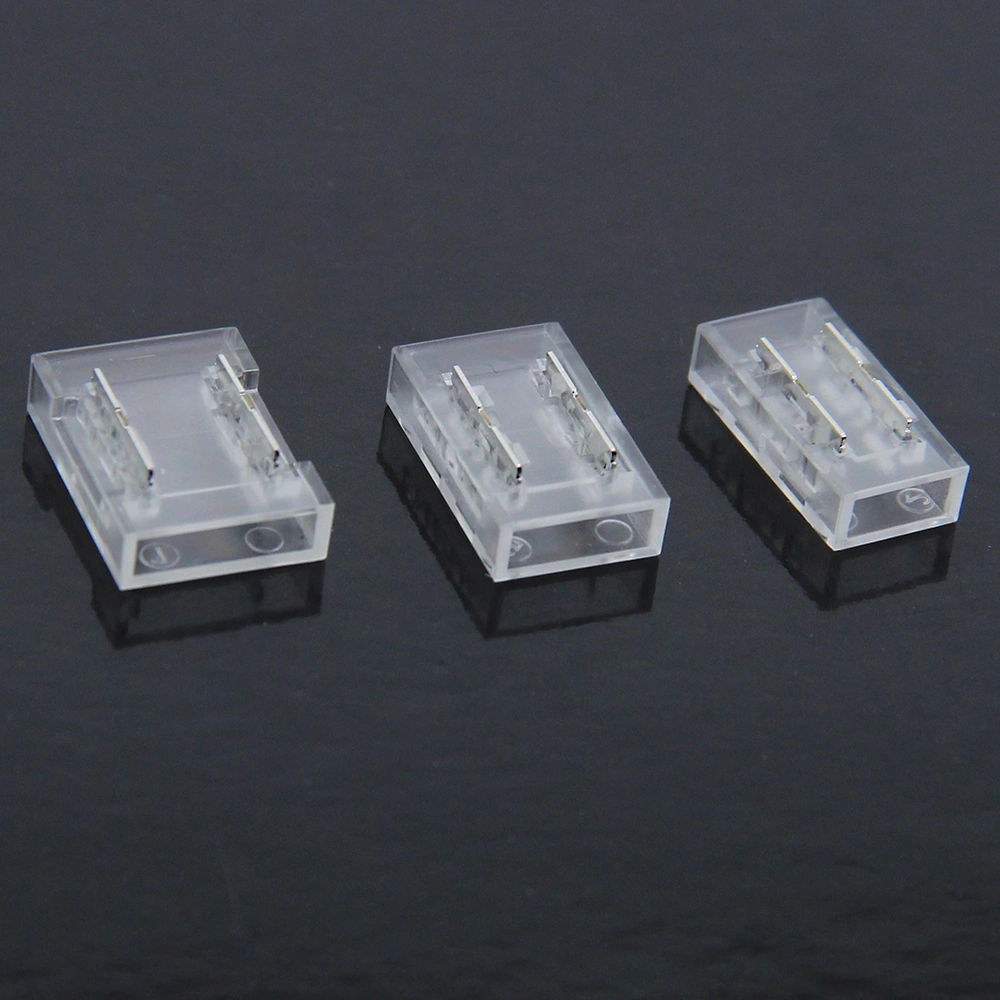

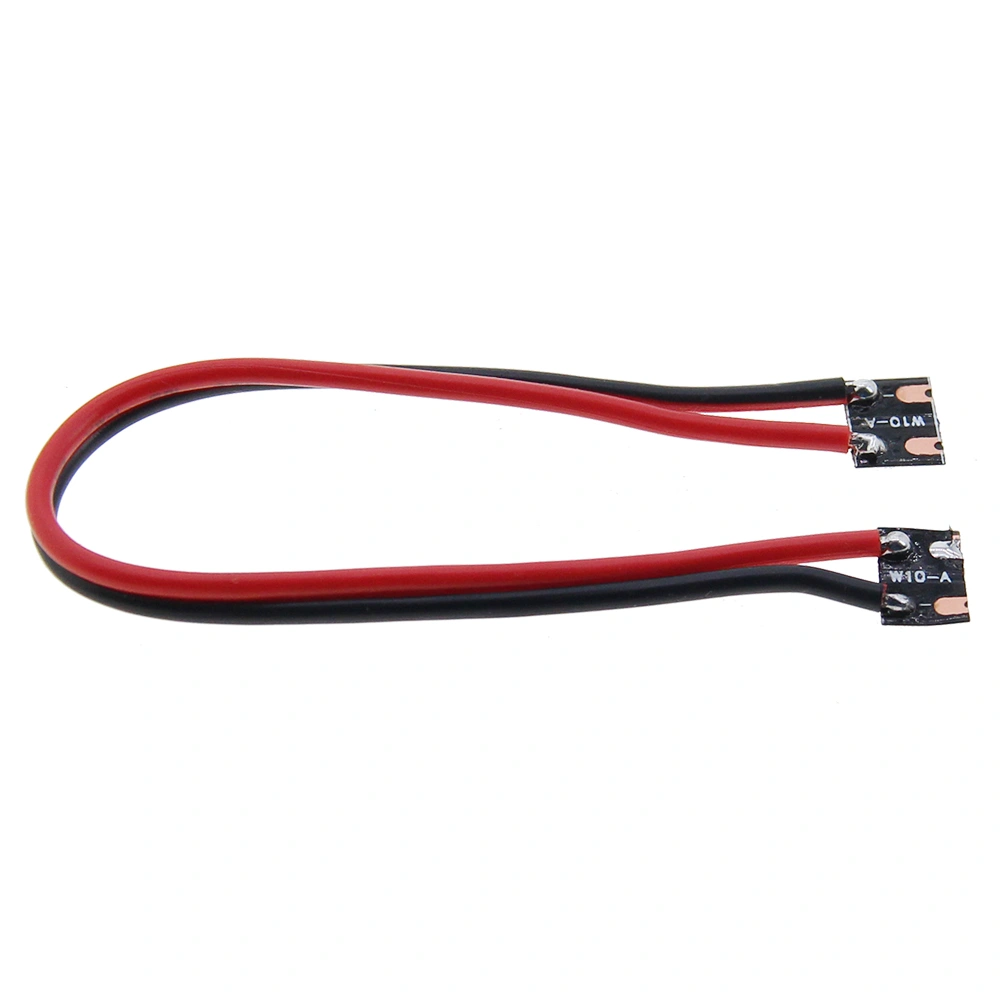

Accessories:
Please Attention

WhyLEDworker Lighting :


1,NICE QUALITY.
2,ONLINE PAYMENT.
3,FULL LINE PRODUCTS.
4,AFTER SALES SERVICES 24/7.
5.FACTORY DIRECT PRICE. PRICE EFFECTIVE.
6,EXPERIENCES SALES, EASY COMMUNICATION.
7,NO MOQ , 1PCS OK . SMALL ORDER WELCOME.
8,QUICK SHIPPING WITHIN 3 - 5 DAYS. SAMPLES HAVE STOCK.

We are not just say it. We really do it !!!

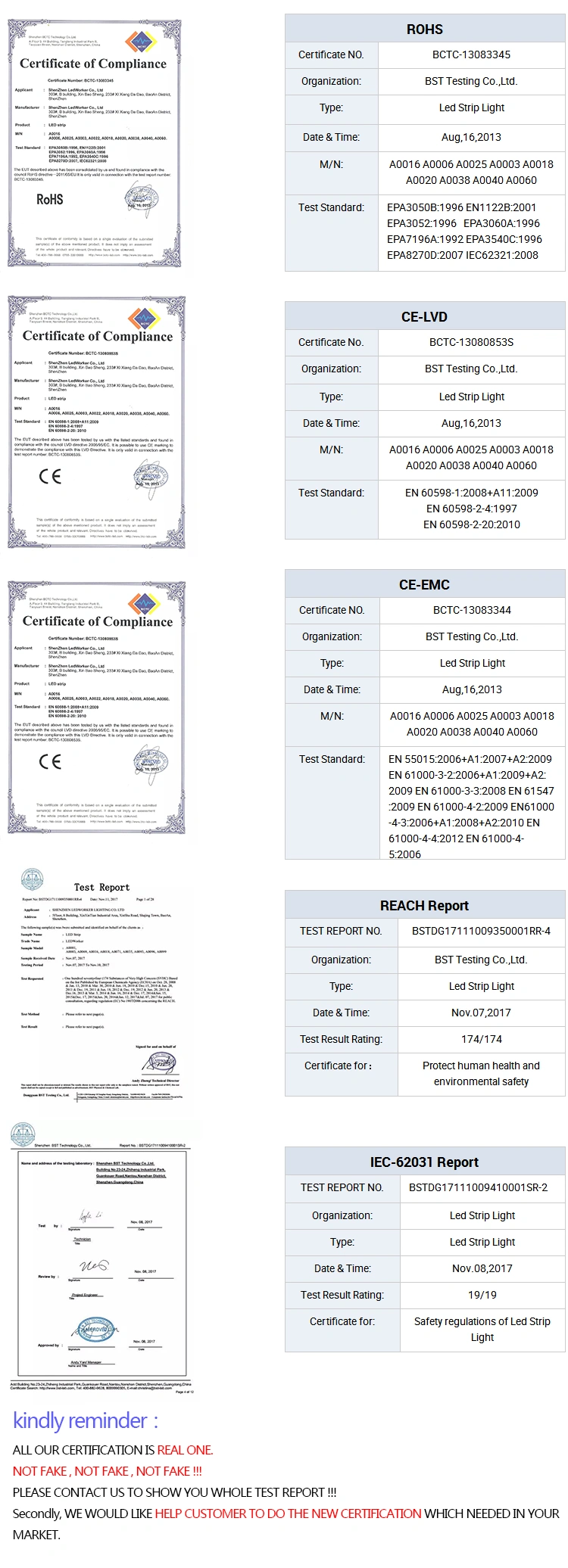

Certifications

Feedback:


WORLD -WIDE CUSTOMERS COMMENTS & FEEDBACK

Here is some of comments from our world-wide customers.
You can check all the comments at our company profile .

Please visit www.ledworker.en.alibaba.com --> Click"Company profile
--> choose"Rating&Reviews"
Then you can see all comments from our clients.

Please note : all our customer comments is real one , NOT FAKE .

[ TRUST YOU WILL LIKE OUR SERVICES, QUALITY AND PRICE ]

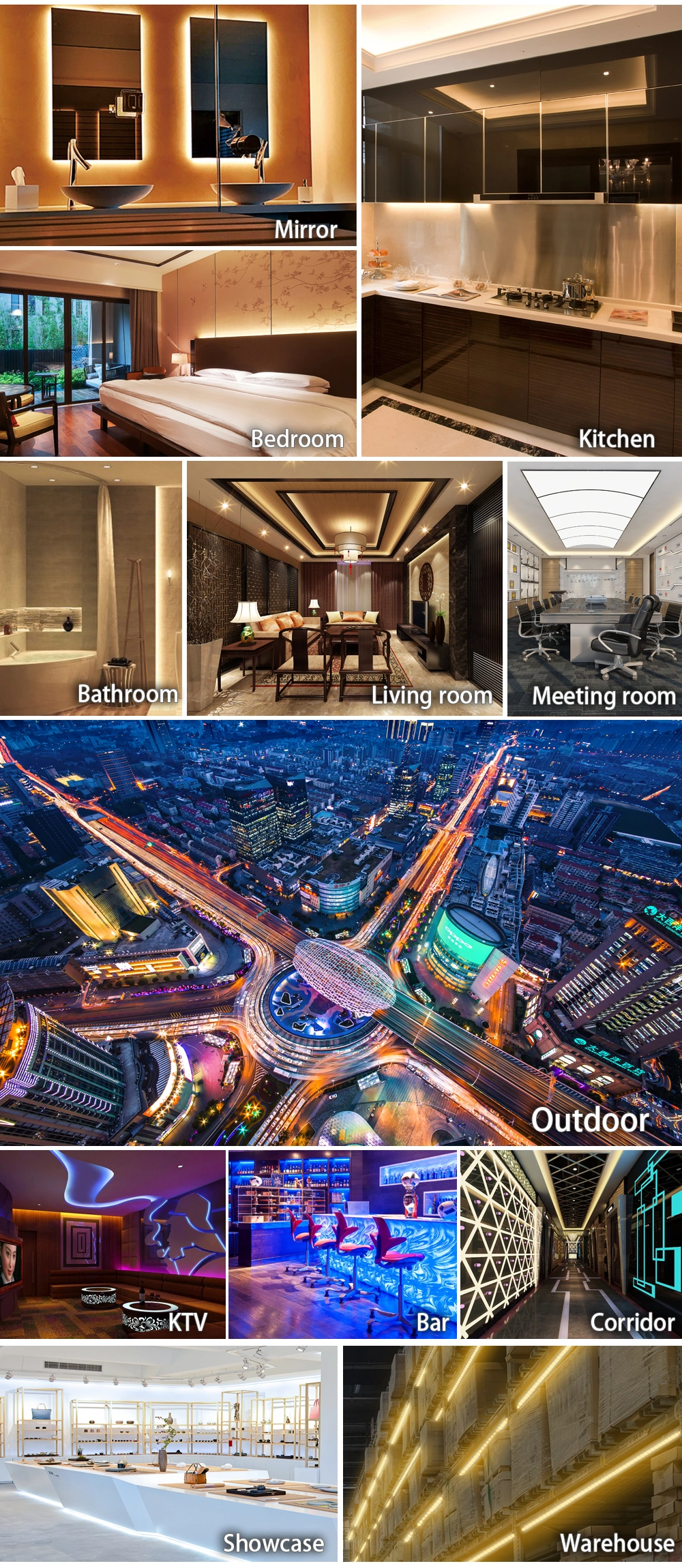

Application
Our Company
Hot Sales

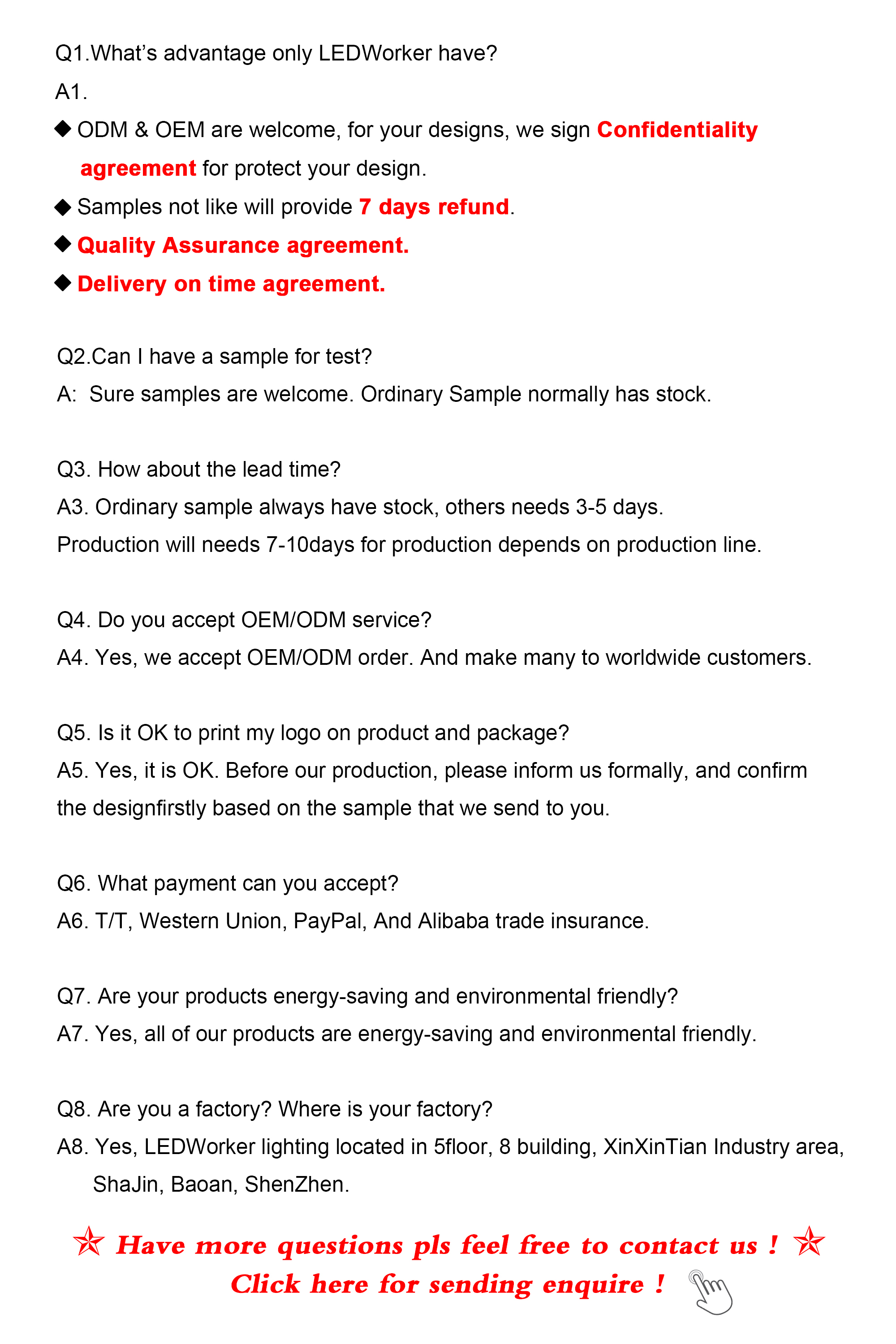

FAQ
