- IP Rank:IP20,IP67
- Color:CW,WW,
- Type::Flexible COB Led Strip
- Voltage:DC24V
- LED Quantity:576leds/m
- Application:Decorative Lighting
- Product Name:Cob led strip
- PCB Color:white,
- Warranty:2years
- Lamp Luminous Efficiency(lm/w):100
- Color Rendering Index(Ra):90
- Support Dimmer:Yes
- Lighting solutions service:Lighting and circuitry design
- Lighting solutions service:Project Installation
- Working Time (hours):50000
- Lamp Body Material:Copper
- Certification:ce
- Certification:EMC
- Certification:FCC
- Certification:LVD
- Certification:RoHS
- Certification:Reach
- Certification:Saa
- Certification:VDE
- Application:Hotel
- Light Source:LED
- Switch Mode:Remote Control
- IP Rating:Ip20
- Place of Origin:CN
- Input Voltage(V):DC 24V
- Lamp Luminous Flux(lm):2500-2800LM
- CRI (Ra>):90
- Working Temperature(℃):-20 - 60
- Working Lifetime(Hour):50000
- Brand Name:ledworker
- Model Number:LW-COB006
- Warranty(Year):2-Year
Product Description
Part NO: | LW-COB006 | 2700K | 6500K |
LED Qty: | 576pcs per meter | 288pcs per meter | 288pcs per meter |
CRI (RA) | 90 | 90 | 90 |
Input Voltage: | DC24V | DC24V | DC24V |
Watts: | 12W-14W | 12W-14W | 12W-14W |
Luminous Flux: | 2500-2800LM | 1400-1600LM | 1600-1900LM |
Color: | 2700-6500K | 2700K | 6500K |
PCB color: | White | White | White |
IP Grade: | IP20 | IP20 | IP20 |
Operating temperature: | .-25 to 45℃ | .-25 to 45℃ | .-25 to 45℃ |
Beam angle: | 180 degree | 180 degree | 180 degree |
Certification: | CE; RoHS | CE; RoHS | CE; RoHS |
Max Run: | 5M | 5M | 5M |
Min Run: | 24V 27.78mm | 24V 27.78mm | 24V 27.78mm |
Dimension IP20: | 5000 x 10 x 2.2mm | 5000 x 10 x 2.2mm | 5000 x 10 x 2.2mm |
Dimension IP67: | 5000 x 12 x 4.9mm | 5000 x 12 x 4.9mm | 5000 x 12 x 4.9mm |

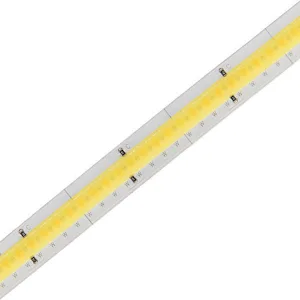

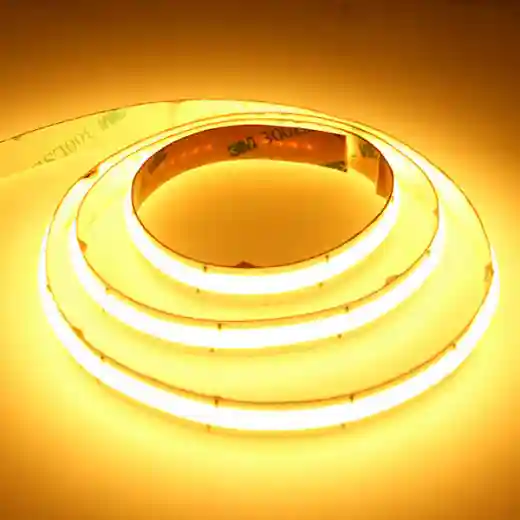

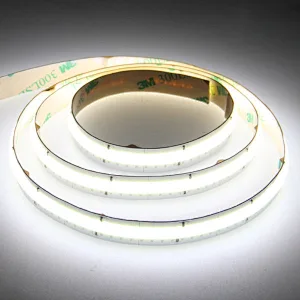

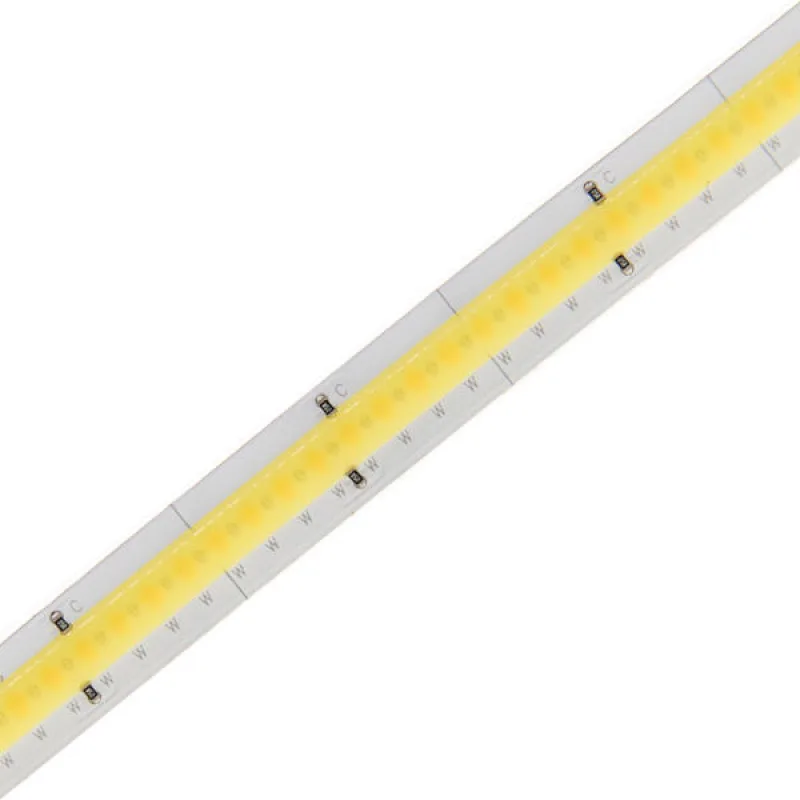

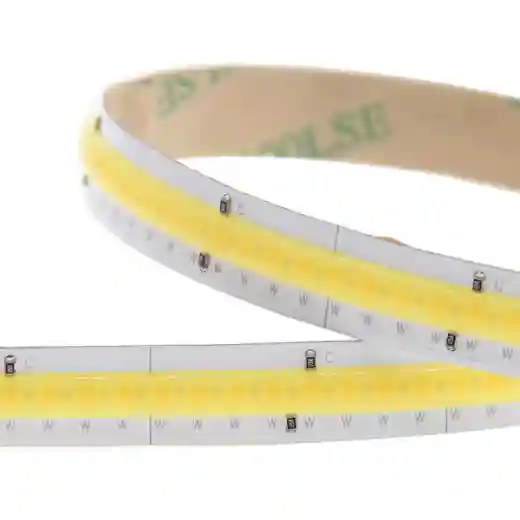

Productdetails:

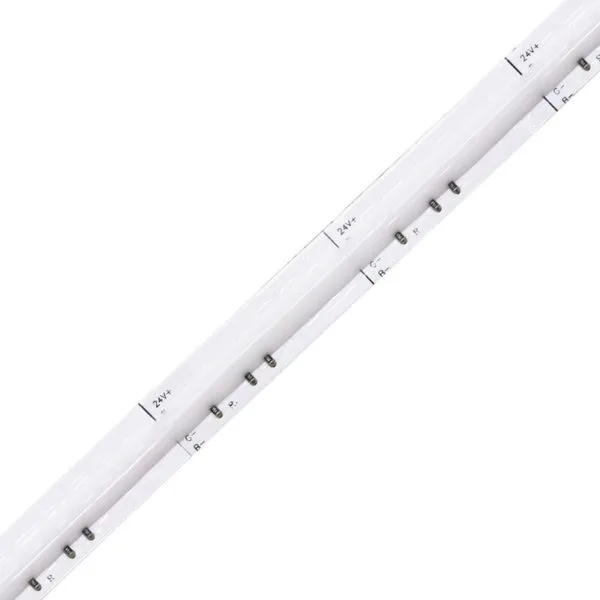

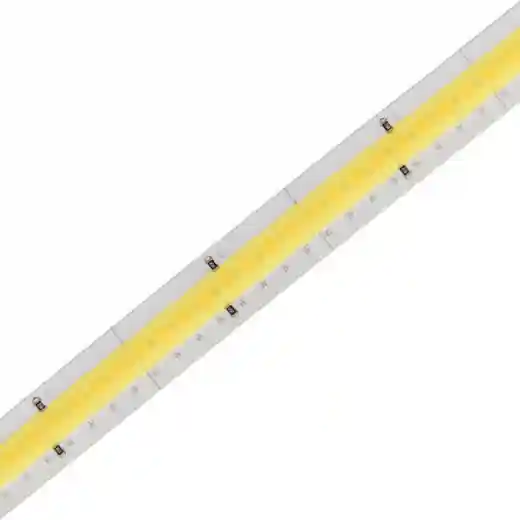

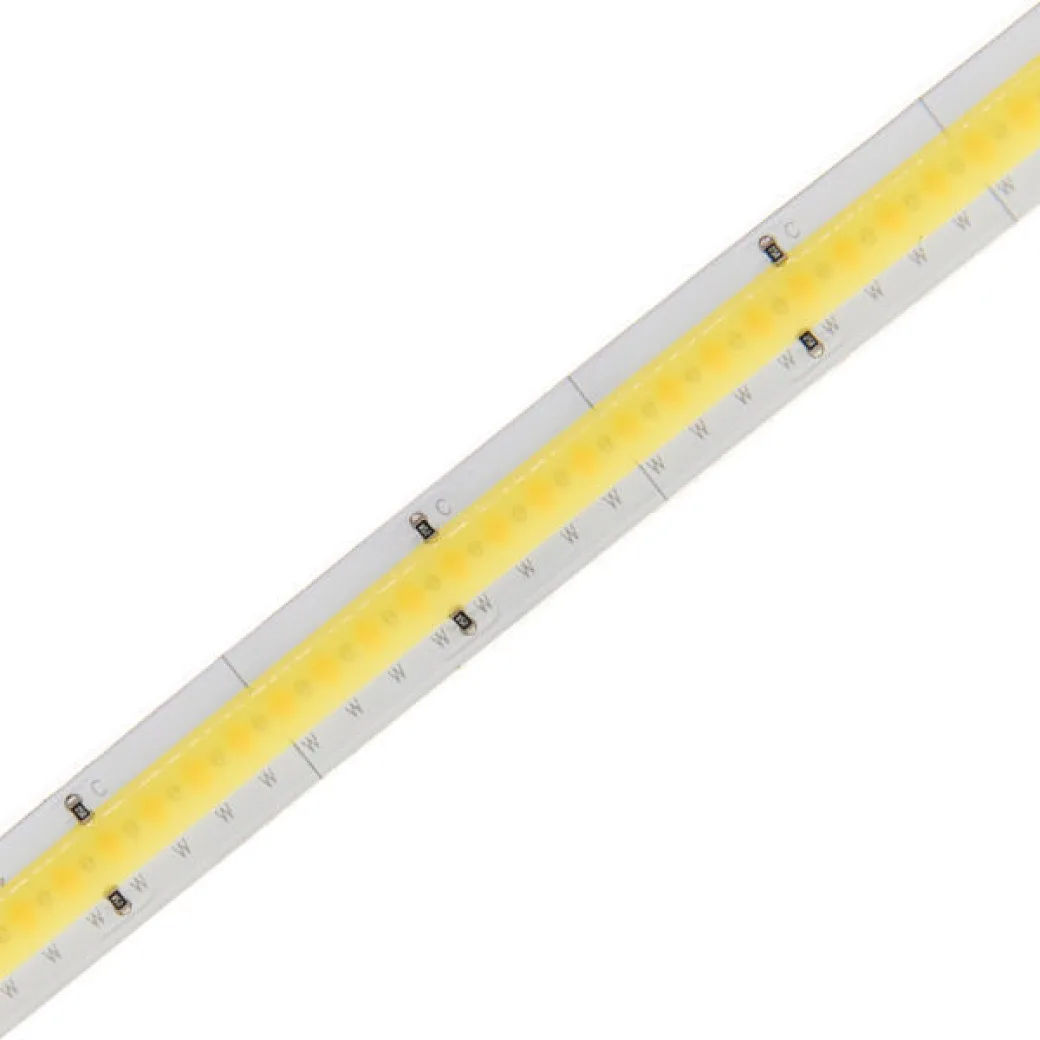

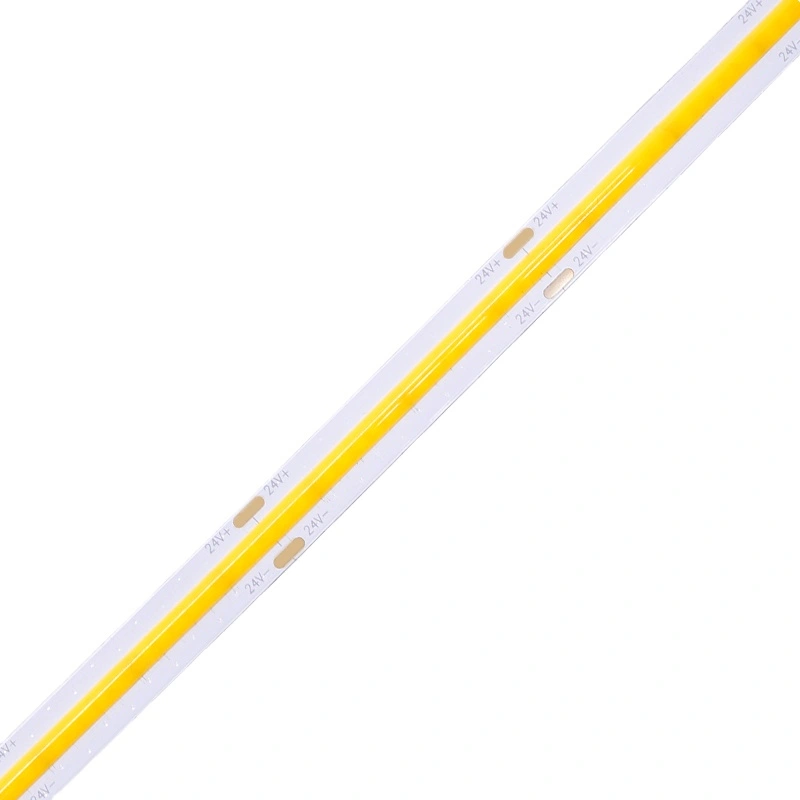

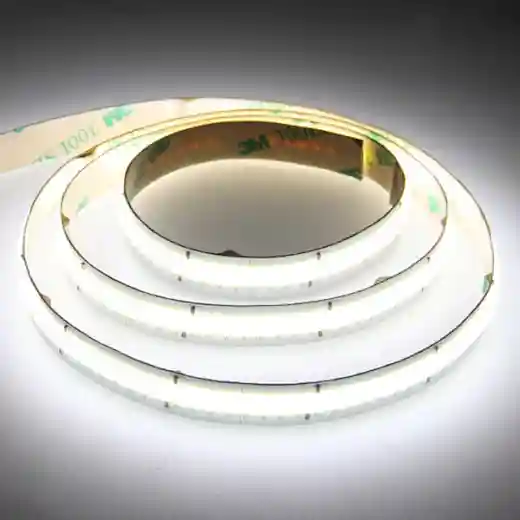

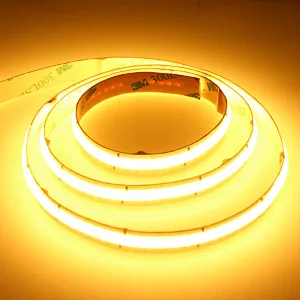

Two color (Color Temp) COB led strips, support 2700-6500K color temperature change. With high CIR 90+, it’s suit used in mirror
light, indoor lighting, handrails, design and other places that need change color and dot free type.
◆ Dual Color led strip at 24V.
◆ Main chips quantity per meter is 576pcs.
◆ CRI have 90+
◆ The PCB width is 10mm.
◆ The backing 3M can be another type as you want. Normal use is yellow 3M.
◆ Waterproof IP: IP20

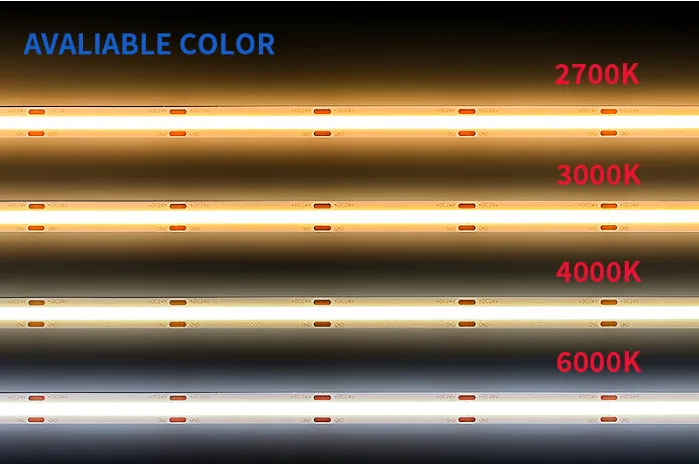

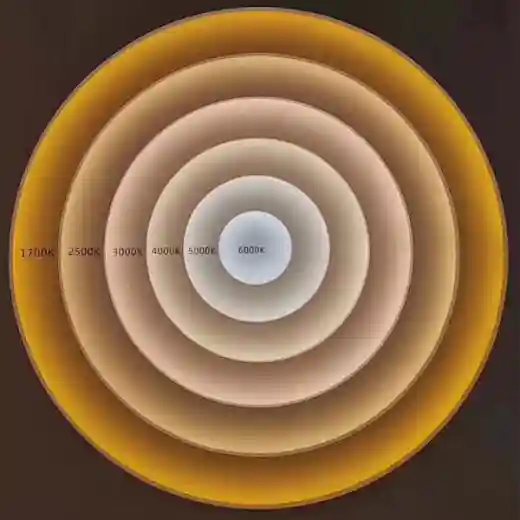

◆ Color is: 2700K – 6500K

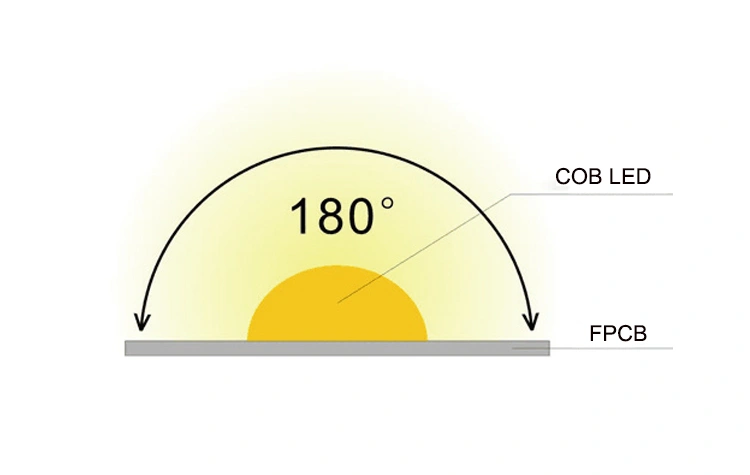

◆ Beam :180°
light, indoor lighting, handrails, design and other places that need change color and dot free type.
◆ Dual Color led strip at 24V.
◆ Main chips quantity per meter is 576pcs.
◆ CRI have 90+
◆ The PCB width is 10mm.
◆ The backing 3M can be another type as you want. Normal use is yellow 3M.
◆ Waterproof IP: IP20
◆ Color is: 2700K – 6500K
◆ Beam :180°

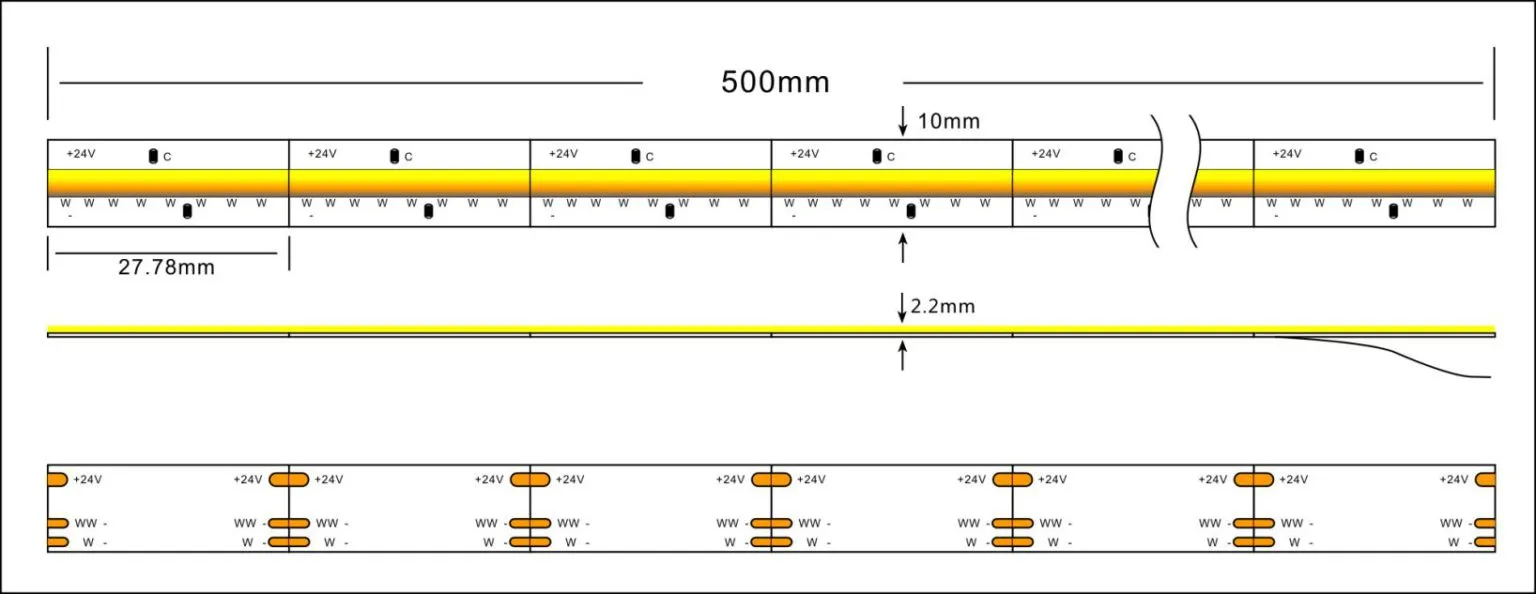

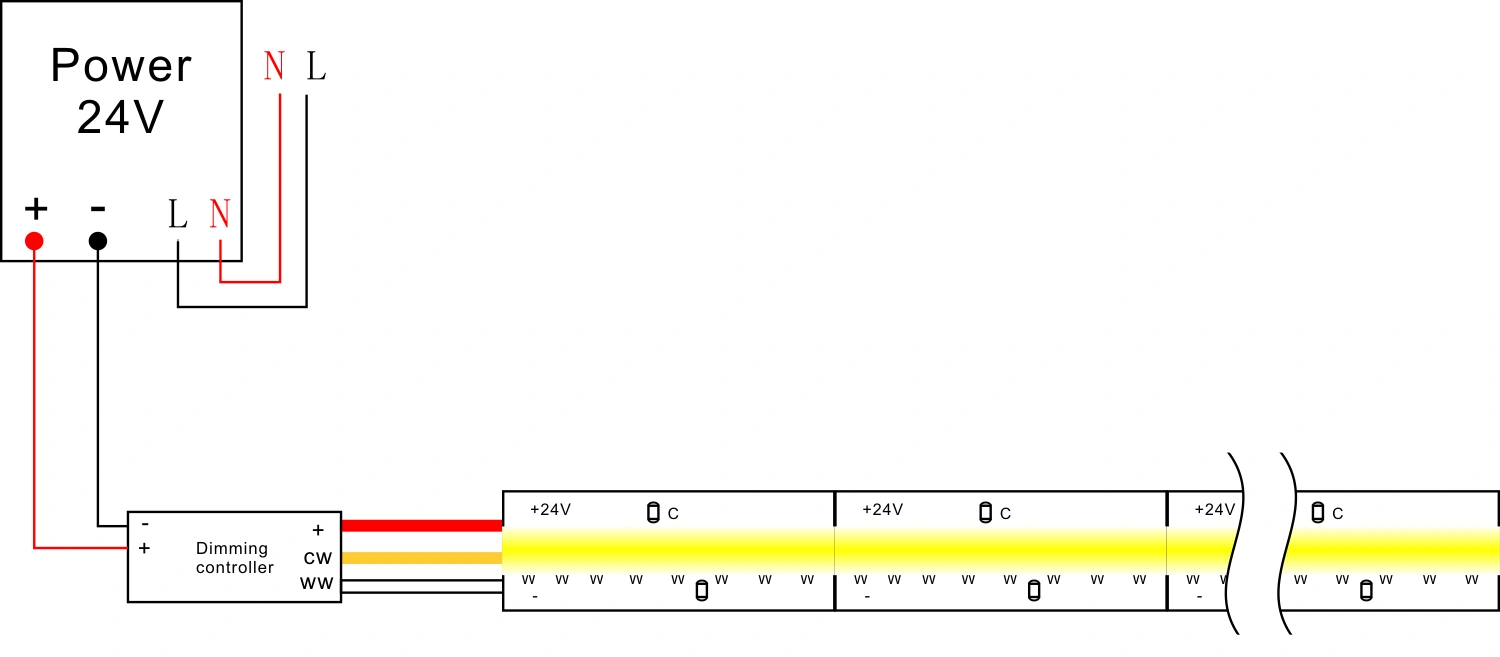

Connect drawing:

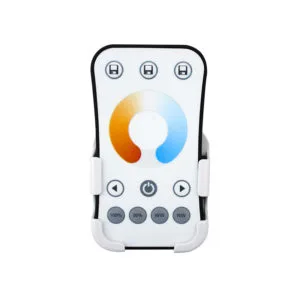

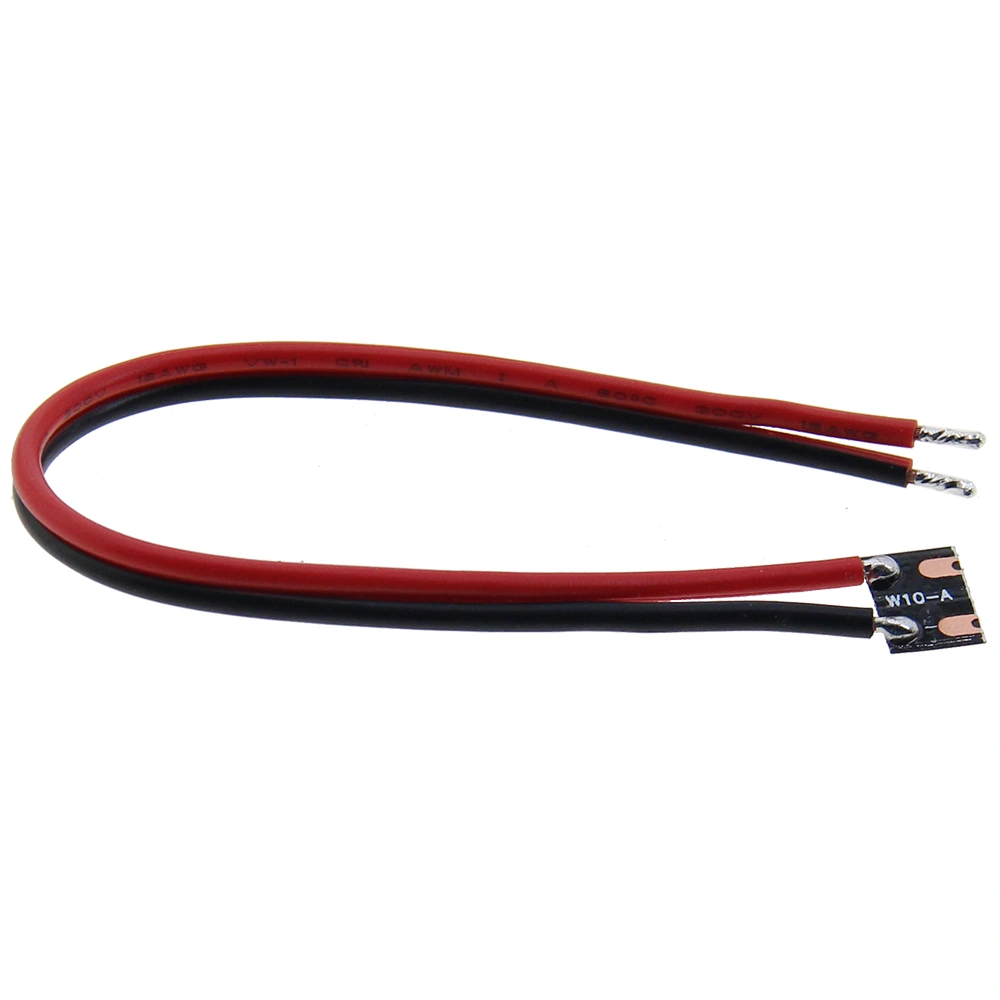

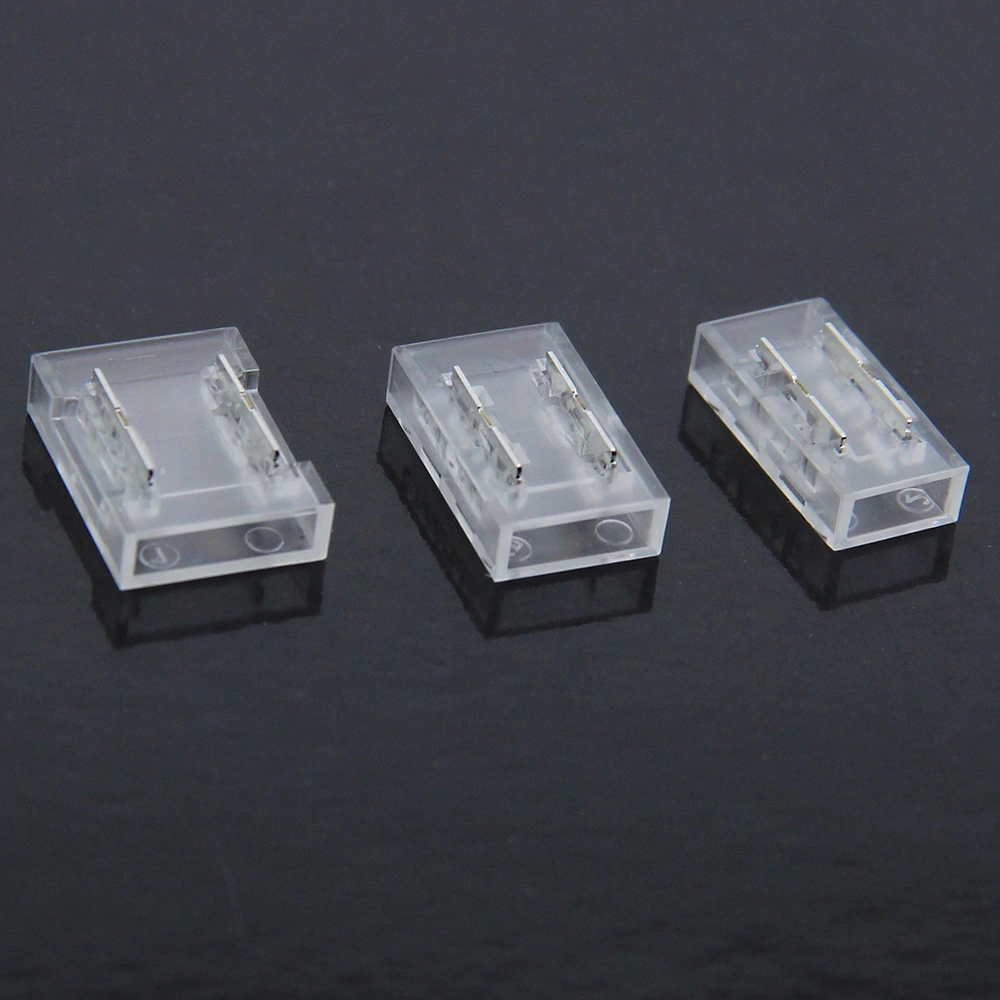

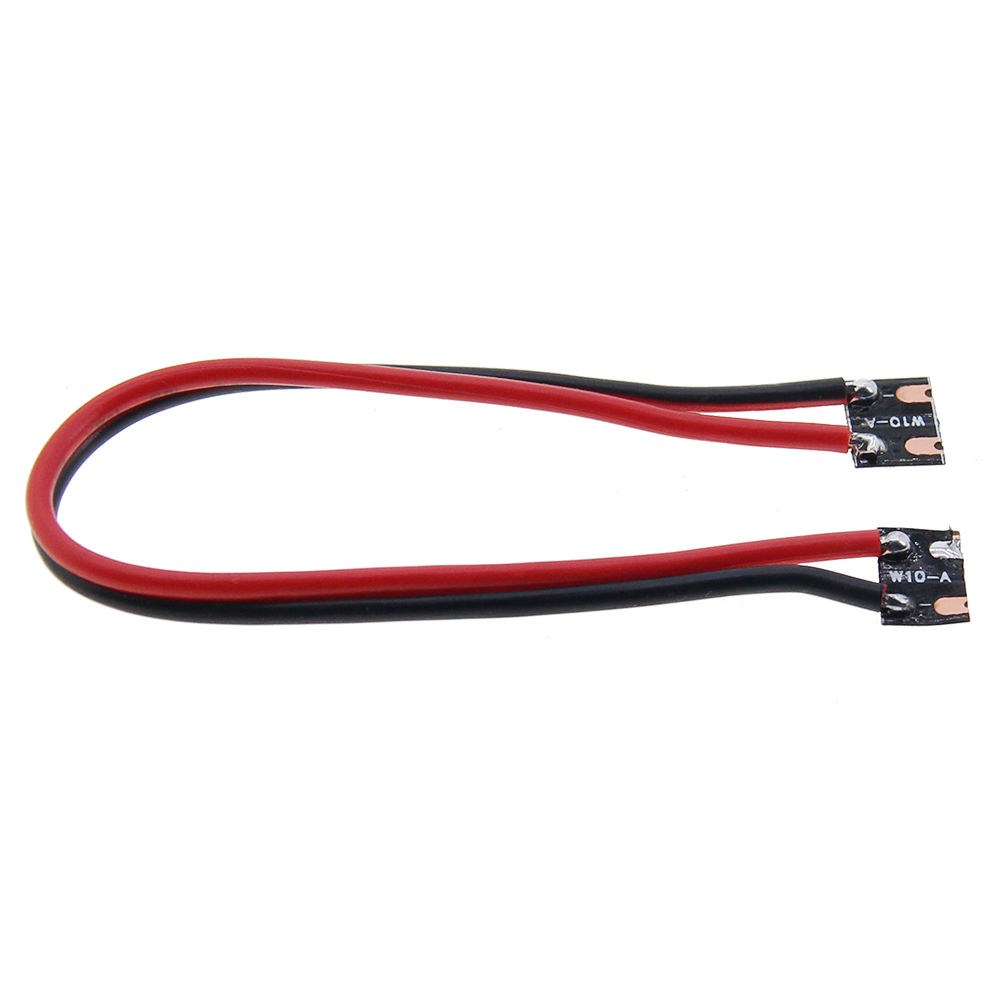

Accessories:

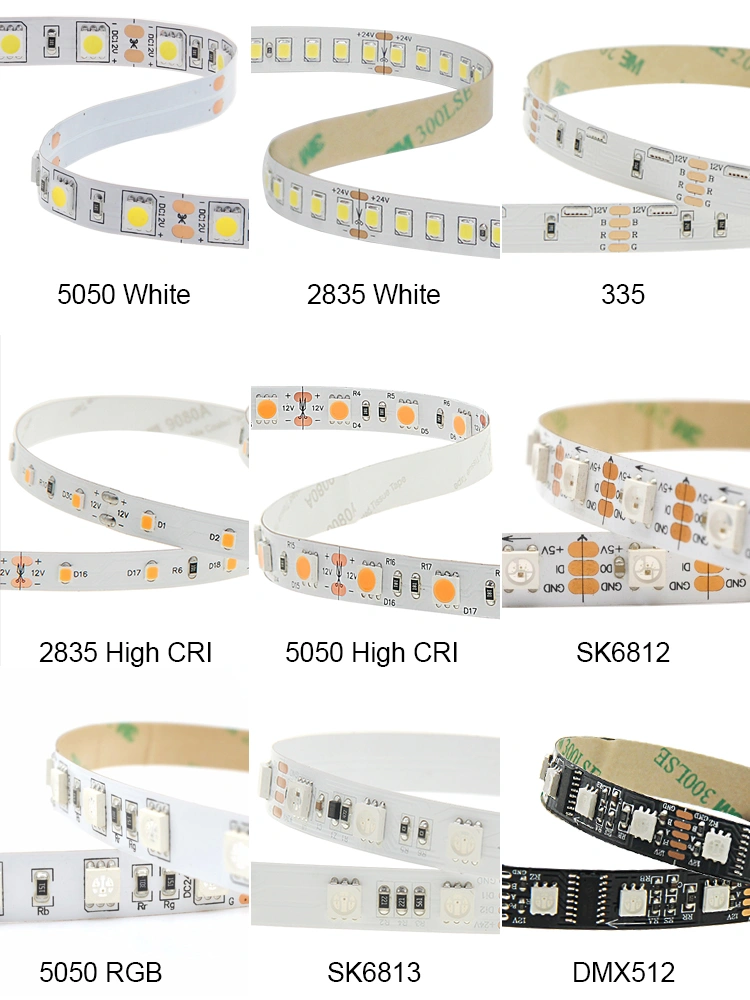

Other led strips:
3528/5050/3014/335/5730/2835 led strip,IP20/IP40/IP65/IP67/IP68 led strip,Neon Flex,Normal brightness/High brightness/Super brightness/High CRI/Hybrid brightness led strip,Unique led strip,Colorful / white led strips...
2835SMD High CRI >95 | ||||||||||||
2835 60SMD/M 2835 120SMD/M | IP20 | 2600-2800K 2900-3200K 3800-4300K 5000-5500K 6000-6500K | 5000*8*2.3mm | 12V/24V DC | 72W±10% | |||||||
IP65 | 5000*8*2.3mm | |||||||||||
IP67 | 5000*10*4.3mm | 12V DC | 144W±10% | |||||||||
IP68 | 5000*10*4.3mm | |||||||||||
5050SMD High CRI >95 | ||||||||||||
5050 60SMD/M | IP20 | 2600-2800K 2900-3200K 3800-4300K 5000-5500K 6000-6500K | 5000*8*2.3mm | 12V/24V DC | 60W±10% | |||||||
IP65 | 5000*8*2.3mm | |||||||||||
IP67 | 5000*10*4.3mm | |||||||||||
IP68 | 5000*10*4.3mm | |||||||||||
2835SMD Led Strip | ||||||||||||
2835 60SMD/M 2835 120SMD/M | IP20 | 2600-2800K 2900-3200K 3800-4300K 5000-5500K 6000-6500K 7000-9000K | 5000*8*2.3mm | 12V/24V DC | 60W±10% | |||||||
IP65 | 5000*8*2.3mm | |||||||||||
IP67 | 5000*10*4.3mm | 144W±10% | ||||||||||
IP68 | 5000*10*4.3mm | |||||||||||
3528SMD Led Strip | ||||||||||||
3528 30SMD/M 3528 60SMD/M 3528 120SMD/M | IP20 | 2600-2800K 2900-3200K 3800-4300K 5000-5500K 6000-6500K 7000-9000K | 5000*8*2.3mm | 12V/24V DC | 10W±10% 20W±10% 40W±10% | |||||||
IP65 | 5000*8*2.3mm | |||||||||||
IP67 | 5000*10*4.3mm | |||||||||||
IP68 | 5000*11*4.3mm | |||||||||||
5730SMD Led Strip | ||||||||||||
5730 60SMD/M | IP20 | 2600-2800K 2900-3200K 3800-4300K 5000-5500K 6000-6500K 7000-9000K | 5000*10*2.3mm | 12V/24V DC | 60W±10% | |||||||
IP65 | ||||||||||||
IP67 | ||||||||||||
IP68 | ||||||||||||
335SMD Led Strip | ||||||||||||
335 60SMD/M | IP20 | 2600-2800K 2900-3200K 3800-4300K 5000-5500K 6000-6500K 7000-9000K | 5000*10*2.3mm | 12V DC | 20W±10% | |||||||
IP65 | 5000*10*2.3mm | |||||||||||
IP67 | 5000*10*4.3mm | |||||||||||
Relative Products
Cob strip RGB cob strip Light modulator
Please Attention
WhyLEDworker Lighting :
We are not just say it. We really do it !!!

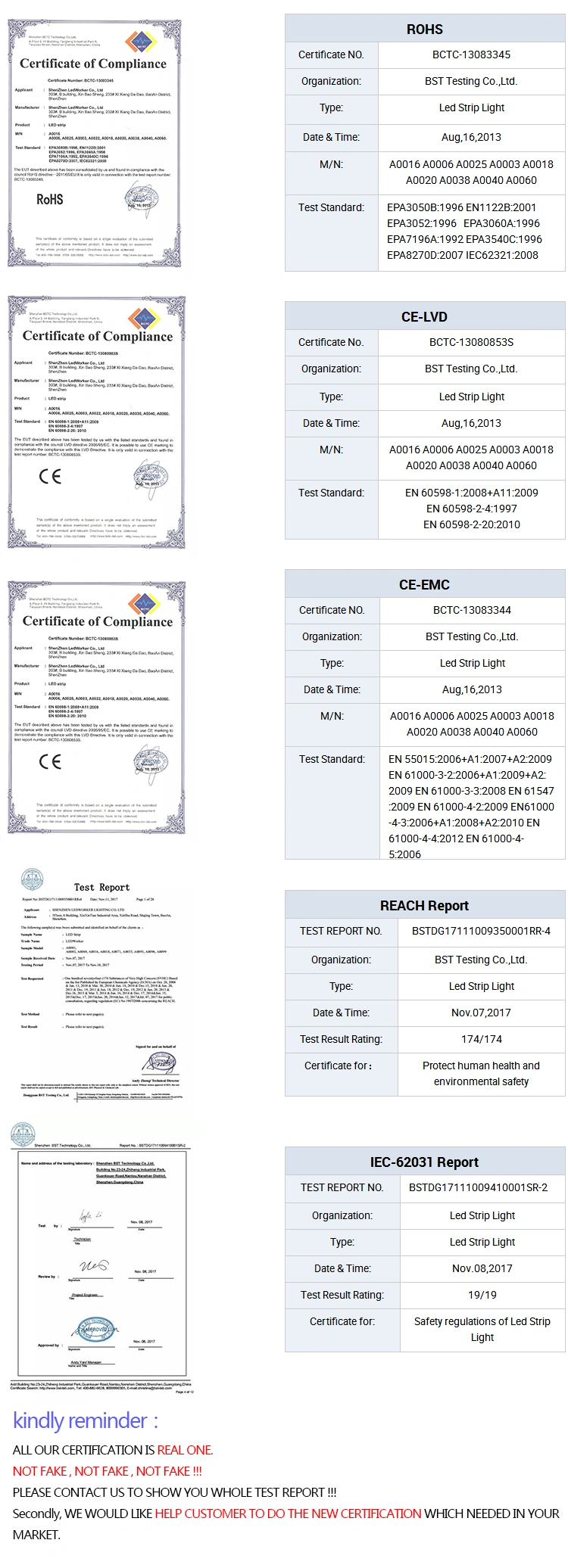

Certifications
Feedback:
WORLD -WIDE CUSTOMERS COMMENTS & FEEDBACK
Here is some of comments from our world-wide customers.
You can check all the comments at our company profile .
Please visit www.ledworker.en.alibaba.com --> Click"Company profile
--> choose"Rating&Reviews"
Then you can see all comments from our clients.
Please note : all our customer comments is real one , NOT FAKE .
[ TRUST YOU WILL LIKE OUR SERVICES, QUALITY AND PRICE ]

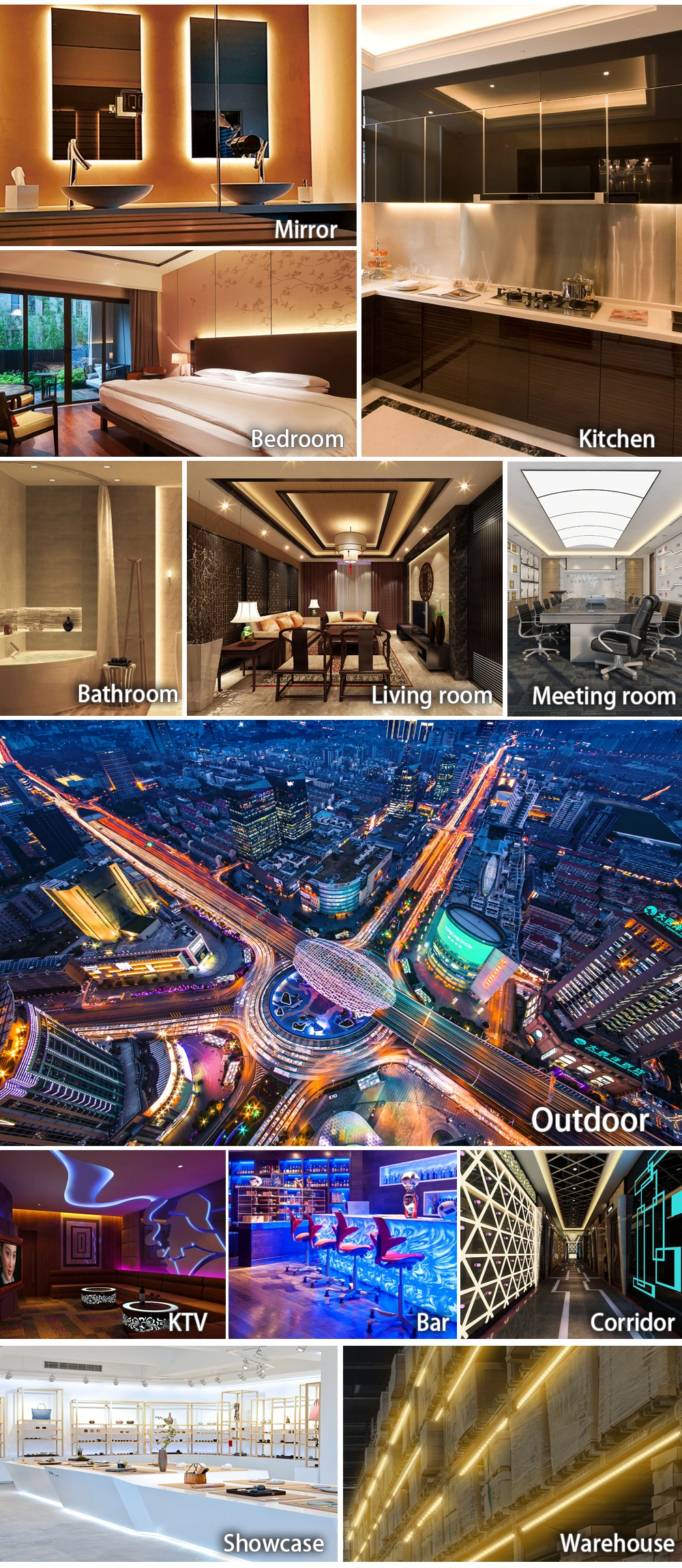

Application

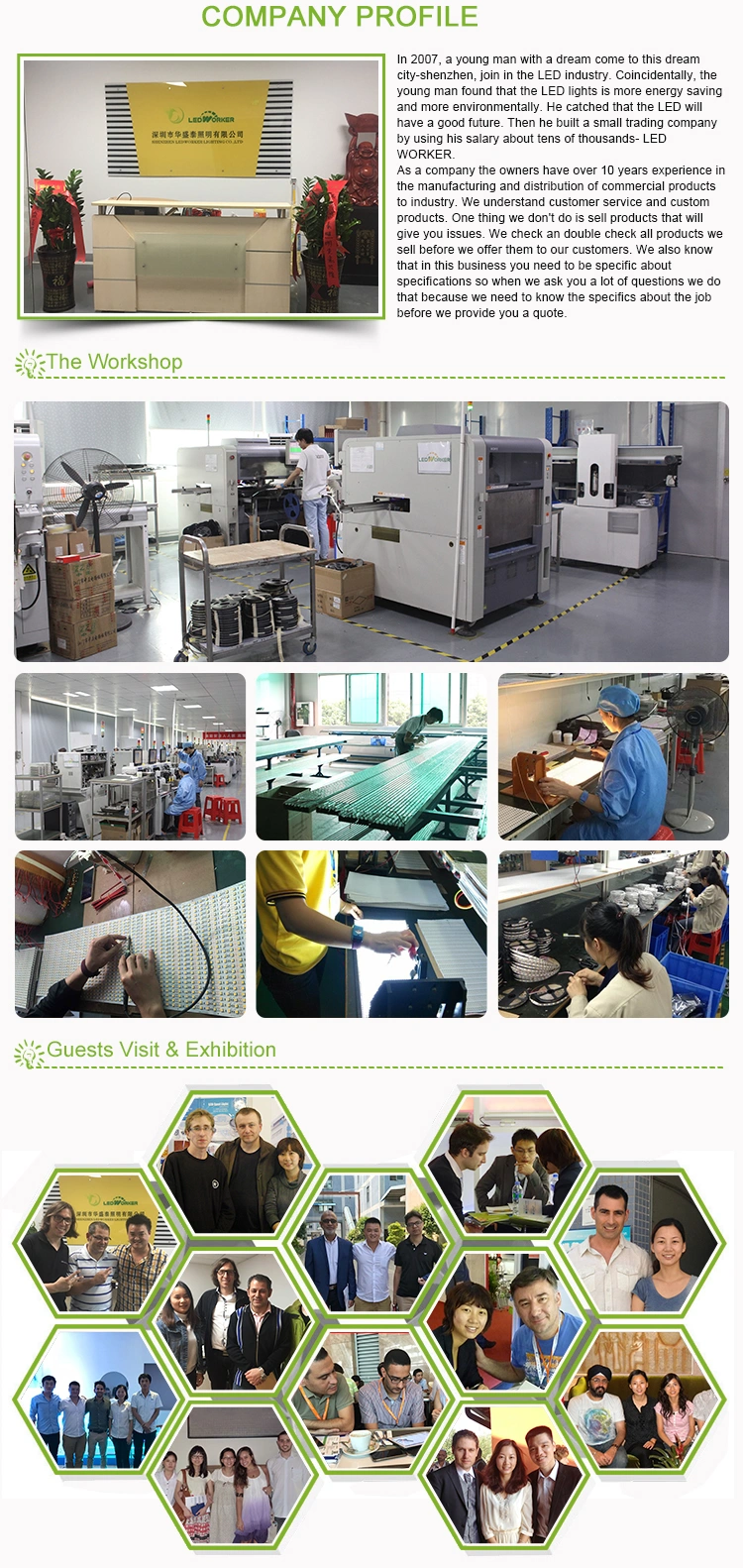

Our Company
