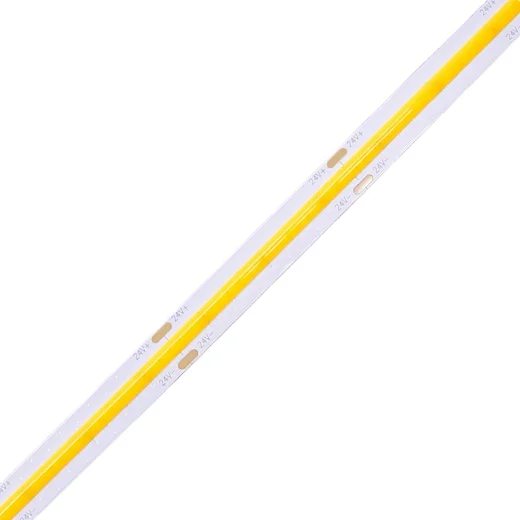

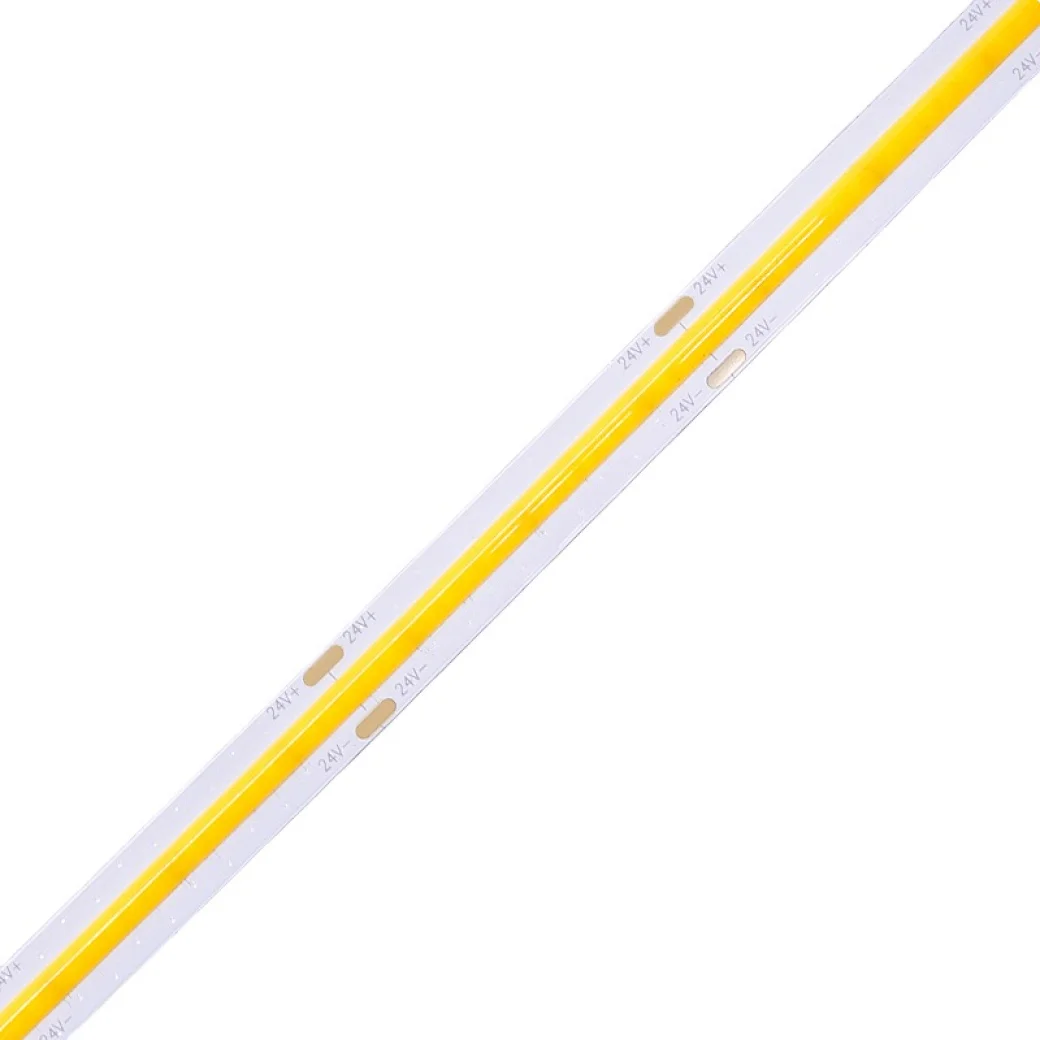

Factory sale CRI 90 378leds 12V 24V 3000K ip65 waterproof Cob led strip 8mm 10mm Flexible led cob strip

Factory sale CRI 90 378leds 12V 24V 3000K ip65 waterproof Cob led strip 8mm 10mm Flexible led cob strip

Model NO.: LW-COB013

Quantity:

Product Description

IP Rank:IP20,IP67
Color:CW,WW,
Type::Flexible COB Led Strip
Voltage:DC 12/24V
LED Quantity:378leds/m
Application:Decorative Lighting
Product Name:Cob led strip
PCB Color:white,
Warranty:2years
Lamp Luminous Efficiency(lm/w):100
Color Rendering Index(Ra):90
Support Dimmer:Yes
Lighting solutions service:Lighting and circuitry design
Lighting solutions service:Project Installation
Working Time (hours):50000
Lamp Body Material:Copper
Certification:ce
Certification:EMC
Certification:FCC
Certification:LVD
Certification:RoHS
Certification:Reach
Certification:Saa
Certification:VDE
Application:Hotel
Light Source:LED
Switch Mode:Remote Control
IP Rating:Ip20
Place of Origin:CN
Input Voltage(V):DC 24V
Lamp Power:12W-14W/M
CRI (Ra>):90
Working Temperature(℃):-20 - 60
Working Lifetime(Hour):50000
Brand Name:ledworker
Model Number:LW-COB013
Warranty(Year):2-Year

Product Description

Advantage:	1, 378pcs COB strip 2, High effective LM	1, 480pcs COB strip 2, Economy type	1, 480pcs COB strip 2, Three different 6/8/10mm width Choose	1, 504pcs COB strip 2, High brightiness	1, 512pcs COB strip 2, Single Red, Single Blue, Single Green
Part NO:	LW-COB003	LW-COB012	LW-COB013	LW-COB005	LW-COB014
LED Qty:	378pcs per meter	480pcs per meter	480pcs per meter	504pcs per meter	512pcs per meter
CRI (RA)	90	80	90	90	90
PCB Width IP20:	10mm width	8mm width	10mm width	10mm width	8mm width
Input Voltage:	DC24V /12	DC24V /12	DC24V /12	DC24V	DC24V
Watts:	DC24V=14W /12V=10W	9W	DC24V=14W /12V=10W	DC24V=14W	DC24V=10W
Luminous Flux:	100LM / W	90LM / W	100LM / W	100LM / W	.–
Color:	2700/3000/4000/6000K	2700/3000/4000/6000K	2700/3000/4000/6000K	2700/3000/4000/6000K	R or G or B
PCB color:	White	White	White	White	Red, Green, Blue
IP Grade:	IP20	IP20	IP20	IP20	IP20
Operating temperature:	.-25 to 45℃	.-25 to 45℃	.-25 to 45℃	.-25 to 45℃	.-25 to 45℃
Beam angle:	180 degree	180 degree	180 degree	180 degree	180 degree
Certification:	CE; RoHS	CE; RoHS	CE; RoHS	CE; RoHS	CE; RoHS
Max Run:	5M	5M	5M	5M	5M
Min Run:	24V 55.5mm 12V 23.8mm	24V 50mm 12V 25mm	24V 50mm 12V 25mm	24V 41.67mm 12V 23.8mm	24V 62.5mm

Productdetails:

1. New Technology, Chips On PCB Directly. Dot Free type.
2. High Color Efficiency, Uniform Illumination.

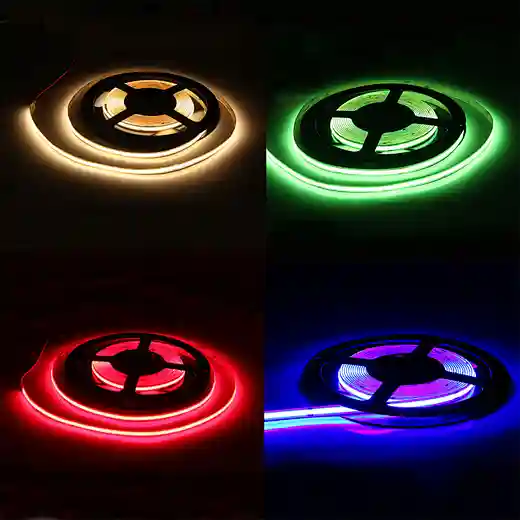

3. Single Color: 2700k, 3000k, 4000k, 6000k , Red, Green, Blue, Yellow. Also have RGB COB, Dual color type, 360 degree COB Led
Strip. Constant current /High Voltage Type is developing.
4. All of Materials Are Accord With Rohs / CE / REACH Standards.
5. Easy to Install and Preserve;can Be Bent Freely; With 3m Adhesive Tape On the Backside.
6. Beam Angle 180°.
7. As a manufacturer, we can customize different lengths, board width, voltage, power, color temperature and color rendering index
according to customer requirements.

12V-378leds

24V-378leds

Connect drawing:

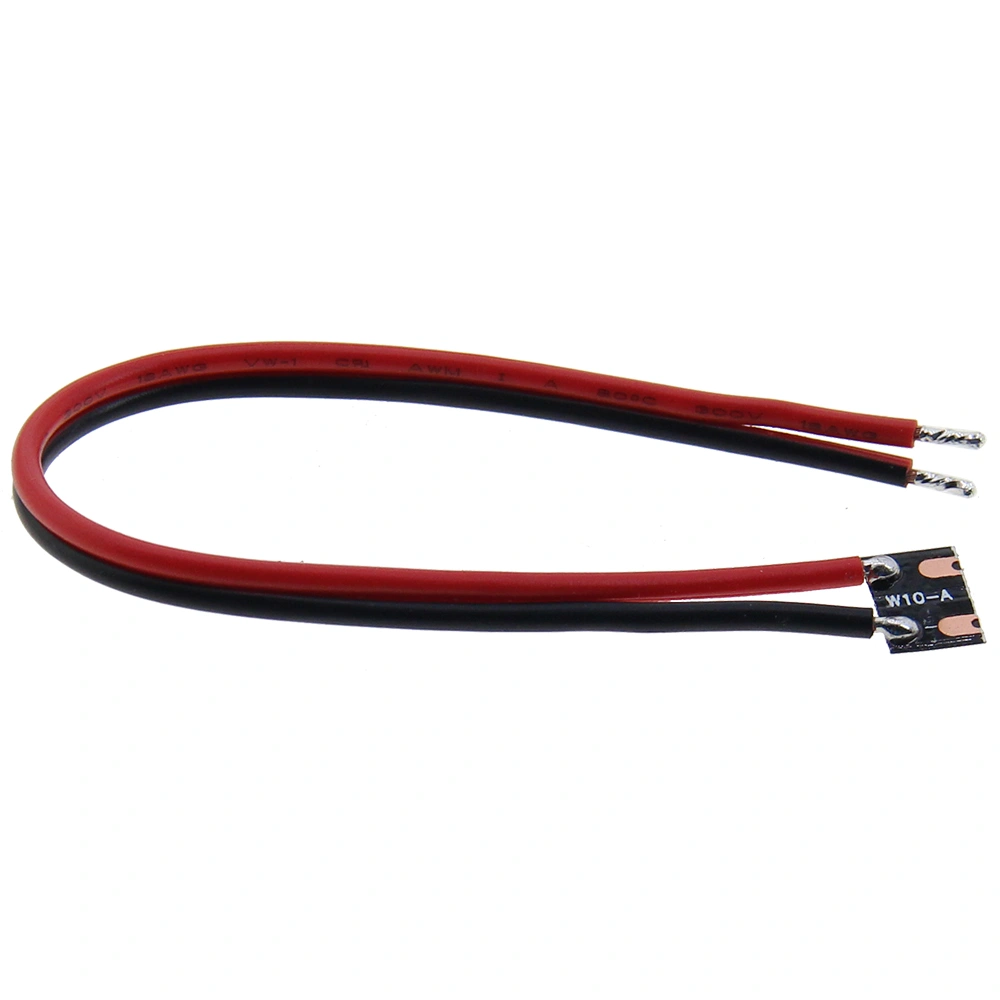

Accessories:

Please Attention

WhyLEDworker Lighting :

1,NICE QUALITY.
2,ONLINE PAYMENT.
3,FULL LINE PRODUCTS.
4,AFTER SALES SERVICES 24/7.
5.FACTORY DIRECT PRICE. PRICE EFFECTIVE.
6,EXPERIENCES SALES, EASY COMMUNICATION.
7,NO MOQ , 1PCS OK . SMALL ORDER WELCOME.
8,QUICK SHIPPING WITHIN 3 - 5 DAYS. SAMPLES HAVE STOCK.

We are not just say it. We really do it !!!

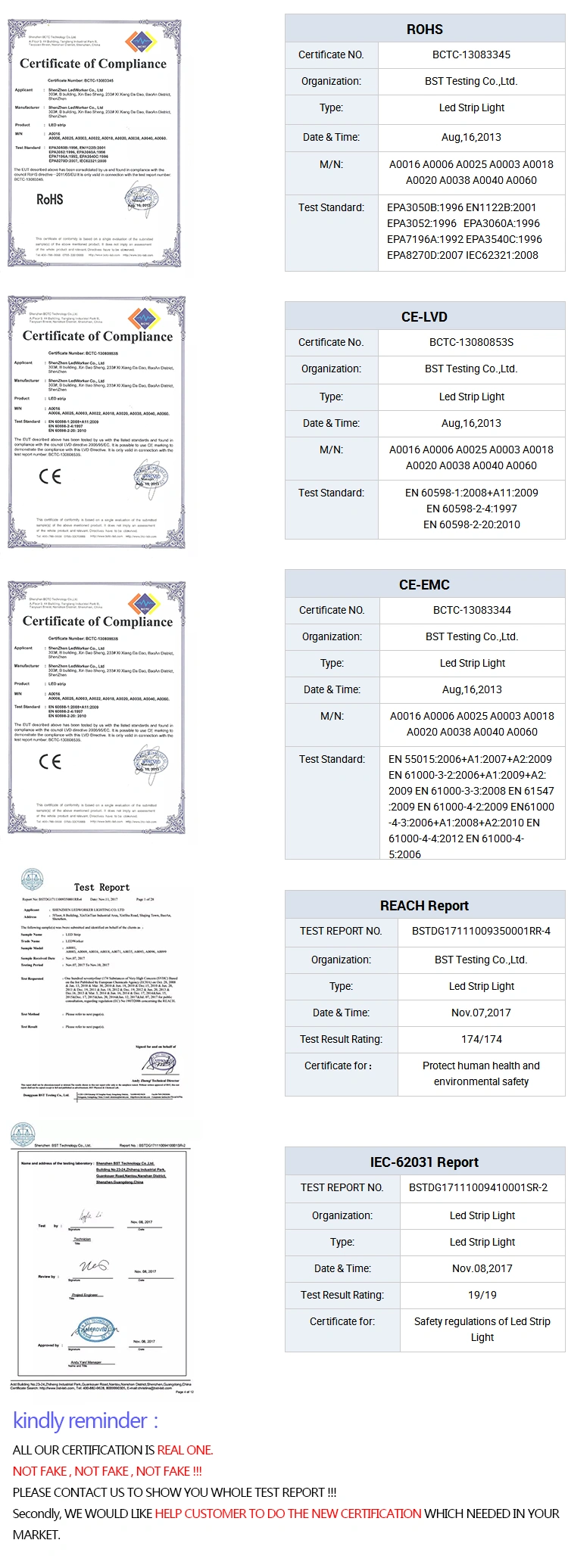

Certifications

Feedback:

WORLD -WIDE CUSTOMERS COMMENTS & FEEDBACK

Here is some of comments from our world-wide customers.
You can check all the comments at our company profile .

Please visit www.ledworker.en.alibaba.com --> Click"Company profile
--> choose"Rating&Reviews"
Then you can see all comments from our clients.

Please note : all our customer comments is real one , NOT FAKE .

[ TRUST YOU WILL LIKE OUR SERVICES, QUALITY AND PRICE ]
