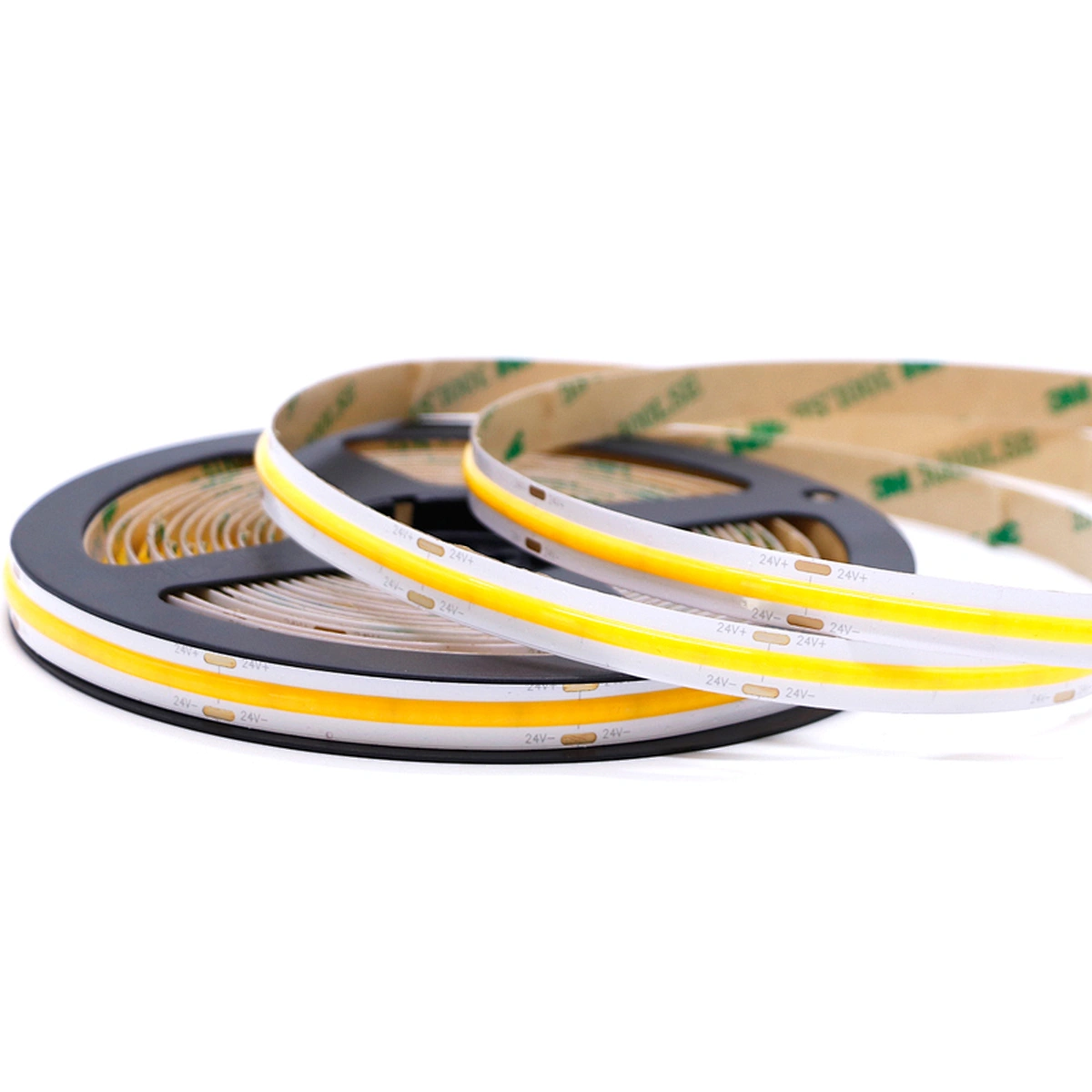

480 320leds COB LED Strip
LW-COB013
1meter
Quantity
- Place of Origin:Guangdong, China
- Brand Name:ledworker
- Model Number:LW-COB013
- Application:Hotel, Decorative Lighting
- Color Temperature(CCT):6000K (Daylight Alert)
- IP Rating:IP20
- Lamp Body Material:Copper
- CRI (Ra>):90
- Input Voltage(V):DC 24V
- Lamp Luminous Efficiency(lm/w):110
- Warranty(Year):2-Year
- Working Lifetime(Hour):50000
- Working Temperature(℃):-20 - 60
- Color Rendering Index(Ra):95
- Certification:ce, EMC, FCC, LVD, RoHS, Reach, Saa, VDE
- Light Source:LED
- Support Dimmer:Yes
- Lighting solutions service:Lighting and circuitry design, Project Installation
- Lifespan (hours):30000
- Working Time (hours):50000
- Product Weight（kg）:0.12
- Control Mode:Touch Control, APP Control, Sensor control
- IP Rank:IP20,IP67
- Color:CW,WW,
- Type::Flexible COB Led Strip
- Voltage:DC 12/24V
- LED Quantity:320/480leds/m
- Product Name:Cob led strip
- PCB Color:white,
- Warranty:2years
- LED Type:COB Led Chip
Product Description
Advantage: | 1, 320pcs COB strip 2, Economy type | 1, 360pcs COB strip | 1, 378pcs COB strip 2, High effective LM | 1, 480pcs COB strip 2, Three different 6/8/10mm width Choose | 1, 504pcs COB strip 2, High brightiness |
Part NO: | LW-COB010 | LW-COB011 | LW-COB003 | LW-COB013 | LW-COB005 |
LED Qty: | 320pcs per meter | 360pcs per meter | 378pcs per meter | 480pcs per meter | 504pcs per meter |
CRI (RA) | 90 | 90 | 90 | 90 | 90 |
PCB Width IP20: | 8mm 10mm width | 6mm 8mm 10mm width | 10mm width | 10mm width | 10mm width |
Input Voltage: | DC24V | DC24V /12 | DC24V | DC24V /12 | DC24V |
8mm DC24V=10W /12V=8W 10mm DC24V=14W /12V=10W | 6mm DC24V=8W /12V=6W 8mm DC24V=10W /12V=8W 10mm DC24V=14W /12V=10W | ||||
Luminous Flux: | 110LM / W | 110LM / W | 100LM / W | 100LM / W | 100LM / W |
Color: | 2700/3000/4000/6000K | 2700/3000/4000/6000K | 2700/3000/4000/6000K | 2700/3000/4000/6000K | 2700/3000/4000/6000K |
PCB color: | White | White | White | White | White |
IP Grade: | IP20 | IP20 | IP20 | IP20 | IP20 |
Operating temperature: | .-25 to 45℃ | .-25 to 45℃ | .-25 to 45℃ | .-25 to 45℃ | .-25 to 45℃ |
Beam angle: | 180 degree | 180 degree | 180 degree | 180 degree | 180 degree |
Certification: | CE; RoHS | CE; RoHS | CE; RoHS | CE; RoHS | CE; RoHS |
Max Run: | 5M | 5M | 5M | 5M | 5M |
Min Run: | 24V 50mm 12V 25mm | 24V 50mm 12V 25mm | 24V 55.5mm 12V 23.8mm | 24V 50mm 12V 25mm | 24V 41.67mm 12V 23.8mm |
Productdetails:
1. New Technology, Chips On PCB Directly. Dot Free type.
2. High Color Efficiency, Uniform Illumination.

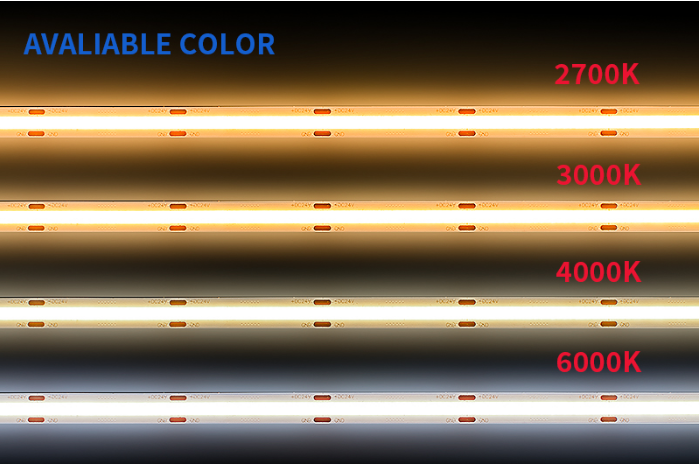

3. Single Color: 2700k, 3000k, 4000k, 6000k , Red, Green, Blue, Yellow. Also have RGB COB, Dual color type, 360 degree COB Led
Strip. Constant current /High Voltage Type is developing.
4. All of Materials Are Accord With Rohs / CE / REACH Standards.
5. Easy to Install and Preserve;can Be Bent Freely; With 3m Adhesive Tape On the Backside.

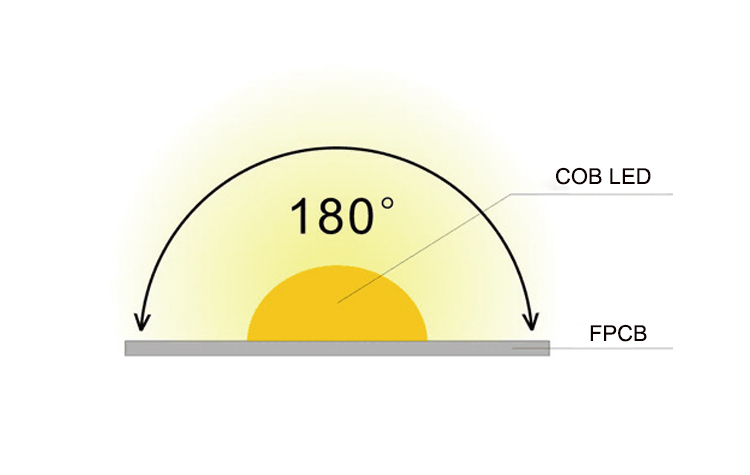

6. Beam Angle 180°.
7. As a manufacturer, we can customize different lengths, board width, voltage, power, color temperature and color rendering index
according to customer requirements.
Excellent Iinear Iighting performance, Dot FREE.
2. High Color Efficiency, Uniform Illumination.
3. Single Color: 2700k, 3000k, 4000k, 6000k , Red, Green, Blue, Yellow. Also have RGB COB, Dual color type, 360 degree COB Led
Strip. Constant current /High Voltage Type is developing.
4. All of Materials Are Accord With Rohs / CE / REACH Standards.
5. Easy to Install and Preserve;can Be Bent Freely; With 3m Adhesive Tape On the Backside.
6. Beam Angle 180°.
7. As a manufacturer, we can customize different lengths, board width, voltage, power, color temperature and color rendering index
according to customer requirements.
Excellent Iinear Iighting performance, Dot FREE.

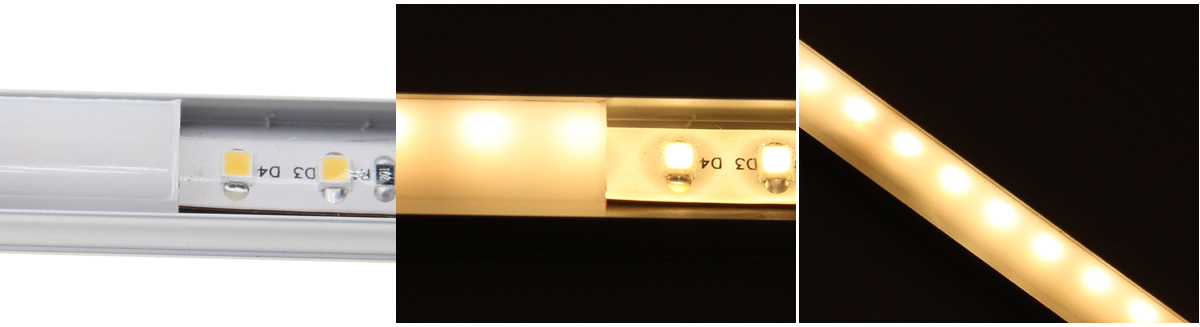

2835SMD Led Strip With Aluminum Profile:
VS

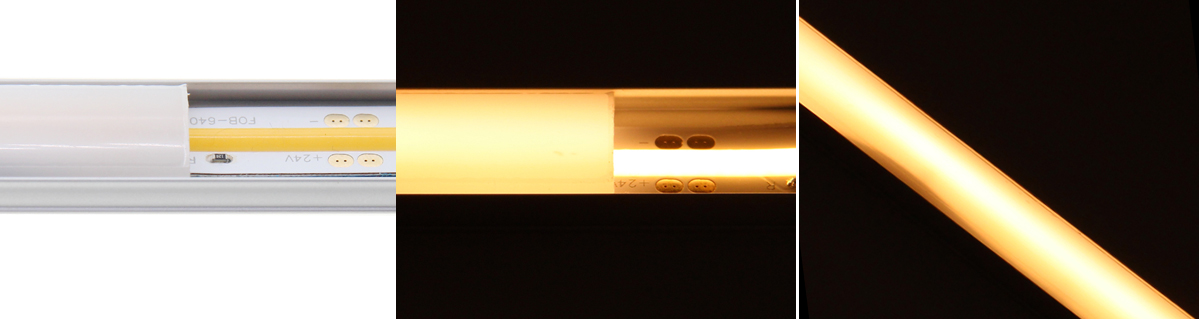

COB SMD Led Strip With Aluminum Profile:

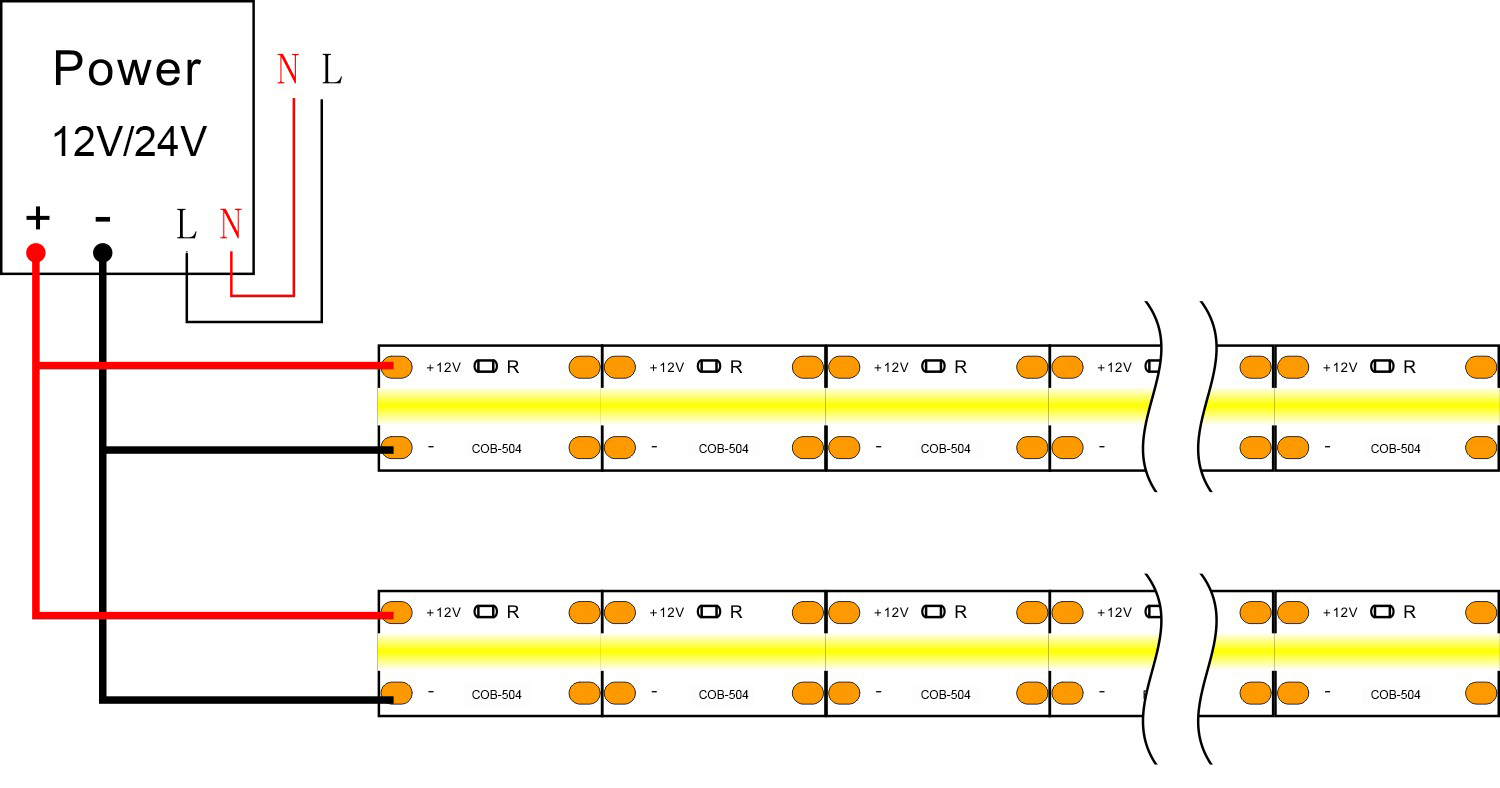

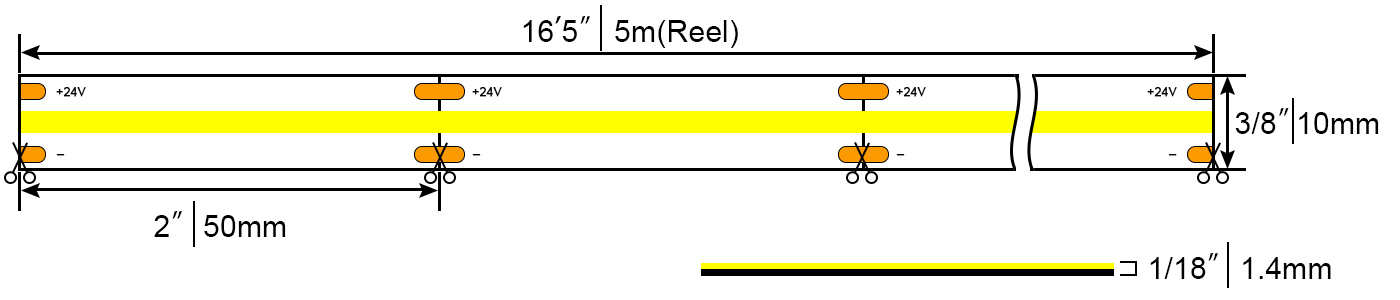

Connect drawing:

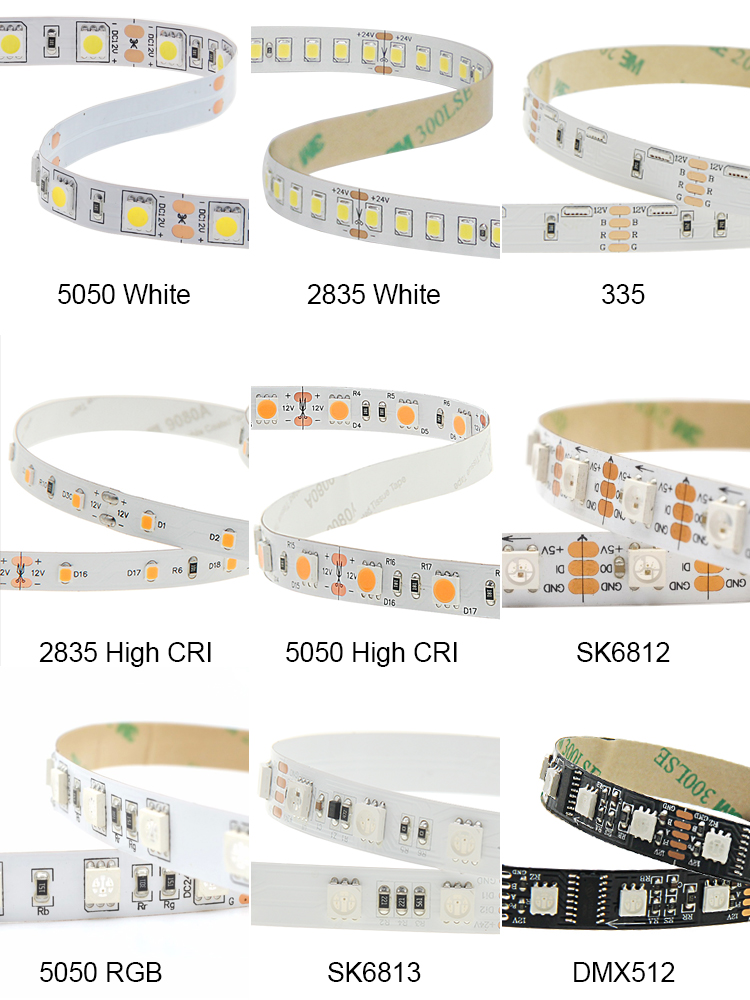

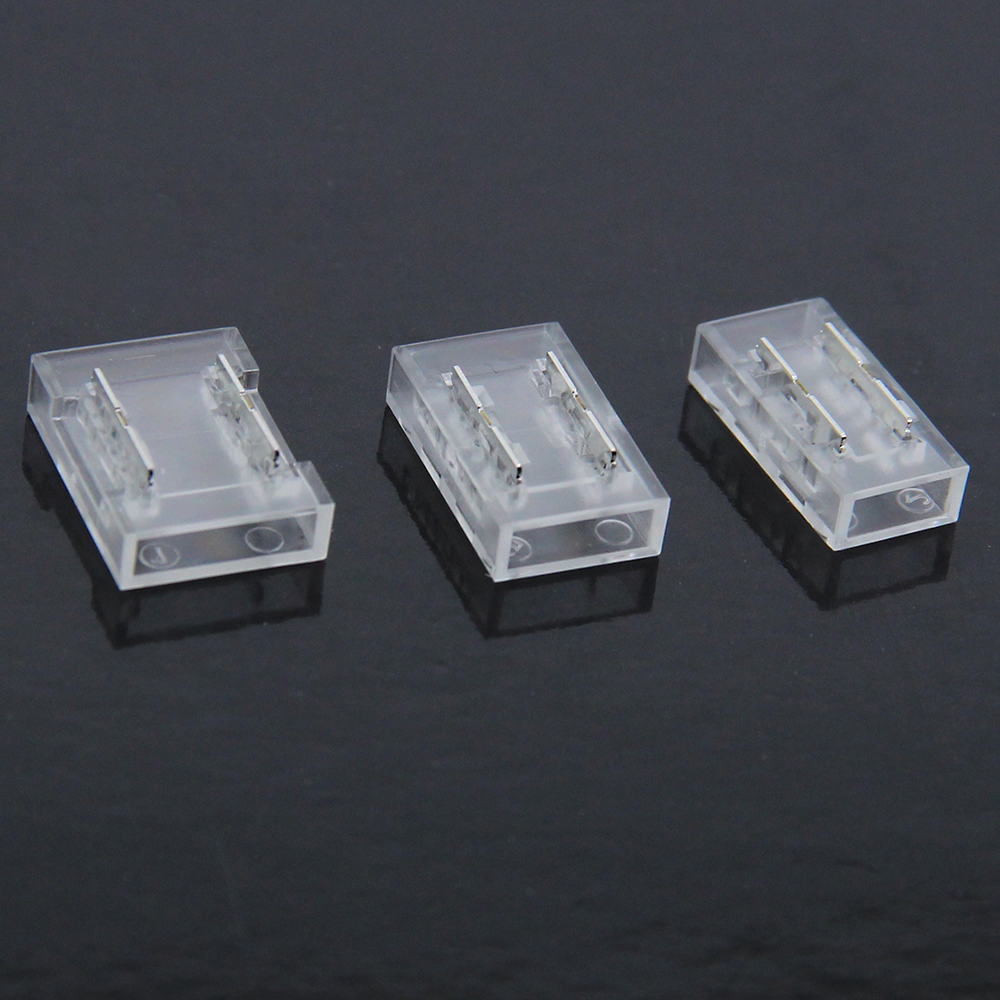

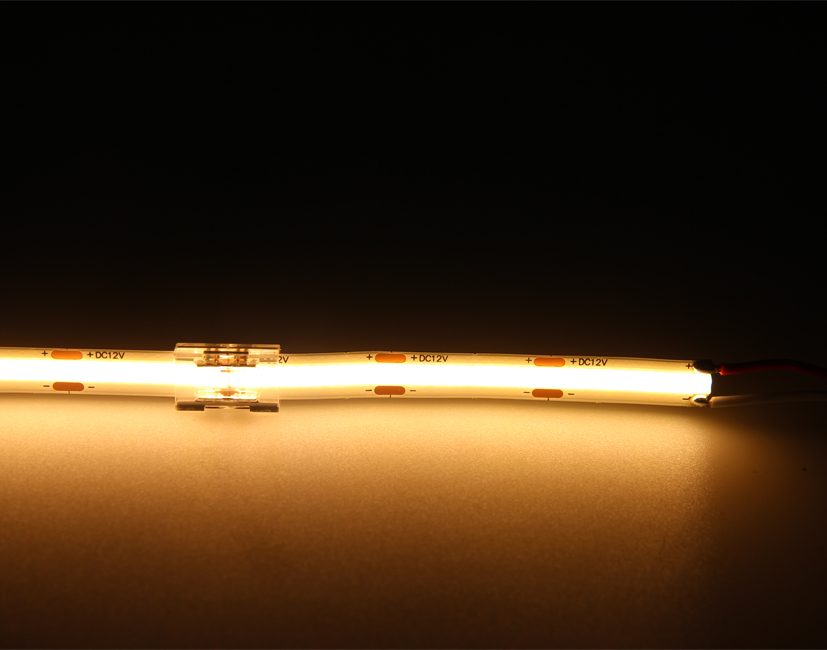

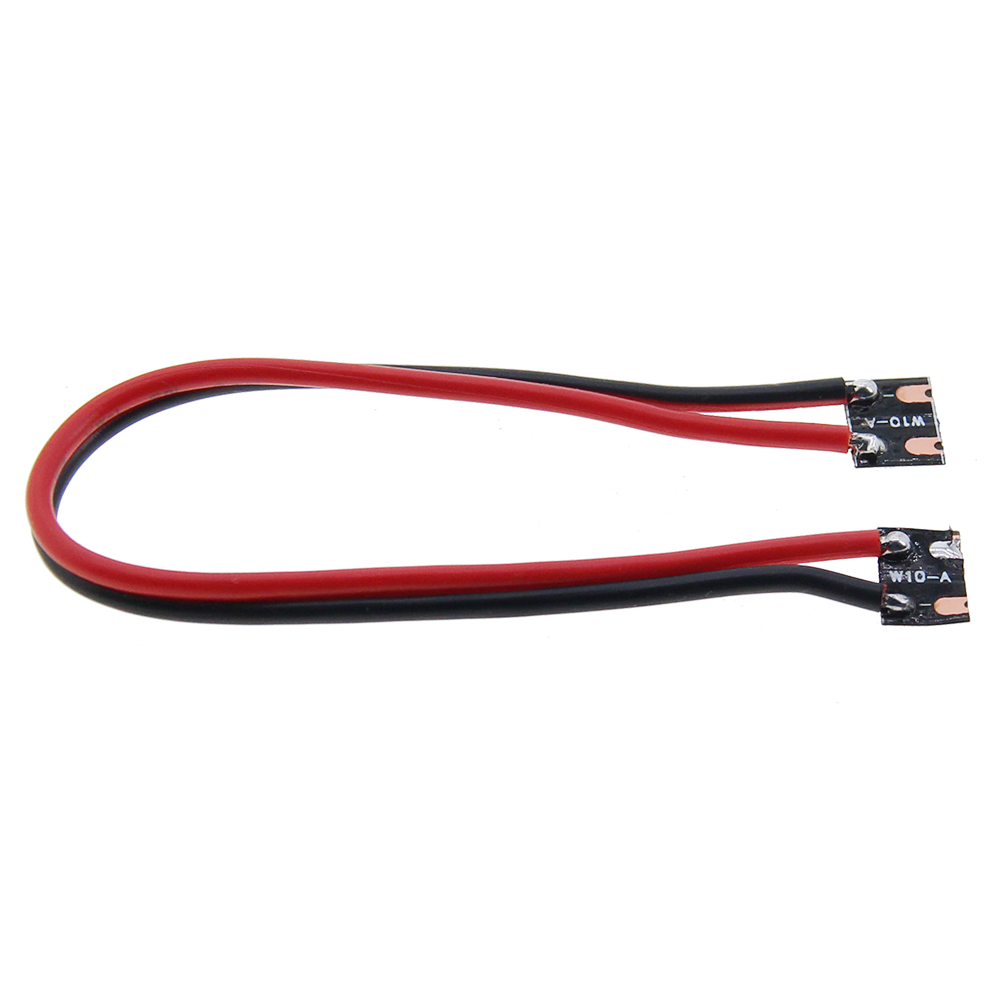

Accessories:
3528/5050/3014/335/5730/2835 led strip,IP20/IP40/IP65/IP67/IP68 led strip,Neon Flex,Normal brightness/High brightness/Super
brightness/High CRI/Hybrid brightness led strip,Unique led strip,Colorful / white led strips...
Please Attention
Why LEDworker Lighting :
1,NICE QUALITY.
2,ONLINE PAYMENT.
3,FULL LINE PRODUCTS.
4,AFTER SALES SERVICES 24/7.
5.FACTORY DIRECT PRICE. PRICE EFFECTIVE.
6,EXPERIENCES SALES, EASY COMMUNICATION.
7,NO MOQ , 1PCS OK . SMALL ORDER WELCOME.
8,QUICK SHIPPING WITHIN 3 - 5 DAYS. SAMPLES HAVE STOCK.
We are not just say it. We really do it !!!

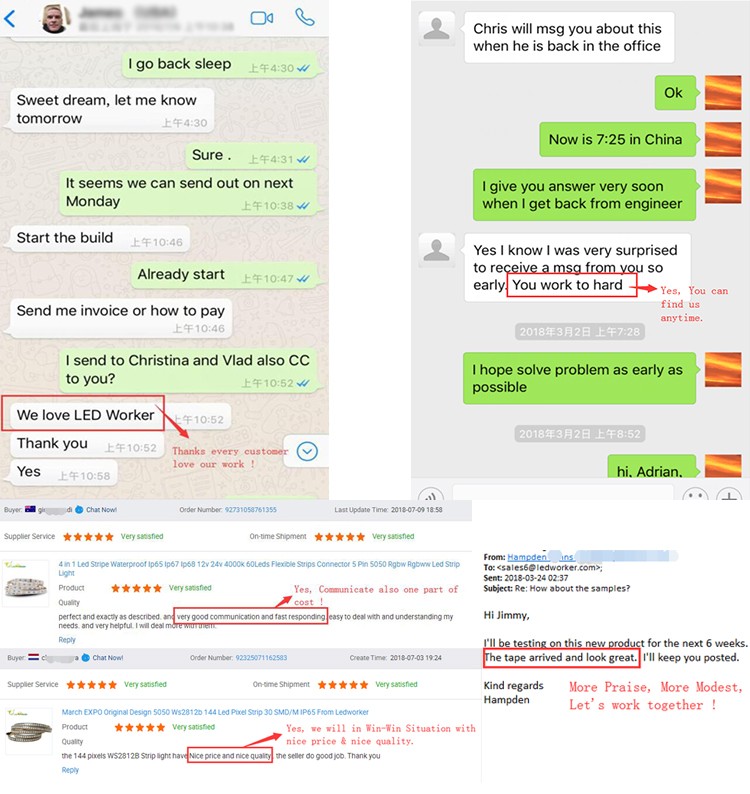

Feedback:
WORLD -WIDE CUSTOMERS COMMENTS & FEEDBACK
Here is some of comments from our world-wide customers.
You can check all the comments at our company profile .
Please visit www.ledworker.en.alibaba.com --> Click"Company profile
--> choose"Rating&Reviews"
Then you can see all comments from our clients.
Please note : all our customer comments is real one , NOT FAKE .
[ TRUST YOU WILL LIKE OUR SERVICES, QUALITY AND PRICE ]

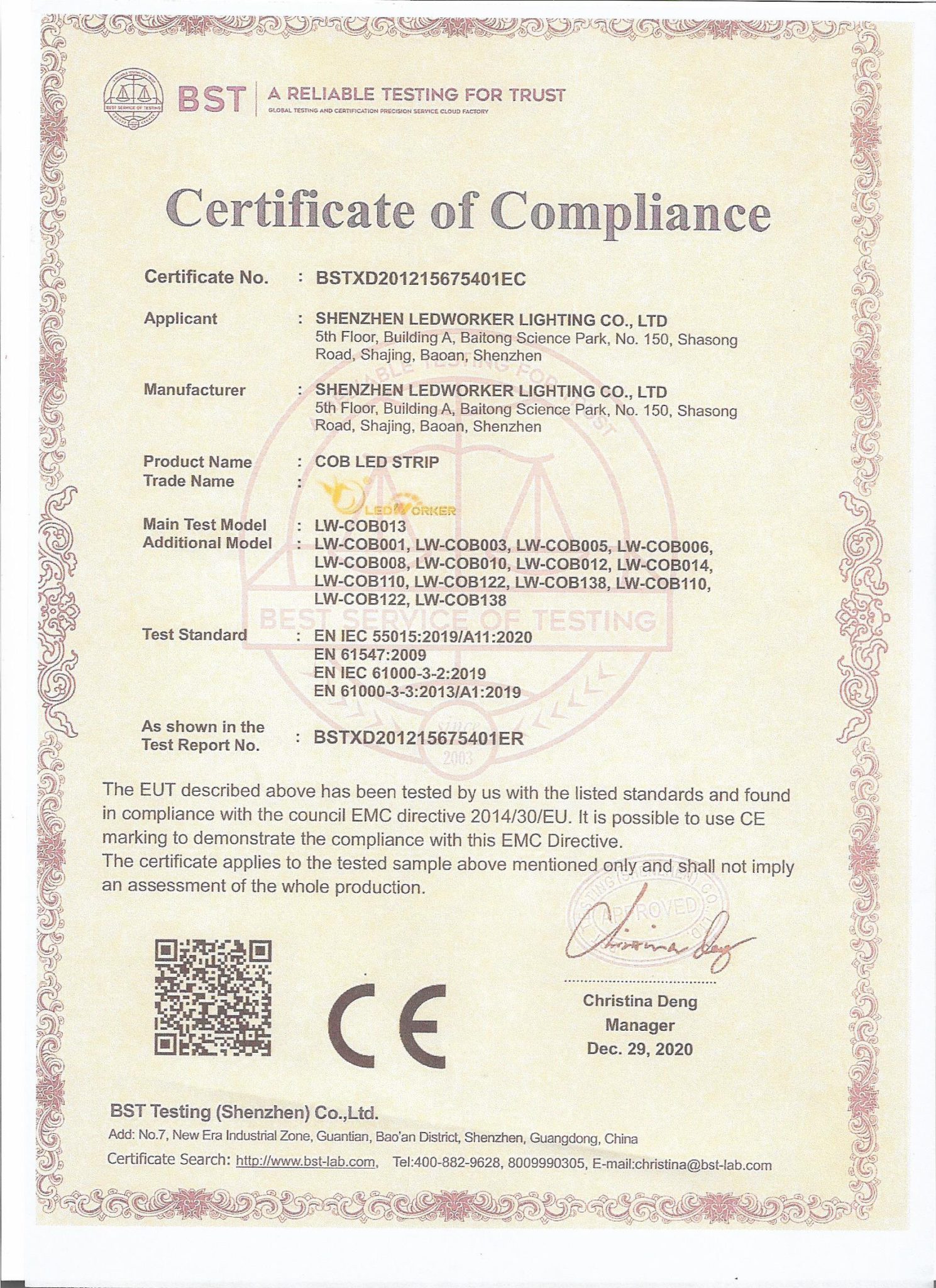

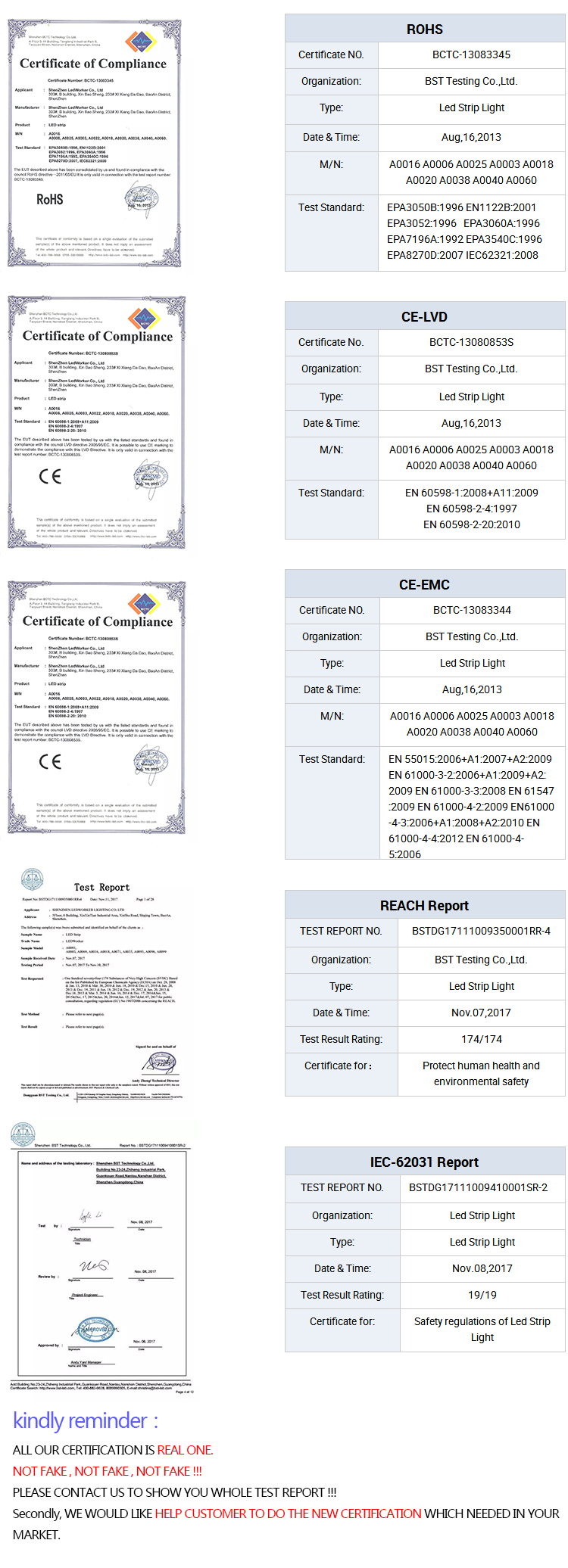

Certifications

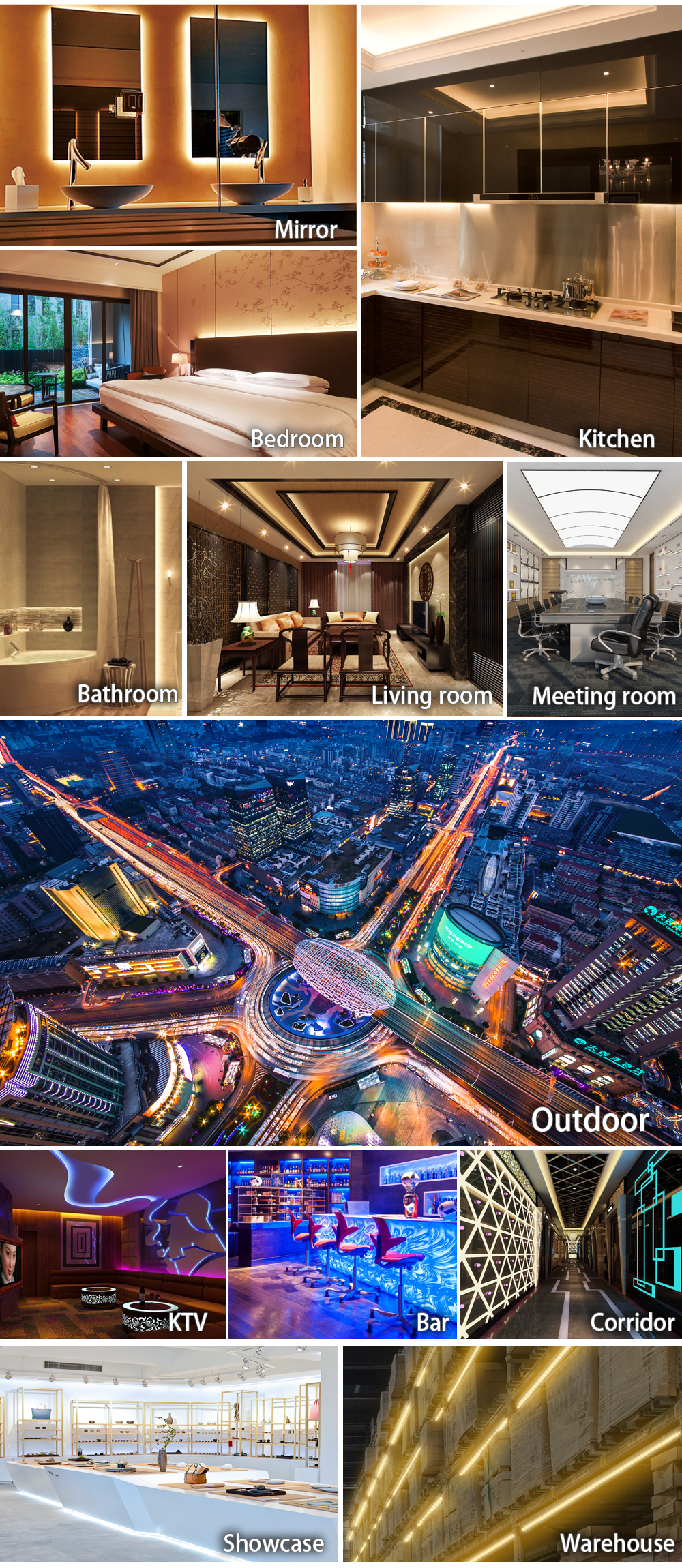

Application
Our Company

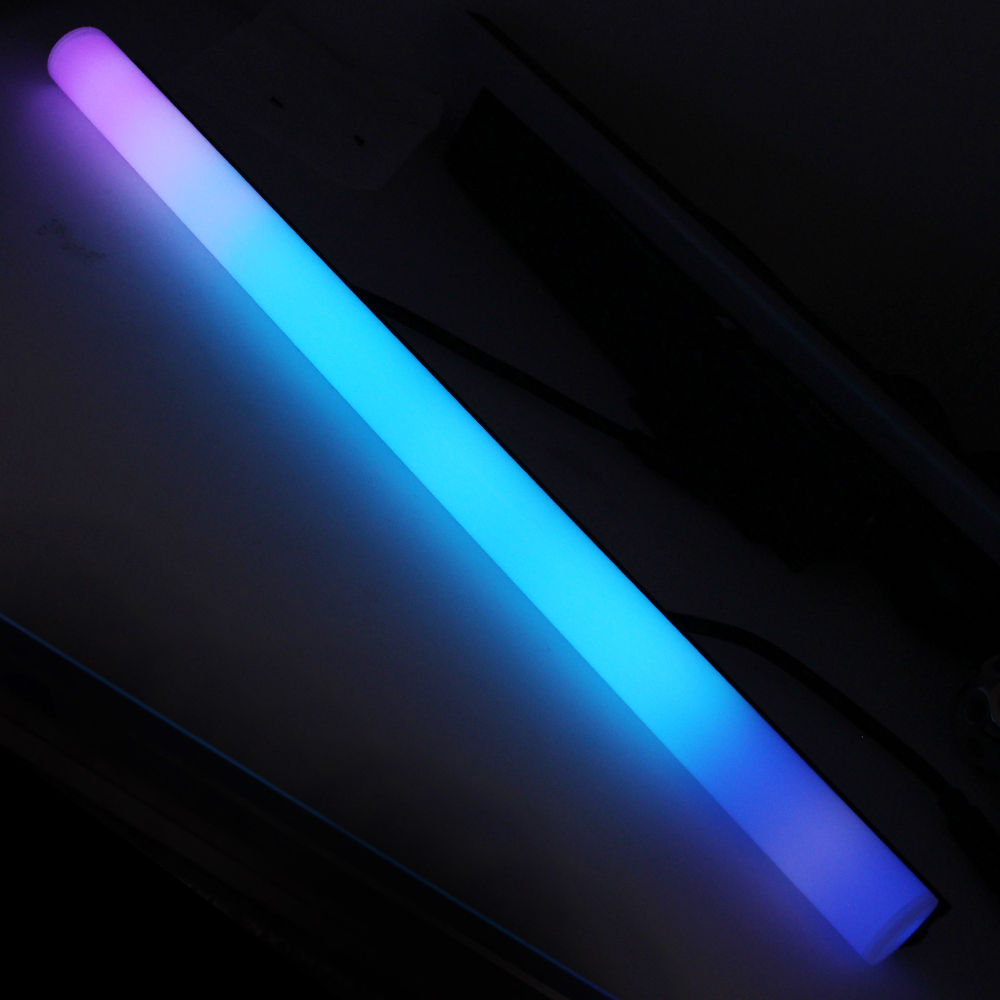

New Design

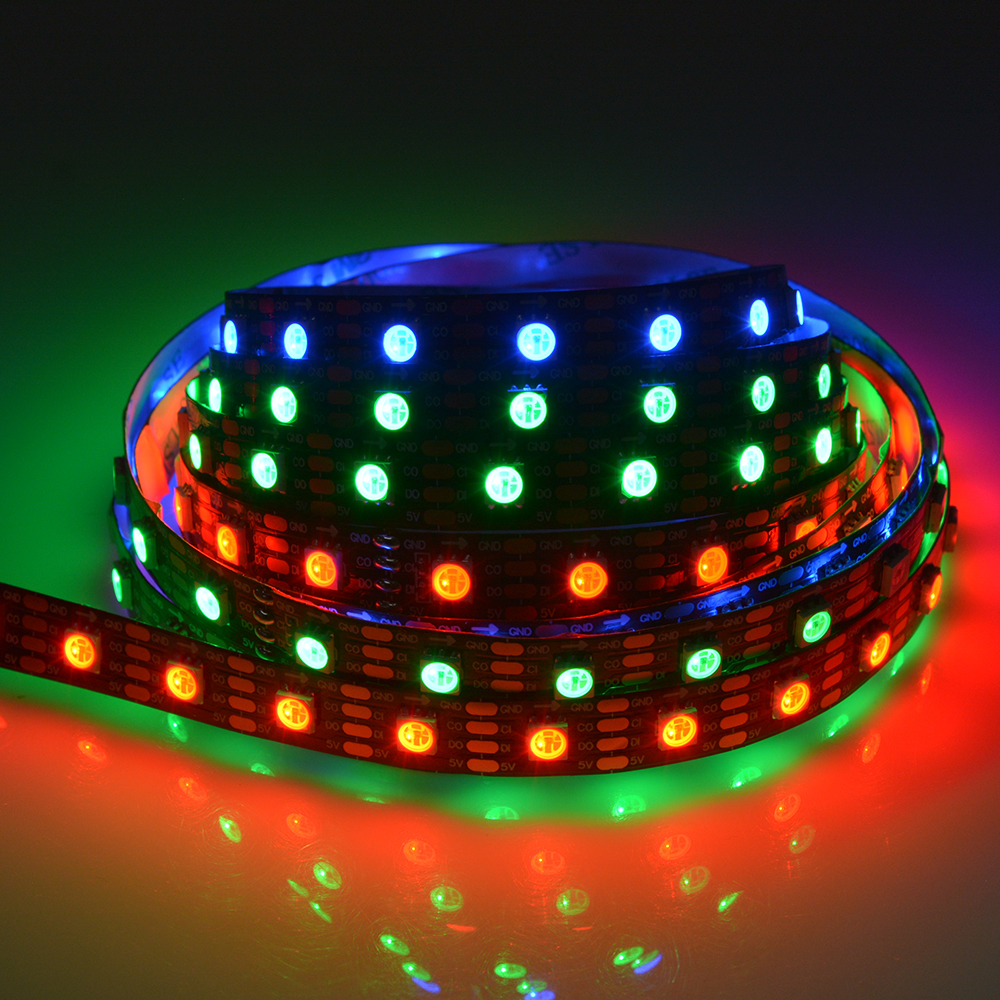

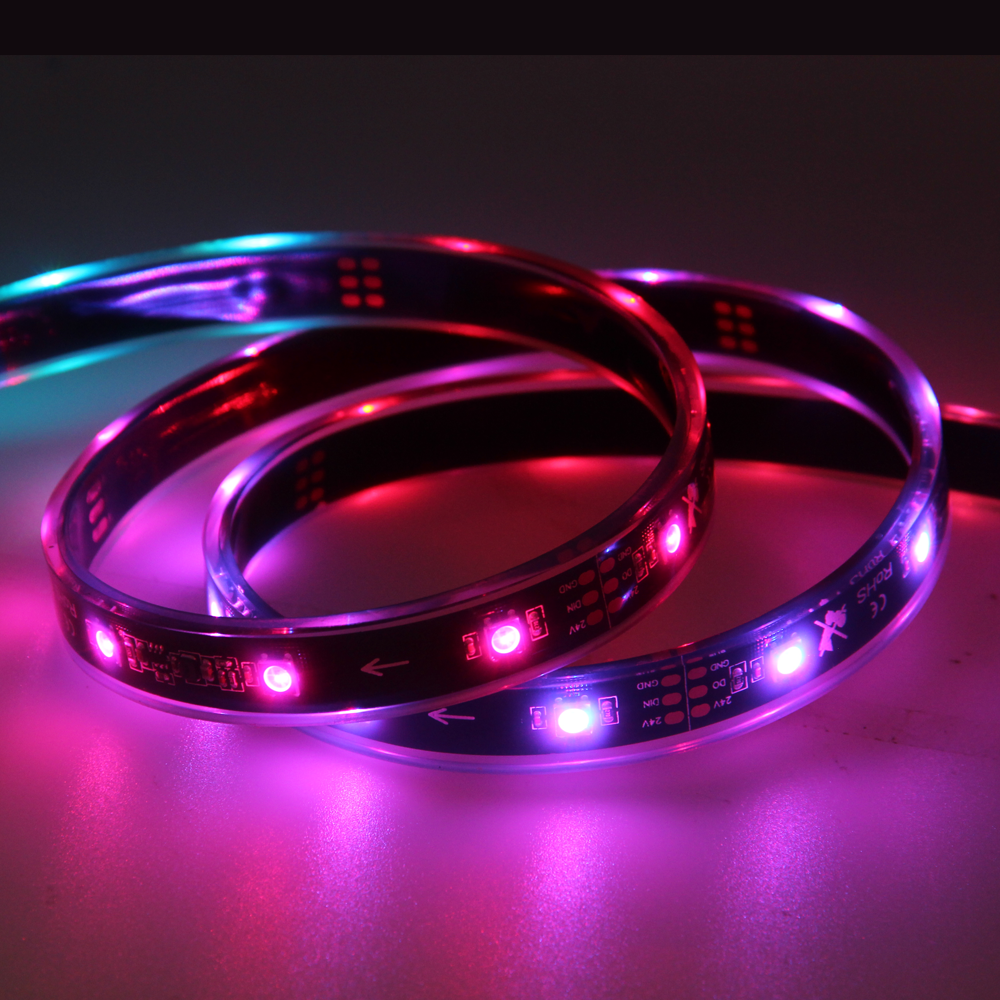

Pixel Bar24V individual stripHigh Speed HD107S

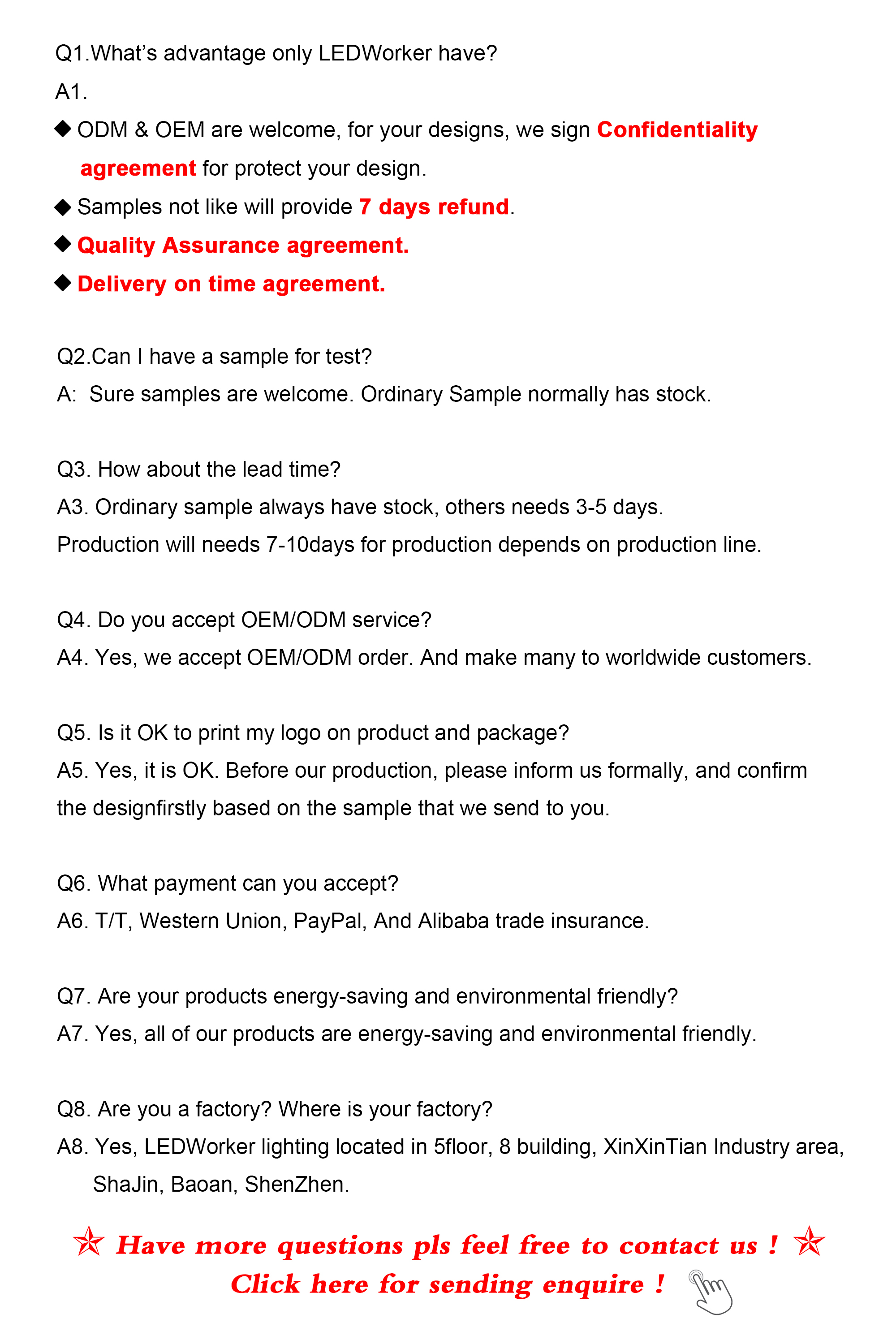

FAQ
