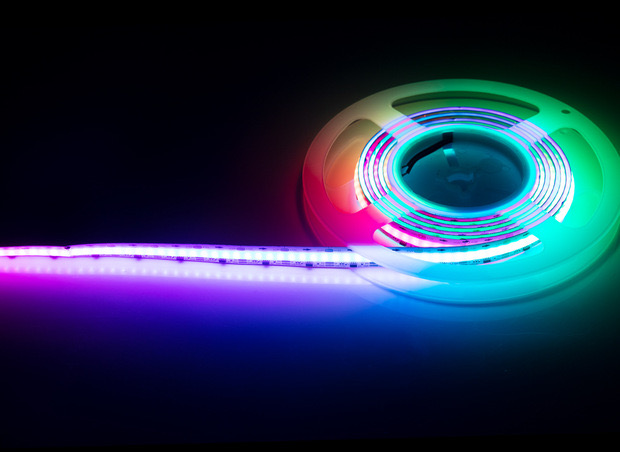

Addressable RGB COB LED Strip
Product Features
Product Specification
| Part NO: | LW-COB122 | LW-COB033 |
| LED Qty: | 630pcs per meter | 576pcs per meter |
| IC Qty: | 12V(14 pcs IC) | 12V(16 pcs IC) |
| 24V(10 pcs IC) | 24V(16 pcs IC) | |
| Input Voltage: | DC12V/DC24V | DC12V/DC24V |
| Watts: | 12V(8W) | 12V(10W) |
| 24V(11.5W) | 24V(16W) | |
| Color: | Addressable RGB | Addressable RGB |
| Control signal: | SPI | SPI |
| PCB color: | White | White |
| IP Grade: | IP20 | IP20 |
| Operating temperature: | .-25 to 45℃ | .-25 to 45℃ |
| Beam angle: | 180 degree | 180 degree |
| Certification: | CE; RoHS | CE; RoHS |
| Max Run: | 5M | 5M |
| Min Run: | 12V（71.43mm） | 12V（62.5mm） |
| 24V（100mm） | 24V（62.5mm） |
This COB LED strip features an expansive 180° beam angle, providing superior coverage compared to standard
120° LED strips. Its chip-on-board configuration, combined with a phosphor layer, delivers a uniformly diffused light
output, eliminating dark spots and ensuring consistent illumination across surfaces.
2.WS2811 IC COB Technology
These RGBIC Pro LED strips utilize WS2811 integrated circuits and are controlled through SPI protocols,
allowing for seamless chase, gradient, and flowing light effects. They offer a wide range of dynamic and static lighting
modes, delivering rich and intricate visual performances.
3.Soft, Premium Lighting Quality
5.The installation
1.This installation method is mainly suitable for non-waterproof environments.
2.A strong 3M adhesive tape is applied on the back of the strip.

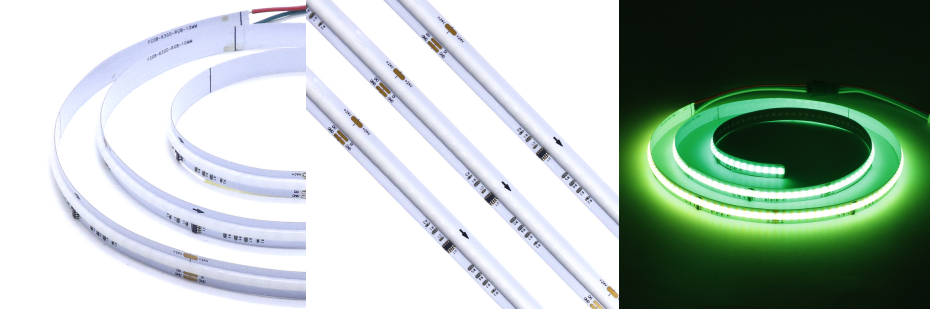

3.Supplied as a led strip roll for convenient handling and installation.
Easy to Use and Easy to Install Tear Off the Adhesive Tape Paste to Where You Need to Install
6.Accessories
We provide a range of accessories to support your LED strip installation, including connectors, aluminum troughs,
power supplies, RGB controllers, and various connectors to ensure seamless and efficient setup.
Aluminum Trough Power Supply Controller Connector
ConnectDrawing:

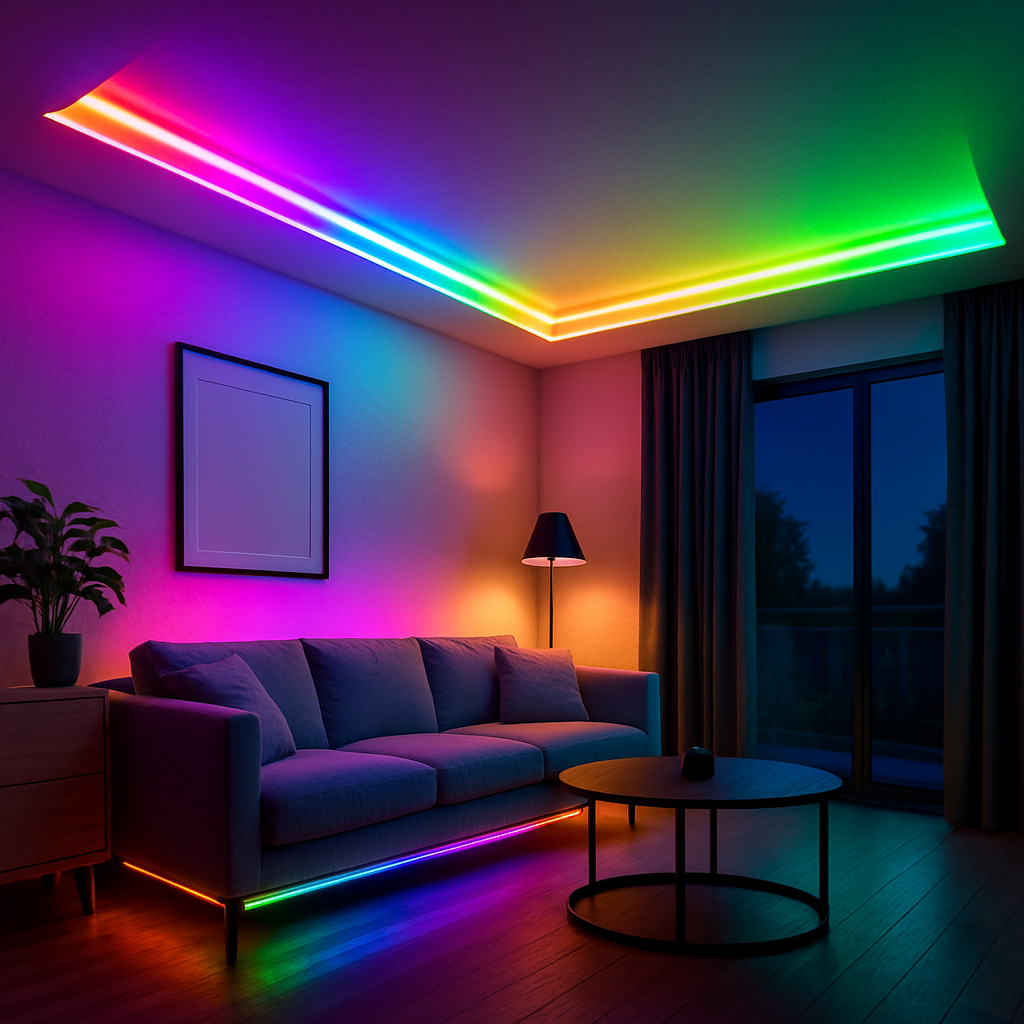

Application
Bluetooth LED Strip Control – Works with a smart controller to create chase, flow, and dynamic RGB effects.
Architectural Highlights – Accentuates buildings, bridges, parks, and plazas with smooth, eye-catching lighting.
Upscale Venue Décor – Ideal for hotels, KTVs, nightclubs, showrooms, and jewelry counters.
Flexible & Vibrant – High brightness, flexible and bendable design, perfect for continuous, vivid color effects.
Creative Applications – Popular for DIY home décor, window displays, fashion shows, signage, and exhibitions.
