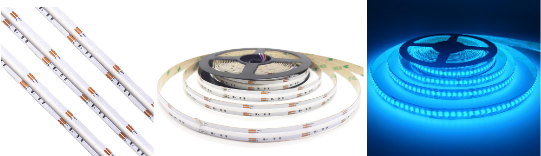

RGB COB LED Strip
Product Features
Our RGB COB LED Strips feature solder-free chip-on-board design, high color efficiency,
long life over 25,000 hours, excellent flexibility, and easy installation with 3M adhesive backing.
We offer fully customizable options for our RGB COB LED Strips, including LED quantity,
PCB width, colors, CRI levels, and waterproof ratings—contact us for tailored solutions.
Product Specification
- Wattage: 14W per meter
- Voltage: 12V/24V voltage
- Available Colours: RGB
- LED Quantity: 480 / 576 / 630 /864 LEDs
- Ingress Protection: IP20/IP65/IP67/IP68
- PCB White:8/10mm
- Beam Angle: 180° wide-angle light distribution
- Warranty: Up to 3 years
| Part NO: | LW-COB020 | LW-COB031 | LW-COB040 |
| LED Qty: | 630pcs per meter | 480pcs per meter | 864pcs per meter |
| Input Voltage: | DC12V / DC24V | DC24V | DC12V |
| Watts: | 12V（16W） | 16-18W | 15W |
| 24V（18W） | |||
| Color: | RGB 3 in 1 | RGB 3 in 1 | RGB 3 in 1 |
| PCB color: | White | White | White |
| PCB Width: | 10mm | 10mm | 10mm |
| IP Grade: | IP20 | IP20 | IP20 |
| Operating temperature: | .-25 to 45℃ | .-25 to 45℃ | .-25 to 45℃ |
| Beam angle: | 180 degree | 180 degree | 180 degree |
| Certification: | CE; RoHS | CE; RoHS | CE; RoHS |
| Max Run: | 5M | 5M | 5M |
| Min Run: | DC12V (14.3mm) | 33.33mm | 41.67mm |
| DC24V (33.33mm) |
Ourled rgb strip lights feature a broad 180-degree viewing angle, surpassing the typical 120-degree angle of standard SMD strips.
By mounting chips directly on the board and coating them with phosphor, the light spreads evenly with minimal dark spots.

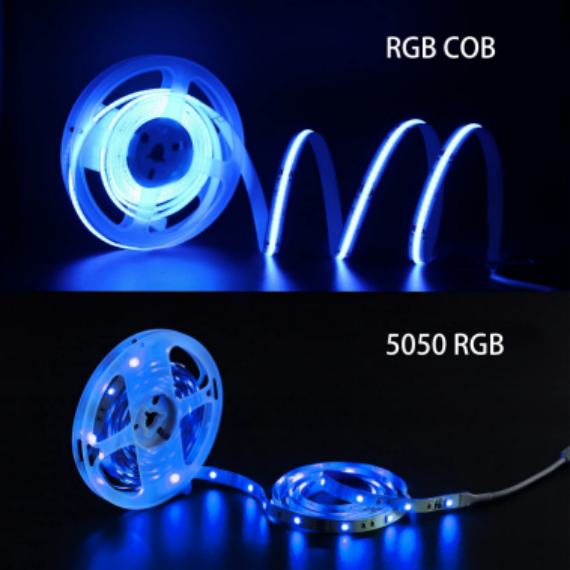

2.Smooth, Dot-Free Lighting Performance

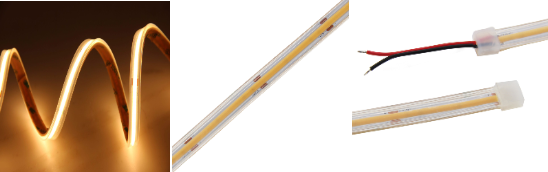

Using advanced COB (Chip on Board) technology, LED chips are directly embedded onto the substrate. This design
reduces visible light dots, providing consistent and uniform illumination. Compared to 24v strip led 5050 RGB strips,
COB strip led technology eliminates hotspots for softer, premium lighting—ideal for environments demanding high-quality light.

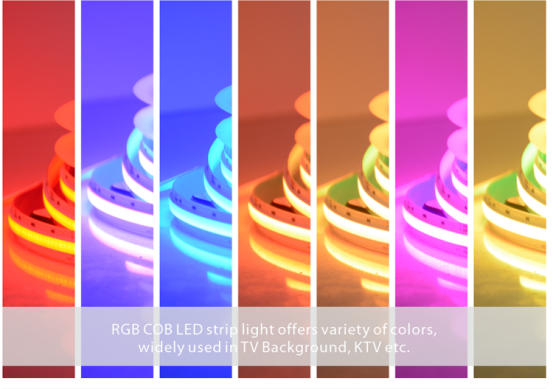

4.Very nice color
5.The installation
1.This installation method is mainly suitable for non-waterproof environments.

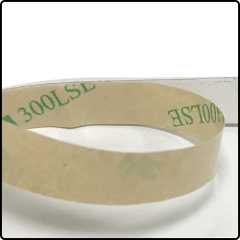

2.A strong 3M adhesive tape is applied on the back of the strip.
3.The strip can be directly attached to any solid surface as needed.
Easy to Use and Easy to Install Tear Off the Adhesive Tape Paste to Where You Need to Install
6.Accessories
We provide a range of accessories to support your LED strip installation, including connectors, aluminum troughs,
power supplies, RGB controllers, and various connectors to ensure seamless and efficient setup.
Aluminum Trough Power Supply RGB Controller Connector

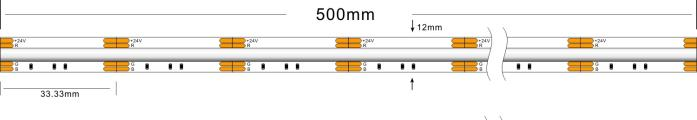

LW-COB020-24V-630LEDs

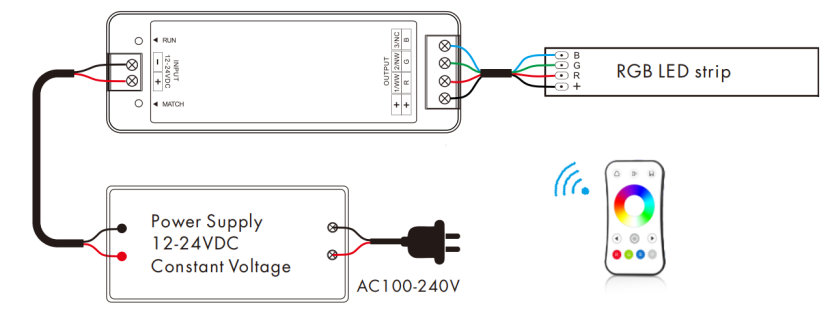

ConnectDrawing:

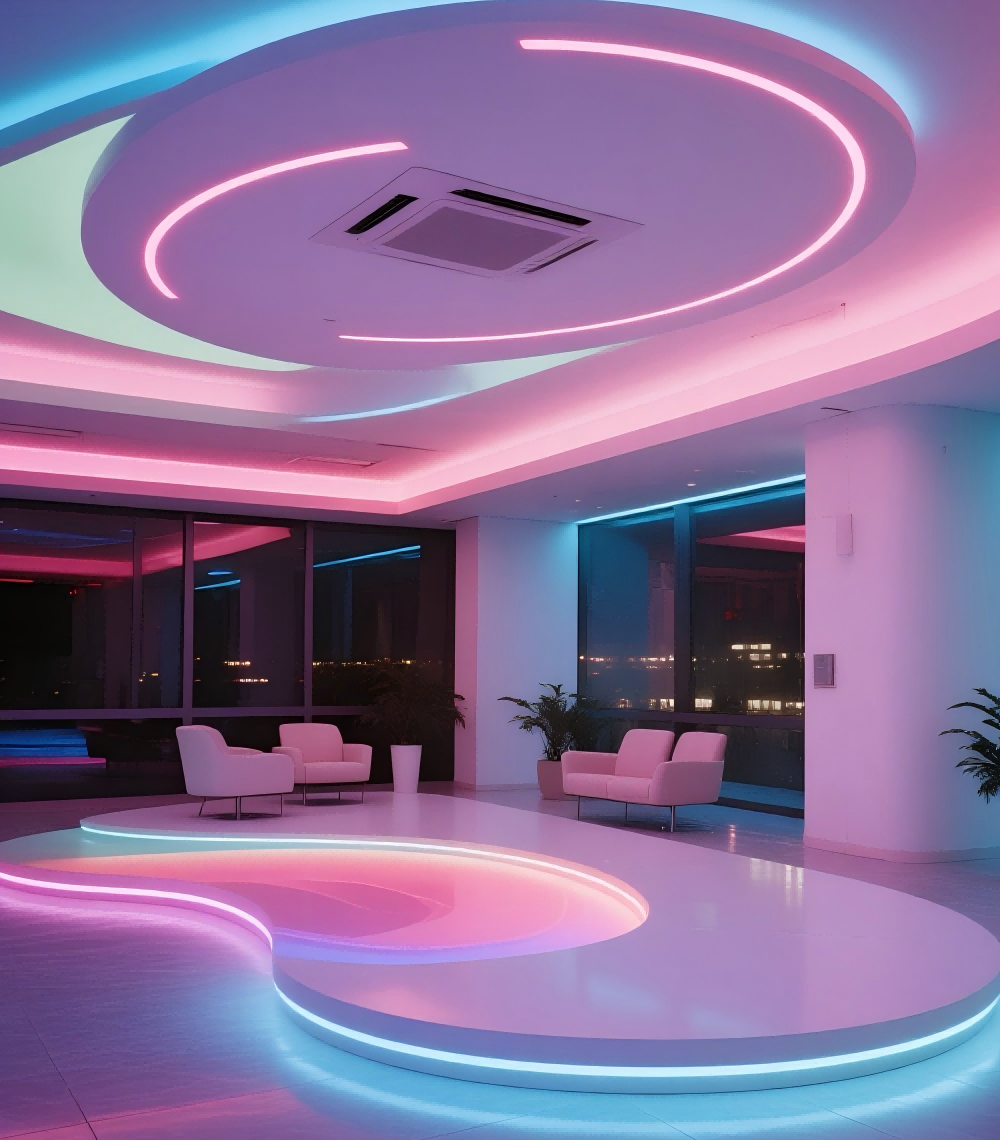

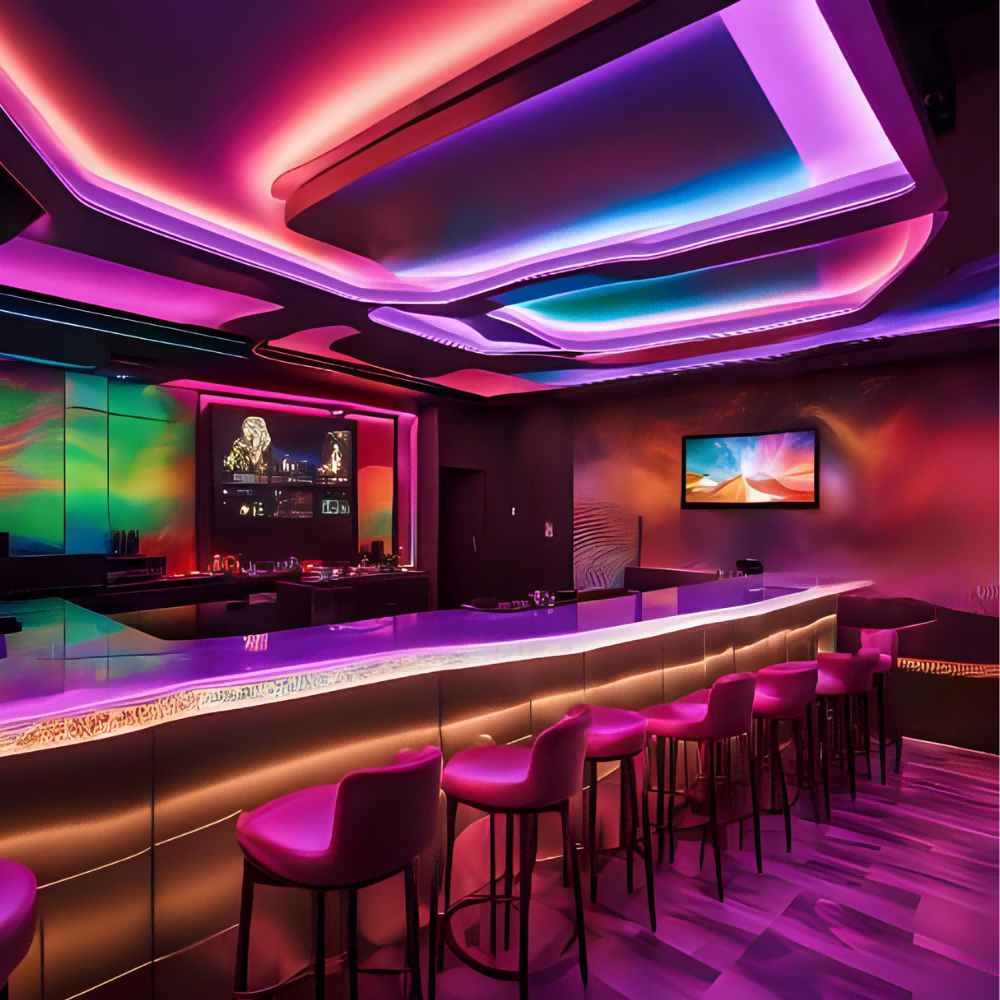

Application

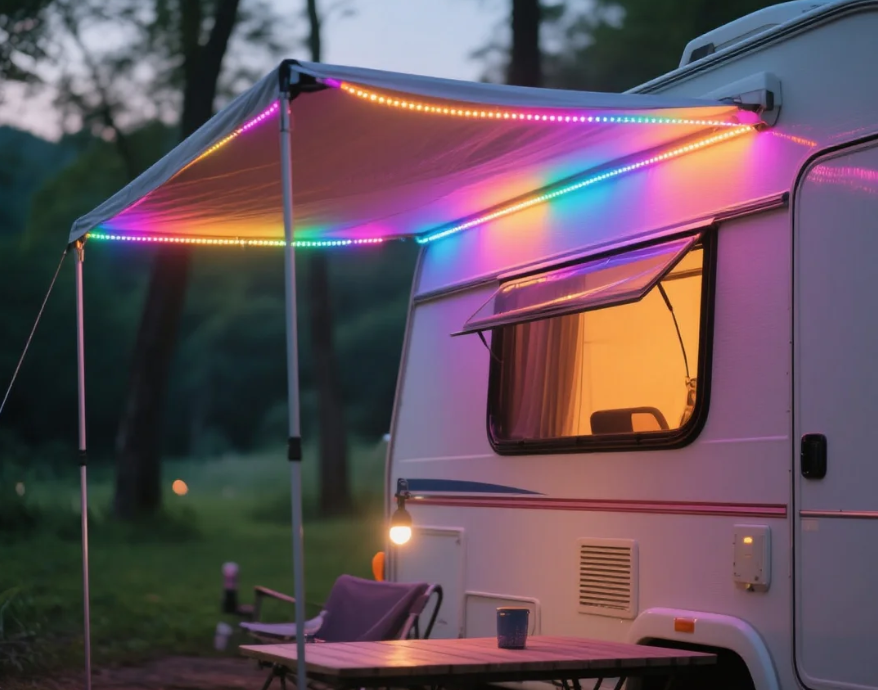

RGB COB LED strips are ideal for entertainment venues, commercial spaces, automotive lighting, and outdoor settings,
especially for camper awning LED light strips. When paired with a controller, they allow precise adjustment of color,
brightness, and lighting effects, delivering smooth gradients and dynamic illumination.
