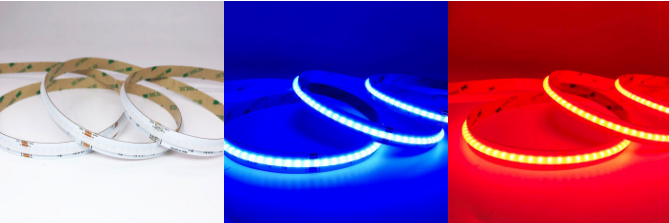

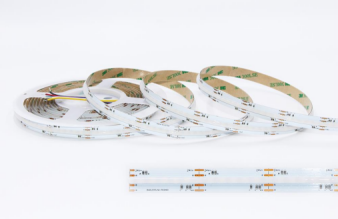

RGBW COB LED Strip
· Featuring a solderless design, chips are directly mounted on the PCB for enhanced stability and durability.

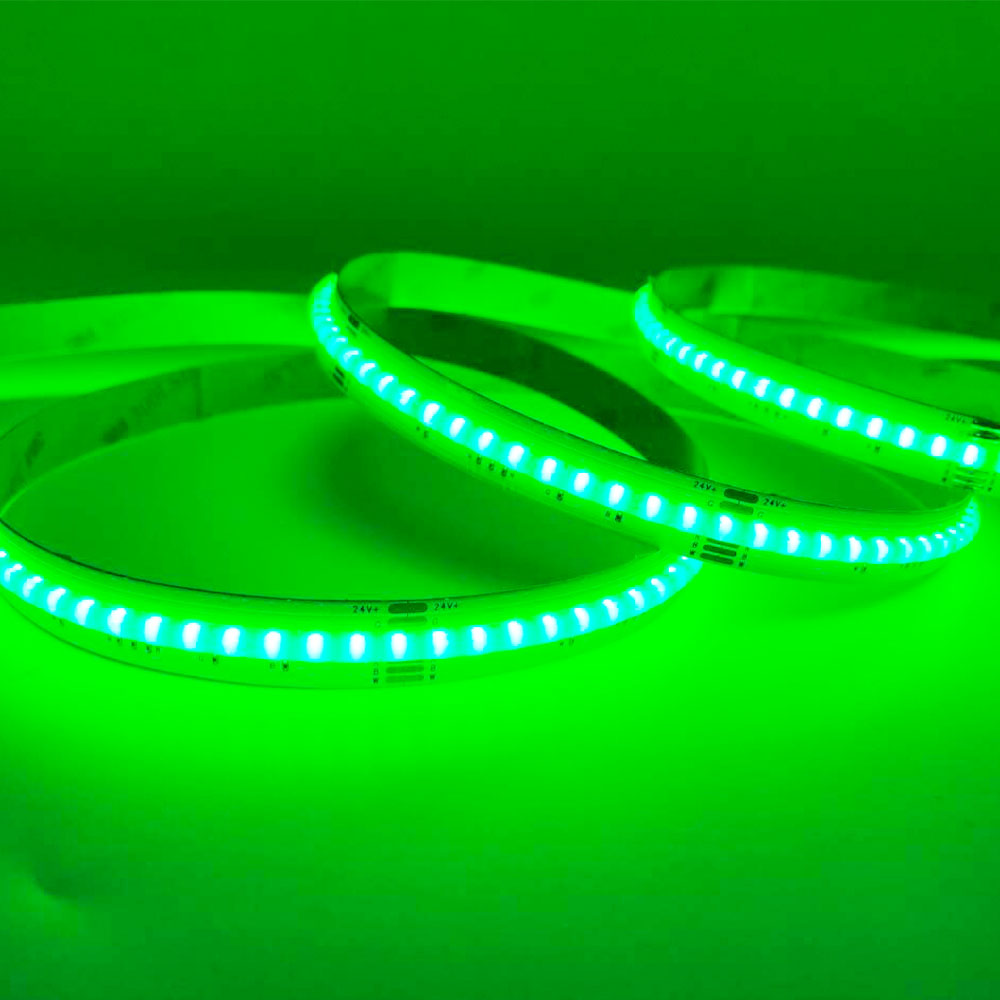

· RGBW LED strips provide rich, uniform, and soft lighting, creating a vivid visual experience.
· Ultra-low light decay ensures a lifespan exceeding 25,000 hours for long-lasting performance.

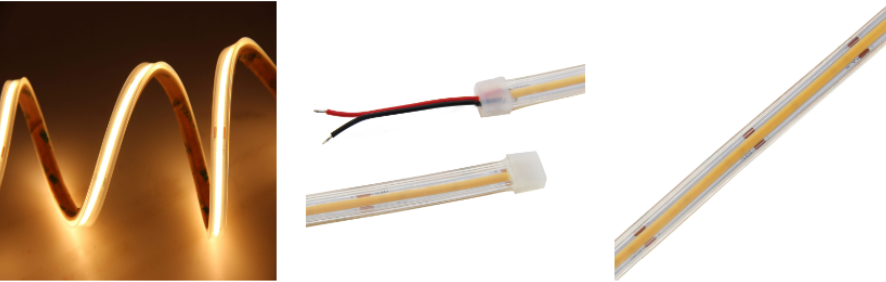

· Excellent flexibility improves heat dissipation efficiency, extending the strip’s working life.
· All materials strictly comply with RoHS, CE, andREACH environmental standards.
· Easy to install with a high-adhesion 3M tape backing, allowing free bending and convenient storage.
· Customizable options available, including LED count, strip width, color temperature, CRI, and waterproof rating. Contact us for tailored solutions.
- Wattage: 18-21W/M
- Voltage: 24V voltage
- Available Colours: RGBW

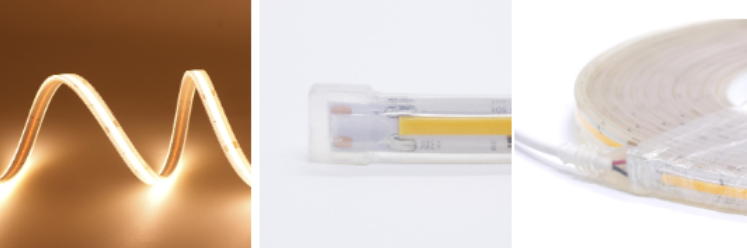

- Ingress Protection: IP20 / IP65 / IP67

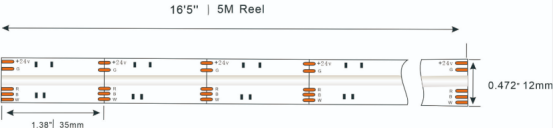

- Cut Points: 24V Every 100mm
- PCB White: 12mm
- Beam Angle: 180° wide-angle light distribution
- Warranty: 3 years
- Supply Options: Supplied in 5m reels (custom cutting & soldering available)
| Part NO: | LW-COB014 |
| LED Qty: | 840pcs per meter |
| Input Voltage: | DC24V |
| Watts: | 18W |
| Color: | RGB 4 in 1 |
| PCB color: | White |
| PCB Width: | 12mm |
| IP Grade: | IP20 |
| Operating temperature: | .-25 to 45℃ |
| Beam angle: | 180 degree |
| Certification: | CE; RoHS |
| Max Run: | 5M |
| Min Run: | 100mm |
Product Details

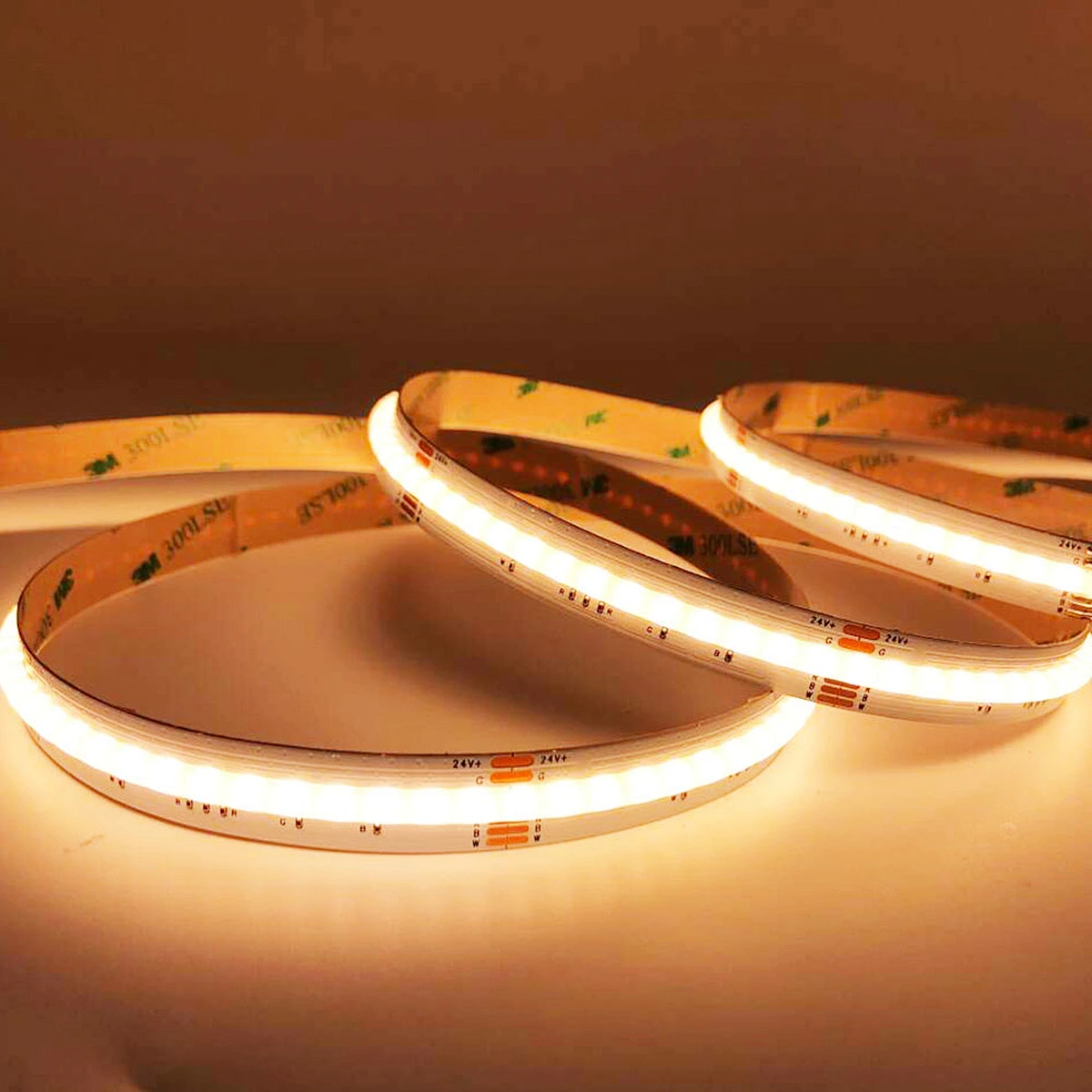

COB LED strips offer an impressive 180-degree viewing angle, whereas typical SMD LED strips usually provide
around 120 degrees. This is achieved by placing the chip directly on the board and then applying phosphor on top,
resulting in a wider beam and minimizing dark spots.
2.Consistent CCT for Bulk Orders
Thanks to our experienced engineering team, we maintain excellent Correlated Color Temperature (CCT) consistency
throughout large production runs. This ensures that every order of our smart LED light strip products delivers uniform
color, providing your customers with reliable, high-quality lighting.

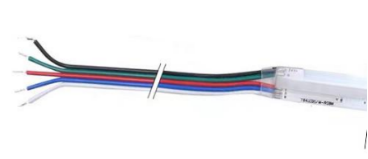

3.Using 22AGW Pure Copper Wire

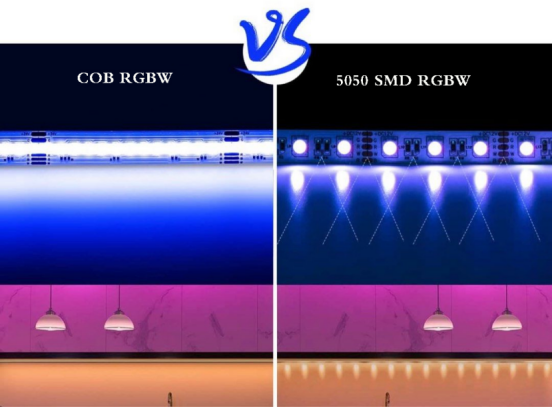

Utilizing advanced COB (Chip-On-Board) technology, the LED chip is embedded directly into the substrate, reducing visible light dots

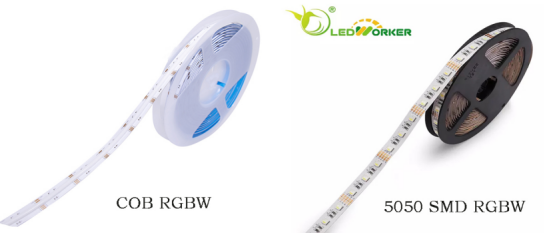

and creating consistent, uniform illumination. Compared to standard 5050 RGBW LED strips, our COB LED strips eliminate hotspots,

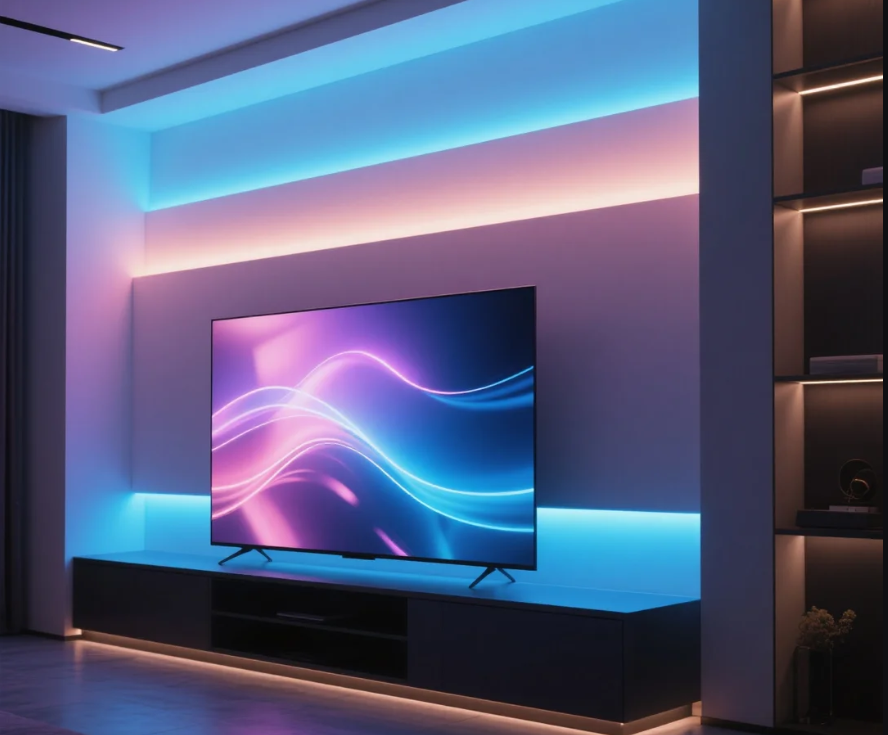

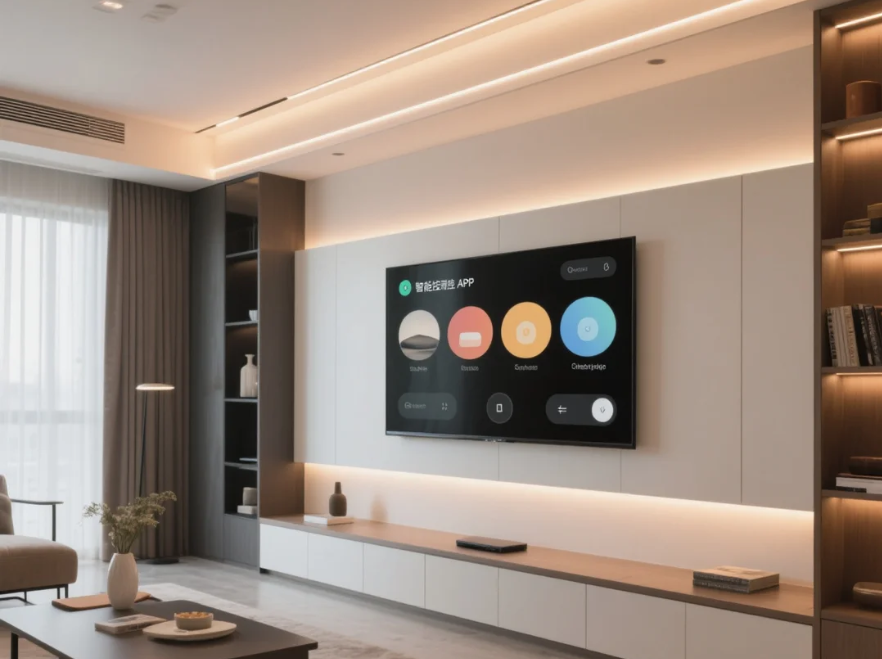

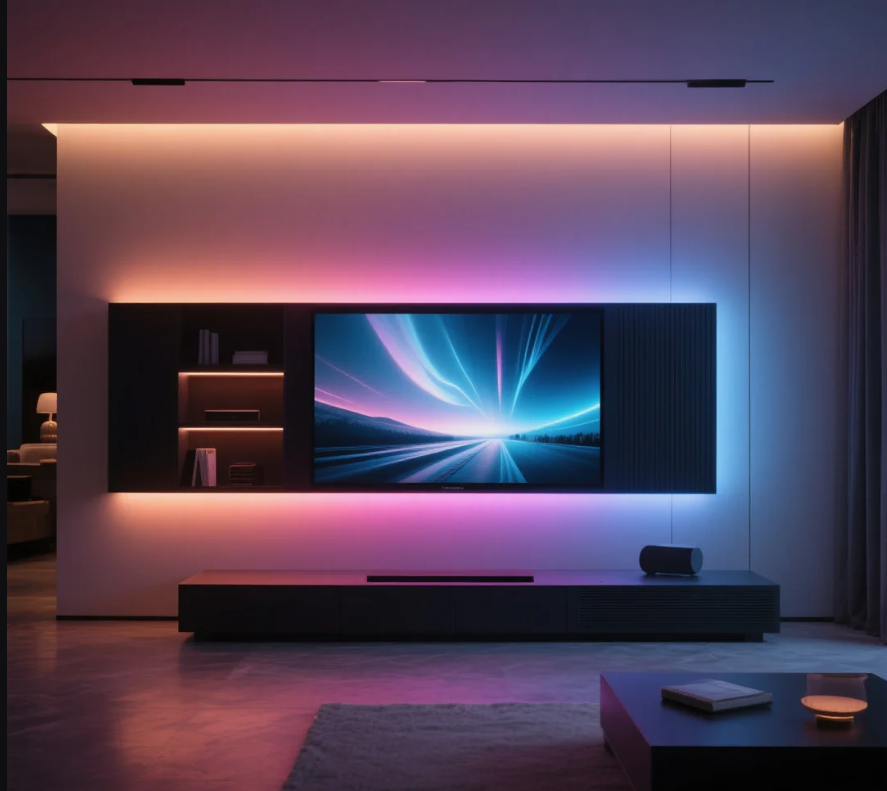

delivering a softer, more premium lighting effect —perfect for applications demanding excellent light quality, such as LED TV strip backlighting.
7.The installation
1. This Installation Method is generally used for the Non waterproof Environment.
2. The High-viscosity 3m Adhesive is Attached to the Back of the Strip
3. It’s can be directly pasted on the Required Solid.
Easy to Use and Easy to Install Tear Off the Adhesive Tape Paste to Where You Need to Install
8.Accessories

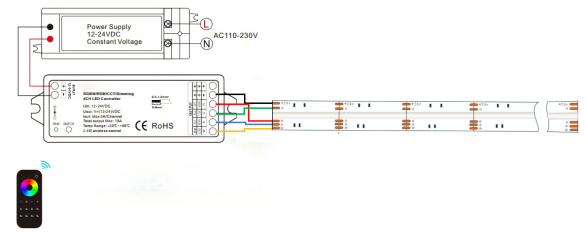

We provide a range of accessories to support your LED strip installation, including connectors, aluminum troughs,
power supplies, RGBW controllers, and various connectors to ensure seamless and efficient setup.
Connector Power Supply Aluminum Trough RGBW Controller
This high-performance RGBW colour changing LED tape features a flexible installation design, making it the ideal choice
for those seeking a high-quality, multifunctional lighting solution. Whether for home renovation, commercial spaces,
or smart home systems, it easily meets your needs.
