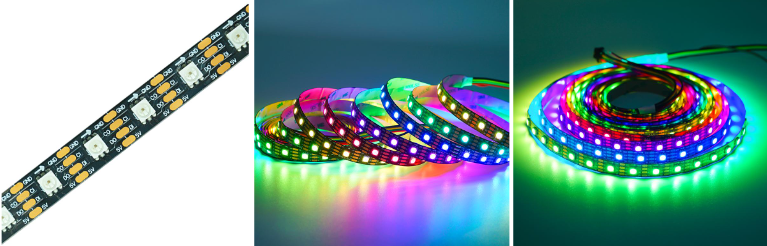

HD107S High Speed Digital LED Strip
Product Features
Integrated Control & RGB Chips: The HD107S combines RGB LEDs and control IC in each 5050 component, enabling one LED per control for precise, dynamic lighting.
High-Speed Performance: Data transfer up to 40MHz, PWM refresh rate 27kHz, ensuring smooth chasing, flowing, color-changing, breathing, flashing, and running effects.

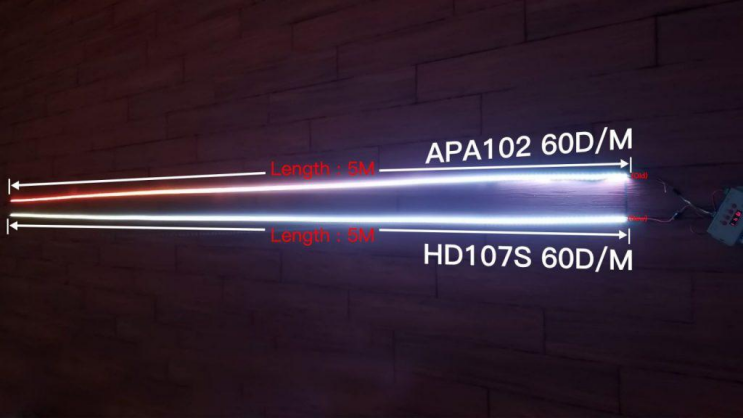

Low Voltage Drop: Offers up to 50% lower voltage drop compared to similar products, maintaining consistent brightness across long runs.
Durable LEDs: Each HD107S uses pure gold wire copper-core LEDs with 9*9mil chips for superior brightness and reliability.
Flexible Cascade & Long Distance: Serial or dual-signal line versions allow uninterrupted signal transmission over 5 meters without extra circuitry; supports at least 1024 pixels at 30fps.
Customizable Options: LED density (30–144 LEDs/m), panel width (10mm/12mm), color, CRI, and waterproof rating are customizable to suit your project.
Product Specification
PCB Thickness: 30, 60, and 72-LED panels utilize 2-ounce 3535 copper. 96-LED panels utilize 3-ounce 3570 copper.
144-LED panels utilize 4-ounce 7070 copper. All panels utilize rolled copper with double-sided lamination for improved conductivity.
Customizable LED quantity, panel width, color, CRI, and waterproof rating are available. Please contact us for details.
| Part No: | Input Voltage | IC type | LED Quantity | IC QTY | PCB width: | Color | Max Power | Min Cut | IP Grade | Control signal: |
| LW-D0011 | 5V | HD107S | 30leds/m | 30 | 10mm | Addressable RGB | 9W/M | 33.08mm | IP20 | SPI |
| LW-D0012 | 5V | HD107S | 60leds/m | 60 | 12mm | Addressable RGB | 18W/M | 16.54mm | IP20 | SPI |
| LW-D0013 | 5V | HD107S | 72leds/m | 72 | 12mm | Addressable RGB | 21.6W/M | 13.88mm | IP20 | SPI |
| LW-D0014 | 5V | HD107S | 96leds/m | 96 | 12mm | Addressable RGB | 28.8W/M | 10.41mm | IP20 | SPI |
| LW-D0015 | 5V | HD107S | 144leds/m | 144 | 12mm | Addressable RGB | 42W/M | 6.9mm | IP20 | SPI |

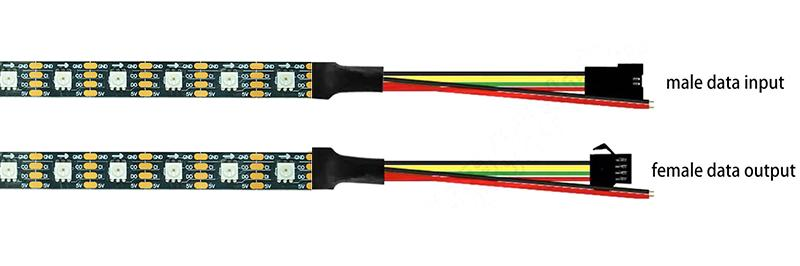

Includes 4-pin connector plus extra red/black power lines. Red = 5V (V+), Yellow = signal, Green = backup data input, Black = GND.
Extra red/black wires provide backup power.

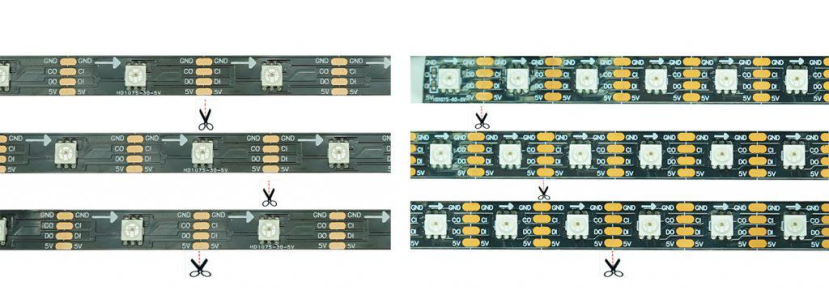

5.Customizable Lengths:
Each LED forms a segment that can be freely cut and soldered along designated lines, allowing you to adjust the strip length to fit any project.

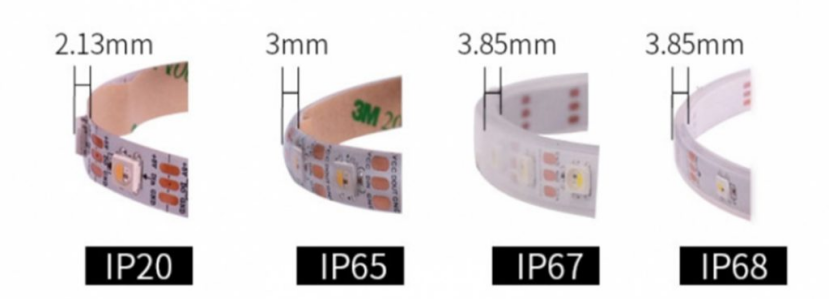

IP20 – (Non-waterproof), suitable for indoor use.
IP65–(Silicone Resin / Silicone Extrusion), suitable for indoor or covered outdoor use.
IP67–(Silicone Tube/ Silicone Extrusion), Fully encased for protection against temporary submersion.
IP68(Silicone Resin) –Durable casing for continuous water exposure.
IP68(extrusion-molded)–Advanced design for maximum waterproof performance and longevity.

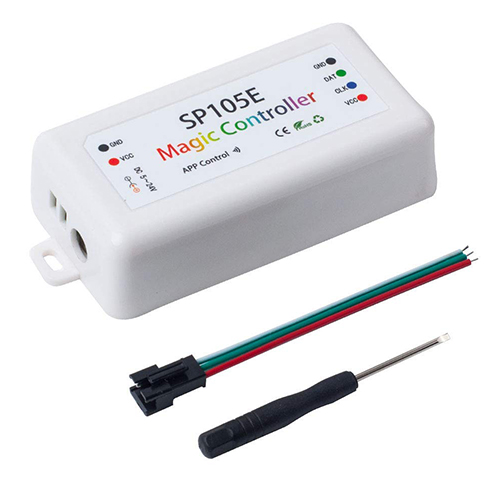

Aluminum Trough Power Supply Controller
8.Installation

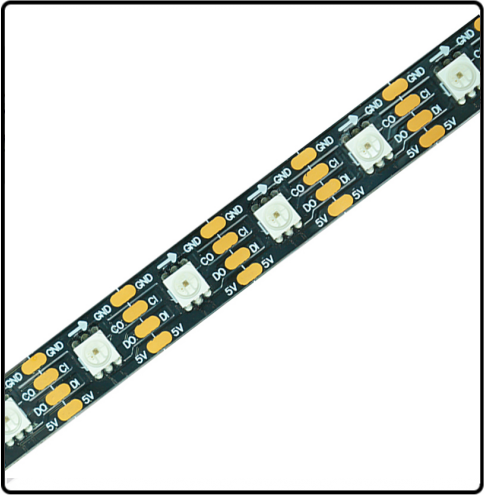

(1) Paste Installation:
Ideal for non-waterproof strips using high-adhesion tape. Simply peel and stick to the desired surface.
Perfect for adhesive led light strips behind TVs, shelves, or decorative panels.
Easy to Use and Easy to Install Tear Off the Adhesive Tape Paste to Where You Need to Install

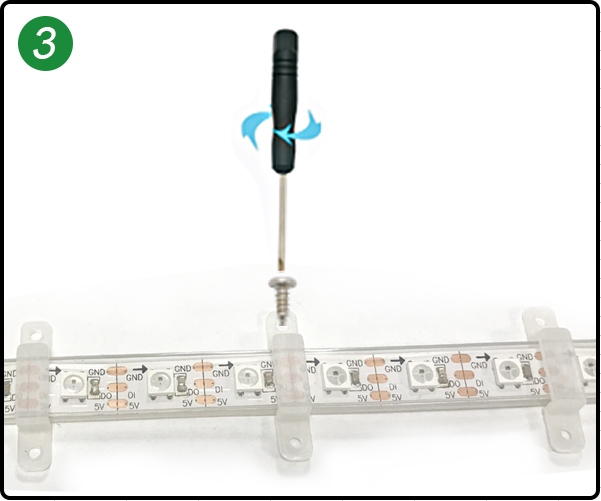

(2) Snap-on Installation:
This method is designed for waterproof products with protective casing.

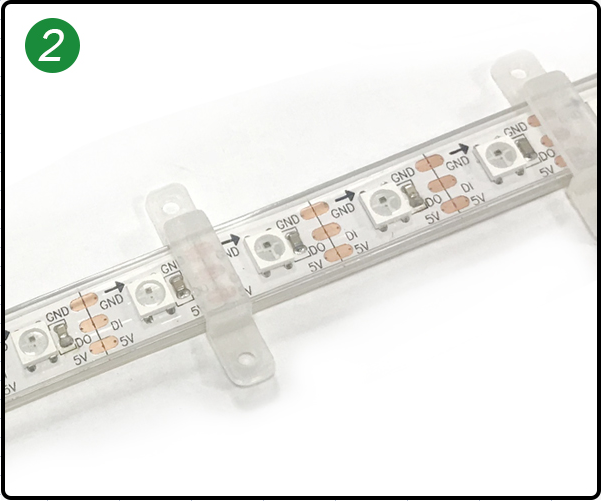

The strip is secured in place using clear screw-on brackets,ensuring a more stable and durable installation.

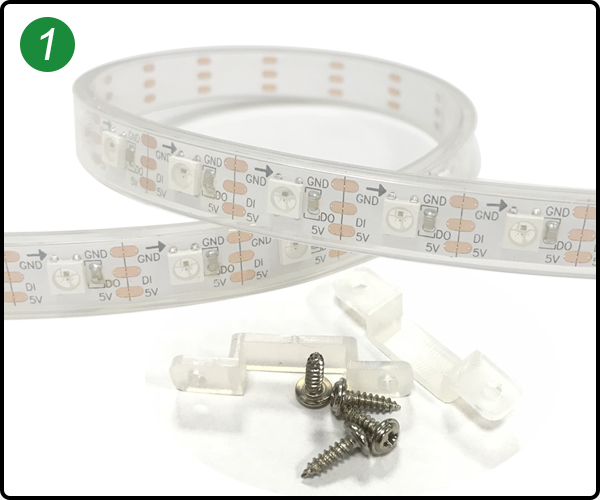

Accessories Put the Clips on the Strip Fixed the Clips (Clips+Screw+Screwd-Diver)

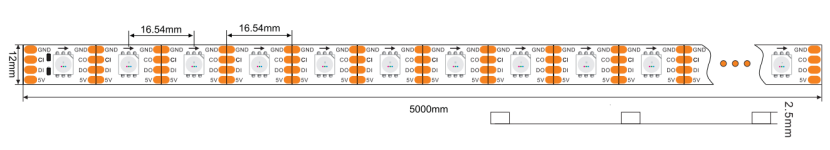

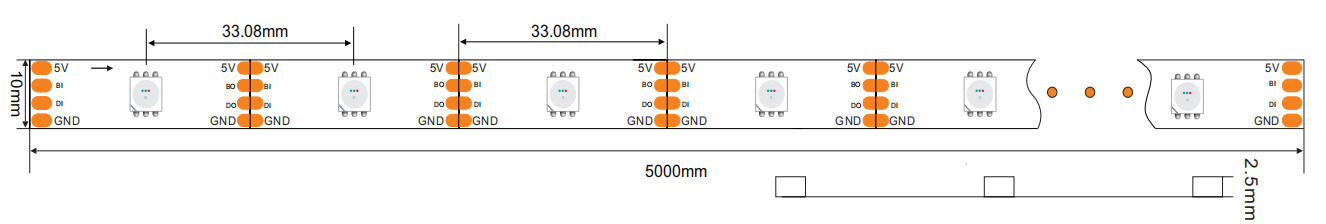

LW-D0011-5V-10mm-30LEDs/M

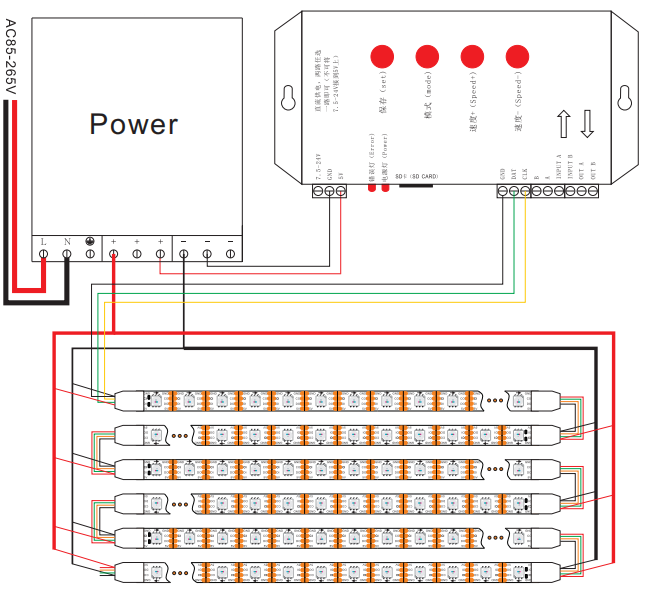

ConnectDrawing:
Application
TheHD107S addressable led light strip is ideal for the following applications due to its high performance and stability.
- The HD107S addressable RGB LED strip is ideal for the following applications due to its high performance and stability.

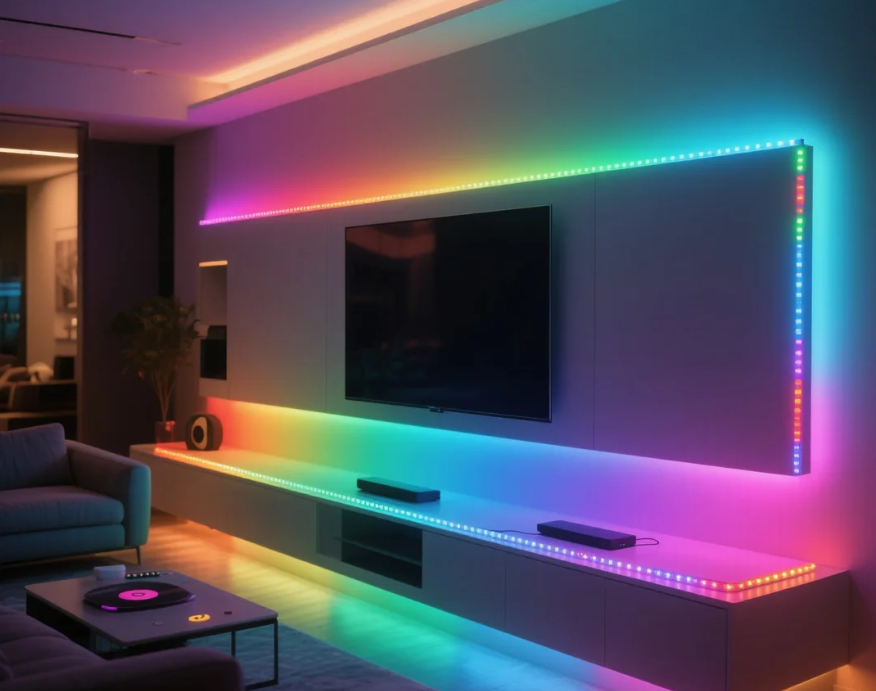

- Home & Entertainment: Create ambient lighting with led strip behind TV, under cabinets, stairs, or shelving.
- Festive Decoration: Perfect for led light strip Christmas lights, parties, and event décor.

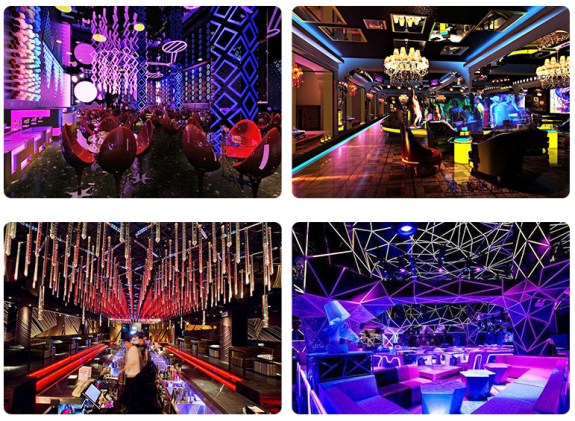

- Commercial & Public Spaces: Ideal for bars, KTVs, restaurants, exhibition halls, and hotels.
- Outdoor & Landscape Lighting: Suitable for gardens, facades, stadiums, and villas.
- Smart & Wireless Control: Compatible with bluetooth led light strip systems for flexible, remote-controlled setups.
