WS2815/CS8812/RT1809 Programmable Led strip
Product Features
Product Specification
PCB Thickness: 30, 60, and 72-LED panels utilize 2-ounce 3535 copper. 96-LED panels utilize 3-ounce 3570 copper.
144-LED panels utilize 4-ounce 7070 copper. All panels utilize rolled copper with double-sided lamination for improved conductivity.
Customizable LED quantity, panel width, color, CRI, and waterproof rating are available. Please contact us for details.
| Part No: | Input Voltage | IC type | LED Quantity | IC QTY | PCB width: | Color | Max Power | Min Cut | IP Grade | Control signal: |
| LW-D0018 | 12V | WS2815 | 30leds/m | 30 | 10mm | Addressable RGB | 9W/M | 33.3mm | IP20 | SPI |

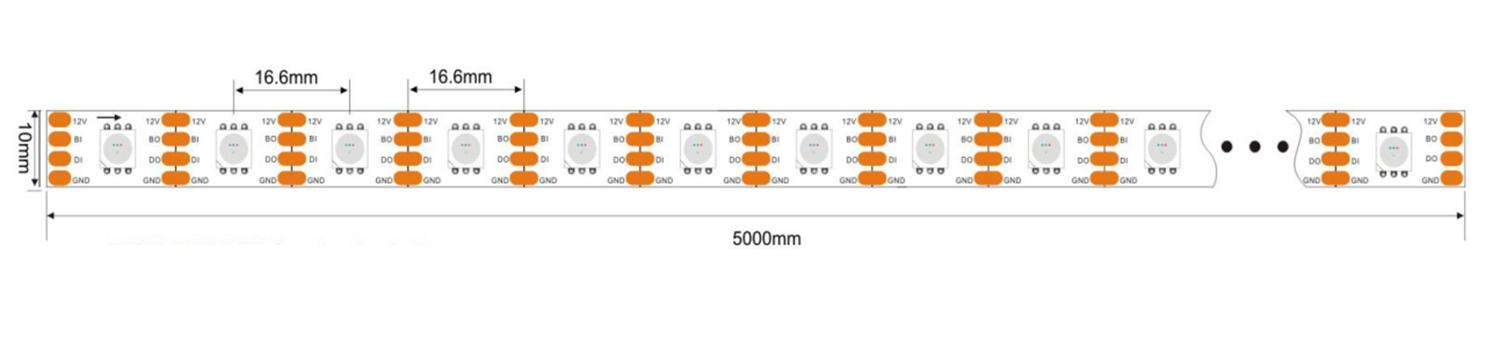

| LW-D0019 | 12V | WS2815 | 60leds/m | 60 | 12mm | Addressable RGB | 18W/M | 16.66mm | IP20 | SPI |
| LW-D0020 | 12V | WS2815 | 72leds/m | 72 | 12mm | Addressable RGB | 21.6W/M | 13.88mm | IP20 | SPI |
| LW-D0021 | 12V | WS2815 | 96leds/m | 96 | 12mm | Addressable RGB | 28.8W/M | 10.41mm | IP20 | SPI |

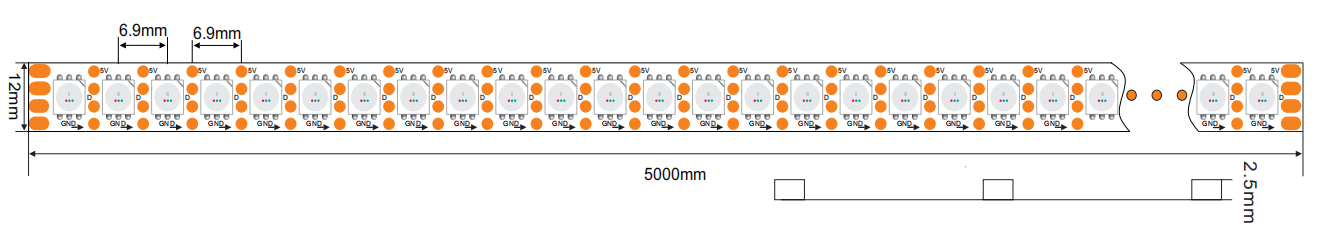

| LW-D0022 | 12V | WS2815 | 144leds/m | 144 | 12mm | Addressable RGB | 42W/M | 6.94mm | IP20 | SPI |

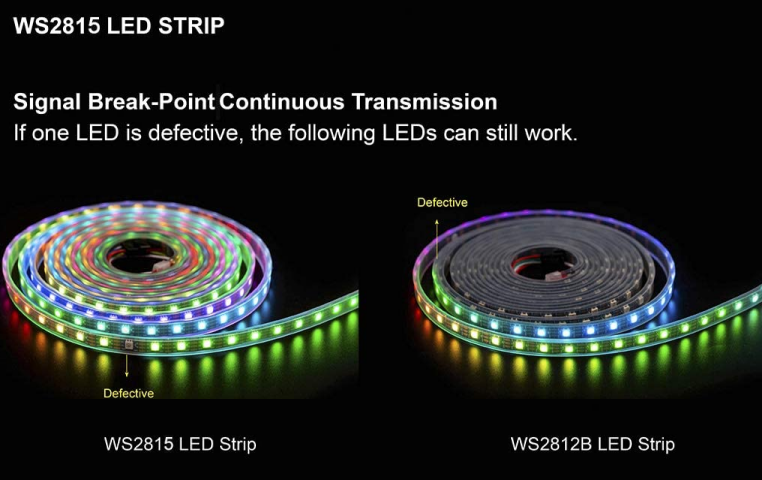

The WS2815B LED strip can continue transmitting signals even if the connection is interrupted. If a single pixel fails, its circuit will turn
off, but the remaining pixels continue to light normally. As long as adjacent pixels are intact, the rest of the strip operates without interruption.
In contrast, WS2812 LED strips lack this feature: if one LED fails, the other LEDs on the strip will also stop working.

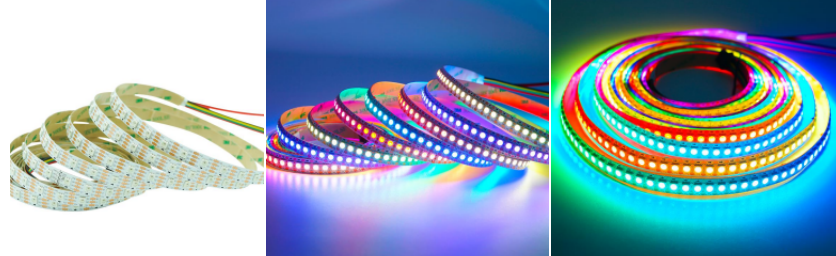

The WS2815 LED strip uses highly flexible FPC as its base, offering excellent conductivity, fast heat dissipation, and bend resistance,
allowing it to be shaped freely. With a double-layer pure copper flexible PCB, the strip ensures superior electrical performance and long-lasting durability.

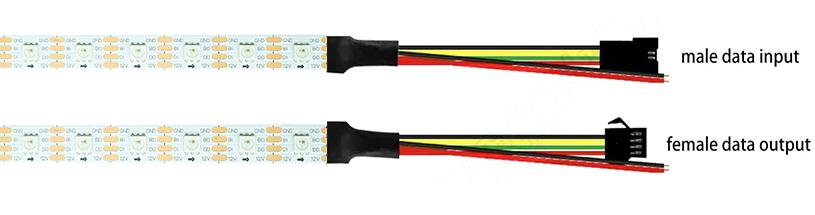

5. 4-Pin Wiring
The WS2815 LED strip uses a 4-pin connector with additional red and black power lines. The red wire is 12V (V+), the yellow wire carries the signal,
and the green and extra wires serve as backup power lines. The black wire is 12V negative (V−).
6. Customizable Sizes

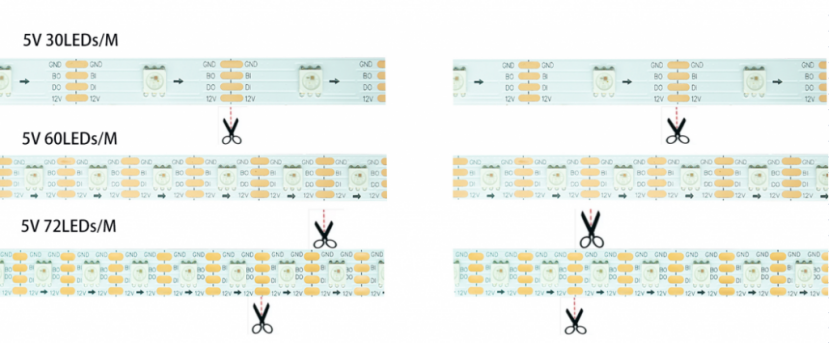

The LED strip can be easily cut and soldered to any desired length. Each LED forms a complete segment, allowing precise cutting
and soldering along marked lines, such as an 8 led strip per section.
IP20 – (Non-waterproof), suitable for indoor use.
IP65–(Silicone Resin / Silicone Extrusion), suitable for indoor or covered outdoor use.
IP67–(Silicone Tube/ Silicone Extrusion), Fully encased for protection against temporary submersion.
IP68(Silicone Resin) –Durable casing for continuous water exposure.
IP68(extrusion-molded)–Advanced design for maximum waterproof performance and longevity.
Aluminum Trough Power Supply Controller
8.Installation
(1) Paste Installation:
This installation method is commonly used for non-waterproof environments. A high-viscosity 3M adhesive is applied to the back of
theadhesive led strip, allowing it to be mounted directly onto any solid surface.
Easy to Use and Easy to Install Tear Off the Adhesive Tape Paste to Where You Need to Install
(2) Snap-on Installation:
This method is designed for fully-cased waterproof LED strips. The strip is securely fastened using clear screw-on clips,
ensuring a stable and durable installation.
Accessories Put the Clips on the Strip Fixed the Clips (Clips+Screw+Screwd-Diver)

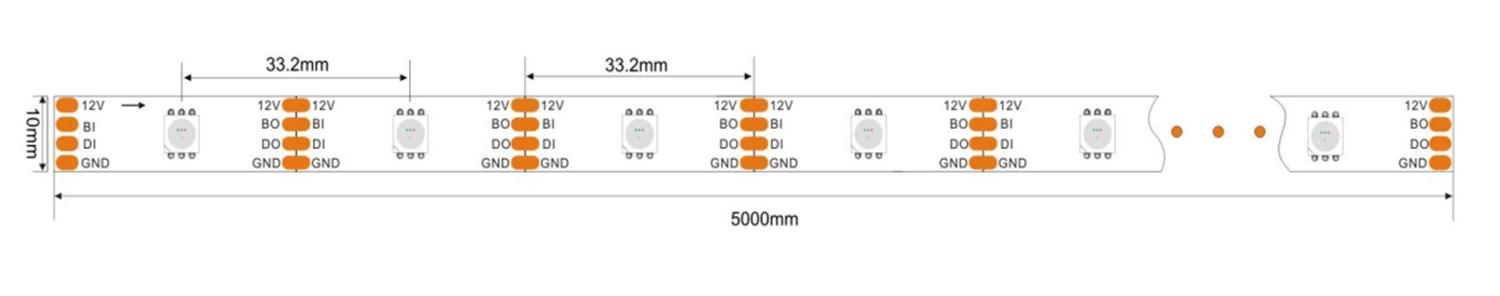

LW-D0018-12V-10mm-30LEDs/M

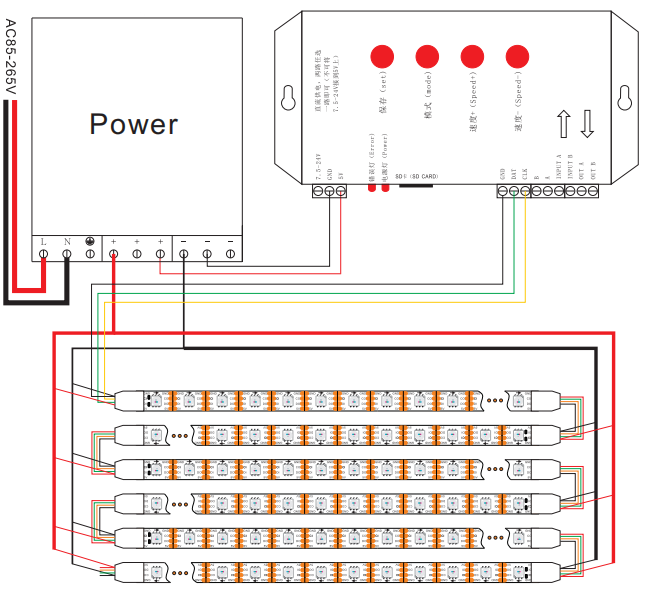

ConnectDrawing:

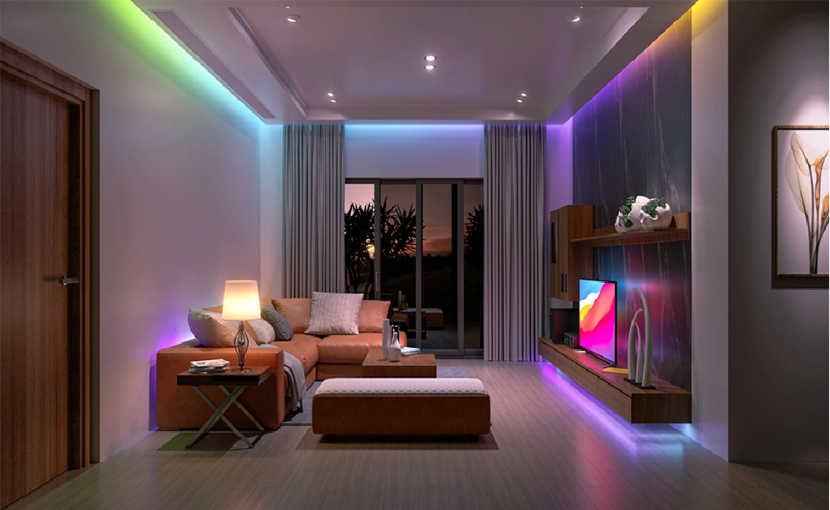

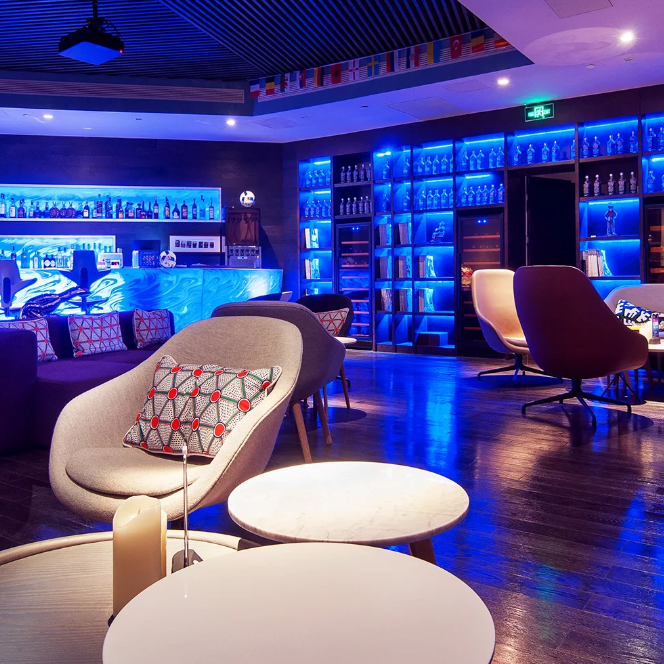

Application

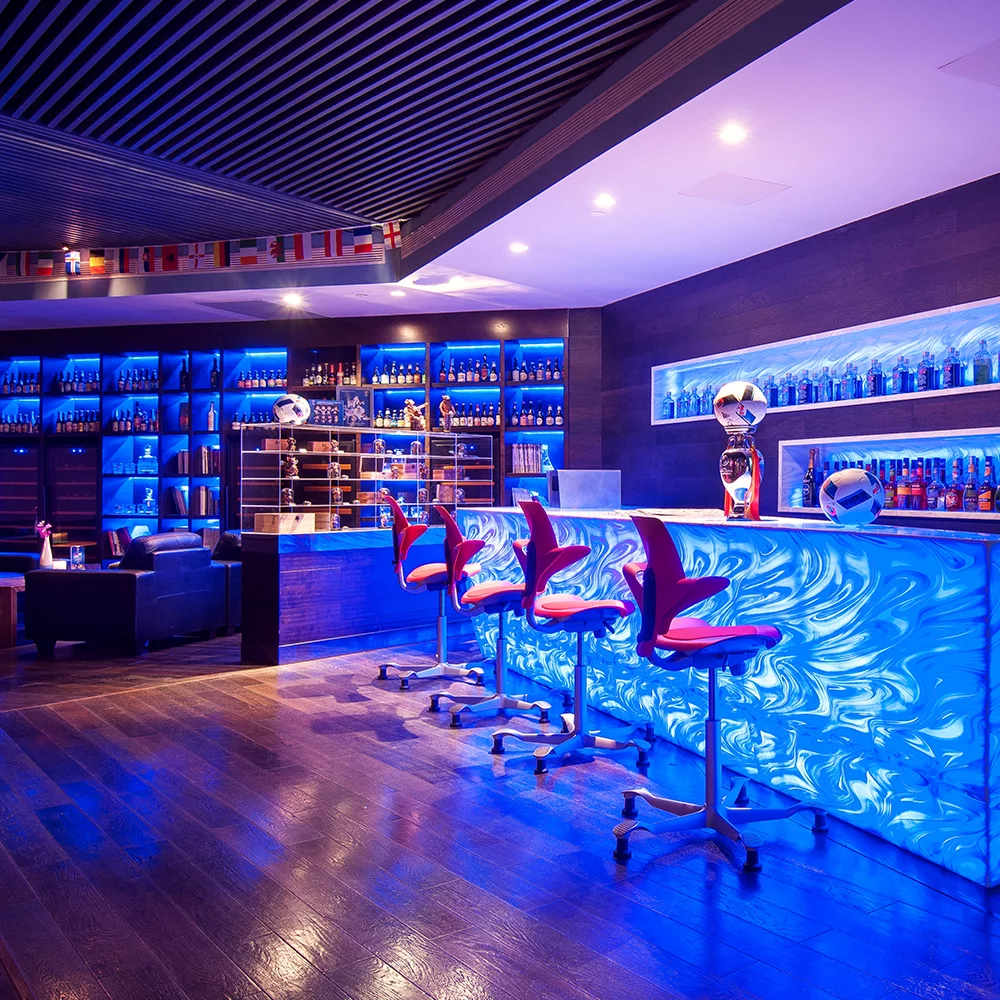

The WS2815 LED strip allows each pixel to be individually controlled for color and brightness, enabling effects like gradients, flashing,
flowing, and chasing. This makes it ideal for homes, commercial spaces, bars, KTVs, hotels, building facades, signage, landscape lighting,
and premium interior led strips applications.
