WS2812 Digital RGB LED Strip
Product Features
Product Specification
PCB Thickness: 30, 60, and 72-LED panels utilize 2-ounce 3535 copper. 96-LED panels utilize 3-ounce 3570 copper.
144-LED panels utilize 4-ounce 7070 copper. All panels utilize rolled copper with double-sided lamination for improved conductivity.
Customizable LED quantity, panel width, color, CRI, and waterproof rating are available. Please contact us for details.

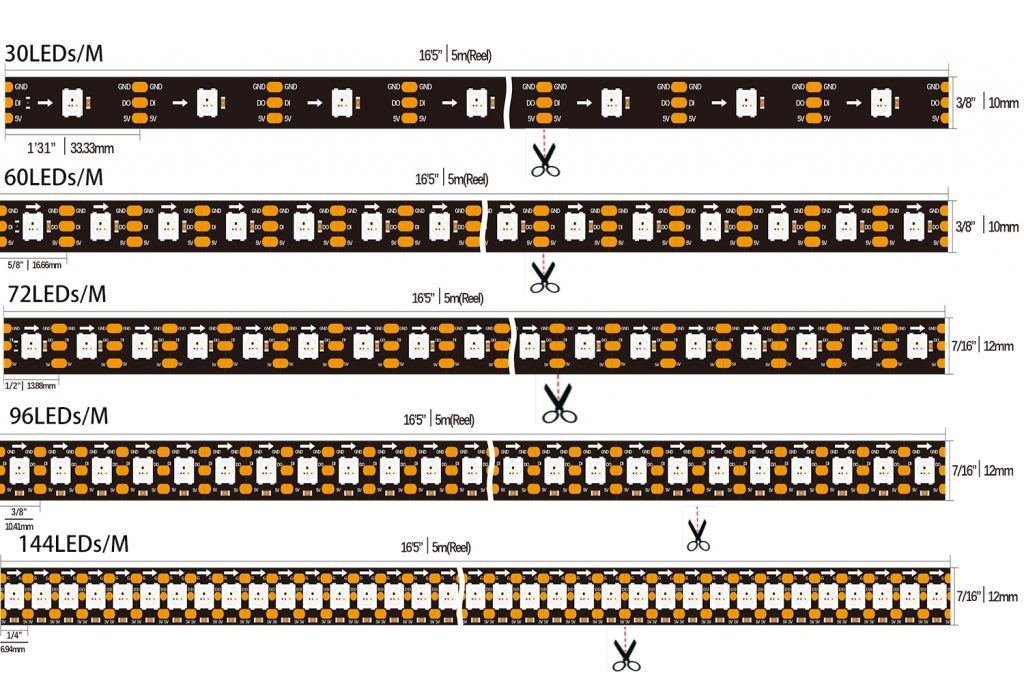

| Part No: | Input Voltage | IC type | LED Quantity | IC QTY | PCB width: | Color | Max Power | Min Cut | IP Grade | Control signal: |
| LW-D0001 | 5V | WS2812B | 30leds/m | 30 | 10mm | Addressable RGB | 9W/M | 33.33mm | IP20 | SPI |

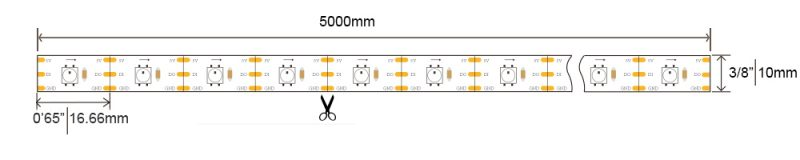

| LW-D0002 | 5V | WS2812B | 60leds/m | 60 | 10mm | Addressable RGB | 18W/M | 16.66mm | IP20 | SPI |
| LW-D0003 | 5V | WS2812B | 72leds/m | 72 | 12mm | Addressable RGB | 21.6W/M | 13.88mm | IP20 | SPI |
| LW-D0004 | 5V | WS2812B | 96leds/m | 96 | 12mm | Addressable RGB | 28.8W/M | 10.41mm | IP20 | SPI |
| LW-D0005 | 5V | WS2812B | 144leds/m | 144 | 12mm | Addressable RGB | 42W/M | 6.94mm | IP20 | SPI |
| Feature | WS2812B | SK6812 |
| Color Channels | RGB (Red, Green, Blue) | RGBW (Red, Green, Blue + White for more natural white light) |
| Control Signal | Single-wire control (GND, DI, 5V) | Single-wire control (GND, DI, 5V) with better interference resistance |
| Power Consumption | Higher when displaying white (uses RGB mixing to create white) | Lower when displaying white (uses dedicated white LED) |
| Applications | General color lighting projects | Applications requiring high-quality white light, such as indoor and decorative lighting |
| Compatibility | Can be used interchangeably with SK6812 | Can be used interchangeably with WS2812B, but controllers/software must support RGBW format |
Additional advantages and tips:
The high refresh rate reduces flicker, making it suitable even for video recording or photography.
Long runs can be powered at multiple points to maintain uniform brightness across the strip.
Compatible with programmable controllers, allowing users to create custom animations or sync lighting effects with music and events.
Flexible FPCB design ensures easy installation around corners or irregular surfaces, ideal for creative DIY projects.

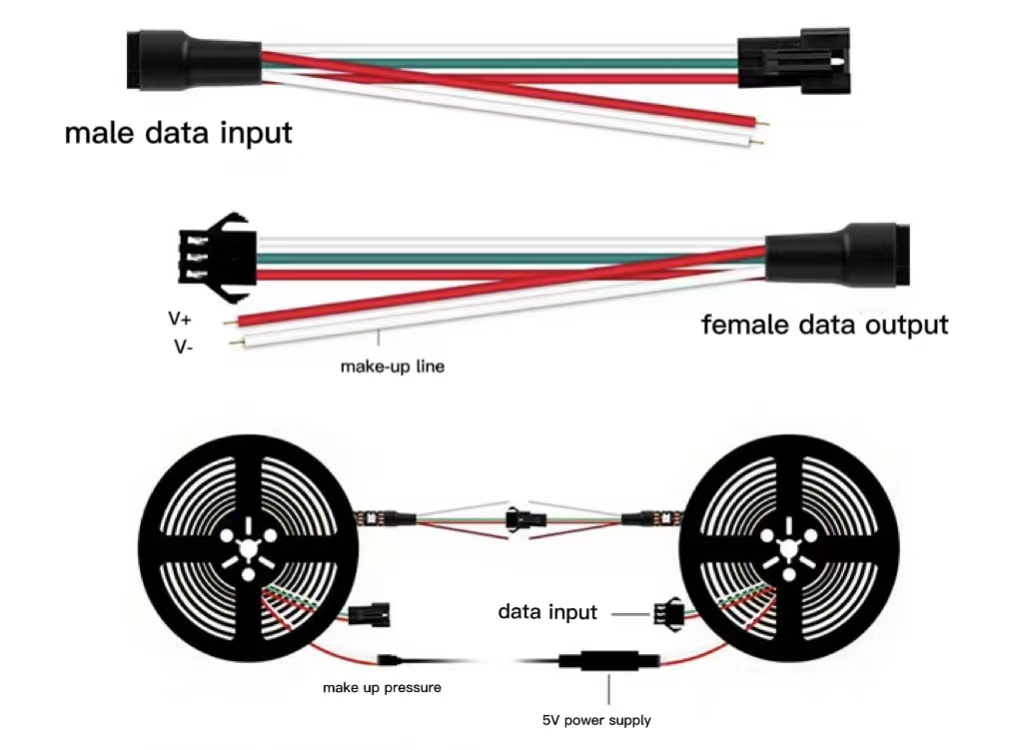

TheWS2812B LED strip uses JST 3-pin connectors (male and female) for easy and reliable connections.
The standard wiring consists of three main lines:
Red wire: 5V positive (V+)
White wire: 5V negative (GND)
Green wire: Data signal (DATA)
In addition, there are two auxiliary power lines (red for 5V positive and white for 5V negative) to support longer runs or high-density installations,
ensuring stable voltage and consistent brightness across the strip.
5.Customizable
The WS2812B LED strip offers flexible customization to fit any project. Each LED forms an individual segment, allowing the strip
to be easily cut and soldered along designated cut lines.

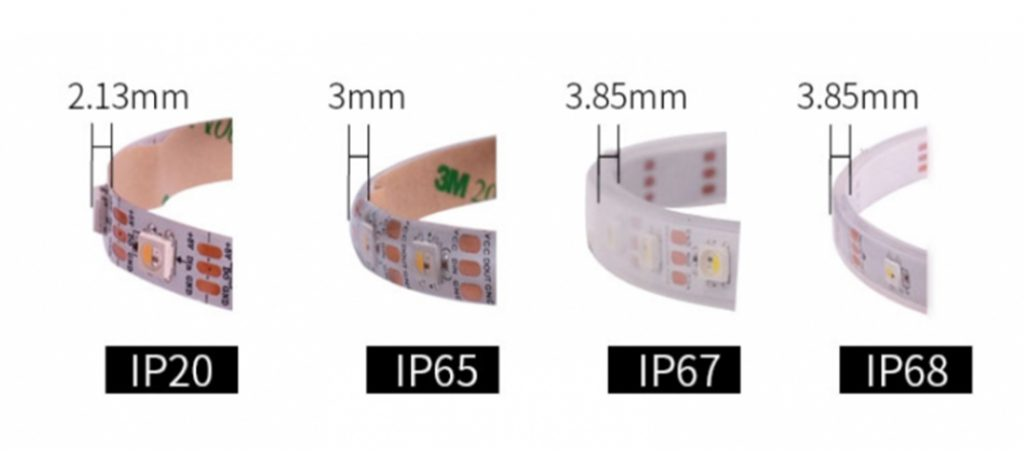

The WS2812B LED strip is available in multiple waterproof levels to suit a wide range of environments:
IP20 – (Non-waterproof), suitable for indoor use.
IP65–(Silicone Resin / Silicone Extrusion), suitable for indoor or covered outdoor use.
IP67–(Silicone Tube/ Silicone Extrusion), Fully encased for protection against temporary submersion.
IP68(Silicone Resin) –Durable casing for continuous water exposure.
IP68(extrusion-molded)–Advanced design for maximum waterproof performance and longevity.
Aluminum Trough Power Supply Controller
8.Installation
(1) Paste Installation:
This method is commonly used in no waterproof applications.
A strong 3M adhesive backing is pre-applied to the strip,
Allowing it to be directly mounted onto the desired solid surface.
Easy to Use and Easy to Install Tear Off the Adhesive Tape Paste to Where You Need to Install
(2) Snap-on Installation:
This method is designed for waterproof products with protective casing.
The strip is secured in place using clear screw-on brackets,ensuring a more stable and durable installation.
Accessories Put the Clips on the Strip Fixed the Clips (Clips+Screw+Screwd-Diver)

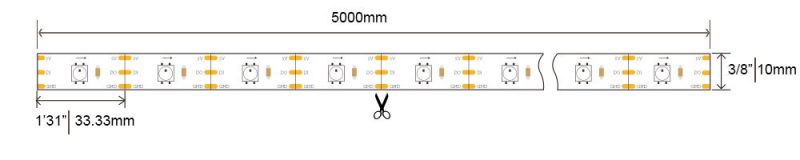

LW-D0001-5V-10mm-30LEDs/M

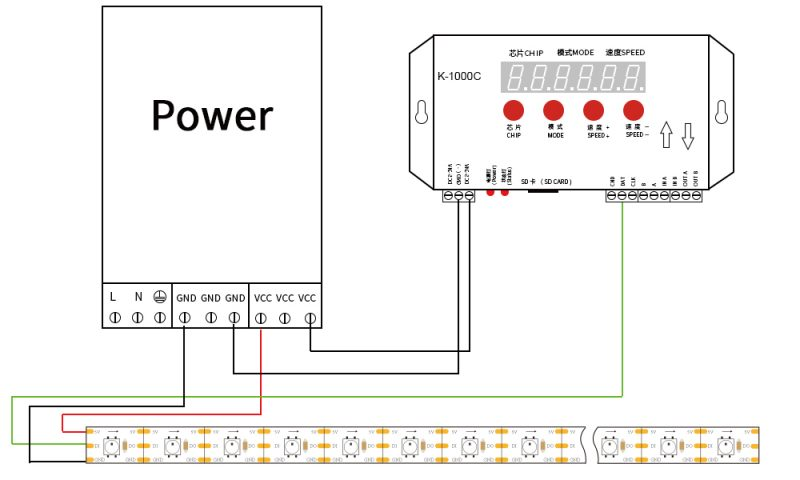

ConnectDrawing:
Application
The WS2812B LED strip is cost-effective while delivering vibrant RGB colors, making it an ideal choice for home decoration and creating a warm,
personalized atmosphere. Perfect for holiday lighting, party setups, and event displays, it can produce colorful effects for short-term installations.
It is also well-suited for automotive applications, such as led tail light strip andled car light strips, adding dynamic and customizable lighting to vehicles.
