WS2813 RGBIC LED Strip
Product Features

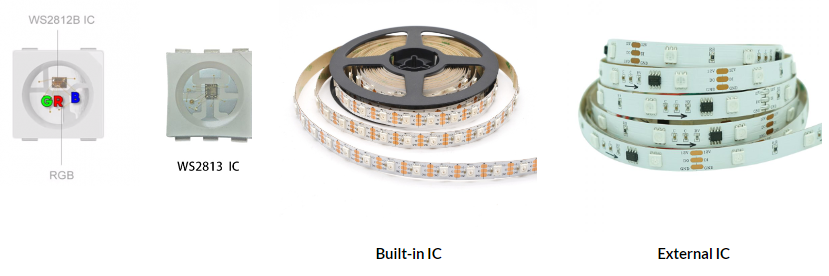

· Integrated Control and RGB Chips: The control circuit and RGB LEDs are combined into a single 5050 component, creating individually controllable external pixels.
· Smart Reverse-Polarity Protection: Ensures the strip is safe from accidental reverse wiring.
· Signal Integrity: Built-in signal shaping circuit maintains waveform quality, preventing signal distortion.
· Full-Color Display: Each pixel supports 256 grayscale levels, delivering 16.7 million colors. High-speed data transfer up to 800Kbps and refresh rate up to 2KHz.
· Simple Serial Cascade Interface: Data reception and decoding require only a single signal line.

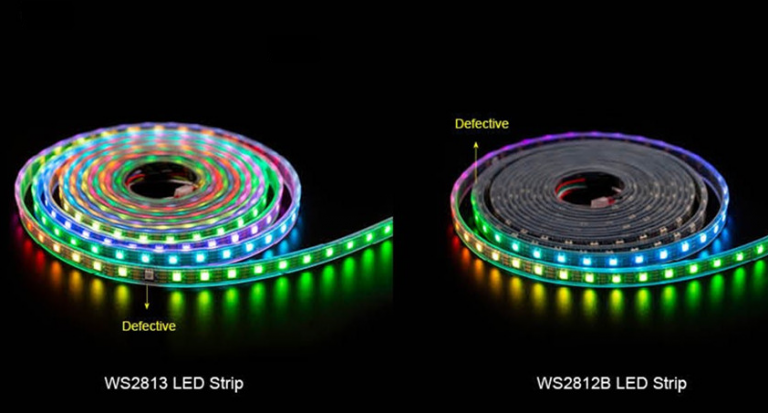

· Dual-Signal Line Version: Ensures uninterrupted signal transmission even if one line fails.
· Long-Distance Signal Transmission: Signals can travel over 5 meters between any two points without additional circuitry.
· High Cascade Capacity: At 30fps refresh rate, the strip can support at least 1024 cascaded pixels.
Product Specification
PCB Thickness: 30, 60, and 72-LED panels utilize 2-ounce 3535 copper. 96-LED panels utilize 3-ounce 3570 copper.
144-LED panels utilize 4-ounce 7070 copper. All panels utilize rolled copper with double-sided lamination for improved conductivity.
Customizable LED quantity, panel width, color, CRI, and waterproof rating are available. Please contact us for details.
Customizable led light strips:Customizable LED quantity, panel width, color, CRI, and waterproof rating are available. Please contact us for details.
| Part No: | Input Voltage | IC type | LED Quantity | IC QTY | PCB width: | Color | Max Power | Min Cut | IP Grade | Control signal: |
| LW-D0006 | 5V | WS2813 | 30leds/m | 30 | 10mm | Addressable RGB | 9W/M | 33.33mm | IP20 | SPI |
| LW-D0007 | 5V | WS2813 | 60leds/m | 60 | 10mm | Addressable RGB | 18W/M | 16.66mm | IP20 | SPI |
| LW-D0008 | 5V | WS2813 | 72leds/m | 72 | 12mm | Addressable RGB | 21.6W/M | 13.88mm | IP20 | SPI |
| LW-D0009 | 5V | WS2813 | 96leds/m | 96 | 12mm | Addressable RGB | 28.8W/M | 10.41mm | IP20 | SPI |
| LW-D0010 | 5V | WS2813 | 144leds/m | 144 | 12mm | Addressable RGB | 42W/M | 6.94mm | IP20 | SPI |

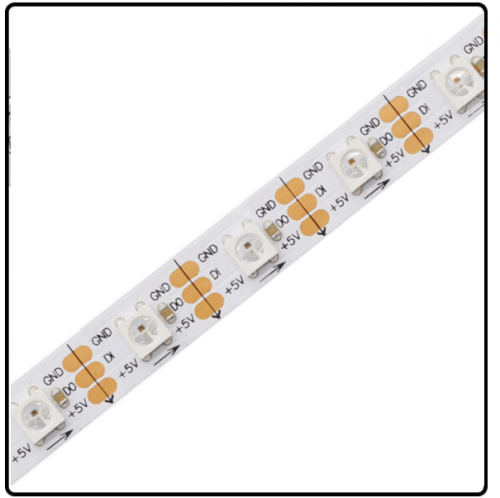

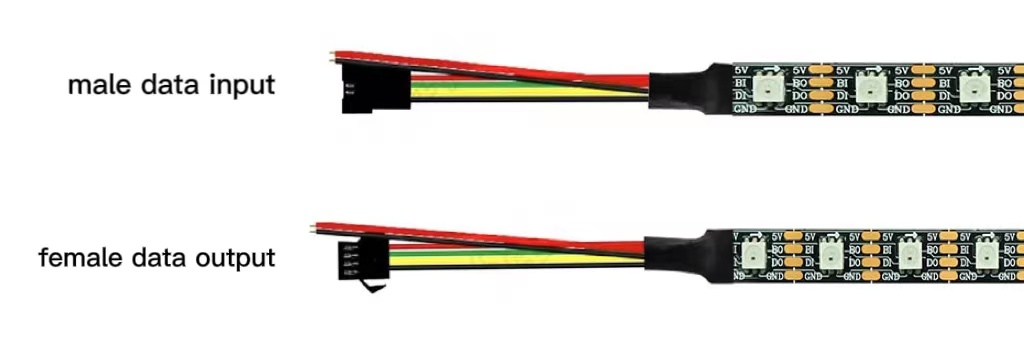

TheWS2813 LED strip uses a 4-pin JST connector along with an additional pair of power lines. The pin functions are as follows:
Red wire: 5V positive (V+),Yellow wire: Data signal input,Green wire: Backup data signal input,Black wire: Ground (GND)
Additionally, there are two extra power lines,Red:5V positive (V+),Black: 5V negative (V-)
This wiring setup ensures stable power delivery and reliable data transmission, even if one LED experiences a fault, making installation straightforward and
maintaining consistent operation of the LED strip.

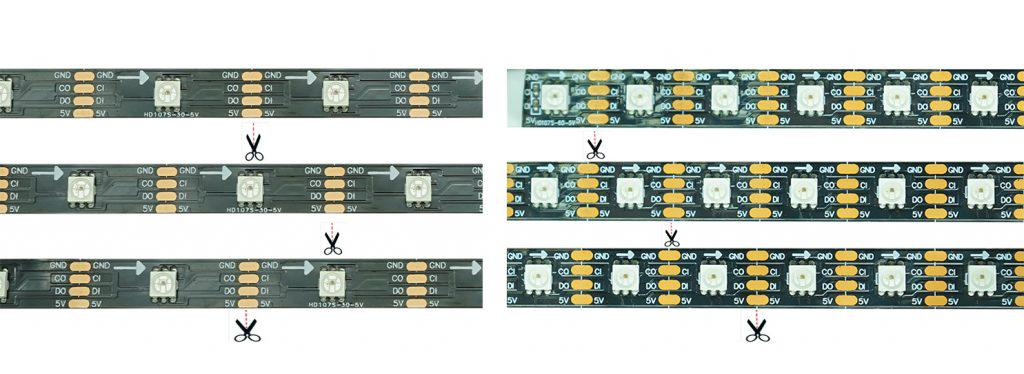

5.Customizable Sizes with Flexible Cutting and Soldering
Each LED forms a complete segment, allowing the strip to be freely cut and soldered along designated lines. This design lets you easily adjust the length to suit any project,
making these truly customizable LED light strips perfect for a wide range of installation scenarios.

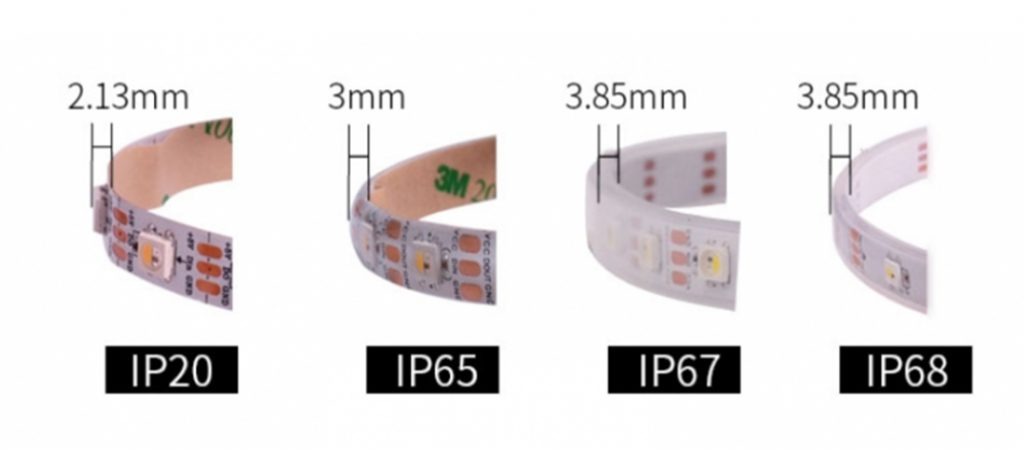

The WS2813B LED strip is available in multiple waterproof levels to suit a wide range of environments:
IP20 – (Non-waterproof), suitable for indoor use.
IP65–(Silicone Resin / Silicone Extrusion), suitable for indoor or covered outdoor use.
IP67–(Silicone Tube/ Silicone Extrusion), Fully encased for protection against temporary submersion.
IP68(Silicone Resin) –Durable casing for continuous water exposure.
IP68(extrusion-molded)–Advanced design for maximum waterproof performance and longevity.
Aluminum Trough Power Supply Controller
8.Installation
(1) Paste Installation:
This method is commonly used in no waterproof applications.
A strong 3M adhesive backing is pre-applied to the strip,
Allowing it to be directly mounted onto the desired solid surface.
Easy to Use and Easy to Install Tear Off the Adhesive Tape Paste to Where You Need to Install
(2) Snap-on Installation:
This method is designed for waterproof products with protective casing.
The strip is secured in place using clear screw-on brackets,ensuring a more stable and durable installation.
Accessories Put the Clips on the Strip Fixed the Clips (Clips+Screw+Screwd-Diver)

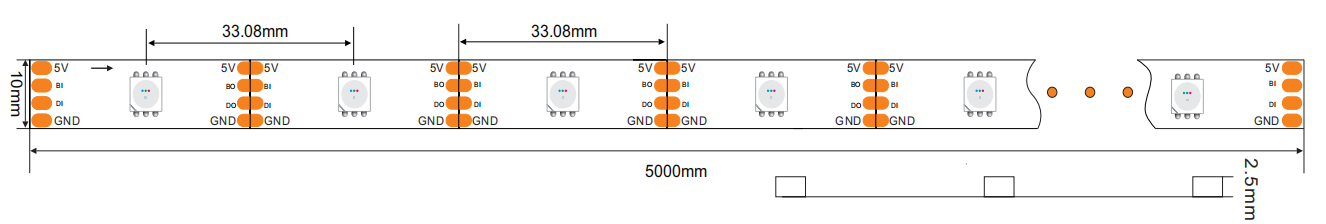

LW-D0006-5V-10mm-30LEDs/M

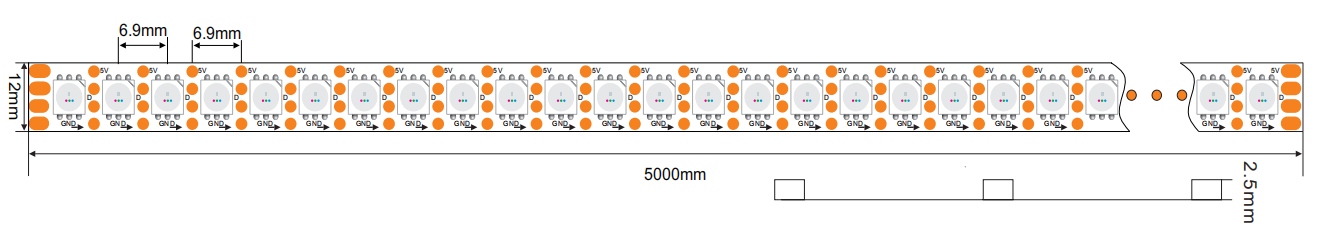

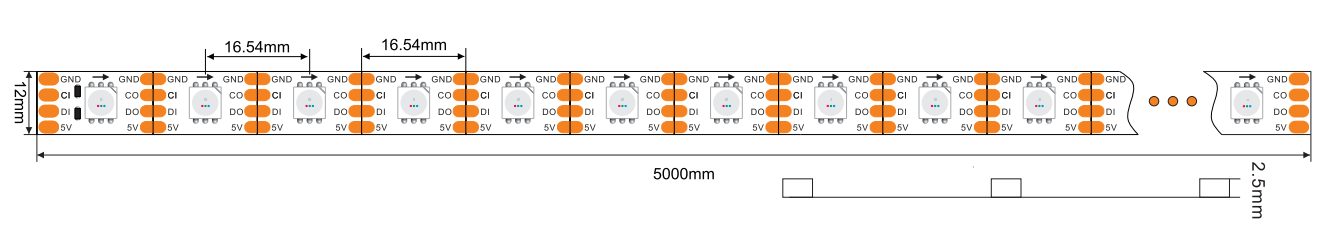

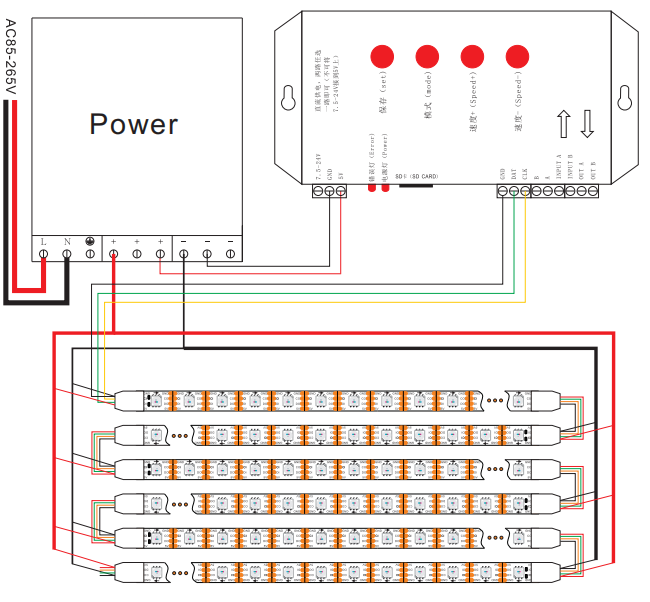

ConnectDrawing:
Application
WS2813 programmable RGB LED strips are widely used in indoor décor, commercial advertising, stage lighting, smart homes, automotive lighting, and building facades.
For example, in home settings, they can create dynamic ambiance lighting, making them ideal as LED strip behind TV setups.
In commercial applications, they are perfect for large LED displays and advertising boards, producing vibrant, colorful effects.
Additionally, these strips can be used for festive lighting, such as LED light strip Christmas lights, adding a lively and customizable touch to holiday decorations.
