Addressable RGBCW COB LED Strip
Product Features
- Integrated premium-grade LED chips for outstanding brightness, low light decay, and a tested lifespan exceeding 25,000 hours.
- Produces rich RGBCW effects with SPI addressable control, enabling custom scenes, gradients, and dynamic animations.
- Constructed from RoHS, CE, and REACH-compliant materials to meet global quality and safety standards.
- LED flexible strip structure allows easy bending, shaping, and installation in complex layouts; secured with strong 3M adhesive backing.
- Wide 180° beam spread for even illumination without visible hotspots.
- Breakpoint resume allows the remaining LEDs to continue functioning even if one LED fails..
- Cuttable at marked points for precise length customization.
- Operates at 24V for consistent output and energy-efficient performance.
Product Specification
- Wattage: 26W per meter
- Voltage: 24V voltage
- Available Colours: RGBCW
- CRI: 90+
- LED Quantity: 840 LEDs
- Ingress Protection: IP20/IP65/IP67/IP68
- PCB White: 15mm
- Beam Angle: 180° wide-angle light distribution
| Part NO: | COB129 |
| LED Qty: | 840pcs per meter |
| IC Qty: | 24V(14 pcs IC) |
| Input Voltage: | DC24V |
| PCB Width: | 15mm |
| Watts: | 24V(26W) |
| Color: | Addressable RGBW |
| Control signal: | SPI |
| PCB color: | White |
| IP Grade: | IP20 |
| Operating temperature: | .-25 to 45℃ |
| Beam angle: | 180 degree |
| Certification: | CE; RoHS |
| Max Run: | 5M |
| Min Run: | 24V 71.43MM |

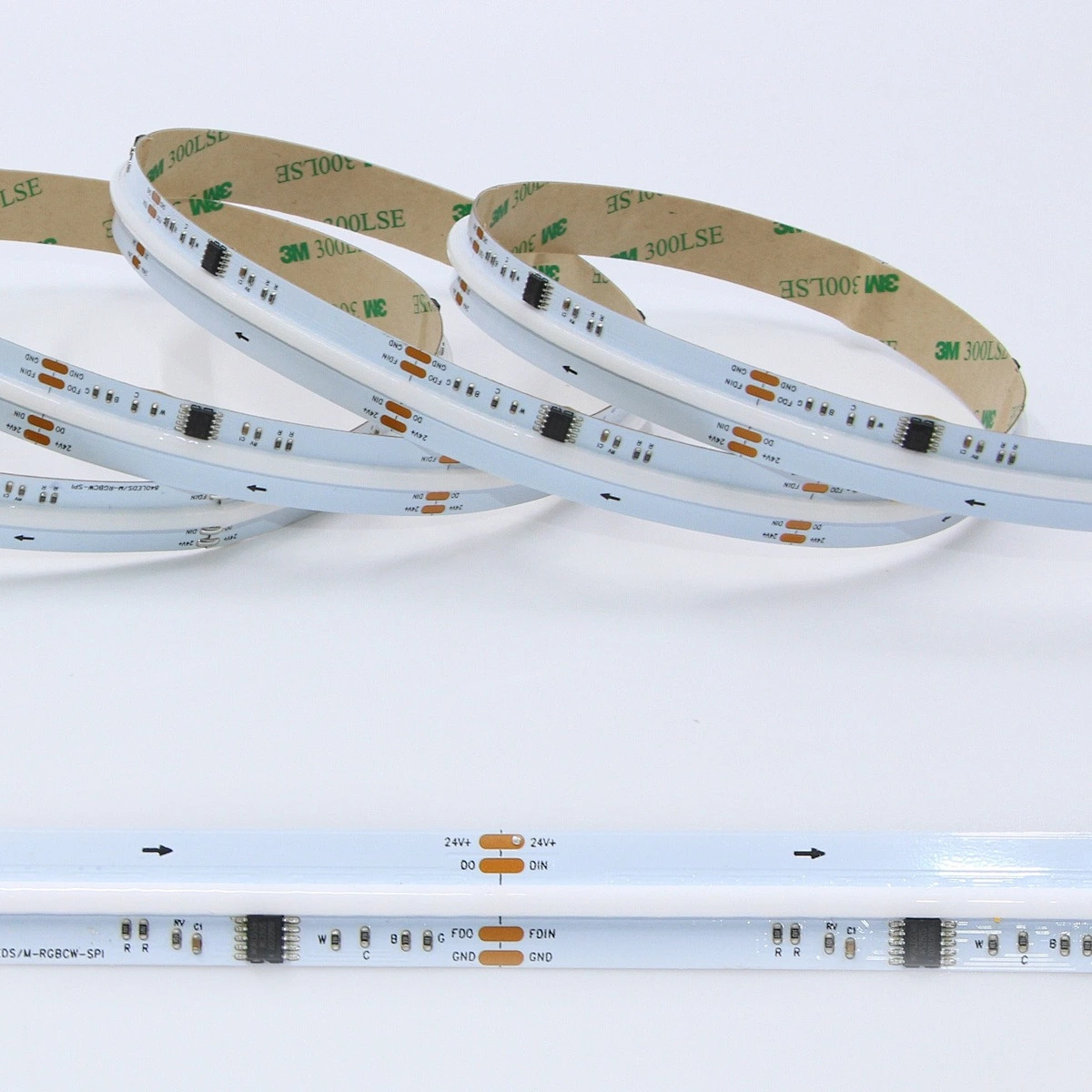

Equipped with WS2814 IC and SPI control, this high quality led strip lights supports breakpoint resume,

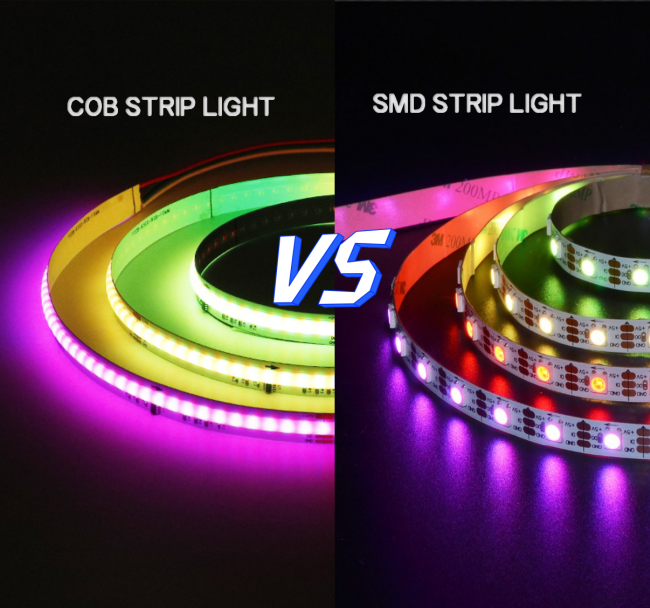

ensuring continuous operation even if individual LEDs fail. Unlike conventional RGBCW COB strips where
a single LED fault can halt the entire strip, this design allows all remaining LEDs to operate independently,
maintaining smooth chasing, gradient, dynamic, and static effects. This enhanced continuity makes it highly
reliable for long-term installations, particularly in hard-to-access or maintenance-restricted environments.

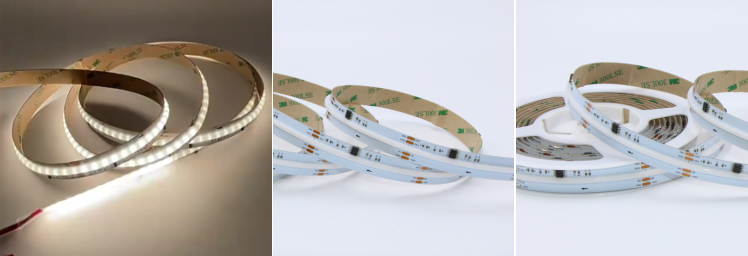

2. LED Flexible Strip

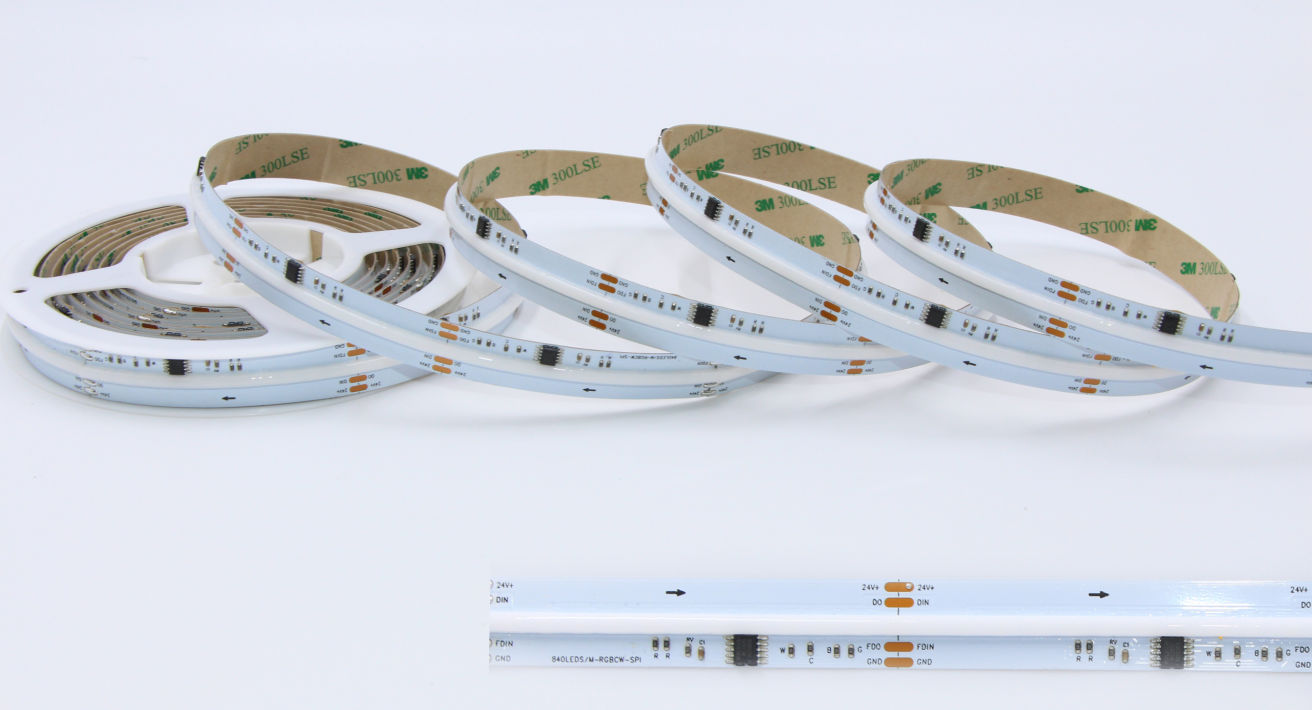

This color changing led light strips series features a high-density design with 840 LEDs per meter, providing ultra-bright,
spot-free, and evenly distributed lighting. Its flexible LED strip construction allows for easy bending and shaping, delivering visual
impact and versatile application potential, whether used for indoor LED light strip projects, decorative accents, or complex architectural designs.
.
5.The installation
1.This installation method is mainly suitable for non-waterproof environments.
2.A strong 3M adhesive tape is applied on the back of the strip.
3.The strip can be directly attached to any solid surface as needed.
Easy to Use and Easy to Install Tear Off the Adhesive Tape Paste to Where You Need to Install
6.Accessories
We provide a range of accessories to support your LED strip installation, including connectors, aluminum troughs,
power supplies, RGB controllers, and various connectors to ensure seamless and efficient setup.
Aluminum Trough Power Supply RGB Controller Connector

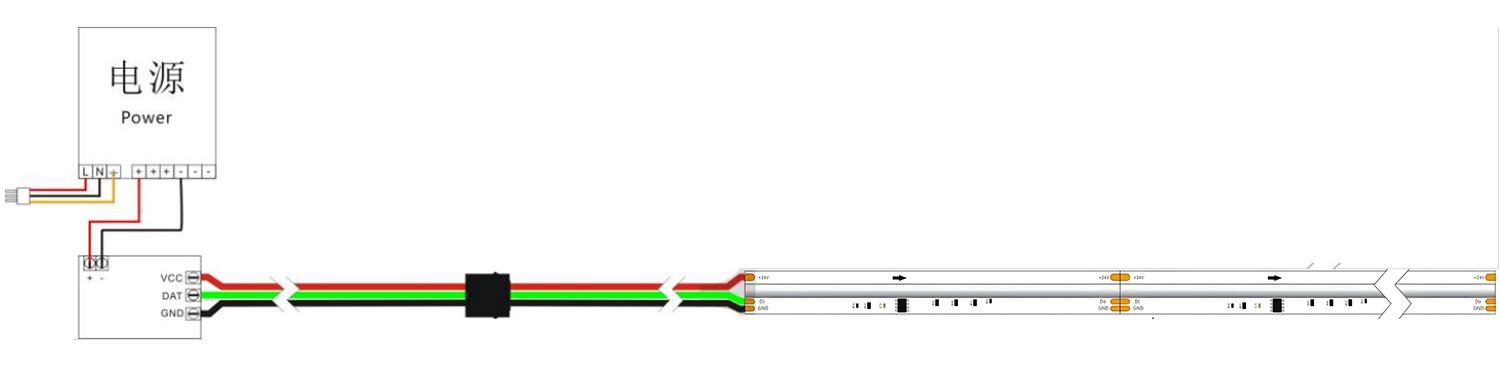

ConnectDrawing:

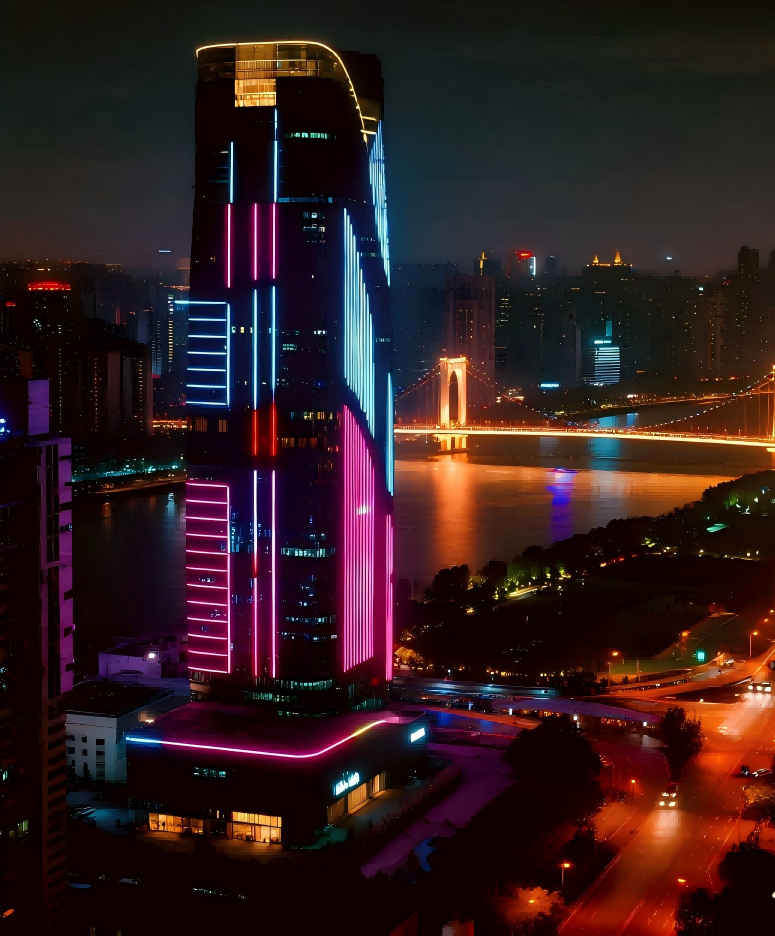

Application
The Addressable RGBCW COB LED Strip, features breakpoint resume for reliable signal continuity and addressable control,
delivering chasing, flowing, and multicolor effects that create immersive lighting experiences for architectural projects,
home ambiance, balconies, patios, gaming setups, and more.
