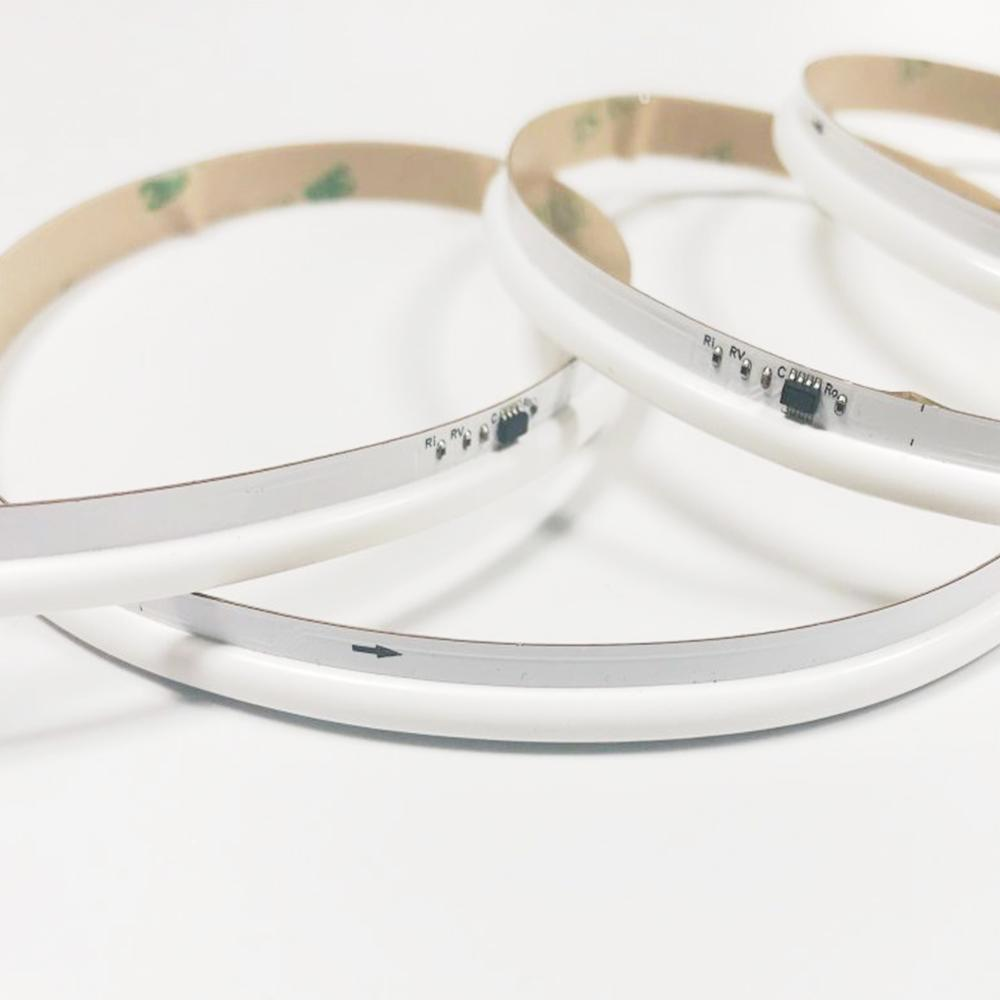

Digital Side Emitting COB LED Strip
Product Features
- High-density LEDs ensure a smooth, spot-free light output.
- Exceptional color efficiency delivers consistent and even illumination.
- Innovative flip-chip design with integrated WS2811 IC for advanced control.
- Low lumen depreciation and long lifespan exceeding 25,000 hours.
- Incorporates next-generation technology beyond conventional LED strips.
- Side-emitting design offers extreme flexibility with a 120°beam angle.
- Easy to install and handle, highly bendable, with 3M adhesive backing for secure mounting.
Product Specification
- Wattage: 12W per meter
- Voltage: 24 voltage
- Available Colours: RGB
- CRI: -
- LED Quantity: 630 LEDs
- Ingress Protection: IP20/IP65/IP67/IP68
- PCB White: 8mm
- Beam Angle: 180° wide-angle light distribution
The number of lamp beads, board width, color, CRI, waterproof level, etc. can be customized. Please contact us if you need.
| Advantage: | Side Emitting Addressable RGB |
| Model No. | LW-COB024 |
| LED Qty: | 630pcs per meter |
| Color | Addressable RGB |
| PCB Width IP20: | 8mm width |
| Input Voltage: | DC24V |
| Watts: | 12W |
| Luminous Flux: | 30LM / W |
| Weigh/ Reel： | 125g |
| PCB color: | White |
| IP Grade: | IP20 |
| Operating temperature: | .-25 to 45℃ |
| Beam angle: | 180 degree |
| Certification: | CE; RoHS |
| Max Run: | 5M |
| Min Run: | 24V 100mm |

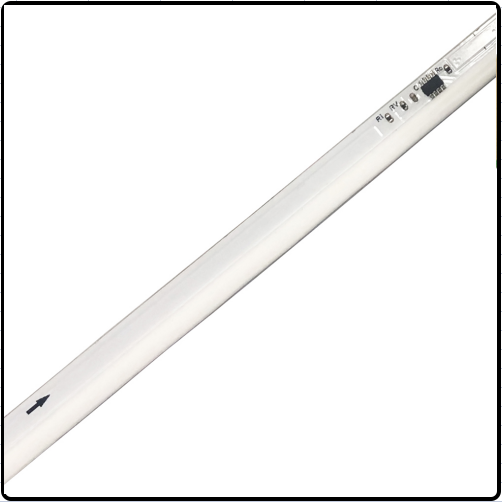

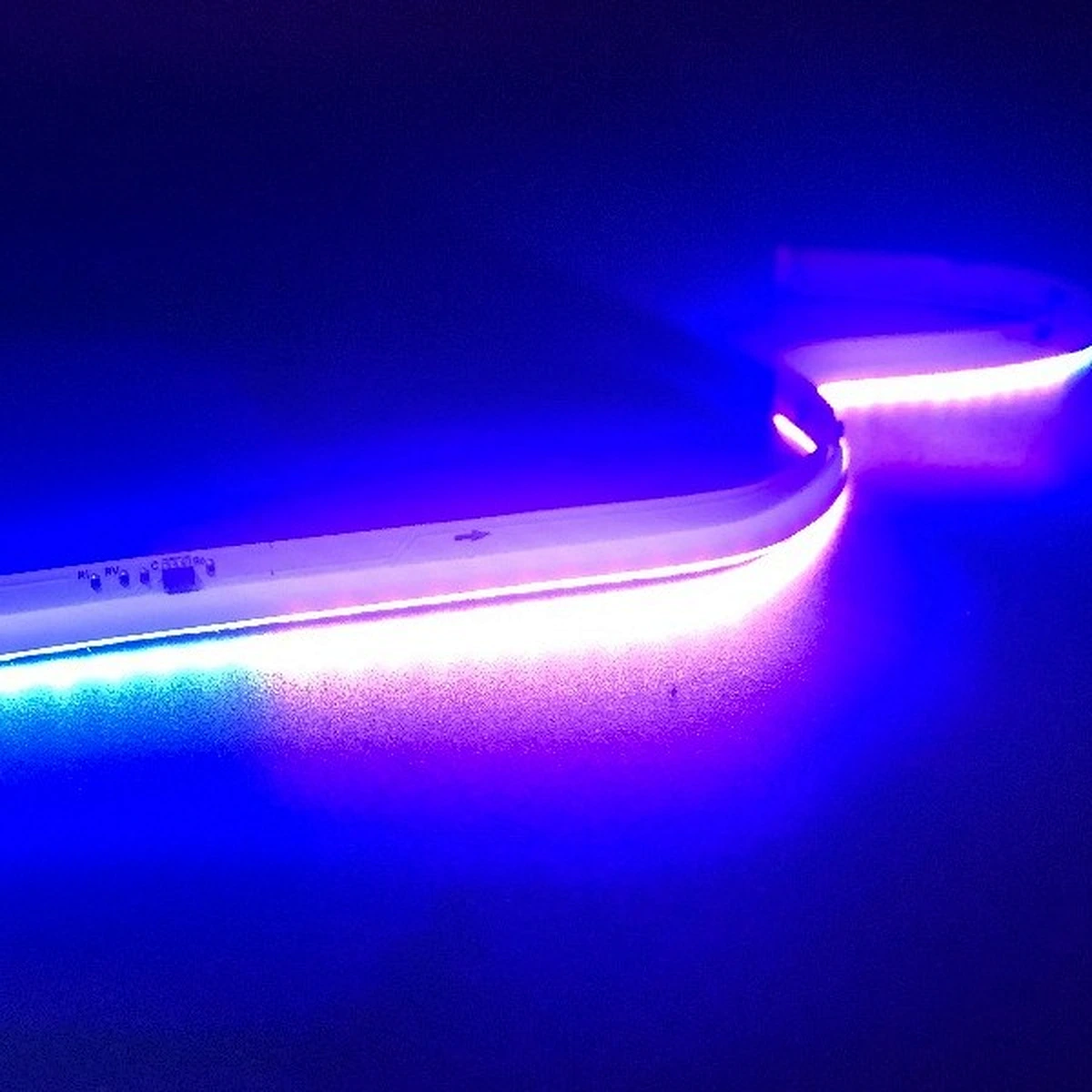

Featuring a side-emitting design, this LED strip projects light evenly from its side, keeping illumination
parallel to the strip’s surface. Its discreet profile allows for seamless integration into architectural features,

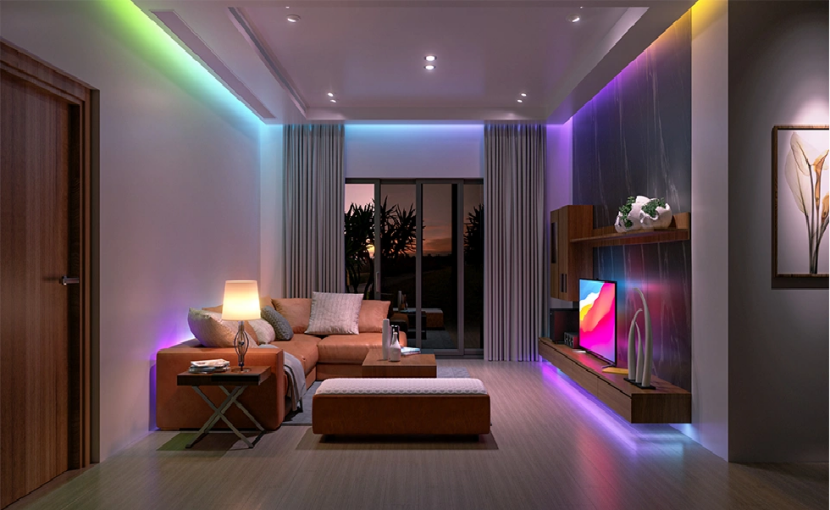

enhancing the aesthetic appeal of any space. Perfect for modern homes and commercial environments, it is

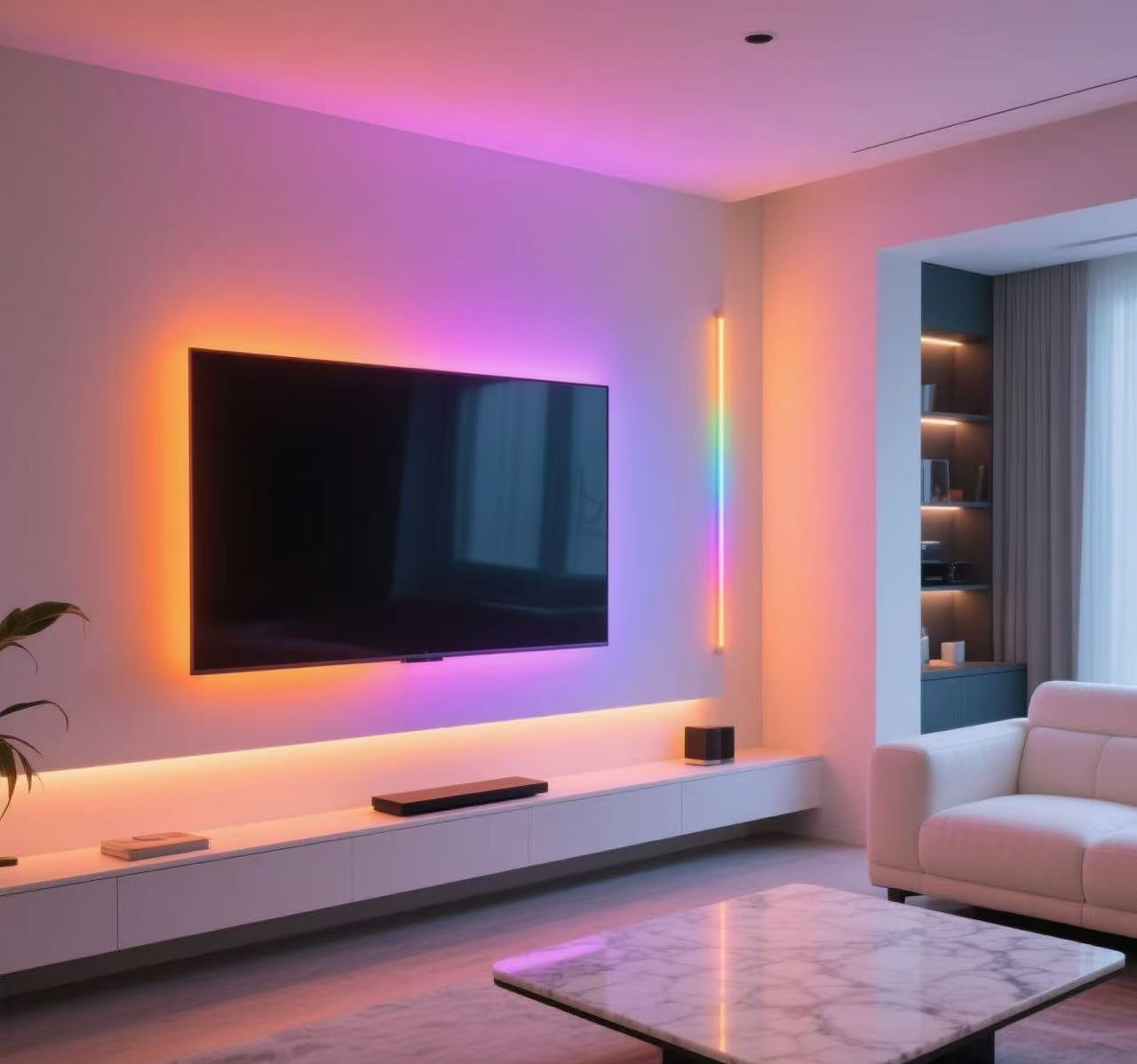

especially suited as led strip lights for tv, creating a smooth, ambient glow behind screens without glare.
2.Exceptional Linear Lighting – Spotless

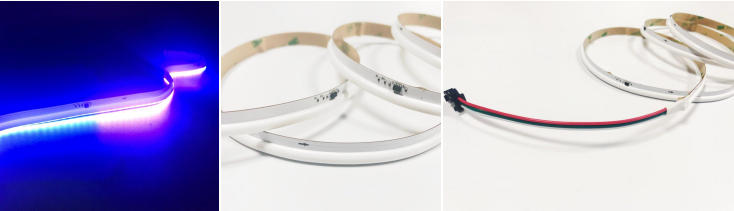

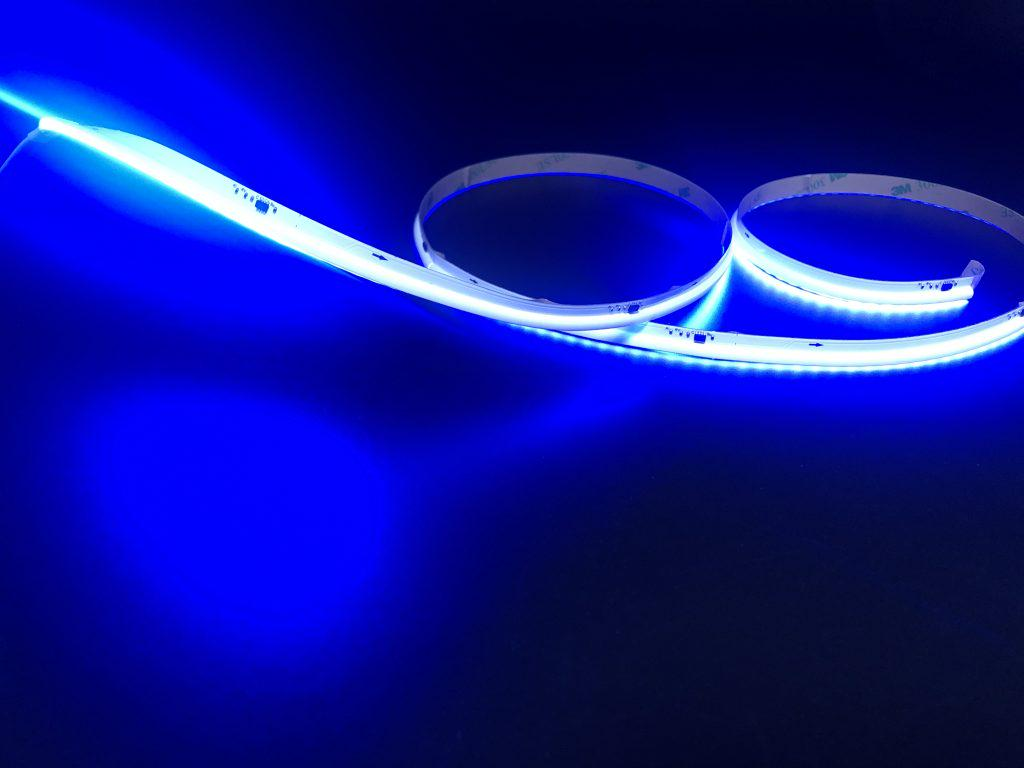

The addressable side-emitting RGB COB LED strip uses densely packed COB chips to deliver a continuous,
spot-free illumination. The light is soft, uniform, and comfortable, providing a flawless continuous led strip light rgb
experience ideal for designs that demand seamless linear lighting. Unlike conventional side-emitting SMD strips,
which use dispersed SMD chips and often produce visible light points, this COB strip ensures a smooth and elegant
glow for any application.
1.This installation method is mainly suitable for non-waterproof environments.
2.A strong 3M adhesive tape is applied on the back of the strip.
3.The strip can be directly attached to any solid surface as needed.
Easy to Use and Easy to Install Tear Off the Adhesive Tape Paste to Where You Need to Install
We provide a range of accessories to support your LED strip installation, including connectors, aluminum troughs,
power supplies, controllers, and various connectors to ensure seamless and efficient setup.
Aluminum Trough Power Supply RGB Controller Connector
LW-COB024-24V-630LEDs

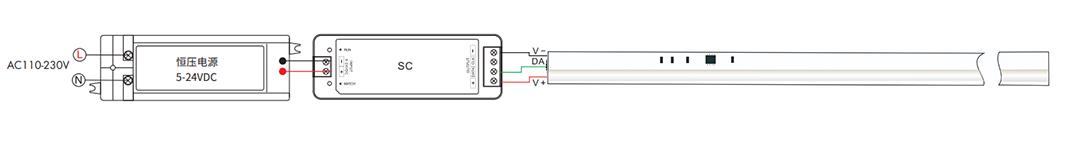

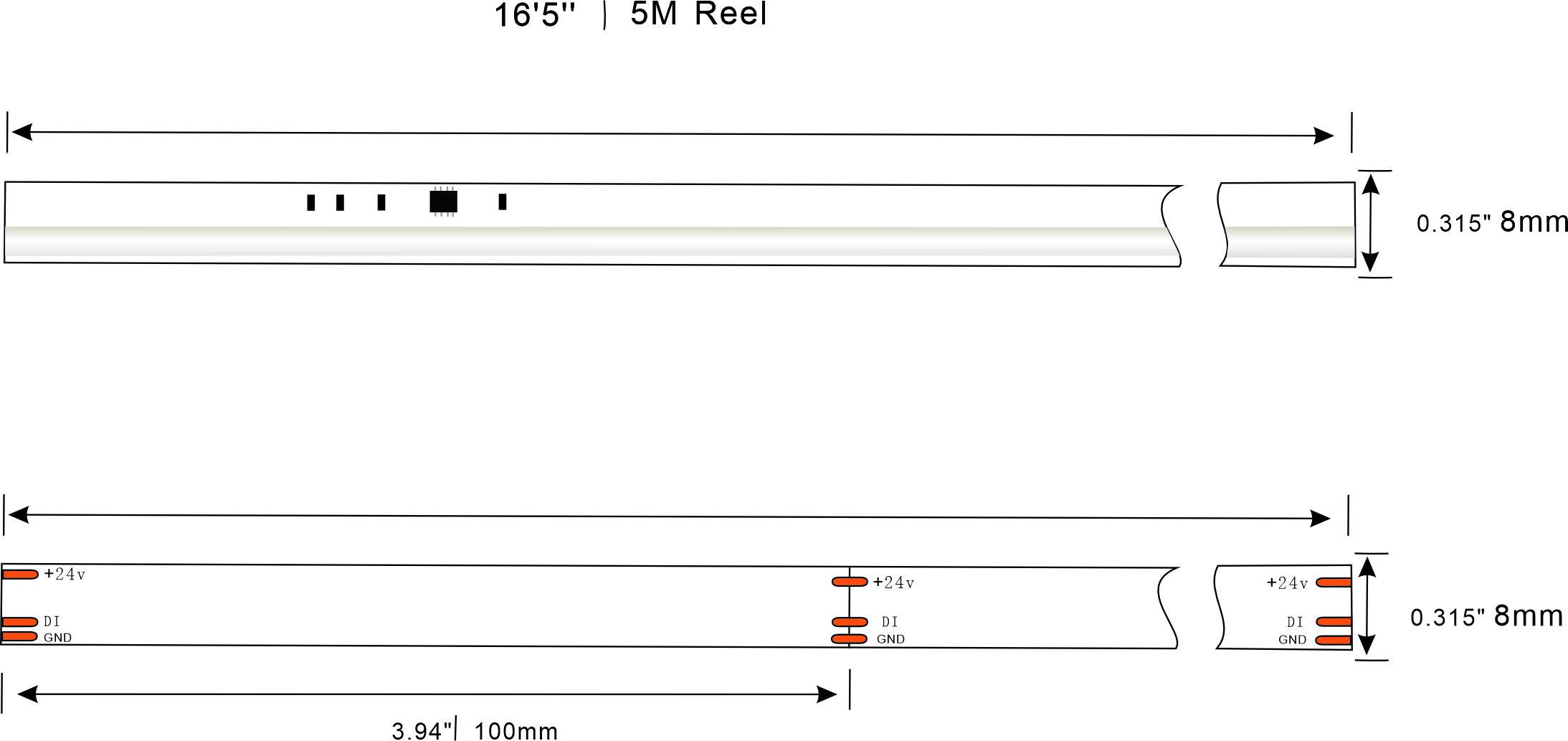

Connect Drawing:

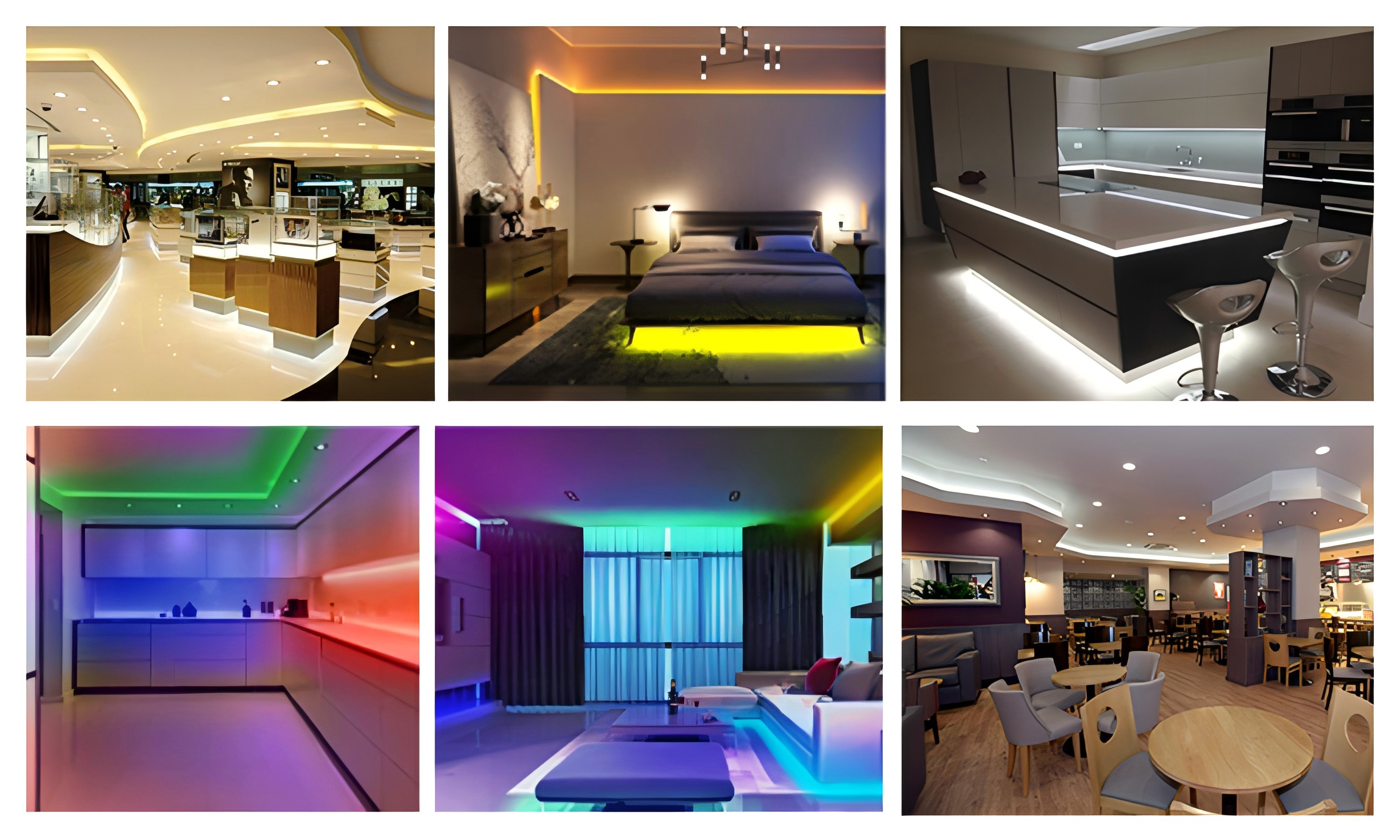

Application
The Digital Side Emitting COB LED Strip is a led tape flexible strip lighting solution. Its unique side-lighting
design allows installation in confined or unusually shaped spaces where conventional LED strips cannot fit.
Ideal for architectural and accent lighting, it works perfectly in narrow areas such as grooves, under cabinets,
hallways, staircases, light boxes, counters, or tight gaps, casting distinctive side-lit effects. Its design also
makes it an excellent choice for led room light strips, delivering both functional illumination and visually striking
ambiance in residential and commercial interiors.
