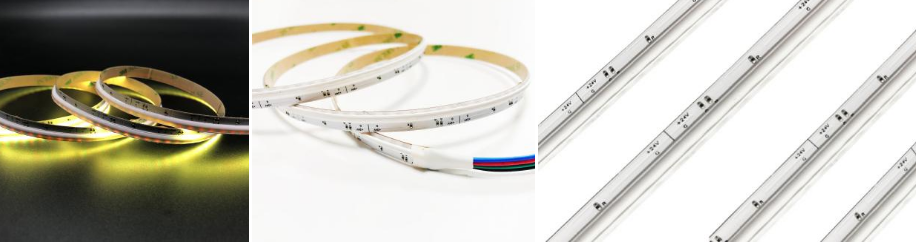

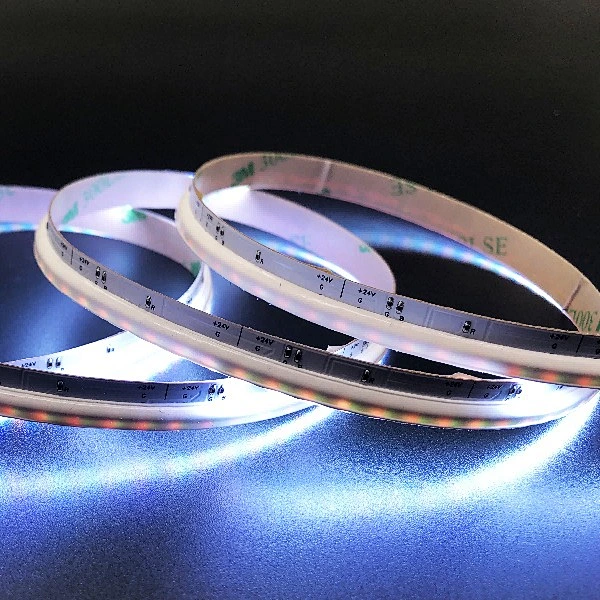

Side View RGB COB LED Tape
Product Features
· High-density LED design delivers smooth lighting with no visible spots.
· Excellent color rendering ensures bright, consistent, and uniform illumination.
· Low light decay, with a lifespan of more than 25,000 hours for long-term reliability.
· Side-emitting structure provides a wide 120° beam angle for broader coverage.
· Manufactured with RoHS, CE, and REACH compliant materials, ensuring safety and sustainability.
· Flexible installation – bendable, easy to cut and store, with strong 3M adhesive backing for quick mounting.
Product Specification
The number of lamp beads, board width, color, CRI, waterproof level, etc. can be customized. Please contact us if you need
| Advantage: | Side Emitting RGB |
| Model No. | LW-COB025 |
| LED Qty: | 630pcs per meter |
| Color | RGB |
| PCB Width IP20: | 8mm width |
| Input Voltage: | DC24V |
| Watts: | 9.6W |
| Luminous Flux: | 30LM / W |
| Weigh/ Reel： | 125g |
| PCB color: | White |
| IP Grade: | IP20 |
| Operating temperature: | .-25 to 45℃ |
| Beam angle: | 120 degree |
| Certification: | CE; RoHS |
| Max Run: | 5M |
| Min Run: | 24V 33.3mm |

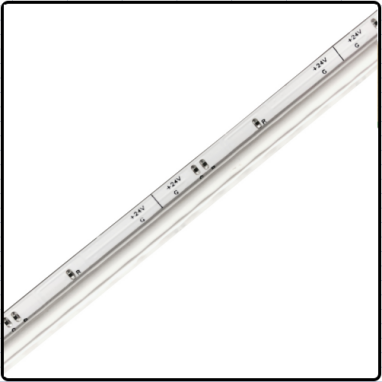

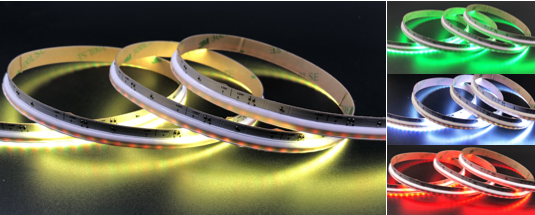

The side emitting RGB COB LED strip is a low voltage led strip engineered with a lateral light-emitting structure. Instead of
projecting light directly upward, the illumination flows smoothly from the side of the strip, keeping the beam parallel to its surface.
This discreet lighting approach allows the strip to blend seamlessly into architectural details, enhancing the visual harmony of a space.
Its hidden installation style makes it especially suitable for modern homes and commercial interiors where both functionality and design
aesthetics are essential.

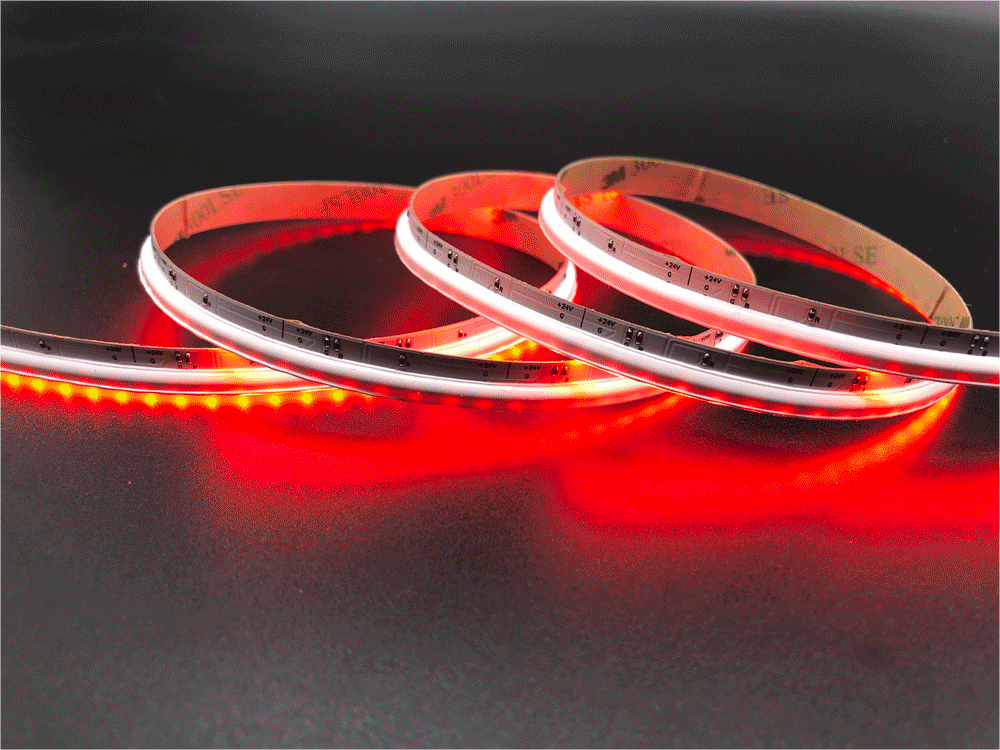

2.Smooth, Dot-Free Lighting Performance
This side emitting led strip rgb led uses high-density COB chips, producing a soft, uniform, and seamless light output.
It eliminates the bright spots or gaps that often occur with conventional LED strips, delivering a flawless linear lighting effect.

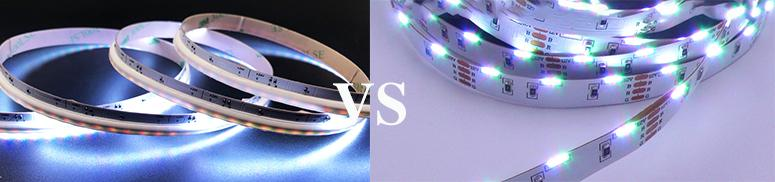

In contrast, traditional side-emitting 020 SMD LED strips rely on scattered SMD beads, which can create visible point sources
on the surface. While they may provide higher brightness, the light often feels harsh and less refined, especially in applications
where atmosphere and visual comfort are important.
5.The installation
1.This installation method is mainly suitable for non-waterproof environments.
2.A strong 3M adhesive tape is applied on the back of the strip.
3.The strip can be directly attached to any solid surface as needed.
Easy to Use and Easy to Install Tear Off the Adhesive Tape Paste to Where You Need to Install
6.Accessories
We provide a range of accessories to support your LED strip installation, including connectors, aluminum troughs,
power supplies, RGB controllers, and various connectors to ensure seamless and efficient setup.
Aluminum Trough Power Supply RGB Controller Connector
LW-COB025-24V-630LEDs

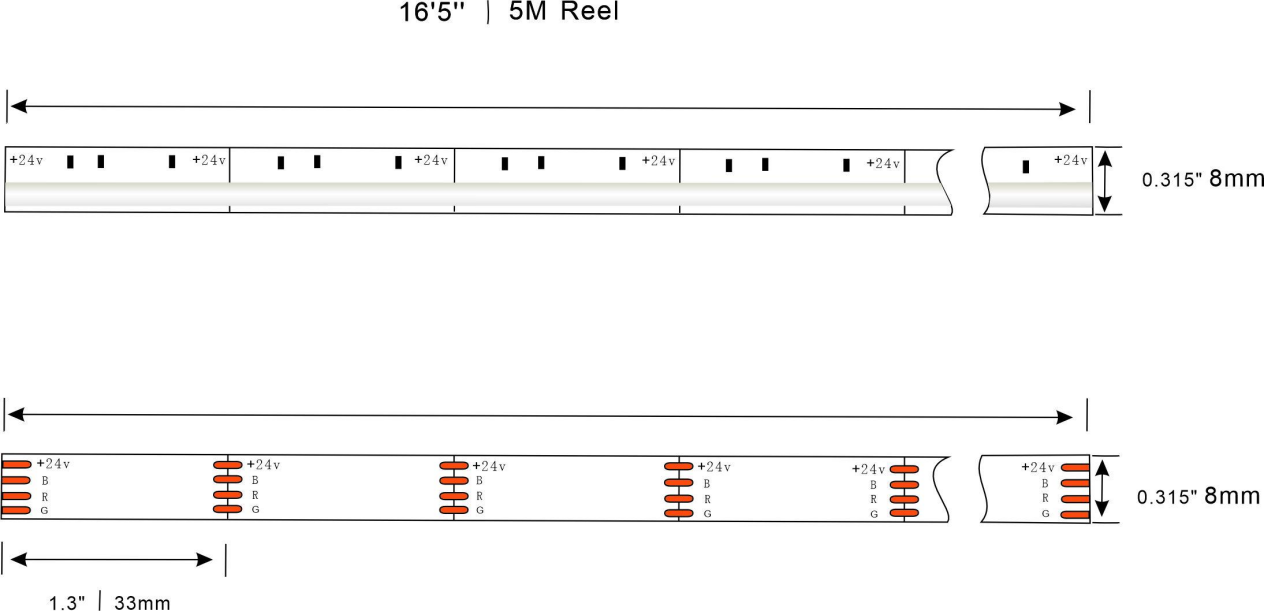

ConnectDrawing:

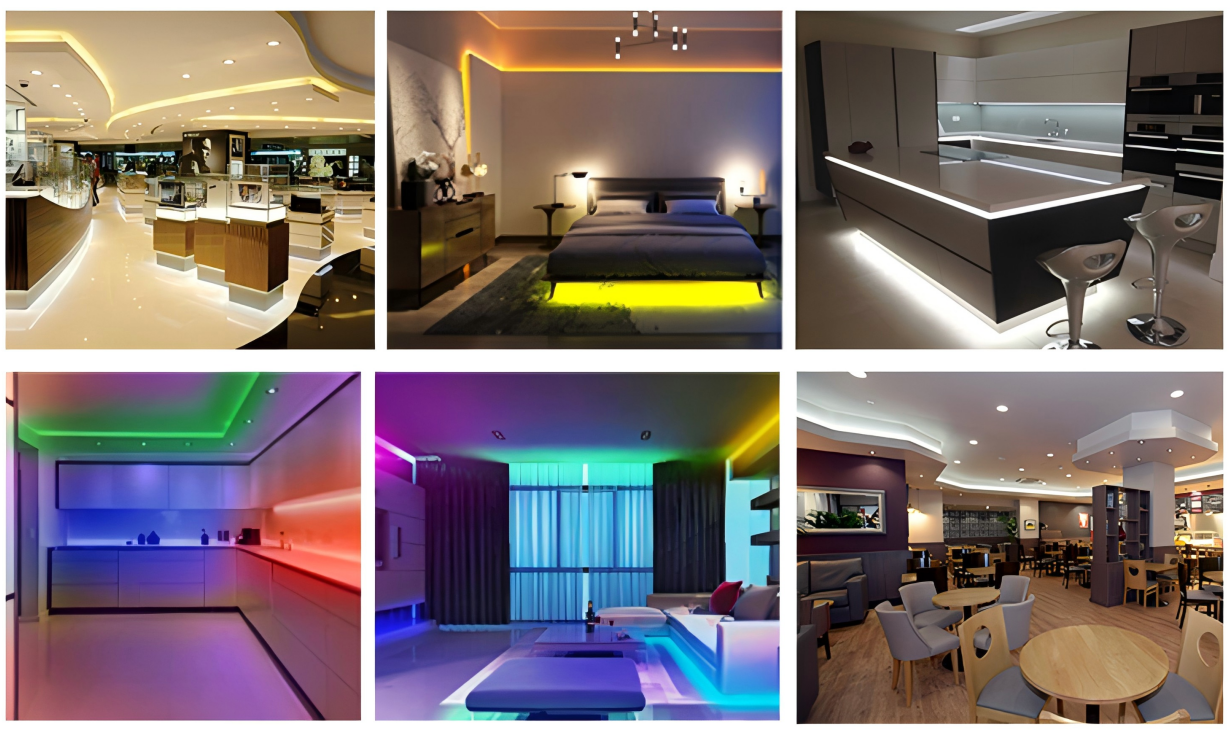

Application
The side emitting RGB COB LED strip is designed specifically for lateral lighting, making it an excellent choice for interior illumination,

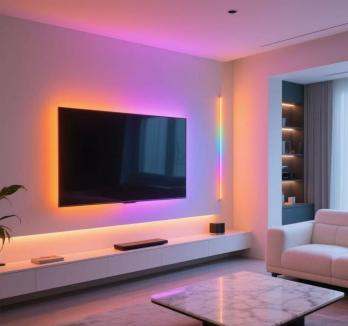

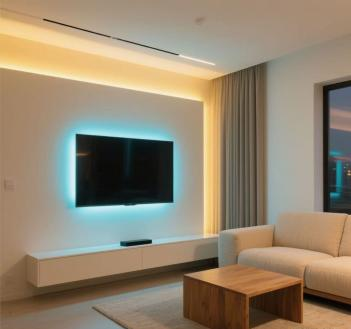

signage outlines, and edge highlighting where unique visual effects are required. In residential settings, it can be used as led light strips for tv,

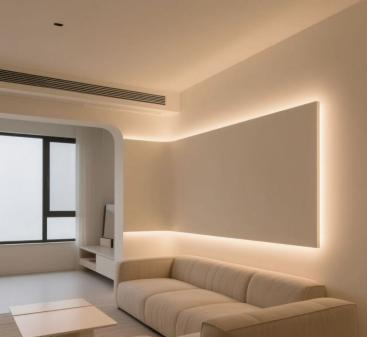

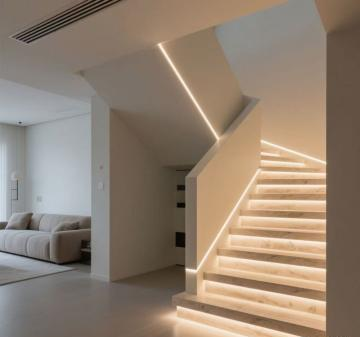

creating a soft glow behind the screen to balance brightness and reduce eye strain. It also enhances hallways, staircases, and recessed areas,
adding a warm and modern touch to any living space.

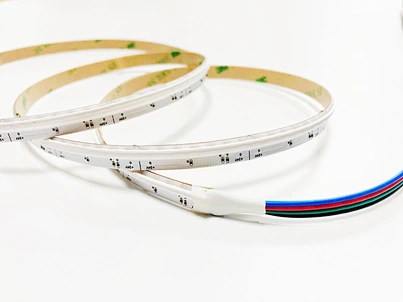

As a led flexible led strip, it offers outstanding flexibility and adaptability, allowing easy installation even in complex structures. The uniform
side-emitting light ensures a smooth, glare-free effect, eliminating harsh hotspots while improving both comfort and aesthetics of the environment.
