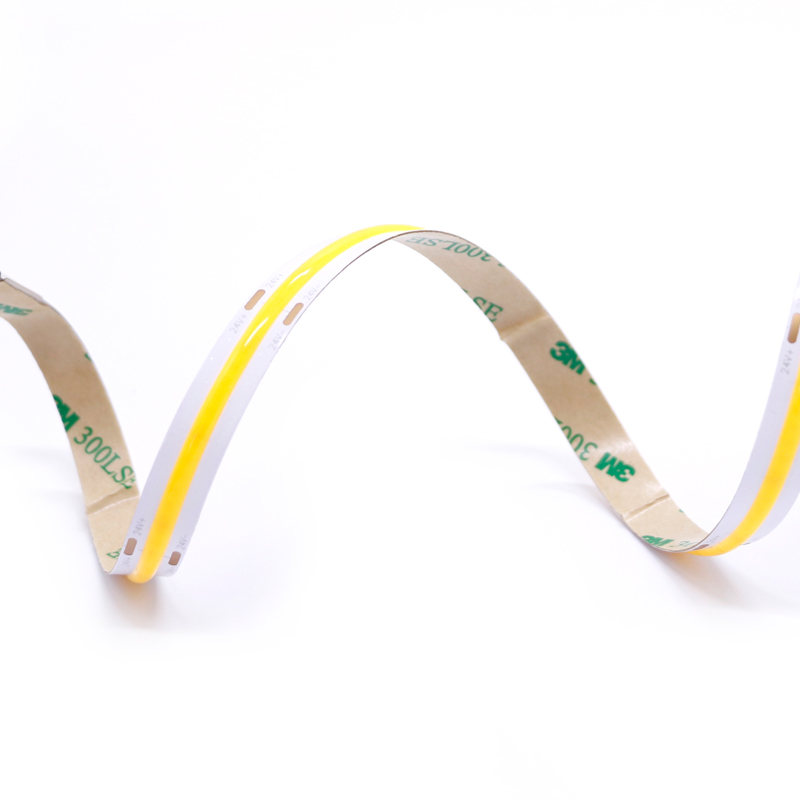

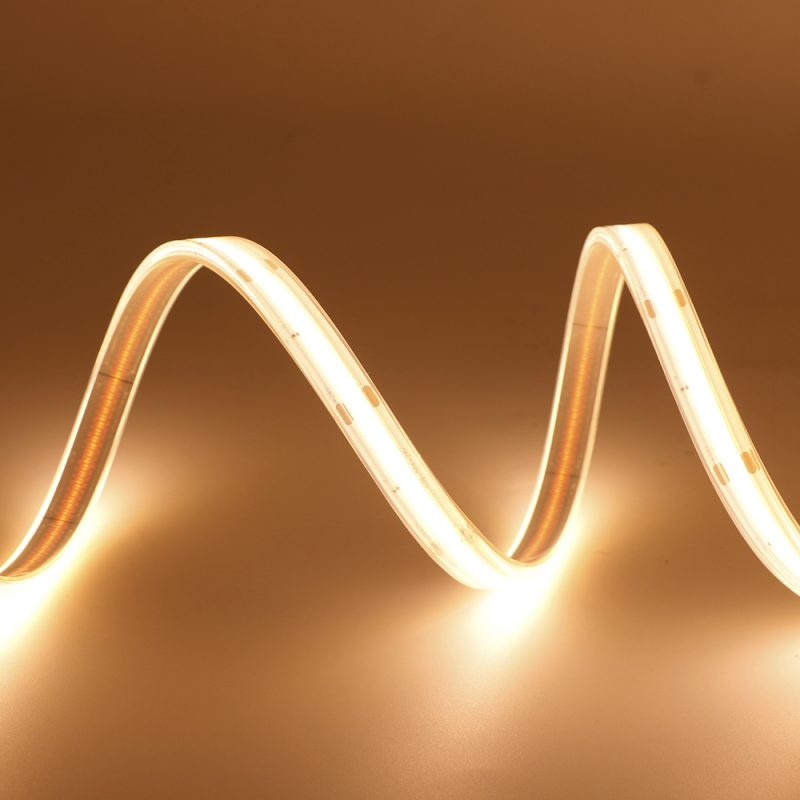

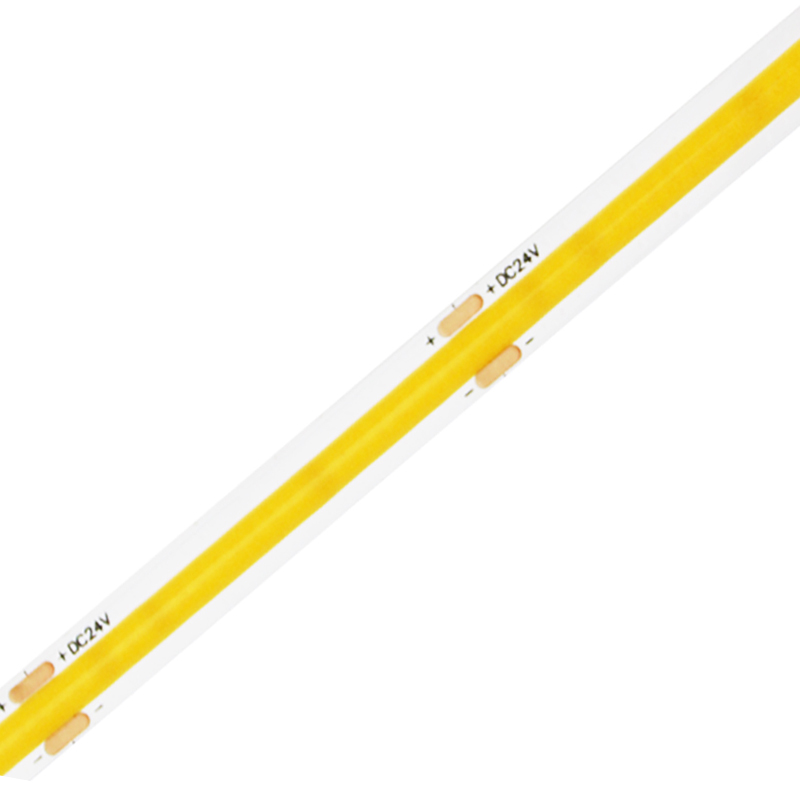

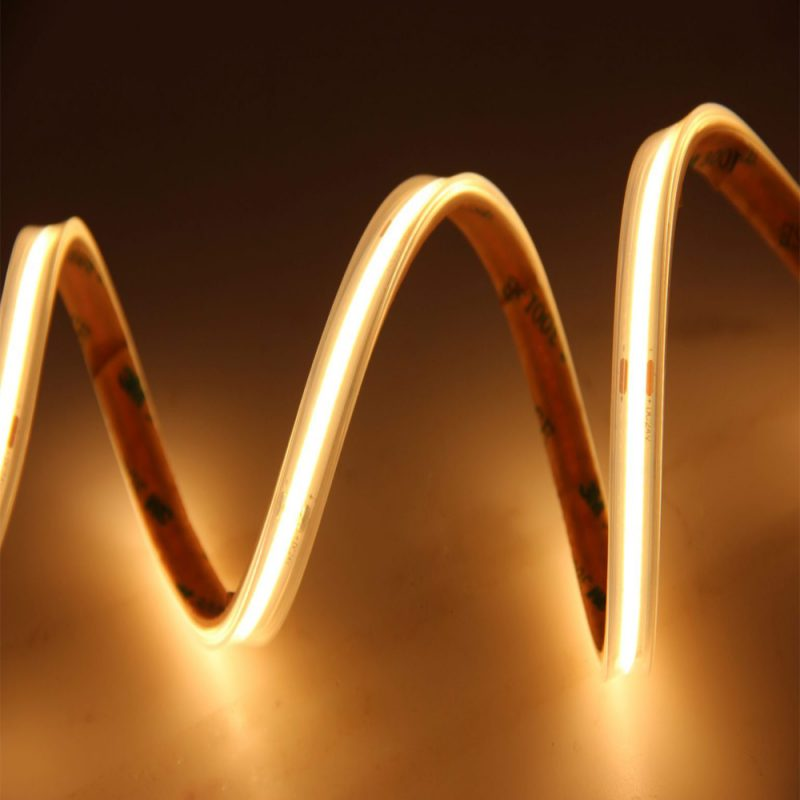

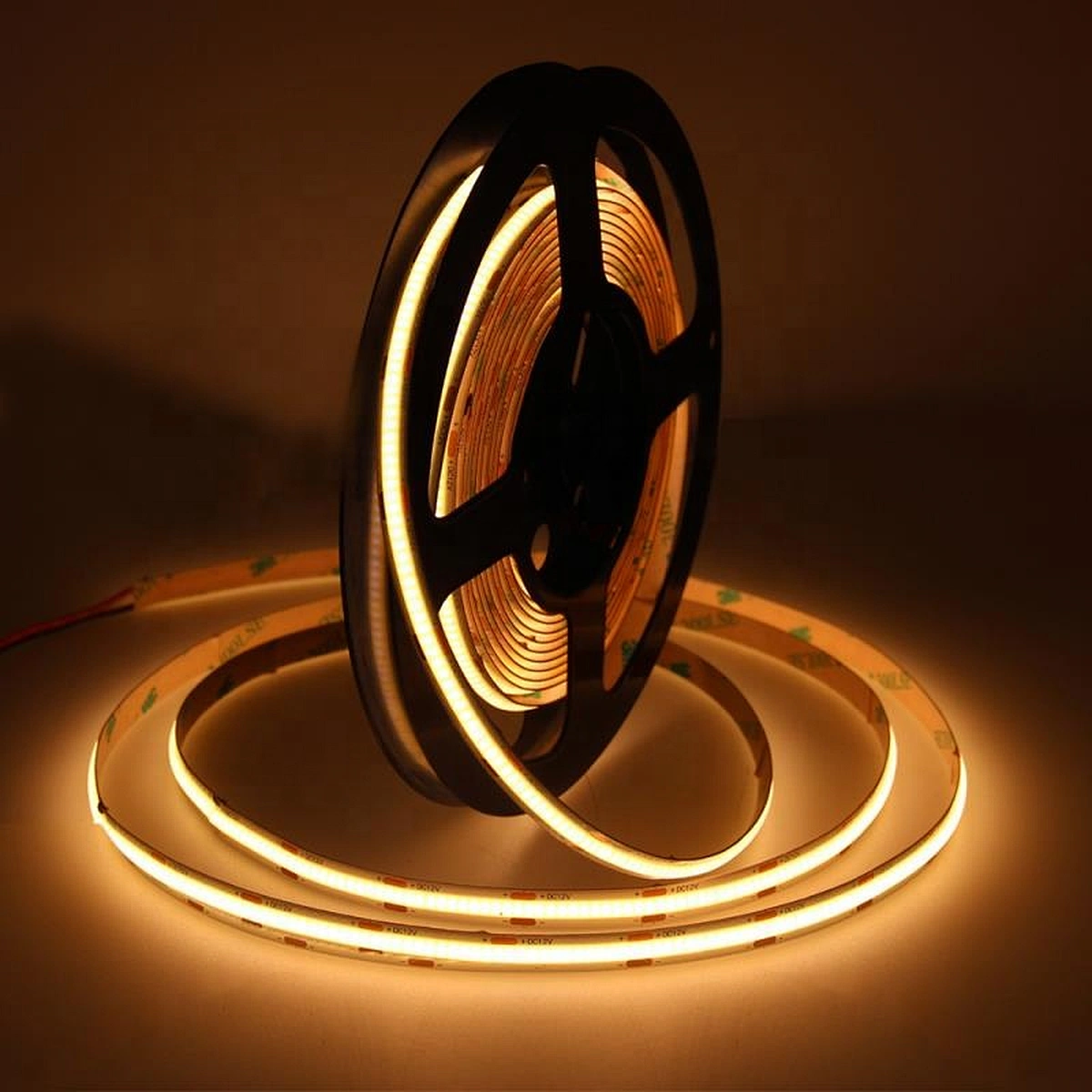

flexible white cob led strip
LW-COB010/LW-COB013
1meter
Quantity
- Place of Origin:Chongqing, China
- Brand Name:ledworker
- Model Number:LW-COB010/LW-COB013
- Application:Hotel, Decorative Lighting, Decorative Lighting
- Color Temperature(CCT):3000K
- IP Rating:IP67, Ip20
- Lamp Body Material:PVC/Copper
- CRI (Ra>):90
- Input Voltage(V):DC 12V / DC 24V
- Lamp Luminous Efficiency(lm/w):90
- Lamp Luminous Flux(lm):900
- Warranty(Year):2-Year
- Working Lifetime(Hour):50000
- Working Temperature(℃):-20 - 45
- Color Rendering Index(Ra):90
- Light Source:LED,COB LED
- Switch Mode:wifi, Remote Control, bluetooth, Manual Button, Remote Control
- Support Dimmer:Yes
- Lighting solutions service:Lighting and circuitry design, Onsite metering, DIALux evo layout
- Lifespan (hours):50000
- Working Time (hours):30000
- Product Weight（kg）:0.1
- IP Rank:IP20
- Color:CW,WW,
- Type::Cob led strip
- Voltage:DC 12/24V
- LED Quantity:480leds/m
- Product Name:Cob led strip
- PCB Color:white,
- Warranty:2years
Product Description
Advantage: | 320pcs COB strip | 480pcs COB strip |
Mode: | LW-COB010 | LW-COB013 |
LED Qty: | 320pcs per meter | 480pcs per meter |
CRI (RA) | 90 | 90 |
PCB Width IP20: | 8mm 10mm width | 6mm 8mm 10mm width |
Input Voltage: | DC24V/12V | DC24V/12V |
Watts: | DC24V= 11W DC12V= 9W | DC24V= 11W DC12V= 9W |
Brightness (±10%): | 100LM / W | 80-100LM / W |
Color: | 12700K/ 3000K/4000K/6000K | 2700K/3000K/4000K/6000K |
PCB color: | White | White |
IP Grade: | IP20/IP67 | IP20/IP67 |
Operating temperature: | .-25 to 45℃ | .-25 to 45℃ |
Beam angle: | 180 degree | 180 degree |
Certification: | CE; RoHS | CE; RoHS |
Max Run: | 5M | 5M |
Min Run: | 12V（25mm） 24V（50mm） | 12V（25mm） 24V（50mm） |
Product Features:
1. New Technology, Chips On PCB Directly. Dot Free type.
2. High Color Efficiency, Uniform Illumination.
3. Single Color: 2700k, 3000k, 4000k, 6000k , Red, Green, Blue, Yellow. Also have RGB COB, Dual color type, 360 degree COB Led
Strip. Constant current /High Voltage Type is developing.
4. All of Materials Are Accord With Rohs / CE / REACH Standards.
5. Easy to Install and Preserve;can Be Bent Freely; With 3m Adhesive Tape On the Backside.
6. Beam Angle 180°.
7. As a manufacturer, we can customize different lengths, board width, voltage, power, color temperature and color rendering index
according to customer requirements.
Products Details:
2. High Color Efficiency, Uniform Illumination.
3. Single Color: 2700k, 3000k, 4000k, 6000k , Red, Green, Blue, Yellow. Also have RGB COB, Dual color type, 360 degree COB Led
Strip. Constant current /High Voltage Type is developing.
4. All of Materials Are Accord With Rohs / CE / REACH Standards.
5. Easy to Install and Preserve;can Be Bent Freely; With 3m Adhesive Tape On the Backside.
6. Beam Angle 180°.
7. As a manufacturer, we can customize different lengths, board width, voltage, power, color temperature and color rendering index
according to customer requirements.
Products Details:

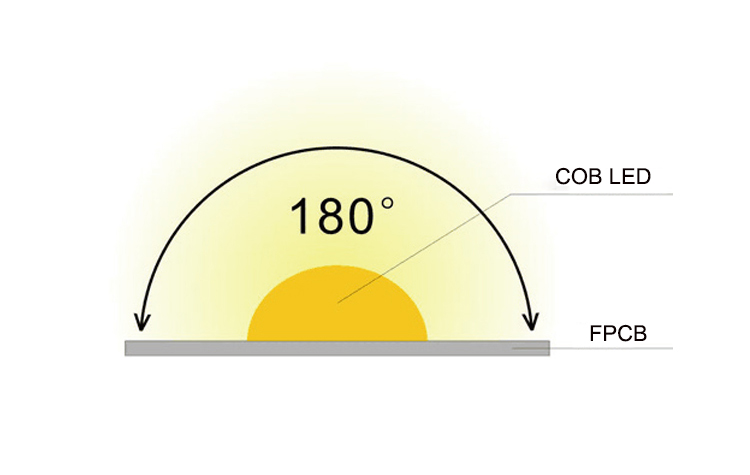

1. Wide viewing Angle up to 180 degree.
Put the chips on board then put Phosphor on chips let the viewing angle bigger, then it’s less dark zone
2. Excellent CCT uniformity for continuous orders.
With our experience engineer team. we can keep excellent CCT uniformity for continuous orders. and keep Color- Consistency: 3
SDCM.Ensure your every orders same color, and continuouse provide super work for your customers.

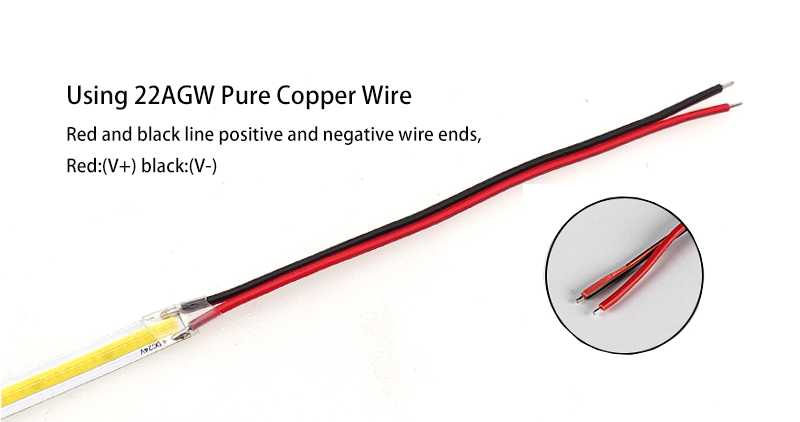

3. 22AWG PURE COPPER WIRE
We pay attention to every details, the connect cable we use 22AWG pure copper wire. Always keep 3/8”stripped off the end of the LED for wiring purposes.

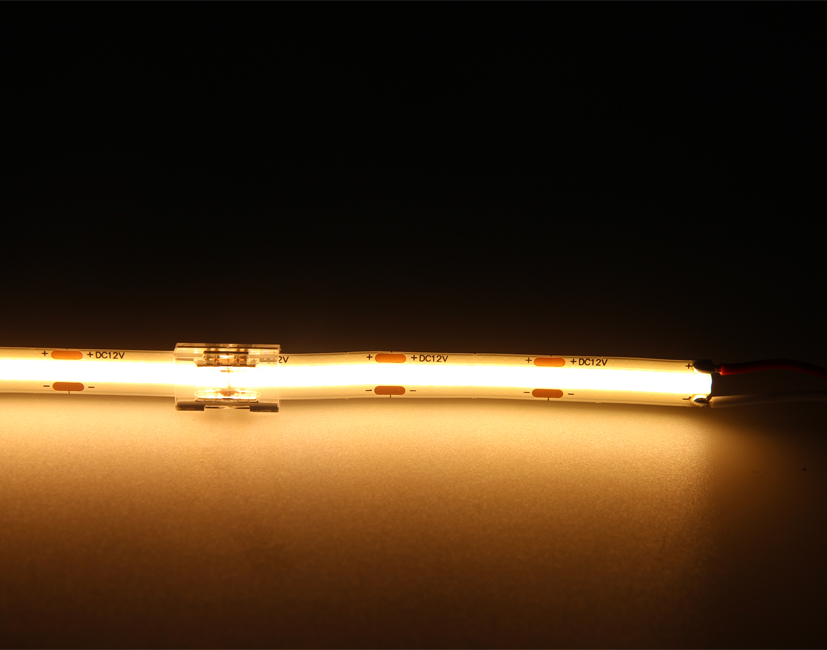

4. Excellent Iinear Iighting performance, Dot FREE.

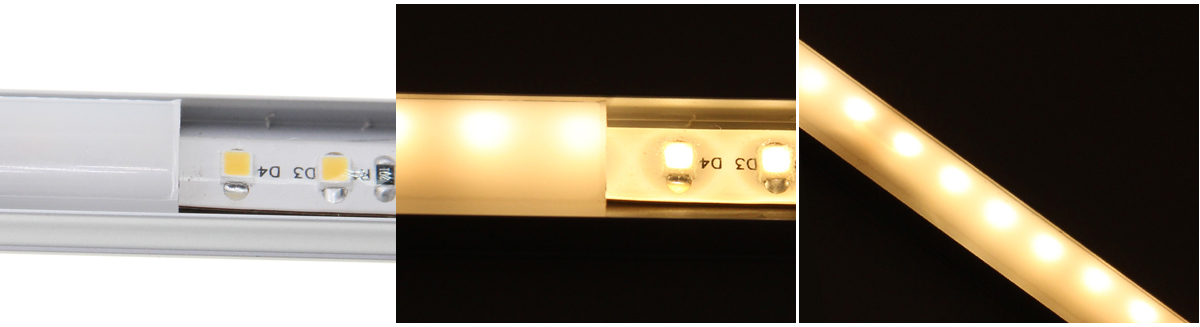

2835SMD Led Strip With Aluminum Profile:
VS

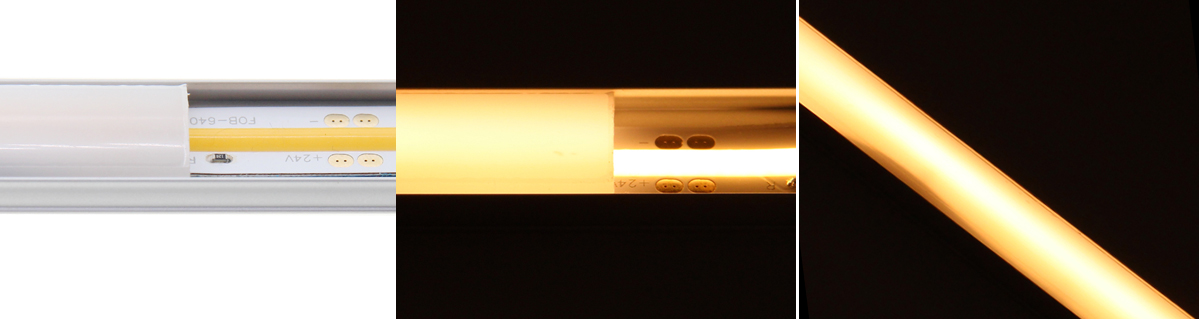

COB SMD Led Strip With Aluminum Profile:
5. Waterproof type.
Non waterproof type.
Extruded Silicone waterproof
Put in tube waterproof

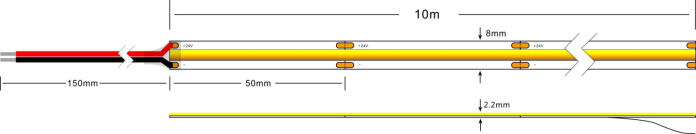

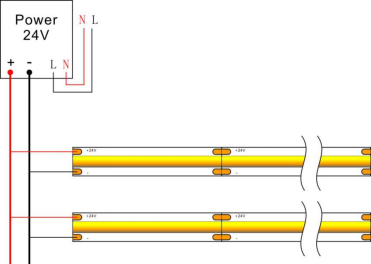

Connect drawing:

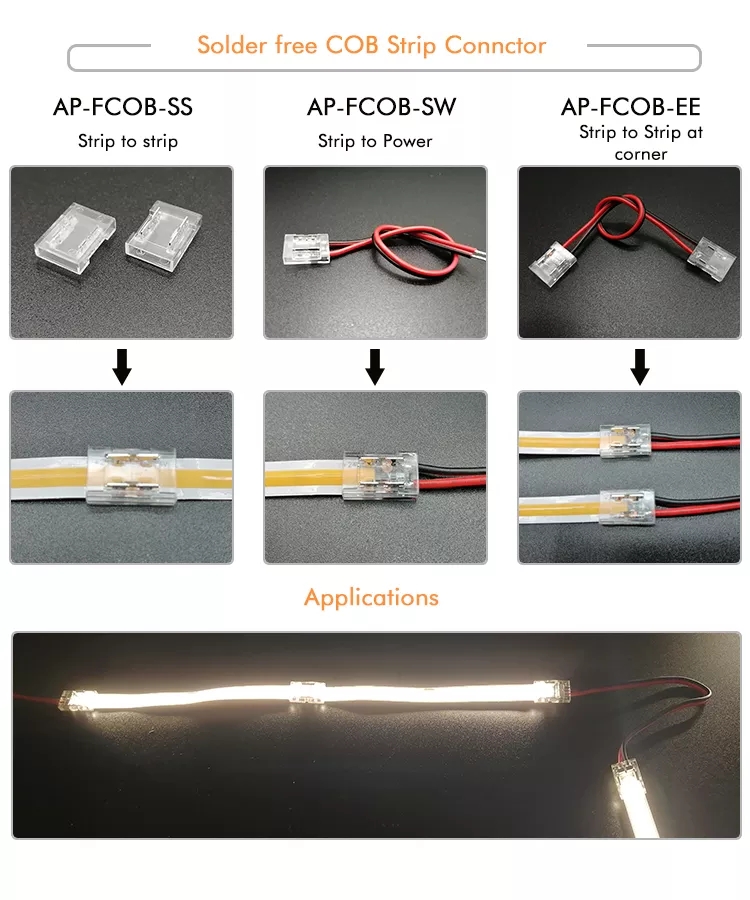

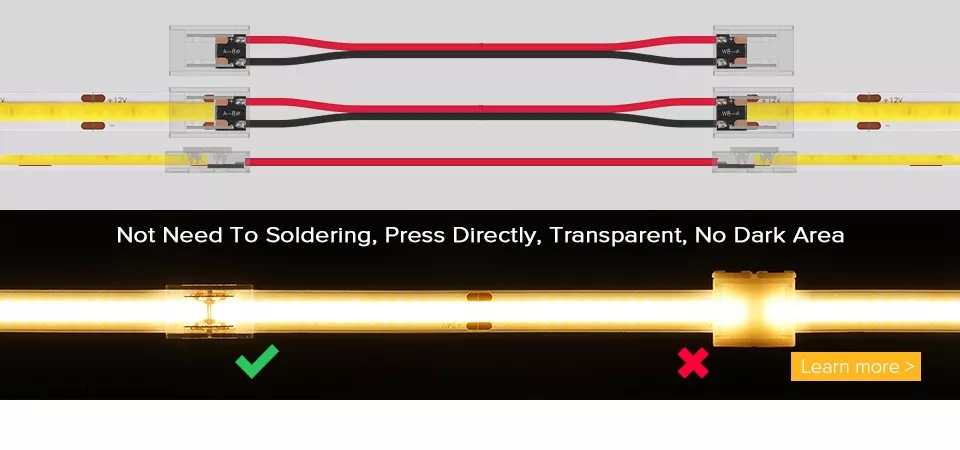

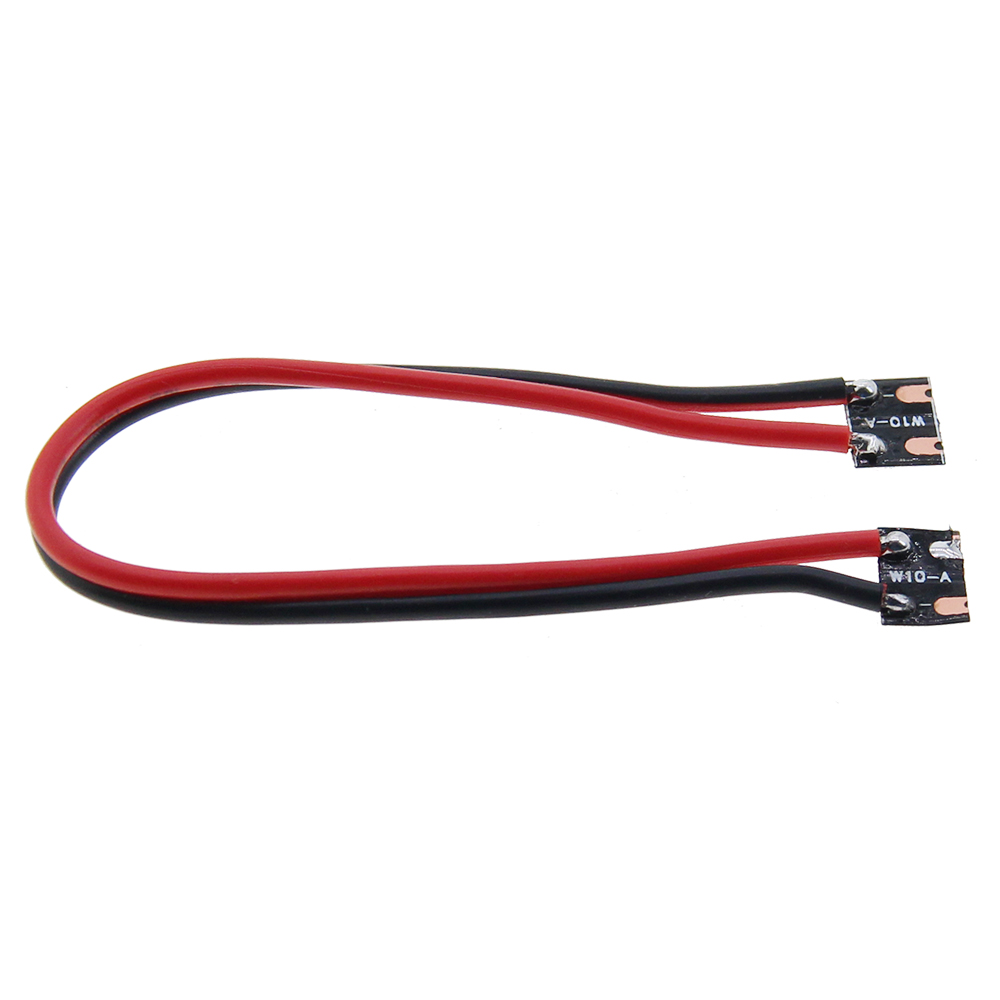

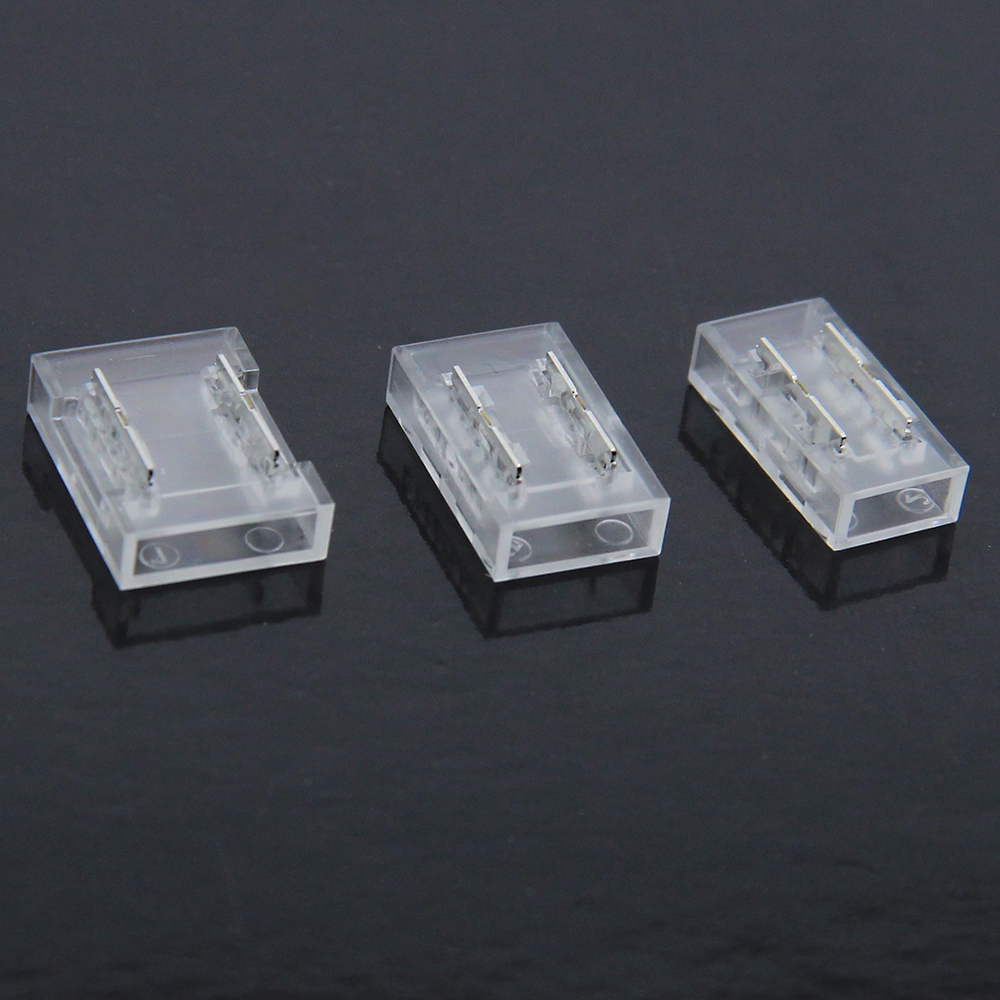

Accessories:
Please Attention
Why LEDworker Lighting :
1,NICE QUALITY.
2,ONLINE PAYMENT.
3,FULL LINE PRODUCTS.
4,AFTER SALES SERVICES 24/7.
5.FACTORY DIRECT PRICE. PRICE EFFECTIVE.
6,EXPERIENCES SALES, EASY COMMUNICATION.
7,NO MOQ , 1PCS OK . SMALL ORDER WELCOME.
8,QUICK SHIPPING WITHIN 3 - 5 DAYS. SAMPLES HAVE STOCK.
We are not just say it. We really do it !!!

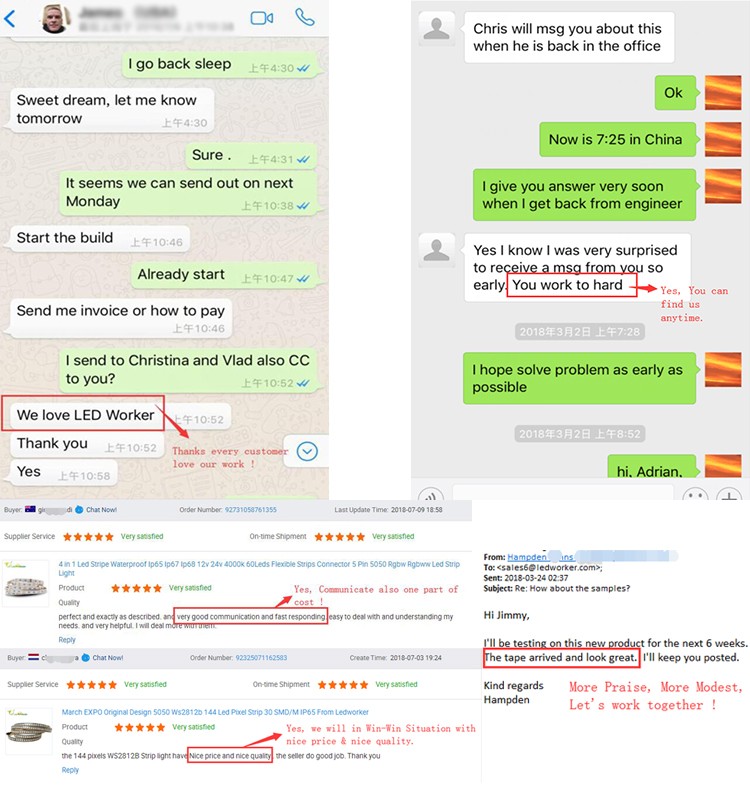

Feedback:
WORLD -WIDE CUSTOMERS COMMENTS & FEEDBACK
Here is some of comments from our world-wide customers.
You can check all the comments at our company profile .
Please visit www.ledworker.en.alibaba.com --> Click"Company profile
--> choose"Rating&Reviews"
Then you can see all comments from our clients.
Please note : all our customer comments is real one , NOT FAKE .
[ TRUST YOU WILL LIKE OUR SERVICES, QUALITY AND PRICE ]

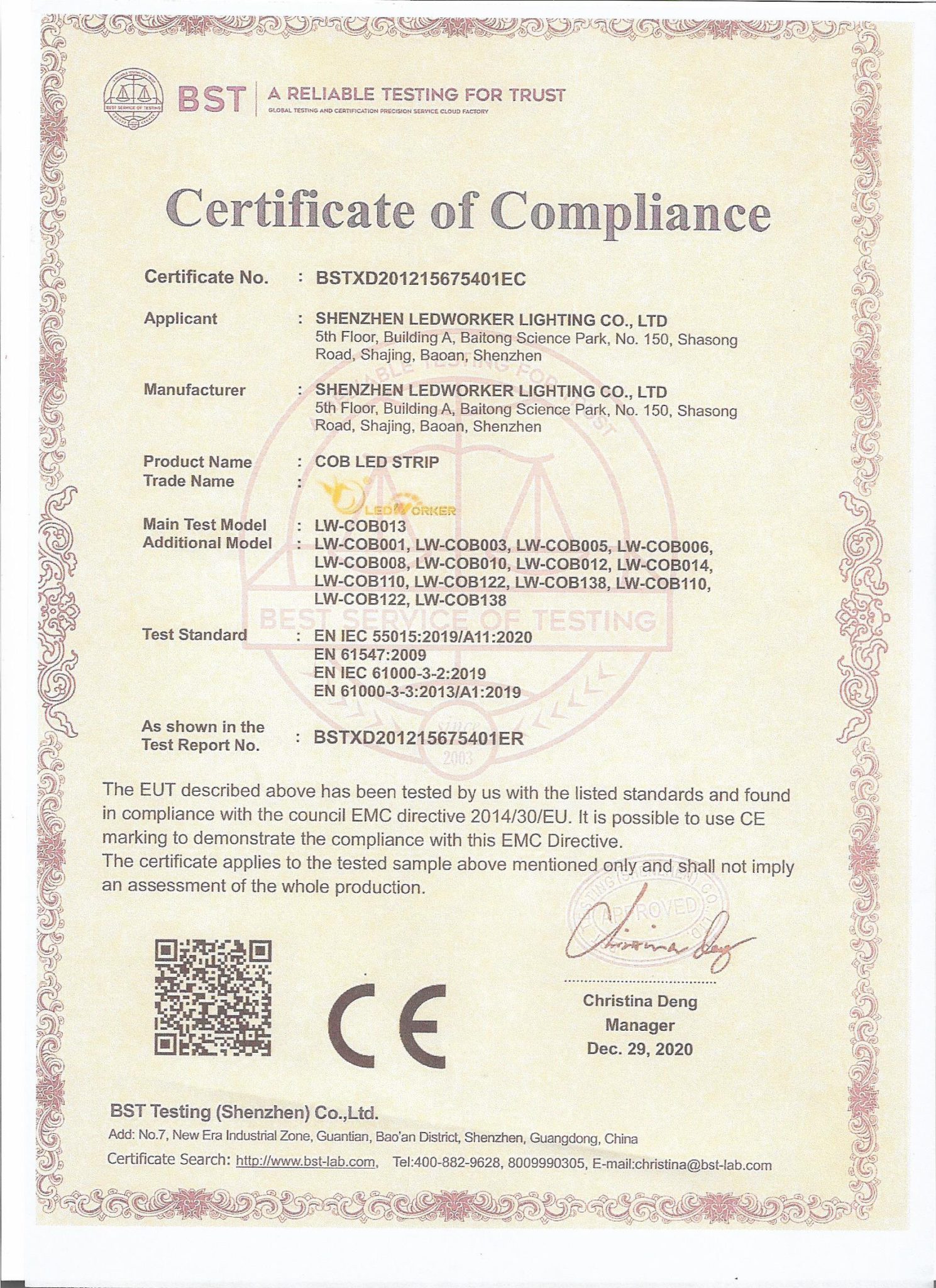

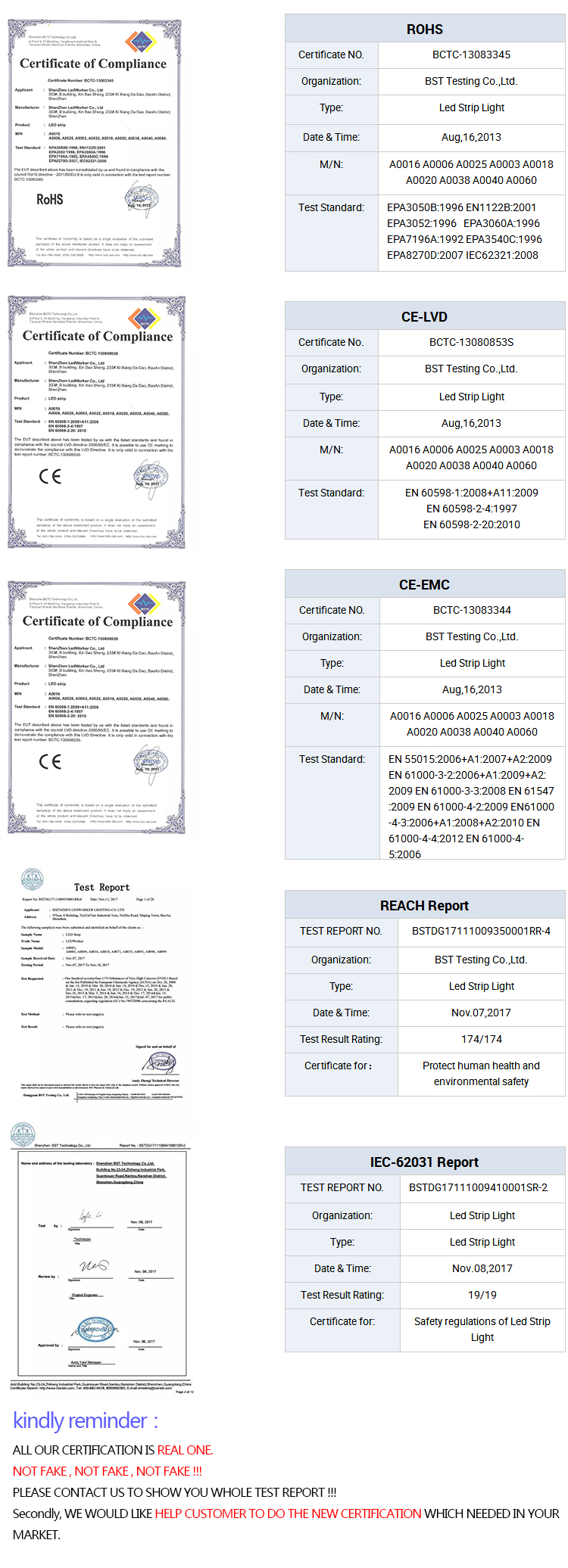

Certifications

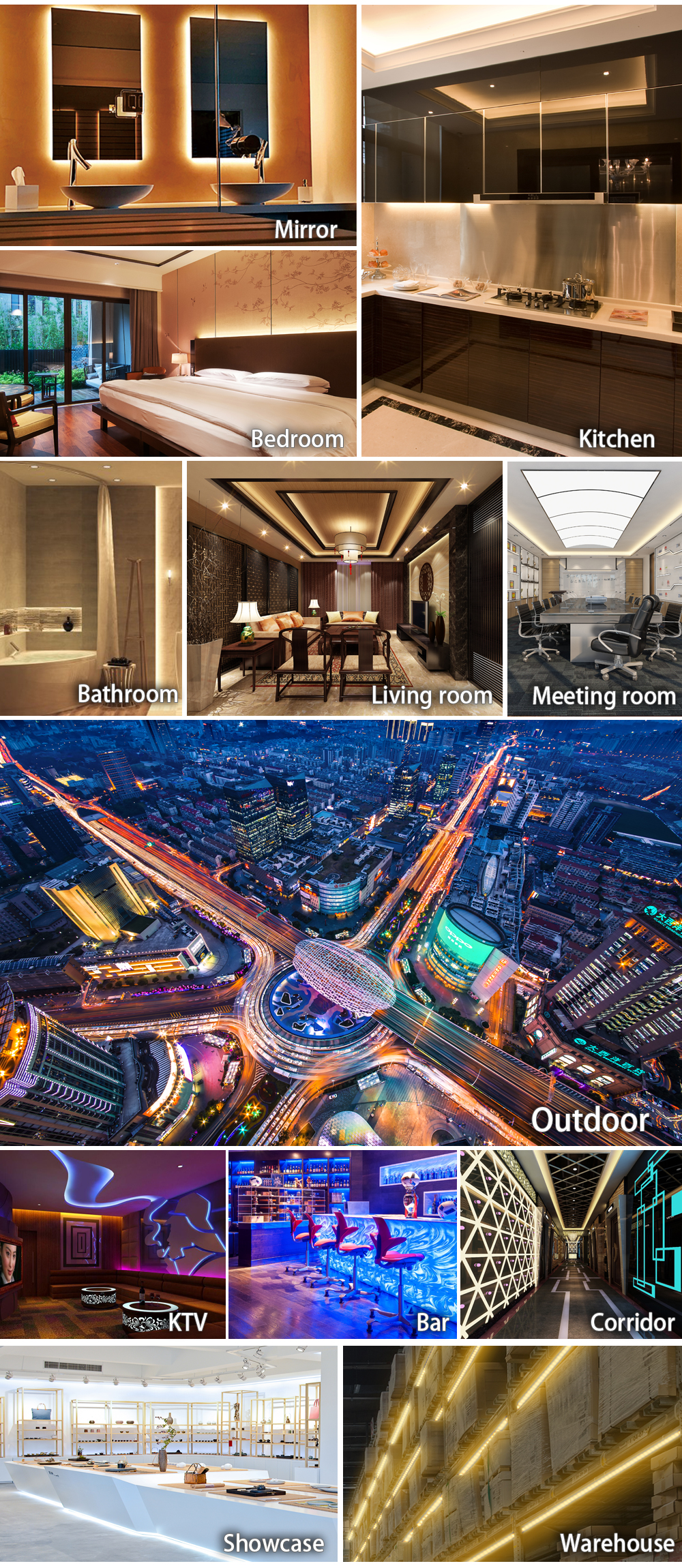

Application
