In large spaces such as background walls, long corridors, exhibition stands, or outdoor courtyards, uniform and bright lighting is essential for creating the ideal visual atmosphere. However, single-row COB LED strips often have limitations in brightness and coverage, making them unsuitable for these types of spaces.
To address this, LW Lighting, a leading LED strip supplier, has introduced a three-row COB LED strip. Designed with a dense chip layout, it delivers continuous and soft lighting effects, making it perfect for various environments. This innovative solution ensures that every corner is bathed in refined, comfortable light. It is perfect for the following applications:

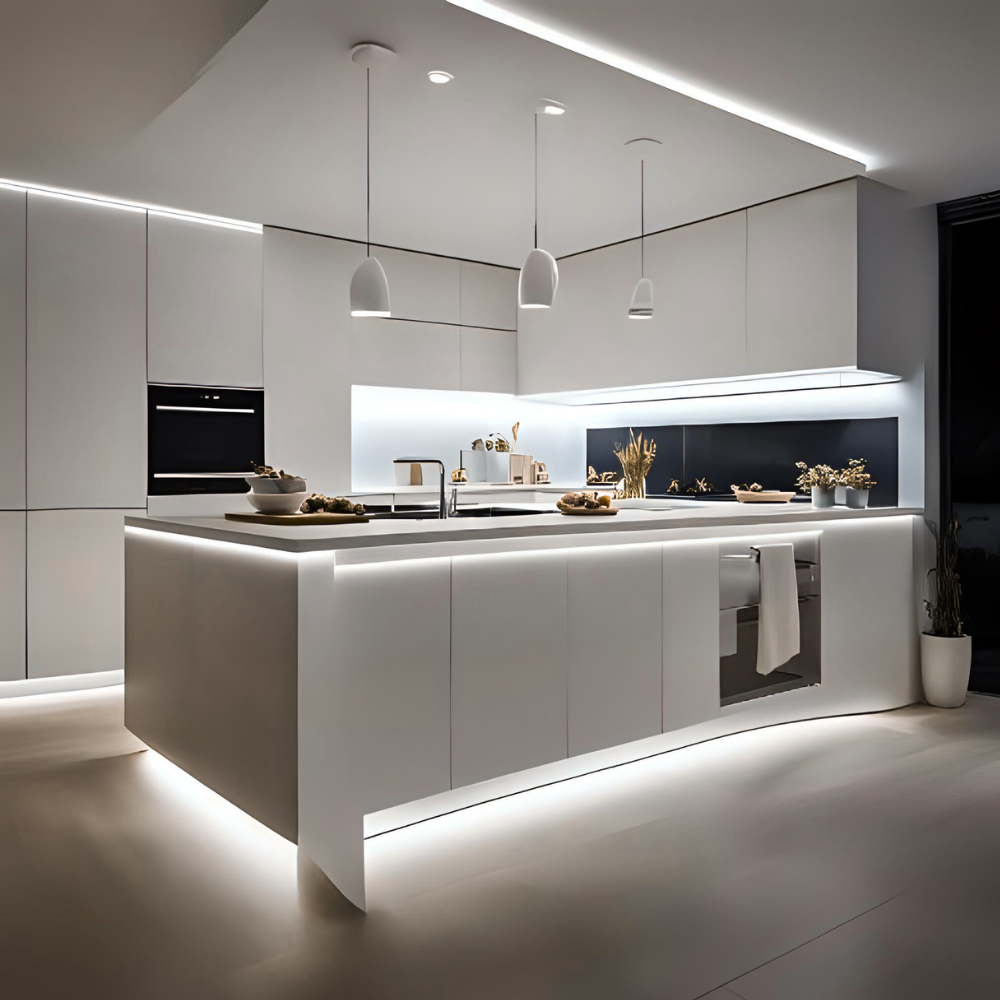

- Home spaces: Ideal for LED home strip lighting in cabinets, furniture, or stairwell channels, creating a warm and uniform ambient glow.
- Commercial displays: In retail windows, exhibition stands, and restaurant decorations, this brightest LED tape provides high brightness and continuous lighting, effectively attracting customer attention.

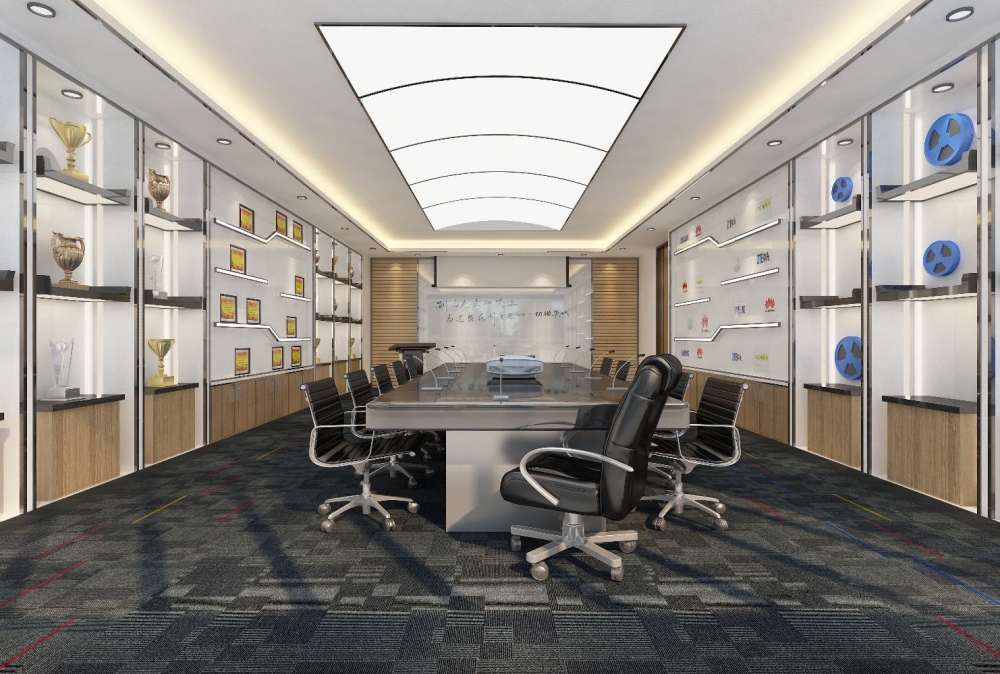

- Large spaces: In long corridors, background walls, or hallways, the low voltage LED strip can cover large areas without leaving any dark spots.
- Outdoor environments: Perfect for courtyards, balconies, or festive lighting, it delivers soft light to create a comfortable, layered effect in open spaces.

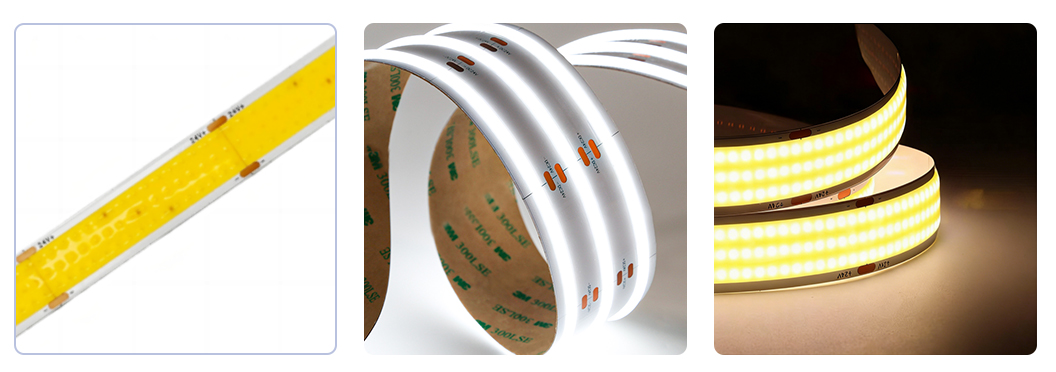

What Is 3 Row COB LED Strip?
The three-row COB LED strip integrates multiple LED chips in parallel on a 15 mm wide PCB, forming a continuous three-row lighting structure. It supports 12V/24V low voltage LED strips, ensuring high brightness output with low energy consumption. Thanks to its unique wide design and high-density arrangement, the light is uniform, bright, and comfortable.
Product Feature
1. Wide Design for More Even Light Distribution

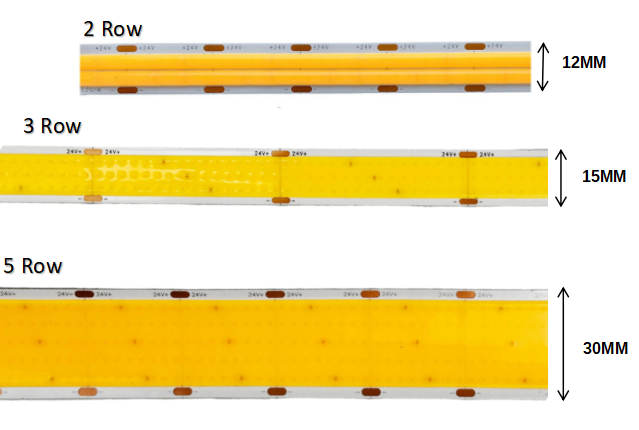

The 15 mm wide PCB provides ample space for chip arrangement, enabling a high-density light output of 960 LEDs per meter. This allows the light to evenly spread across a wider area, ensuring a uniform and consistent glow. This design is perfect for LED tape flexible strip lighting, offering enhanced performance and better light distribution.
2. Large Light Emitting Surface

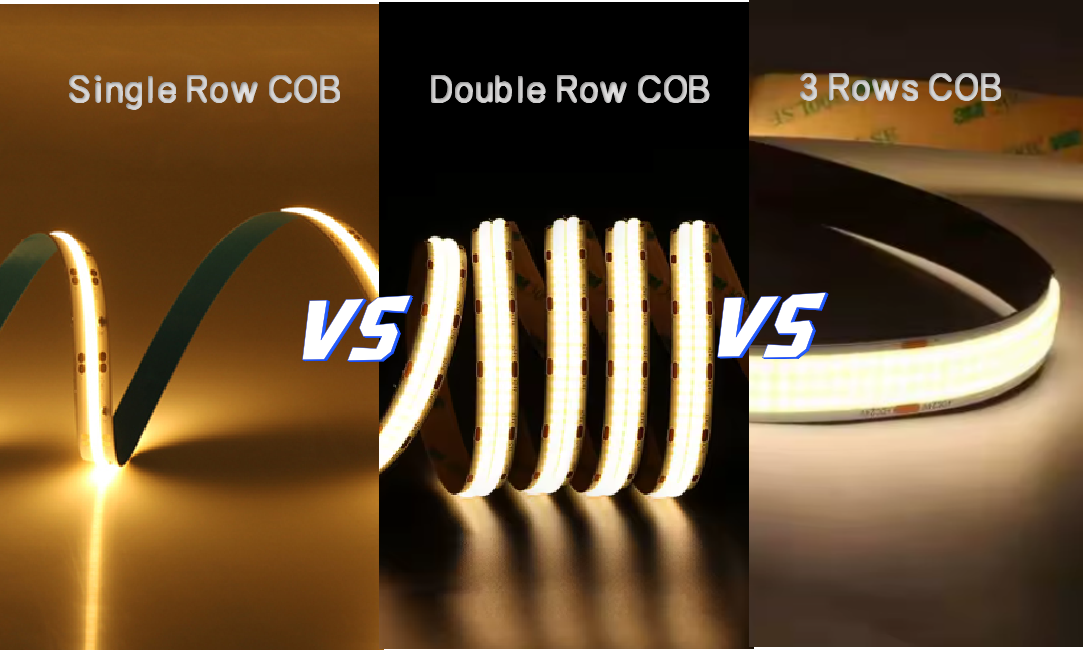

The three-row structure provides a wider light-emitting surface, covering a larger area compared to single-row or double-row LED strips. It delivers continuous and high-brightness light effects, ideal for LED tape flexible strip lighting applications.
3. Stable Heat Dissipation for More Reliable Performance
With a brightness of up to 2600 lm per meter and a power consumption of only 25 W/m, the low voltage LED strip ensures high brightness output while maintaining low energy consumption and a long lifespan.
Product Specification
Below is LW Lighting’s product specification
| Part NO: | COB131 |
| LED Qty: | 960pcs per meter |
| Input Voltage: | DC24V |
| PCB Width: | 15mm |
| Watts: | 24V(25W) |
| Color: | 3000K/4000K/6500K |
| PCB color: | White |
| IP Grade: | IP20 |
| Operating temperature: | -25 to 45℃ |
| Beam angle: | 180 degree |
| Certification: | CE; RoHS |
| Max Run: | 5M |
| Min Run: | 24V 50MM |
LW Lighting's three-row COB LED strip supports various customizations to meet different project requirements:
- Packaging and Labeling: Custom packaging, instruction manuals, labels, and PCB-printed logos.
- Performance Customization: LED quantity, PCB width, waterproof rating, color temperature, and color rendering index (CRI) can be adjusted according to the project needs. This makes it ideal for use in LED tape flexible strip lighting projects where specific performance parameters are essential.

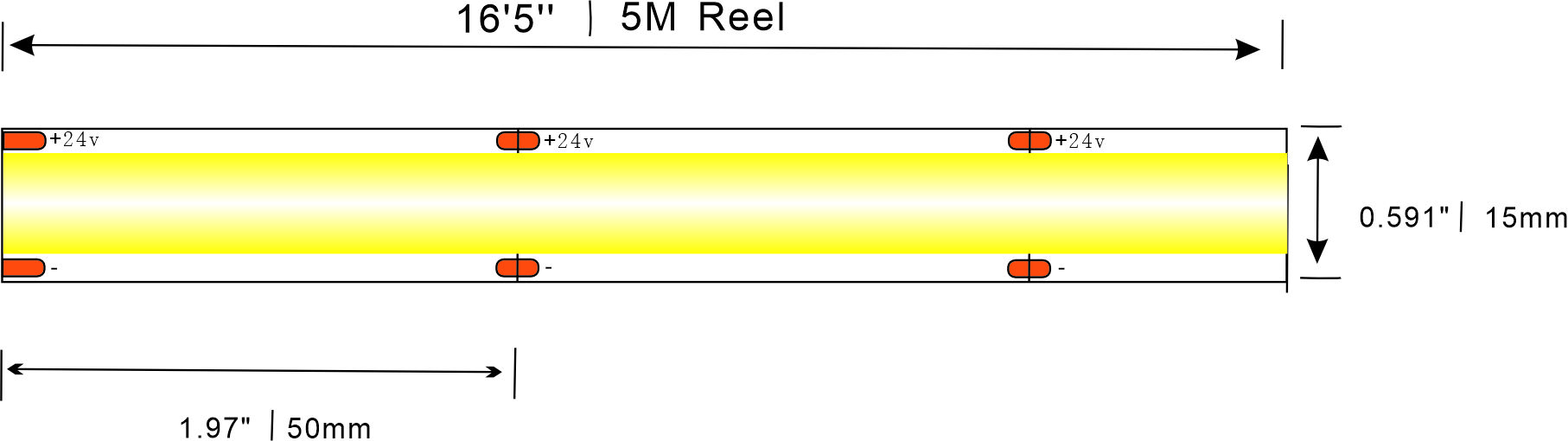

Dimensions

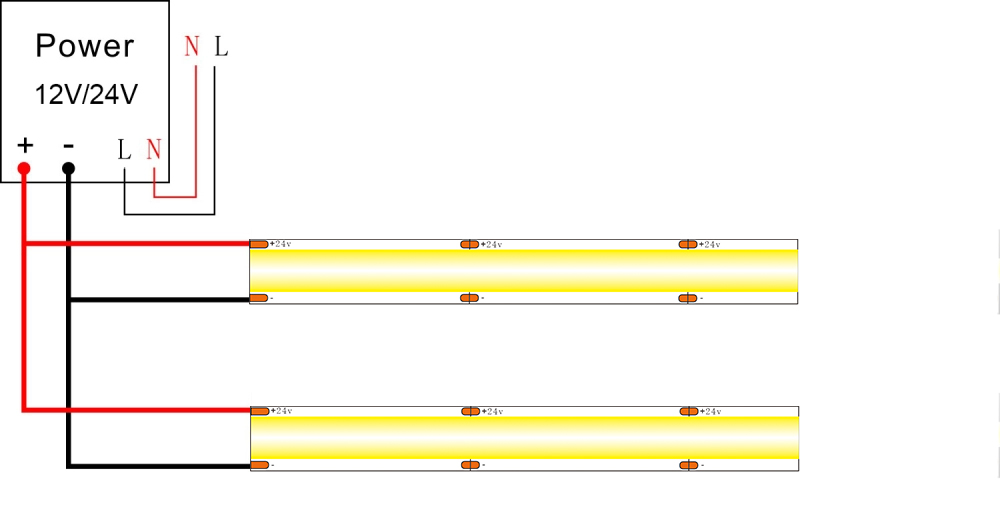

Connect Drawing
Accessories
A wide range of accessories is available to simplify installation and enhance the user experience:
- Connectors: Quick and reliable, improving installation efficiency.

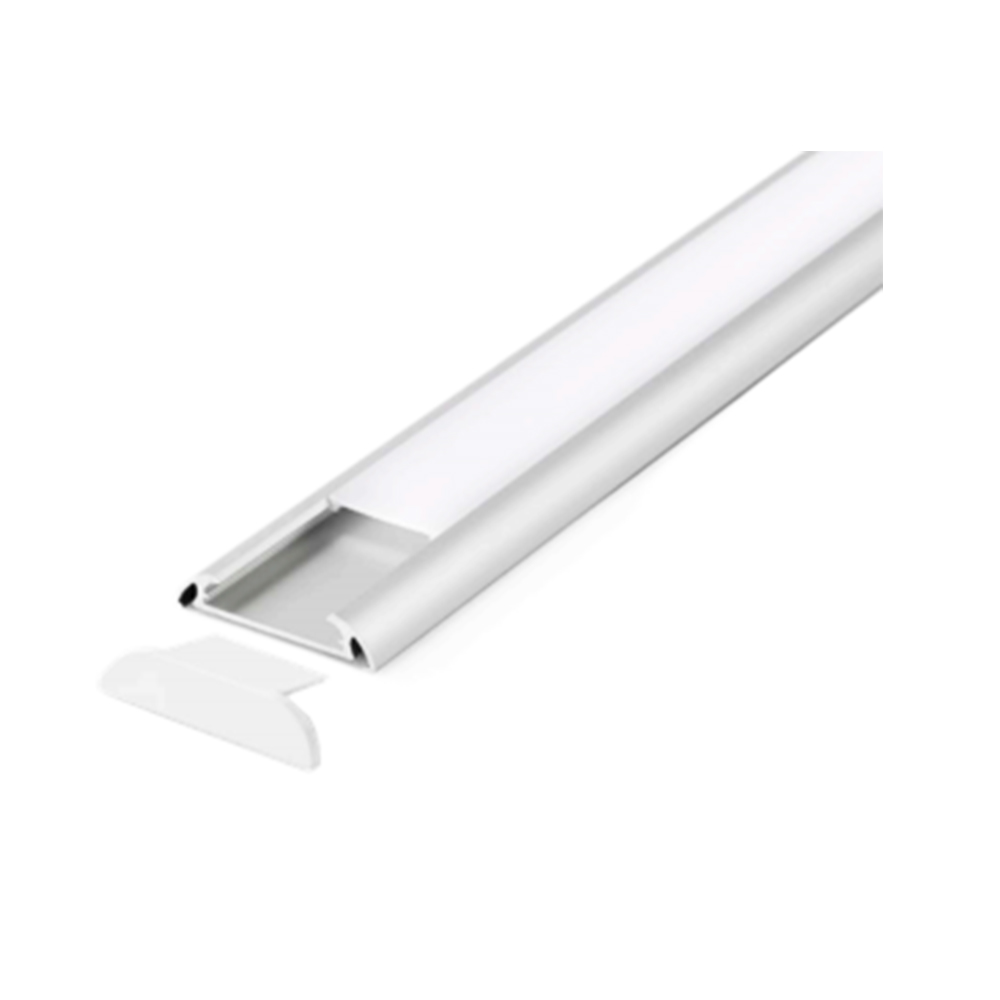

- Aluminum profiles: Optimizes heat dissipation and diffuses light, extending the lifespan of the LED strip, and allows for LED tape flexible strip lighting with invisible installation.

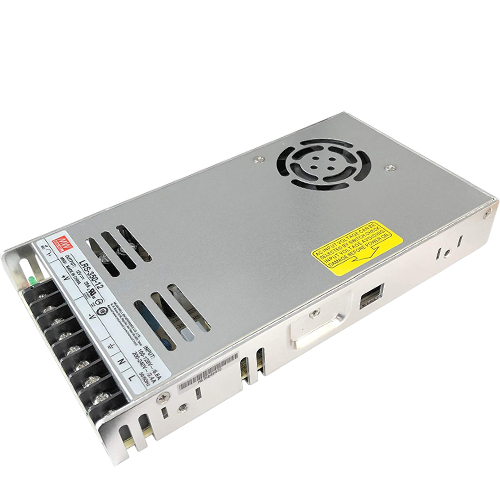

- Power supply: Provides stable power to ensure long-term, efficient operation.

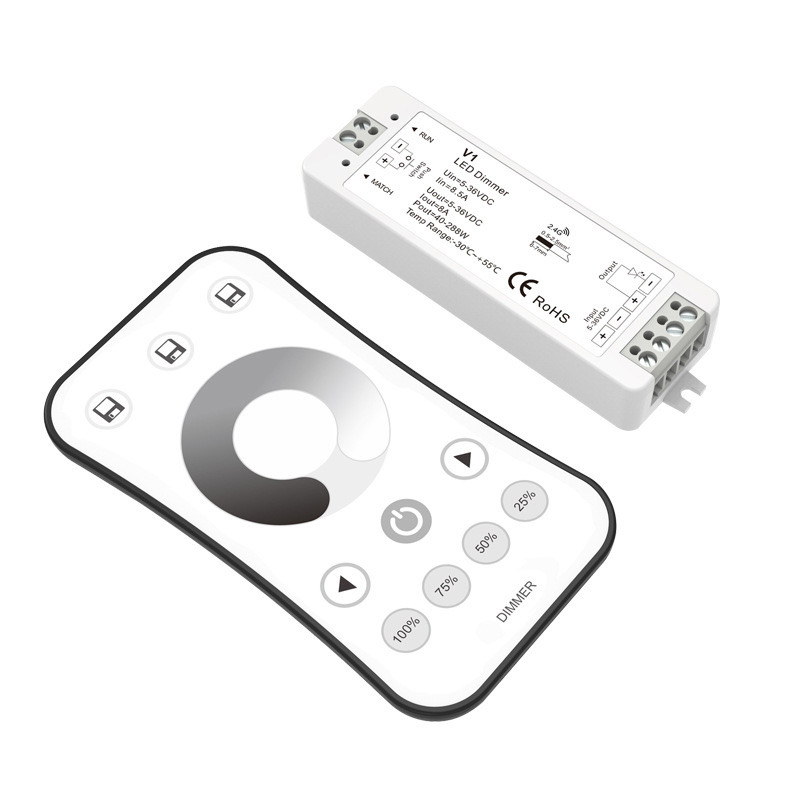

- Dimming controllers: When used with a dimmable power supply, they allow for 0–100% brightness adjustment, creating flexible ambient lighting effects.
With these accessories, the three-row COB LED strip can be flexibly installed, operate stably, and offer diverse lighting options for home, commercial, and engineering projects.
How to Choose the Right COB LED Strip
When selecting the right COB LED strip, it's important to consider not only the technical specifications but also market trends and industry pain points, ensuring the choice of a product that best meets your needs. Here are several key factors to consider:
1. Brand reputation
Choosing a brand with a solid reputation and high trust in the market ensures the quality and stability of the LED tape flexible strip lighting. LW Lighting has over 10 years of factory experience, having served more than 3,000 customers, and received over 95% positive reviews. LW Lighting is your reliable LED strip supplier.
2. LED Strip Specifications
When choosing a COB LED strip, it's important to ensure that its technical parameters meet the requirements of your project. Key considerations include:
- Voltage: Choose a voltage that matches your power system to avoid mismatched voltages that could affect the performance of the LED tape flexible strip lighting.
- Color temperature: Select the appropriate color temperature (such as cool white, warm white, RGB, RGBW, or other custom options) according to your environmental needs.
- Brightness/Lumens: Choose the right brightness based on the actual lighting needs of the space to ensure adequate light without being too harsh.
- Power: Power affects both energy consumption and brightness. Choose a low voltage LED strip with the appropriate power based on your needs.
- Color rendering index (CRI): Opt for LED strips with a high CRI to ensure the accurate representation of colors.
- Waterproof rating: Select the correct waterproof rating based on the installation environment. This is especially important for outdoor or humid environments.
- Application scenarios: Understand whether the LED strip will be used indoors or outdoors, and whether there are specific decorative requirements.
- Dimming and control: If dimming is needed, ensure that the LED strip supports dimming and choose an appropriate controller to match.
3. Price Consideration
Price is often a critical factor in the selection process, but it should not be the only consideration. It's recommended to select a cost-effective product while meeting technical requirements. Balancing quality and price will provide the best return on investment.
Overall, when selecting the right COB LED strip, factors like brand reputation, technical specifications, and budget should be considered comprehensively to ensure the product's stability and long-term value in real-world applications.
4. Industry Trends
Energy Efficiency: With the growing global emphasis on green environmental practices, low-energy and high-efficiency LED strips will become mainstream. Choosing LED strips that meet ErP energy efficiency standards can effectively reduce energy consumption and minimize environmental impact.
Sustainability and Recycling: As environmental regulations improve, sustainability has become a key factor for the future of the lighting industry. Opting for recyclable LED strips and products with low harmful substances contributes to both the environment and the future.
REQUEST A QUOTE
Want to learn more about the three-row COB LED strip, its specifications, or customization services? Contact our professional team today, and we will provide the best solutions tailored to your project needs, helping you achieve high-brightness, uniform, and high-quality linear lighting effects with LED tape flexible strip lighting.
Contact us for customized solutions and quotes!
