With the continuous advancement of LED technology and the growing demand for personalized lighting, an increasing variety of innovative LED strips have entered the market to meet diverse design requirements. While traditional 3528 and 5050 strips are widely used, the 335 side-emitting LED offers distinct advantages for applications with limited installation space that require precise light projection.
As its unique beam angle and dimmable functionality, it perfectly adapts to environments needing refined side lighting. The design is especially suitable for narrow spaces such as light boxes, counters, and gaps. It enables precise lateral projection onto displayed products, highlighting details and enhancing the overall visual impact.

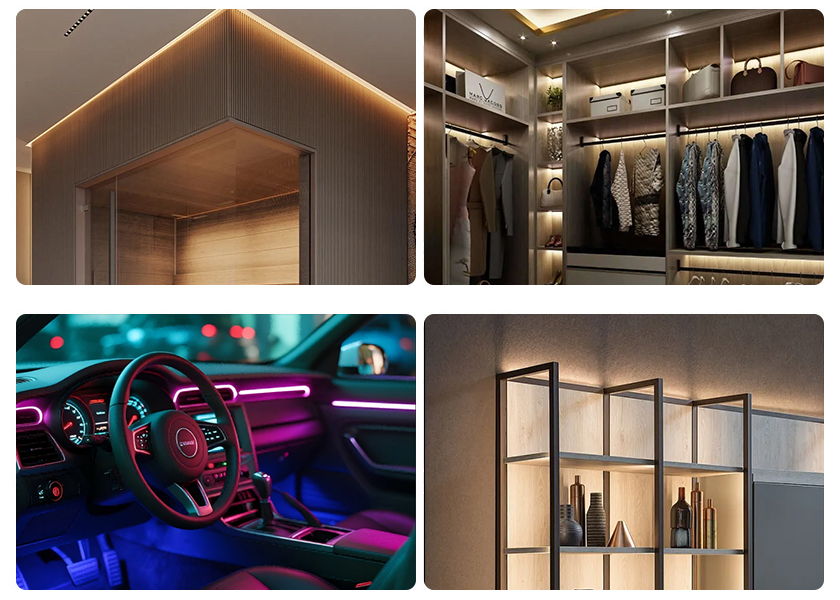

Application Scenarios:

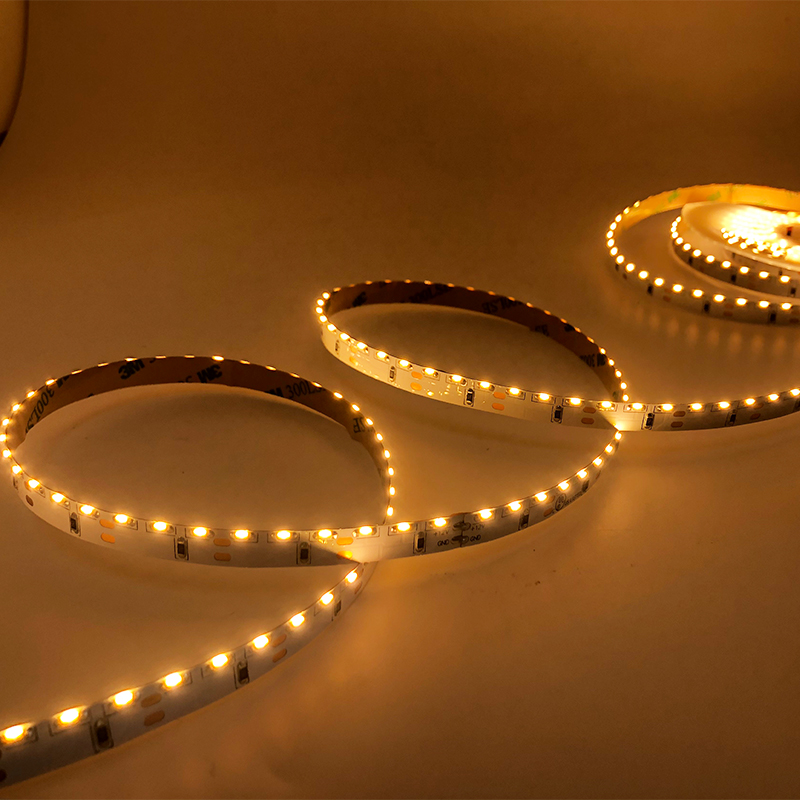

- Home Decor: It can be embedded into wardrobes, cabinets, wall baseboards, or as led strip lights for ceiling edges to provide soft illumination. This led strip bedroom or living room application helps outline the space and create a warm atmosphere across various interior styles.
- Commercial Spaces: For mall shelves, jewelry counters, and dining tables, these under cabinet lighting led strip solutions precisely illuminate product details to drive consumer desire while maintaining a clean aesthetic through hidden installation.
- Hotels & Entertainment: Used in corridors, stairs, and lounge areas to provide soft guided lighting, creating a high-end, immersive experience.
- Exhibitions & Events: For booths, backdrops, and stages, the dimming feature adds depth and a high-tech feel to the display.
- Automotive Lighting: When used as led strip lights on car interiors (such as door panels or trunks), it provides ambient light that doesn't interfere with driving, while exterior use adds unique nighttime visibility
What is a 335 Side-Emitting LED Strip?

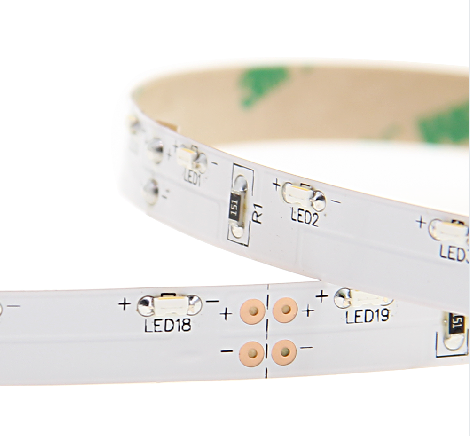

Unlike conventional 3528, 2835, 3014, or 5050 top-emitting strips, the 335 side-emitting LED strip is unique because the light is directed from the side of the PCB rather than the front. This specialized side-emitting design ensures more uniform light distribution, making it an ideal cuttable led strip lights solution for providing precise lateral illumination in narrow or confined spaces.
Product Features

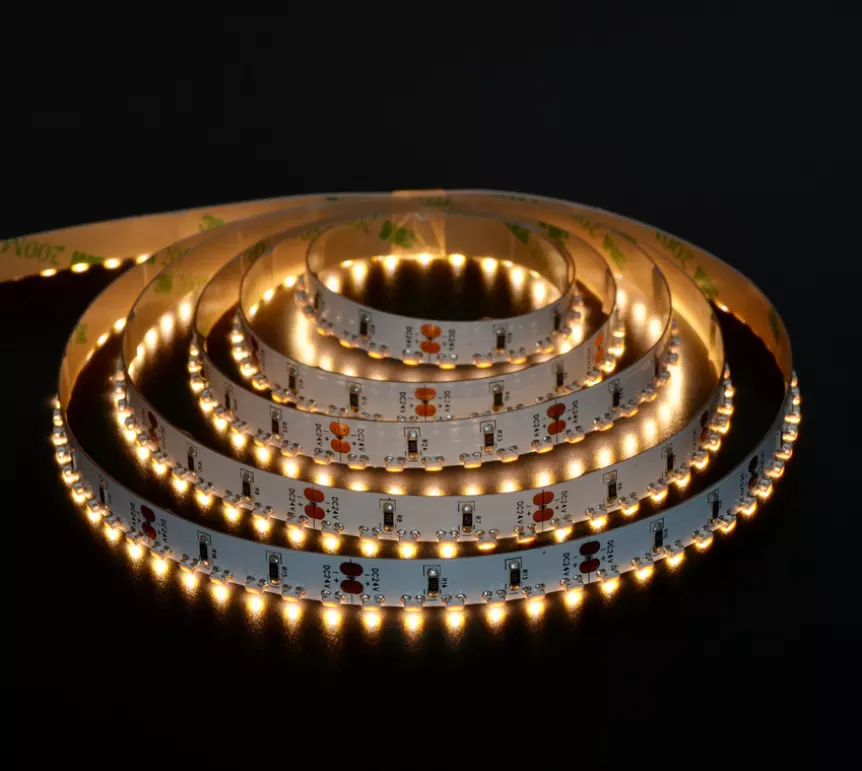

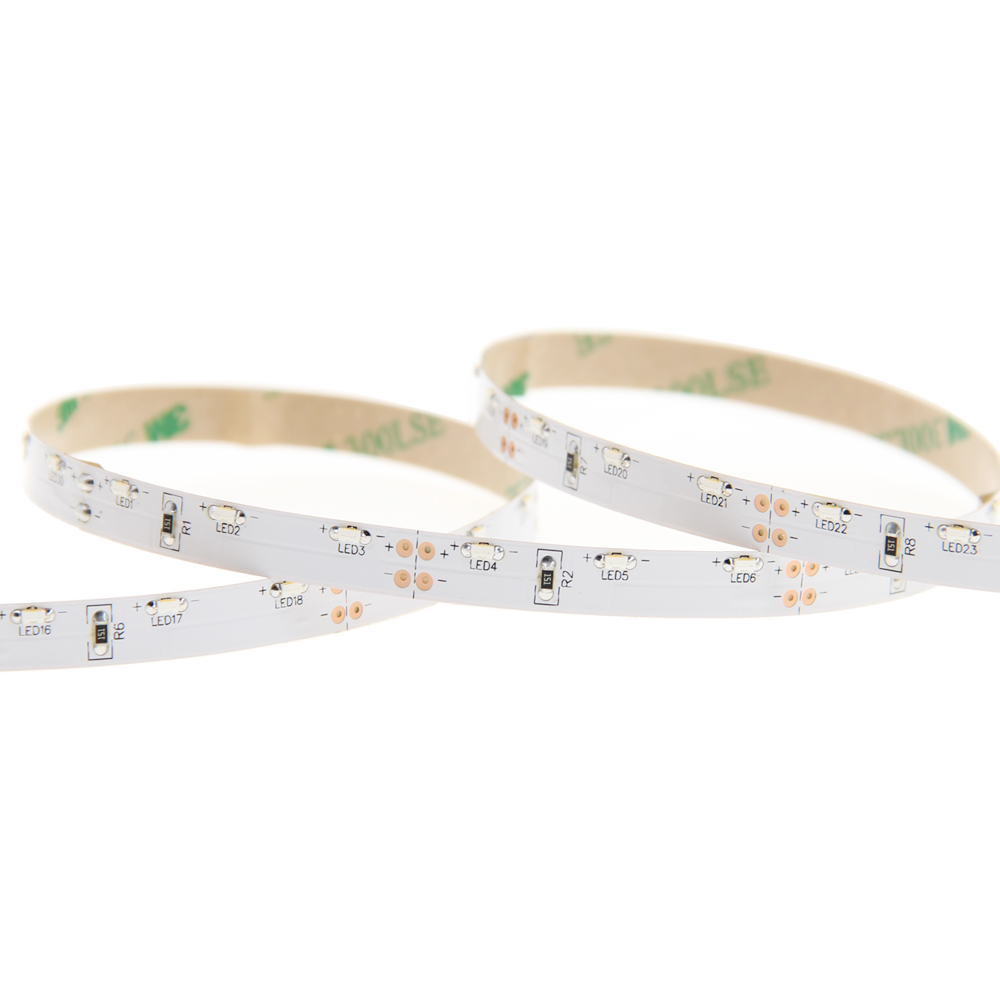

Side-Emitting Design: Utilizing high-quality 335 chips, the side-emitting technology provides soft light and avoids glare, creating a comfortable lighting effect.
Heat Dissipation & Long Lifespan: Features excellent thermal management to ensure low light decay during prolonged use, effectively extending the lifespan of the strip.

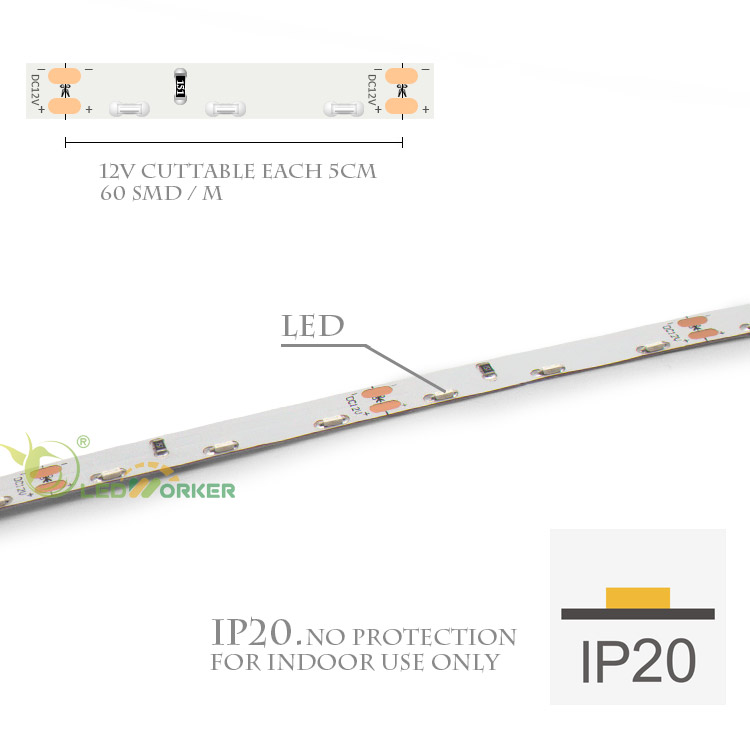

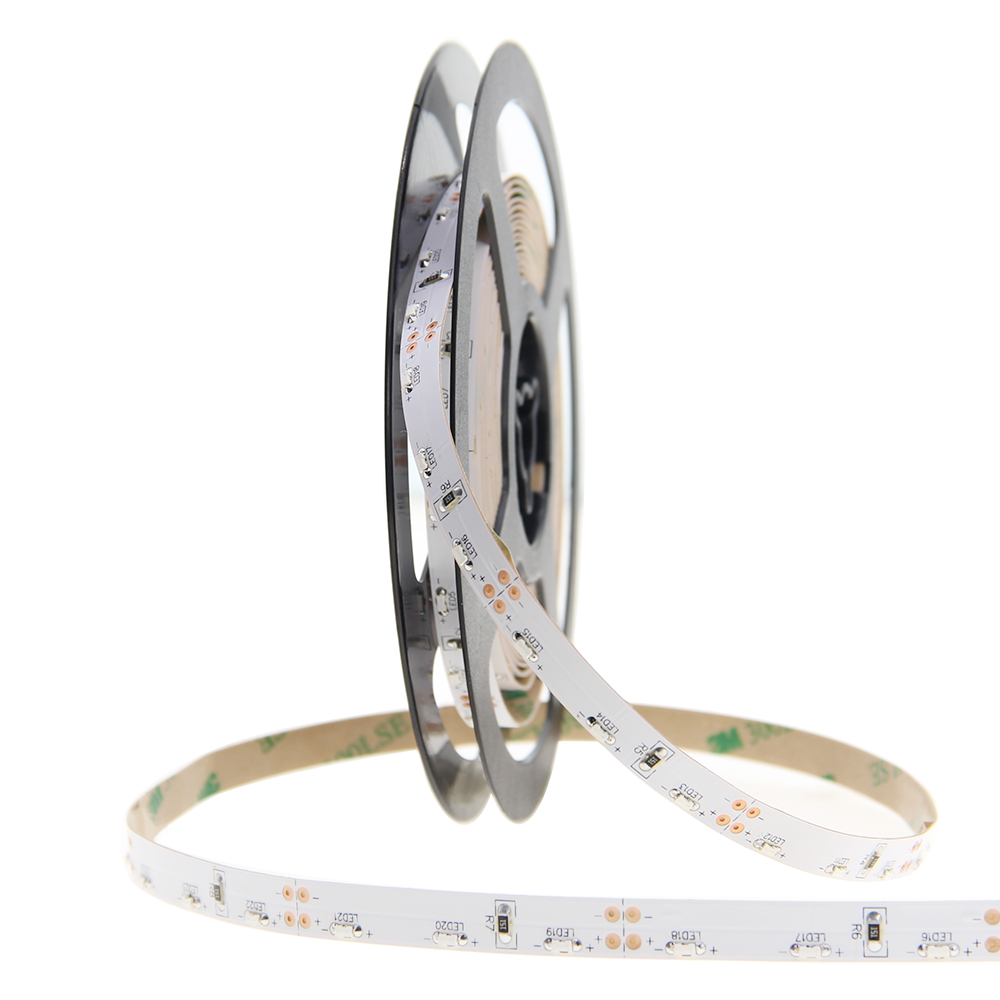

Flexible Installation & Cutting: Built on a flexible PCB/FPC substrate, these cuttable led strip lights can be bent, cut, or spliced at will. Equipped with 3M adhesive on the back, they are easy to peel, stick, and secure for a simple installation.

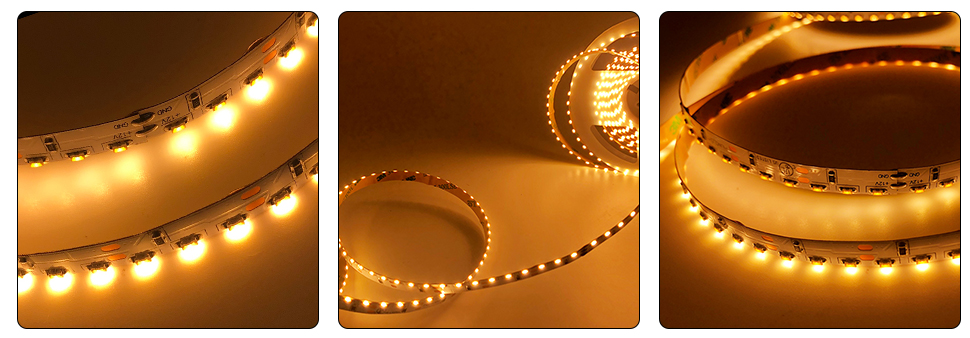

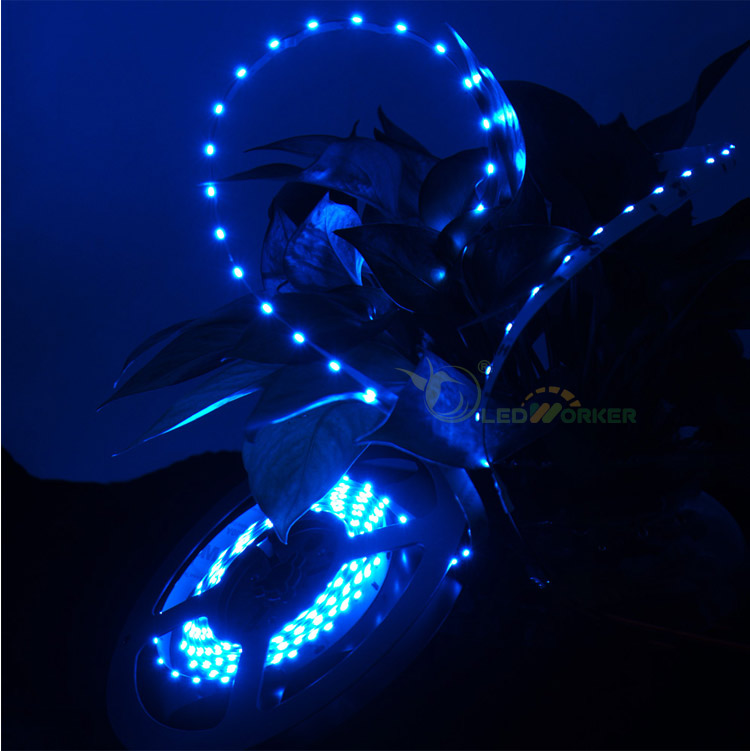

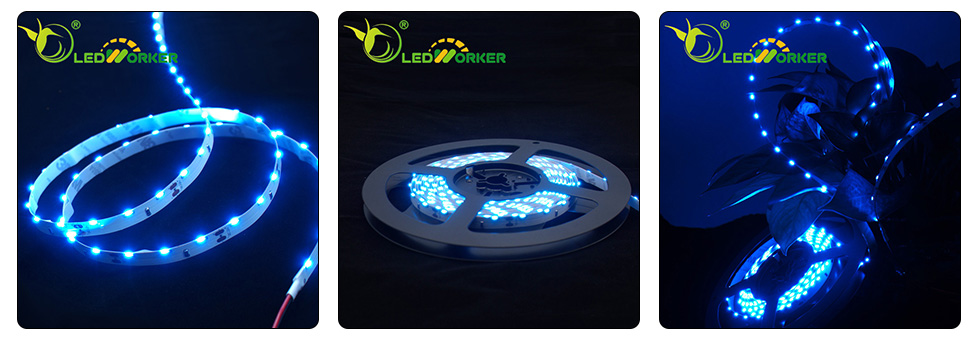

Diverse Colors & Configurations: Available in a wide range of color options (such as white, red, green, blue, etc.) to meet the specific lighting requirements of different scenarios, from an under cabinet lighting led strip setup to decorative displays
LED Strip Specification
Below is LW Lighting’s product specification
| Part NO. | A0165 | A0166 |
| LED | SMD335 | SMD335 |
| Quantity | 120 SMD / M | 60 SMD / M |
| IP Rank | IP20 | IP20 |
| Color | 2700K/3000K/4000K/6000K | 2700K/3000K/4000K/6000K |
| PCB Color | White | White |
| CRI | CRI > 80 | CRI > 80 |
| Power ( For 5M ) | 12W ± 10% | 6W ± 10% |
| Dimension | 5000 * 8 * 2.3mm | 5000 * 8 * 2.3mm |
Customizable options include the density of LEDs, PCB width, color, CRI, and waterproof rating. Please contact us for your specific requirements.

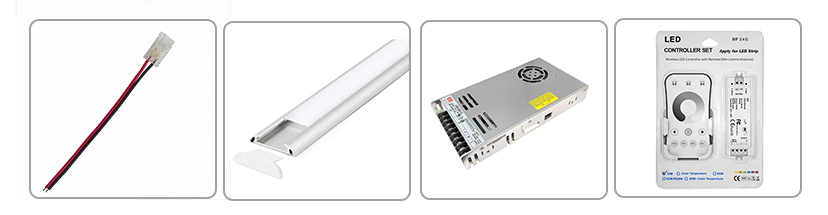

Accessories
LW Lighting provides a wide variety of high-quality accessories, including:
- Connectors: Ensuring a stable connection between the power supply and the strip, simplifying the installation process.
- Aluminum Profiles: Providing excellent heat dissipation and structural support, extending the lifespan of the strip while enhancing its appearance.
- Power Supplies: Providing a stable voltage for your LED strips to ensure reliable operation.
- Dimming Controllers: Allowing you to easily adjust the brightness of your led strip bedroom or commercial setup to meet different lighting needs.
Dimensions

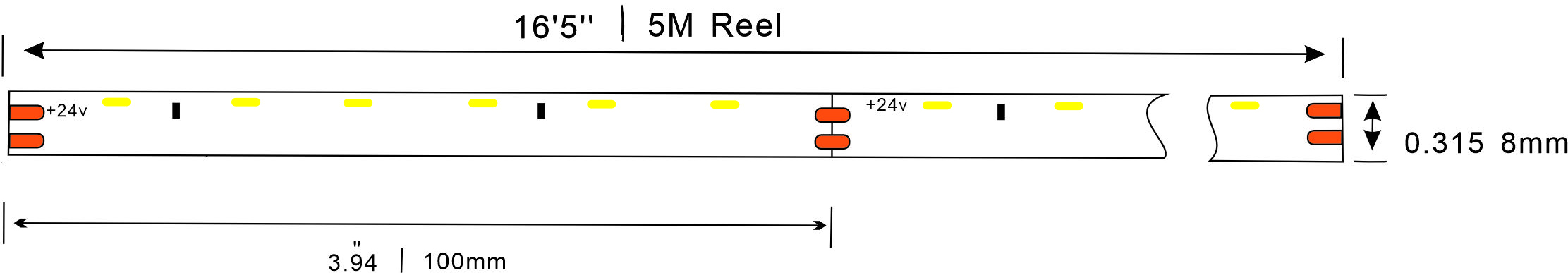

SMD335-24V-60LEDs

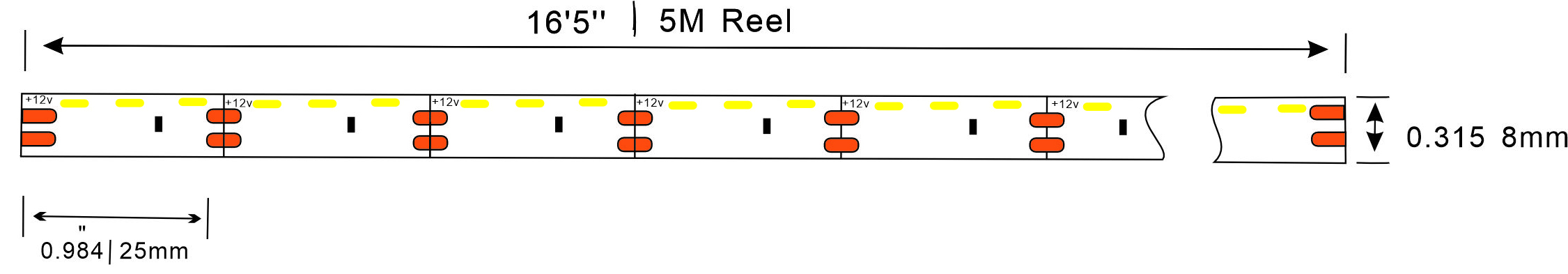

SMD335-12V-120LEDs
Connect Drawing
LW Lighting is dedicated to providing high-quality LED strips and accessory solutions for our clients. Whether you need to add sophisticated lighting effects to your home, commercial space, or need a reliable led strip lights on car application, the 335 side-emitting LED strip is designed to meet your requirements.
Contact us today to receive professional advice and a quote, and to learn more detailed information about the 335 side-emitting LED strip.
