In modern commercial spaces, cultural tourism lighting, and immersive experience scenarios, lighting is no longer just a tool to "illuminate a space." It now plays a vital role in creating ambiance, enhancing experiences, and shaping a brand's visual language. In many high-end projects, the effect of combining color LED strip with high-quality white light is achieved through Addressable RGBW COB LED Strip.
Where are Addressable RGBW COB LED Strips most commonly used?
Addressable RGBW COB LED Strips are commonly used in various scenarios that require "dynamic color lighting + high-quality white light," including:
- Indoor decoration: TV background walls, ceiling profiles, staircase steps, and wardrobe shelves, providing soft and continuous lighting effects. LED strip lighting for TV is particularly popular for creating visually appealing, seamless lighting around the TV area.
- Commercial spaces: Clothing stores, restaurants, and window displays, using dynamic colors to highlight products and environmental features.
- Landscape lighting: Courtyards, balconies, and corridors, providing uniform visual highlights at night.
- Entertainment scenarios: KTV rooms, esports rooms, and home theaters, where lighting effects can change with music or scene transitions to enhance immersion. Flexible LED tape is often used in these environments for its versatility and easy installation.
- Automotive decoration: Interior atmosphere lighting or vehicle contour lights, improving the quality and recognizability of the car.

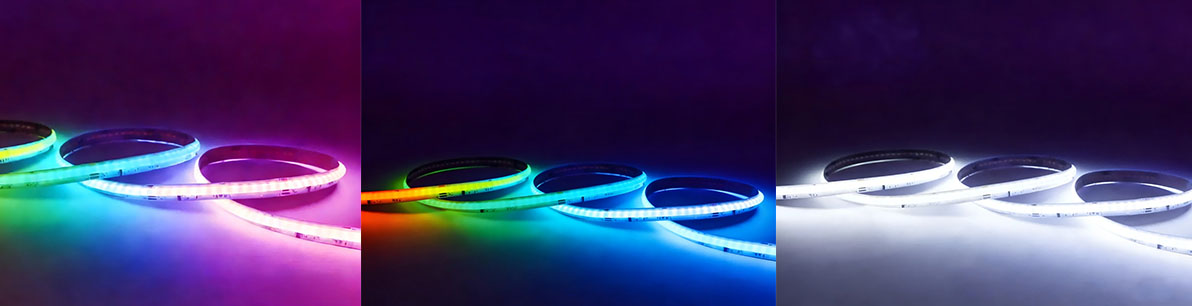

What is Addressable RGBW COB LED Strip?
The Addressable RGBW COB LED Strip is a high-density flexible LED pixel tape that uses the COB (Chip On Board) packaging process. The RGBW chips are directly mounted on the PCB and controlled by the LED tape light controller. Each LED can independently receive signals sent from the controller, enabling dynamic effects such as flowing, fading, and jumping, while also providing pure white light illumination.
Product Features
1. High-density packaging
With 784 or 840 LED chips per meter, the LEDs are arranged closely together, providing even light distribution without a granular effect. This helps reduce glare and extend the lifespan of the flexible LED tape.
2. Addressable dynamic effects
When used with a dedicated LED tape light controller, this strip supports addressable control, enabling various dynamic light effects such as flowing, chasing, fading, and jumping. It also allows for custom light effect parameters (such as speed, brightness, and color ratio) to meet specific needs.

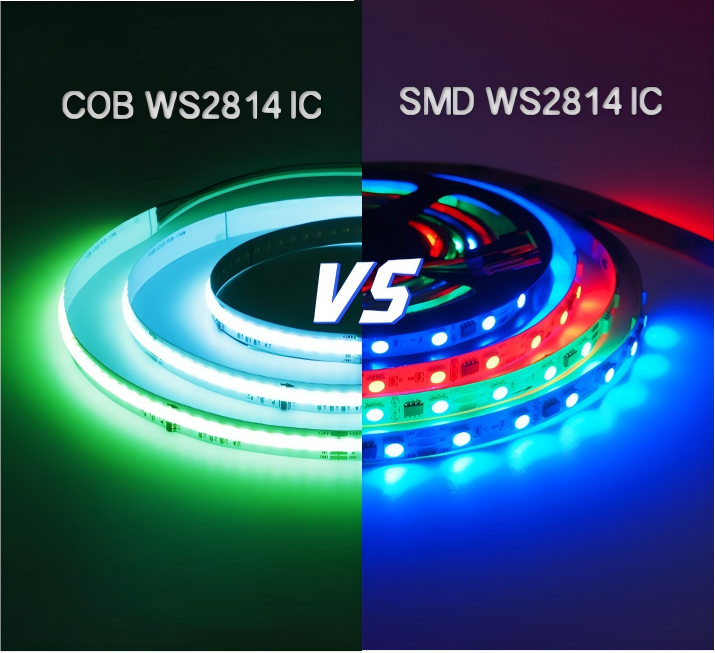

3. SMD RGBW LED Strip vs. COB RGBW LED Strip

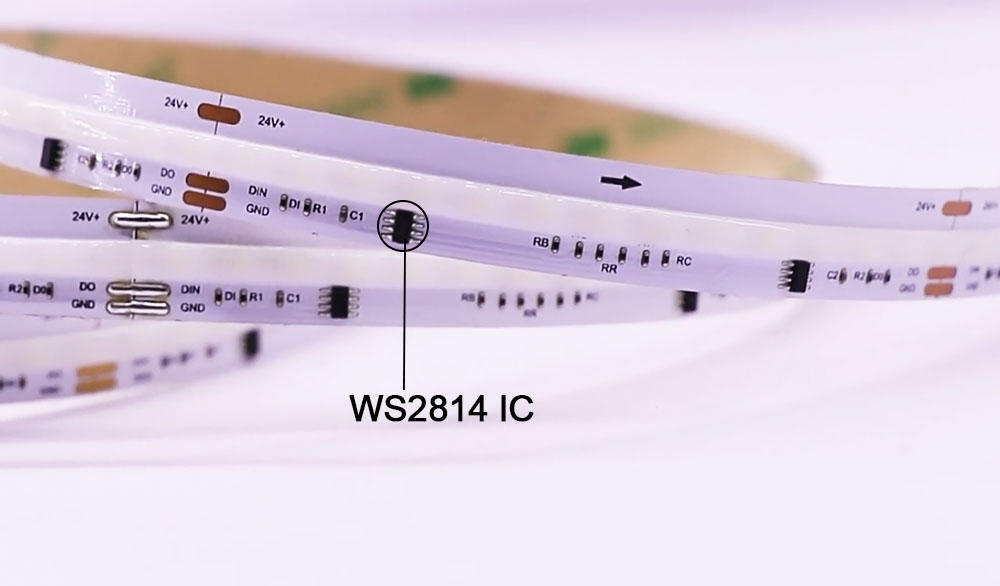

SMD WS2814 IC LED strips have noticeable dark spots, while the COB WS2814 strip led light has no dark spots, ensuring more even light diffusion and achieving softer, more delicate lighting effects, ideal for creating smooth lighting like LED strip lighting for TV.
Product Specification
|
Part NO:
|
COB123 | COB128 |
|---|---|---|
| LED Qty: | 840pcs per meter | 784pcs per meter |
| IC Qty: | 24V(10 pcs IC) | 24V(14 pcs IC) |
| Input Voltage: | DC24V | DC24V |
| PCB Width: | 12mm | 10mm |
| Watts: | 24V(16W) | 24V(21W) |
| Color: | Addressable RGBW | Addressable RGBW |
| Control signal: | SPI | SPI |
| PCB color: | White | White |
| IP Grade: | IP20 | IP20 |
| Operating temperature: | -25 to 45℃ | -25 to 45℃ |
| Beam angle: | 180 degree | 180 degree |
| Certification: | CE; RoHS | CE; RoHS |
| Max Run: | 5M | 5M |
| Min Run: | 24V（100mm） | 24V 71.43MM |
Our Addressable RGBW COB LED strip supports a variety of customizations to meet different project requirements:
Packaging and labeling: Customized packaging, manuals, labels, PCB printed logos, and more.
Performance customization: You can customize the number of LEDs, PCB width, waterproof rating, color temperature, and Color Rendering Index (CRI) according to your needs.

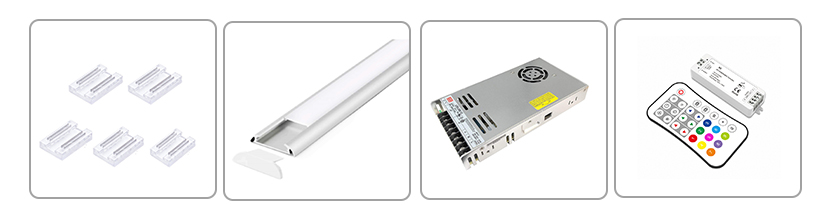

Accessories
We provide a complete set of high-quality accessories for LED strip light: quick connectors, heat dissipation aluminum profiles, stable power supplies, and RGBW controllers, ensuring smooth installation, stable light performance, and a professional, high-end lighting experience.
For large installations, we recommend using one LED tape light controller and one power supply for every 5 meters of LED strip light.
Dimensions
LW-COB014-24V-840LEDs

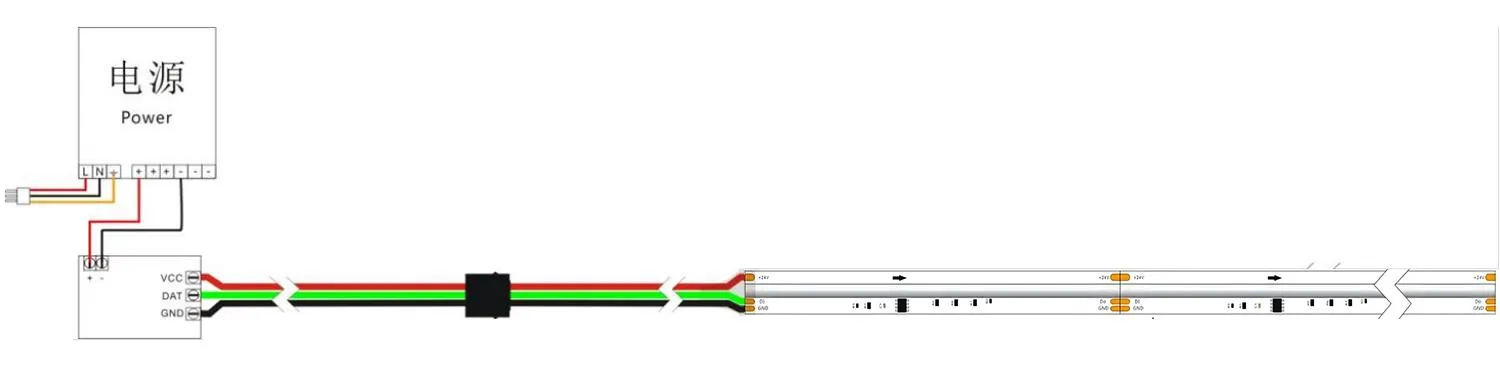

Connect Drawing
Addressable RGBW COB LED Strip FAQ
- 12V RGBW COB LED strips: single-end power feed is recommended for runs up to 5 meters.
- 24V RGBW COB LED strips: dual-end power feed is recommended, supporting runs of up to approximately 10 meters.
Get more information
Our Addressable RGBW COB LED strip undergoes strict quality control at every stage, from chip bonding, packaging, and mounting to roll testing. Each strip is tested for aging and brightness consistency to ensure long-term stability and reliability. By choosing LW Lighting, you can not only create smooth and stunning lighting effects but also enhance the spatial experience and interactivity, all while reducing maintenance costs.
