High voltage LED strip is purpose-built for large-scale lighting projects that require long, continuous runs. As a linear lighting product, it connects directly to AC power as either a 110V LED strip light or a 220V LED strip light, and is widely used in building outline lighting, signage lighting, commercial spaces, outdoor landscapes, and large-scale engineering projects. Compared with traditional low-voltage strips, a single run can reach up to 50 meters with no noticeable voltage drop, while installation is also simpler — making it well suited for projects that require long-distance lighting or large-area coverage.
As modern lighting design places increasing demands on efficiency and stability, high voltage LED strips are becoming an important solution for outdoor LED strip lighting and engineering projects, thanks to their high brightness output, flexible installation, and stable performance.
This guide will walk you through what high voltage LED strip is, the advantages of high voltage COB strips, their core features, technical specifications, and installation and application methods — helping you fully understand how to select and use this product.
What Is High Voltage COB LED Strip Lights?

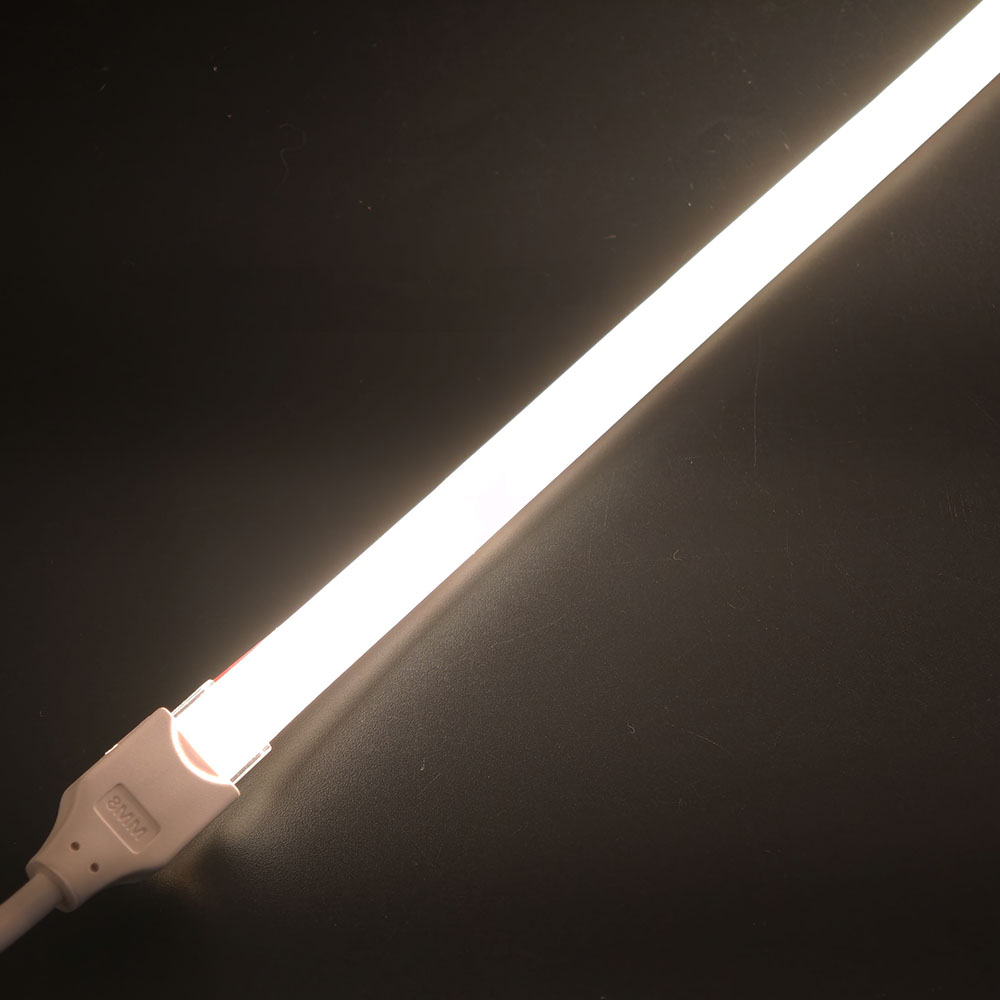

High voltage COB LED strip is a dot-free linear lighting solution that combines the seamless illumination of COB (Chip-on-Board) technology with the convenience of direct AC power connection. It can be wired directly into AC110V, AC120V, AC220V, or AC240V power sources, eliminating the need for bulky external power adapters — making it easy to deploy as either a 110V LED strip light or a 220V LED strip light depending on the local power supply.
Advantages of High-Voltage COB LED Strips

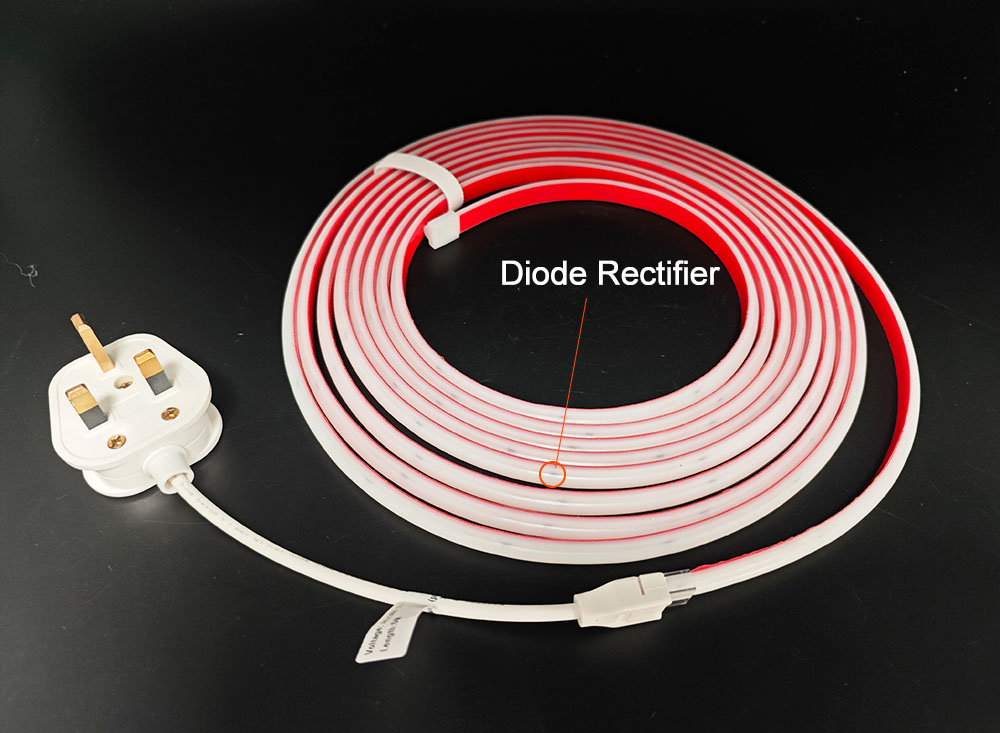

LW Lighting's high voltage led strip features an integrated rectification design, with the AC-to-DC conversion circuitry built directly onto the PCB. Unlike traditional high voltage LED strips, which typically rely on bulky external rectifier plugs to convert AC to DC, this construction eliminates the need for an external driver — resulting in a cleaner appearance, simpler wiring, and significantly improved installation efficiency for large-scale lighting projects.

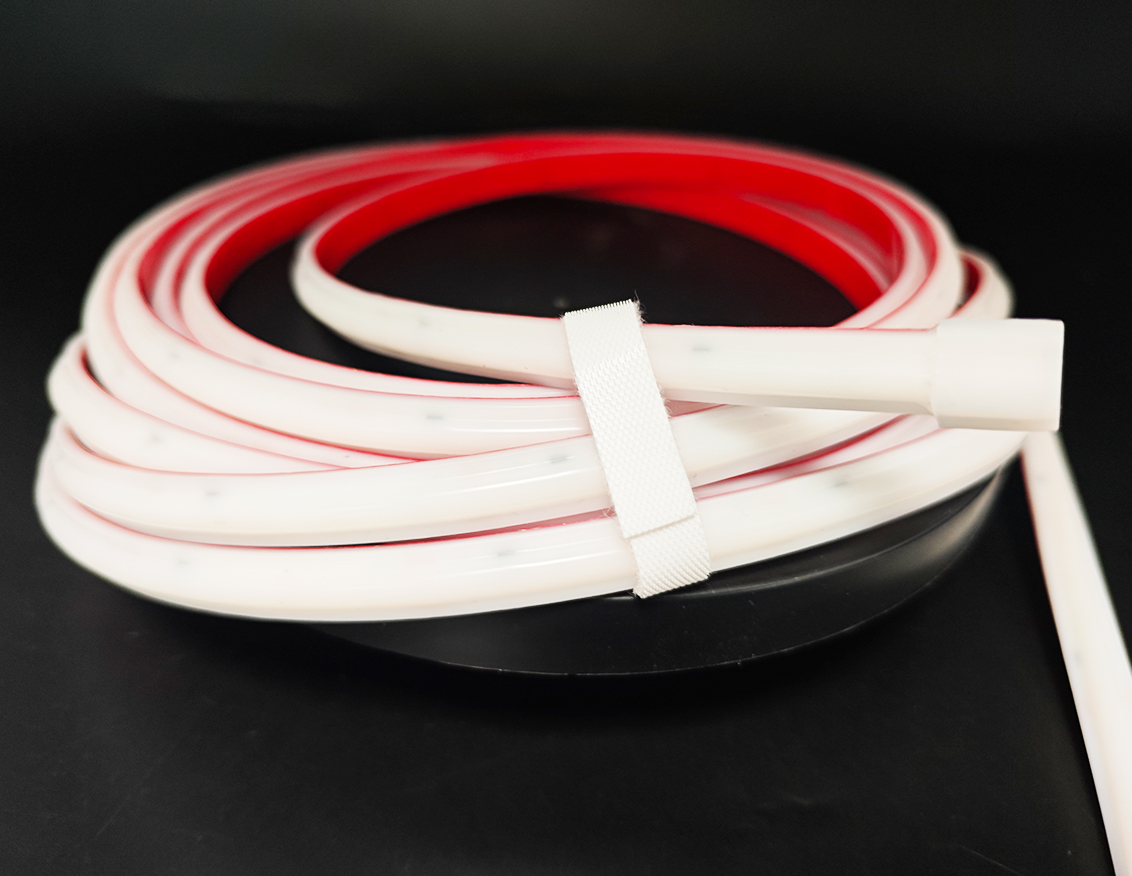

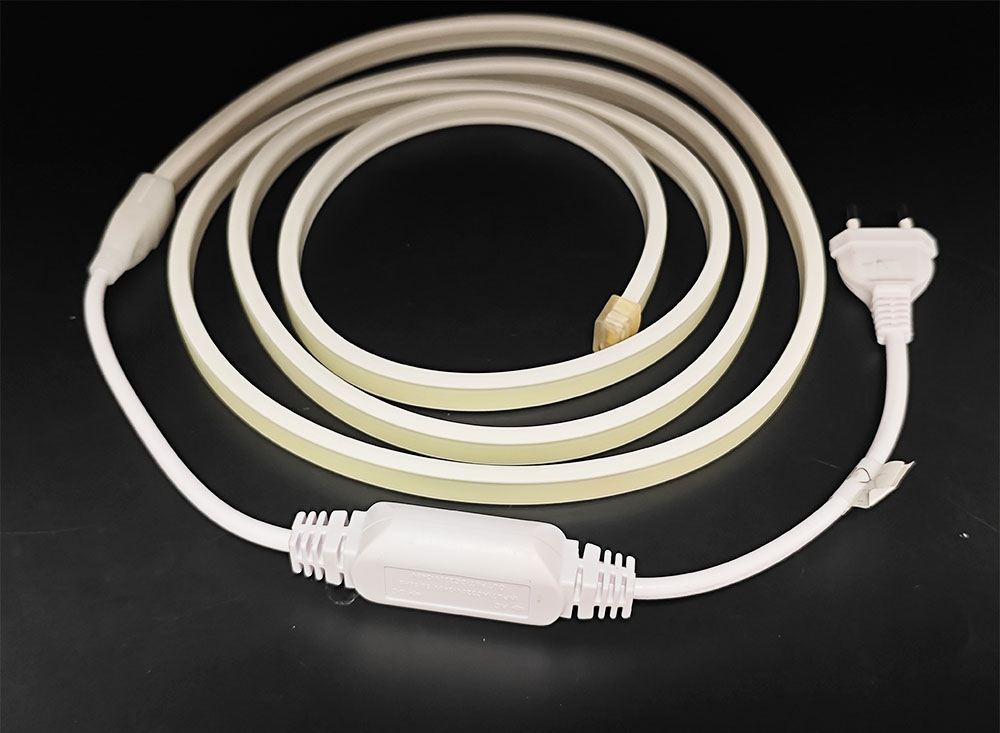

LW Lighting High Voltage COB LED Strip Tranitional High Voltage LED Strip

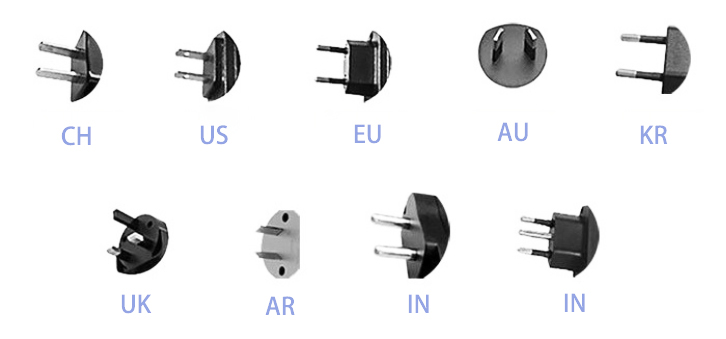

The high voltage COB strip supports a range of international plug standards, including US, UK, and AU options, and can be customized with different cable lengths, connector types, and wiring configurations to suit project requirements. This ensures smooth deployment across different countries and job-site conditions, making it well suited for lighting applications worldwide.
Compared with conventional AC LED strips, which can typically only be cut every 500mm or 1000mm, LW Lighting's high voltage COB LED strip supports an ultra-short cutting interval of just 50mm. This gives installers far greater flexibility, allowing precise customization for complex architectural and decorative lighting designs.
The shorter cutting interval also helps reduce material waste: installers can cut the strip to the exact length needed for each project, minimizing offcuts and lowering overall material costs.
Compared with traditional SMD LED strips, COB technology eliminates visible light dots, producing a continuous, uniform glow for superior illumination. This results in more consistent color output and fewer visible hotspots, giving the lighting a more refined appearance — making it particularly well suited for high-end architectural and commercial lighting applications.

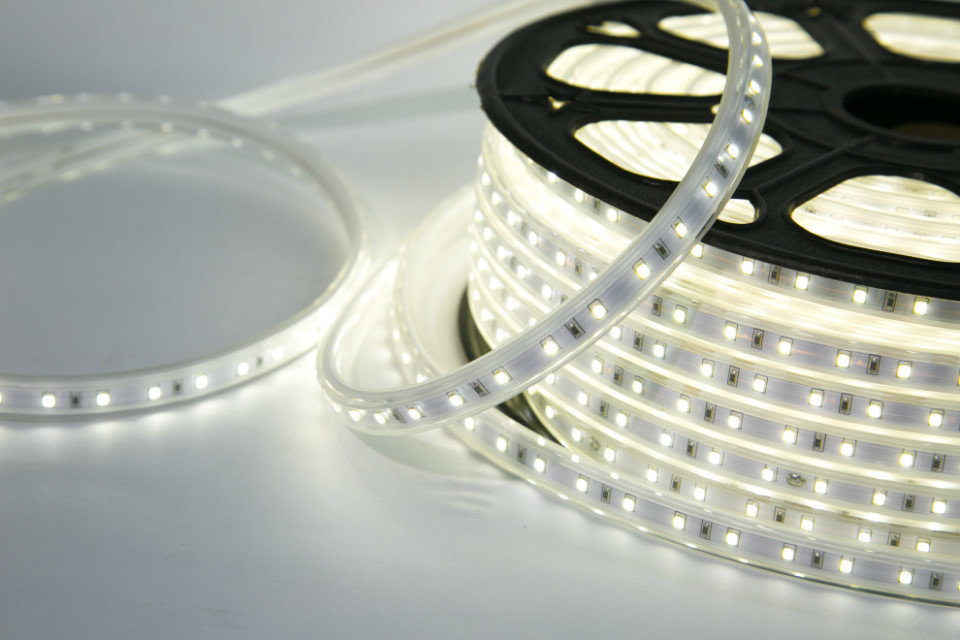

High Voltage COB LED Strip SMD High Voltage LED Strip
High-Voltage COB LED Strips Product Feature

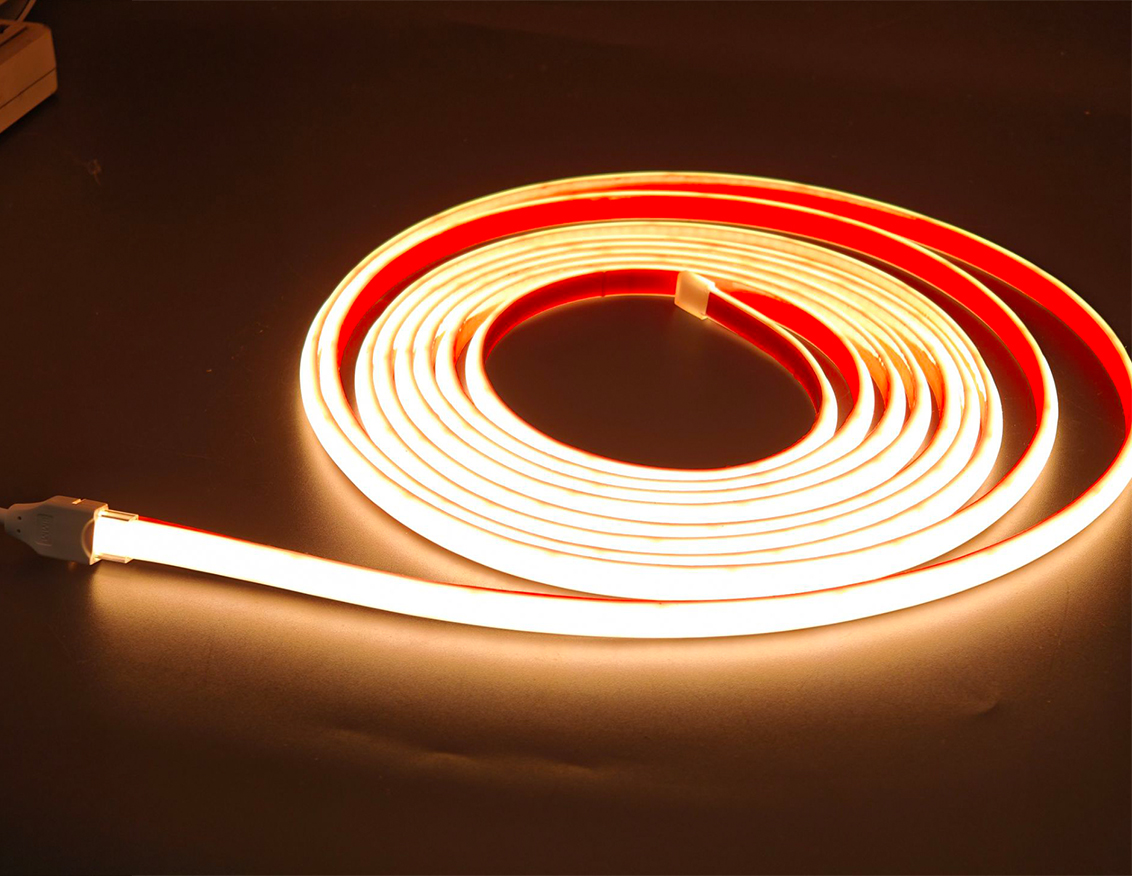

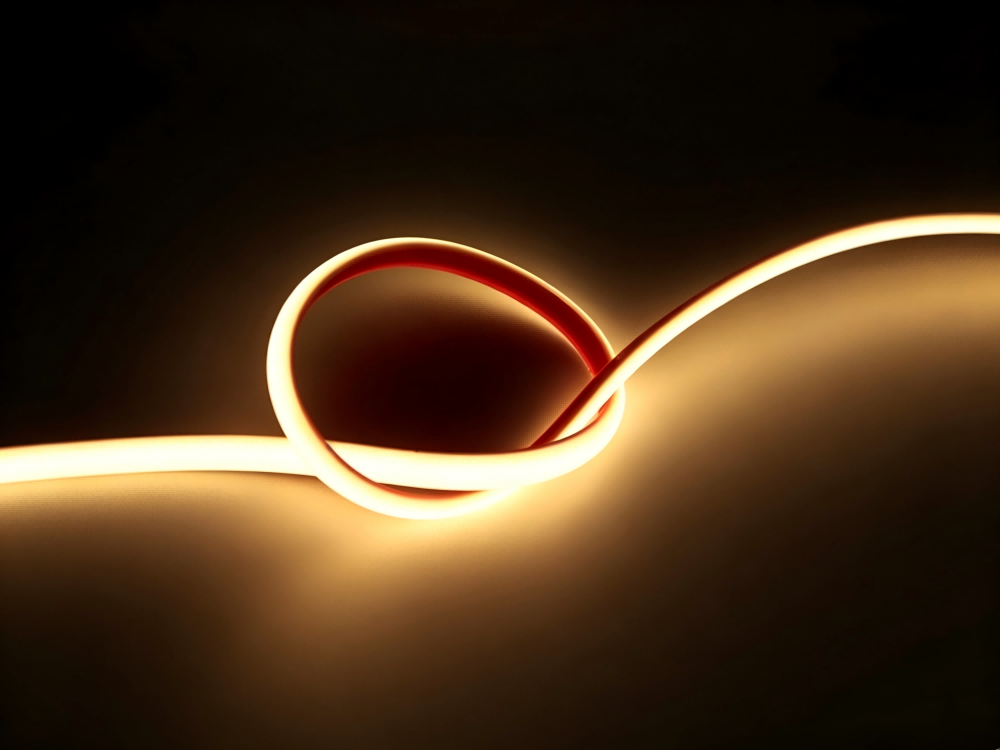

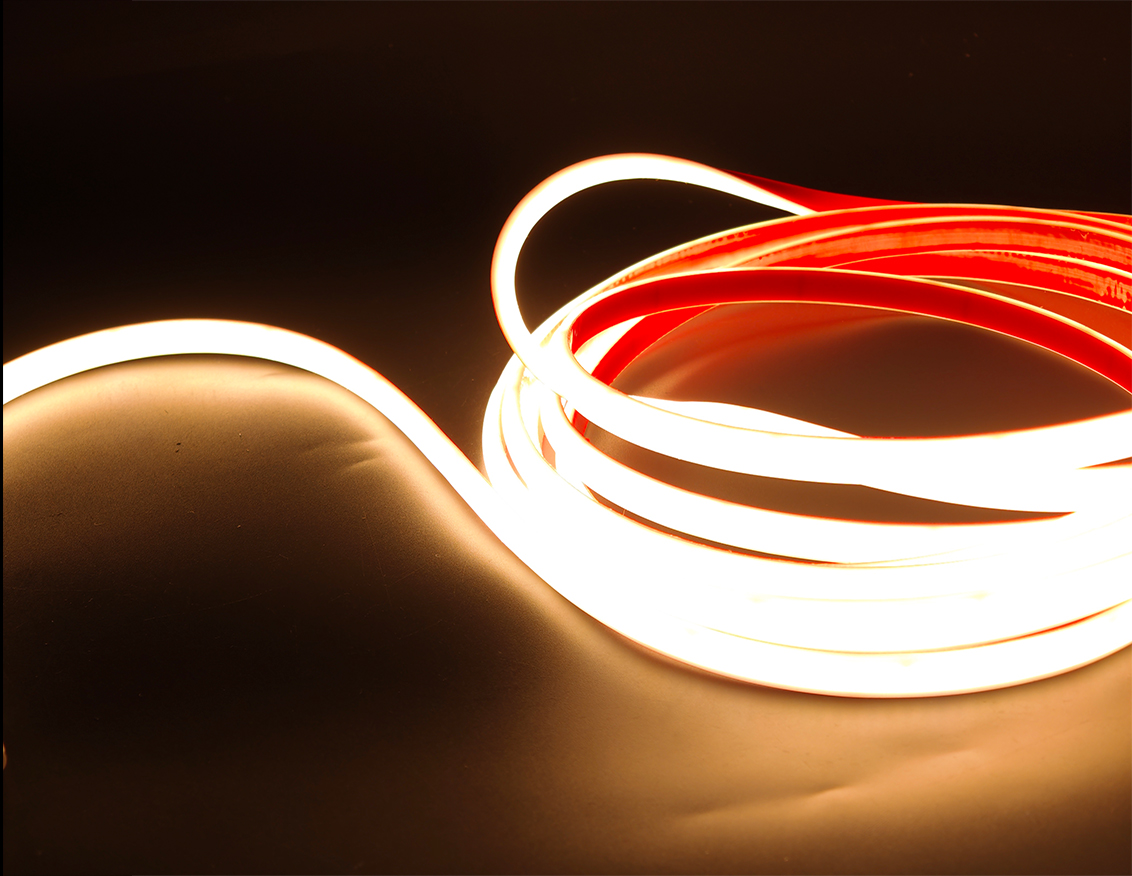

Dot-Free COB Illumination

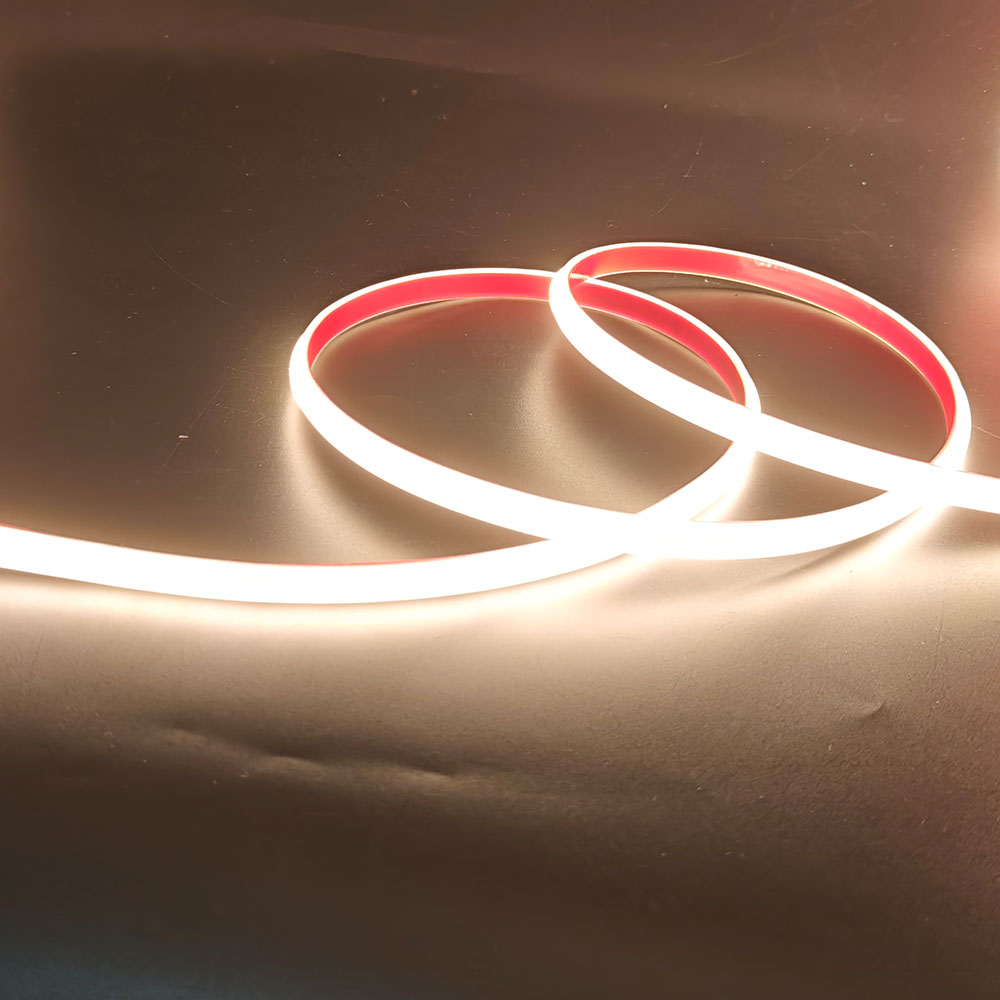

The combination of a high-transmittance milky diffusion compound and COB integrated packaging delivers a continuous, uniform glow with no visible light dots — soft, comfortable light that achieves a premium linear lighting effect.
More Compact Than Traditional High Voltage Strips

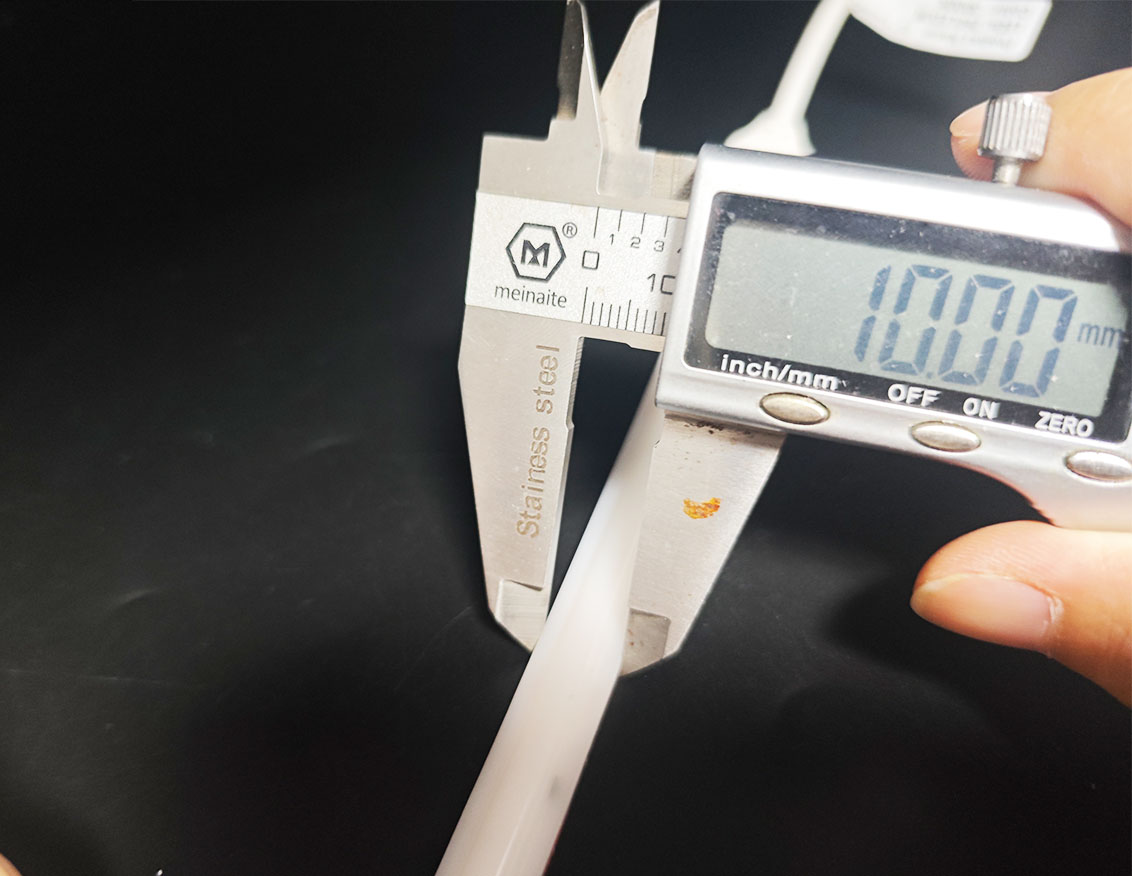

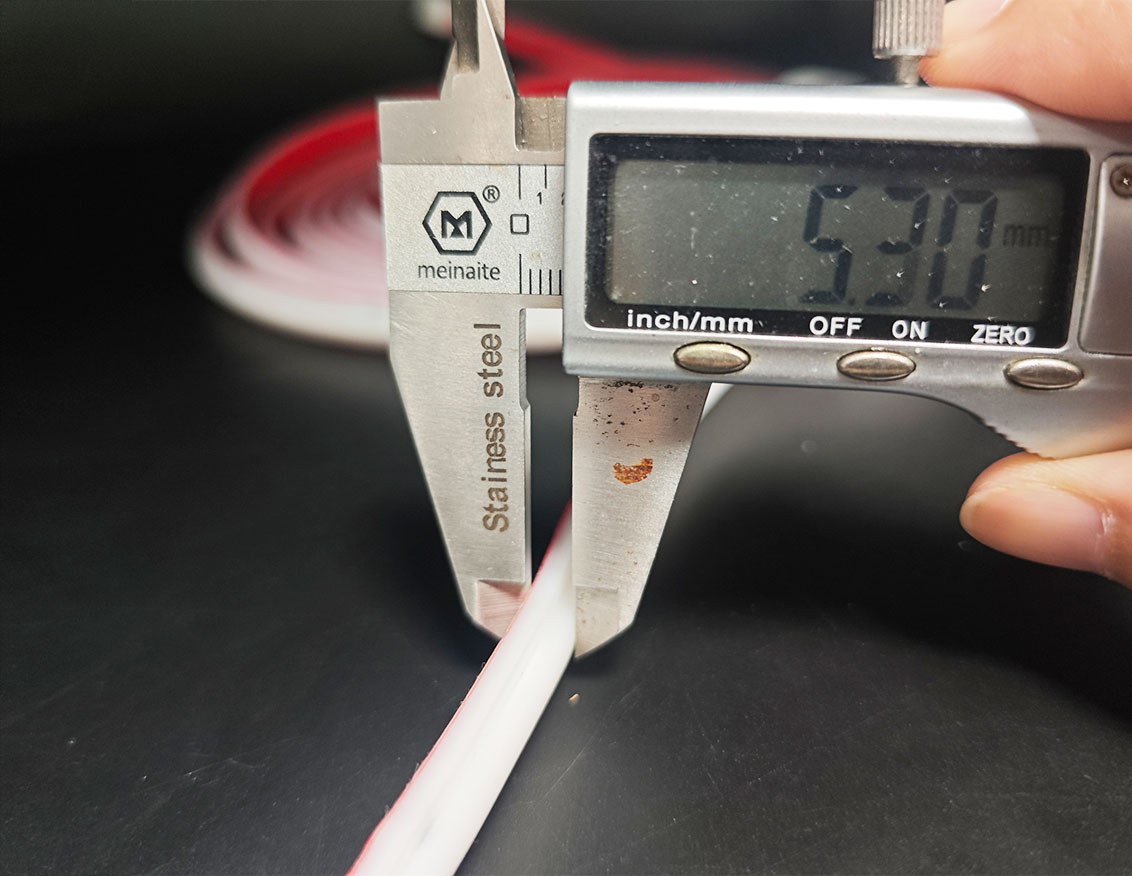

With an ultra-slim 10×5mm profile, this high voltage led strip is more lightweight and refined than conventional high voltage strips. It fits easily into narrow spaces and concealed linear channels, meeting the demand for compact size and clean aesthetics in architectural outline lighting, landscape illumination, and detail-oriented lighting projects.
Ultra-Long Continuous Runs
Built-in constant-current IC technology ensures stable brightness over long-distance transmission. The strip supports single-end power input with continuous runs of up to 50 meters, simplifying wiring while reducing voltage drop.

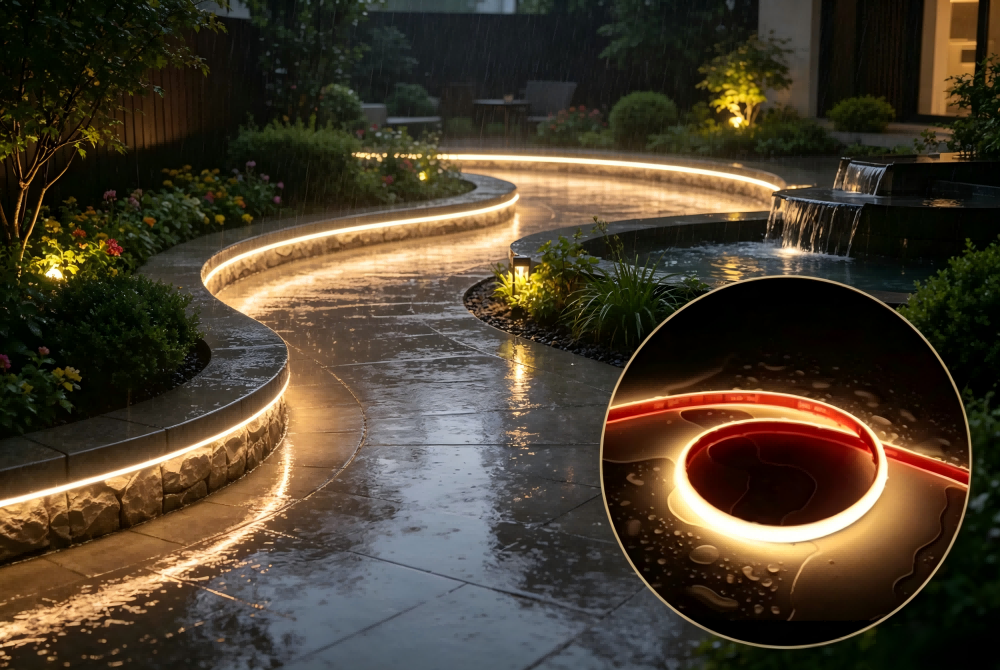

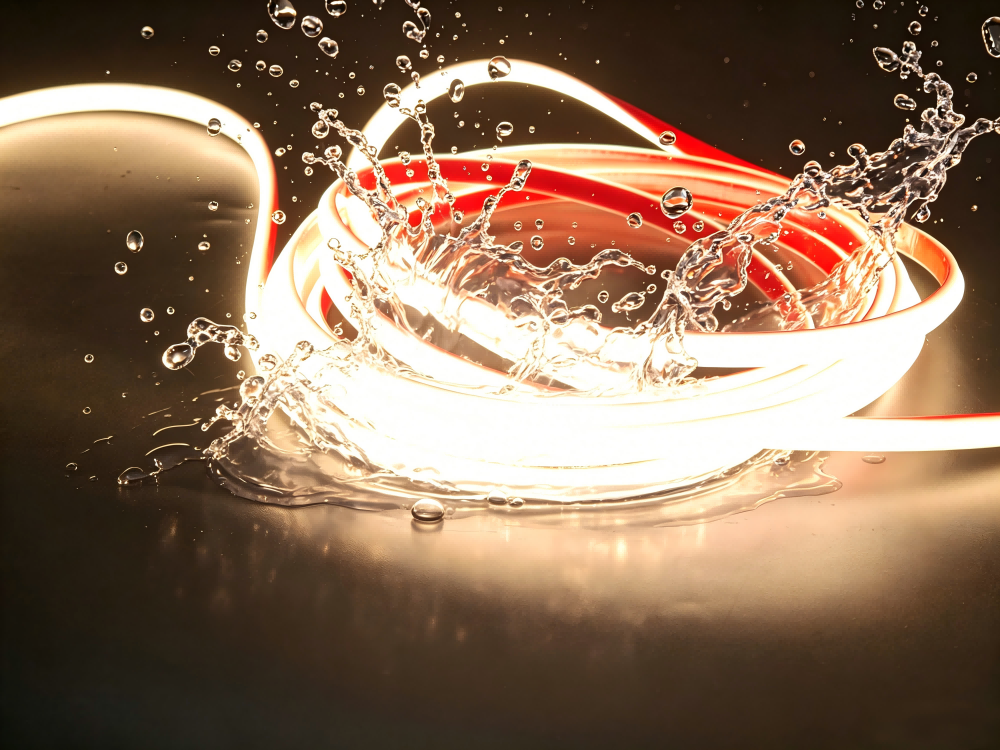

IP67-Rated Waterproof Protection
The fully encapsulated structure provides reliable protection against dust, rain, and moisture, ensuring stable performance for outdoor led strip lighting applications.

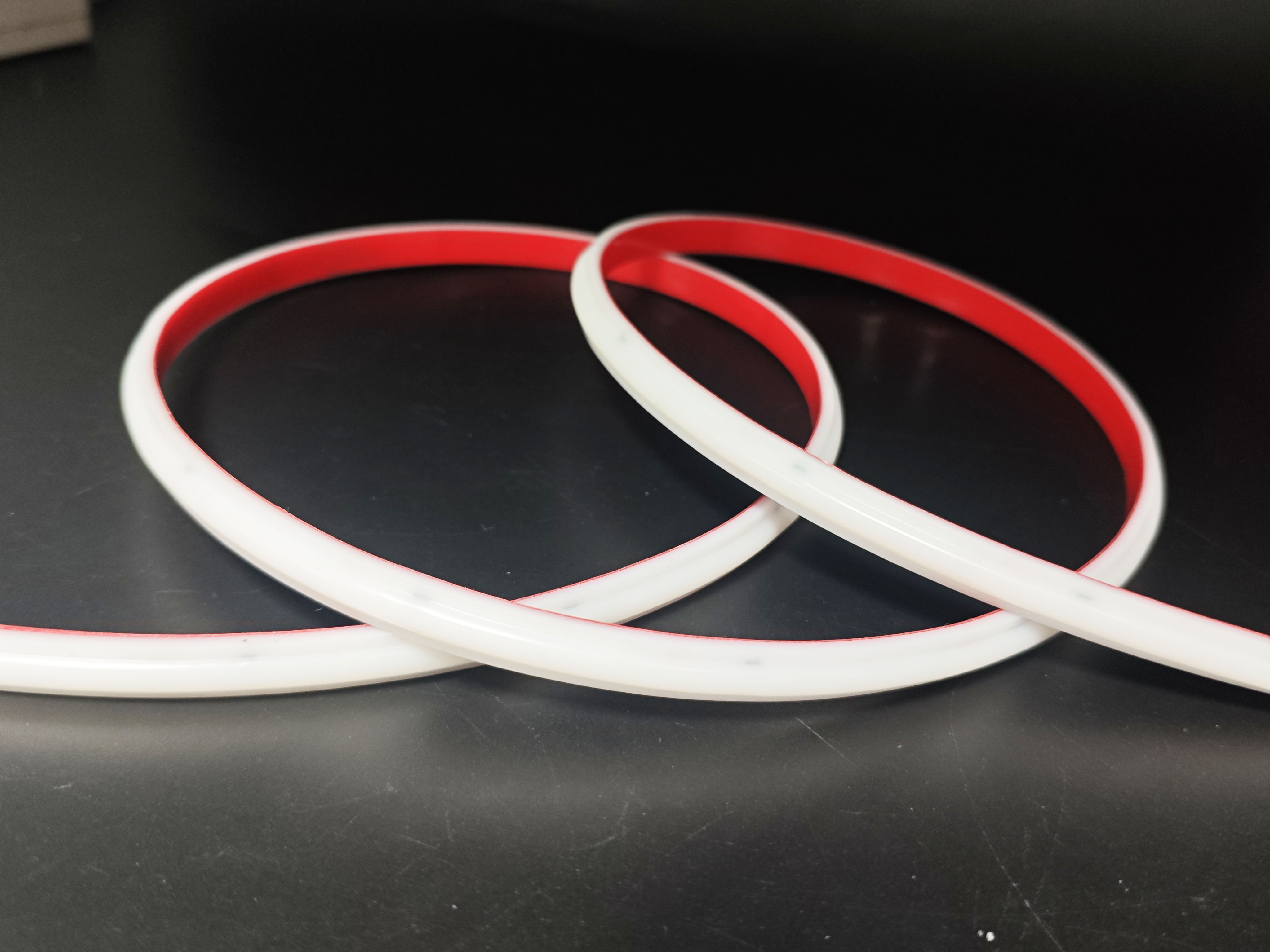

Premium Silicone Encapsulation
Made from high-transparency precipitated silicone, this material offers better light transmission, flexibility, and tear resistance than standard silicone, along with stronger UV and weathering resistance — slowing yellowing over long-term outdoor use. It's a preferred material for high-end outdoor led strip lighting projects across Europe and the UK.
Flexible, Convenient Installation
A high-tack 3M red adhesive backing ensures secure, long-lasting attachment for fast installation. The flexible PCB structure easily conforms to straight runs, curves, and complex architectural profiles, supporting both indoor and outdoor lighting scenarios while improving overall installation efficiency.
High-Voltage COB LED Strips Product Specification
Below Is LW Lighting’s Product Specification
| Item | Parameter |
|---|---|
| Part NO | COB137 |
| LED Qty | 260pcs per meter |
| Input Voltage | AC230V |
| PCB Width | 30mm |
| Watts | 13W |
| Color | 3000K/4000K/6500K |
| Size | 10*5mm |
| IP Grade | IP67 |
| Operating temperature | -25 to 60℃ |
| Beam angle | 180 degree |
| Certification | CE; RoHS |
| Max Run | 50M |
| Cutting Length | 50MM |
LW Lighting offers a range of plug specifications to meet the needs of different markets: US-standard plugs (110V LED strip light), UK-standard plugs (230V), and AU-standard plugs (230V). If plugs are ordered together with the LED strip, there is no minimum order quantity (MOQ) requirement. If plugs are purchased separately, the MOQ is 1,000 pieces.
LW Lighting provides comprehensive OEM and ODM customization services for its high voltage led strip, tailored to meet the needs of a wide range of projects.
Packaging & Branding: Custom packaging, instruction manuals, labels, and PCB-printed logos.
Performance Customization: LED count, PCB width, waterproof rating, color temperature, and CRI (Color Rendering Index) can all be adjusted to project requirements, along with cable length and connector options.
Solutions for Different Customers
LW Lighting provides customized high voltage led strip solutions for contractors, lighting designers, factory clients, and wholesalers — helping customers improve project efficiency, reduce costs, and strengthen market competitiveness.
Contractors / Project Installers
Lower installation costs, ensure smooth project delivery
- Single rolls of up to 50 meters reduce the number of connection points and power layouts, enabling faster installation.
- Project-based collaboration with a dedicated project manager to safeguard timelines and delivery quality.
- Support throughout the process — from preliminary design and lighting simulation to on-site installation guidance and after-sales maintenance.

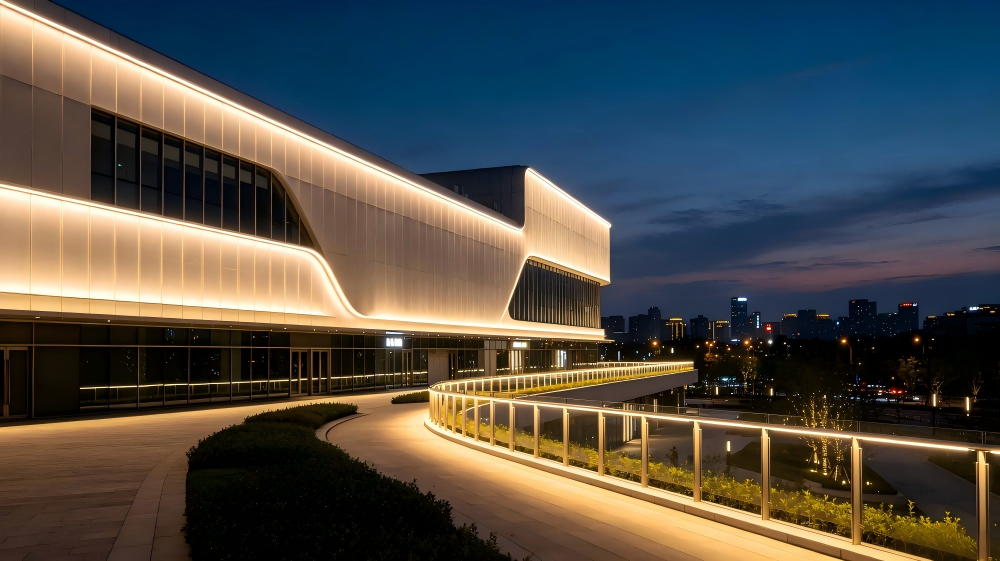

- Especially well suited for large-scale lighting projects such as building outlines, landscape illumination, and park walkways — common applications for outdoor led strip lighting.
Customer value: Lower installation costs, higher installation efficiency, reduced project risk.
Lighting Designers
Bring creative designs to life with ease
- Customizable strip dimensions, LED count, PCB width, waterproof rating, color temperature, and CRI.
- Enables ultra-narrow strips, custom shapes, and precise color control.
- An engineering team supports the full process, responding quickly from concept to finished product.
- A wide range of product specifications and innovative lighting solutions.
Customer value: Greater design freedom and higher-quality lighting outcomes.
Factory Clients
Stable supply to support product upgrades and differentiation
- A complete R&D, production, and quality management system.
- Support for custom product development and process optimization.
- Fast response to product iteration and shifting market demands.
- Stable large-volume production capacity with strict quality control.
Customer value: Shorter development cycles, stronger product competitiveness, lower supply chain risk.
Wholesalers / Distributors
More flexible inventory management and sales models
- Supplied in 50-meter bulk rolls, which can be cut and fitted with connectors to suit local market needs.
- Custom packaging, labeling, and branding services available.
- Products carry multiple international certifications, suitable for retail and channel distribution.
- Marketing materials, technical training, and after-sales support provided.
Customer value: Reduced inventory pressure, greater sales flexibility, and improved profit margins.
Quality Testing
Before leaving the factory, LW Lighting's high voltage led strip undergoes a series of strict testing procedures to ensure it meets engineering-grade standards and delivers long-term, stable performance.

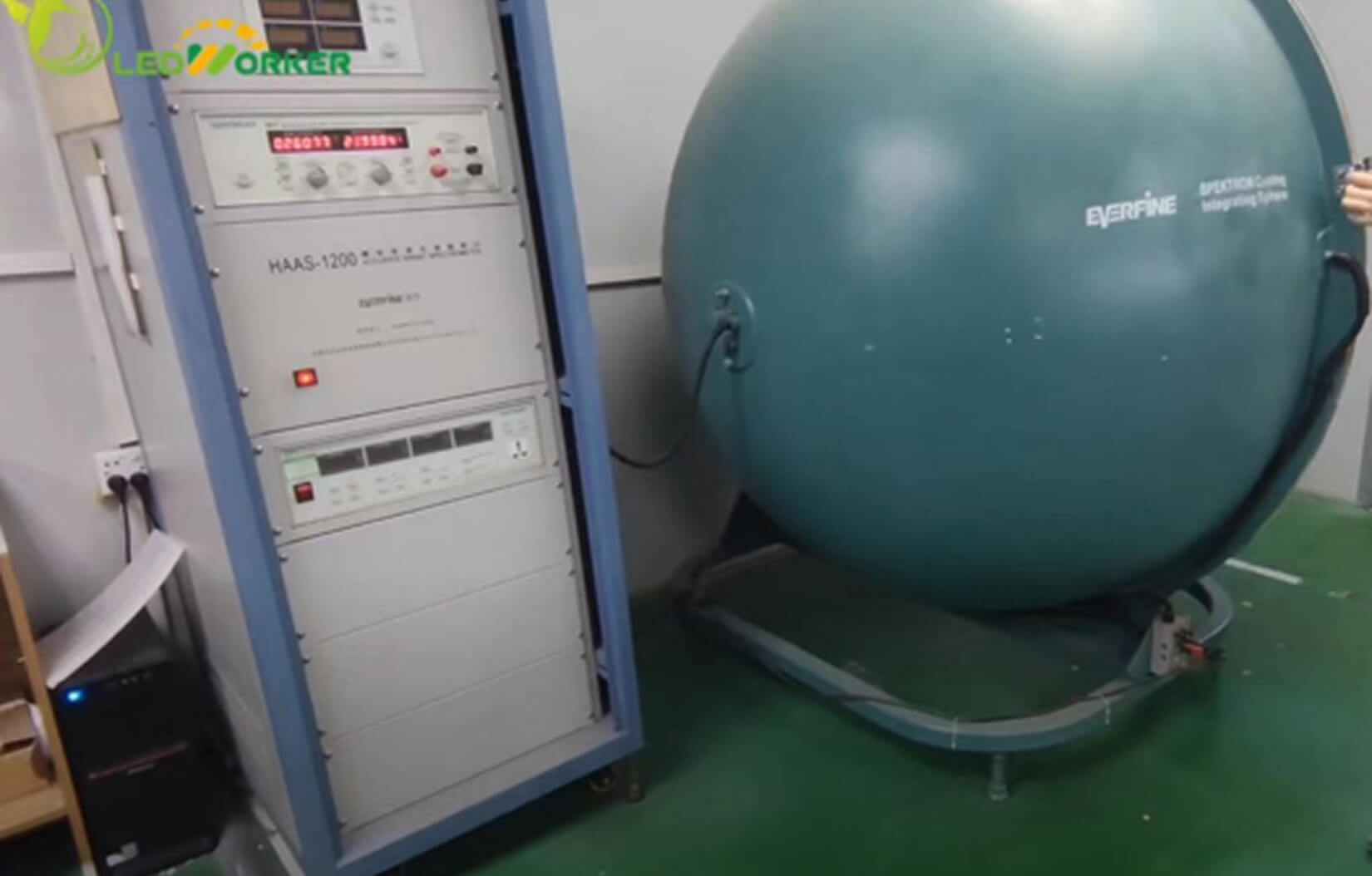

1. Photoelectric Performance Testing
Each production batch is tested for luminous flux, color temperature consistency, and CRI, ensuring uniform light color with no noticeable color deviation, in line with high-quality lighting requirements.
Each production batch is tested for luminous flux, color temperature consistency, and CRI, ensuring uniform light color with no noticeable color deviation, in line with high-quality lighting requirements.

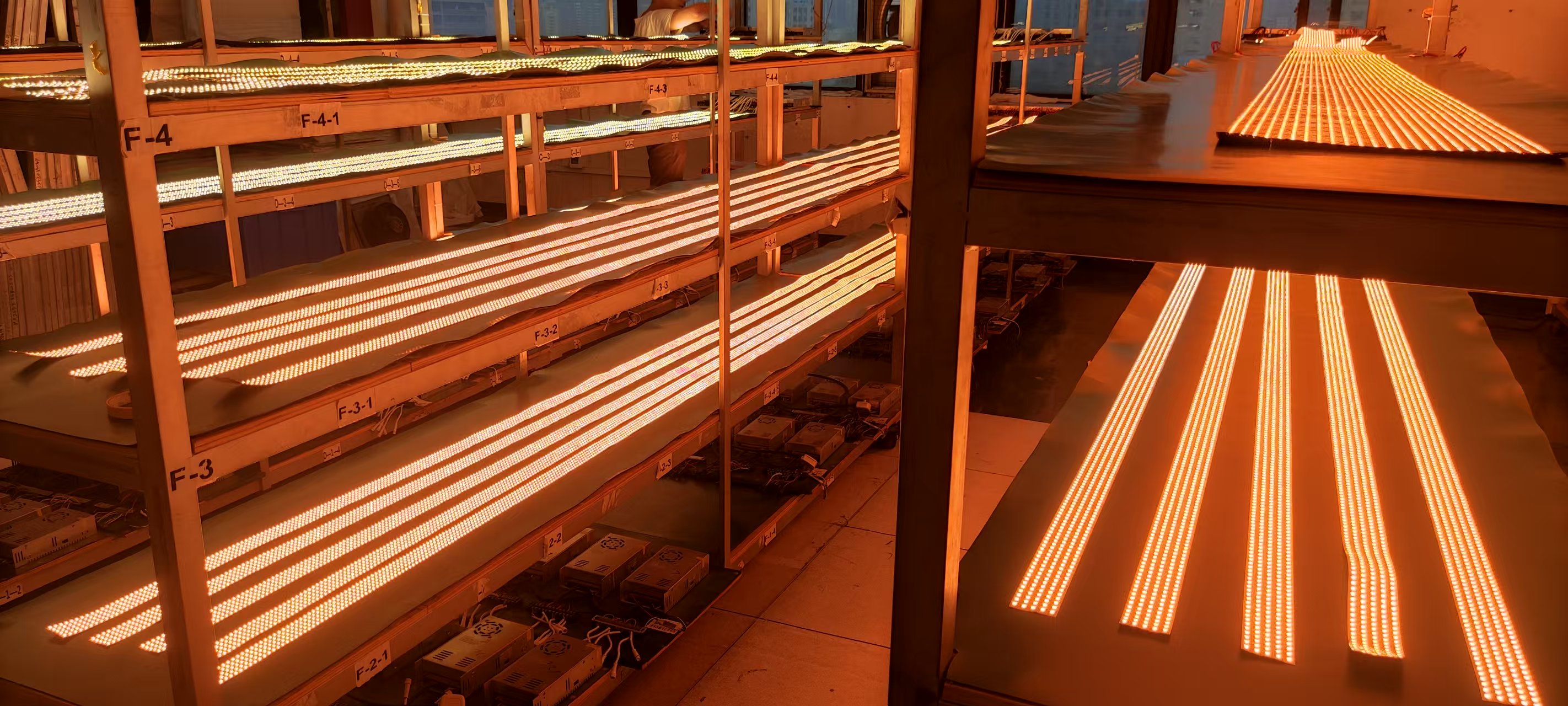

2. Aging Test
Strips are subjected to extended continuous power-on testing to evaluate lumen depreciation and overall stability, ensuring reliable long-term operation.
Strips are subjected to extended continuous power-on testing to evaluate lumen depreciation and overall stability, ensuring reliable long-term operation.

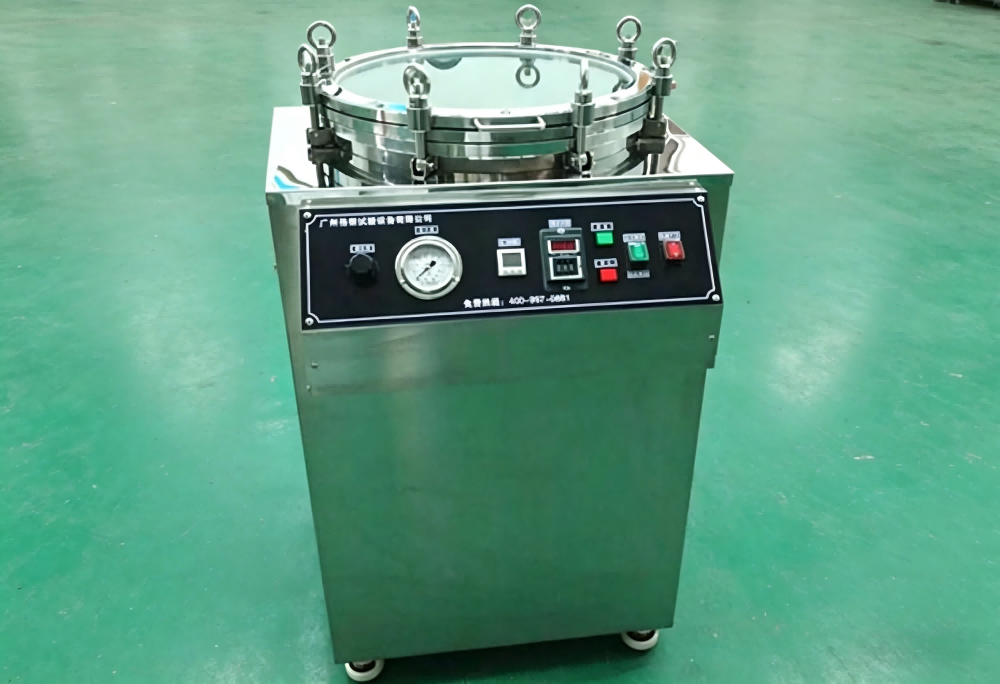

3. Waterproof Performance Testing (IP67 Test)
For IP67-rated products, professional waterproof and dustproof testing verifies the reliability of the sealed structure in outdoor environments, preventing water ingress and short-circuit risk — a key requirement for outdoor led strip lighting applications.
For IP67-rated products, professional waterproof and dustproof testing verifies the reliability of the sealed structure in outdoor environments, preventing water ingress and short-circuit risk — a key requirement for outdoor led strip lighting applications.

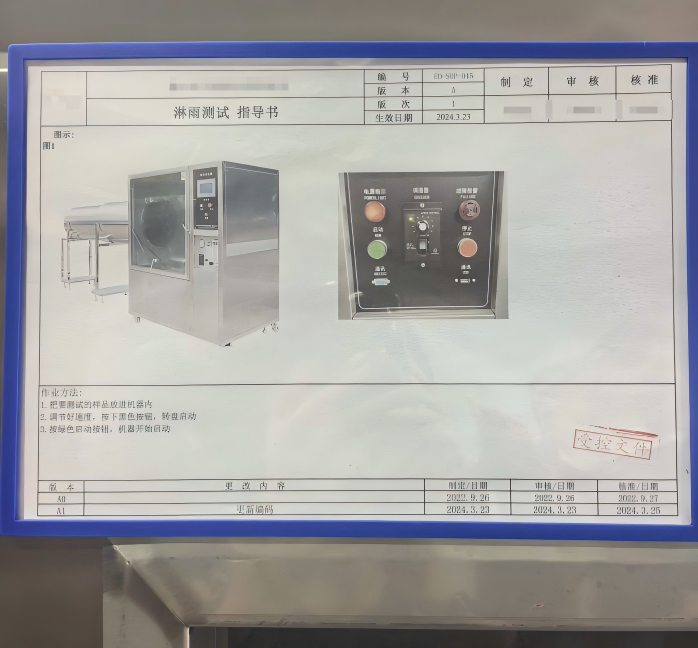

4. Rain Test
Products undergo continuous spray testing that simulates real-world outdoor rainfall, ensuring stable operation even under sustained water exposure.
Products undergo continuous spray testing that simulates real-world outdoor rainfall, ensuring stable operation even under sustained water exposure.

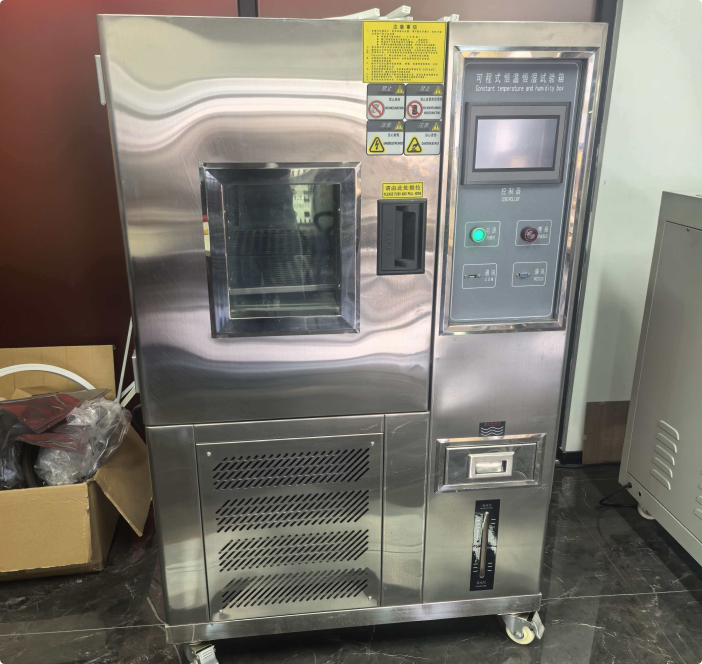

5. Temperature & Humidity Test
Cyclic testing in high-temperature/high-humidity and low-temperature environments verifies the product's adaptability and stability under extreme climate conditions.
Cyclic testing in high-temperature/high-humidity and low-temperature environments verifies the product's adaptability and stability under extreme climate conditions.
6. Structural & Reliability Testing
This includes bending tests, tensile tests, and heat-resistance tests, ensuring the strip's mechanical strength and durability both during installation and over long-term use.
This includes bending tests, tensile tests, and heat-resistance tests, ensuring the strip's mechanical strength and durability both during installation and over long-term use.

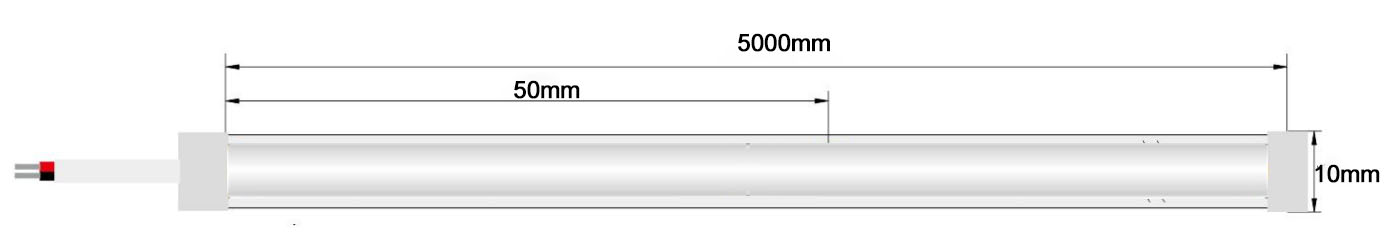

Dimensions

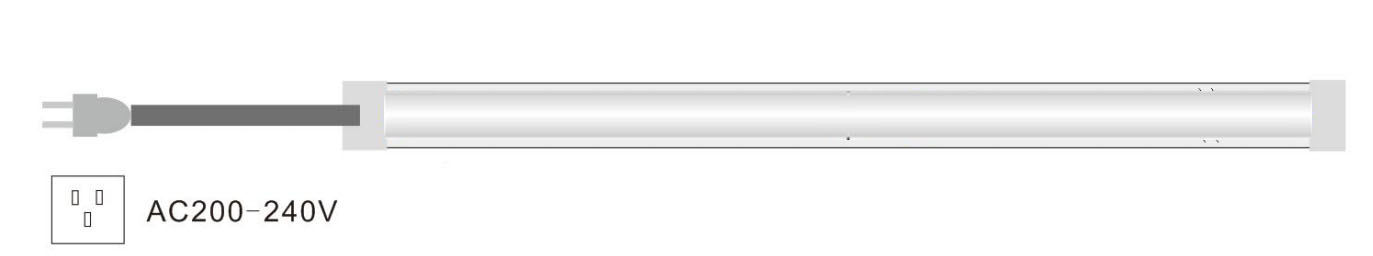

Connect Drawing

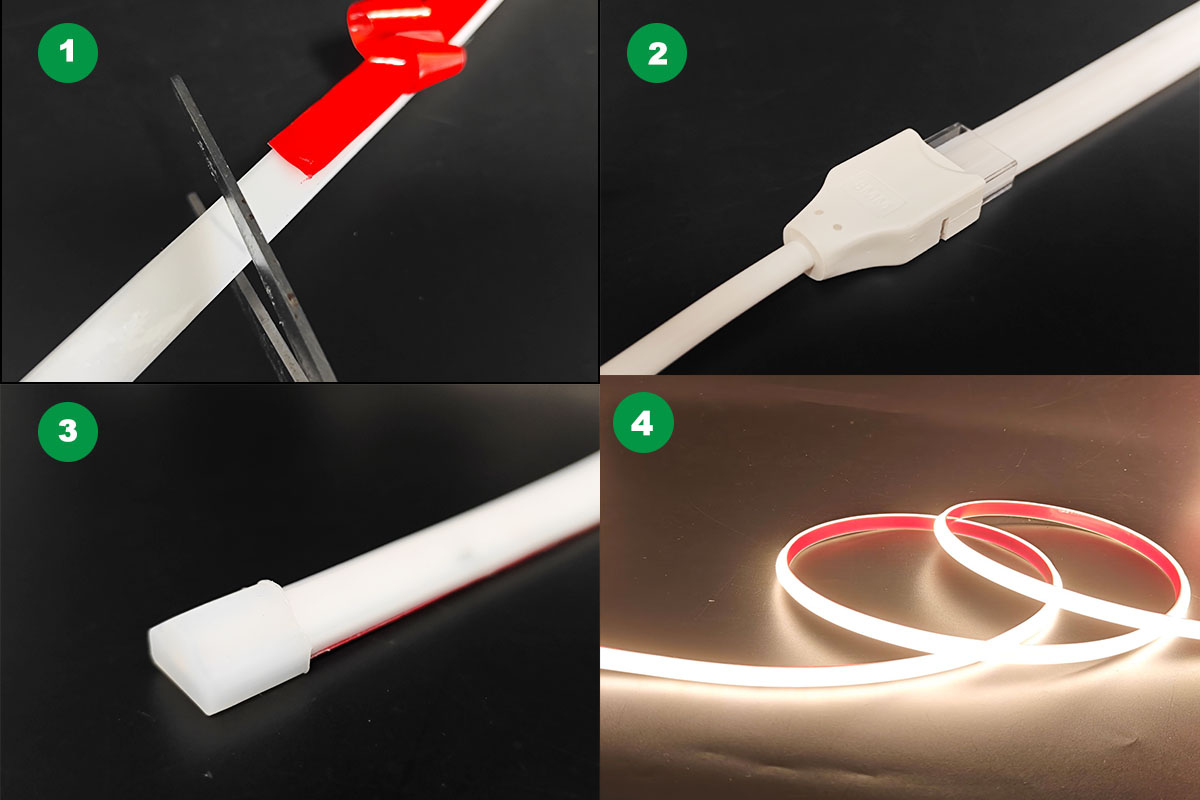

How To Install
1. The back of the strip is marked with cutting points. Cut along the marked line to the required length, and apply waterproofing immediately after cutting.
2. Align the waterproof connector's copper pins with the strip's solder pads, then press down to lock securely in place.
3. Fit the end cap to prevent electrical leakage, ensuring the connection is properly sealed and waterproofed.
4. Power on and test to confirm the strip lights up correctly.
