In traditional LED light strips, especially when installed over long distances, issues like uneven brightness and color deviation often become a headache. You may have encountered situations where the front end of the 5050 LED strip is bright, but the tail end gradually dims, or where the colors transition unevenly, causing an unattractive visual effect. This occurs because the voltage decreases as the distance increases, leading to insufficient current and affecting the brightness and color stability.
The root cause of this problem is the lack of constant current technology. As the name suggests, constant current ensures the stability of the current. It guarantees that each LED chip receives a consistent current, preventing issues like brightness decay and color differences, which are especially critical in LED light strips long applications.
Applicable scenarios:
- Commercial spaces (malls / hotels / exhibition halls): Constant current LED strips provide uniform and stable lighting for display racks and exhibition halls, enhancing the overall visual effect and attracting the attention of visitors. The best LED light strip is ideal for such settings where consistent lighting is essential.
- Architectural contour lighting (buildings / bridges / tunnels): Constant current ensures that long lines and complex surfaces such as curves have even lighting effects without dark spots, perfectly presenting the building's appearance. This is why LED garage light strips are often used for such architectural lighting needs.

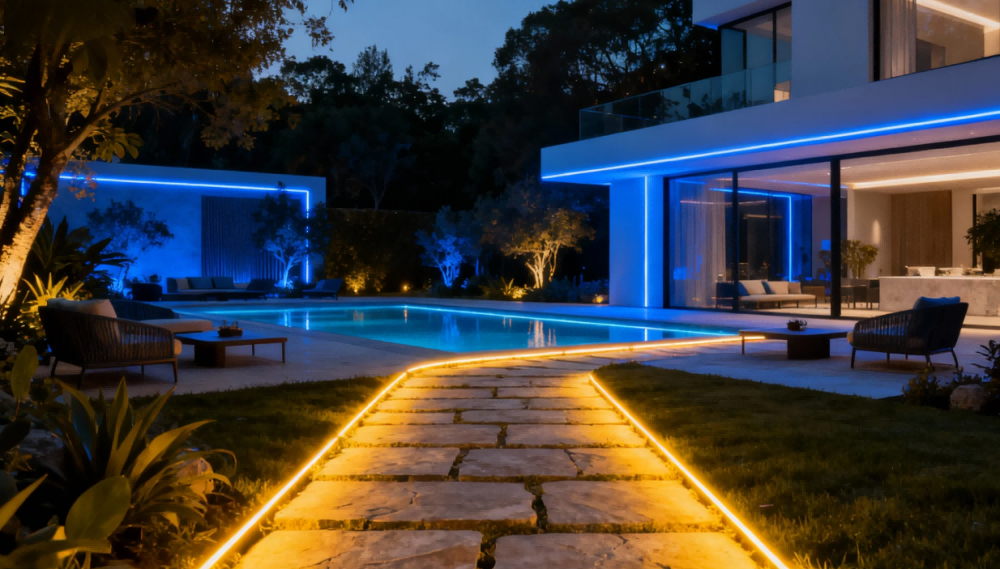

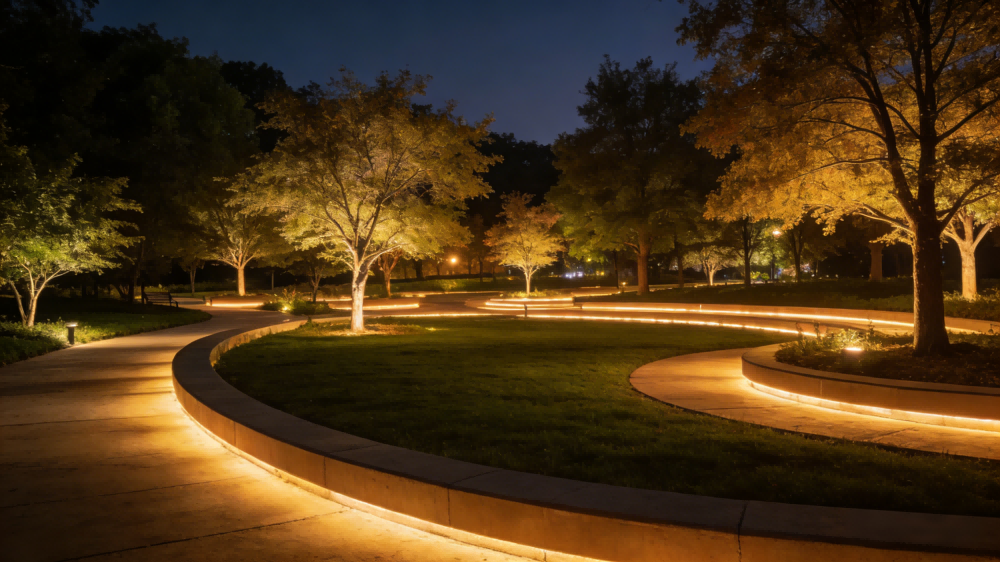

- Outdoor landscapes (canals / walkways / squares): LED light strips outdoor provide stable lighting effects, adapt to various environments, ensuring safety while creating a beautiful night scene atmosphere.
- Industrial lighting (warehouses / factories / parking lots): Offers uniform lighting over large areas, ensuring clear visibility in work zones and enhancing safety. The 5050 LED strip is a popular choice for such installations due to its reliability and brightness.
- Large advertising letters / signboard backlighting: Constant current LED strips ensure even backlighting, improving nighttime recognition and enhancing brand exposure, making them a go-to for high-visibility signs.
What Is 5050SMD constant current LED strip?

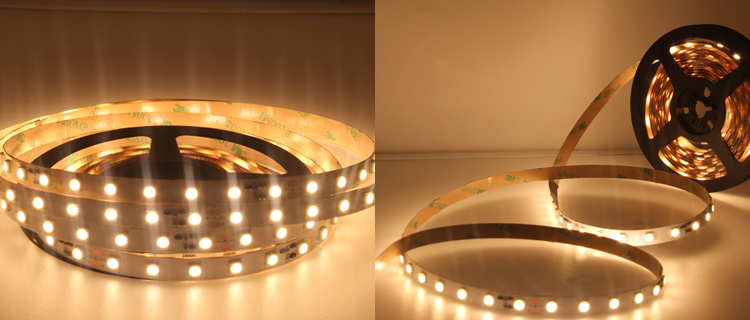

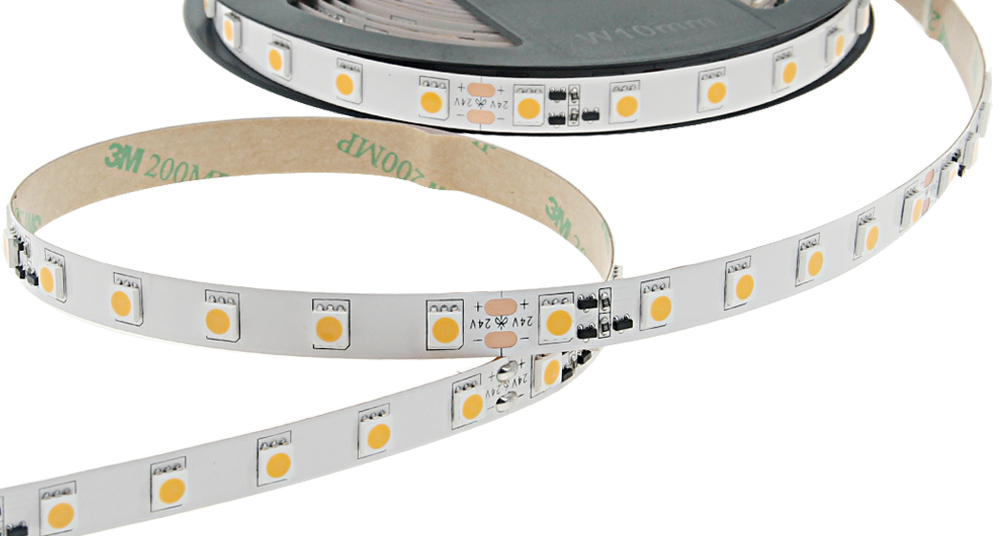

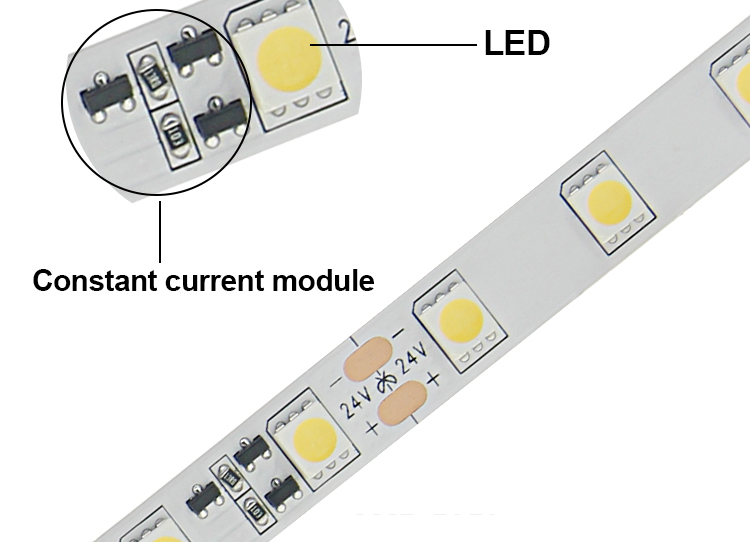

The 5050SMD constant current LED strip is a flexible LED light strip that uses 5050 type LED chips and a constant current IC. The key design feature lies in the constant current IC, which drives each LED chip with a stable current, ensuring consistent brightness and color along the entire length of the strip. Unlike traditional constant voltage LED strips, constant current LED strips effectively avoid brightness unevenness and color differences caused by voltage fluctuations, especially during long installations, providing stable lighting performance.
How to Choose the Right Constant Current LED Strip?

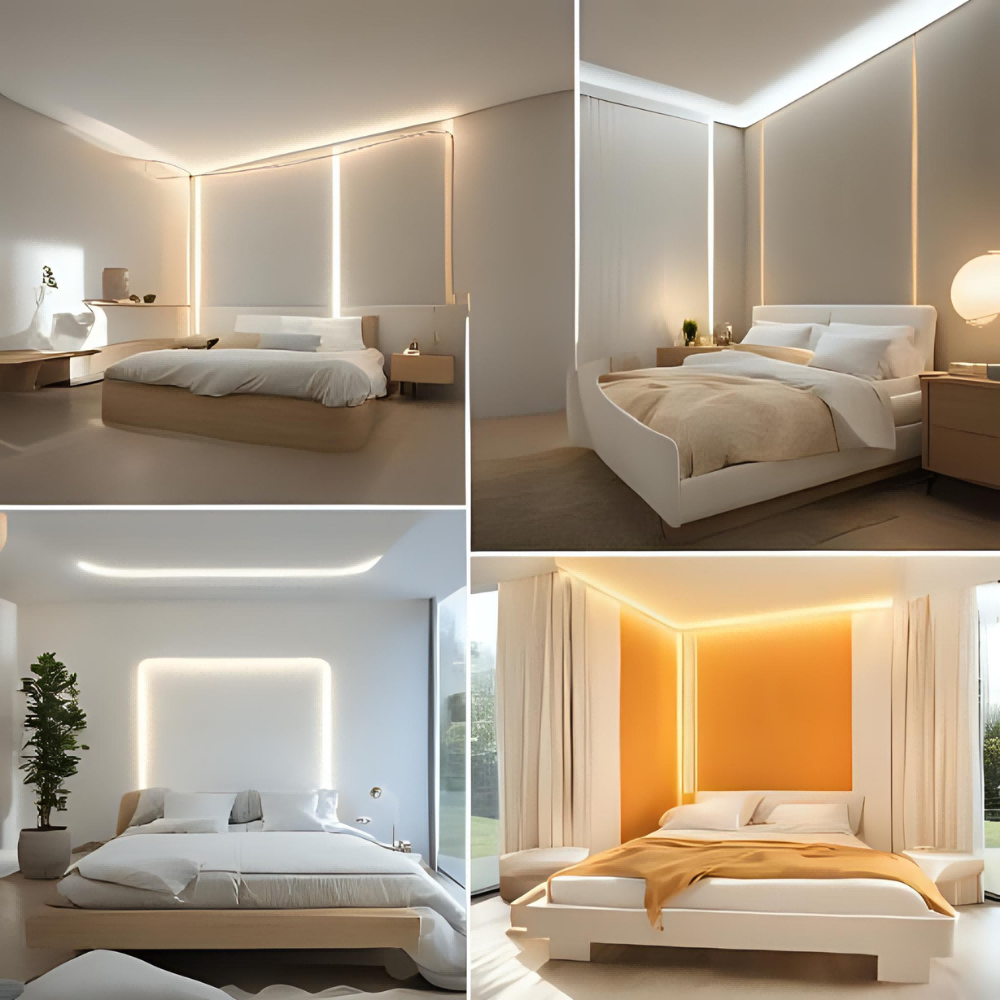

General home use and short decorative installations:
For residential projects or short-distance decorative lighting where strict brightness consistency is not required, constant voltage LED strips are usually a more economical choice. These solutions are often applied in basic decorative lighting scenarios rather than professional projects requiring the best led light strip performance. Typically, constant voltage strips are supplied in 5-meter or 10-meter lengths. When used as led lights strips long, voltage drop becomes noticeable beyond 10 meters, causing gradual brightness reduction.
For residential projects or short-distance decorative lighting where strict brightness consistency is not required, constant voltage LED strips are usually a more economical choice. These solutions are often applied in basic decorative lighting scenarios rather than professional projects requiring the best led light strip performance. Typically, constant voltage strips are supplied in 5-meter or 10-meter lengths. When used as led lights strips long, voltage drop becomes noticeable beyond 10 meters, causing gradual brightness reduction.
Professional projects with long runs and high consistency requirements:
For commercial and engineering applications that demand stable performance over extended distances, constant current LED strips are the preferred solution. 48V constant current strips can achieve 50–60 meters of continuous lighting with single-end power, while high-voltage AC strips support 50–100 meters of single-end wiring, meeting the high-quality requirements of large spaces and long-distance installations.
For commercial and engineering applications that demand stable performance over extended distances, constant current LED strips are the preferred solution. 48V constant current strips can achieve 50–60 meters of continuous lighting with single-end power, while high-voltage AC strips support 50–100 meters of single-end wiring, meeting the high-quality requirements of large spaces and long-distance installations.
Product Features
Constant brightness, consistent color: Even in long installations, the brightness of the LED strip remains stable, and the color consistency is maintained from start to end, ensuring a high-quality lighting effect throughout.

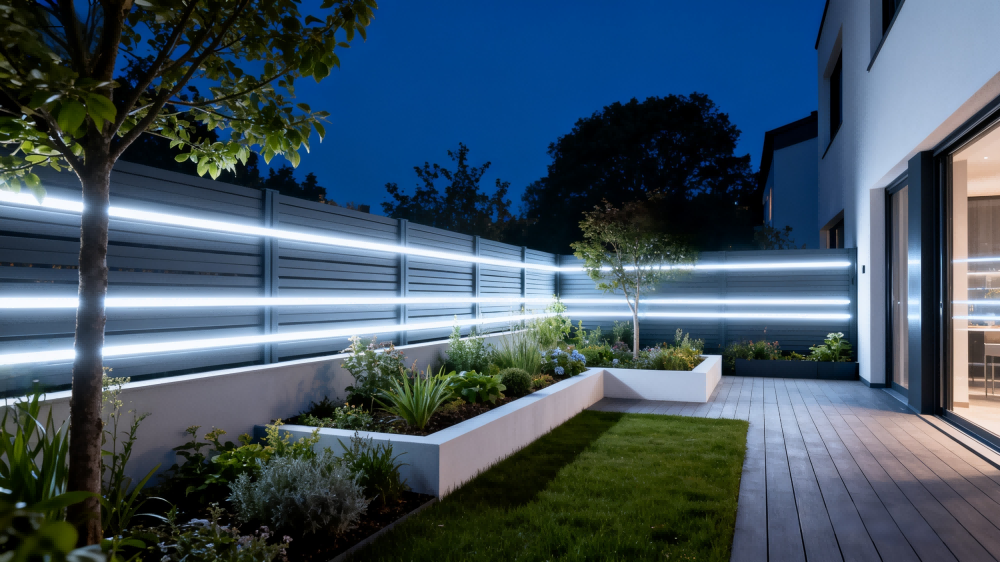

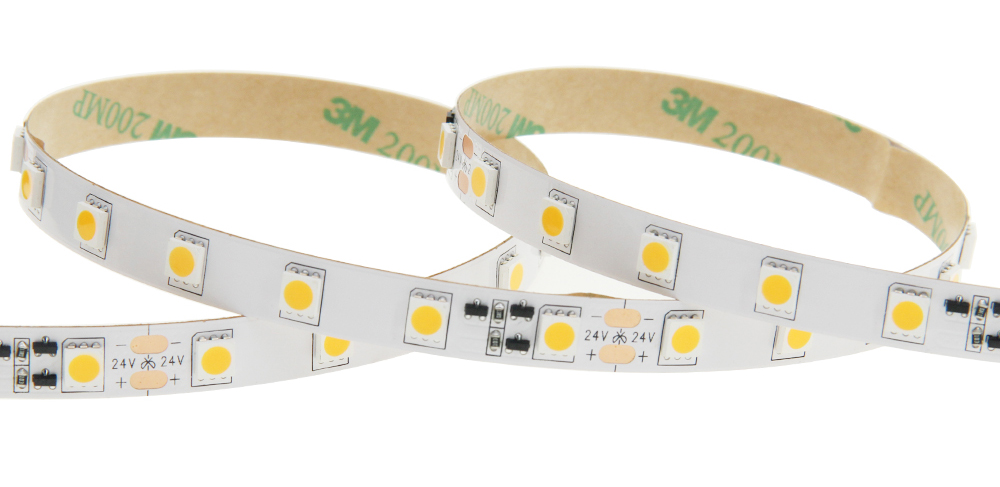

Ultra-long operation, no voltage drop issue: The 5050 LED strip supports distances over 20 meters without experiencing noticeable voltage drop, ensuring that both ends of the strip maintain the same brightness, unlike the issues seen in traditional setups.
Long lifespan and low maintenance costs: Thanks to the constant current design, the LED strip prevents overloading the chips, which extends the strip’s lifespan. This reduces the frequency of replacements and the overall maintenance costs.
High CRI, eye-friendly: With a Color Rendering Index (CRI) over 90, the LED light strips outdoor deliver true-to-life color reproduction, reducing eye strain, which is ideal for both residential and commercial spaces.
Product Specification
Below is LW Lighting’s Product Specification

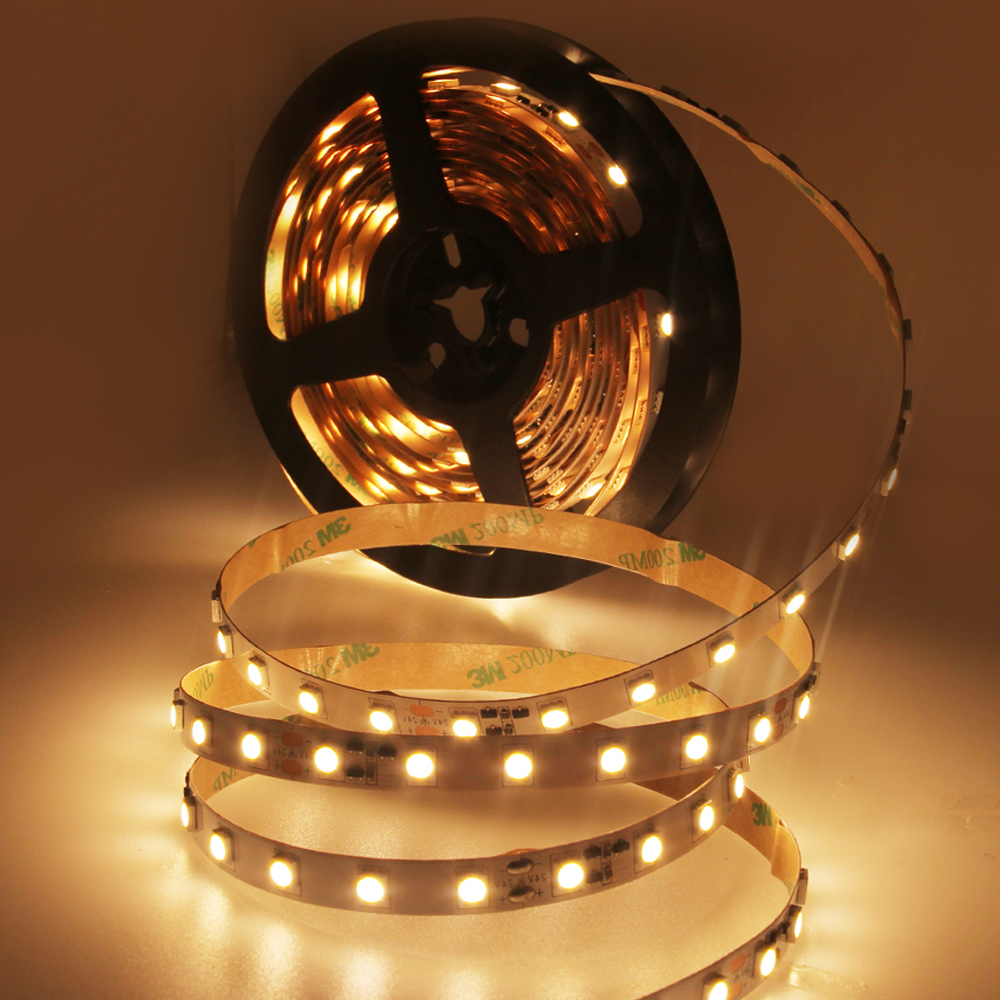

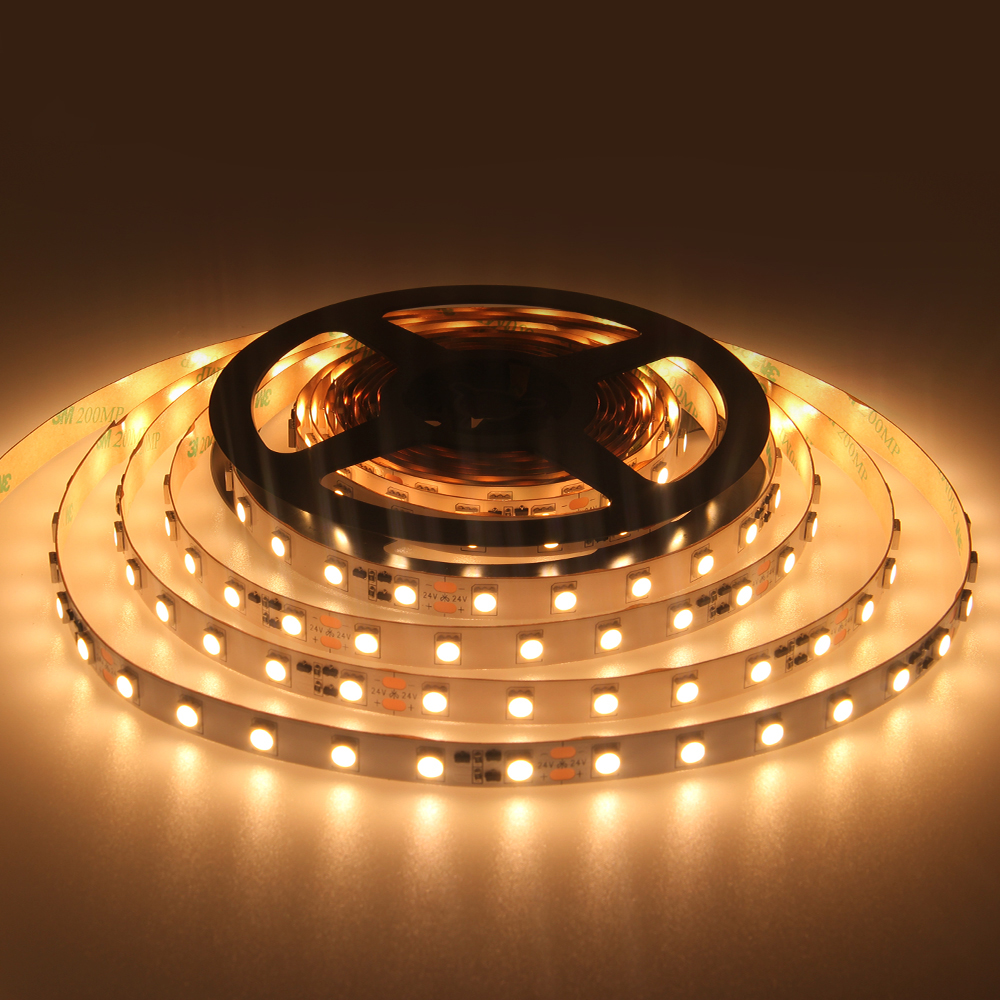

| Name | 24V Constant 5050SMD LED Strip |
| Part NO: | HL-A0178 |
| LED Qty: | 60pcs per meter |
| CRI (RA) | >90 |
| PCB Width IP20: | 10mm |
| Input Voltage: | DC24V |
| Watts: | 12-14W |
| Luminous Flux: | 150LM / W |
| Color: | 2700/3000/4000/6000K |
| PCB color: | White |
| IP Grade: | IP20 |
| Operating temperature: | -25 to 45℃ |
| Beam angle: | 120 degree |
| Certification: | CE; RoHS |
| Min Run: | 24V 100mm |
LW Lighting's constant current LED strips offer a wide range of customization options to meet the specific needs of various projects:
- Packaging and labeling: Custom packaging, manuals, labels, and PCB printed logos are available.
- Performance customization: LED quantity, PCB width, waterproof rating, color temperature, and Color Rendering Index (CRI) can be adjusted according to project requirements.
Choosing between constant voltage power supply and constant current power supply:
Constant voltage LED strips: These require a constant voltage power supply (DC 12V/24V), which is more cost-effective and widely compatible. They are easy to install and are ideal for DIY or general lighting applications.
Constant current LED strips: These must be used with a constant current LED driver. The cost is higher, and it requires matching the current and voltage range to ensure optimal performance.

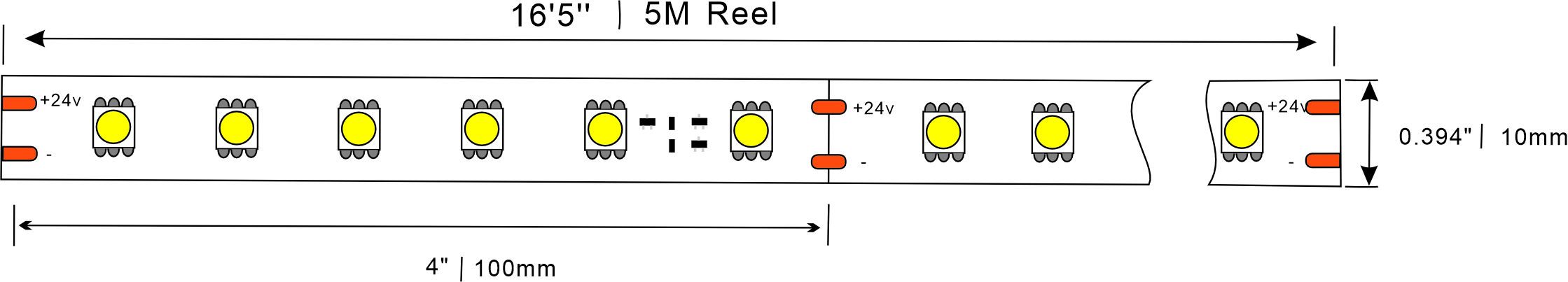

Dimensions
REQUEST A QUOTE
With years of industry experience, LW Lighting has become a leading provider of lighting solutions, focusing on delivering high-quality lighting products for large-scale engineering and commercial projects. From hotels and shopping malls to urban lighting projects, we are committed to excellence in quality and innovative technology, ensuring stable and efficient lighting experiences for every project.
Contact us today! With our extensive engineering experience and professional technical support, we can help you achieve your project goals and enhance your lighting results!
FAQ
What is the difference between 5050 and 5630 LED strips?
The main differences between the 5050 LED strip and the 5630 LED strip lie in the size of the LED chips, brightness, and energy efficiency:
- Size: The 5050 LED chip measures 5mm x 5mm, making it slightly larger than the 5630, which is 5.6mm x 3mm and a bit smaller.
- Brightness: Although the 5050 LED strip is larger, the 5630 LED chip is actually brighter. The power of a 5630 chip is 0.5W, with a single chip's brightness reaching 40-76 lumens, while the 5050 chip has a power of 0.2W and a brightness of only 10-22 lumens. Therefore, the 5630 LED strip typically offers higher brightness compared to the 5050 LED strip.
Is a 12V or 24V LED strip better?
If you're only doing short-distance installations, a 12V LED strip might be enough—simple and cost-effective. However, for long-distance installations, especially for large projects, a 24V LED strip is more suitable as it can maintain more stable brightness and avoid voltage drop issues.
How much power does a 5050 LED strip use?
A 24V 5050 LED strip consumes between 12-14W per meter.
