Are you encountering these common frustrations when designing large-scale commercial projects, hotel lobbies, outdoor landscapes, or continuous architectural lighting?
- The light begins to dim, and the color temperature shifts toward a warmer hue after only a dozen meters.
- Power supply points are too dense, forcing you to cram multiple drivers into a single raceway—complicating installation and compromising the final aesthetic.
- To avoid voltage drop, you are forced to cut the strips into short segments, significantly reducing installation efficiency.
Based on years of industry experience and feedback from contractors, designers, and wholesalers, we recommend the Ultra Run COB LED Strip. This solution is specifically engineered to solve the challenges of "long-distance continuous lighting."
This is no ordinary cob led strip light. Its core value lies in maintaining consistent brightness and stable color temperature without decay over extremely long distances. As a result, it is becoming an increasingly popular professional lighting choice for large-scale commercial and engineering projects.
In the following sections, we will explore how this high-performance long led strips solution eliminates brightness decay, its application advantages in major projects, and the key technical parameters to consider when purchasing.
What is Ultra Run COB LED Strip?
The Ultra Run COB LED Strip is a constant-current controlled cob led strip light specifically designed for long-distance linear lighting. By integrating constant-current ICs into its structure, this strip of white led lights effectively suppresses brightness and color temperature fluctuations caused by voltage drop over extended runs. It maintains consistent light output from start to finish across connection lengths of 20 to 50 meters. This makes it an ideal choice for continuous lighting applications in large-scale commercial spaces, hotel public areas, and outdoor engineering projects where high-performance long led strips are required.

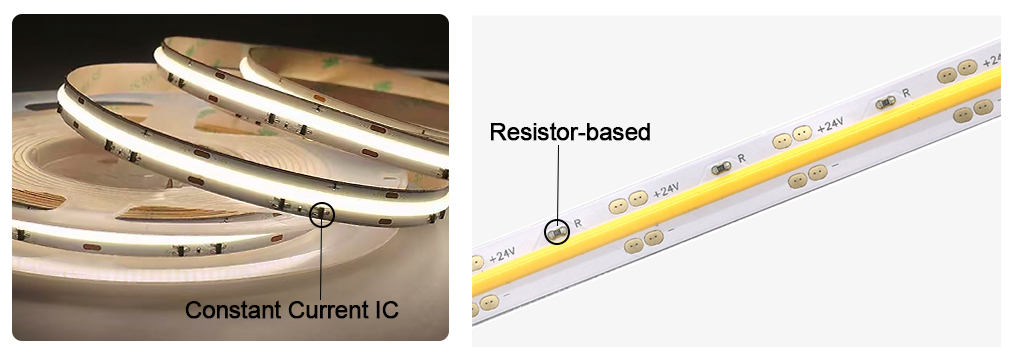

Traditional COB (Resistor-based) vs. Ultra Run COB (Constant Current)
In professional engineering, standard COB strips are typically limited to safe runs of only 5–10 meters. This is primarily due to their resistor-based voltage-reduction structure; as the run length increases, the current inevitably decays. This results in noticeable brightness drops and color temperature shifts, where the end of the strip of white led lights appears significantly dimmer than the start. To counteract this attenuation, projects often require multiple power injection points or an increased number of drivers, which drives up both installation complexity and costs.
In contrast, the Ultra Run COB utilizes a constant current IC solution. By integrating driver ICs to stabilize the current throughout the entire length, the cob led strip light is no longer compromised by voltage loss. Compared to traditional options, these long led strips can achieve continuous runs of 20–50 meters while maintaining perfectly uniform brightness from end to end. This not only reduces the need for frequent power supply placement but also significantly enhances installation efficiency and the final visual impact of the project.
Constant Current Solutions Across Different LED Types
To meet the demands for ultra-long runs, consistent brightness over distance, and minimized voltage drop, constant current technology is widely integrated into various LED strip structures. Depending on the light source packaging, the most common constant current solutions found in engineering projects include:
Constant Current COB LED Strip
COB (Chip on Board) utilizes high-density chip packaging to create a seamless, dot-free lighting effect. When integrated with a constant current IC, this cob led strip light significantly enhances performance consistency over extended distances.
Key Features:
- Continuous Surface Light Source: Provides a uniform glow without any dot shadowing.
- Extended Installation Range: Ideal for long led strips setups spanning 10 to 50 meters.
- Professional Applications: Commonly used in commercial linear lighting, hotel coves, and architectural decorative projects as a high-end strip of white led lights solution.
2835 SMD Constant Current LED Strip
The 2835 package is widely recognized in engineering for its compact size and high luminous efficiency, making it the most common constant current solution.
Key Features:
- Mature structure with an ideal balance between cost and performance.
- Supports extended wiring distances (typically 10–20 meters).

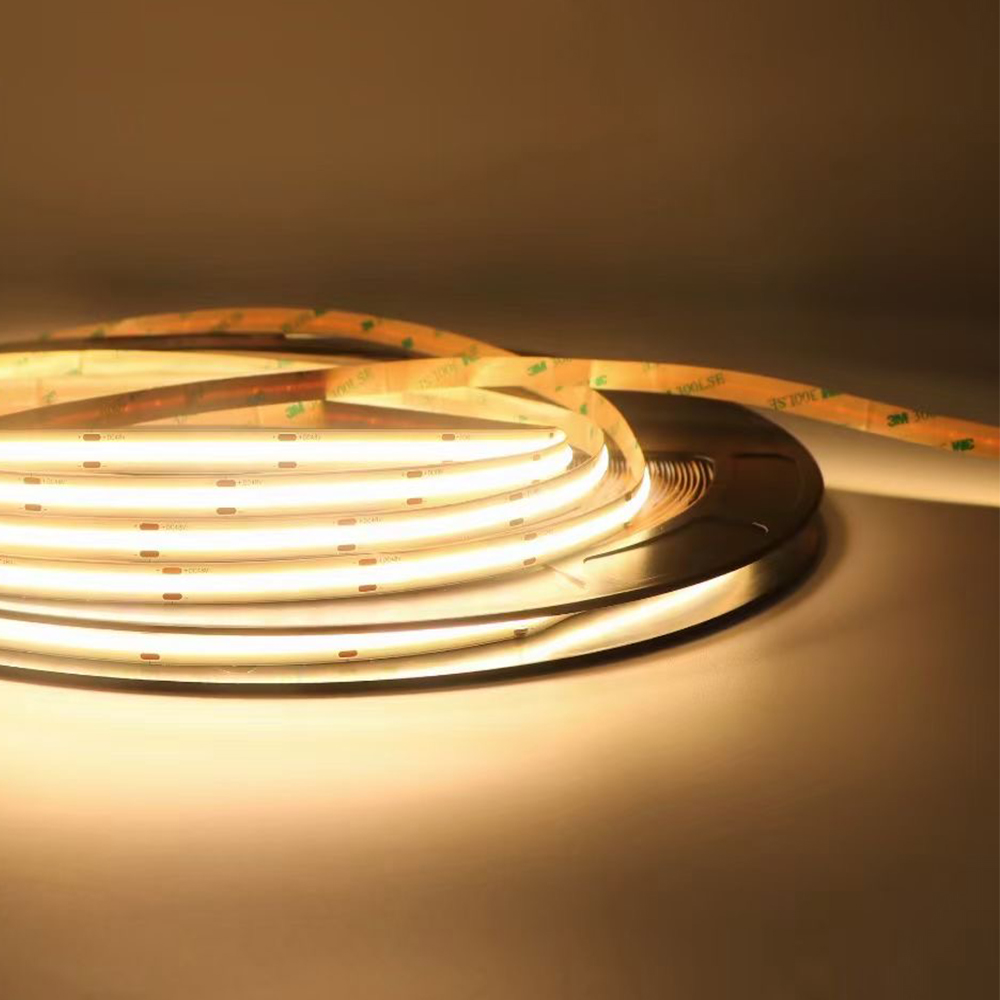

- Suitable for under cabinet kitchen led strip lights, ceiling coves, and retail display lighting.
5050 SMD Constant Current LED Strip
As a multi-chip package, the 5050 is frequently used in RGB and RGBW full-color control scenarios. The constant current architecture minimizes color deviation over long distances and improves the consistency of 3-chip or 4-chip light output.
Key Features:
- Ideal for color ambiance, architectural lighting, and light shows.
- Ensures color uniformity across multi-chip LEDs.
- Supports longer series installations, reducing the need for repetitive power supply points.
Other Constant Current LED Strips (e.g., 2216, 3528, etc.)
Different package sizes fit different setups, such as narrow channels, flexible layouts, or projects that need higher CRI and brightness.
Product Features
- Constant Current Design for Long-Distance Lighting
Using constant current IC technology, these long led strips can run 20–50m continuously, keeping brightness uniform and color temperature stable without dimming or shifting at the end. - High Uniformity and Multiple LED Types
The COB surface light source provides continuous light without dot spots. It supports 2835, 5050, RGB, RGBW, and RGBCCT to meet different project needs as a professional cob led strip light solution. - Adjustable Color and High CRI
Supports warm white, cool white, and full-color light with optional high CRI Ra90. This under cabinet kitchen led strip light flexibly fits commercial, residential, and outdoor scenes with excellent color reproduction effects. - Easy Installation and High Stability
Optimized circuits and copper layout reduce heat and extend lifespan. Long runs need fewer power connections, making installation easier and the layout cleaner.
Product Specification
Below is LW Lighting’s product specification
| Part NO: | HL-COB077 | HL-COB078 | HL-COB079 |
| LED Qty: | 360pcs per meter | 360pcs per meter | 360pcs per meter |
| CRI (RA) | >90 | >90 | >90 |
| PCB Width IP20: | 8mm | 8mm | 8mm |
| Input Voltage: | DC24V | DC24V | DC24V |
| Watts: | 5W | 7W | 10W |
| Luminous Flux: | 100LM / W | 100LM / W | 100LM / W |
| Color: | 2700/3000/4000/6000K | 2700/3000/4000/6000K | 2700/3000/4000/6000K |
| PCB color: | White | White | White |
| IP Grade: | IP20 | IP20 | IP20 |
| Operating temperature: | -25 to 45℃ | -25 to 45℃ | -25 to 45℃ |
| Beam angle: | 120 degree | 120 degree | 120 degree |
| Certification: | CE; RoHS | CE; RoHS | CE; RoHS |
| Max Run: | 10M | 15M | 20M |
| Min Run: | Cut Free | Cut Free | Cut Free |
LW Lighting’s constant current LED strips support multiple customization options to meet specific project requirements:
- Packaging & Branding: Customized packaging, manuals, labels, and PCB logo printing.
- Performance Customization: Adjustments to LED density, PCB width, waterproof ratings, color temperature, and Color Rendering Index (CRI) based on project needs.

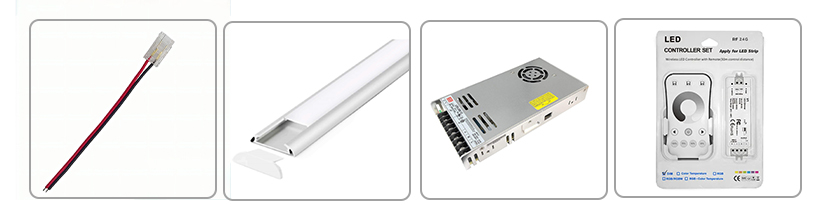

Accessories
LW Lighting provides a one-stop solution with matching power supplies and controllers to keep brightness stable over long runs and enable dimming or color control. Connectors, extension cables, and clips help keep installation neat, while waterproof accessories protect strips in outdoor or damp areas.
Key Considerations When Purchasing Ultra Run COB LED Strip
1. Project Application and Environment
First, determine where the strip will be installed—indoors or outdoors? Is it for cove linear lighting or architectural facade outlining? Depending on the environment, you must select the appropriate waterproof rating, moisture resistance, and weatherability. Defining the use case will help you find the most suitable light color and brightness.
First, determine where the strip will be installed—indoors or outdoors? Is it for cove linear lighting or architectural facade outlining? Depending on the environment, you must select the appropriate waterproof rating, moisture resistance, and weatherability. Defining the use case will help you find the most suitable light color and brightness.
2. Choosing the Right Strip Type
Constant current strips come in various forms: the cob led strip light provides a continuous surface of light, the 2835 is compact and practical, and 5050/RGB/RGBW/RGBCCT options provide color and dimmable effects. Different packaging determines the light feel, color performance, and installation flexibility. Choose the type based on your desired effect.
Constant current strips come in various forms: the cob led strip light provides a continuous surface of light, the 2835 is compact and practical, and 5050/RGB/RGBW/RGBCCT options provide color and dimmable effects. Different packaging determines the light feel, color performance, and installation flexibility. Choose the type based on your desired effect.
3. Power, Brightness, and Color Temperature
Brightness and color temperature are key to the final effect. High-power long led strips are suitable for large-scale illumination or task lighting, while low-power strips are better for soft ambient light. For color temperature, warm white is comfortable and natural, while cool white is clean and sharp. Tunable white or RGB can further enhance atmosphere and color.
Brightness and color temperature are key to the final effect. High-power long led strips are suitable for large-scale illumination or task lighting, while low-power strips are better for soft ambient light. For color temperature, warm white is comfortable and natural, while cool white is clean and sharp. Tunable white or RGB can further enhance atmosphere and color.
4. Voltage, Power Supply, and Controllers
The strip voltage must match the power supply, otherwise it may not light properly or could even be damaged. If the project needs dimming, zone control, or color effects, a compatible controller is required. For single-color strips, a power supply alone is usually enough. For long runs, planning the power supply position and wiring in advance helps keep installation simple and the lighting result clean.
The strip voltage must match the power supply, otherwise it may not light properly or could even be damaged. If the project needs dimming, zone control, or color effects, a compatible controller is required. For single-color strips, a power supply alone is usually enough. For long runs, planning the power supply position and wiring in advance helps keep installation simple and the lighting result clean.

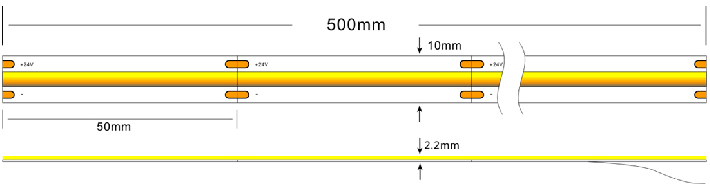

Dimensions

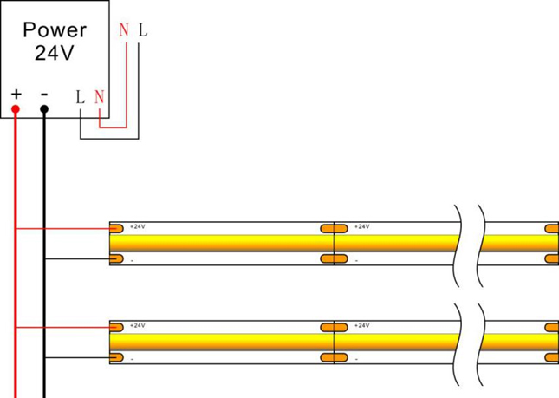

Connect Drawing
Application Cases

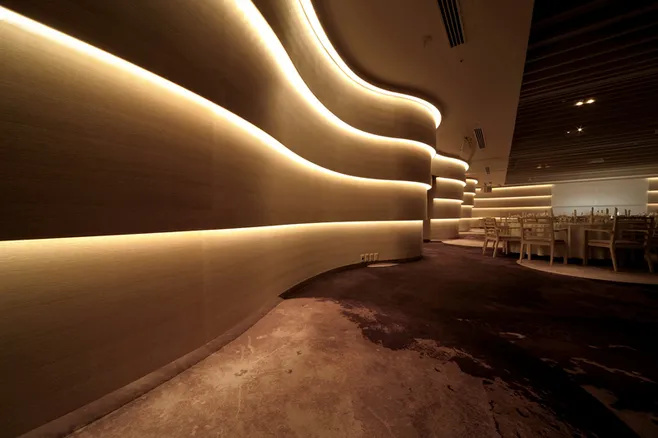

Continuous Lighting for High-End Hotels and Building Facades
Client Needs: The hotel lobby ceiling and exterior facade required continuous, dot-free linear light to create a premium indoor atmosphere and ensure night-time visibility resistant to weather and environment.

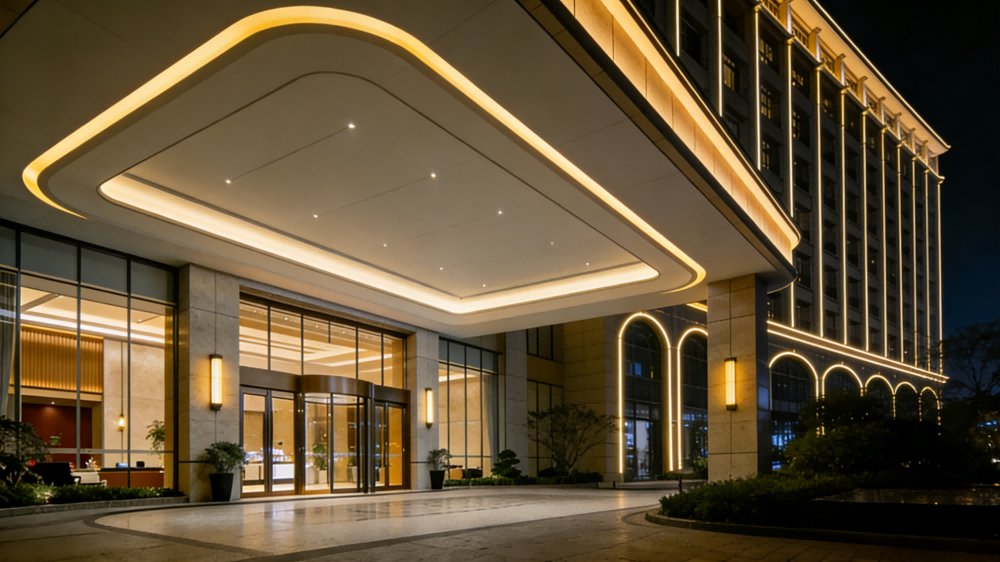

Solution: A constant current COB LED strip was used. Indoor lobby runs reached about 25 m continuously, while outdoor waterproof versions (IP67) extended to outdoor LED strip lights 100ft. With proper power planning and a constant current design, the long runs kept stable brightness and consistent color temperature, while wiring stayed clean and organized.
Result: The lobby lighting looks soft and even, enhancing the luxury feel. The facade lines appear clear and continuous, making the building more recognizable at night.
REQUEST A QUOTE
"If you are looking for stable, long-distance lighting solutions for large-scale projects, contact our engineering team today for detailed product specifications and customized advice to achieve the best lighting performance and construction efficiency for your project."
Contact our engineering team now to receive:
- Detailed specifications and selection guides for long led strips (Constant Current COB).
- Customized project solutions and construction advice for your cob led strip light installation.
- Success stories and reference renderings.
