Dual White RGB LED Strip: Multi-Scene Lighting Solutions
In many commercial and engineering lighting projects, clients are increasingly demanding higher lighting quality: not only do they require vibrant, multi-colored LED strip lights to create atmospheric lighting, but they also wish to provide comfortable led warm white strip lighting within the same space to meet daily lighting and functional needs.
Traditional RGB flexible strip of LED lights can offer a rich array of colors but is limited in creating a soft warm white ambiance. On the other hand, installing a separate led warm white strip would complicate wiring, take up more space, and increase both installation and maintenance costs. For designers and contractors, this means a more cumbersome lighting system, increased construction complexity, inconsistent dimming and control, lower project delivery efficiency, and higher maintenance costs.
The Dual White RGB LED Strip integrates RGB full-color sources with a dedicated warm white channel (WW) into a single LED light strip, and is equipped with a remote control or smart control system. It allows for flexible switching between 2700K warm white and 6500K cool white, fulfilling a wide range of lighting requirements.
Wide Application Scenarios
- Commercial spaces and retail displays: Create themed atmospheres, festive displays, or color scenes, while enhancing the true texture of products through adjustable white light with LED light strip dimmer.

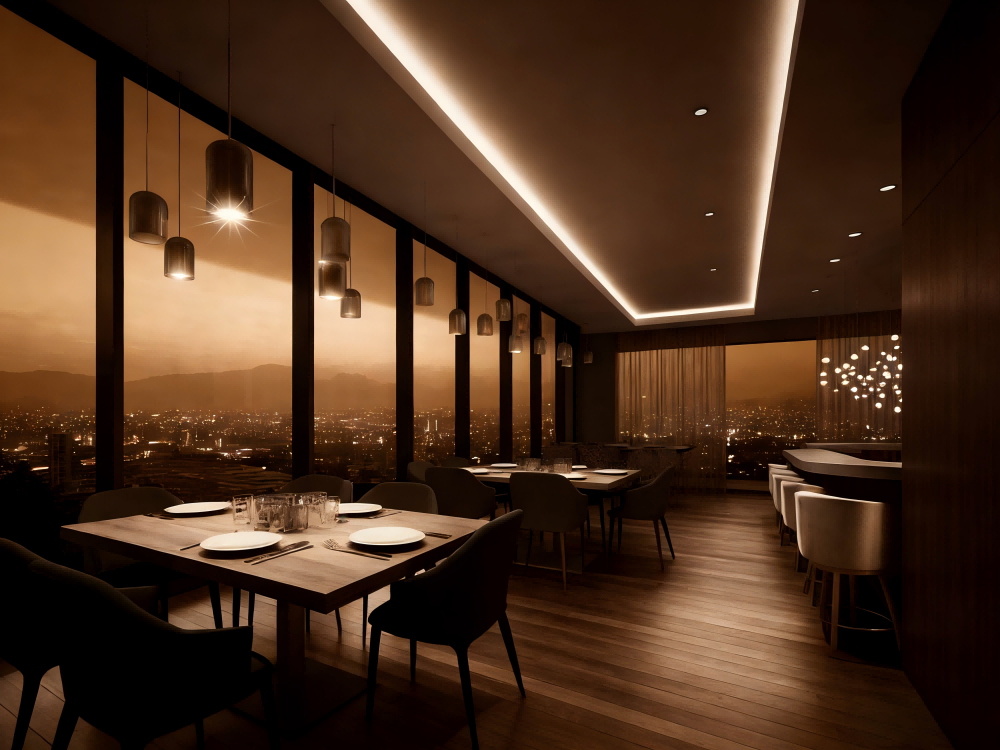

- Hotel and restaurant lighting: White light meets daily primary lighting needs, while the multi color LED strip mode can create festive, party, or themed nighttime atmospheres.
- Smart home lighting: Living rooms, bedrooms, and media rooms can seamlessly switch between "functional lighting" and "ambient light" with indoor LED strip lights, offering flexibility and comfort.
- Architectural and interior projects: The flexible strip of LED lights can be customized in terms of length, light effect, and control methods, meeting personalized design needs and enhancing the sense of space quality.

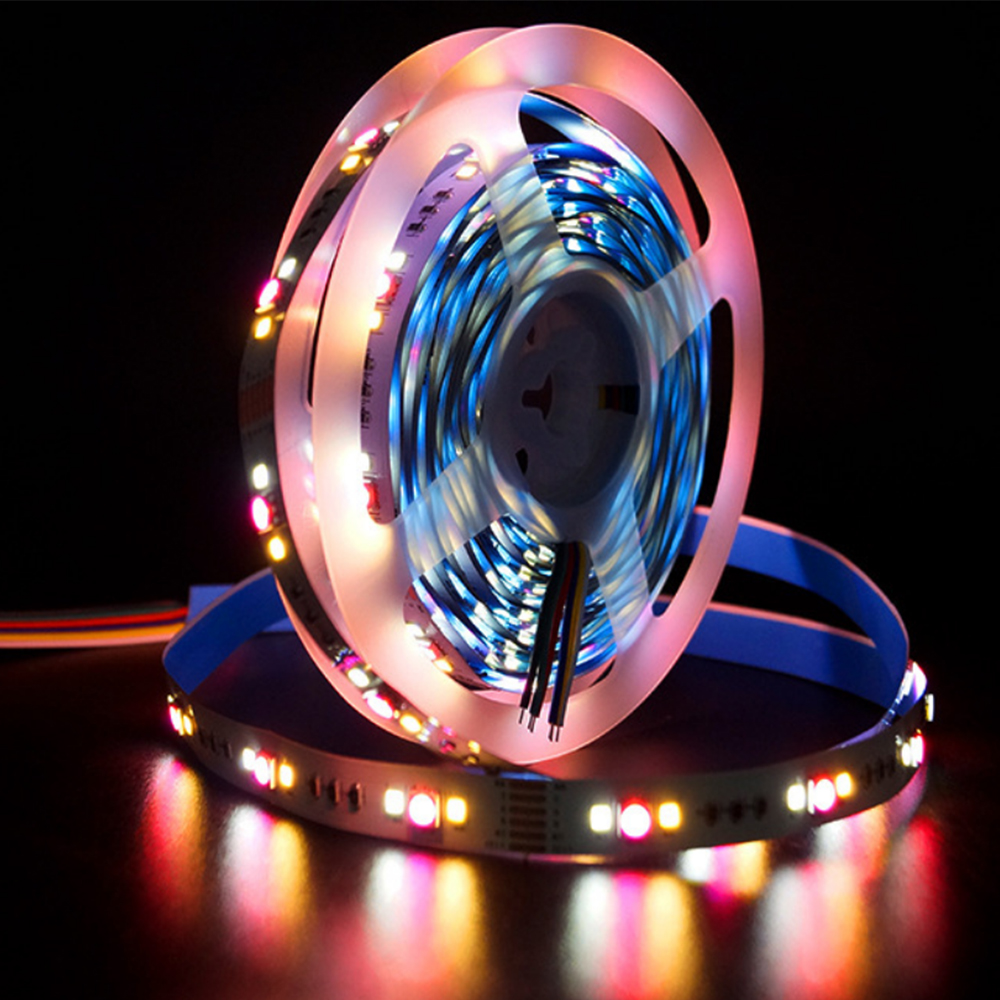

What is RGB+WW+CW LED Strip?

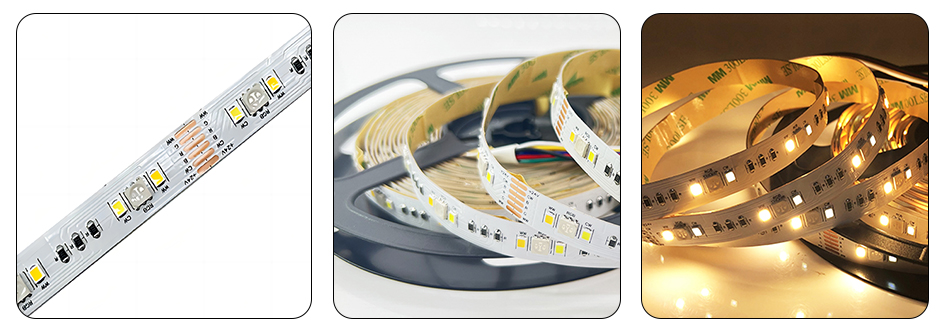

The RGB+WW+CW LED Strip is a versatile multi color LED strip that combines SMD 5050 RGB LEDs with 2835 warm white (WW) and cool white (CW) LEDs, each soldered onto the PCB board. It offers both RGB colored lighting and adjustable color temperature white light functionality, enabling independent control of color and white light through a multi-channel design.
Product Features
High Brightness and High Color Rendering
The combination of 5050 RGB LEDs and 2835 white light LEDs provides higher brightness and excellent color rendering, while ensuring even light distribution to create a natural and comfortable lighting effect in the space with indoor LED strip lights.
Wider Color Temperature Range
The independent warm white (WW) and cool white (CW) channels support an adjustable color temperature range from 2700K to 6500K. This flexibility allows for easy adjustments to meet different environmental needs, whether in a restaurant, store, or home, providing ideal lighting effects with the LED warm white strip and multi color LED strip for varying settings.
Multi-Channel Light Effect Switching
The RGB+WW+CW LED Strip integrates both colored light and adjustable white light functions. Users can seamlessly switch between vibrant color moods and comfortable functional lighting using a LED light strip dimmer, fulfilling the lighting requirements for various scenarios. The flexible strip of LED lights offers versatile installation options, enhancing the adaptability of the system.
Product Specification
LW Lighting manufactures a variety of flexible LED strip lights. The following are the product specifications for the 5050 RGB+WW LED strip light:
| Model NO. | A0112 |
| Power Consumption | 18W/M |
| Work Voltage | DC24V |
| Work Current | 1A |
| Beam Angle | 120° |
| LED Encapsulation | SMD 5050 Epistar Brand |
| LED Quantity | 60 LEDs/M |
| Color | RGB + WW |
| FPC Color | Yellow or White or Black PCB |
| LED Rated Power | 0.4W / LED |
| Waterproof Grade | IP20/IP65 / IP67 |
Our RGB+WW/CCT LED Strip supports various customizations to meet the needs of different projects:
- Packaging and Labeling: Custom packaging, manuals, and labels are available, and PCB printing of logos is also supported.
- Performance Customization: LED quantity, PCB width, waterproof rating, color temperature, and color rendering index (CRI) can be customized according to project requirements.

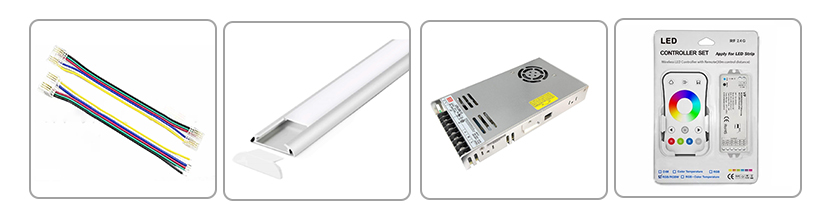

Accessories
LW Lighting provides a full set of accessories, including connectors, aluminum profiles, power supplies, and controllers, ensuring easy and quick installation and wiring. This setup guarantees the stability and safety of the LED light strip system, improving construction efficiency and simplifying maintenance.
Dimensions
A0112-24V-60LEDs
Connect Drawing
RGB+CCT LED Strip FAQ
1. Can this RGB+CCT LED strip be used as indoor LED strip lights?
Yes. RGB+CCT LED strips are widely used for indoor lighting applications such as bedrooms, living rooms, kitchens, offices, hotels, and retail spaces. They provide both colorful lighting effects and adjustable white light to meet different lighting needs and create various atmospheres.

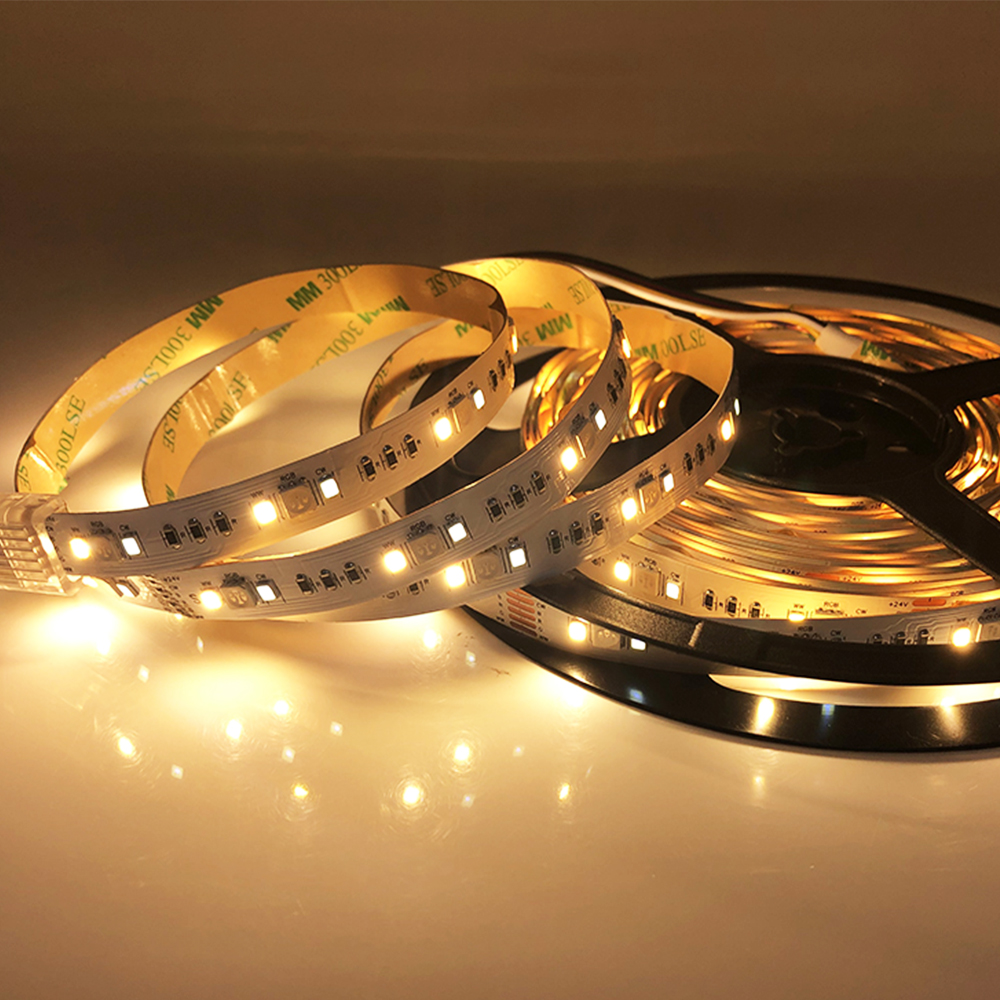

2. Can this LED strip produce warm white light?
Yes. Unlike standard RGB LED strips, RGB+CCT LED strips feature two dedicated white light channels, including warm white (2700K) and cool white (6500K). This multi-color-temperature LED strip can be used as a warm white LED strip, allowing users to adjust the color temperature between warm white and cool white according to different application requirements.
3. Is an RGB+CCT LED strip considered a multi-color LED strip?
Yes. An RGB+CCT LED strip is a type of multi-color LED strip that combines millions of RGB color options with adjustable white light. Compared with traditional RGB or single-color LED strips, it offers greater flexibility for both decorative and functional lighting applications.
4. How flexible is this LED strip for installation?
This LED strip features a flexible PCB design, providing excellent flexibility and adaptability. It can be installed on ceilings, cabinets, shelves, display cases, and other curved or irregular surfaces, making it suitable for various indoor lighting projects.
5. Can a dimmer be used with an RGB+CCT LED strip?
Yes. You can use a compatible LED strip dimmer or RGB+CCT controller to adjust brightness, color temperature, and RGB color effects. For the best performance, we recommend using a dedicated RGB+CCT controller. Please check how to use the 5-in-1 controller:
Get More Information
As a professional LED lighting manufacturer, LW Lighting offers high-quality, customizable LED strip lights and accessories for commercial, residential, and engineering projects. With advanced R&D and strict quality control, we help customers achieve high brightness, multi-colored lighting, and adjustable color temperature with flexible strip of LED lights.
Contact LW Lighting for product specs, custom solutions, or sample support for a reliable, one-stop LED light strip solution!
