How can you ensure that lighting responds rapidly and renders every color and effect with precision in demanding environments like bars, KTVs, dynamic displays, creative exhibitions, or large-scale events? Have you ever struggled with lighting delays, inaccurate colors, or stuttering dynamic effects? These issues can severely undermine the venue's atmosphere and the audience's experience, especially when synchronization with music or live performances is critical.
The LW Lighting High-Speed Digital LED Strip, with its exceptional high refresh rate and low latency, delivers smoother color transitions and dynamic effects, instantly elevating the visual appeal of any space. As a provider of the best quality led strip, we offer solutions widely used in:

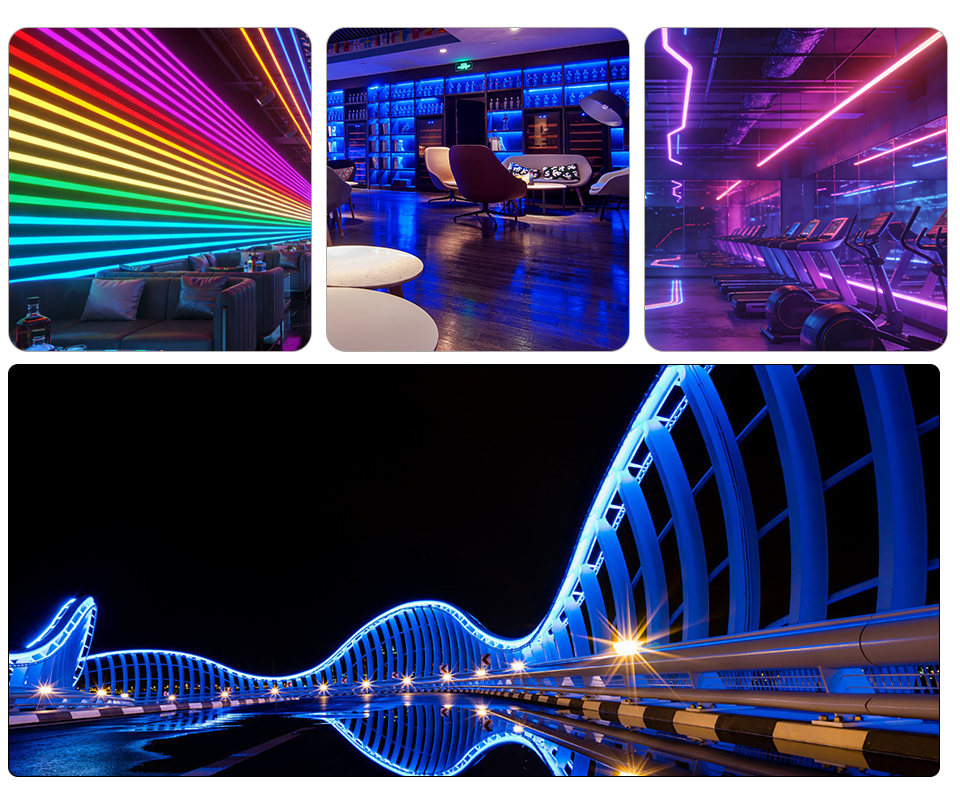

- Entertainment Venues: Providing dynamic and cool lighting for bars and nightclubs to enhance interactivity and ambiance.
- Stage Lighting: Delivering precise transitions and dynamic effects that sync with performances to deepen audience immersion.
- Architectural Lighting: Highlighting building contours with delicate control to create unique light and shadow effects.
- Commercial Lighting: Designing modern, attractive commercial spaces that improve customer experience and brand image.
- Lighting Exhibitions: Offering flexible and diverse effects for creative displays, such as led room light strips used in immersive booths to capture attention.
- Light Shows: Perfect for festivals and large-scale shows, flawlessly presenting the dynamism and artistry of light.
What is High-Speed Digital LED Strip LED Strip？

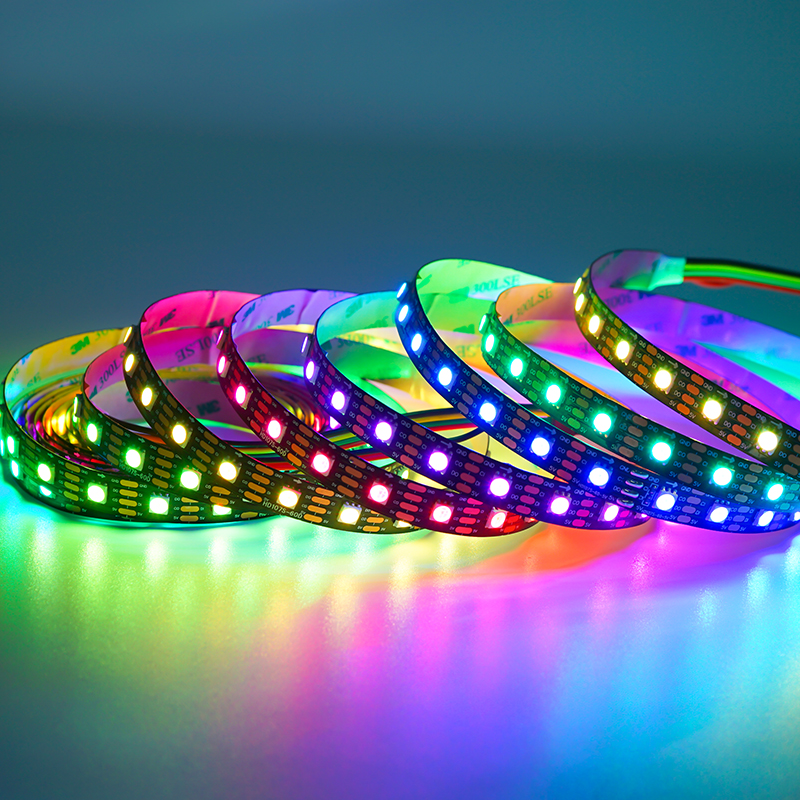

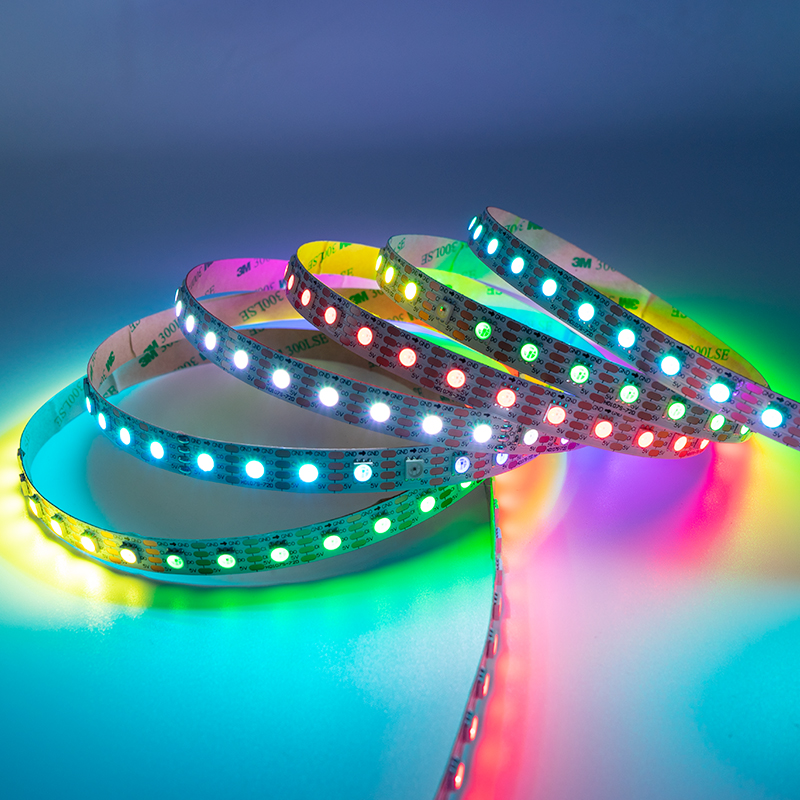

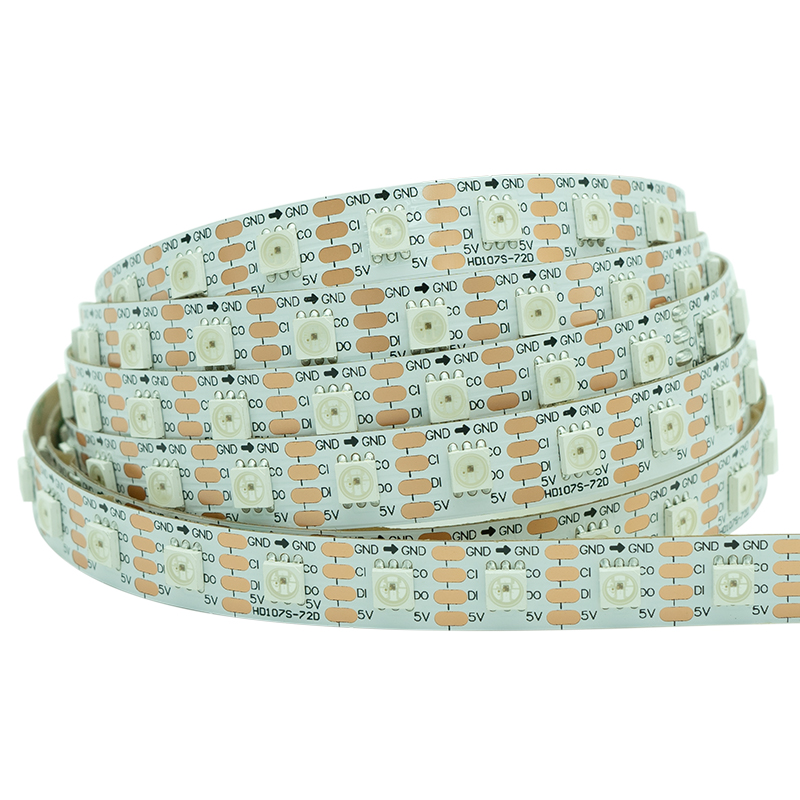

The High-Speed Digital LED Strip is a programmable lighting solution specifically designed for environments requiring high refresh rates and rapid response times. Popular models such as the HD107S, APA102C, and SK9822 addressable RGB strips support full-color variations and individual pixel control. These high-performance options, including our 5v led strip lights, enable seamless color transitions and complex animation effects. For large-scale installations requiring synchronized visuals, this technology acts as a continuous led strip light rgb system, ensuring smooth, uninterrupted lighting patterns across the entire venue.
HD107S, APA102, and SK9822: Key Differences
HD107S, APA102, and SK9822 are all digital control LED driver ICs used for pixel-addressable strips. While they share similar functional principles, their technical performance varies significantly:
| Feature | HD107S | APA102 | SK9822 |
| Data Transmission | 40MHz | 30MHz | 30MHz |
| Refresh Rate | 30kHz | 20kHz | 20kHz |
| Brightness | Stable brightness output | Potential color shift at high brightness | Potential color shift at high brightness |
| Protocol | Serial clock sync(supports continuous PWM) | Serial clock sync | Single-wire clock sync |
| Voltage Drop | Minimal; excellent consistency over 5m | Moderate;possible dimming over long distances | Higher;often requires multi-point power injection |
| Key Advantage | Highest stability and PWM output | Simple structure, wide compatibility | High integration, but requires better heat sinking |

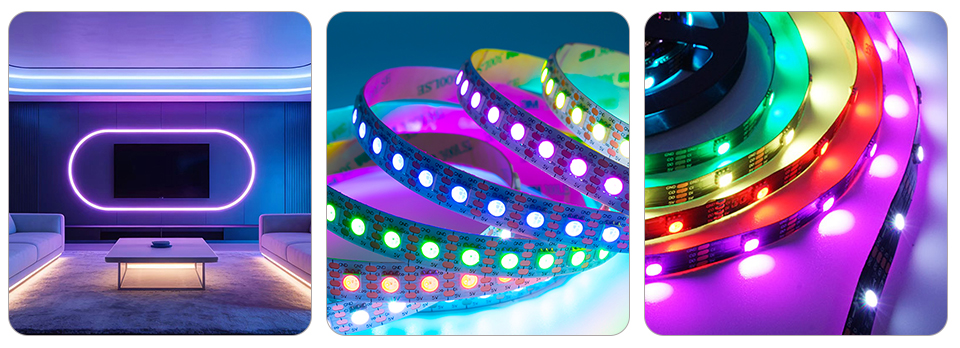

HD107S: This IC offers the best performance in terms of brightness consistency, transmission speed, and stability. It is ideal for high-requirement scenarios, such as long-distance decorations, dynamic lighting effects, or premium behind tv led strip applications where precision is paramount.
Product Features
High-Quality LED Chips: Utilizing pure gold wire and copper brackets with 9x9 mil chips, this best quality led strip offers enhanced luminous efficiency and durability, ensuring high brightness and color consistency over long-term use.

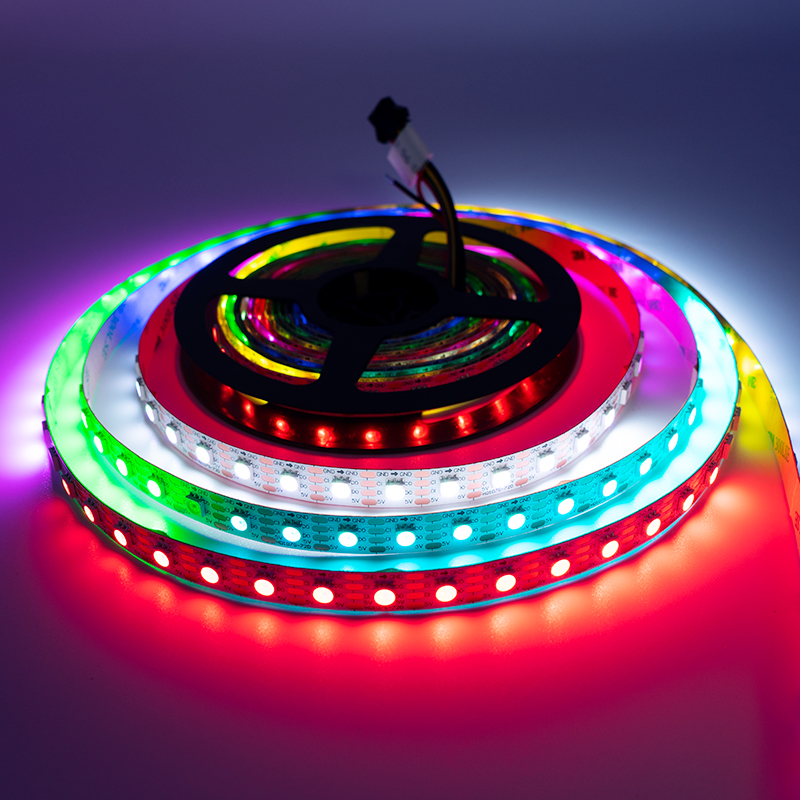

Precision Lighting Effects: Featuring a built-in 5v led strip lights architecture, each LED is individually controlled. This allows for finer, more dense color transitions, perfectly rendering complex effects like dynamic light shows, gradients, and jumping patterns.

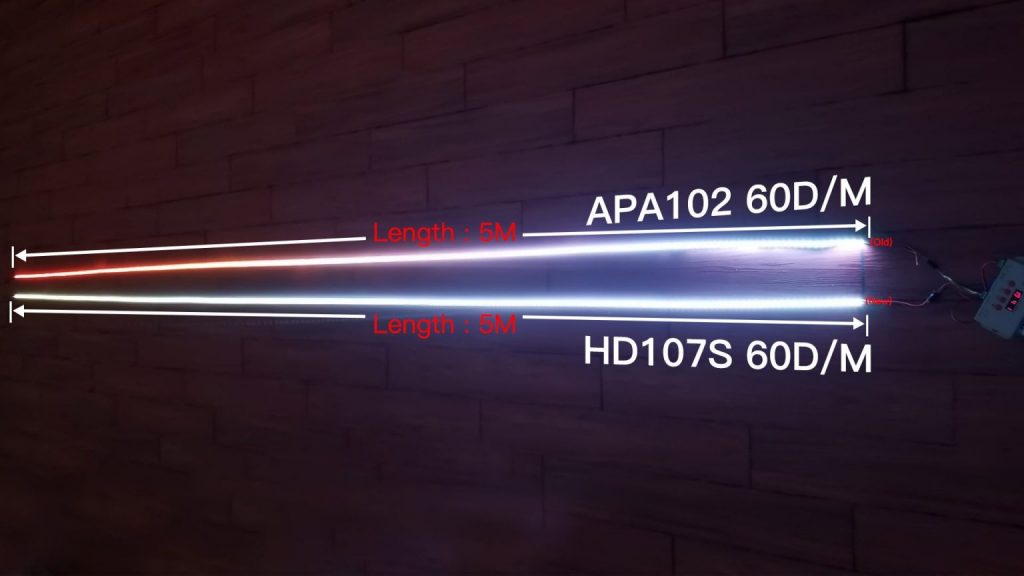

Low Voltage Drop Design: The HD107S features a voltage drop 50% lower than similar products. This ensures stable brightness and uniform lighting effects over long distances, effectively eliminating dimming issues.
Compatibility and Upgrade Potential: As a superior replacement for the APA102, the HD107S supports higher transmission speeds (up to 30MHz) for smoother dynamic effects. Compared to its predecessor, it delivers higher brightness and lower voltage drop, ensuring more stable performance during extended operation.
Product Specification
Below is LW Lighting’s product specification
| Part No: | Input Voltage | IC type | LED Quantity | IC QTY | PCB width: | Color | Max Power | Min Cut | IP Grade | Control signal: |
| LW-D0011 | 5V | HD107S | 30leds/m | 30 | 10mm | Addressable RGB | 9W/M | 33.08mm | IP20 | SPI |
| LW-D0012 | 5V | HD107S | 60leds/m | 60 | 12mm | Addressable RGB | 18W/M | 16.54mm | IP20 | SPI |
| LW-D0013 | 5V | HD107S | 72leds/m | 72 | 12mm | Addressable RGB | 21.6W/M | 13.88mm | IP20 | SPI |
| LW-D0014 | 5V | HD107S | 96leds/m | 96 | 12mm | Addressable RGB | 28.8W/M | 10.41mm | IP20 | SPI |
| LW-D0015 | 5V | HD107S | 144leds/m | 144 | 12mm | Addressable RGB | 42W/M | 6.9mm | IP20 | SPI |
LW Lighting provides customers with a wide range of customization options, from packaging design and label printing to PCB logo branding, helping every project meet its unique requirements.
- Packaging & Branding: Customized packaging, manuals, labels, and silk-screened logos on the PCB.
- Performance Customization: We can adjust parameters based on specific project needs, including LED density, PCB width, waterproof ratings, color temperature, and Color Rendering Index (CRI). Whether you need a specialized behind tv led strip for a hospitality project or a continuous led strip light rgb system for large-scale installations, we can tailor the specifications to your site.

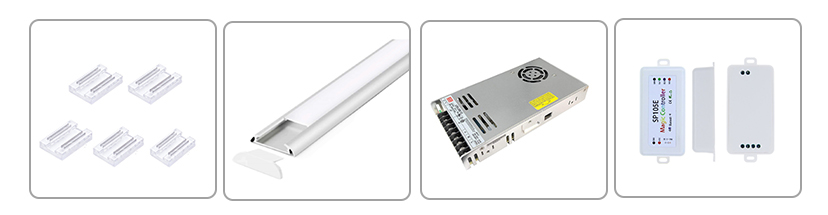

Accessories
LW Lighting provides full-spectrum support with high-quality LED strip accessories to ensure easy installation and perfect performance. Our range of power supplies, connectors, and controllers guarantees stable operation, catering to a variety of led room light strips for residential use, as well as complex commercial and outdoor lighting requirements.
Dimensions

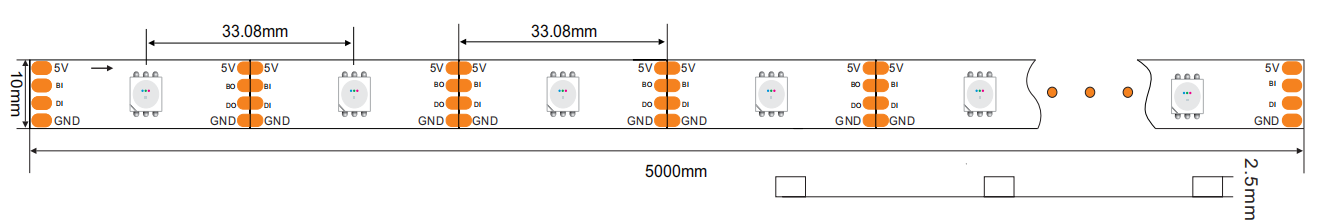

LW-D0011-5V-30 LEDs/M

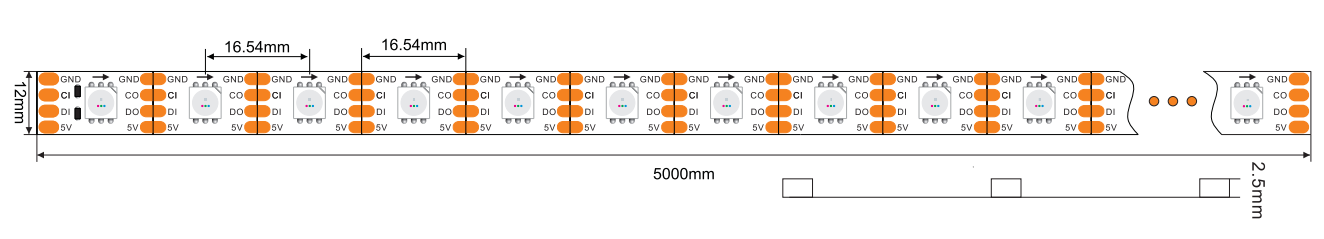

LW-D0012-5V-60 LEDs/M

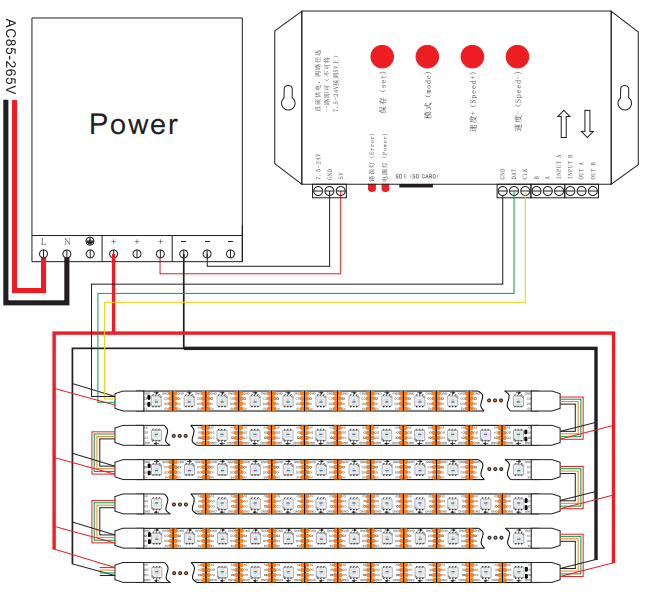

Connect Drawing
REQUEST A QUOTE
High-speed digital LED strips have become the leading choice in the field of creative lighting due to their exceptional refresh rates, precise color control, and dynamic effects. Whether for stage performances, light shows, or commercial spaces, the HD107S, APA102C, and SK9822 provide flawless lighting performance. From large-scale architectural projects to specialized led room light strips, these solutions ensure a premium visual experience.
Inquire now to learn more about the application cases and technical advantages of high-speed digital LED strips, and receive professional advice for your next project.
