During on-site work, the connection stage is typically where problems are most likely to occur. Issues such as loose wiring, unstable solder joints, reversed polarity, or inconsistent installation standards can result in partial outages or circuit failures — ultimately increasing rework rates and impacting project timelines and delivery quality.
The connection process largely depends on manual on-site operations, making consistency and stability difficult to fully control. This remains one of the primary factors affecting installation efficiency and system reliability.
LED strip lights connectors offer a more controlled approach to making connections. Through standardized structural design, they enable rapid mating after the strip is cut, reducing reliance on soldering and making the installation process more efficient, consistent, and dependable.
LW Lighting's connectors for LED light strips are purpose-built for linear lighting systems, balancing ease of operation with broad compatibility. With options including wire-to-strip, terminal-style, jumper, and solderless snap-in types — including led strip connector 2 pin and led light strip connectors 4 pin configurations — they accommodate a wide range of installation scenarios for secure, consistent connections.
Whether you're splicing strips, connecting to a power supply, navigating corners, or managing multi-point branch wiring, these solutions enable fast installation and clean cable management — significantly improving installation efficiency and reducing long-term maintenance risks.
What Is LED Connector?
An LED strip connector is an electrical component used to join LED strips together or connect a strip to a power supply. Its core function is to establish a complete circuit without the need for soldering.
The structure typically consists of PCB conductive contacts and metal PIN terminals housed within a plastic casing, achieving a stable conductive connection through physical contact.
In simple terms, led strip lights connectors replace traditional soldering with a plug-and-play approach. This design not only simplifies the installation process but also improves connection reliability, giving users greater flexibility in configuring and deploying LED strip systems.
Whether using an led strip connector 2 pin for single-color strips or led light strip connectors 4 pin for RGB applications, the right connector ensures a secure and consistent fit. In professional project settings, these components are far more than just accessories — rgb led light strip connectors and other connector types serve as critical components that enhance installation efficiency and long-term system stability.
Core Advantages of LED Strip Connectors
LED connectors have been widely adopted across industries, primarily due to the following advantages:
No professional soldering tools are needed. Led strip lights connectors enable quick, tool-free connections that significantly reduce installation time and lower the technical barrier for on-site work, improving overall project efficiency.
Supporting various PIN configurations from 2-pin to 6-pin and compatible with strips of different widths, these connectors are available in multiple structural formats. From an led strip connector 2 pin for single-color setups to led light strip connectors 4 pin for RGB systems, and rgb led light strip connectors for full-color applications, there is a solution for single-color, dual-color, RGB, RGBW, and 5-in-1 strip systems.
3. Reliable Performance in Demanding Environments
Manufactured using high-temperature-resistant and corrosion-resistant materials, connectors for led light strips ensure long-term operational stability and are well-suited for complex or challenging installation environments.
4. Easy Maintenance, Lower Overall Costs
When localized damage occurs, individual connectors can be quickly replaced or reconnected without replacing the entire system — effectively reducing maintenance time and labor costs.
The Main Classification of Connectors
LW Lighting offers a comprehensive LED strip connector product system, covering both waterproof and non-waterproof series to meet the diverse application needs of indoor, outdoor, and commercial lighting projects across more than 200 countries and regions worldwide.
Based on application structure and function, LED connectors are categorized into the following types:
- Non-waterproof Connectors
- Waterproof Connectors
- Plug Connectors
- Distribution Boxes
This product range covers solderless connectors, transparent connectors, hippo-clip connectors, and waterproof connection solutions. Compatible with various PIN configurations and strip widths, they deliver flexible and reliable system connections. The key characteristics of each type are outlined below:
Non-Waterproof Series

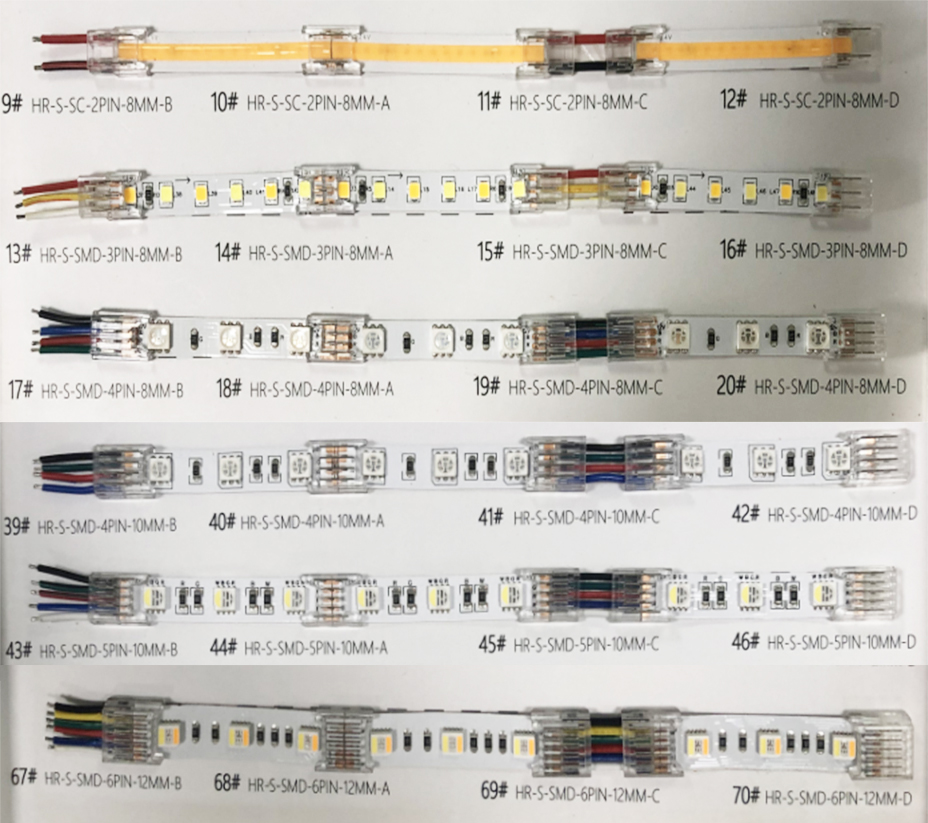

A solderless connector is a mechanical clip-based solution for establishing electrical connections between LED strips — enabling fast, tool-free mating without any soldering.
Internally, metal conductive contacts are used to press against the solder pads of the LED strip, ensuring stable conductivity and streamlining on-site installation.
Depending on PIN configuration, these led strip lights connectors are compatible with a wide range of LED strip types:
- 2 PIN (led strip connector 2 pin): Single-color LED strips
- 3 PIN: Dual-color or CCT LED strips
- 4 PIN (led light strip connectors 4 pin): RGB LED strips
- 5 PIN: RGBW LED strips
- 6 PIN: 5-in-1 LED strips

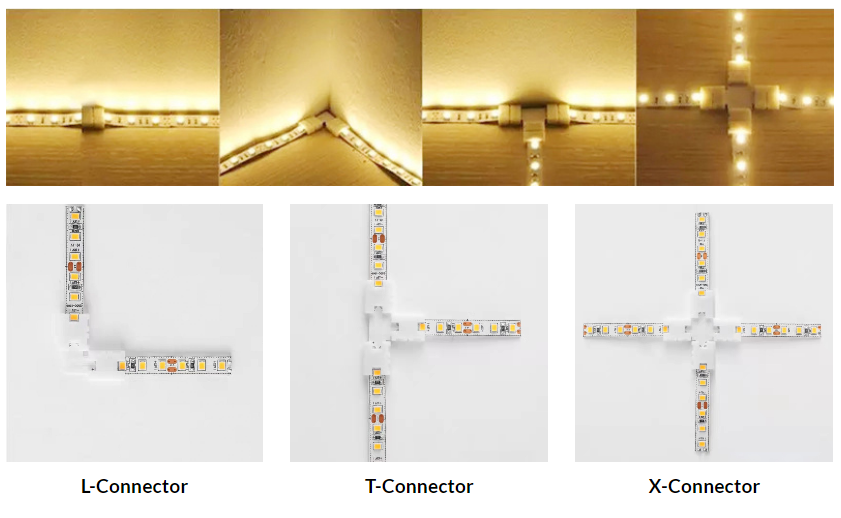

Multiple structural formats are also available to suit different wiring scenarios, including straight, L-shaped, T-shaped, and X-shaped configurations.
Available styles include: Non Waterproof Middle Connector ，Non Waterproof Corner Connector，Non Waterproof Strip to Wire Connector

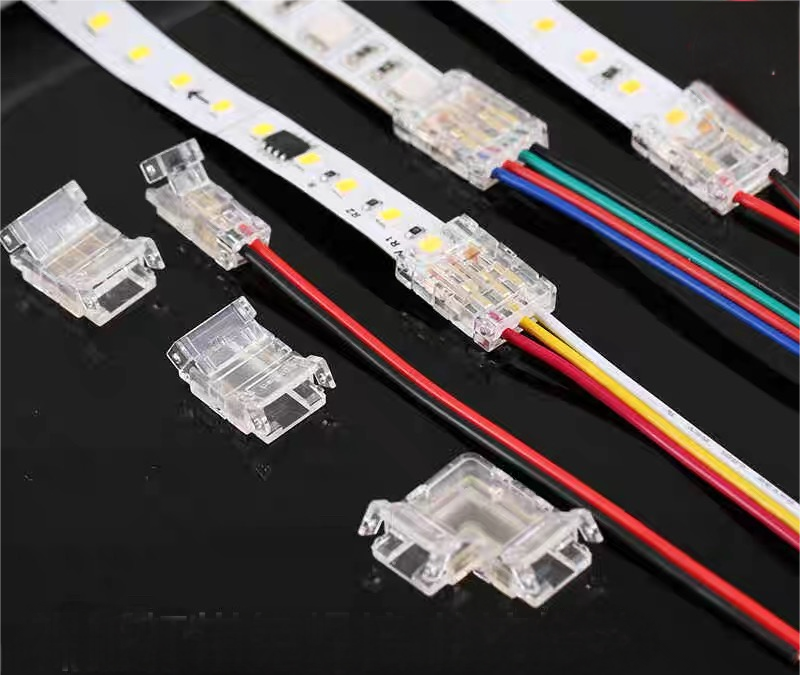

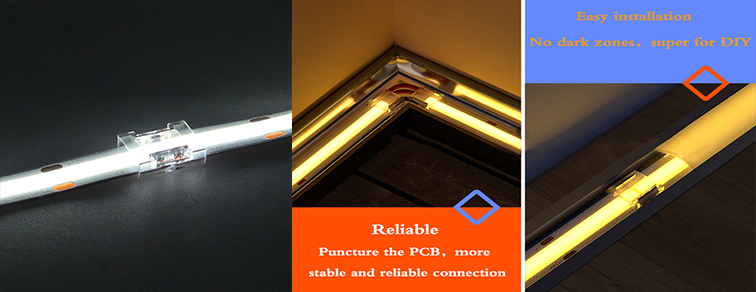

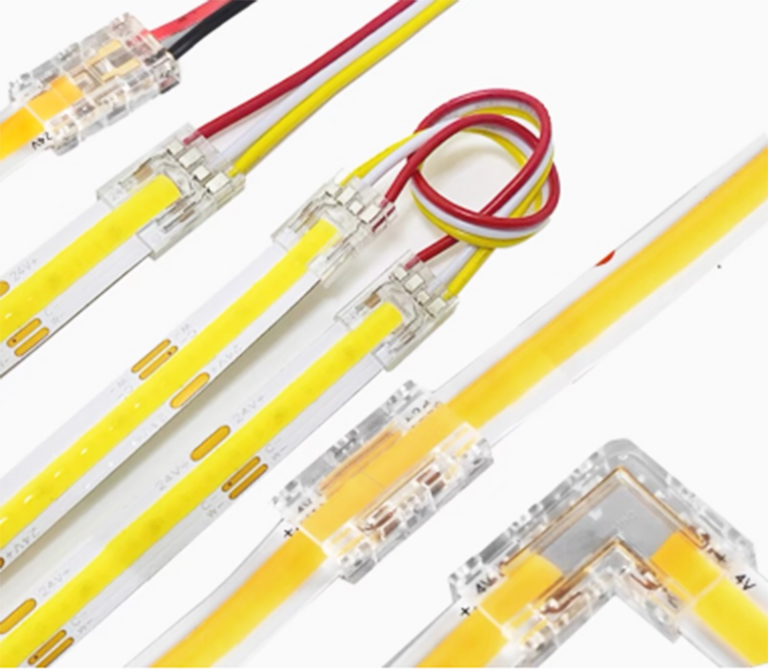

Transparent connectors feature a high-clarity plastic housing combined with metal PIN conductive internals. This design ensures stable electrical connections while minimizing obstruction to light transmission, resulting in a cleaner and more discreet overall appearance.
This connector type is available in two primary application formats:
- Type A — Strip to Wire: Used to connect an LED strip to a power cable or driver
- Type B — Strip to Strip: Used for straight-line splicing between two LED strip sections
Transparent led strip lights connectors support a wide range of LED strip specifications, with PIN configurations from 2-pin to 6-pin — accommodating single-color, dual-color, RGB, RGBW, and 5-in-1 strip types. They are also compatible with PCB widths ranging from 6mm to 12mm, meeting the demands of various structural and installation requirements while offering greater adaptability without compromising connection stability.
Based on installation method, they are further divided into:
- Non-Waterproof Middle Connector (straight-line connection)
- Non-Waterproof Corner Connector (corner connection)
- Non-Waterproof Strip to Wire Connector (strip-to-wire connection)

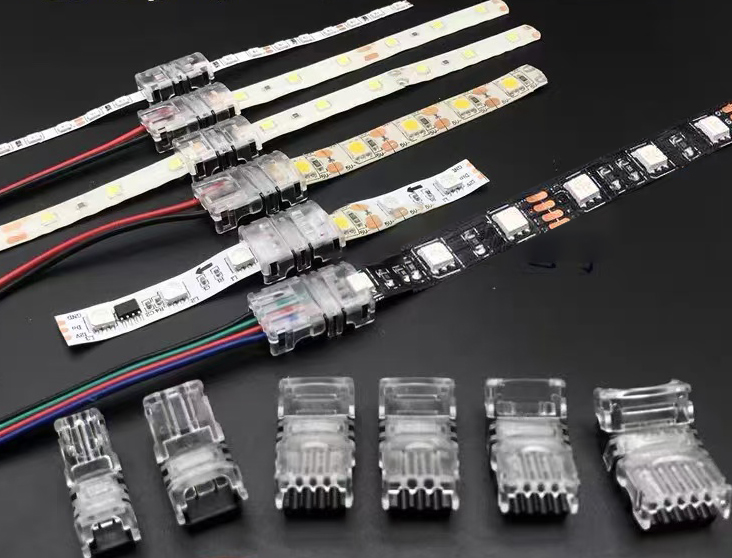

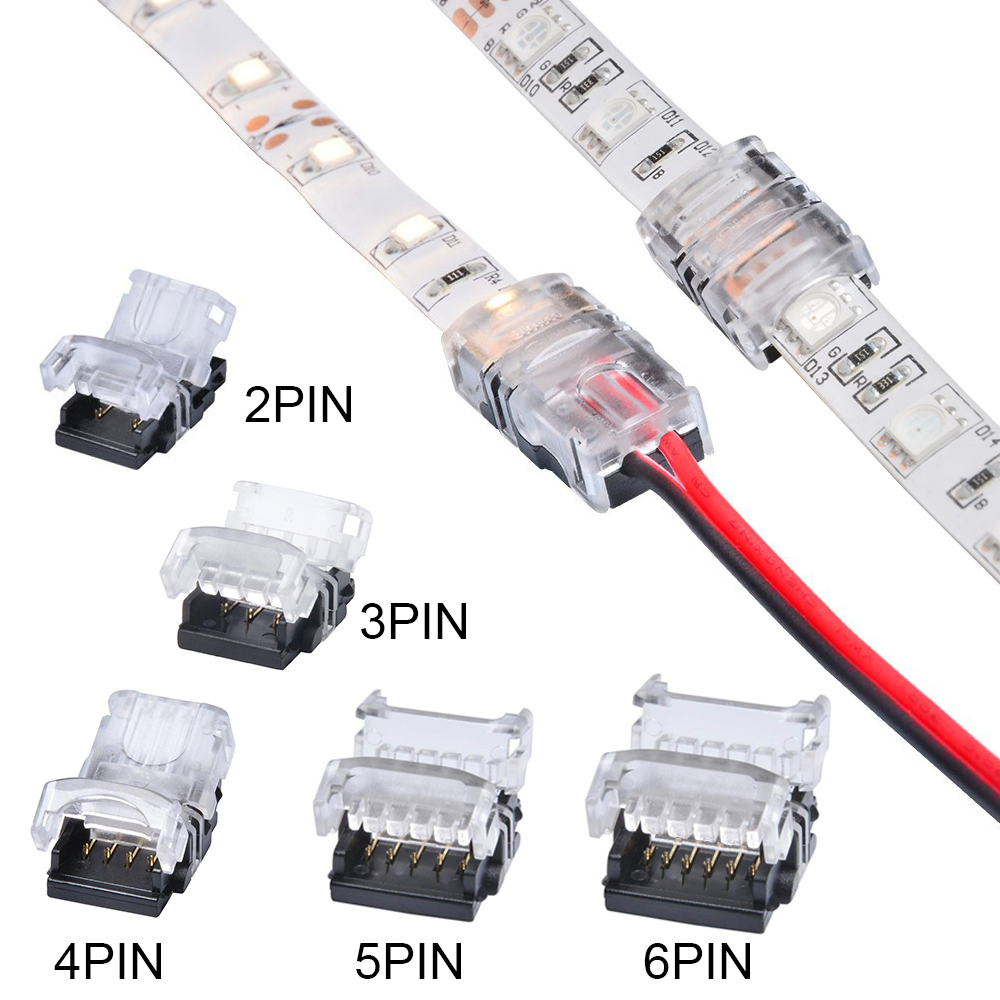

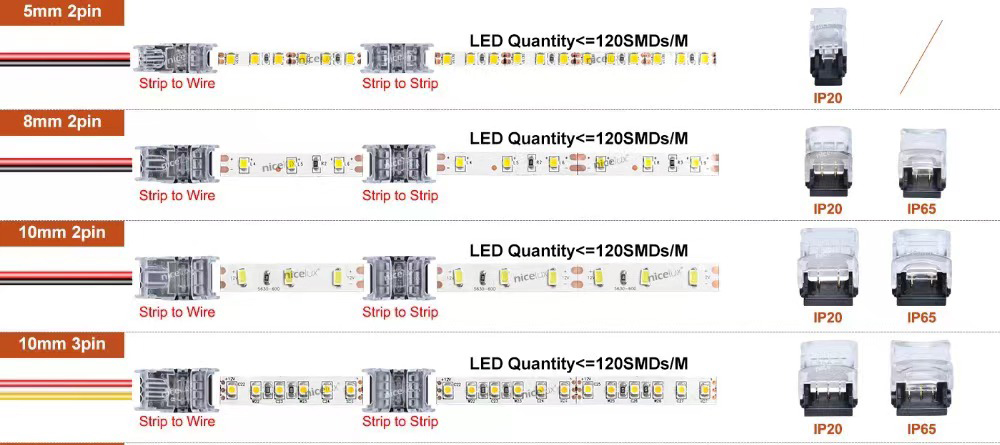

Hippo-clip connectors feature a snap-press mechanical structure and are available in both IP20 and IP65 protection ratings, making them suitable for a variety of environmental application requirements.
With PIN configurations ranging from 2-pin to 6-pin and PCB width support from 5mm to 12mm, these connectors for led light strips accommodate both strip-to-strip and strip-to-wire connection methods. This versatility makes them a flexible and reliable choice across a wide range of LED strip installation scenarios.
How to Use Hippo-Clip Connectors ：

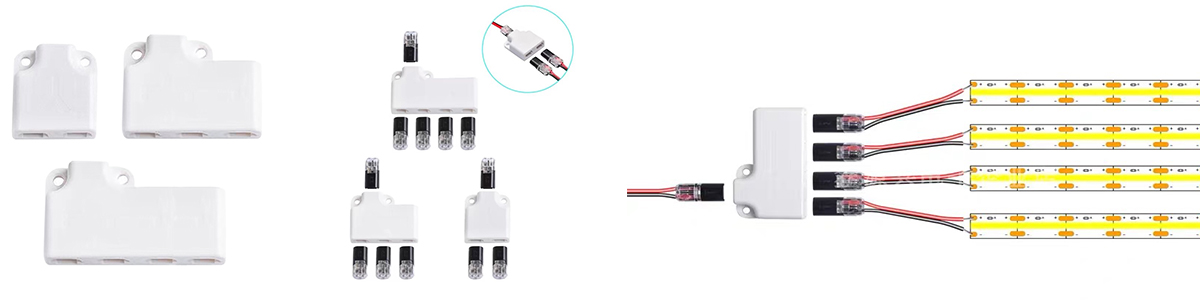

The wire connection system consists of Plug Connectors and Distribution Boxes, which can be used independently or in combination. Supporting one-to-two, one-to-three, and one-to-four distribution configurations, this system accommodates a wide range of wiring layouts and project requirements.
Plug Connectors are designed for fast connection between LED strips and power supplies, offering convenient plug-and-play operation and efficient installation. Distribution Boxes enable single-input to multi-output power distribution, helping to optimize wiring structure and improve overall system organization and manageability.
Our led strip lights connectors product lineup includes both Plug Connectors and Distribution Boxes. These connectors for led light strips can be used together or separately, with one-to-two, one-to-three, and one-to-four configurations available to suit diverse installation needs.
Waterproof Series

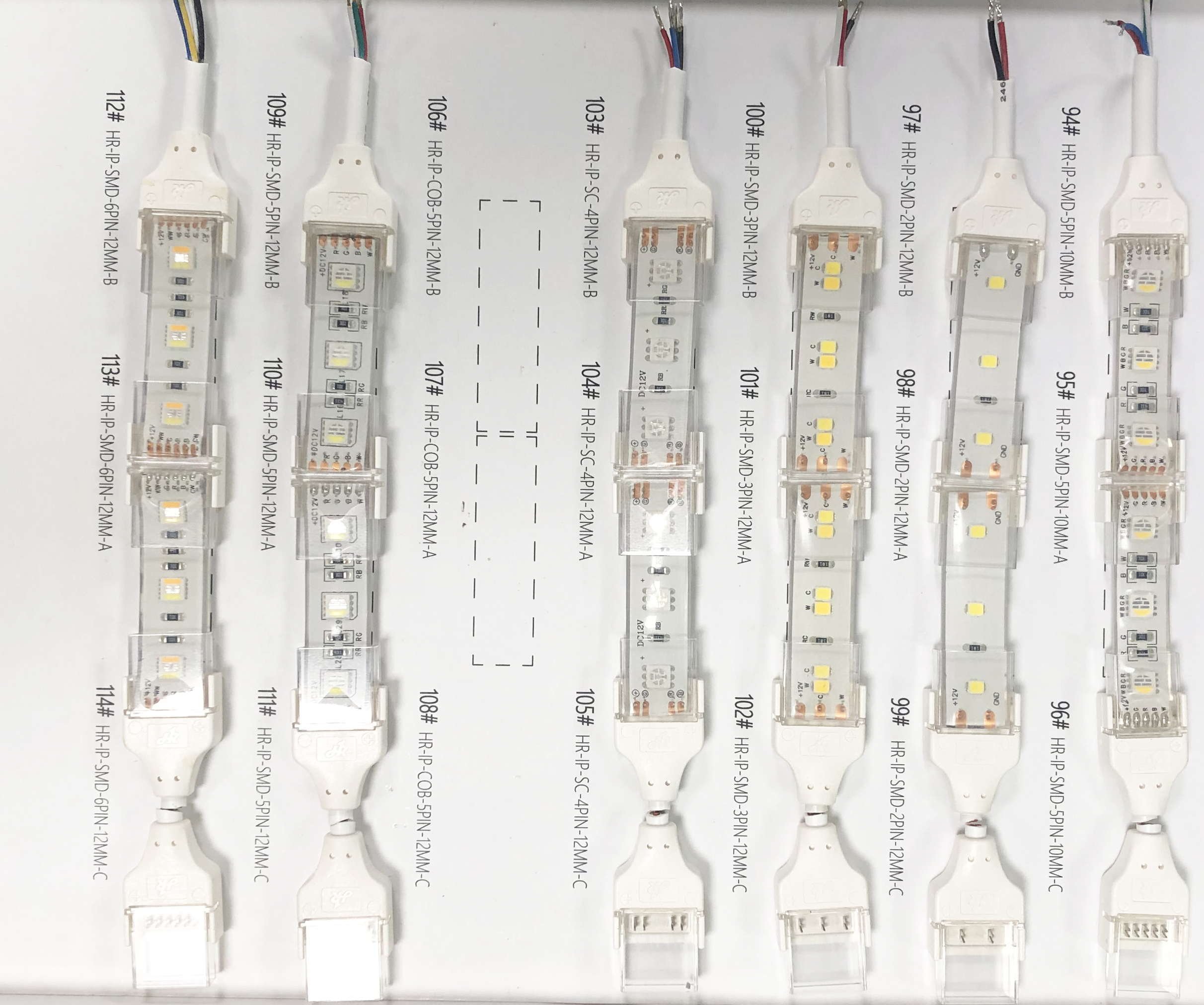

Waterproof connectors are specifically designed for LED strip applications in outdoor and moisture-prone environments. With a fully sealed structure, they maintain stable electrical performance under challenging conditions, ensuring long-term reliable operation of the lighting system.
This series supports PIN configurations from 2-pin to 6-pin and is compatible with PCB widths of 8mm, 10mm, and 12mm. These connectors for led light strips cover single-color, dual-color, RGB, RGBW, and 5-in-1 LED strip systems.

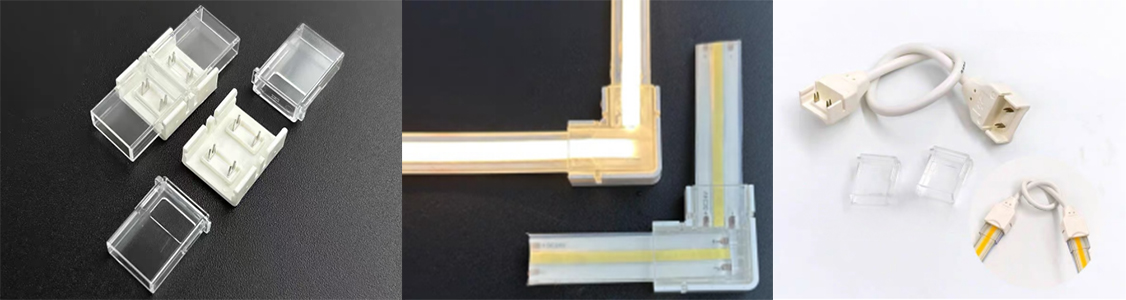

Based on installation structure, the waterproof series includes the following types: Waterproof Middle Connector (straight-line connection), Waterproof Corner Connector (corner connection), and Waterproof Strip to Wire Connector (strip-to-wire connection). Whether specified as an led strip connector 2 pin for simple single-color runs or rgb led light strip connectors for full-color outdoor installations, each variant is engineered to deliver consistent, sealed connections across diverse project environments.
How to connect：
Connector Comparison: Which Type Is Right for Your Project?
Different types of LED strip connectors vary in structural design and application scope, each suited to specific installation requirements and environmental conditions. Below is a comparative overview of the main types:
Solderless connectors are characterized by fast installation and structural versatility, making them well-suited for projects that require efficient on-site deployment.
Advantages:
- No soldering required, delivering high installation efficiency
- Wide range of structural formats to accommodate diverse wiring configurations
Limitations:
- Primarily intended for non-waterproof applications
- May partially cover LED beads in certain positions, slightly affecting local light uniformity
- Relies on clip-based retention, which offers relatively limited resistance to sustained tensile stress
Transparent connectors use a through-PCB contact design that ensures connection stability while optimizing optical performance.
Advantages:
- Penetrating contact structure provides a secure hold with minimal risk of disconnection
- Clear housing minimizes light obstruction, delivering better visual consistency along the strip
Limitations: Requires higher PCB manufacturing precision for reliable contact
3. Hippo Snap Connector
Hippo snap connectors offer strong structural adaptability and are available for both waterproof and non-waterproof applications.
Advantages:
- Available in IP20 and IP65 protection ratings
- Wide PCB width compatibility (5–12mm), making these versatile connectors for led light strips
- Robust construction suitable for commercial and project-grade installations
Limitations:
- Waterproof versions have a larger form factor, which may present space constraints in aluminum channel installations
- Light transmittance is slightly lower compared to transparent connectors
4. Waterproof Connector
Waterproof connectors are purpose-built for outdoor environments, featuring a fully sealed structure that effectively prevents moisture ingress and ensures stable LED strip operation over time.
Advantages:
- Sealed design provides reliable waterproofing and dust resistance
- Suitable for outdoor and high-humidity environments
- Ensures long-term system stability, particularly for rgb led light strip connectors and multi-pin outdoor applications
Why LED Strip Connectors Are Essential in Professional Projects
In traditional soldering-based installations, the process is not only time-consuming but also heavily dependent on operator skill — making inconsistencies difficult to avoid.
Led strip lights connectors address this by replacing soldering with a standardized connection structure, giving installers greater control over the process and ultimately improving both installation efficiency and long-term system reliability.
Their core value lies in:
- Improved installation efficiency — faster connections with no specialized tools required
- Reduced installation complexity — straightforward, repeatable process suitable for teams of any skill level
- Greater connection consistency — standardized design minimizes variability across connection points
- Lower rework and maintenance costs — reliable connections from the outset reduce the likelihood of failures and callbacks
How to choose a suitable LED strip connector?
1. Select Based on LED Strip Type
Start by confirming the basic parameters of your LED strip, particularly the PIN count and circuit type:
- 2 PIN — Single-color LED strips
- 3 PIN — Dual-color or CCT LED strips
- 4 PIN — RGB LED strips
- 5 PIN — RGBW LED strips
- 6 PIN — 5-in-1 LED strips
It is equally important to match the strip's PCB width (e.g., 5mm, 8mm, 10mm, 12mm) to ensure full contact alignment between the connector and the strip's solder pads, guaranteeing stable conductivity. For RGB applications, led light strip connectors 4 pin are the standard choice, while an led strip connector 2 pin is suited for single-color configurations.
2. Confirm PCB Width Compatibility
PCB width is one of the key factors affecting connection stability. When the strip specifications are known, always verify the PCB width first and select a connector sized accordingly — this prevents poor contact or structural mismatches that can lead to unreliable connections.
3. Select Based on Installation Environment
Different environments place different demands on connector protection and structure:
- Indoor environments: Standard solderless or transparent connectors are suitable
- Outdoor or high-humidity environments: Waterproof connectors or hippo-clip connectors with IP-rated protection are recommended
- Applications with high optical requirements: Transparent connectors for led light strips minimize light obstruction and help maintain visual consistency
4. Select Based on Connection Method
Connectors are available in a range of configurations to suit different wiring layouts, including straight (middle), L-shaped, T-shaped, and X-shaped formats, as well as wire-to-strip and strip-to-strip options. Choose the appropriate style based on your specific installation requirements.
5. Project Customization and Technical Confirmation
For complex or project-grade applications, professional specification matching is recommended, particularly for:
- Non-standard strip specifications
- Long-run or multi-circuit systems
- High-reliability or long-term outdoor installations
In these cases, working with a technical support team or engineering specialist for customized connector selection ensures full system compatibility and long-term operational stability.
Installation guide for different types of connectors.

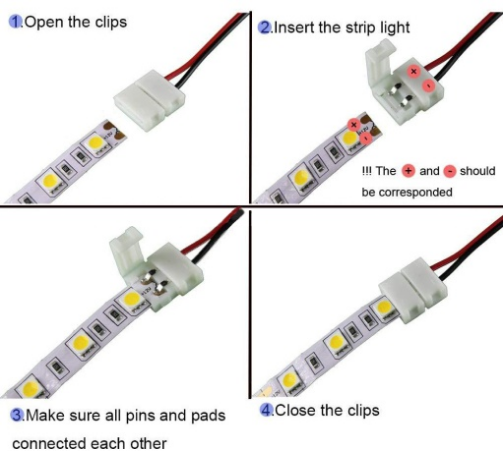

(1) Solderless Connector
Cut the LED strip to the desired length → Peel back approximately 1/4 inch of the 3M adhesive backing → Insert both ends of the LED strip into the center of the connector from the top and press firmly → Close the cover → Power on.

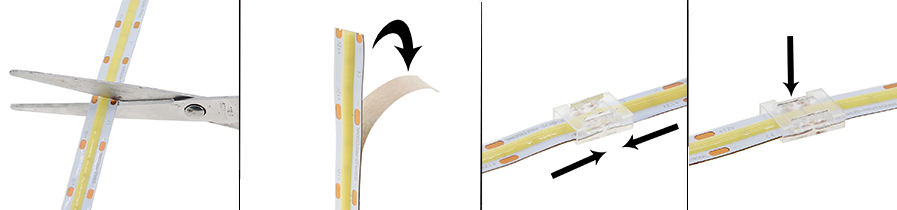

The following steps apply to a 2-pin transparent connector.
Cut the strip to the desired length → Peel back approximately 1/4 inch of the 3M adhesive backing → Insert the strip end into the center of the connector from the top → Press down the PIN so that it pierces through the PCB of the LED strip → Power on.

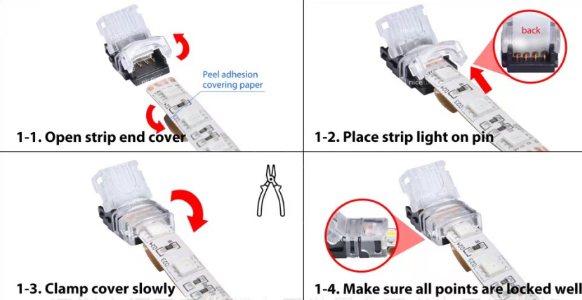

Cut the LED strip to the desired length → Open the end cap of the connector → Place the strip over the PIN contacts → Slowly close the cover → Ensure all contact points are firmly locked in place.

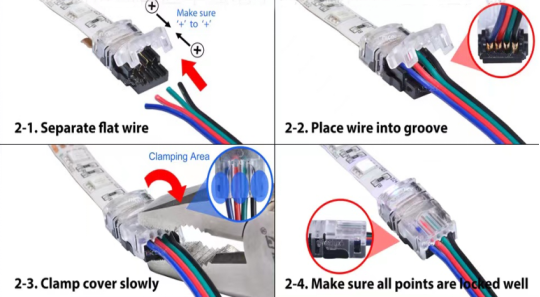

Connecting a wired LED strip: Separate the flat lead wires → Place the wires into the corresponding grooves → Slowly snap the cover closed → Ensure all connection points are securely locked.
REQUEST A QUOTE
Choosing the right connector is about more than compatibility — it directly impacts installation efficiency, system reliability, and long-term performance.
Whether you are working on a residential, commercial, or large-scale lighting project, specifying the correct led strip lights connectors can significantly reduce installation time and minimize long-term maintenance risks.
Need help with selection or customization?
Our engineering team is ready to help you identify the ideal connector solution based on your LED strip type, installation environment, and specific project requirements — whether that means an led strip connector 2 pin for a straightforward single-color run, led light strip connectors 4 pin for an RGB system, or rgb led light strip connectors for a large-scale full-color installation.
Contact us today for expert technical guidance and tailored solutions designed around your application.
