COB technology was initially used for basic packaging in LED lighting and display fields, but when applied to LED strip lights, it faced a core challenge: how to achieve "cutting without compromising the continuity of the light." The current COB LED strip lights on the market have integrated circuits and chips. Once cut to fit the installation needs, the circuit can easily break, causing local areas to go dark and leaving noticeable dark spots. This makes it difficult to meet the lighting needs for irregular areas in commercial displays and home décor.

To solve the limitations of traditional COB LED strips when cutting, LW Lighting has innovatively launched the COB led tape light cuttable. This mini LED strip leverages the evolution of COB (Chip on Board) packaging technology to provide a high-flexibility lighting solution that can be cut freely while maintaining even and continuous lighting.

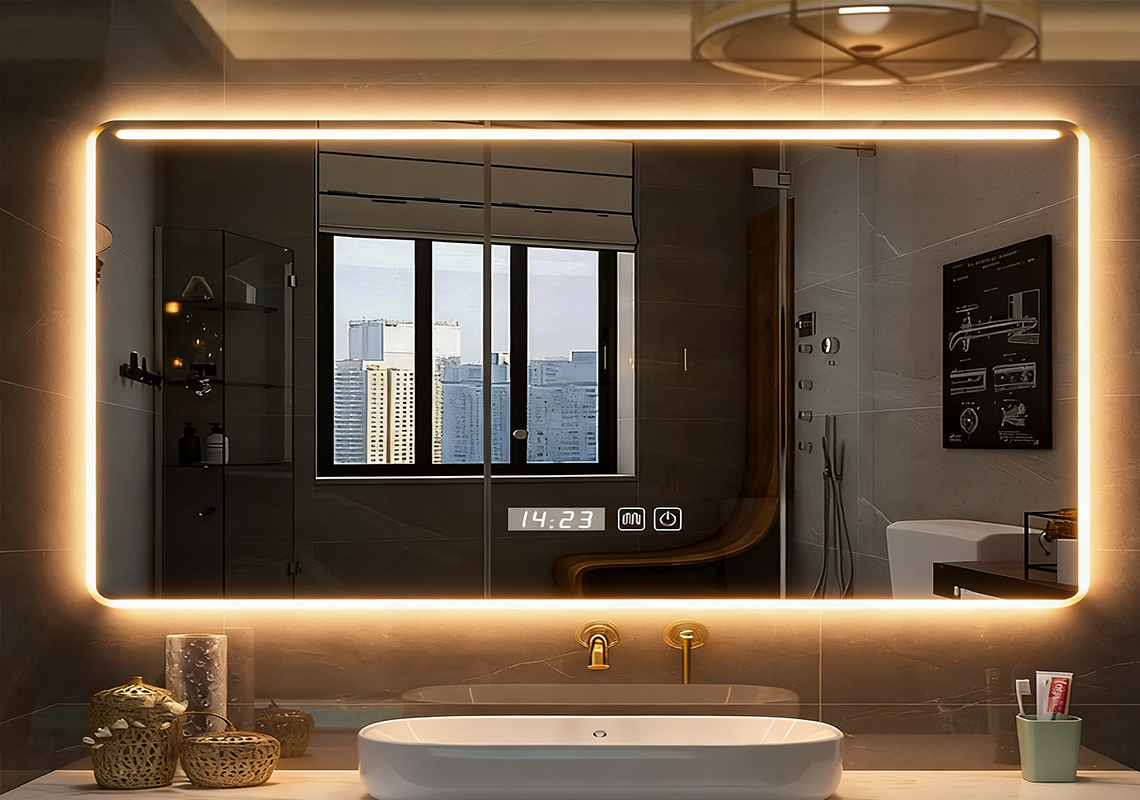

It is widely used in various scenes such as TV background walls, recessed lighting, LED strip for kitchen cabinets, under-counter lighting, vanity lights, and display cabinets. It can create a comfortable ambient light while providing additional lighting to enhance the spatial layers.

What Is Mini Cutting COB LED Strip?

The Mini Cutting COB LED Strip is an innovative flexible lighting product upgraded from the COB (Chip on Board) packaging technology. It integrates high-density micro LED chips directly onto a flexible FPC substrate, tightly arranged and encapsulated with fluorescent glue to form a continuous surface light source, completely eliminating the particle and light spot issues common with traditional LED beads.

The core breakthrough lies in the innovative circuit design — through sectional circuit layout and precision cutting technology, the strip can be cut at any position without affecting the light output of the remaining sections. This best cuttable led strip lights customizable length allows for precise adaptation to various scene requirements.

Product Features

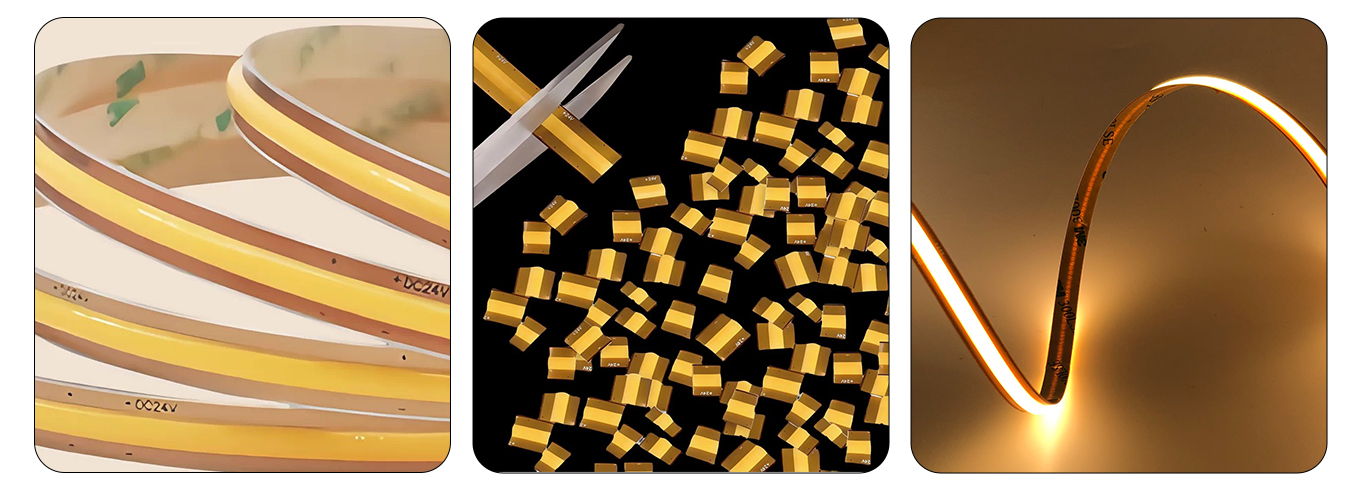

Cuttable Flexibility
The high-density layout ensures that each unit continues to operate independently after cutting, preventing dark spots or areas with no light. The Mini Cutting COB LED Strip design allows for precise cutting at specified positions and adjustment to the required length, providing flexible adaptation for various installation scenarios.

Uniform Light Output
The high-density COB LED chips deliver smooth, continuous light output, significantly reducing visible hot spots. When led strip lights short installed in aluminum profiles, it only presents a soft, linear light with uniform brightness and no flicker.

High Flexibility
The flexible FPCB allows easy bending, making it suitable for curved installations and complex shapes. This meets the needs of architectural contours, stage lighting, entertainment venues, and LED strip for kitchen cabinets, among various other applications.

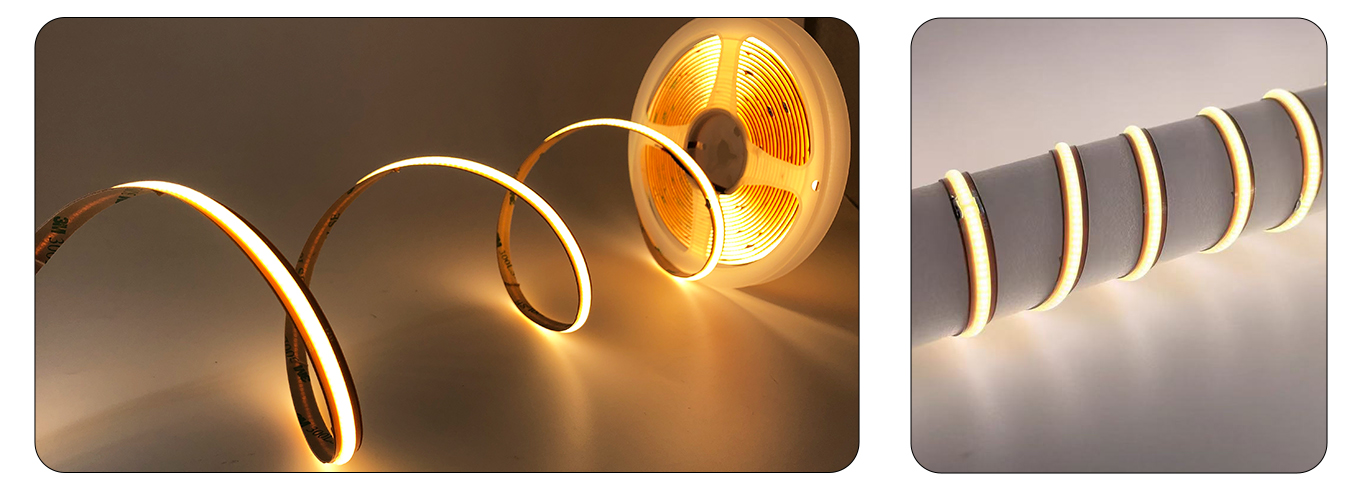

Best cuttable Flexibility LED strip lights

Product Specification

Below is LW Lighting’s Product Specification

Advantage:	1, Free Cut COB strip	2, Free Cut COB strip
Part NO:	COB074	COB074
LED Qty:	528pcs per meter	528pcs per meter
CRI (RA)	>90	>90
PCB Width IP20:	8mm	8mm
Input Voltage:	DC12V	DC24V
Watts:	13W	13W
Luminous Flux:	90-120LM / W	90-120LM / W
Color:	3000/4000/6500K	3000/4000/6500K
PCB color:	White	White
IP Grade:	IP20	IP20
Operating temperature:	-25 to 45℃	-25 to 45℃
Beam angle:	180 degree	180 degree
Certification:	CE; RoHS	CE; RoHS
Max Run:	5M	5M
Min Run:	Cut free	Cut free

Customization Services

Our Mini Cutting COB LED Strip offers multiple customization options to meet the diverse needs of different projects:

Packaging and Labeling: Custom packaging, user manuals, labels, PCB printed logos, and more.
Performance Customization: Customize the number of LEDs, PCB width, waterproof rating, color temperature, and Color Rendering Index (CRI) based on specific requirements.

Accessories

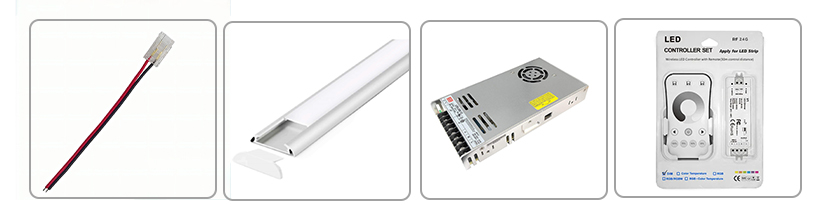

We offer a range of accessories to support the installation of your LED strip lights, including connectors, aluminum profiles, power supplies, controllers, and various joints, ensuring a smooth and efficient installation process.

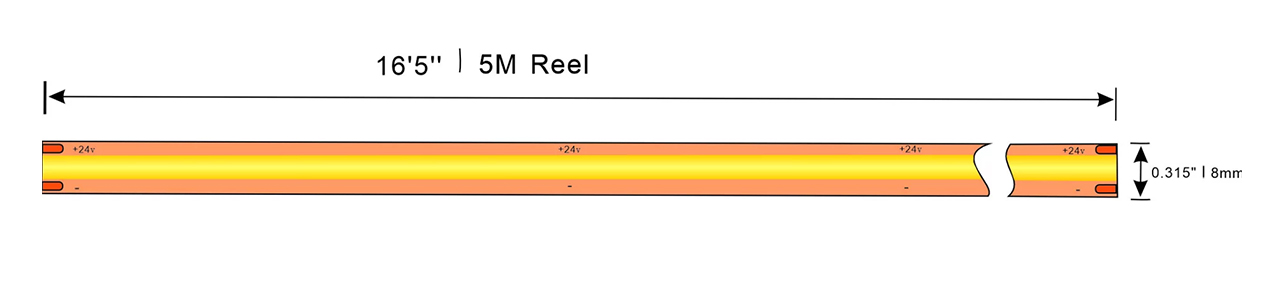

Dimensions

LW-COB074-24V-528LEDs

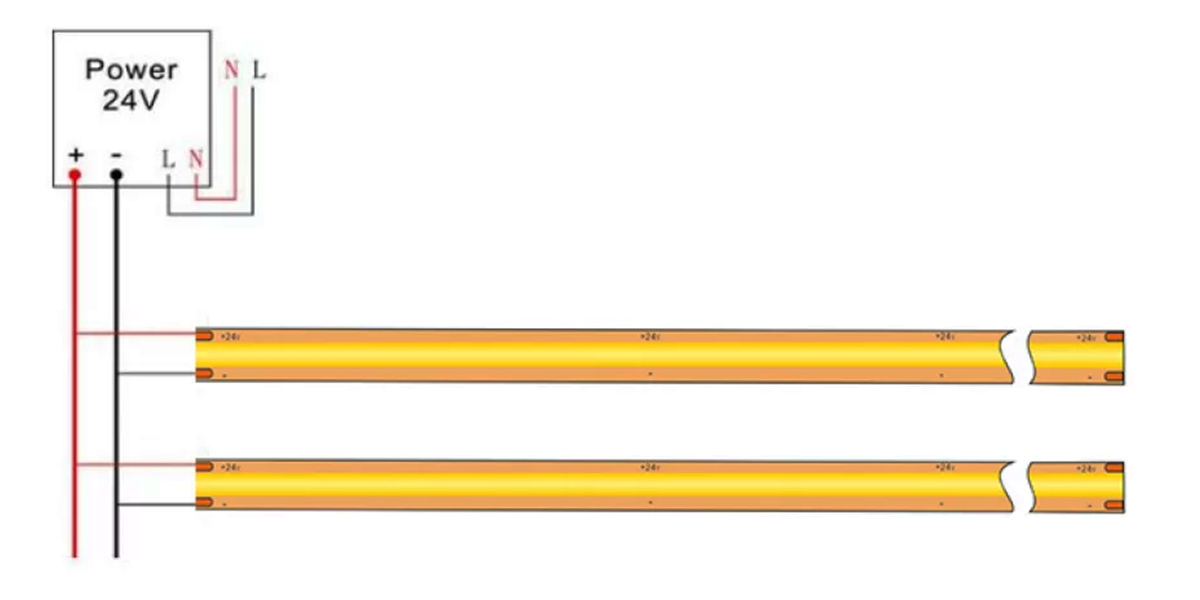

Connect Drawing

FAQ

Question	Answer
How Short Can a Mini COB LED Strip Light Be Cut?	Yes. LW Lighting's Mini COB LED Strip Light features a Cut Free design, allowing it to be trimmed freely rather than following fixed cutting points like standard LED strips. This means the length can be flexibly adjusted to match actual installation requirements.
What Is the Difference Between Mini COB LED Strip and Regular COB LED Strip?	The main difference lies in the cutting method and installation flexibility. Regular COB LED strips typically need to be cut along marked cutting lines on the PCB — for example, common 12V strips usually have a cutting point every 25mm, while 24V strips have one every 50mm. If the installation length doesn't align exactly with these intervals, it can be difficult to match the aluminum profile precisely. Mini COB LED strips, on the other hand, use a Cut Free design that allows the length to be adjusted according to actual needs, making them better suited for applications requiring precise sizing.

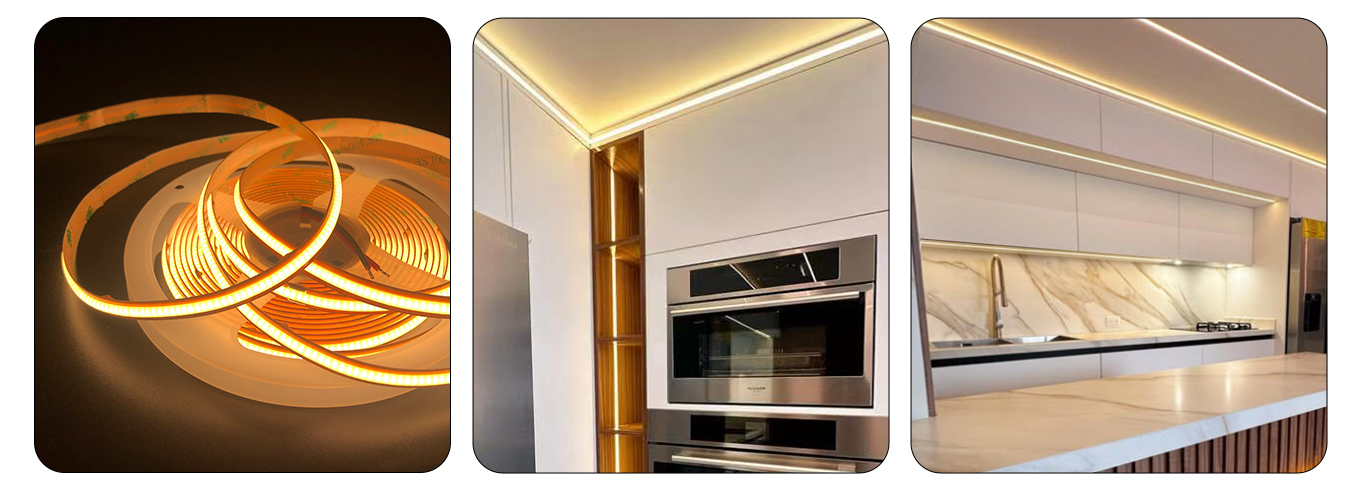

Are Cuttable LED Strip Lights Good for Kitchen Cabinets?	Yes. Cabinet lighting usually requires precise strip lengths, since kitchen, cabinet, and furniture dimensions vary from project to project. Mini COB LED strips can be adjusted to match the exact cabinet length, eliminating the need to settle for an approximate size. They also provide a continuous, uniform glow that delivers soft task lighting for countertops, making them ideal for: Under-cabinet kitchen lighting, Interior wardrobe lighting, Wine cabinet display lighting, Hidden lighting design for furniture.
Can I Cut LED Tape Light and Reconnect It?	Yes. LED strips can be reconnected after cutting, depending on the installation needs. There are two common connection methods: Using LED strip connectors, which are easy to install and require no additional tools — ideal for DIY projects or quick installations. Soldering the connection, which provides a more secure and durable joint — generally recommended for professional projects or long-term use environments. When reconnecting, make sure to match the positive and negative polarity of the strip and use a power supply with the correct matching voltage.
Does Cutting a COB LED Strip Reduce Brightness?	No. As long as the strip is cut correctly and reconnected at the appropriate point, cutting will not affect the brightness of the remaining strip.

REQUEST A QUOTE

When lighting is no longer limited by size and shape, the creativity of a space has endless possibilities. The LW Lighting Mini Cutting COB LED Strip completely eliminates the troubles of improper cutting and accessory compatibility that come with traditional LED strips. With cutting units as precise as ≤10mm and a Color Rendering Index (CRI) of ≥90, it seamlessly integrates smooth linear lighting effects into every gap in home décor and every corner of commercial spaces.

Leave your email now to receive a free product sample and detailed technical manual!
