For designers and architects, lighting has evolved far beyond a mere functional tool; it is now a pivotal element for crafting ambiance, highlighting individuality, and enhancing spatial charm. With the rising popularity of "curvy aesthetics" and personalized design, traditional rigid light strips often struggle to meet the demands of curves, bends, and irregular shapes. Whether in compact spaces, intricate architectural outlines, or creative decorative setups, the limitations of standard strips are evident.
To address these challenges, LW Lighting recommends our led multicolor light strip (S-shape). Designed to adapt effortlessly to various curves and complex silhouettes, it perfectly aligns with modern design requirements. This rgb led tape light not only delivers precise and uniform illumination to every space but also integrates seamlessly with architecture and decor, blending light and art to create breathtaking visual effects.

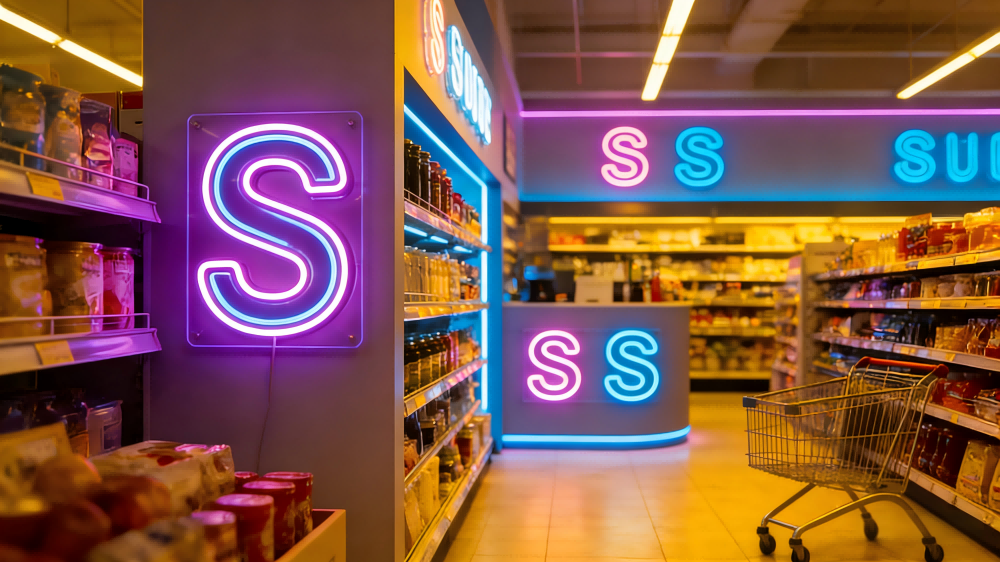

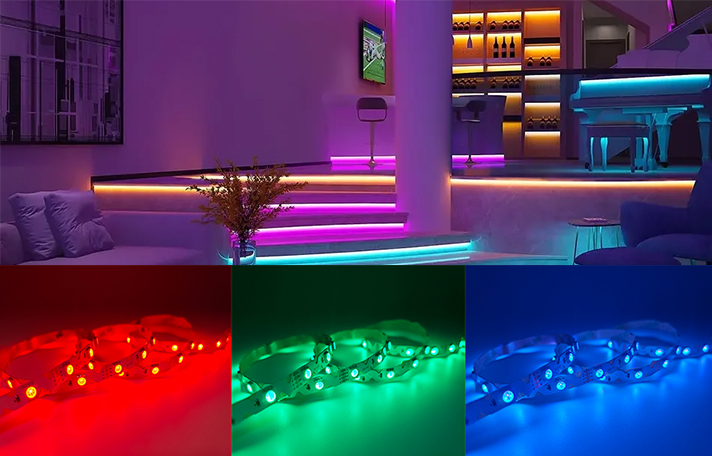

This versatile indoor led tape lights solution is widely utilized in signage lettering, light boxes, advertising characters, recessed lighting coves, and mini glowing words. It is also an ideal choice for architectural enhancement projects, residential interiors—such as led tape light under cabinet installations—exhibit designs, and ambient perimeter lighting.
What is Multi Color S Shape LED Strip ?
The S-shape series is a versatile lighting solution specifically engineered for modern design requirements, primarily featuring our RGB and RGBW zigzag models. As a high-performance led multi color light strip, it offers a rich palette of color-changing modes to create diverse visual atmospheres within any interior.
The difference between 5050RGB and 5050RGBW

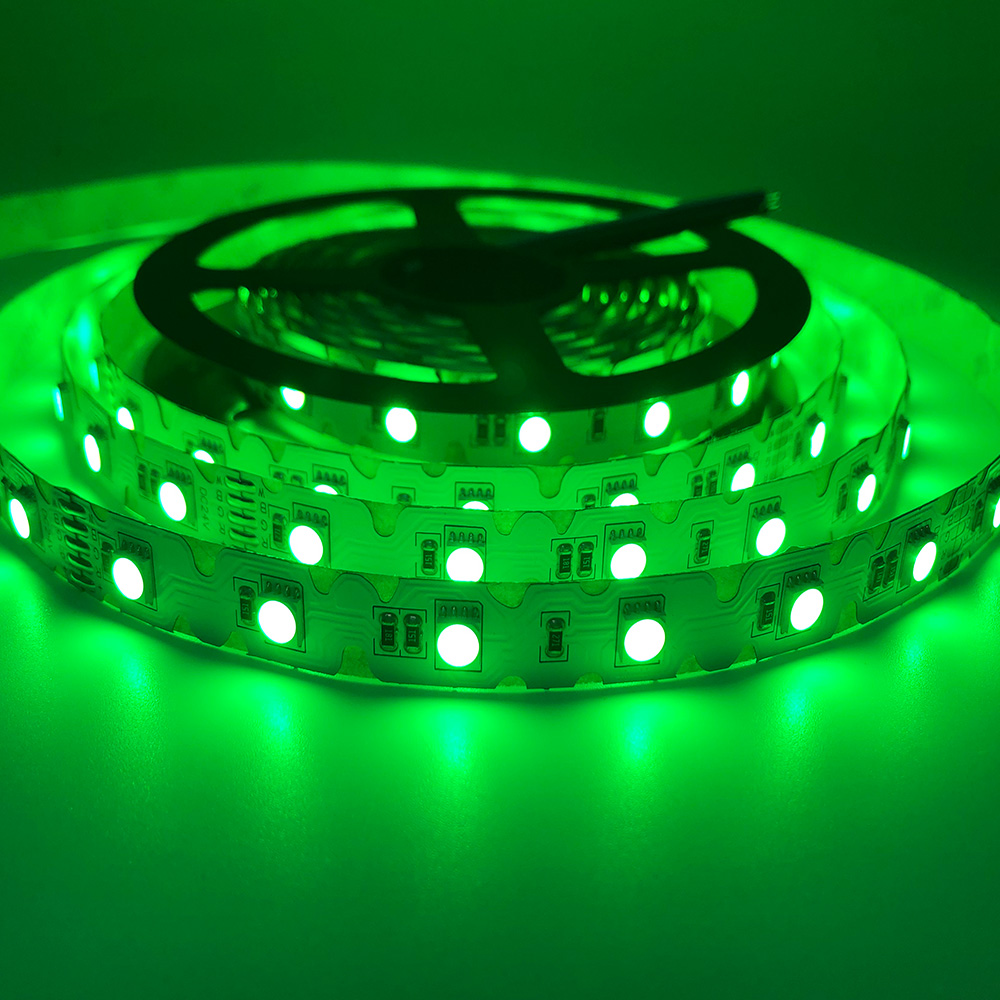

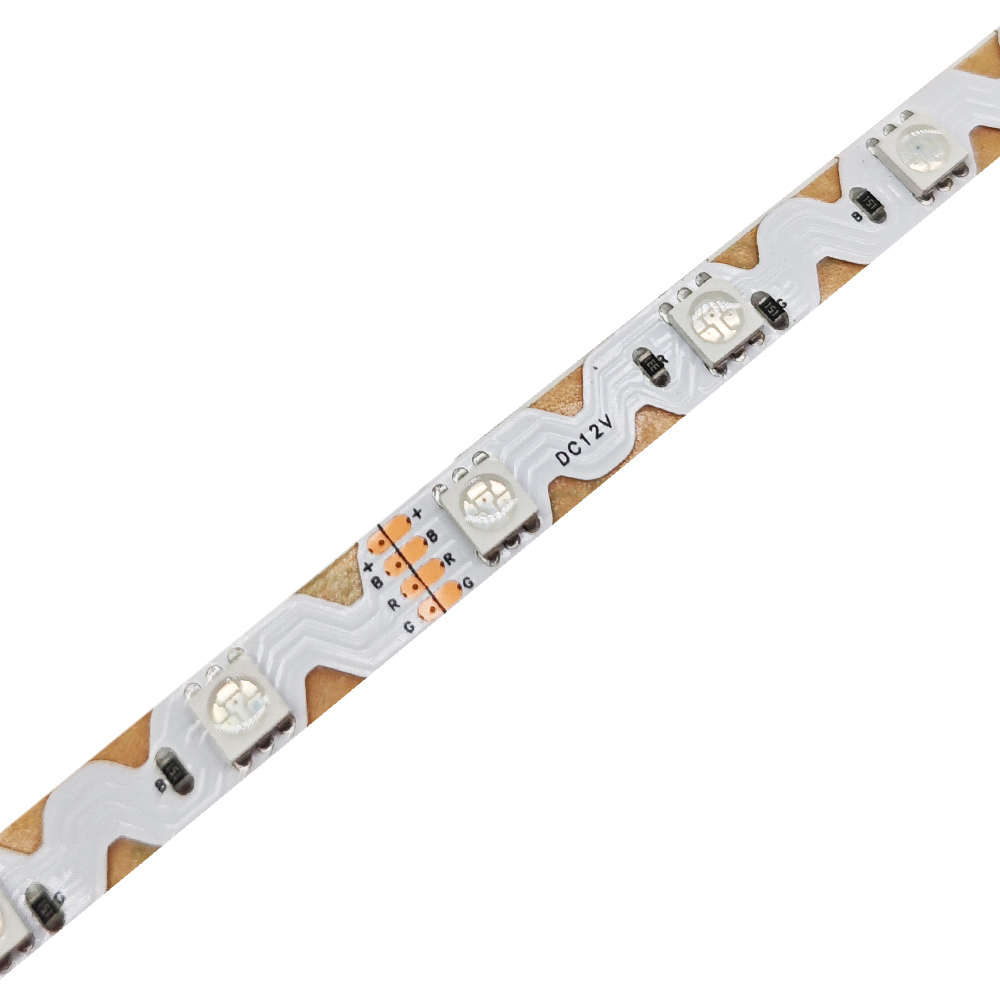

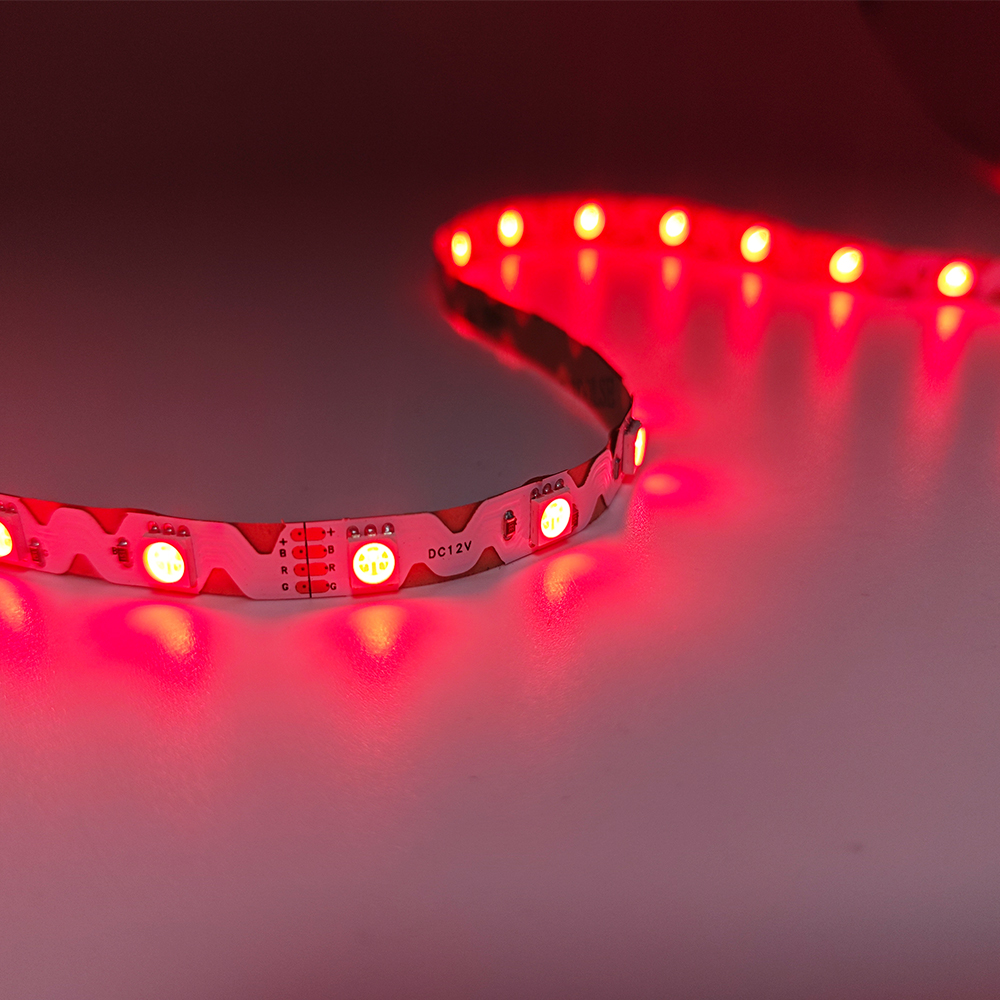

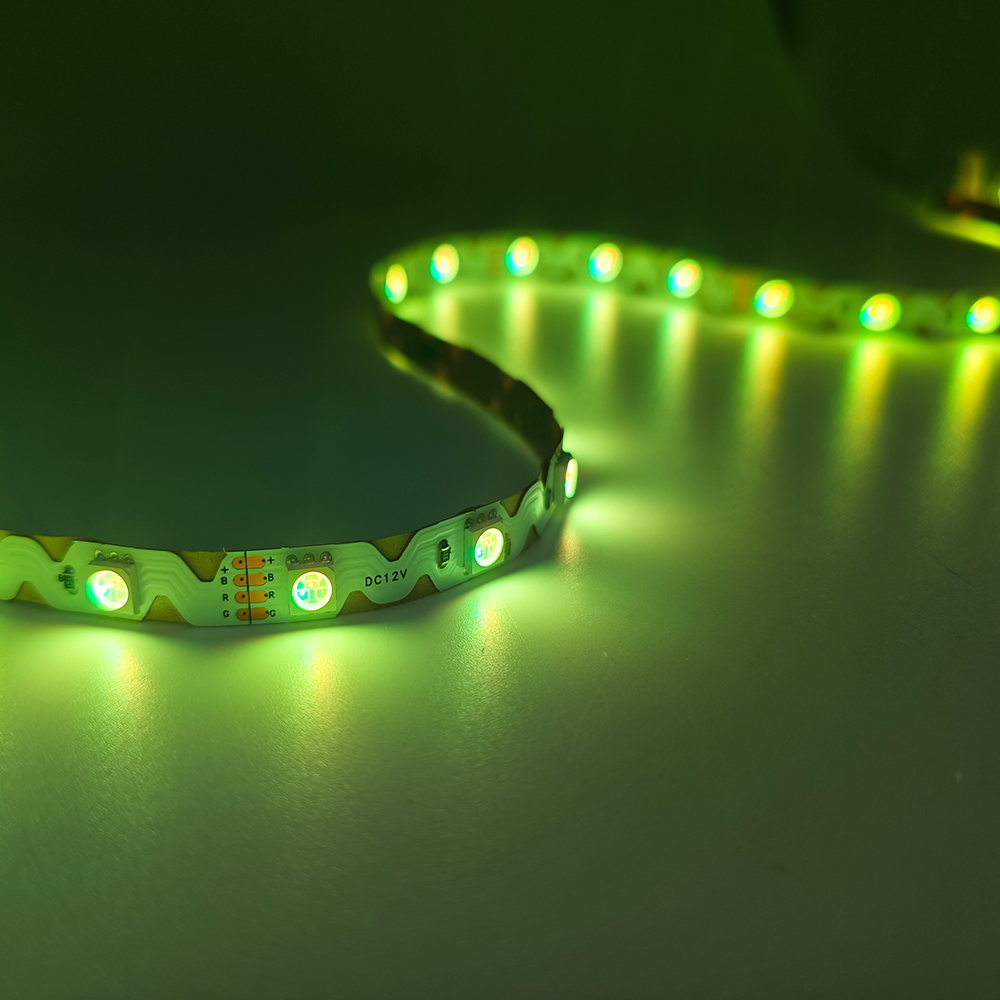

5050RGB S-Shape LED Strip
- Chip Composition: This rgb led tape light utilizes high-quality 5050 RGB chips, integrating Red, Green, and Blue diodes. A vast spectrum of colors can be achieved by adjusting the controller.
- White Light Performance: While primarily a led multicolor light strip, it can produce a synthetic white light by combining the three primary colors, making it adaptable to various basic lighting needs.

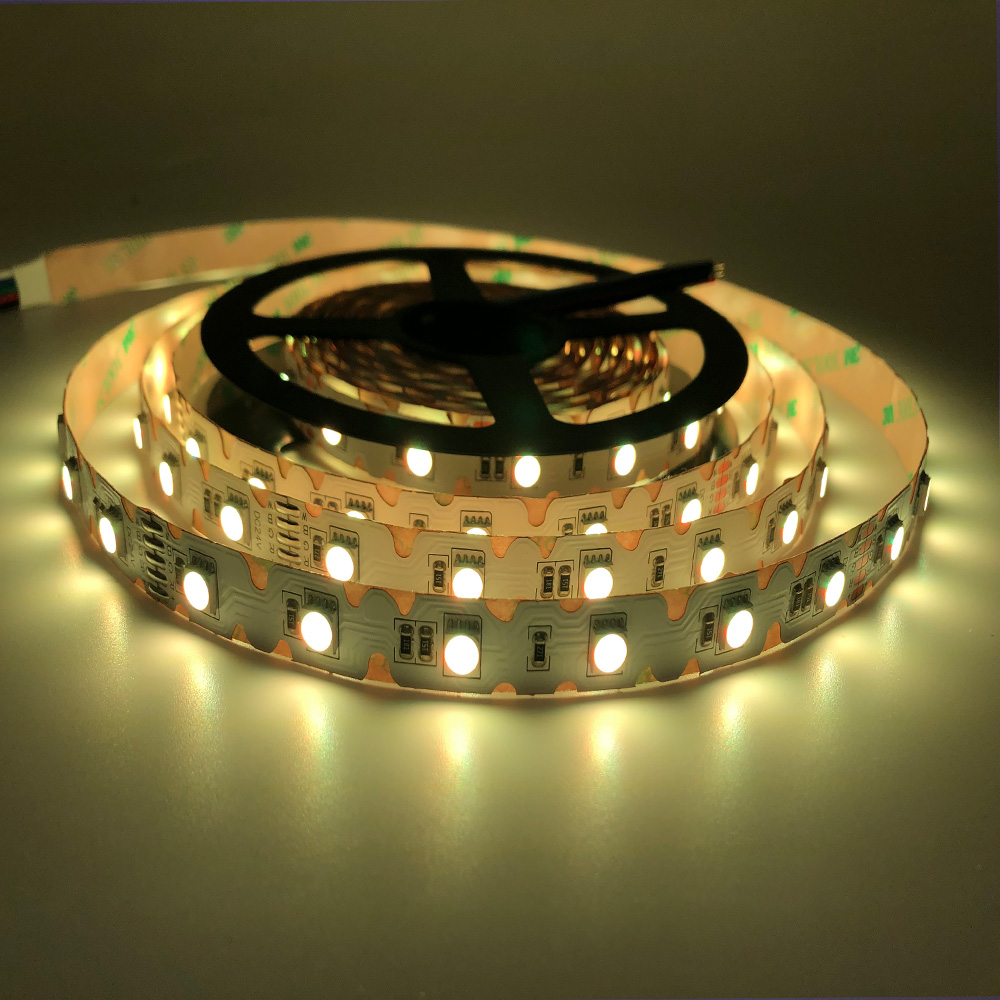

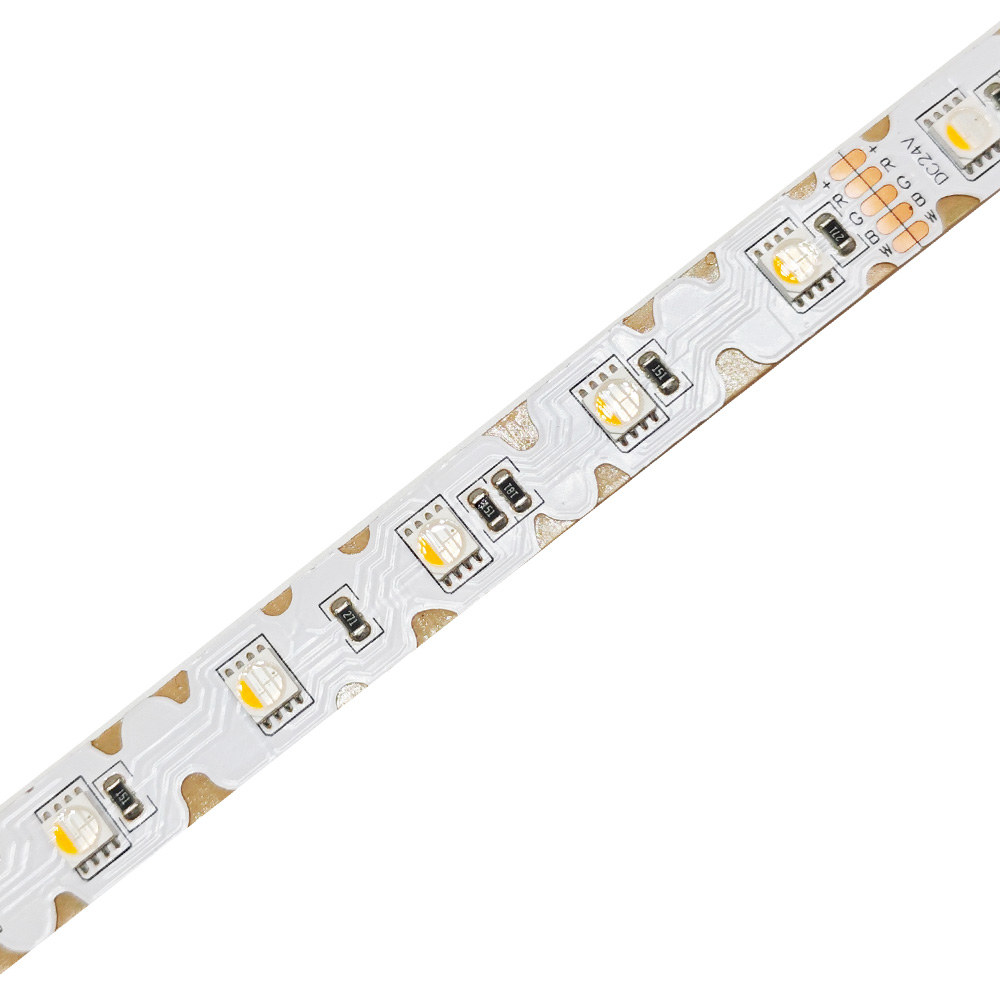

5050RGBW S-Shape LED Strip

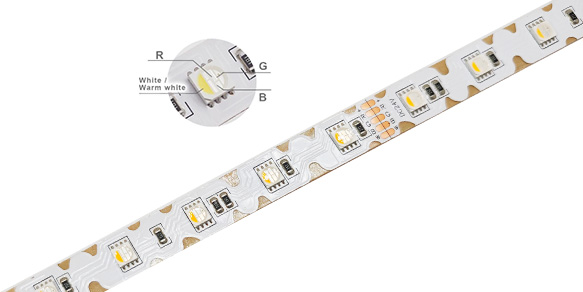

- Chip Composition: This version features an advanced RGBW 4-in-1 LED chip, which adds a dedicated white light diode to the RGB base. This configuration is often used in led tape 12v systems for superior color temperature control.
- Key Advantages: Compared to standard RGB models, the RGBW version offers more intricate lighting effects. It is a premium choice for indoor led tape lights because it provides a much purer, more refined white light, which is essential for tasks like led tape light under cabinet illumination where color accuracy matters.
Product Features

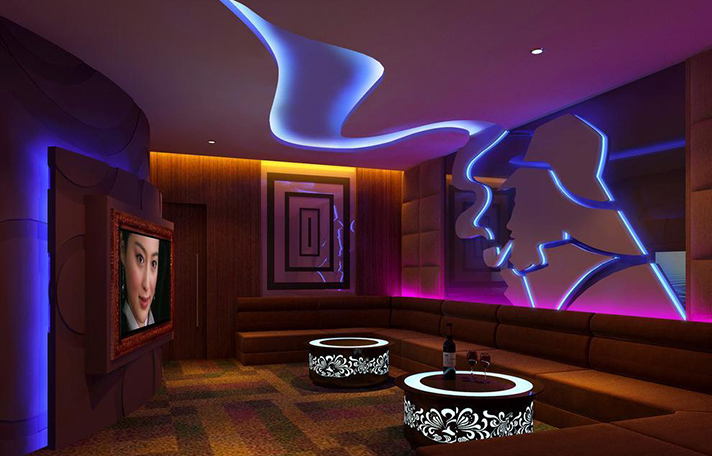

Innovative Flexible Design for Limitless Creativity
LW Lighting’s zigzag LED strips feature a unique, non-linear architecture that offers significantly greater flexibility than traditional straight-line adhesive strips. This indoor led tape lights solution effortlessly conforms to various curves and complex geometries, ensuring a stable installation while granting designers maximum creative freedom.

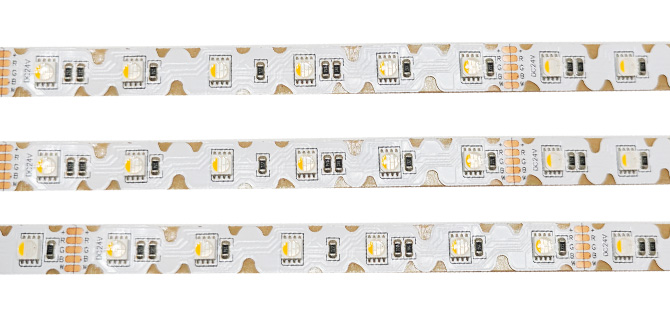

Multi-Angle Bending Capability
By combining a flexible PCB (FPC) with a precision zigzag-cut design, our strips achieve multi-angle bending to meet intricate installation demands. Whether you are curving, folding, or wrapping the light around tight corners, the resilient S-shape circuitry is engineered to resist breaking. This makes it an ideal led tape light under cabinet choice for modern kitchens or unique architectural features that require easy shaping and versatile styling.
High Efficiency and Sustainability
Equipped with excellent heat dissipation and a low-voltage led tape 12v design, our S-shape strips ensure stable, long-term operation with uniform, lasting luminosity. Compared to conventional lighting, this system is more energy-efficient and generates minimal heat, reducing carbon emissions and avoiding the release of harmful gases.

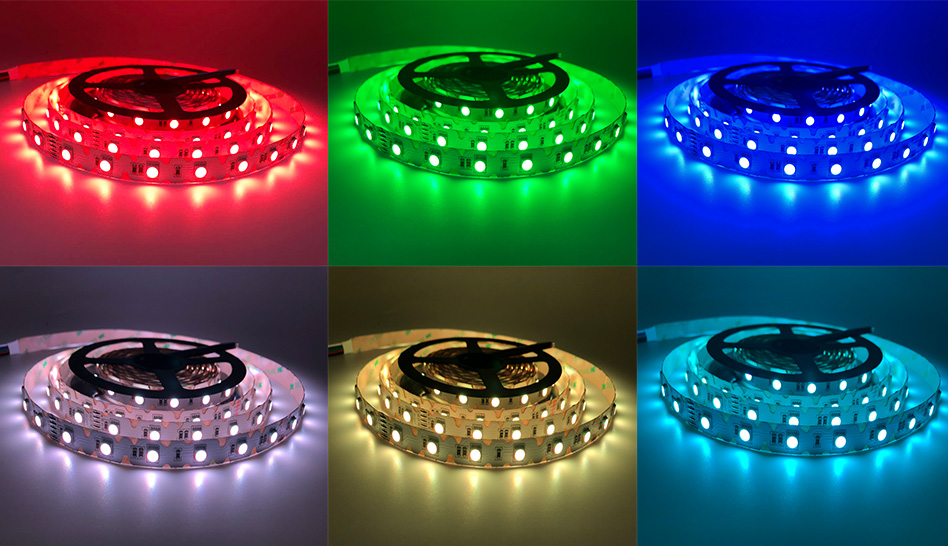

A Spectrum of Colors
The integrated RGB and RGBW chips provide a vast array of color-changing modes. Whether you require precise color temperature adjustments, smooth gradients, or static displays, this rgb led tape light satisfies diverse design needs, delivering a rich and immersive visual experience.
Premium Materials and Craftsmanship
Our led multicolor light strip is built on high-quality, dual-layer flexible PCBs (at least 2oz, with some models at 3oz) to enhance electrical performance and reliability. Using advanced low-temperature reflow soldering, we ensure smooth, durable, and eco-friendly joints. For easy application, each strip comes pre-equipped with authentic 3M adhesive backing.
LED Strip Specification
Below is LW Lighting’s product specification
| Name: | RGB S Shape LED Strip | RGBW S Shape LED Strip |
| Part NO: | S0002 | S0004 |
| LED Qty: | 60pcs per meter | 48pcs per meter |
| CRI (RA) | / | / |
| PCB Width IP20: | 8mm | 12mm |
| Input Voltage: | DC12V | DC24V |
| Watts: | 8W/M | 15W/M |
| Color: | RGB | RGBW（3000K） |
| PCB color: | White | White |
| IP Grade: | IP20 | IP20 |
| Operating temperature: | -25 to 45℃ | -25 to 45℃ |
| Beam angle: | 120 degree | 120 degree |
| Certification: | CE; RoHS | CE; RoHS |
| Max Run: | 5M | 5M |
| Min Run: | 12V 64mm | 24V 125mm |
Our led multicolor light strip (S-Shape) supports extensive customization to meet the specific demands of diverse professional projects:
- Packaging & Branding: We offer bespoke packaging, customized instruction manuals, specialized labeling, and logo printing directly on the PCB.
- Performance Specifications: To ensure the perfect fit for your application, we can customize the LED density, PCB width, waterproof ratings (IP levels), color temperature, and Color Rendering Index (CRI).

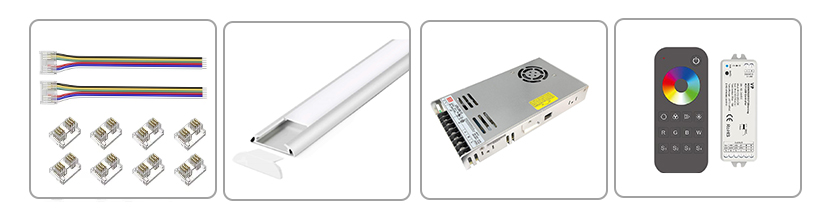

Accessories
To guarantee a stable and long-lasting lighting system, LW Lighting provides a comprehensive range of high-quality accessories designed to work seamlessly with our rgb led tape light. Our inventory includes: Power Supplies, Controllers & Connectors, Aluminum Profiles
Dimensions

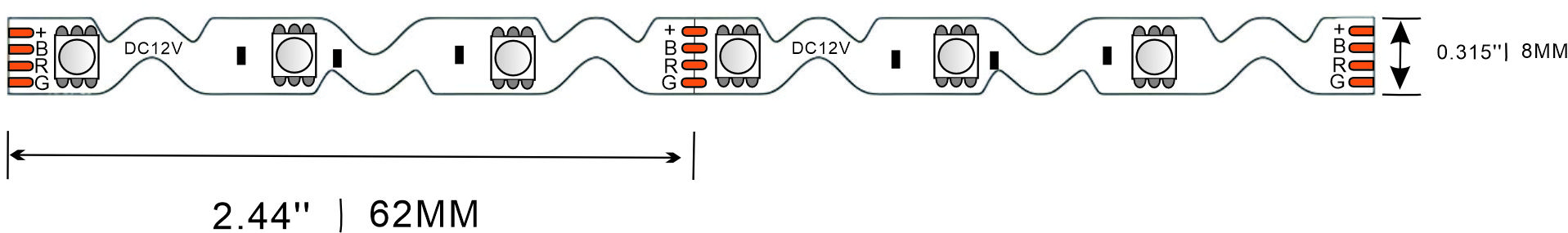

S0002-RGB-60LEDs-DC12V-8mm

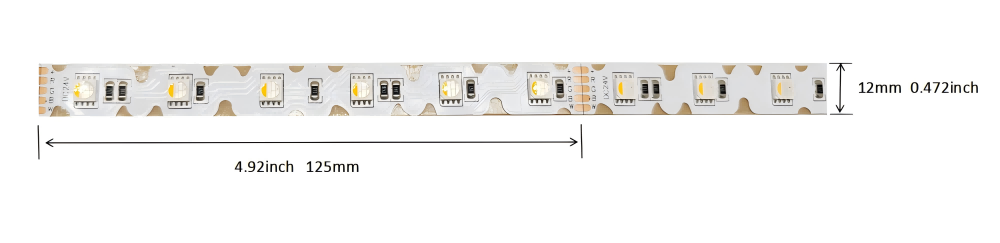

S0004-RGBW-48LEDs-DC24V-12mm

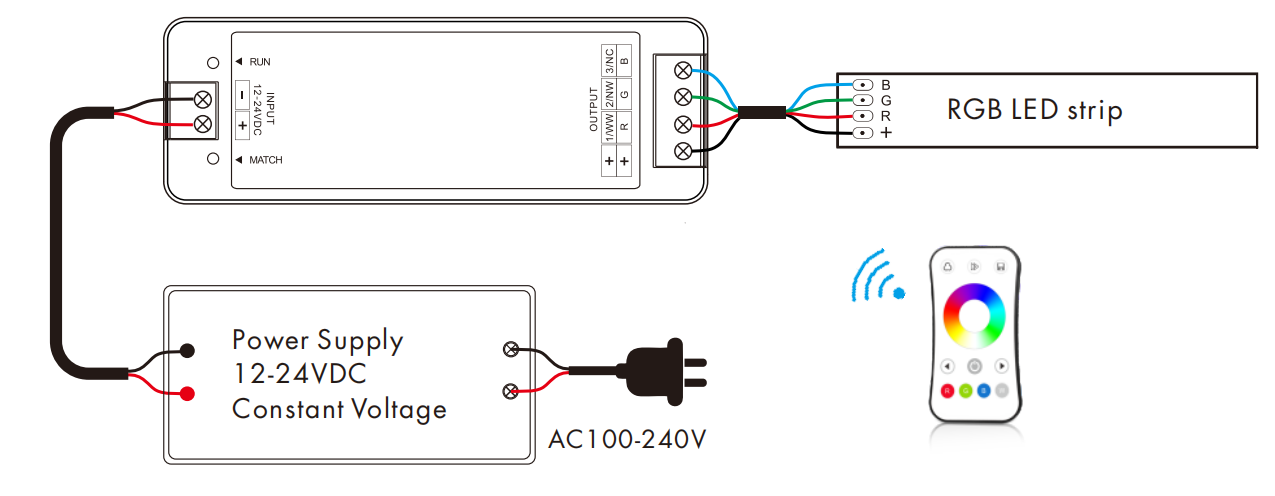

Connect Drawing
REQUEST A QUOTE
LW Lighting’s led multi color light strip (S-Shape) is not only a flexible lighting solution but also a design element that injects creativity and personalization into any space. Whether for advertising signs, home design, commercial lighting, or complex architectural outlines, this rgb led tape light easily adapts to various needs, delivering ultimate light effects and visual impact.
We understand the uniqueness of every project, so we offer wide customization options, including LED density, color temperature, PCB width, and waterproof ratings to meet your requirements in different environments. This makes it an ideal choice for indoor led tape lights, including specialized led tape light under cabinet setups.
Contact us today for more details or a customized solution for our led tape 12v products. Let LW Lighting add infinite possibilities to your space design!
