Under the city’s night sky, light does more than illuminate; it shapes unique landscapes and atmospheres. With exceptional brightness and long-distance transmission capabilities, outdoor high-voltage LED strips have become the core technology for urban lighting, architectural highlighting, and landscape decoration. These solutions easily meet large-scale lighting demands, covering buildings, streets, and bridges with uniform, bright light that significantly enhances nighttime visual impact.
LW Lighting’s high-voltage series provides consistent, uniform light output, making it particularly suitable for high-demand, large-scale projects. Whether for long-term operation or enduring extreme weather, it maintains outstanding performance. Furthermore, its simple installation and low maintenance costs make it an ideal lighting solution.
As a mature lighting technology, high-voltage strips are widely used across various industries. Typical applications include:

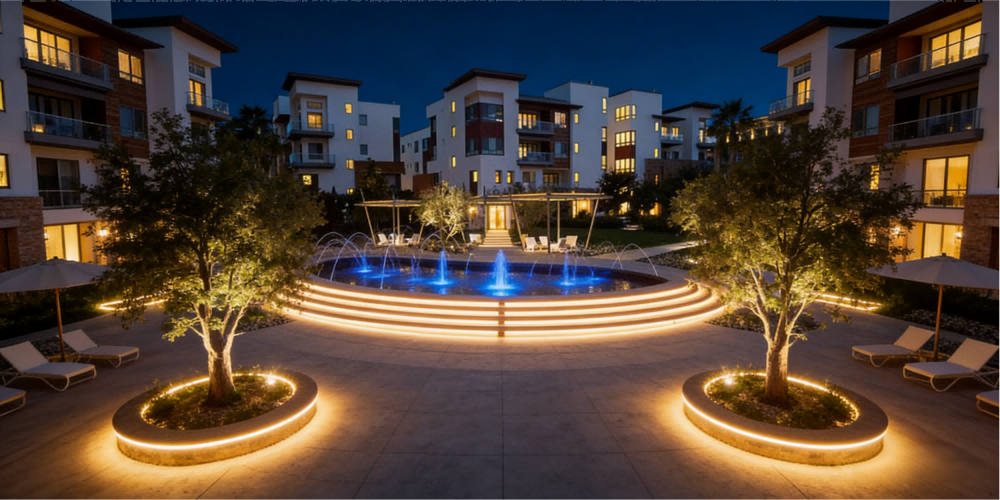

- Building Contour Lighting: Outlining urban facades not only strengthens the visual impact of architectural structures but also adds unique charm to the city's nightscape. For extensive perimeters, using led strip lights 100 feet or longer ensures seamless illumination without voltage drop.
- Transparent Glass Bridge Decoration: Edge lighting for glass bridges creates a dreamlike atmosphere with soft beams and dynamic effects, becoming a signature attraction for tourists.
- Auxiliary Lighting: Providing functional lighting for steps and corridors to enhance safety and utility. A professional led strip lighting plug in system allows for quick deployment in these high-traffic areas.
- Road and Landscape Lighting: Offering uniform illumination in parks, streets, and plazas to improve nighttime security and aesthetics.
- Stadium Lighting: Delivering high-efficiency lighting for stadiums, basketball courts, and soccer fields to meet both competitive and viewing requirements.
- Outdoor Event Venue Lighting: Providing ample and comfortable lighting for open-air concerts and exhibitions. For these temporary or permanent setups, a robust 120 volt led tape light is often the preferred choice for its reliability and ease of use.

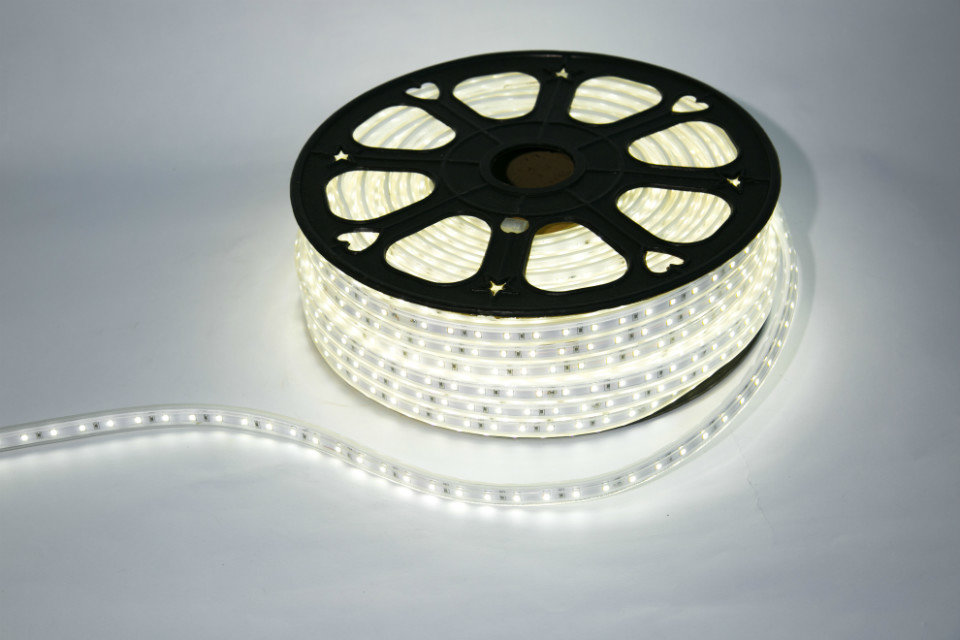

What is High Voltage LED Strip?
High-voltage LED strips are high-efficiency lighting solutions that connect directly to AC 110V/220V mains power. They eliminate the need for extra power supplies, simplifying installation while providing stable and consistent brightness over distances exceeding 50 meters. These strips typically utilize various SMD chips (such as 5050 and 2835), offering excellent energy efficiency, low power consumption, long lifespan, and uniform light effects. For instance, a 110v led tape light can support continuous illumination up to 100 meters, effectively avoiding voltage drop and ensuring consistent lighting performance across long-distance installations.

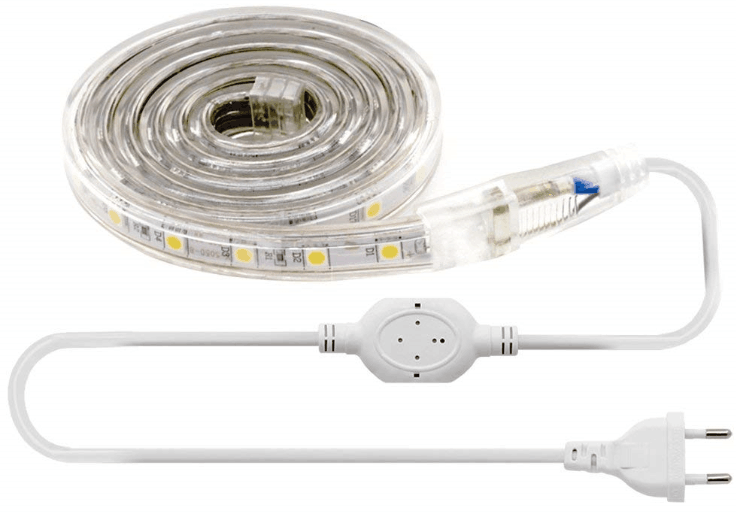

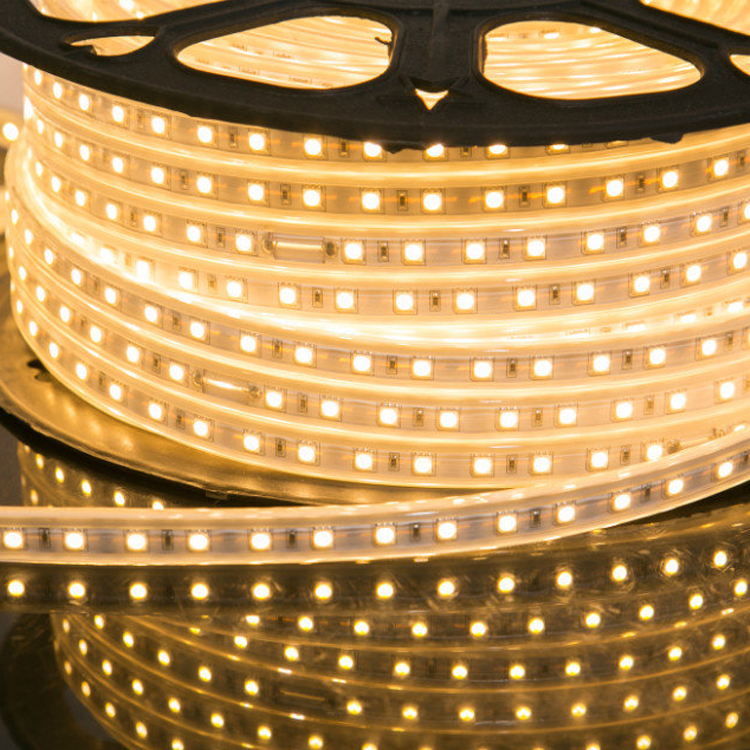

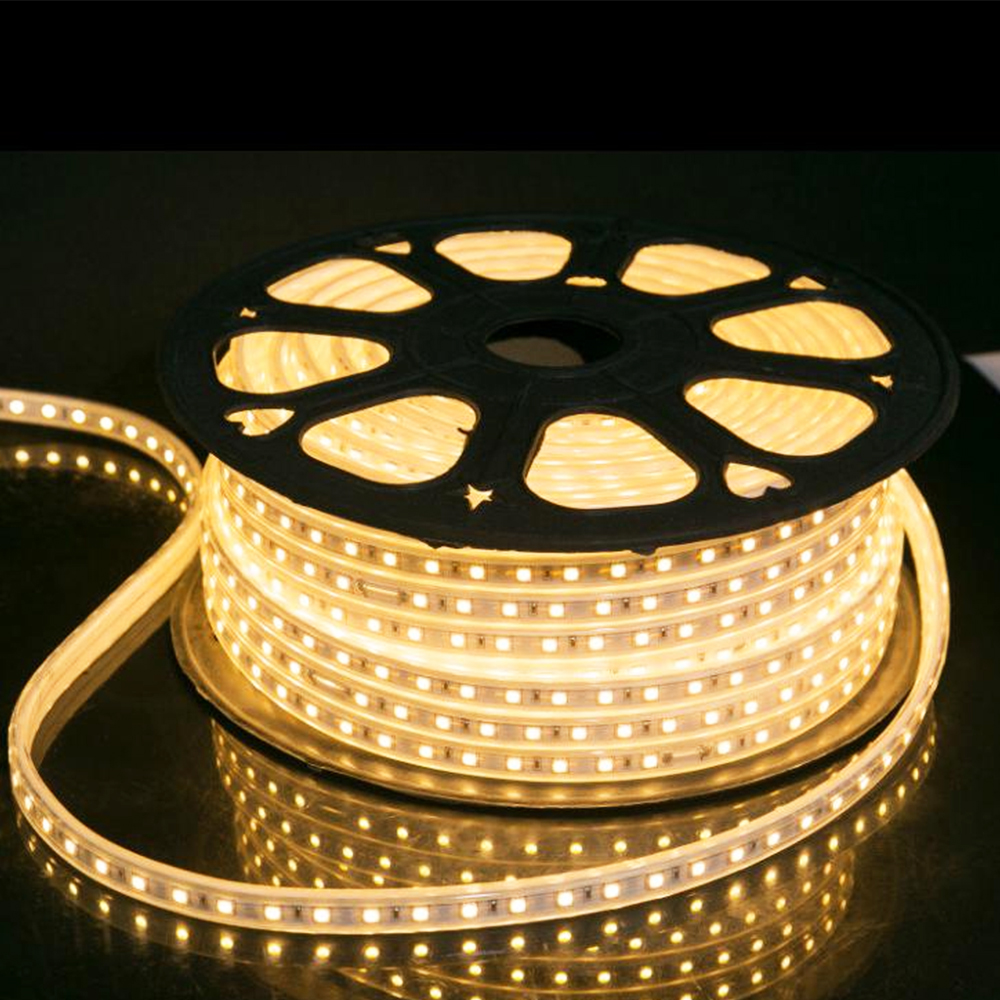

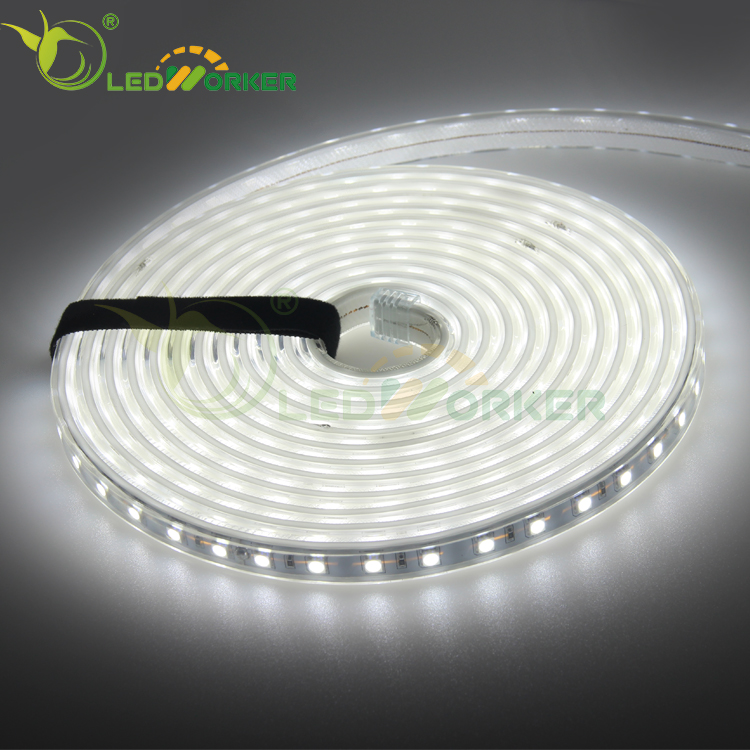

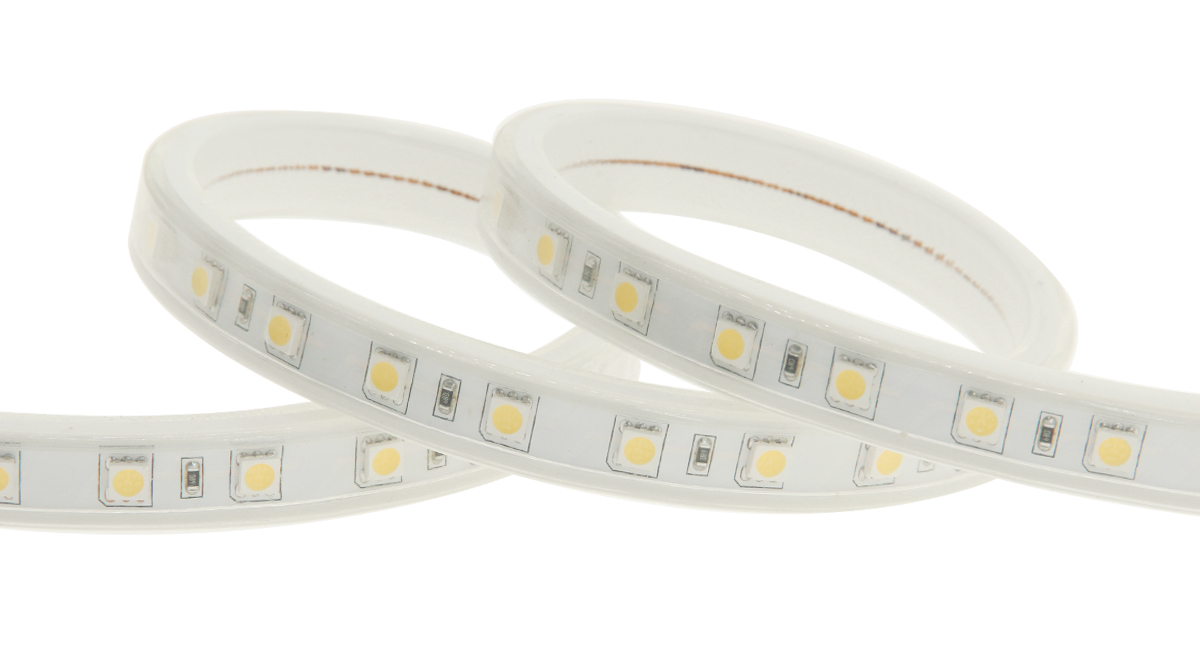

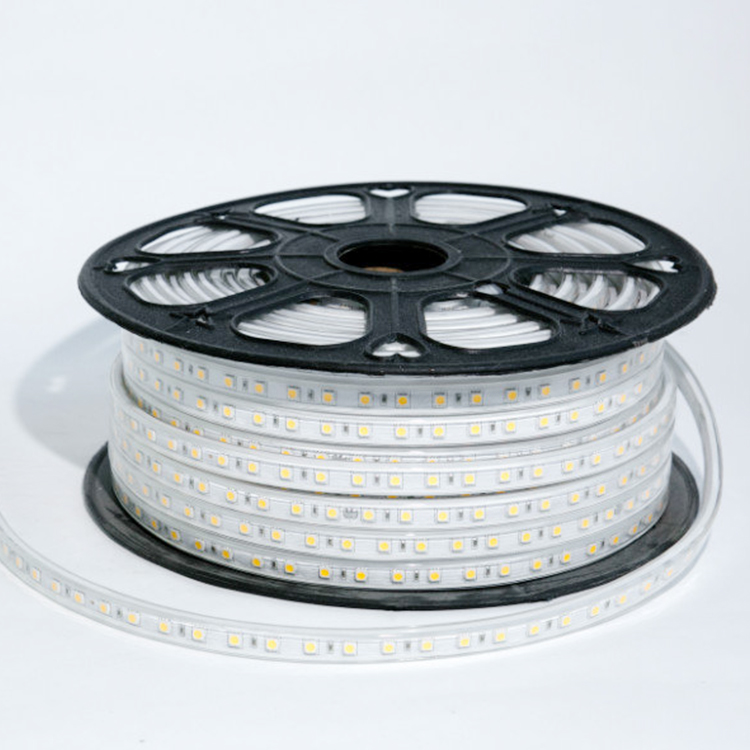

5050 High Voltage LED Strip

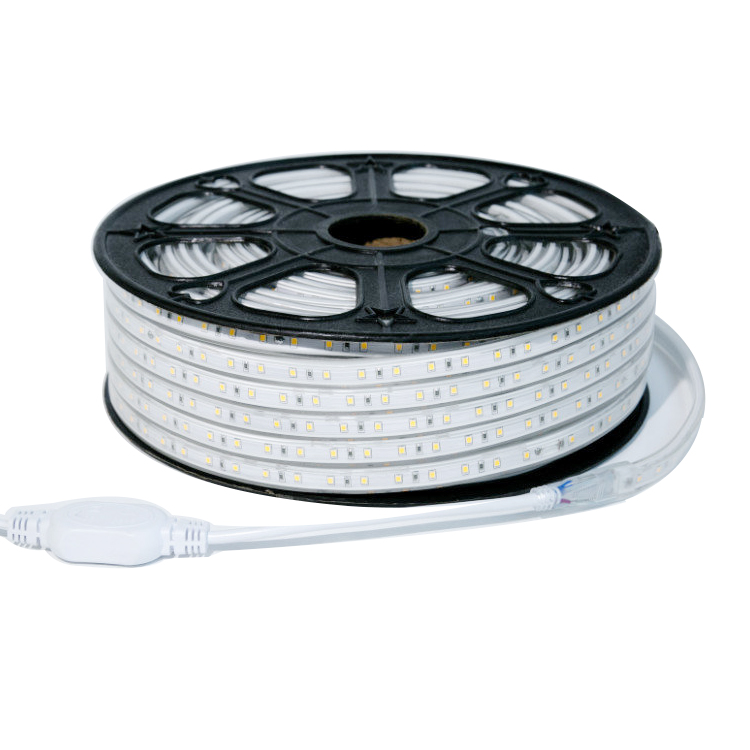

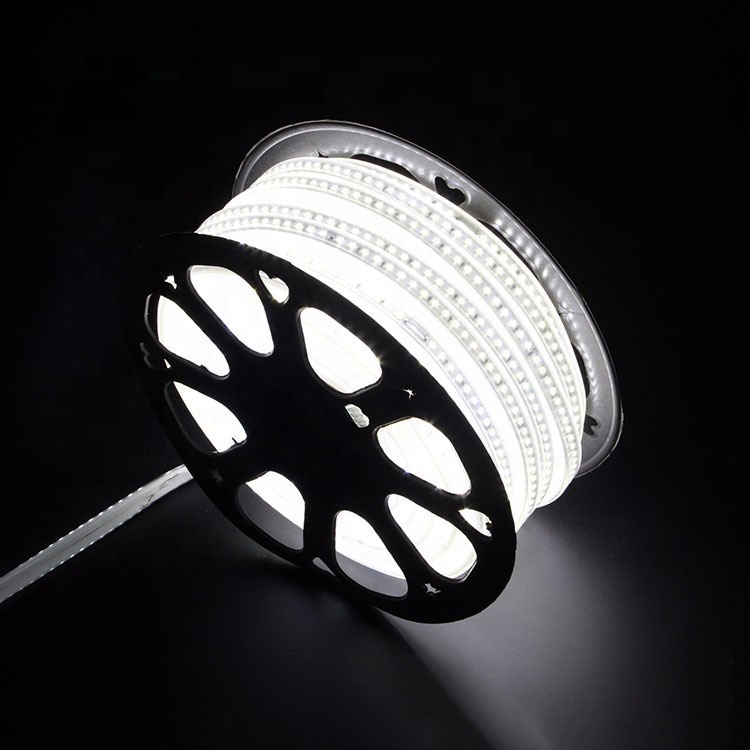

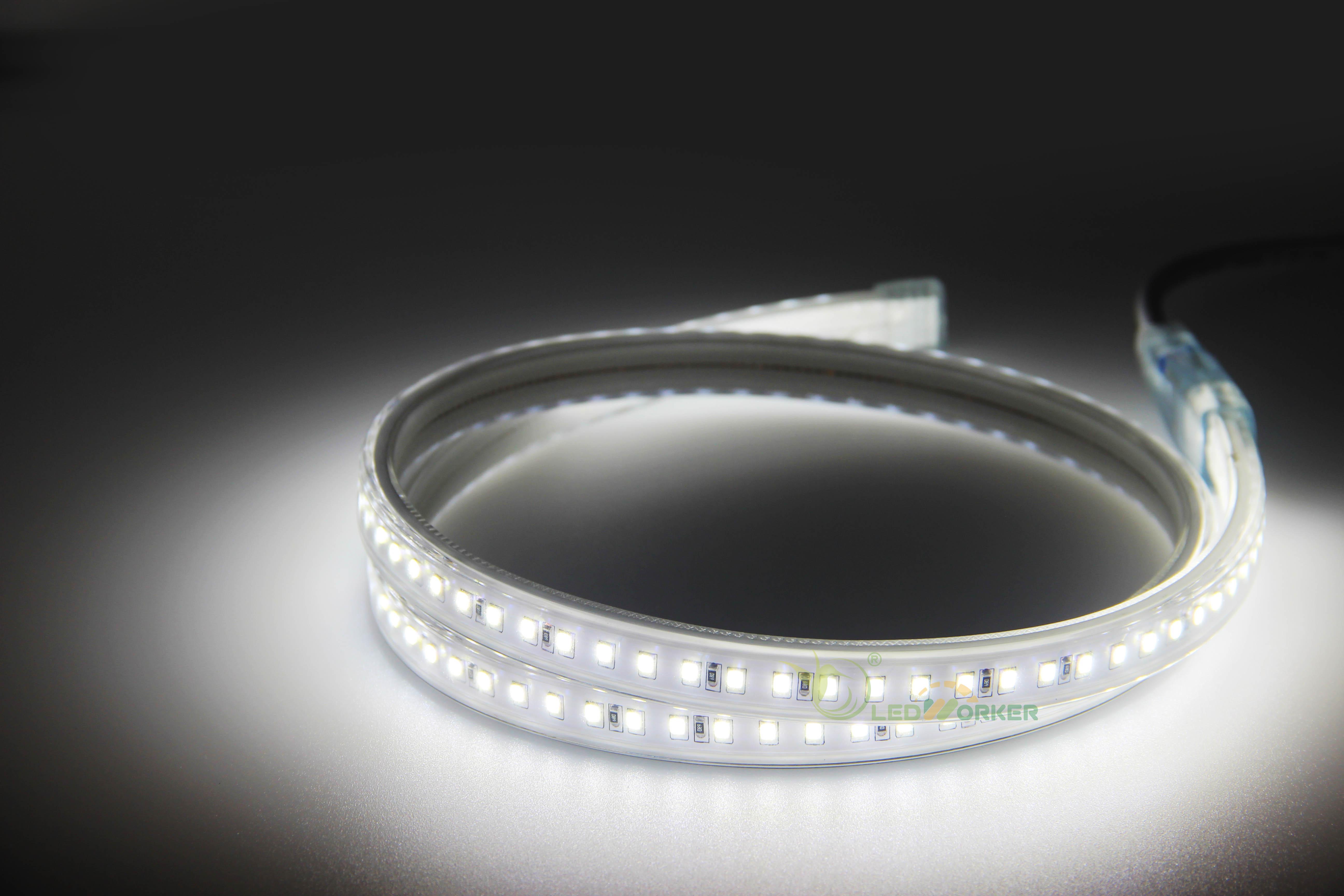

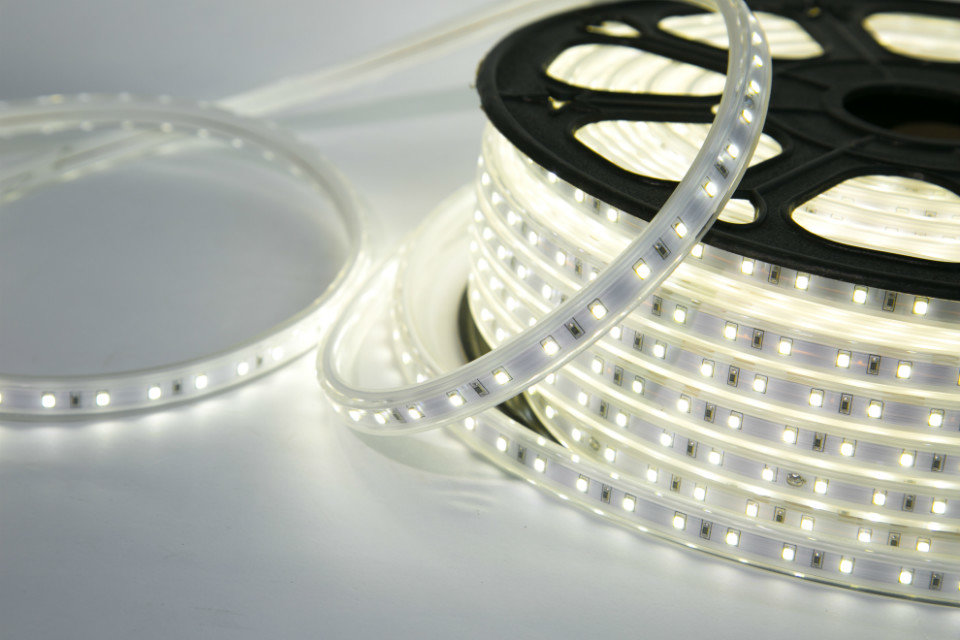

2835 High Voltage LED Strip
Working Principle of High-Voltage LED Strips
LW Lighting’s high-voltage LED strips utilize advanced power drive technology and high-efficiency LED chips to effectively convert electrical energy into light. Current is transmitted through the conductors to the LED chips, which then emit light efficiently under the drive. Through a led strip lighting plug in system, alternating current (AC) is converted into direct current (DC), providing a stable output to ensure the LED chips operate efficiently under continuous and steady power. This robust design makes it a reliable 120 volt led tape light solution for demanding environments.
Differences Between High-Voltage and Low-Voltage LED Strips
High-voltage and low-voltage LED strips are two common LED lighting solutions widely used in the industry. While both utilize LED technology, they differ significantly in terms of voltage, power, brightness, and maximum length.
| Feature | High-Voltage LED Strips | Low-Voltage LED Strips |
| Voltage | AC 110V/220V or higher | DC 12V or 24V |
| Power | Higher power; ideal for large-area lighting. | Lower power; suitable for small-scale lighting |
| Brightness | High brightness; for locations requiring intense output | Lower brightness; for decorative or local lighting |
| Length | Available in 50 ft led strip lights, 50m, or led strip lights 100 feet | Typically 5m or 10m |
| Installation | Simple; connects directly to mains, reducing components | Requires external power supply; more complex. |
| Application | Large commercial and outdoor landscape lighting | Home decor, display racks, and accent lighting. |
| Maintenance | fewer failure points and stable for long-term use.Higher; | Low; separate power supplies may need more care. |
| Safety | Requires careful insulation and electrical safety focus. | High safety;low-voltage design for sensitive areas. |
Product Features
01. PVC Extrusion Molding Process
Using high-quality PVC materials ensures excellent light transmittance and superior flexibility for every strip. Even in complex environments, the lighting remains uniform to meet various installation requirements.
02. Brand-Name Chips for Long Lifespan
Selected from well-known LED chip brands, these components feature high luminous efficiency and a long lifespan. This ensures the strips maintain premium light quality over time while minimizing lumen depreciation.
03. Stable Long-Distance Transmission
High-voltage strips maintain consistent brightness even over a distance of led strip lights 100 feet or more, effectively eliminating voltage drop issues. With a maximum length of up to 100 meters per roll, the 110v led tape light features cutting marks every 10cm, providing flexibility for any scenario.
04. IP67 Waterproof Design
Whether facing heavy rain or high-humidity environments, LW Lighting’s high-voltage LED strips have passed rigorous IP67 waterproof testing. They consistently brighten urban nightscapes, standing fearless against harsh all-weather conditions.
05. Easy Installation

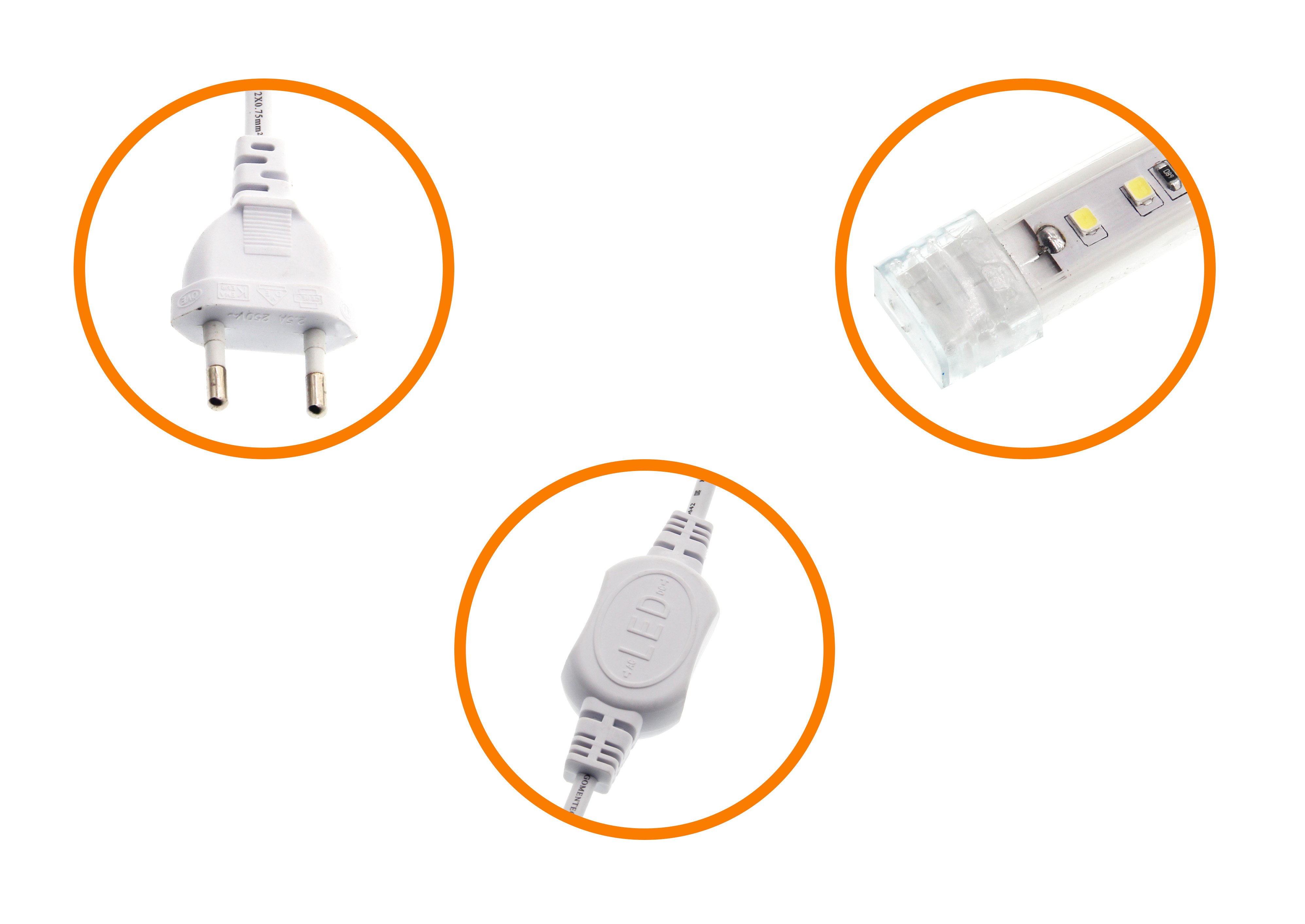

To ensure quick and efficient setup, LW Lighting provides European-standard power cords and transparent mounting clips. Users can easily set up a led strip lighting plug in configuration to connect the strips to power without additional tools, significantly reducing installation time and improving efficiency.
Product Specification
Below is LW Lighting’s product specification
| Name: | High Voltage 5050 LED Strip | High Voltage 2835 LED Strip | High Voltage 2835 LED Strip |
| Part NO: | A0006-GY | A0099-GY | A0240-GY |
| LED Qty: | 60pcs per meter | 120pcs per meter | 240pcs per meter |
| CRI (RA) | >80 | >80 | >80 |
| PCB Width IP20: | 8mm | 6mm | 10mm |
| Input Voltage: | AC110V/220V | AC110V/220V | AC110V/220V |
| Watts: | 7W/M | 6W/M | 10W/M |
| Color: | 2700K/3000/4000/6000K | 3000/4000/6000K | 3000/4000/6000K |
| PCB color: | White | White | White |
| IP Grade: | IP67 | IP67 | IP67 |
| Operating temperature: | -25 to 45℃ | -25 to 45℃ | -25 to 45℃ |
| Beam angle: | 120 degree | 120 degree | 120 degree |
| Certification: | CE; RoHS | CE; RoHS | CE; RoHS |
| Max Run: | 100M | 100M | 100M |
We offer customizable options for LED density, PCB width, color, CRI, and protection ratings. Whether you require a specific 50 ft led strip lights configuration or other tailored specifications, please contact us for more information.

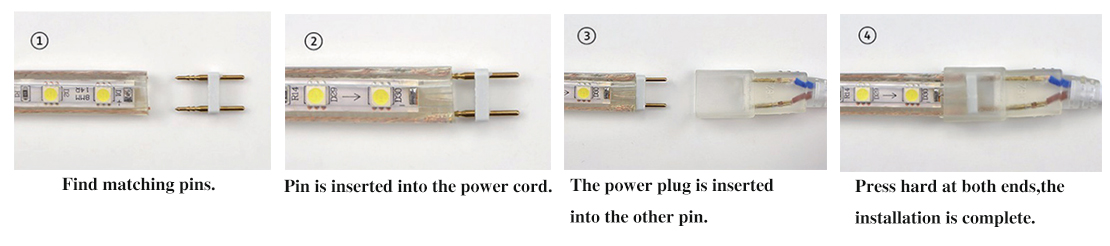

Installation
Precautions for Using High-Voltage LED Strips
- Circuit Safety: The strips come equipped with a rectifier bridge and plug, allowing for a simple led strip lighting plug in setup directly into a power outlet. Before use, verify the product power to ensure the circuit is not overloaded and equipped with protection devices like fuses or leakage switches. The voltage must be maintained within the specified range (±5%), such as with a 120 volt led tape light system.
- Cutting Requirements: Strips must be cut at designated 0.5m or 1m units, and all cuts must be sealed with waterproof glue. We recommend contacting the manufacturer for non-standard lengths rather than cutting them yourself.
- Preventing Damage: Do not twist the strip to avoid fatigue damage to the internal circuitry. Never light up the strip while it is still coiled to prevent overheating.
- Ventilation and Securing: Ensure the installation site is well-ventilated and the strip is firmly fixed without swaying. Avoid pulling forcefully or pressing on the LED surface.
- Waterproofing Interfaces and Ends: For outdoor use, the end must be capped with an end plug, and all interfaces must be sealed with silicone glue to prevent water ingress.
- Avoid Short Circuits: Do not use metal materials to fix the strip body to prevent short circuits or electrical leakage.
- Protective Measures: If the outer casing is damaged, the affected section must be removed. Keep out of reach of children and do not use directly in swimming pools or rivers.
REQUEST A QUOTE
As a leading provider of lighting solutions in the industry, we are committed to providing customers with efficient, reliable, and innovative high-voltage strip products. Whether it is for architectural decoration, commercial lighting, or complex outdoor applications, our years of industry experience and advanced technology ensure that every product meets your high standards. By choosing our solutions, such as our high-performance 110v led tape light or standard 50 ft led strip lights, you are choosing a stable and premium lighting experience.
Contact us today to learn more about the advantages and applications of our high-voltage lighting products.
