Among various lighting products, RGB COB LED strips have gradually become a next-generation mainstream choice. These tv led strips not only provide continuous, soft linear lighting effects in appearance, but they also exhibit unique lighting charm in different environments, such as in garage led strip installations.

• In commercial spaces, it can enhance the visual layers of brand display windows, ceiling light troughs, and shelf backgrounds with precise LED light strips 12v color changes and even light distribution, improving the overall ambiance.
• In entertainment venues and stage lighting, it can achieve dynamic lighting effects such as gradient, jump, and flow by pairing with controllers, creating a lighting experience that combines rhythm and immersion.
• For in-vehicle or outdoor applications, the waterproof RGB COB LED strip can operate stably in variable environments, resisting high temperatures and UV rays, offering reliable and expressive lighting solutions for RVs, boats, and gardens.
• In home or architectural decoration, with its 180° light angle and no dark spots, it can be used as background lighting, linear contour lights, or ambient lighting, making the space's lighting and shadows softer and more stylish.

What Is RGB COB LED Strip?

COB RGB LED strips are a method where the LED RGB chips are directly bonded to the PCB board. RGB stands for three colors: red, green, and blue. By combining these three colors, a wide range of vibrant colors can be created. The color efficiency is high, the lighting is even, and it is possible to control the red, yellow, and blue lights individually. The large light-emitting surface provides a beam angle of 180°.

Our LED light strips 12v with color changing capabilities use high-quality raw materials and advanced COB packaging technology, ensuring higher luminous efficiency and a longer service life. Each strip undergoes strict quality testing to meet CE and RoHS certification standards. These LED light strips 12v are ideal for a variety of applications, including garage led strip setups and other dynamic lighting needs.

Product Features

1.No dark spots and smooth, even lighting effects

Traditional 5050 RGB LED light strips often suffer from noticeable "light spots and light gaps" due to the distance between the LED chips. The RGB COB LED light strip, on the other hand, uses a high-density LED chip arrangement, merging the light into a continuous linear strip, eliminating the light spot defects typical of traditional LED light strips, and providing a softer and more even lighting effect.

2. Precise control of dynamic effects

The COB RGB LED strip blends red, green, and blue LEDs and can be paired with an RGB controller to support LED light strips with remote control, including button control, mobile apps, and voice control. This allows users to create an unlimited range of color combinations and dynamic lighting effects, making it ideal for both indoor LED light strip installations and outdoor LED light strip applications.

3. Excellent warmth dissipation efficiency

COB packaging frameworks normally have higher warmth dissipation performance and can maintain security even throughout extended use.

4. Adaptable setup

Like average LED strips, RGB COB LED strips can be cut and bent to adjust to various installment settings.

Product Specification

Our RGB COB LED light strips support multiple customizations to meet different project requirements:
Packaging and labeling: Custom packaging, instruction manuals, labels, PCB-printed logos, etc.
Performance customization: LED quantity, PCB width, waterproof rating, color temperature, and Color Rendering Index (CRI) can all be customized according to your needs.

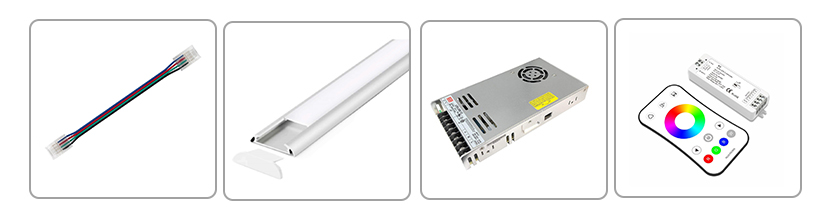

Accessories

To simplify the installation process, we offer a one-stop solution with all the necessary accessories included, eliminating the need for additional purchases. Our RGB COB LED light strips accessories include connectors, aluminum profiles, controllers, and more, making it easier for users to complete installation and connection.

Recommendation for use

• Small DIY scenarios: We recommend pairing with an infrared remote control, which allows you to easily adjust brightness, switch colors, and choose dynamic modes (such as gradient, jump, and breath effects). No complicated setup is needed, making it simple to operate and perfect for personal projects or home use.
• Smart home scenarios: We suggest pairing with a WiFi or Bluetooth controller, allowing you to control the lights remotely via an app. You can set timers to turn off the lights after leaving home, simulate natural light to wake up, or switch to warm yellow light during movie time, improving your quality of life.

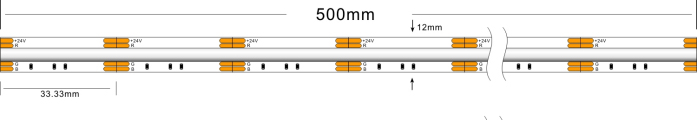

Dimensions

LW-COB020-24V-630LEDs

Installation and Connection Guide

1. how to connect rgb led strip to power supply

To ensure the RGB LED light strips work properly, it is essential to correctly connect the power supply and RGB controller.
The RGB LED light strips cannot be directly connected to the power supply because they include three color signals (R/G/B) and a common positive (V+). A RGB controller is required to blend the colors and adjust the brightness. Below is the connection diagram:

2. how to power rgb led strip

Correct power supply connections are crucial for the stable operation of RGB LED light strips. Incorrect power methods may cause issues such as uneven brightness, color distortion, or even damage to the controller or the light strip itself.

Power supply steps:
Check the voltage of the light strip: Different models of RGB LED light strips have different rated voltages, commonly DC5V, DC12V, and DC24V. Before connecting to the power supply, make sure the power supply matches the voltage of the light strip. You can verify this by checking the label or specification sheet of the light strip.

Connect the power supply through the controller: RGB LED light strips cannot be directly connected to a power outlet. They must be connected through the RGB controller to transmit voltage and signals. The correct connection order is: power supply → controller → RGB LED light strips.

Power supply issues for multiple light strips: If the total length exceeds 5 meters (for 12V) or 10 meters (for 24V), the voltage will gradually decrease, causing the brightness of the later segments to dim. To maintain consistent brightness, the following measures can be taken:

• Parallel power supply: Supply power to each segment of the LED light strips separately, rather than daisy-chaining the power lines to multiple strips.
• Use signal amplifiers: Ensure that the color and brightness are synchronized between multiple light strips.
• Dual power supply: Connect the power supply to both ends of the light strip to reduce voltage loss.

Power supply calculation:
It is crucial to choose a power supply with the correct power rating. If the power supply is too small, the light strip may flicker or overheat. The calculation formula is as follows:
Total power = Power per meter × Total length × 1.2 (reserve 20% margin)
For example: If the RGB LED light strips have a power rating of 14.4W/m and the length is 10 meters:
14.4 × 10 × 1.2 = 172.8W
Therefore, a power supply of 180W or higher is recommended.

3. how to extend rgb led strip

RGB LED light strips typically come in rolls of 5 meters. If an extension is needed, connectors can be used to achieve a seamless extension. For professional installations or long-term projects, soldering provides a more stable connection. If the total length exceeds 5 meters (for 12V) or 10 meters (for 24V), it is recommended to use a signal amplifier to avoid a decrease in brightness in the later segments.

4. how to control rgb led strip

RGB LED light strips can be controlled in various ways, allowing easy adjustment of brightness and color. Common control methods include:

• Remote control: Ideal for small or fixed installation projects, offering simple operation.
• App or smart control: Through WiFi or Bluetooth, it supports remote control, timer settings, and dynamic mode switching, making it suitable for smart home environments.
• Controller/DMX system: Perfect for large commercial or stage projects, providing precise control over color changes and animation effects.

If you're unsure how to use it, please refer to the video: How to use the RGB Controller?

REQUEST A QUOTE

LW Lighting is dedicated to providing professional RGB COB LED light strip solutions. We offer comprehensive technical support, from design and installation to debugging, ensuring your project runs smoothly. If you have any questions or need personalized customization services, feel free to contact us via email, and we will provide you with more detailed information and professional advice.
