Are you also experiencing aesthetic fatigue from bulky, exposed lighting fixtures? Bare light sources not only disrupt the overall design but also tend to create harsh glare, making a space feel cramped rather than premium. In architectural contouring, cove lighting, or curved designs, the continuity and concealment of light have become the primary focus for modern designers.
To meet the demand for lateral illumination in coves, curves, and irregular structures, the Digital Side Emitting COB LED Strip has been widely adopted in recessed lighting projects. Featuring a uniform side-glow design combined with a slim, flexible structure and digital control technology, it can be easily embedded into narrow troughs and curved edges. This makes it a superior alternative to a standard sequential led strip for achieving seamless light effects.
Beyond architectural use, this technology is versatile enough for specialized DIY projects, such as upgrading vehicle interiors with led strips 12v car, or enhancing residential spaces. For instance, it provides a sleek solution for led strip lighting ceiling applications where a dot-less, hidden glow is required. Furthermore, its precision makes it perfect for functional task lighting, such as led strip lighting under kitchen cupboards, ensuring both utility and elegance. By concealing the light source, this rgbic led strip technology reshapes spatial dimensions and allows light to become an integral part of the design itself.
Next, let us explore the unique charm of this product, the core value of hidden lighting, and the creative application solutions that will truly inspire your next project.
What Is Digital Side Emitting COB RGB LED Strip?

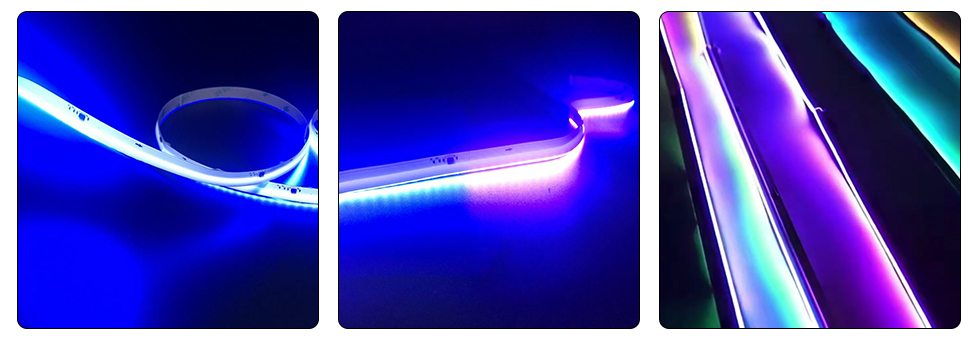

The Side-Emitting Digital COB RGB Strip is a high-performance lighting solution that integrates lateral emission technology, COB encapsulation, and digital control functionality to provide exceptional flexibility and decorative impact.
- Side-Emitting Technology: Utilizing a flexible FPC substrate, the light source emits uniformly along the side of the strip, achieving a continuous and soft lateral light effect.
- COB Encapsulation Process: COB (Chip on Board) technology mounts LED chips directly onto the flexible board, covered by a phosphor-encapsulated colloid. This ensures uniform light, pure color, and stable color temperature through refraction and reflection, making it ideal for high-end led strip lighting ceiling designs.
- Digital Control: This rgbic led strip allows each LED unit to be independently controlled, enabling dynamic effects such as gradients, jumping, breathing, flashing, and music-sync rhythms.
Why is Hidden Lighting Essential?
Enhancing Spatial Aesthetics: Hidden lighting reduces the visibility of fixtures, shifting the visual focus back to the light itself. By using layers of light and shadow to shape architectural contours and spatial structures, it creates a cleaner, more sophisticated, and softer visual effect—especially when integrated into a led strip lighting ceiling design.
Creating a Comfortable Atmosphere: Since the light source is not directly exposed, it reflects off surfaces like walls or ceilings to form soft, diffused light. This prevents visual fatigue caused by direct glare, providing a more comfortable environment for residential relaxation, business negotiations, or public transit areas.
Expanding Design Boundaries: Hidden lighting offers superior spatial adaptability, allowing it to blend seamlessly into narrow gaps, coves, and corners. This makes it easier for architectural structures and decorative elements to form a unified expression. For instance, using a sequential led strip in these hidden areas can provide a smooth, flowing sense of motion that enhances the creative possibilities of any project.
Digital Side-Emitting COB LED Strip: Creative Lighting Scenarios

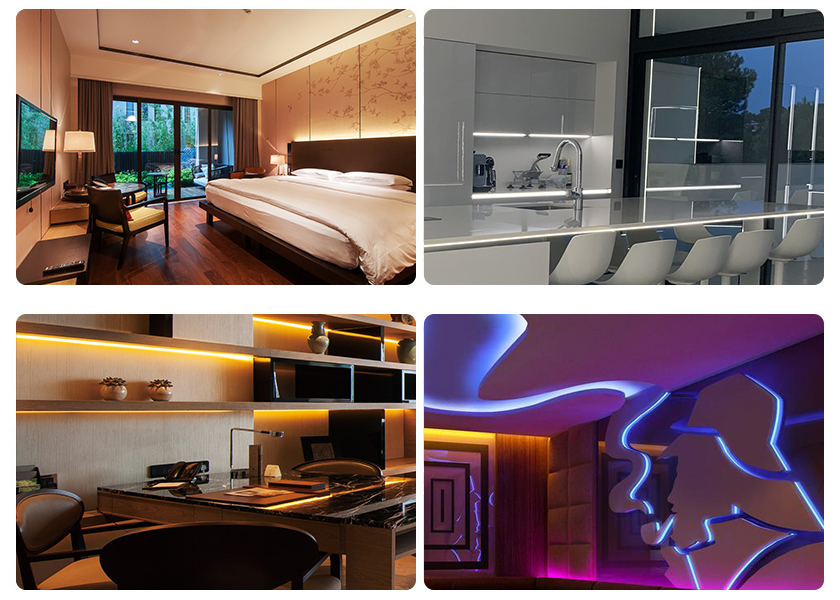

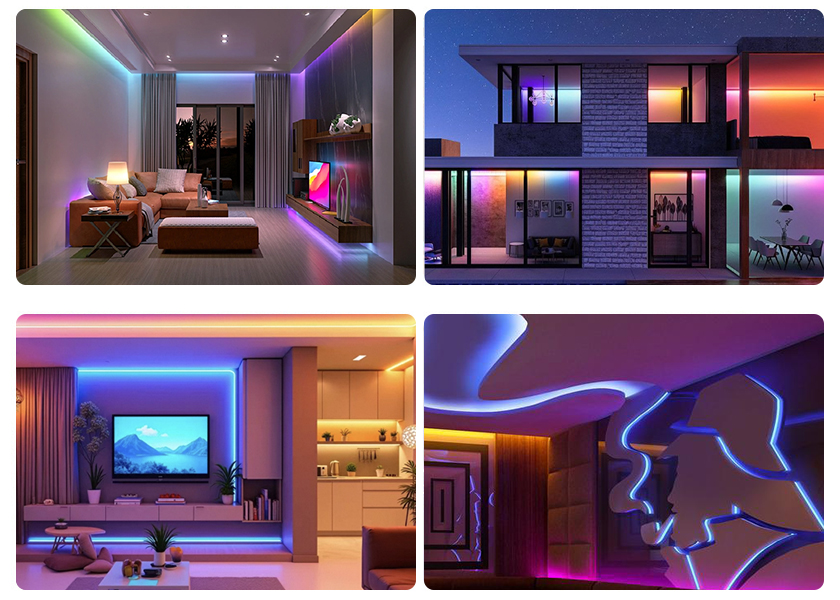

Residential Hidden Lighting: Creating Cozy Ambience
In home environments, the Digital Side Emitting COB LED Strip blends naturally into various recessed scenarios, making light and shadow an integral part of daily life. By installing lights in led strip lighting ceiling coves or baseboard gaps, the soft, laterally diffused light can replace main fixtures to create an overall quiet and relaxing environment.
Embedding strips as led strip lighting under kitchen cupboards or beneath shelving allows the light to project sideways onto the countertop. This not only meets the functional needs for kitchen tasks or reading but also prevents the exposed fixtures from disrupting the cabinetry's clean aesthetic.
Commercial Spaces: Enhancing Visual Attraction

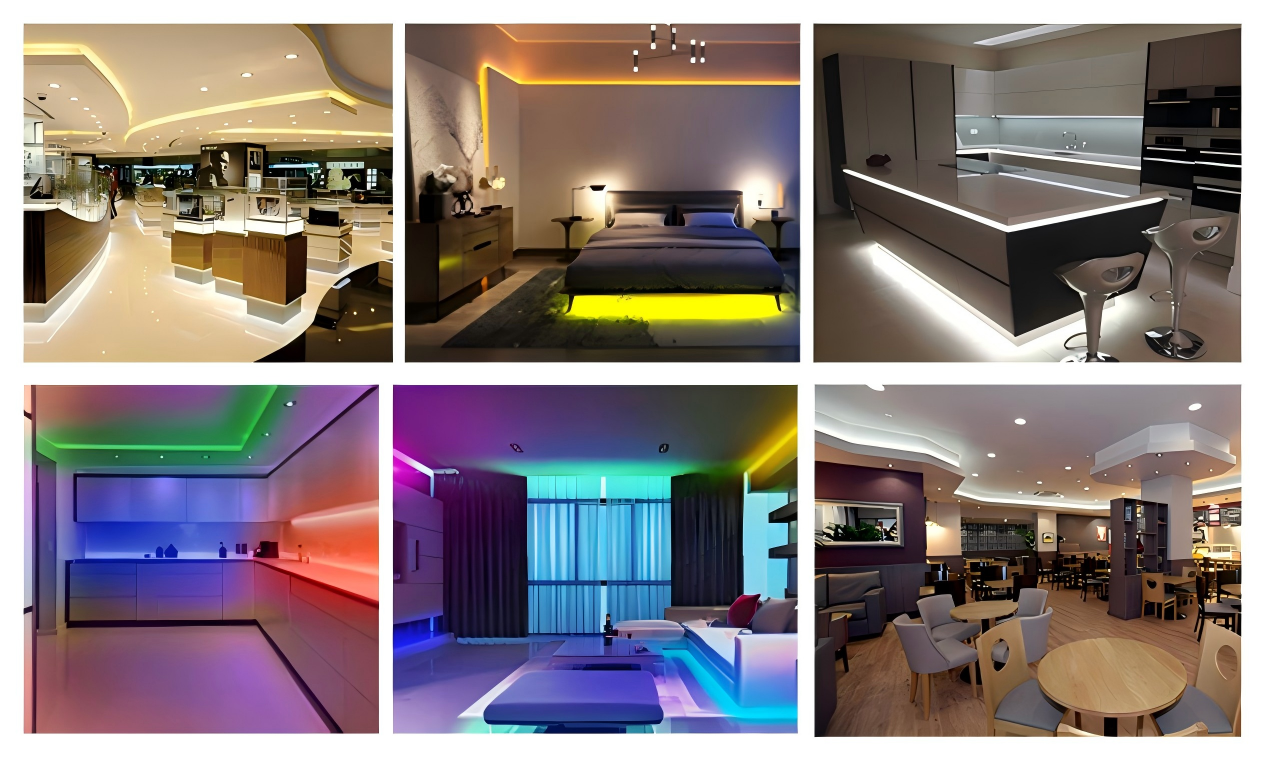

In commercial environments, light and shadow serve as more than just illumination; they are a vital visual language used to attract foot traffic and shape brand identity. In window displays, strips can be integrated into frames or structural gaps of display stands.
For hotel lobbies, including reception backwalls, pillar coves, and curved ceiling areas, the soft lateral glow adds a sense of depth and order. In entertainment venues like KTVs and bars, the strips follow the contours of curved walls with dynamic color changes.

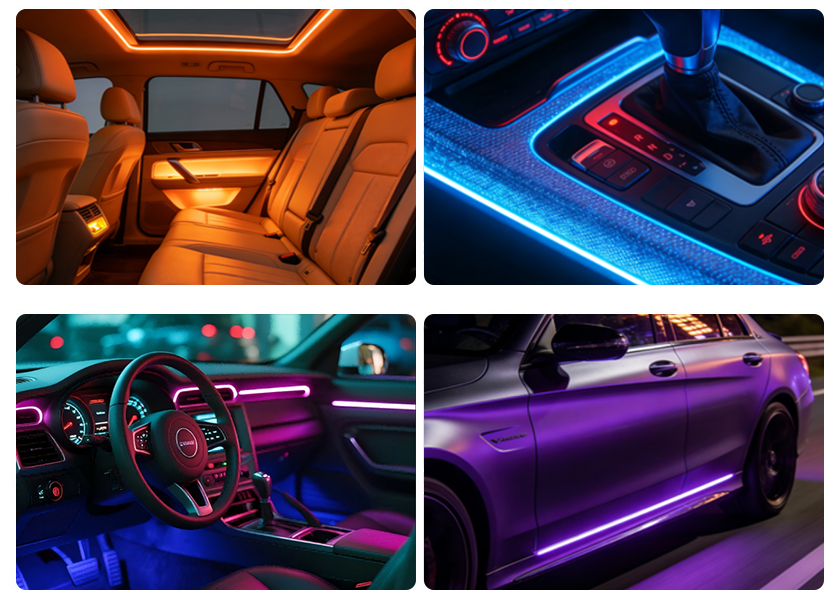

Automotive Applications: Dynamic Lighting Enhances Vehicle Ambiance
In automotive lighting and customization, Digital Side Emitting COB LED Strips combined with led strips 12v car provide low-voltage compatibility with vehicle power systems, enabling flexible dynamic lighting control.
Product Features
1. Ultra-Narrow Emitting Surface
Featuring an innovative side-emitting structure, the LED chips disperse light along the edge of the strip. Combined with a flexible FPC board, it achieves a continuous and smooth lighting effect even when installed in led strip lighting ceiling coves, stair steps, or deep recesses.

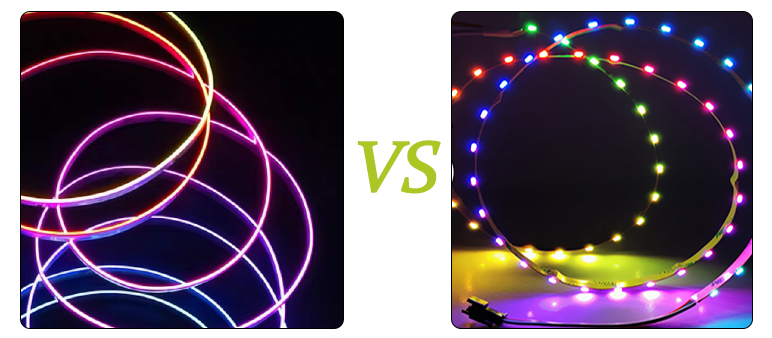

2. COB Chips vs. SMD Chips
COB (Chip on Board) technology mounts LED chips directly onto a flexible PCB, covered by a phosphor-encapsulated colloid to achieve uniform light distribution. Compared to traditional SMD beads, the side-emitting COB strip eliminates visible hot spots.
3. Addressable Control
Equipped with built-in WS2811/WS2813 digital driver chips, this rgbic led strip allows each LED unit to be independently programmed. It supports dynamic effects such as gradients, jumping, breathing, flashing, and music-sync rhythms.
Product Specification
Below is LW Lighting’s Product Specification
| Advantage: | Side Emitting Addressable RGB |
| Model No. | LW-COB024 |
| LED Qty: | 630pcs per meter |
| Color | Addressable RGB |
| PCB Width IP20: | 8mm width |
| Input Voltage: | DC24V |
| Watts: | 12W |
| Luminous Flux: | 30LM / W |
| Weigh/ Reel： | 125g |
| PCB color: | White |
| IP Grade: | IP20 |
| Operating temperature: | -25 to 45℃ |
| Beam angle: | 180 degree |
| Certification: | CE; RoHS |
| Max Run: | 5M |
| Min Run: | 24V 100mm |
LW Lighting’s Digital Side Emitting COB LED Strip offers a range of flexible customization options, ideal for engineering projects, architectural ambiance, and various OEM/ODM requirements:
- Packaging & Branding: We provide customized outer boxes, manuals, and labels, as well as PCB LOGO printing services to support your brand identity.
- Performance & Structural Customization: We can adjust LED density, PCB width, and protection ratings (such as IP65 / IP67 / IP68).

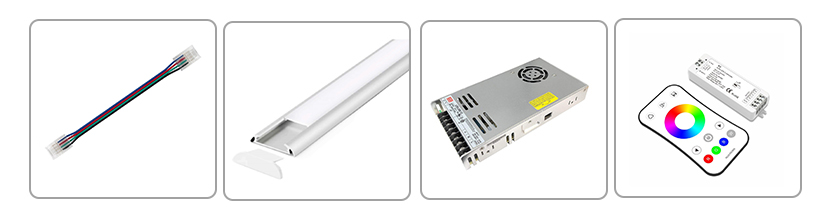

Accessories
To ensure stable installation and optimal light performance in diverse environments, we offer a wide range of matching accessories. Our solutions cover the entire process, from connection and mounting to power supply and control.

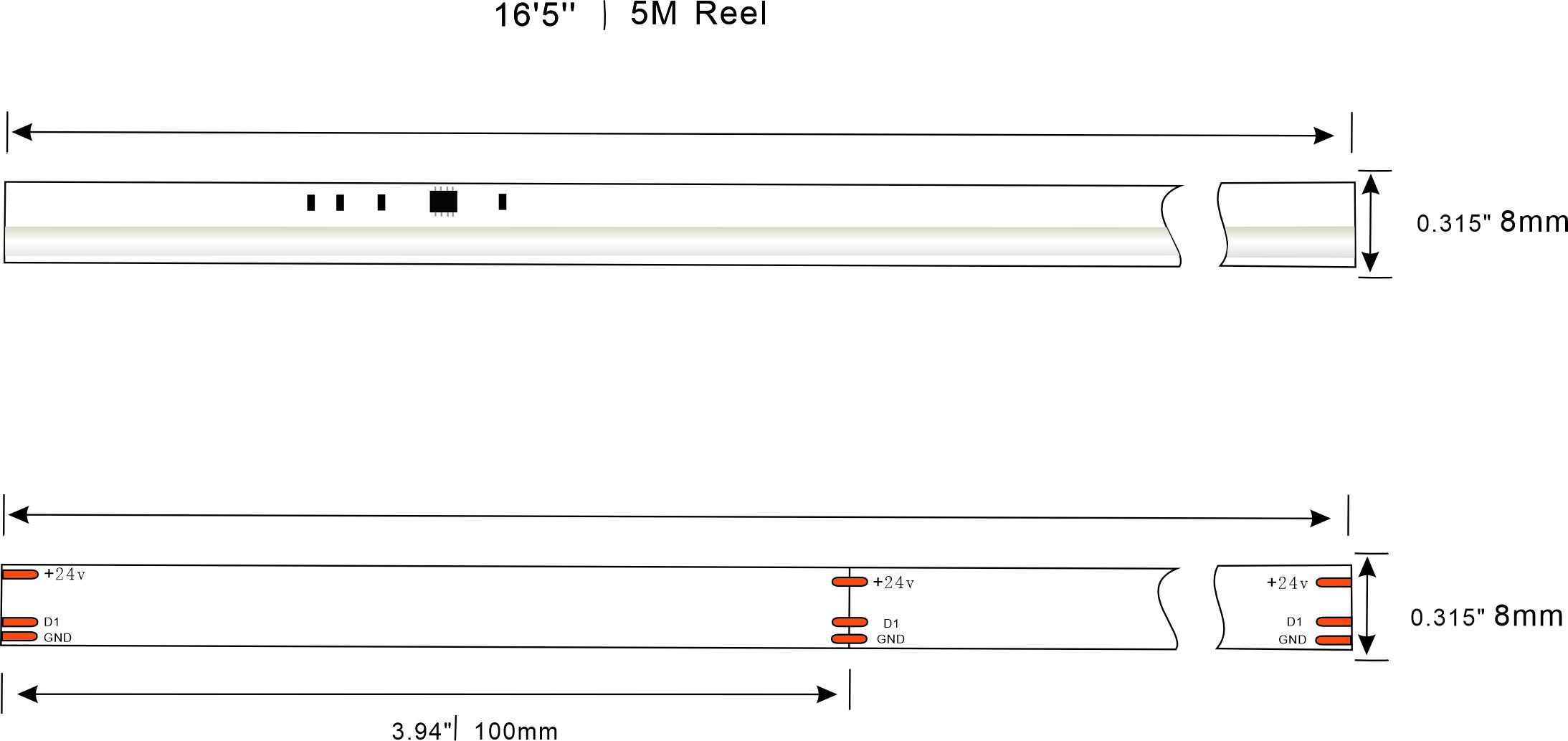

Dimensions
LW-COB024-24V-630LEDs

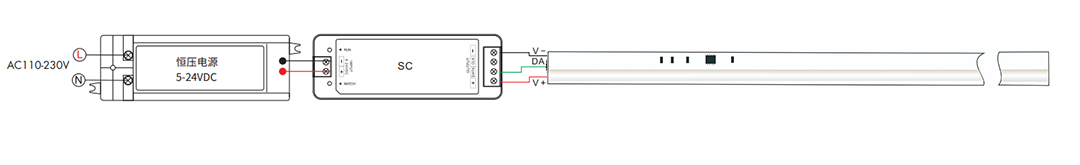

Connect Drawing
Application Cases
- High-End Hotel Cove Lighting: Applied in hotel lobby ceilings and staircase light troughs, the strips provide uniform, glare-free illumination.
- Commercial Displays & Storefronts: Used in luxury retail window displays, this rgbic led strip technology enables dynamic gradient lighting effects.
REQUEST A QUOTE
Explore Infinite Lighting Possibilities — The Digital Side Emitting COB LED Strip allows light to flow freely in narrow spaces, delivering smooth, uniform, and layered visual effects. With high-density COB chips, a side-glow design, and addressable digital control, it meets every intricate detail of high-end lighting engineering and creative design.
Contact LW Lighting today to get a customized solution or request samples, and let your project stand out from the rest.
