In modern interior design and commercial displays, lighting is no longer just about illuminating spaces; it plays a crucial role in shaping forms, highlighting structures, and enhancing the visual experience as an essential decoration. Whether along the edges of indoor walls, inside signboxes, or in tight spaces like TV background walls and staircase recesses, there is an increasing demand for "invisible light sources", "even lighting effects", and "visual comfort".

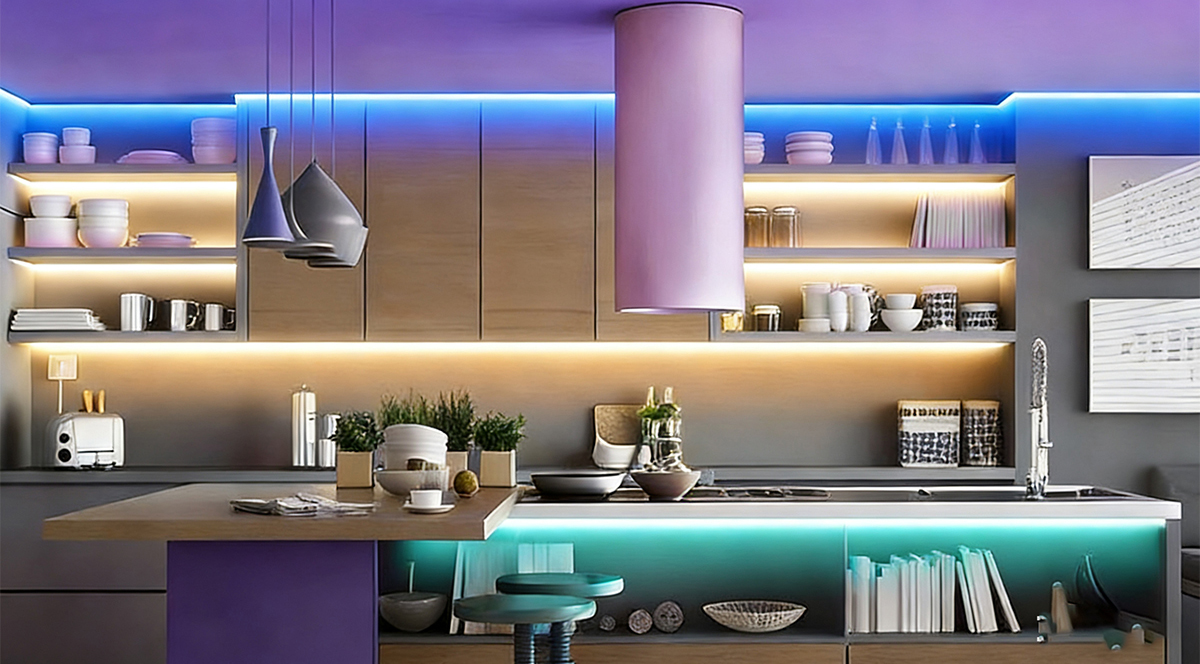

In home environments, many users prefer to use led strip lights 12v for their led strip cabinet lighting, aiming to reduce the contrast of screen brightness while adding a soft color ambiance to the living room.

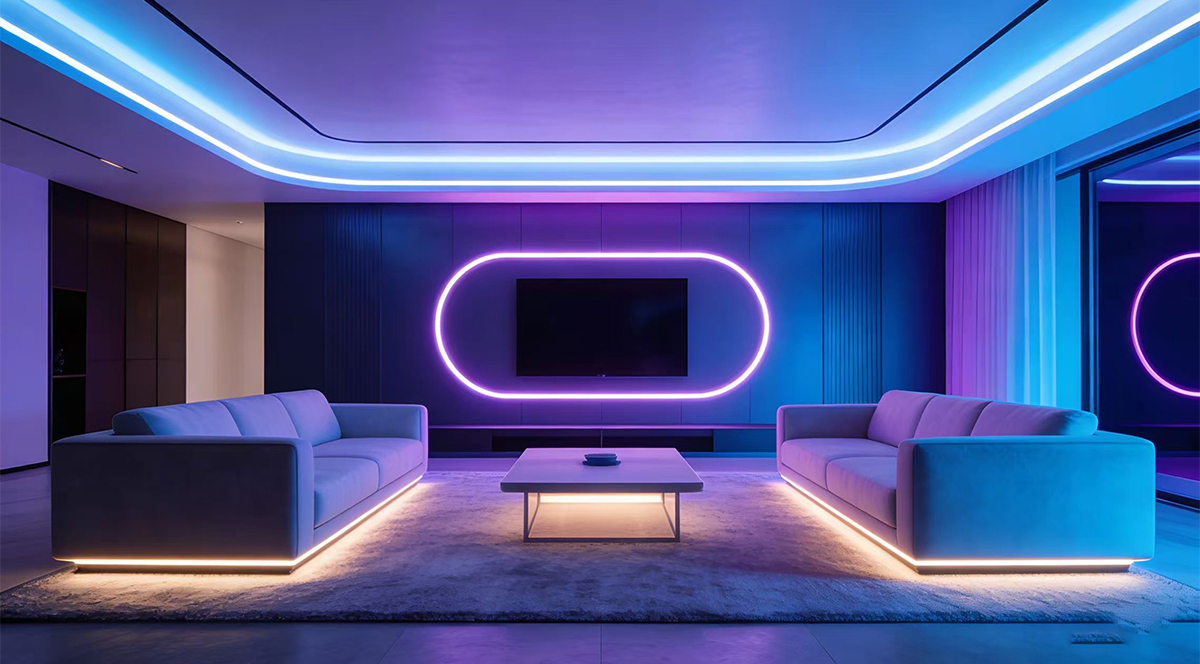

In commercial spaces, designers often need led rgb strip lights that can be hidden within structures and emit continuous light along the edges to create a clean, linear effect.
Therefore, there is a need for a multi color led tape light that is softer, more uniform, perfectly suited for hidden light sources, and capable of side-emitting. This type of strip is specially designed for side lighting, concealed installation, and high-quality light effects, offering a premium solution for modern ambient lighting.

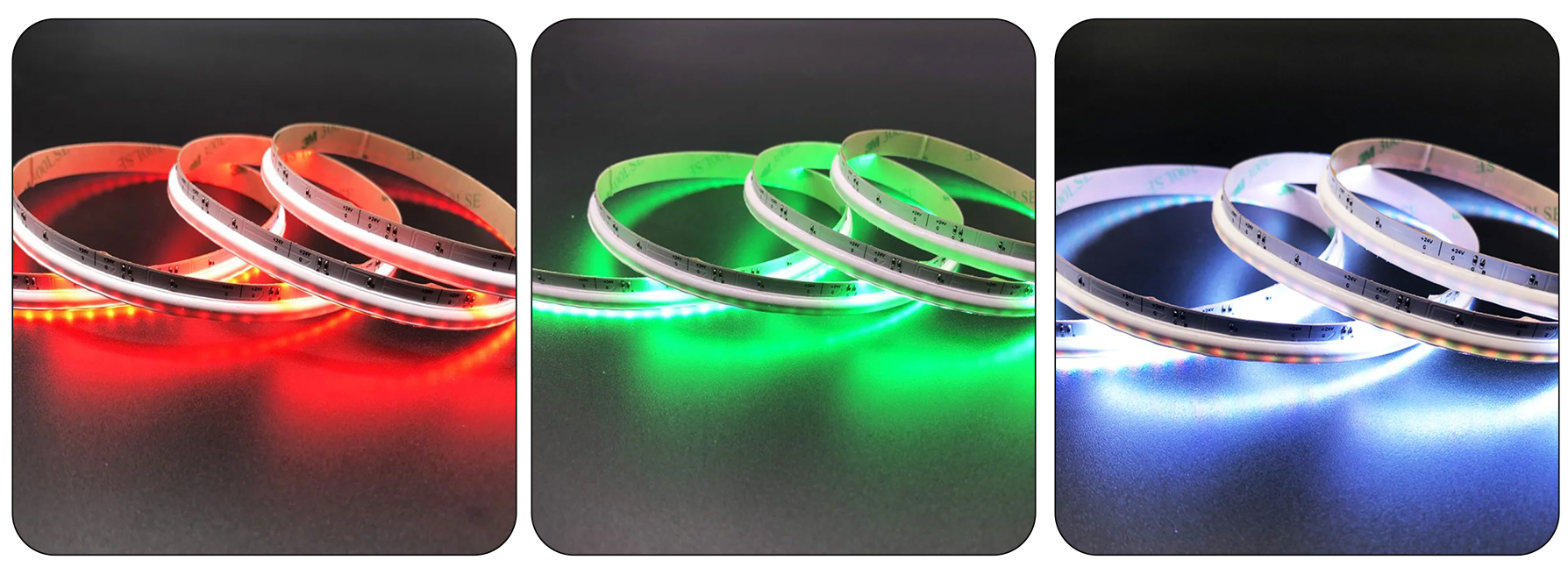

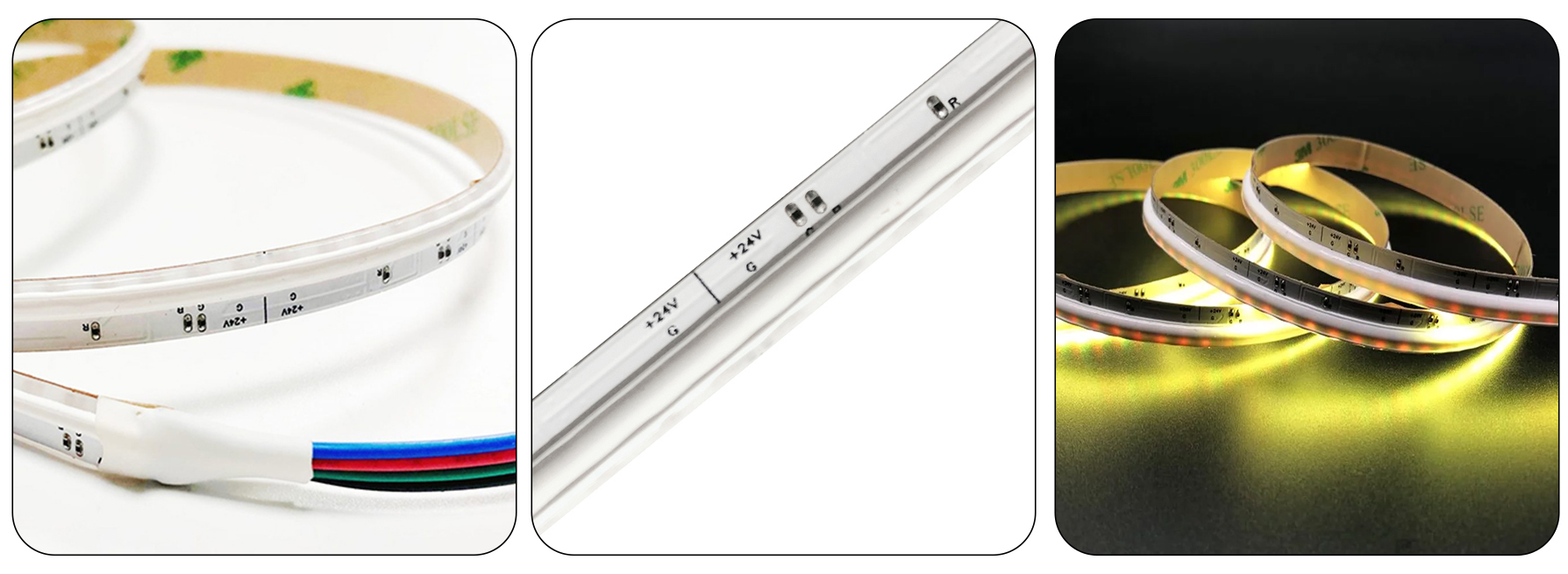

What Is Side View RGB COB LED Tape?
The RGB side-emitting LED strip is an innovative combination of RGB primary color mixing technology, COB packaging process, and side-emitting design. By utilizing side-emitting LEDs, this strip achieves led strip lights 12v, with light being emitted from the side of the strip (parallel to the surface). Once installed, it can be fully hidden in gaps or recesses, realizing the design aesthetic of "light follows the form, the strip is hidden in the void."
Product Features
Side-Emitting
The biggest feature of the side-emitting RGB COB LED strip lies in its unique light emission direction. The light is emitted horizontally from the side of the strip, parallel to the strip itself, making it highly suitable for special scenarios like edge, embedded, or side lighting. In contrast, common 3528 or 5050 direct-emitting LED strips emit light vertically upward, with the light direction forming a 90° angle with the PCB. This structural difference in light emission gives the side-emitting LED strip a distinct advantage in applications where hidden light sources, softening light, or achieving linear lighting effects are required.

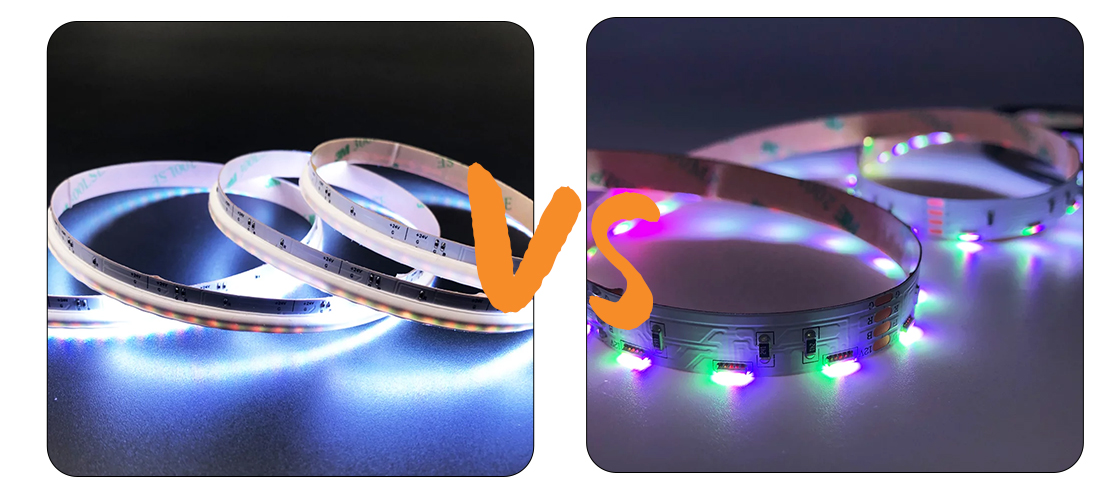

Side-emitting COB vs Side-emitting SMD
The side-emitting COB RGB LED strip uses a tightly packed integrated chip structure, which makes the light emitted more delicate and smooth, creating a continuous linear lighting effect without the common bright spots or light gaps seen in traditional LED strips. This truly achieves flexible lighting without a grainy feel.
On the other hand, the traditional side-emitting 020 SMD LED strip consists of independent LED beads, with light sources visually distributed in a point pattern. Although this type of strip has certain advantages in brightness output, its point light source characteristic can often make the light appear slightly harsh in scenarios where a soft halo, comfortable visual experience, or high-quality ambient lighting is needed.
Overall, the side-emitting COB LED strip excels in light continuity and visual comfort, making it more suitable for modern space lighting designs that require higher lighting quality.
Higher installation flexibility, adapts to complex structures
The side-emitting LED strip offers greater flexibility and can maintain stable lighting effects in curved, zigzag, narrow seams, and irregular structures. It can conform to the common installation paths used by designers, such as S-shaped, C-shaped, or chamfered paths. In projects with limited lighting channels or irregular spaces, it becomes easier to achieve the "light follows the structure" effect.
Product Specification
Below is LW Lighting’s Product Specification
| Advantage: | Side Emitting RGB |
|---|---|
| Model No. | LW-COB025 |
| LED Qty: | 630pcs per meter |
| Color | RGB |
| PCB Width IP20: | 8mm width |
| Input Voltage: | DC24V |
| Watts: | 9.6W |
| Luminous Flux: | 30LM / W |
| Weigh/ Reel： | 125g |
| PCB color: | White |
| IP Grade: | IP20 |
| Operating temperature: | -25 to 45℃ |
| Beam angle: | 120 degree |
| Certification: | CE; RoHS |
| Max Run: | 5M |
| Min Run: | 24V 33.3mm |
Customization Services
Our Side View RGB COB LED Tape offers a range of flexible customization services, making it ideal for engineering lighting, architectural ambient lighting, and various OEM/ODM projects:
- Packaging and branding presentation: Custom packaging, manuals, labels, and PCB logo printing services are available upon request to meet branding needs.
- Performance and structural customization: We can adjust parameters such as LED density, PCB width, protection rating (e.g., IP65, IP67, IP68), color temperature, CRI, working voltage, and wire length based on project specifications, making it compatible with more installation environments and lighting design requirements.

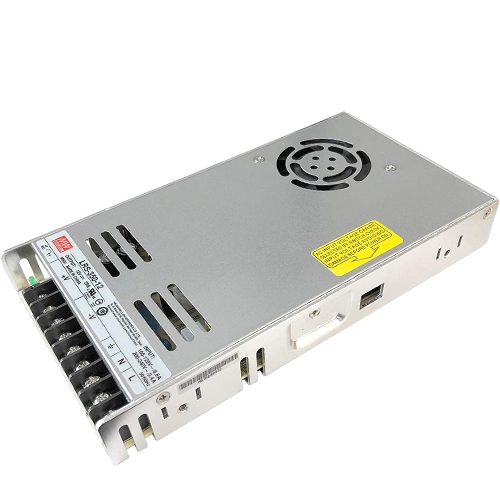

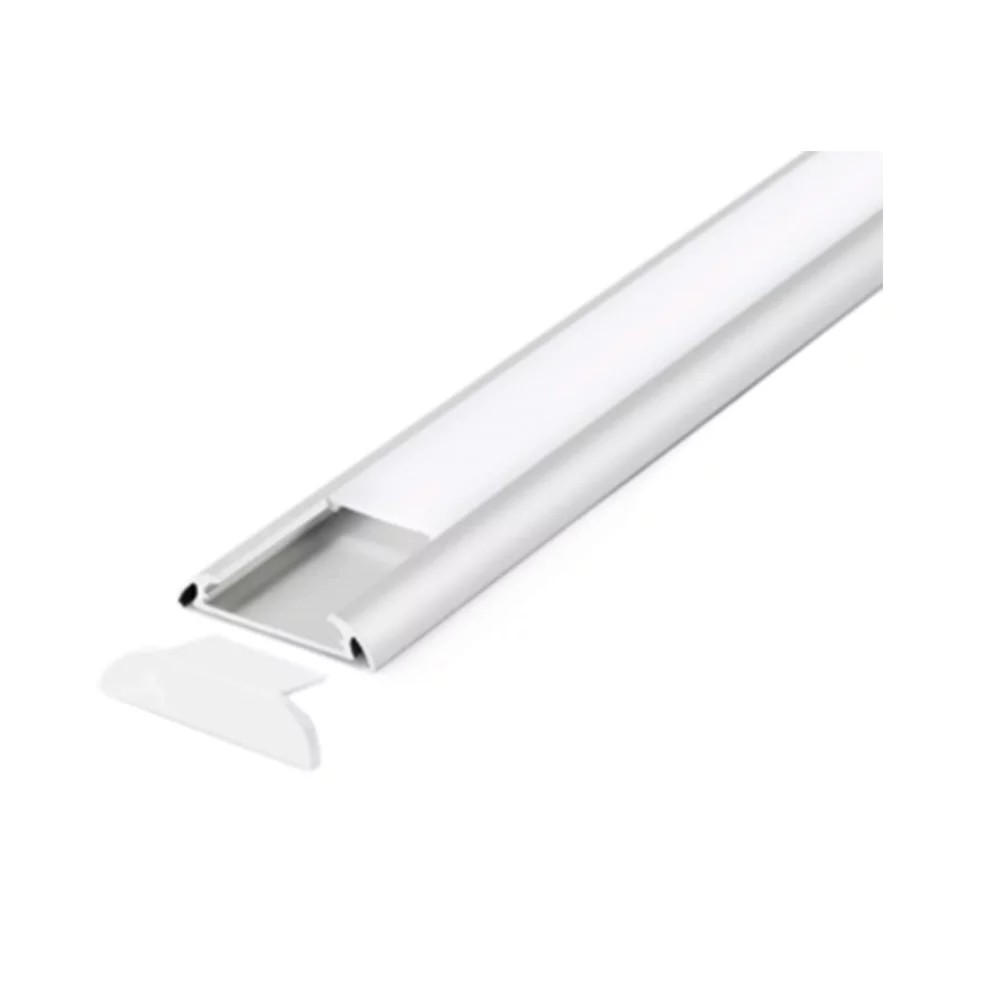

Accessories

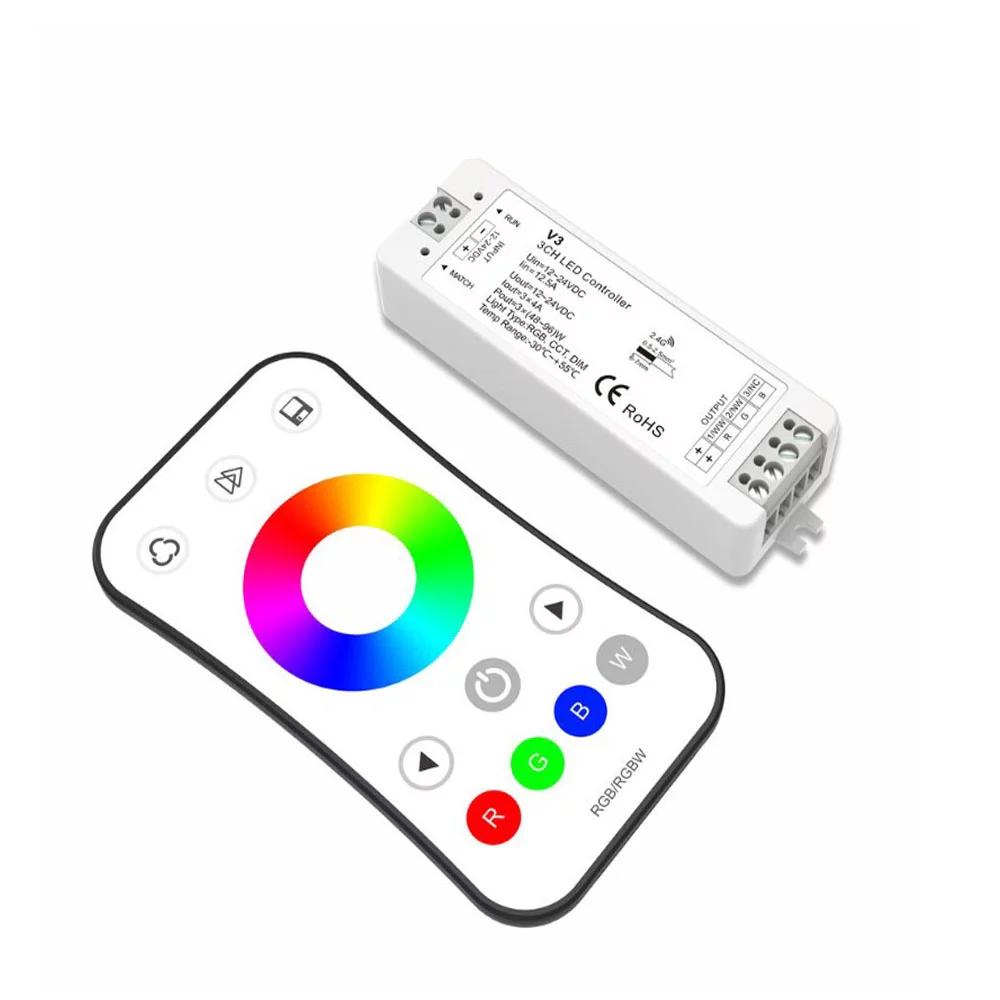

To ensure stable installation and optimal lighting performance of the LED strip in various environments, we provide a range of supporting accessories, covering the entire process from connection, fixation, to power supply and control.

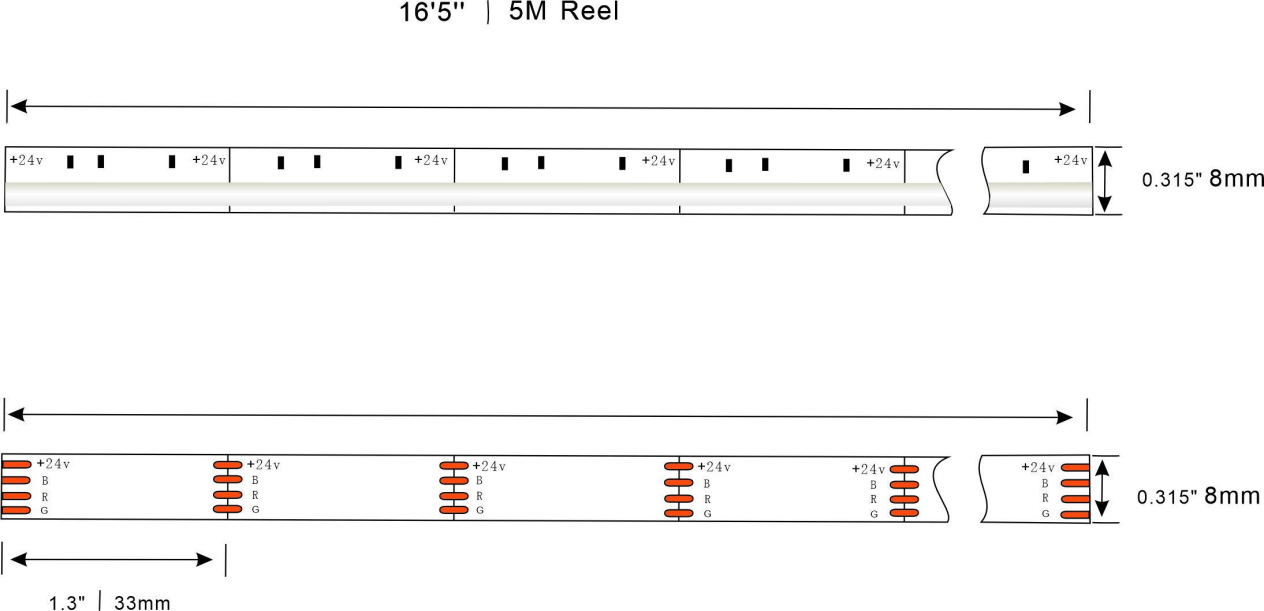

Dimensions
LW-COB025-24V-630LEDs

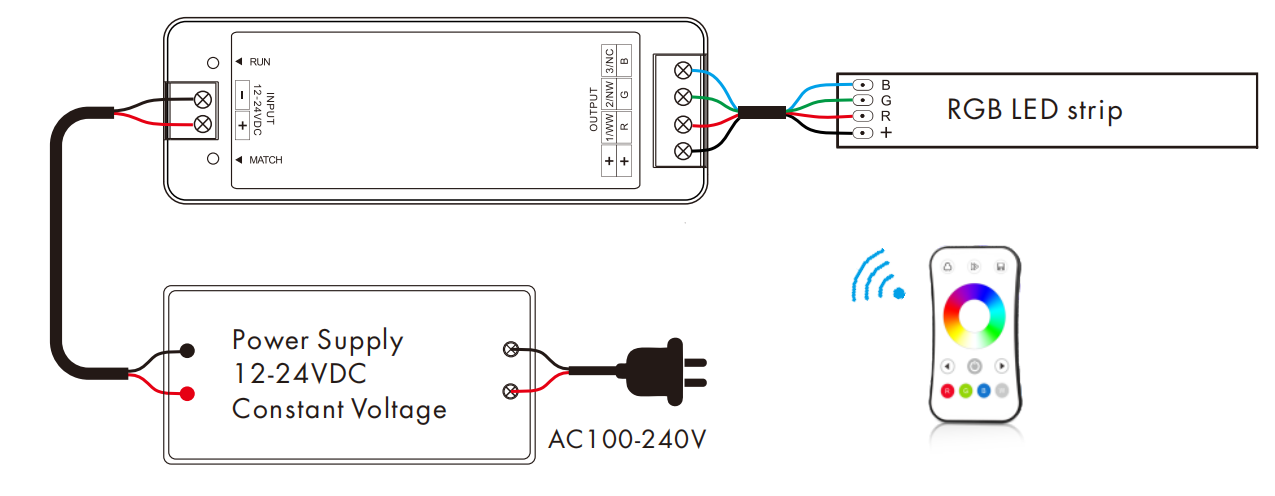

Connect Drawing
REQUEST A QUOTE
The Side View RGB COB LED Tape provides more even and softer light, and can be perfectly hidden in gaps or recesses, adapting to curved, zigzag, and various complex structures. Whether for home ambient lighting, commercial spaces, or large engineering projects, it delivers high-quality side lighting effects.
Contact us now to get a tailored solution and let your designs shine with the ideal lighting!
