In home décor, the SK6812 rgbw led tape can transform an ordinary wall into a dynamic artistic canvas. In bars and KTVs, it serves as more than just decoration—it acts as a dancer synced to the music, effortlessly switching from romantic white light to vibrant color strobes. For landscapes and stadiums, this pixel led strip delivers dynamic chasing effects that instantly ignite the atmosphere of the entire space.
Unlike standard lighting products, every LED on the LW Lighting SK6812 is independently programmable, granting you superior flexibility and color control. From warm gradients to complex marquee patterns, it meets the demands of diverse scenarios. Whether for art displays in exhibition halls or high-end ambiance in luxury villas, this versatile led light strip 5v solution provides precision control to shape unique lighting effects for any project.
What is SK6812 RGBW Pixel LED Strip?
The SK6812 RGBW strip is an intelligent lighting solution with independent control, acting as a "magician" for any space. Through its four-channel RGBW design (Red, Green, Blue, and White), it breaks the color limitations of traditional strips to provide richer and more precise effects. Especially with the addition of the white channel, this rgbw led tape achieves higher purity and accuracy in white light to meet the lighting needs of various scenarios. It supports multiple common SPI controllers (such as Arduino) and is compatible with most control systems on the market, making it easy to integrate into various creative projects.
SK6812 VS WS2812B led strip
Both SK6812 and WS2812B are commonly used LEDs with built-in control ICs, each having its own strengths and weaknesses in design and performance to suit different application scenarios. The following is a comparison between them, which we hope will help you better choose the right pixel led strip for your needs.
| Features | SK6812 | WS2812B |
| Color Channels | RGB + White (RGBW), providing richer colors and white light effects | Only RGB channel, basic color performance, suitable for common scenarios |
| Brightness | Up to 800-1000mcd, stronger light output, ideal for high-end applications | 500-700mcd brightness, suitable for everyday lighting and simple effects |
| Refresh Rate | 1200Hz, smooth light transitions, suitable for complex dynamic displays | 400Hz, sufficient for basic animation effects |
| Reset Speed | 80μs, fast response, adaptable to rapidly changing scenes | 50μs, slightly slower but adequate for most application needs |
| Control Method | Advanced control options, supports more flexible customization | Simple and easy to use, suitable for quick deployment |
| Price | Slightly more expensive, suitable for high-end projects and professional applications | cheap led strip lights , ideal for large-scale applications |
Product Features

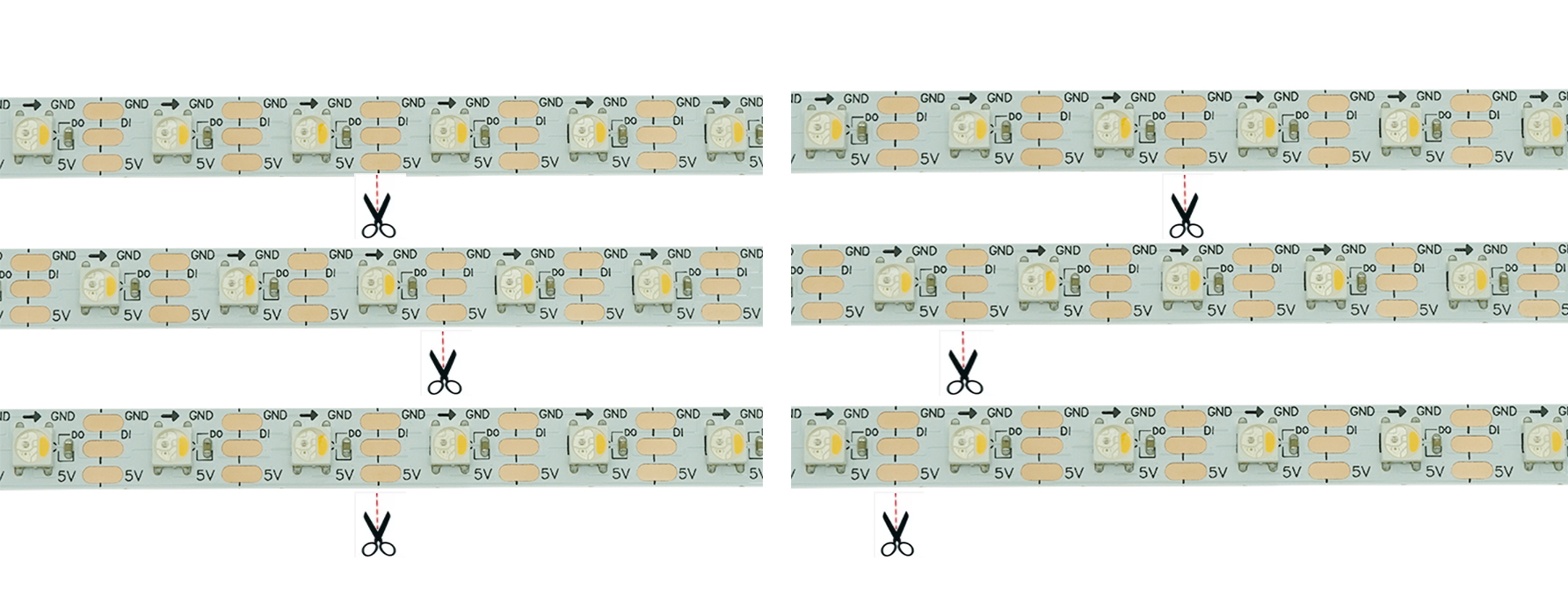

5V Design and Flexible Cutting
The SK6812 RGBW led light strip 5v solution features a 5V design where each LED can be individually cut to meet different installation requirements. Independent control of white light and RGB colors ensures color consistency when the white light is activated.

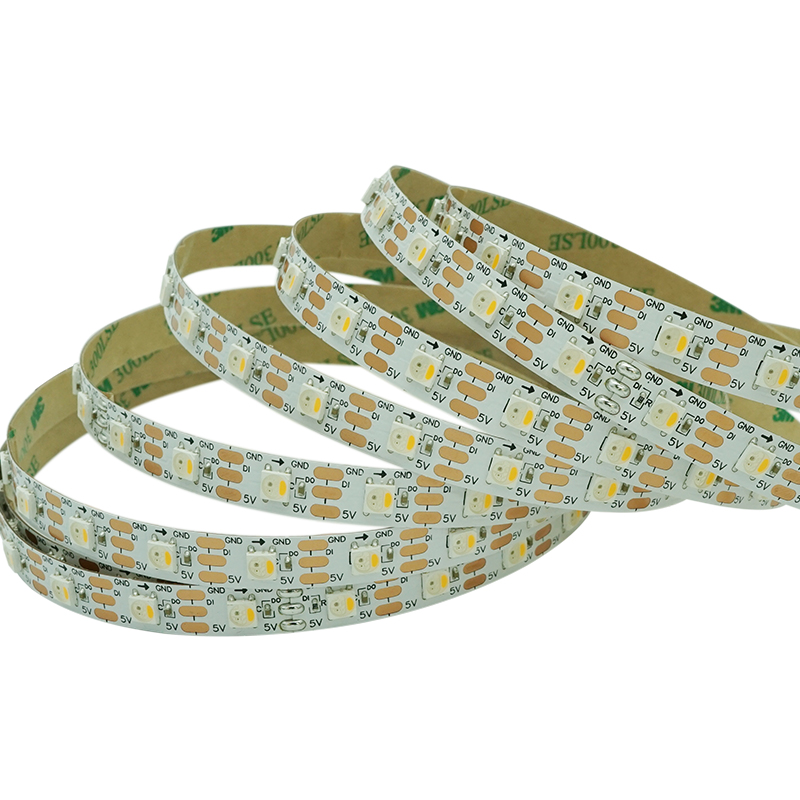

High-Quality Flexible Materials
Utilizing a flexible FPC circuit board, it offers excellent conductivity, heat dissipation, and bending resistance. This rgbw led tape can be bent into any shape as needed to adapt to complex installation environments.
Efficient Data Transmission and Refresh Rate
It supports a data transmission rate of 800KHZ/s and a PWM refresh rate of 1.2KHZ/s, ensuring smooth and natural dynamic transitions for more delicate lighting effects.
256 Gray Levels and 16.77 Million Colors
Like an artist's palette, this pixel led strip provides infinite color choices and subtle gradient effects, accurately presenting every detail of the lighting effect

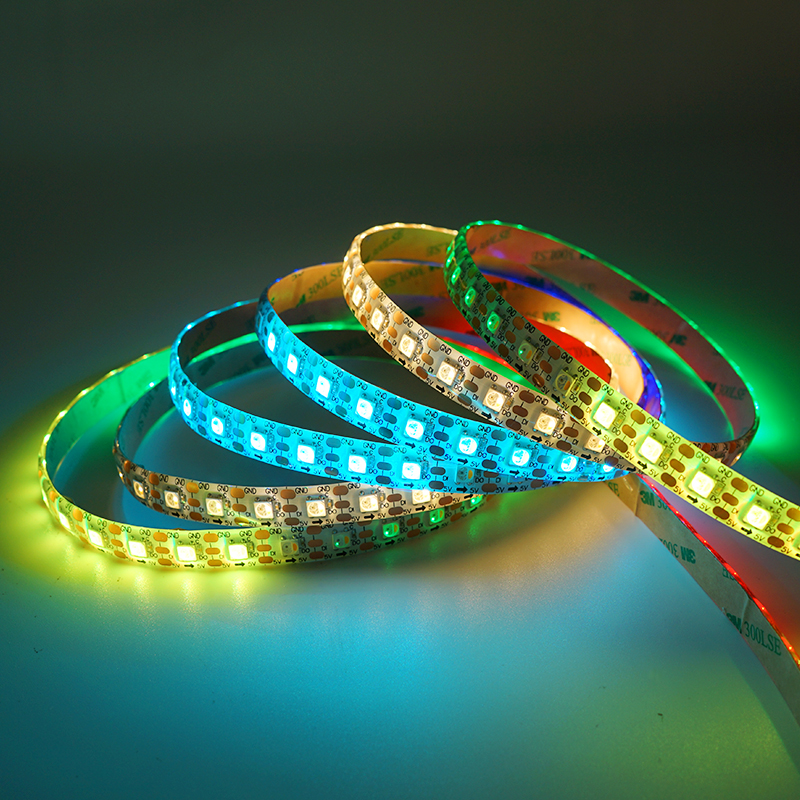

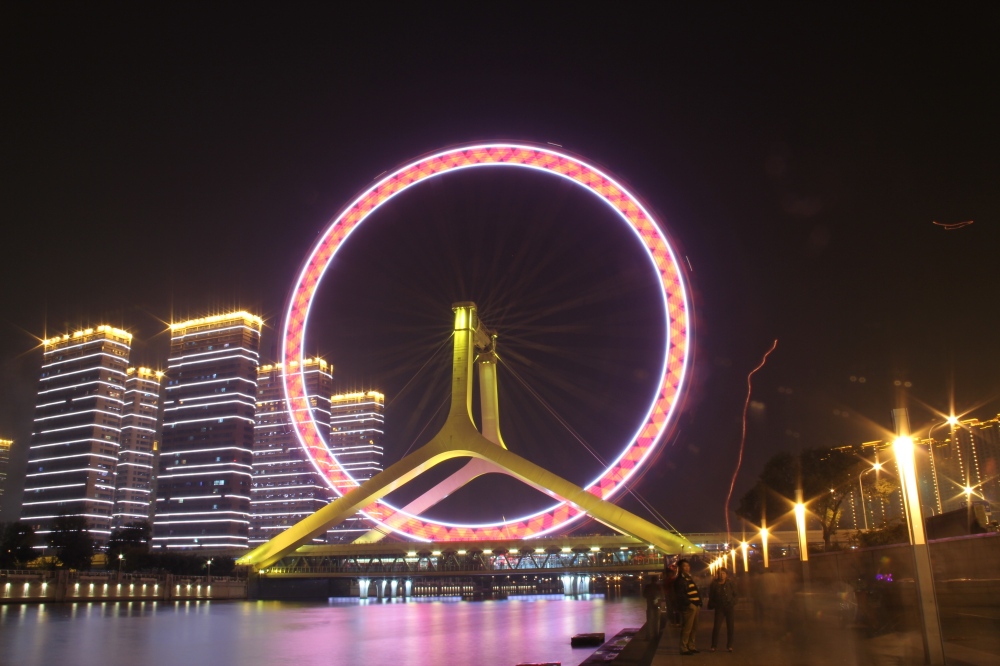

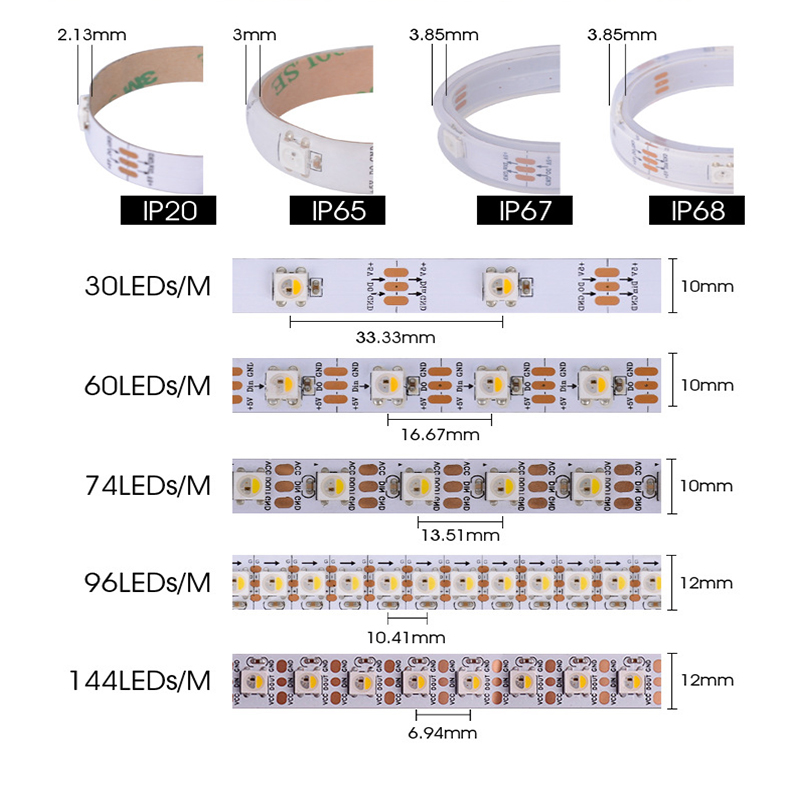

Waterproof
Can be customized with different waterproof ratings to ensure stable operation in outdoor or humid environments. Whether for landscape lighting or damp areas like bathrooms and kitchens, long-term reliability is guaranteed.
Product Specification
Below is LW Lighting’s product specification
| Part No: | Input Voltage | IC type | LED Quantity | IC QTY | PCB width: | Color | Max Power | Min Cut | IP Grade | Control signal: |
| LW-D0027 | 5V | SK6812 | 30leds/m | 30 | 10mm | Addressable RGBW | 9W/M | 33.33mm | IP20 | SPI |
| LW-D0028 | 5V | SK6812 | 60leds/m | 60 | 10mm | Addressable RGBW | 18W/M | 16.66mm | IP20 | SPI |
| LW-D0029 | 5V | SK6812 | 72leds/m | 72 | 12mm | Addressable RGBW | 21.6W/M | 13.88mm | IP20 | SPI |
| LW-D0030 | 5V | SK6812 | 96leds/m | 96 | 12mm | Addressable RGBW | 28.8W/M | 10.41mm | IP20 | SPI |
| LW-D0031 | 5V | SK6812 | 144leds/m | 144 | 12mm | Addressable RGBW | 42W/M | 6.94mm | IP20 | SPI |
LW Lighting's addressable strips support multiple customizations to meet various project requirements:
- Packaging and Branding: Customized packaging, manuals, labels, and PCB logo printing.
- Performance Customization: Parameters such as LED density, PCB width, waterproof ratings, color temperature, and Color Rendering Index (CRI) can be adjusted according to project needs. For specialized applications, we also offer custom led tv backlight strip solutions.

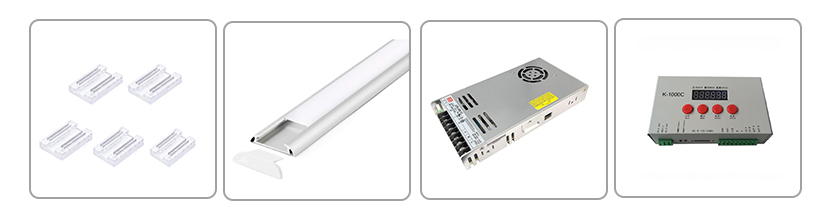

Accessories
LW Lighting provides connectors, aluminum profiles, power supplies, controllers, and other accessories. If you are looking for high-performance yet cheap led strip lights for large-scale projects, we offer comprehensive support to ensure cost-effectiveness and quality.
Dimensions

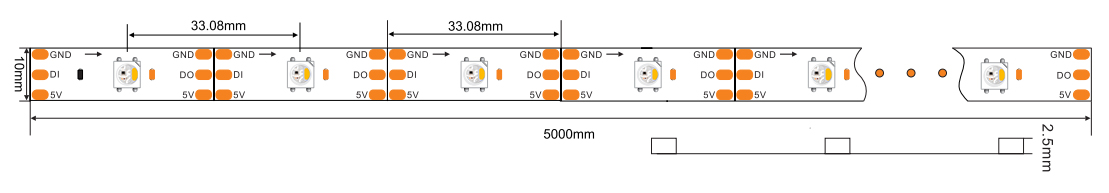

LW-D0027-5V-30LEDs/M

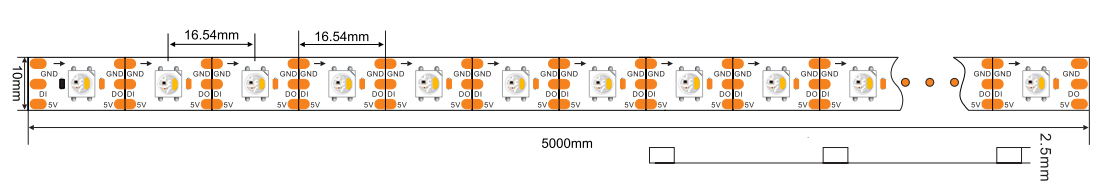

LW-D0028-5V-60LEDs/M

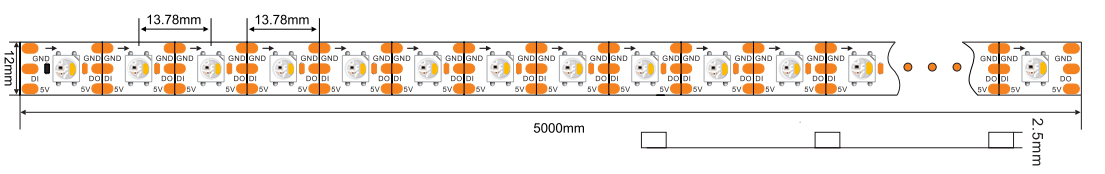

LW-D0029-5V-72LEDs/M

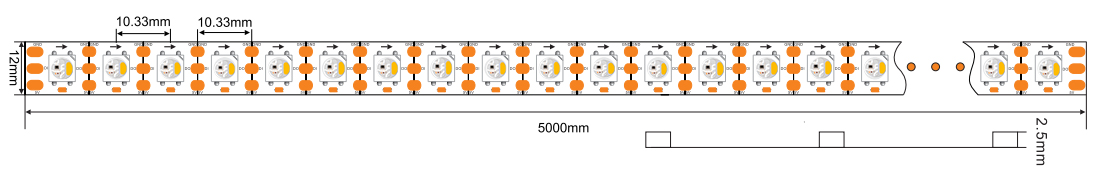

LW-D0030-5V-96LEDs/M

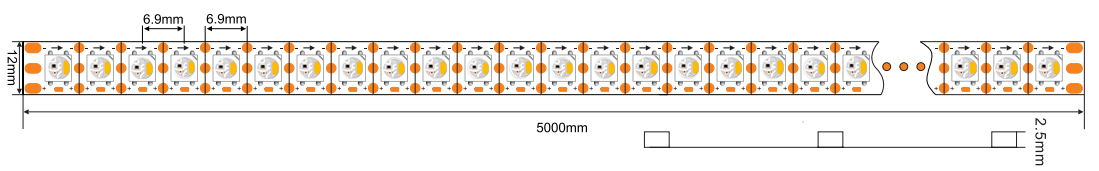

LW-D0030-5V-144LEDs/M

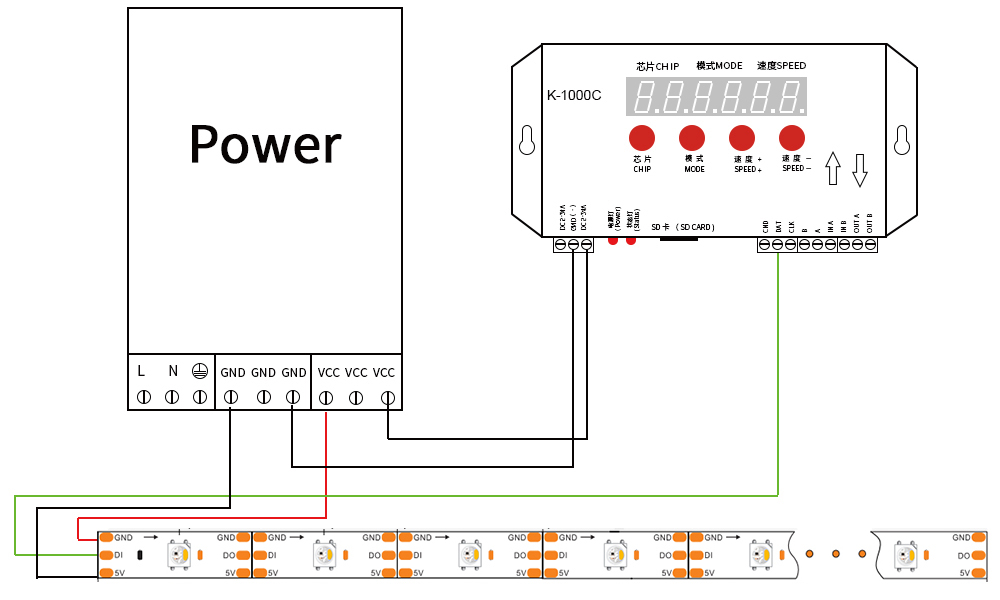

Connect Drawing
REQUEST A QUOTE
Whether for home decoration or commercial projects, LW Lighting’s pixel led strip solutions add infinite possibilities to your space. Through our customization services, you will receive tailor-made lighting solutions that enhance the uniqueness and professionalism of your project.
Contact us today to start your lighting innovation journey and let your space shine with our high-quality rgbw led tape!
