As the festive season approaches, dynamic lighting displays have become a popular choice for creating an immersive holiday atmosphere. The ws2811 led strip, a cost-effective addressable lighting solution, is the ideal choice for holiday decor thanks to its unique programming capabilities and dynamic light effects. From the gentle descent of snowflakes at Christmas to vibrant fireworks for the Lunar New Year, these led stripes add a brilliant glow to every celebratory moment.
Beyond holiday use, the smooth chasing effects of these strips bring a unique touch to various professional and residential settings:

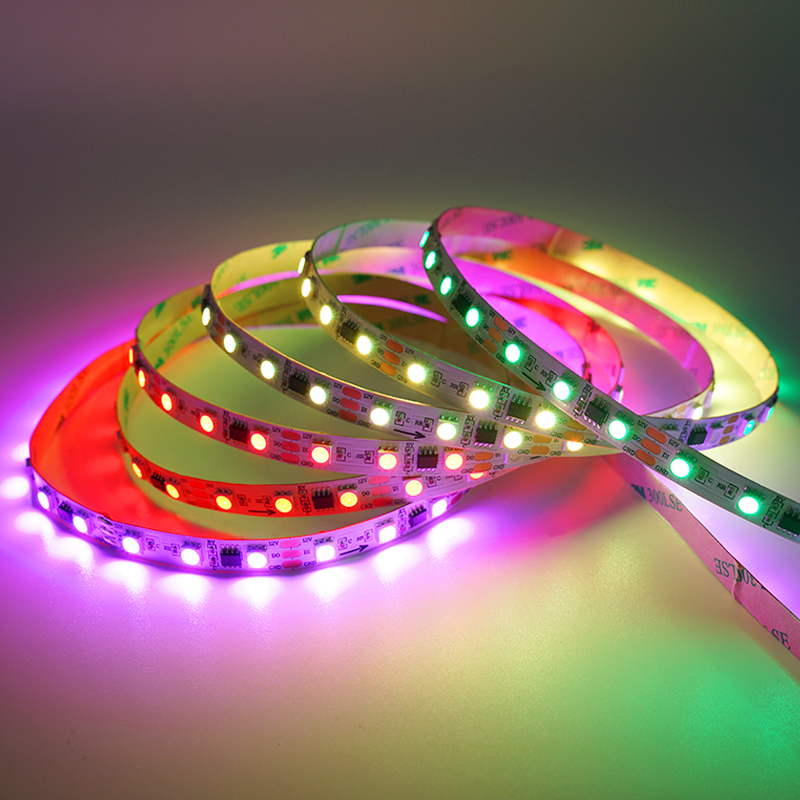

- Holiday Decorations: Enhance festivals like Christmas and New Year with dynamic effects such as falling snow or bursting fireworks. Many enthusiasts now use these led strips as christmas lights to create high-impact, customizable displays.
- Home Decor: Ideal for windows, stairs, and patios, providing a fluid and colour changing led strip experience that suits any home environment.
- Stage Lighting: Adds vitality to performances with synchronized, dynamic light and shadow effects.
- Architectural Lighting: Used as exterior led lighting strips for building facades to provide a striking visual impact.
- Landscape Lighting: Applied in parks and plazas to elevate the nighttime aesthetic of public spaces.

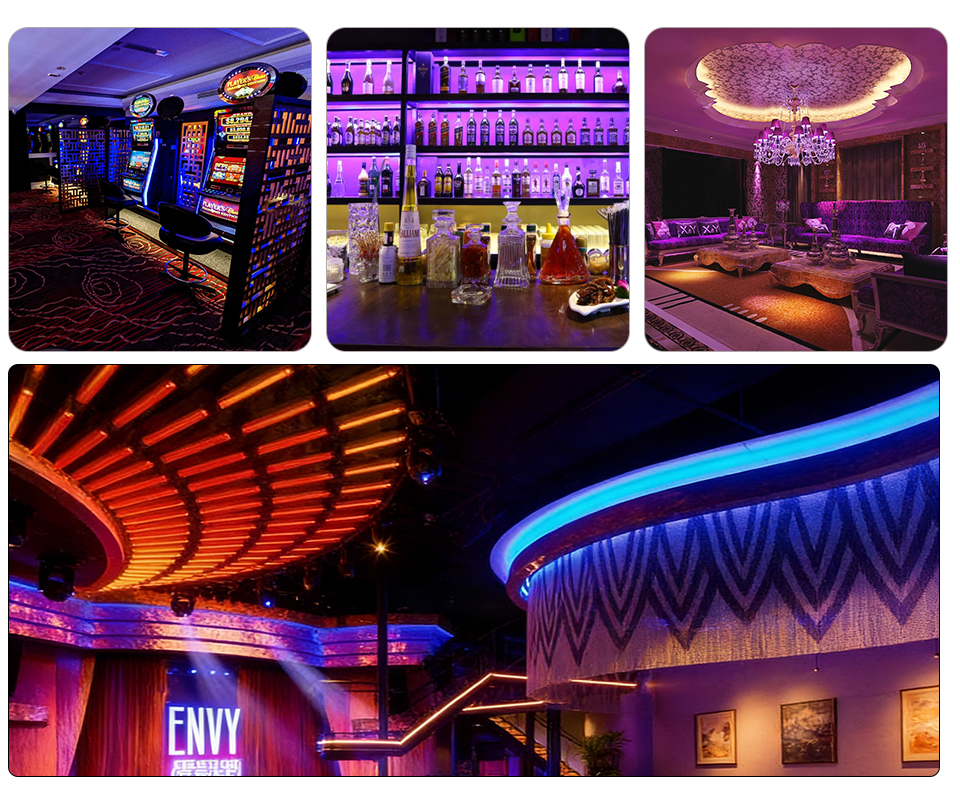

- Commercial Lighting: Adds creative illumination to shops, bars, and restaurants to capture customer attention.
- Special Events: Elevates the atmosphere of birthday parties and weddings with vibrant, transitioning light patterns.
In the following sections, we will explore the basic concepts and working principles of the WS2811 Chasing LED Strip to reveal its unique charm and functional versatility.
What is WS2811 Chasing Led Strip？

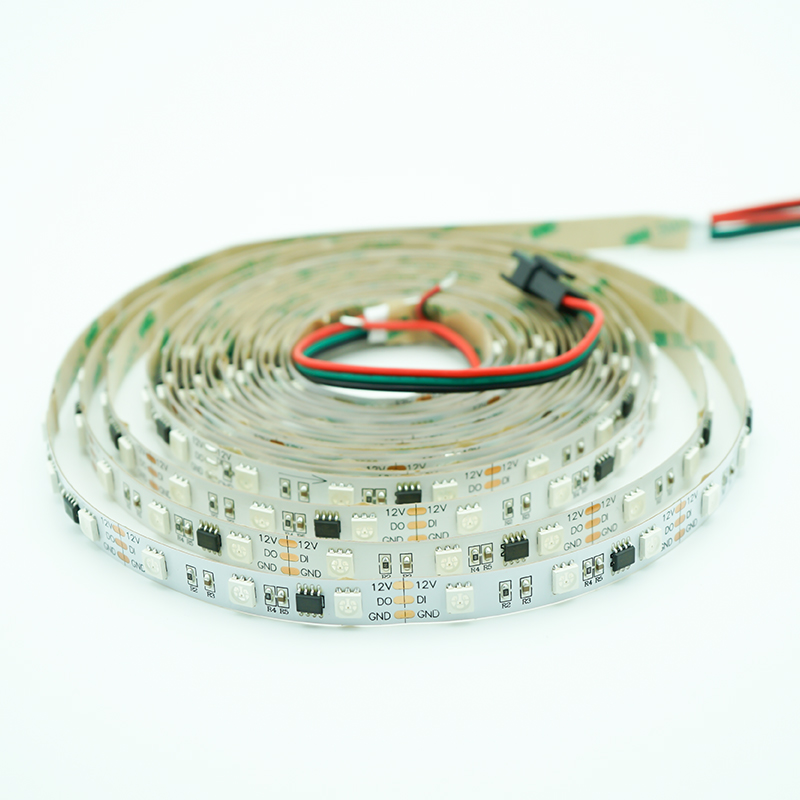

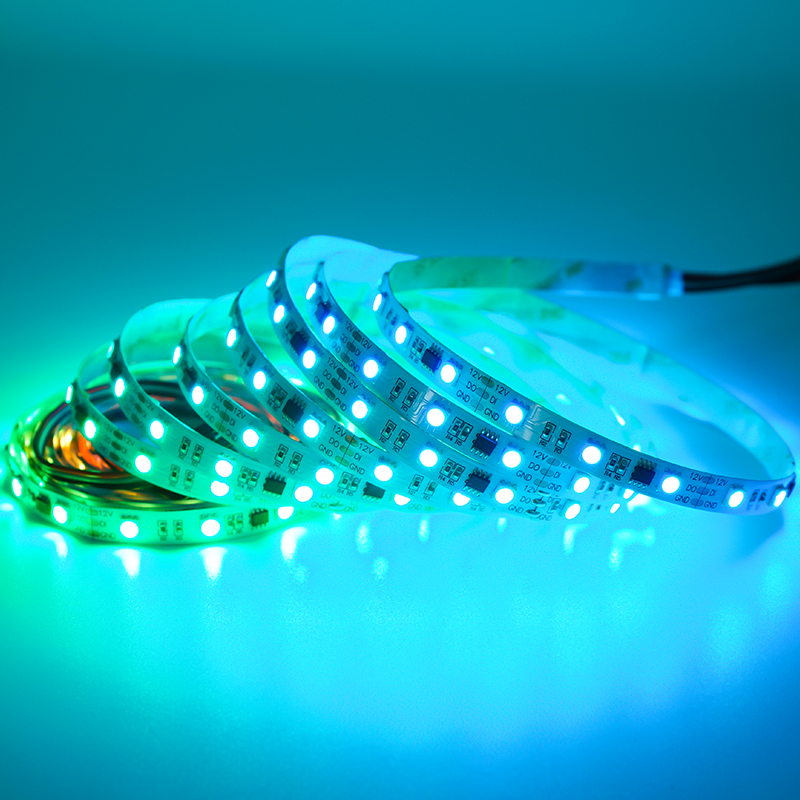

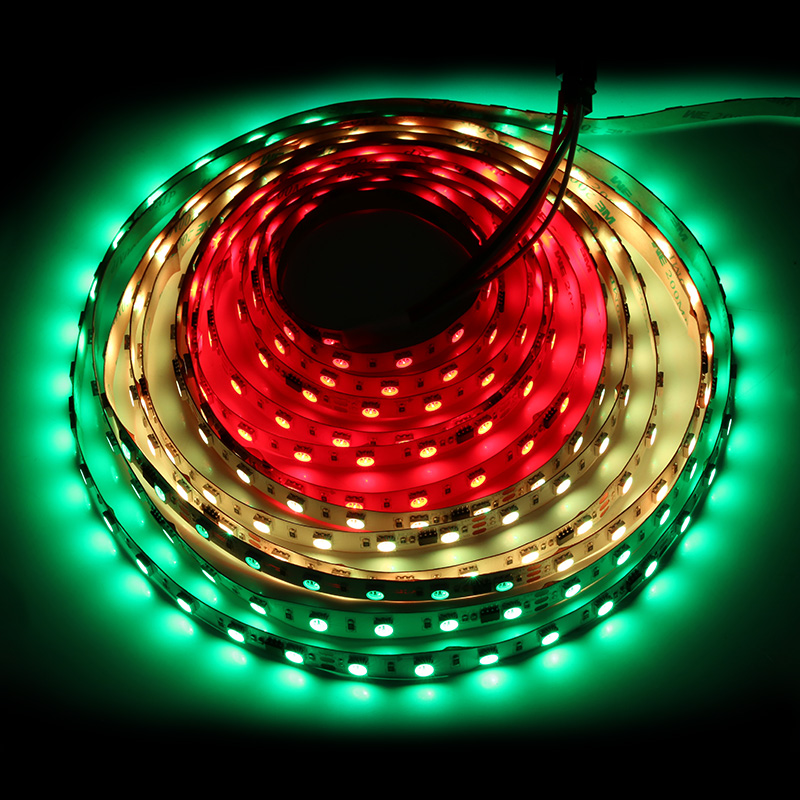

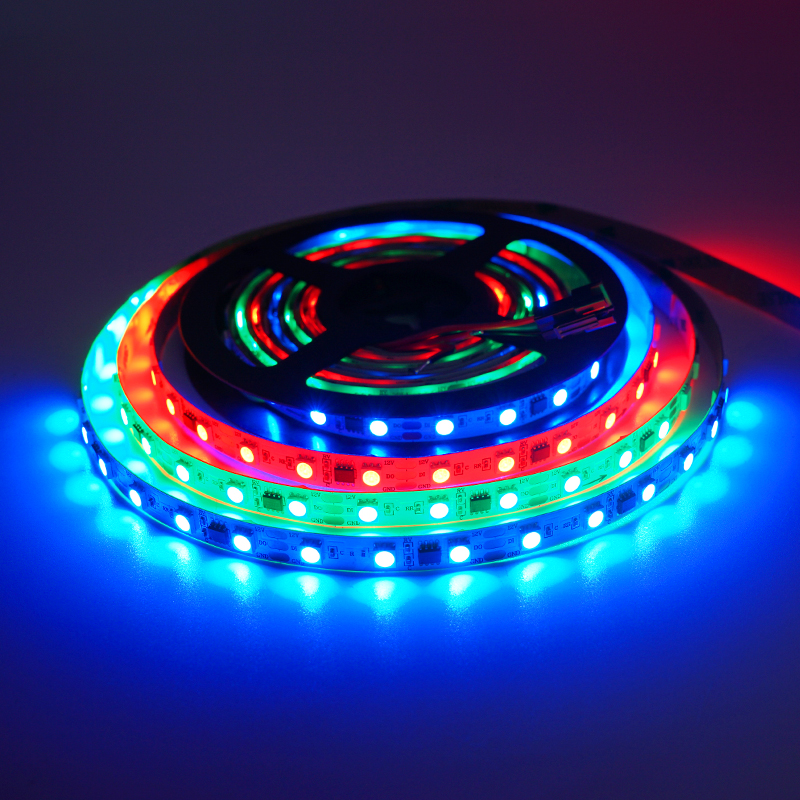

The ws2811 led strip typically consists of a flexible PCB, SMD LEDs, and the integrated WS2811 driver IC. These led stripes generally operate at a working voltage of 12V or 24V, with common LED densities available in 30, 60, 72, 96, or 144 LEDs per meter to suit different brightness requirements.
The WS2811 serves as the external driver chip that dictates the behavior of the LEDs. In a 12V configuration, a single WS2811 IC controls a group of 3 LEDs, while in a 24V setup, each chip manages 6 LEDs. Because each pixel is individually addressable, these units are connected in series along the strip. This allows for seamless cascade control via a single data signal line, significantly simplifying the wiring complexity for complex exterior led lighting strips or large-scale decorative projects.
What are the differences between SM16703, WS2811, and UCS1903?
SM16703, WS2811, and UCS1903 are all common external driver ICs used to achieve full-color RGB effects in digital led stripes. While they appear similar, understanding their technical nuances is key to selecting the right ws2811 led strip or its alternatives.
| Feature | WS2811 | SM16703 | UCS1903 |
| Voltage Range | 5V or 24V | 5V ~ 12V | 5V ~ 12V |
| Package Type | SOP-8 | SOP-8 | DIP-6 or SMD-6 |
| Data Protocol | Single-wire return-to-zero (NZR) | SID Data Protocol | Highly compatible with WS2811 |
| Compatibility | Standard serial data transmission | Requires SID protocol | Often a direct drop-in for WS2811 |
| Grayscale | 256 levels per channel | 256 levels per channel | 256 levels per channel |
| Replacement | Highly versatile; industry standard | Check protocol and voltage | Usually interchangeable with WS2811 |
The ws2811 led strip remains a top-tier choice for most lighting projects due to its stable performance, wide compatibility, and cost-effectiveness. Whether you are designing a colour changing led strip for interior accents or robust exterior led lighting strips for commercial facades, the WS2811 IC offers the flexibility and control required for professional-grade results.
Product Features
Grouped Control Design: Multiple LEDs share a single IC, maintaining basic dynamic effects while reducing overall costs, and offering lower voltage drop and more stable performance over long-distance installations compared to 5V LED strips.
High Brightness & Vibrant Colors: Meet diverse color requirements for everything from simple home decor to professional stage lighting. These led stripes add vivid, dynamic hues to any setting, ensuring a high-impact visual experience.
Flexible Programmable Control: Through precise programming, users can easily customize lighting patterns to suit different festivals, events, or commercial branding needs. This flexibility makes them the perfect colour changing led strip choice for versatile environments.
LED Strip Specification
Below is LW Lighting’s product specification
| Part No: | Input Voltage | IC type | LED Quantity | IC QTY | PCB width: | Color | Max Power | Min Cut | IP Grade | Control signal: |
| LW-D0147 | 12V/24V | WS2811 | 30leds/m | 10 | 10mm | Addressable RGB | 9W/M | 100mm | IP20 | SPI |
| LW-D0148 | 12V/24V | WS2811 | 60leds/m | 20 | 10mm | Addressable RGB | 18W/M | 50mm | IP20 | SPI |
| LW-D0149 | 12V/24V | WS2811 | 30leds/m | 8 | 10mm | Addressable RGB | 9W/M | 100mm | IP65 | SPI |
| LW-D0150 | 12V/24V | WS2811 | 60leds/m | 10 | 10mm | Addressable RGB | 18W/M | 50mm | IP65 | SPI |
LW Lighting provides clients with a wide range of tailored options—from packaging design and label printing to custom PCB logos—ensuring every project meets its specific branding and technical requirements.
- Packaging & Branding: We offer customized packaging, user manuals, and labels, as well as the ability to print your logo directly onto the PCB of your led stripes.
- Performance Customization: To suit unique project specifications, we can adjust the LED density, PCB width, waterproof ratings, color temperature, and Color Rendering Index (CRI).
Accessories

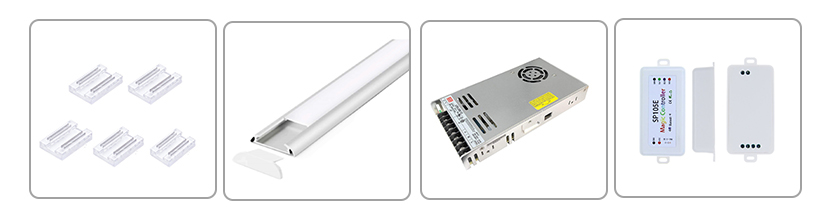

To ensure the efficient use and installation of the ws2811 led strip, LW Lighting provides a range of dedicated accessories, including connectors, aluminum profiles, power supplies, and controllers for your colour changing led strip.
Dimensions

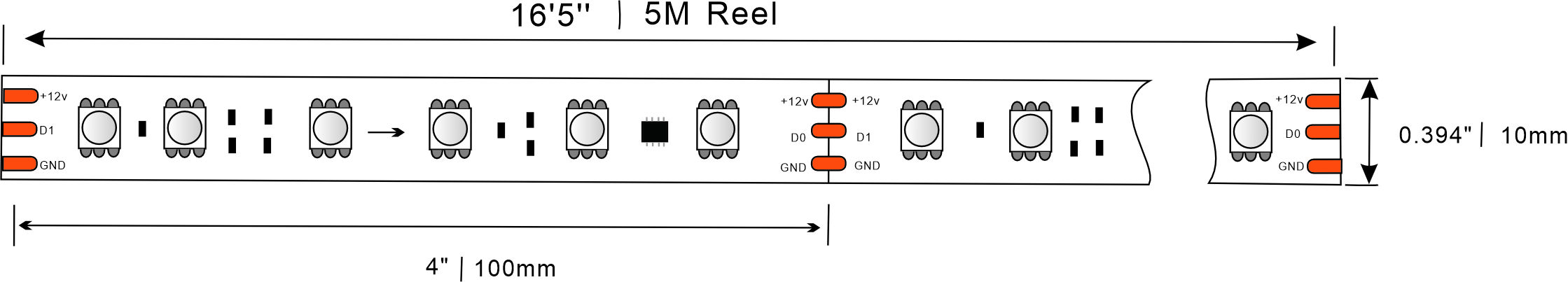

LW-D0147-12V-30LEDs/M

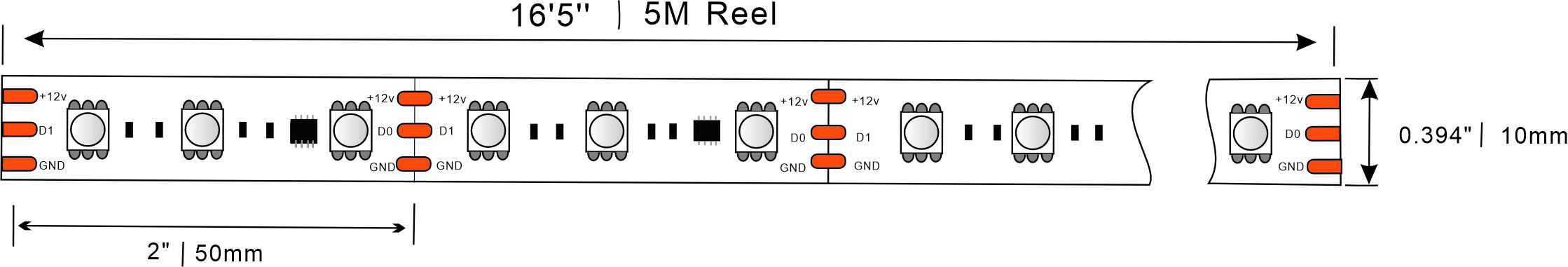

LW-D0147-24V-60LEDs/M

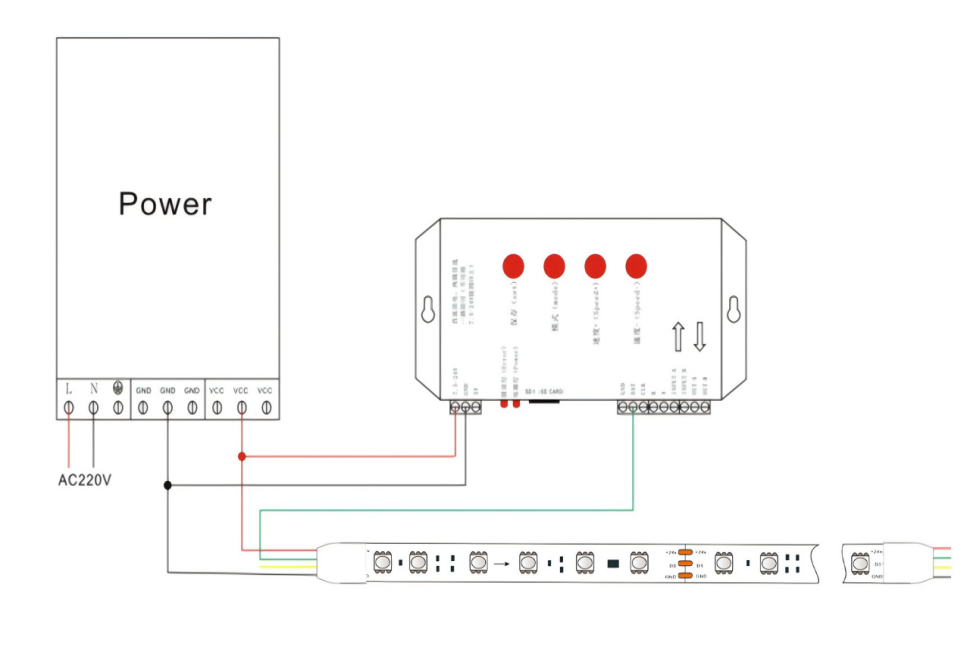

Connect Drawing
REQUEST A QUOTE
As a leading provider of LED lighting solutions, LW Lighting leverages years of professional experience and technical expertise to deliver high-quality, innovative lighting products to our clients.
Contact us today to learn more about the ws2811 led strip, or let us help you customize a colour changing led strip solution that perfectly fits your needs. Whether you are looking for high-performance led stripes or durable exterior led lighting strips for seasonal displays, our team is here to support your project.
