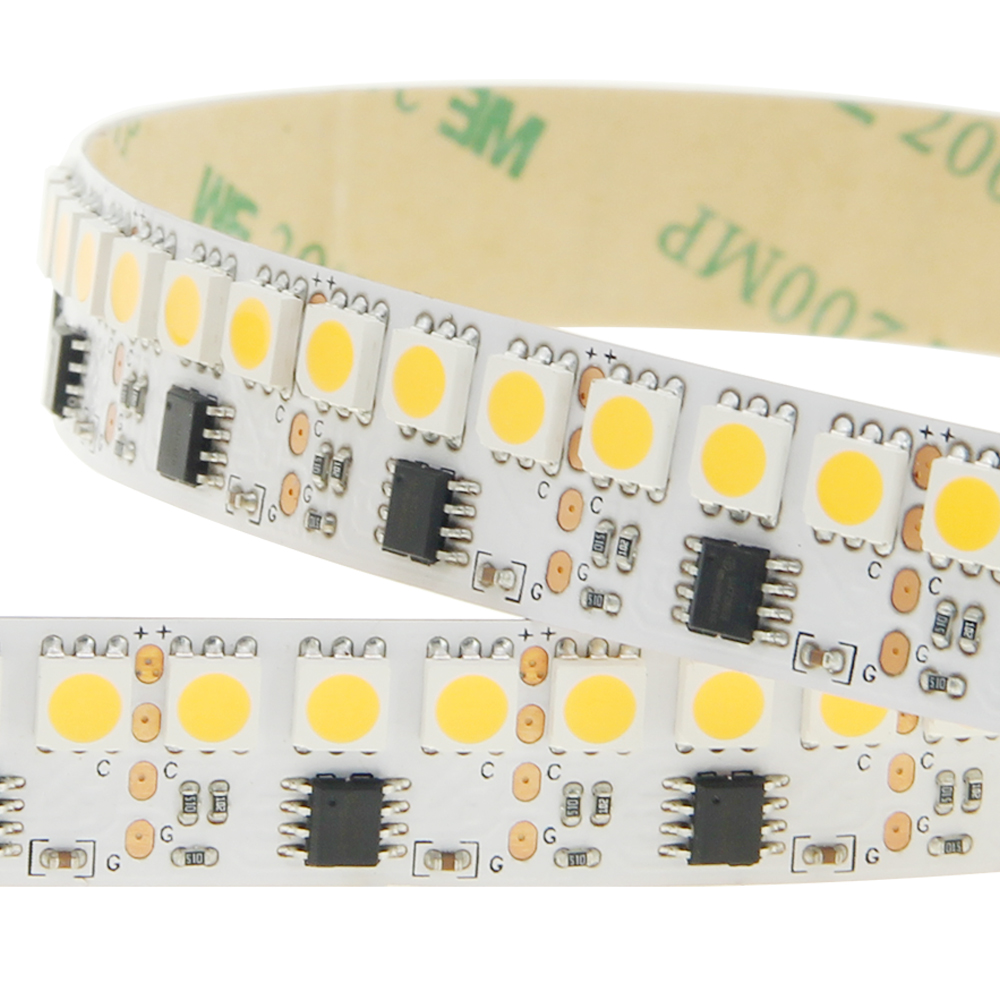

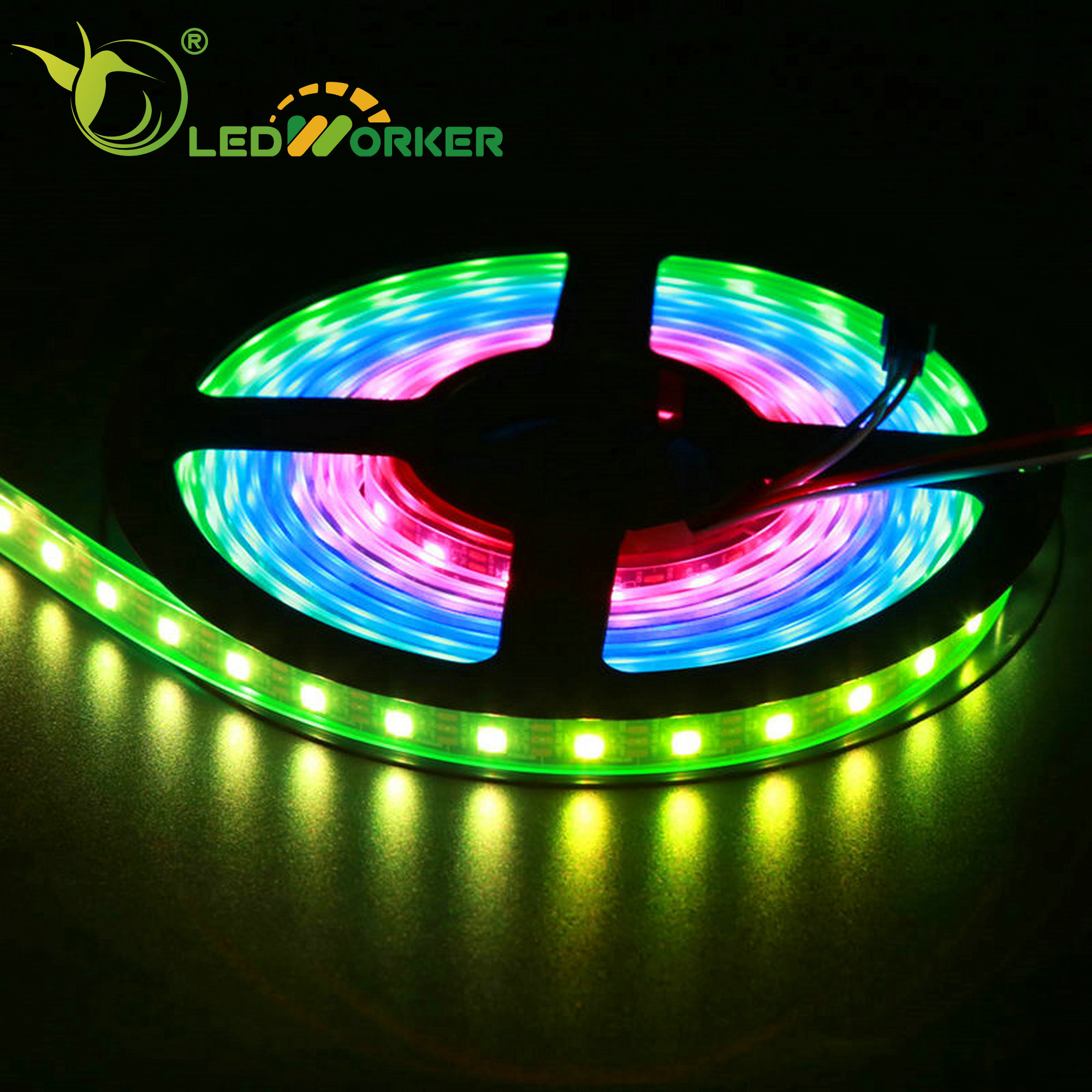

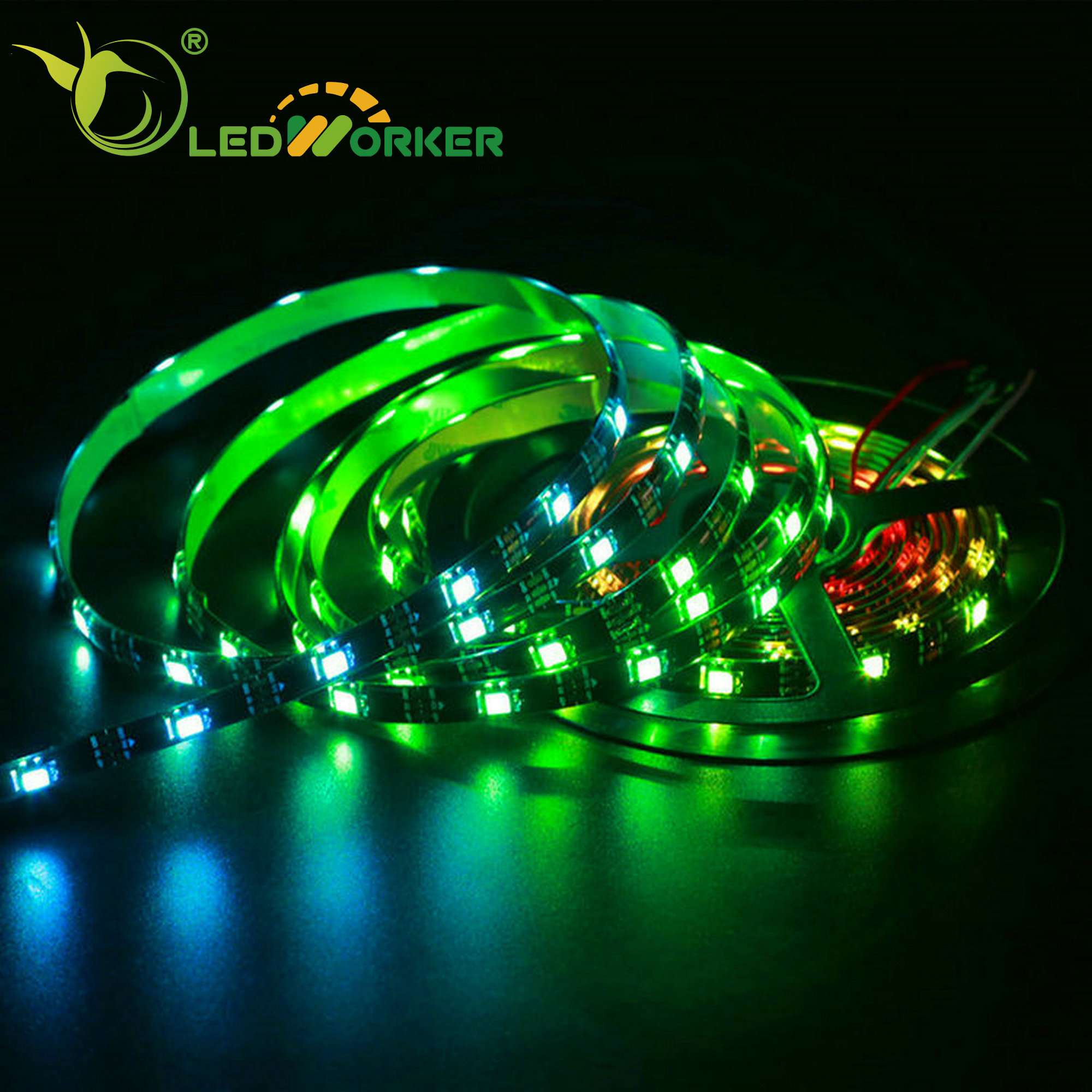

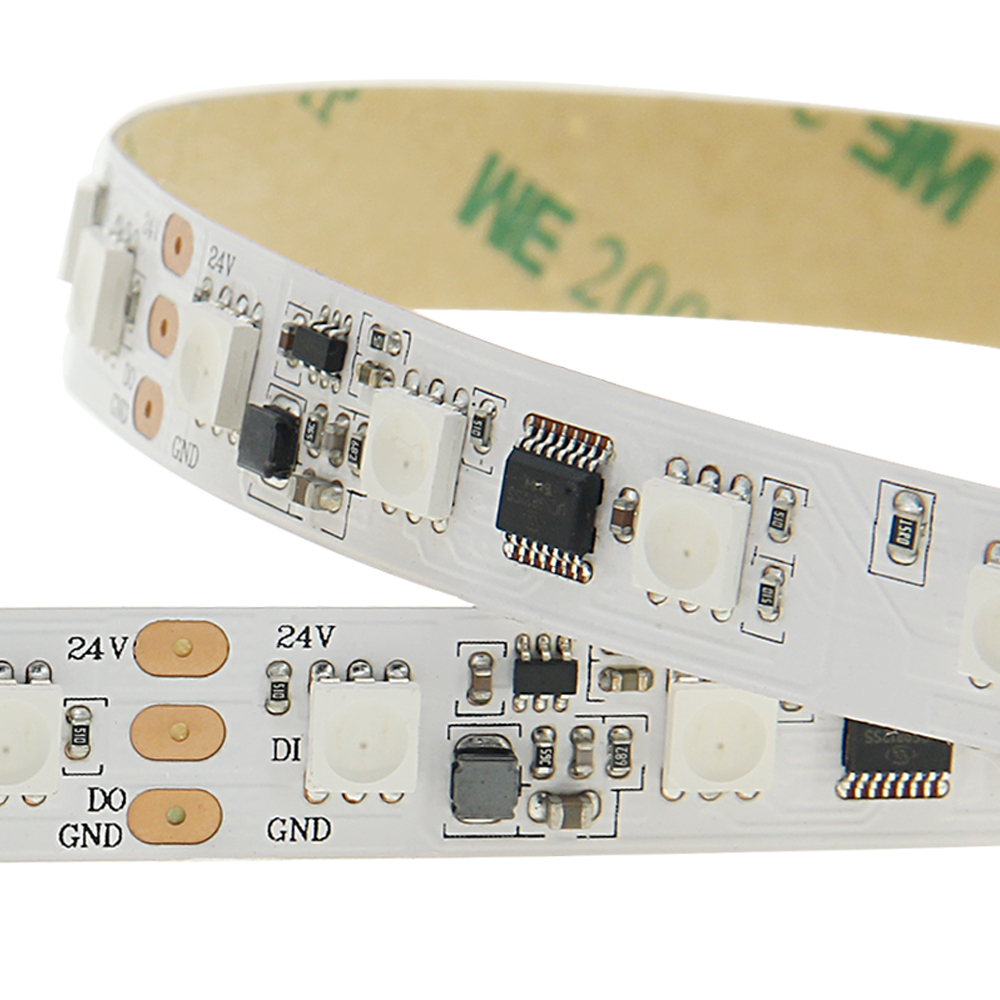

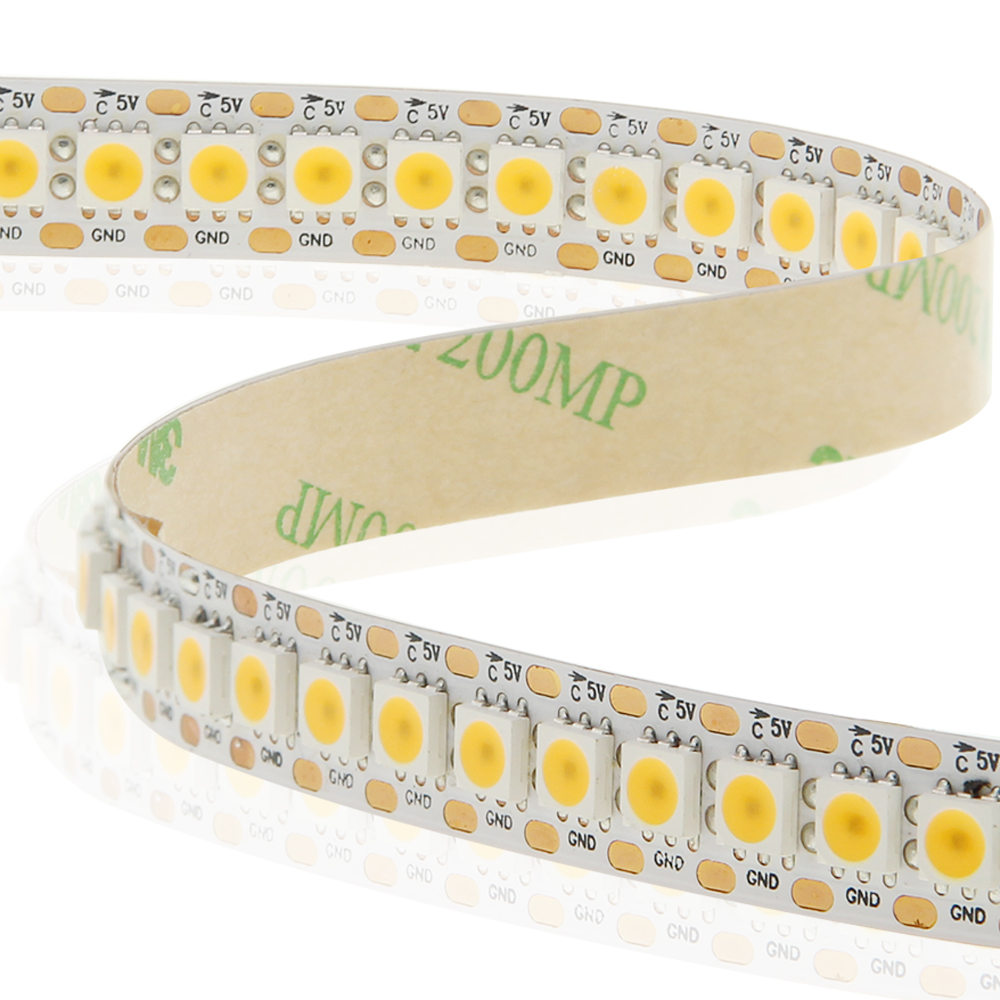

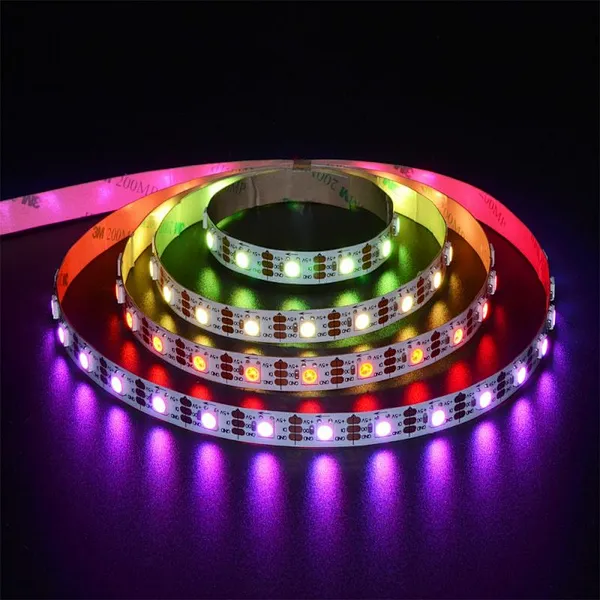

rgbic addressable ws2812b led strip
- Place of Origin:Guangdong, China
- Brand Name:ledworker
- Model Number:2812
- Application:Theme Park
- IP Rating:IP67, IP68, Ip20
- Lamp Body Material:Copper
- Input Voltage(V):DC5V
- Warranty(Year):3-Year
- Working Lifetime(Hour):50000
- Working Temperature(℃):-25 - 65
- Light Source:SMD5050
- Switch Mode:wifi, Remote Control, bluetooth, Manual Button
- Support Dimmer:Yes
- Lighting solutions service:Lighting and circuitry design, Onsite metering, DIALux evo layout
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:0.03
- Product Name:ws2812b 144 led strip shenzhen
- IP grade:IP20/IP65/IP67/IP68
- Viewing angle:120
- Warranty:3years
- LED Quantity:30/60/144leds/m

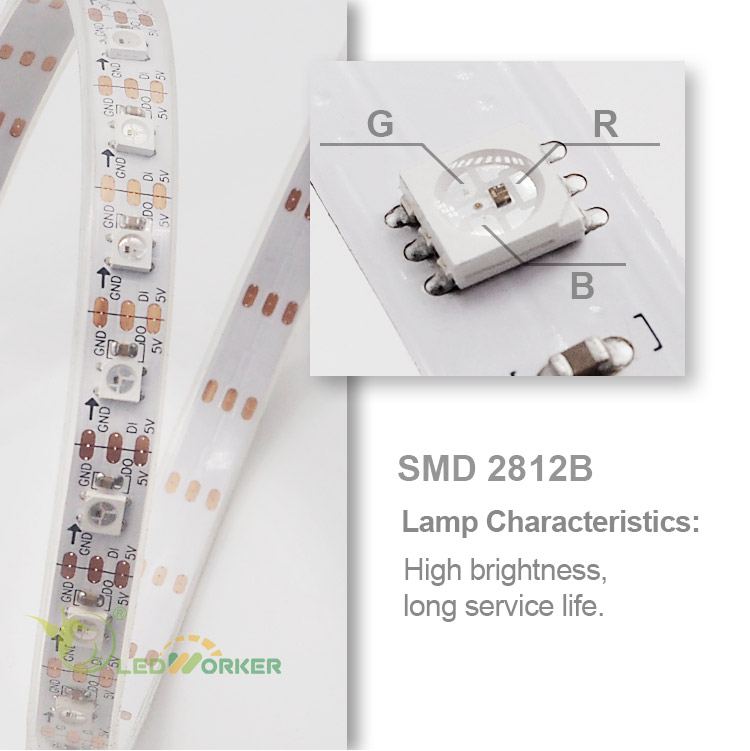

- LED Type:5050smd
- Power:18W
- Lamp Power:30W/5M
- PCB Width:10mm
- Color:RGB Color
WhyLEDworker Lighting :
1,NICE QUALITY.
2,ONLINE PAYMENT.
3,FULL LINE PRODUCTS.
4,AFTER SALES SERVICES 24/7.
5.FACTORY DIRECT PRICE. PRICE EFFECTIVE.
6,EXPERIENCES SALES, EASY COMMUNICATION.
7,NO MOQ , 1PCS OK . SMALL ORDER WELCOME.
8,QUICK SHIPPING WITHIN 3 - 5 DAYS. SAMPLES HAVE STOCK.
We are not just say it. We really do it !!!

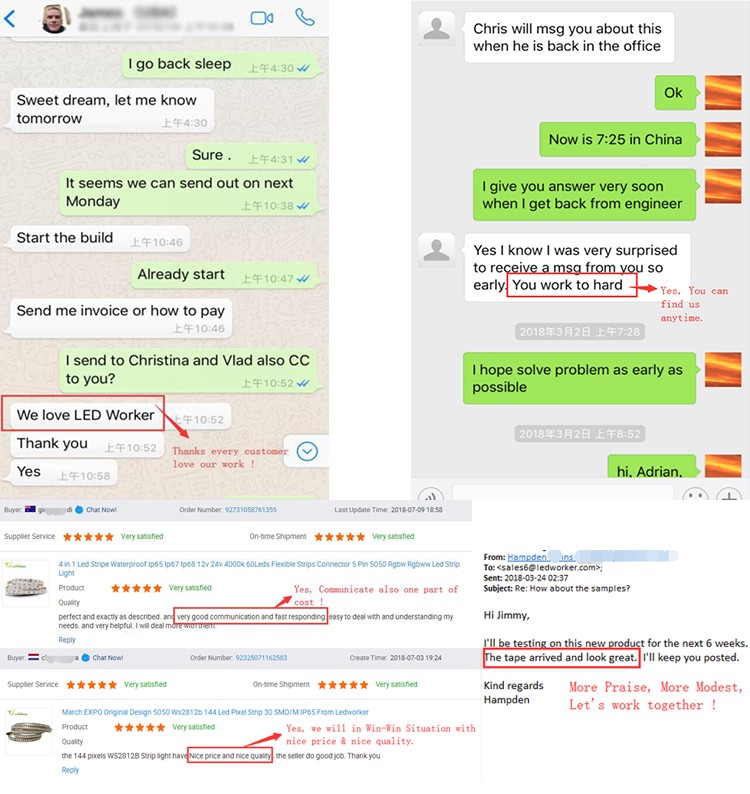

Feedback:
WORLD -WIDE CUSTOMERS COMMENTS & FEEDBACK
Here is some of comments from our world-wide customers.
You can check all the comments at our company profile .
Please visit www.ledworker.en.alibaba.com --> Click"Company profile
--> choose"Rating&Reviews"
Then you can see all comments from our clients.
Please note : all our customer comments is real one , NOT FAKE .
[ TRUST YOU WILL LIKE OUR SERVICES, QUALITY AND PRICE ]

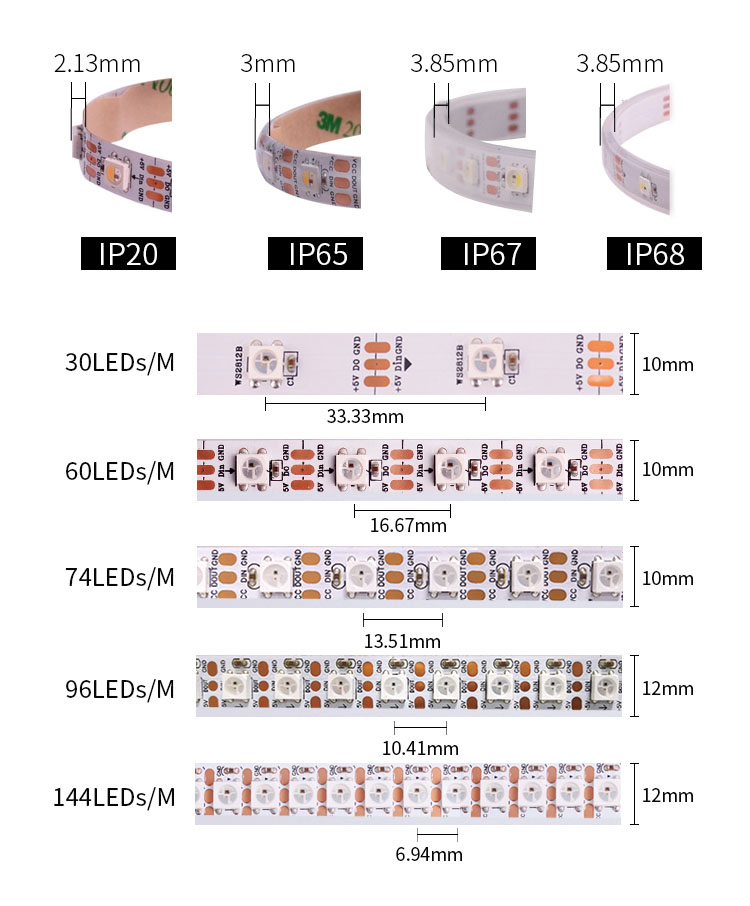

Parameters:
ITEM.OPERATING VOLTAGE | PART NO | LED TYPE COLOR | LED QTY | IC QTY | MAX POWER | GRAY GRADE | PIXELS | IP | MIN. CUT / MM |

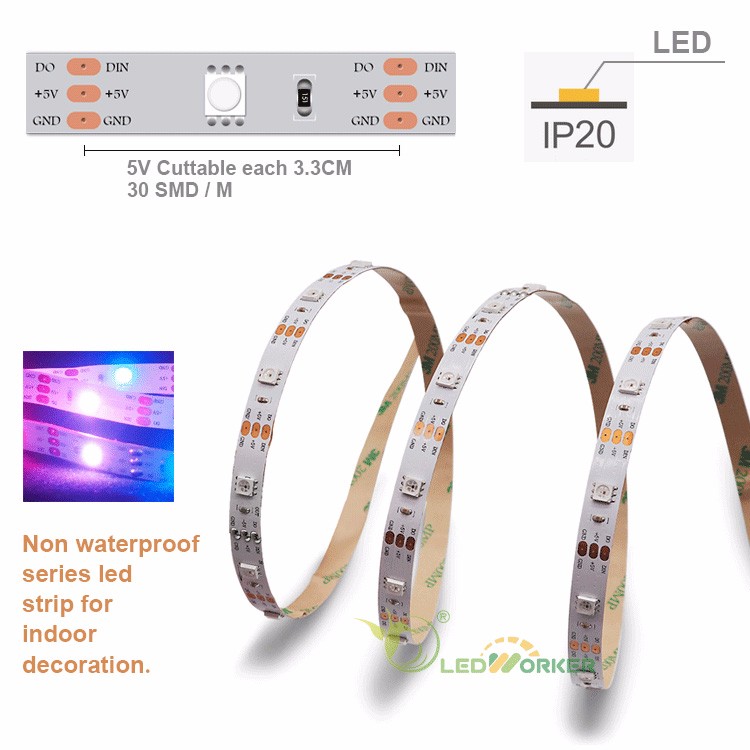

30 LEDs / m 5V | A2821 | 5050 SMD RGB | 30 | 30 | 9W/M | 256 | 30 | 20 | 33.33mm |
60 LEDs / m 5V | A2818 | 5050 SMD RGB | 60 | 60 | 18W/M | 256 | 60 | 20 | 16.67mm |
72 LEDs / m 5V | A2815 | 5050 SMD RGB | 72 | 72 | 21.6W/M | 256 | 72 | 20 | 13.5mm |
144 LEDs / m 5V | A2812 | 5050 SMD RGB | 144 | 144 | 42W/M | 256 | 144 | 20 | 6.9mm |
Notice:
Please use DC5Vonly;
There are direction arrows on the PCB, arrow direction for connecting next reel strip;
GND not only for power wire, also as signal wire, need connect to both power and controller;
The Max distance between strips is 5m-10m, need use amplifier when more than 10m;
Every 5m strip need re-connect to power supplier, avoiding voltage drop;
Keep the surface of installation place clear and smooth, avoiding the strip fall off.
DO NOT press the LED;
DO NOT attempt to make sharp bend with the strip;
DO NOT install where water or high humidity may be present without further protection;
Away from strong acid or strong alkali.
