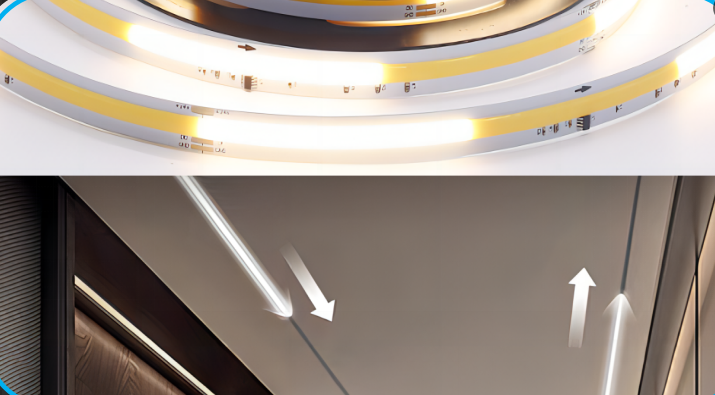

Application for Addressable CCT COB LED Strip

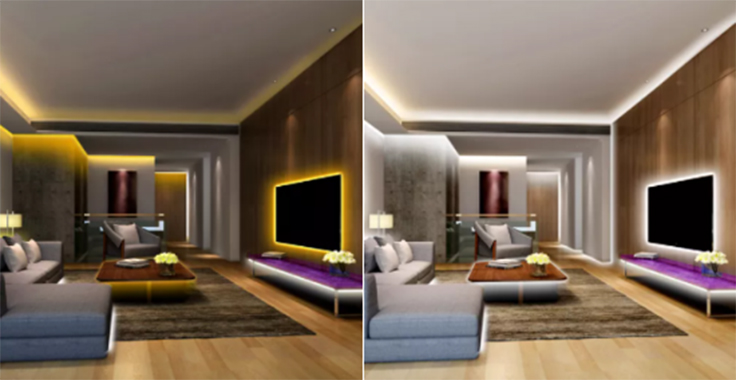

How is this achieved? Does each section of the LED strip lights contain different color temperature LEDs? In fact, this is precisely the advantage of the Addressable Tunable CCT COB LED Strip.
This dimmable LED tape light is suitable for a variety of scenarios, including:
- Indoor linear lighting: ceiling light slots and suspended linear lights, creating continuous, even light strips.
- Indirect lighting: wall, ceiling, or furniture backlighting, creating a soft ambiance.

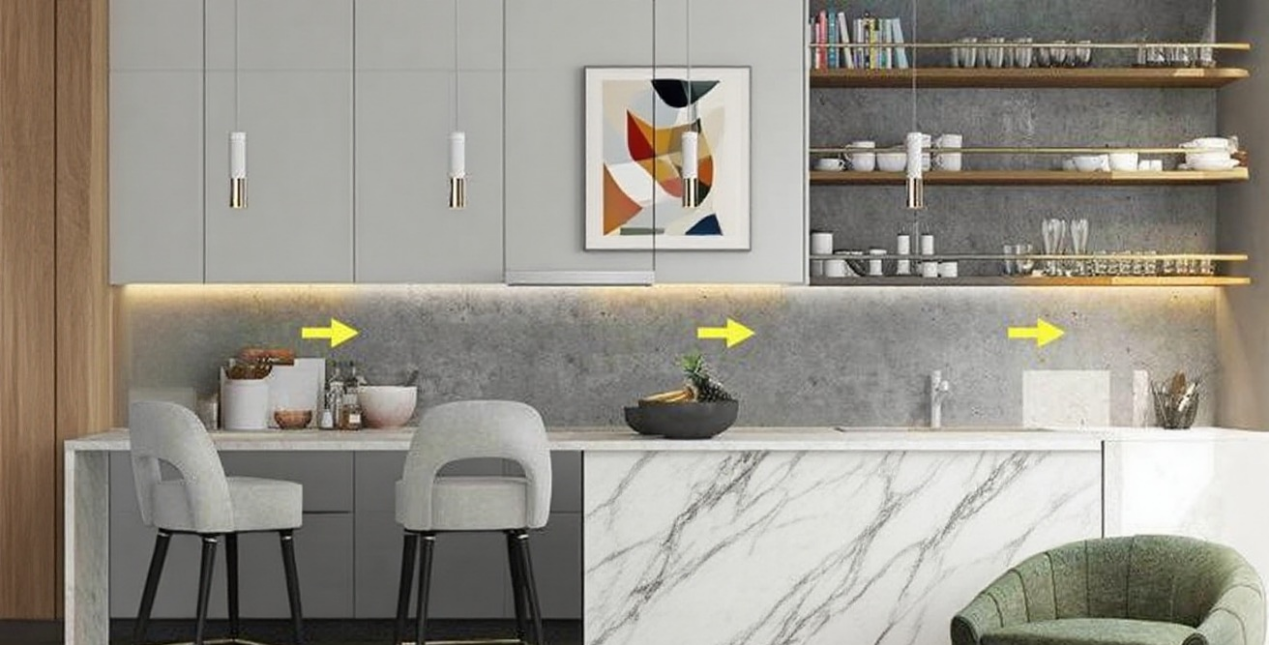

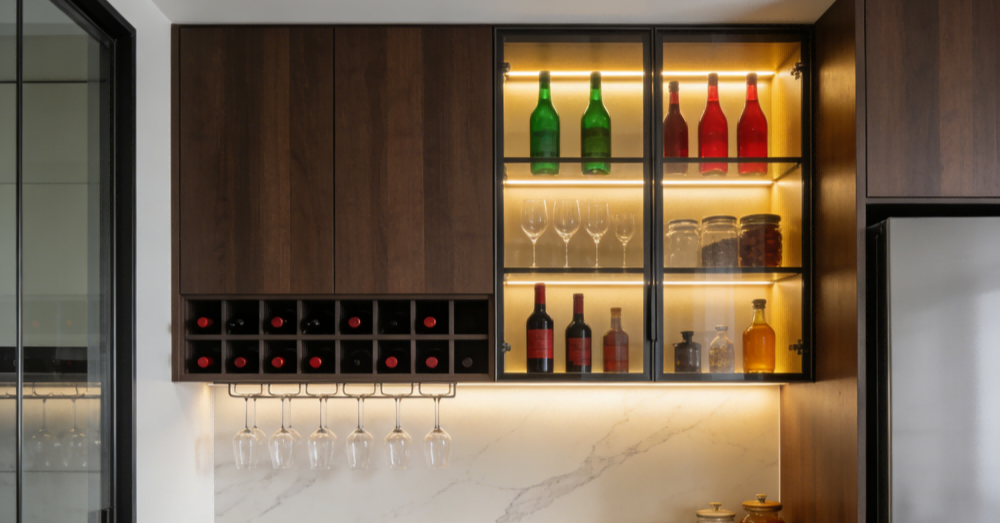

- Under cupboard LED strip lights: practical lighting under kitchen counters, desks, or workstations.
- Architectural lighting: corridor, staircase, and ceiling structural line decorations.
- Commercial spaces: retail displays, exhibition halls, cafes, or restaurants for accent lighting and ambiance.
- Office lighting: work areas, meeting rooms, and public spaces, improving comfort and focus.
- Smart home scenarios: combined with smart controllers or mobile apps, offering free adjustments to color temperature and flow modes.
- Residential spaces: living rooms, bedrooms, kitchens, balancing both utility and decoration.
- Decorative lighting: creating ambiance or emphasizing spatial hierarchy, such as bar counters, display cabinets, or staircase light strips.

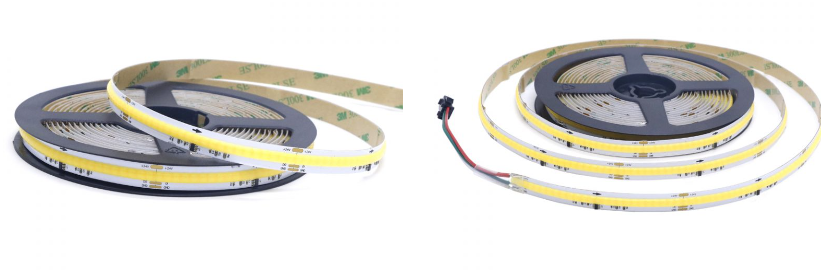

What is Addressable CCT COB LED Strip?
Product Features
The Addressable CCT COB LED Strip uses high-quality LED chips (576 LEDs/m) with a 180° emission angle for uniform brightness and stable light output. With low light decay and a lifespan of over 25,000 hours, it outperforms traditional LED strip lights white. Ideal for under cupboard LED strip lights, it offers consistent, reliable performance and high brightness.
It supports smooth switching between LED strip lights warm white (2700K) and LED strip lights white (6500K), ensuring seamless light effects without any spots. It also features a dimmable LED tape light, allowing precise pixel control for adjusting lighting ambiance according to different scenarios.
- Warm White (2000K–3500K): Soft, warm light ideal for creating a cozy atmosphere in spaces like living rooms or cafes.
- Natural White (3600K–5000K): Neutral, soft light perfect for dining rooms or kitchens, improving comfort and clarity.
- Cool White (5100K–6500K): Bright, clear light designed to enhance focus in workspaces or retail areas, perfect for areas that require high-efficiency lighting.
With WS2811 IC and SPI control, the Addressable CCT COB LED Strip offers smooth dimming and dynamic color temperature, simulating natural daylight. This reduces visual fatigue, making it ideal for under cupboard LED strip lights, children’s study areas, or office environments.
Perfect for linear lighting, creative DIY projects, or dynamic light decorations, the Addressable CCT COB LED Strip allows light to flow smoothly like water. With a dimmable LED tape light and compatible controllers, you can easily adjust brightness and flow speed to create a comfortable, vibrant atmosphere.
Product Specification
| Part NO: | LW-COB125 | 2700K | 6500K |
| LED Qty: | 576pcs per meter | 288pcs per meter | 288pcs per meter |
| CRI (RA) | 90 | 90 | 90 |
| Input Voltage: | DC24V | DC24V | DC24V |
| Watts: | Single Color 10W | 10W | 10W |
| Mix Color 20W | - | - | |
| 24V(24 pcs IC) | 24V(12 pcs IC) | 24V(12 pcs IC) | |
| Color: | Addressable Dual Color White 2700-6500K | 2700K | 6500K |
| PCB Color: | White | White | White |
| IP Grade: | IP20 | IP20 | IP20 |
| Control Signal: | SPI | SPI | SPI |
| Beam angle: | 180 degree | 180 degree | 180 degree |
| Certification: | CE; RoHS | CE; RoHS | CE; RoHS |
| Max Run: | 5M | 5M | 5M |
| Min Run: | 24V(41.66 mm) | 24V(41.66 mm) | 24V(41.66 mm) |
| Dimension IP20: | 5000 x 10 x 2.2mm | 5000 x 10 x 2.2mm | 5000 x 10 x 2.2mm |
- Packaging and Labeling: Customizable packaging, manuals, labels, and PCB-printed logos to enhance brand recognition.
- Performance Customization: LED count, PCB width, waterproof rating, color temperature, and CRI can be adjusted to ensure optimal lighting performance and user experience.

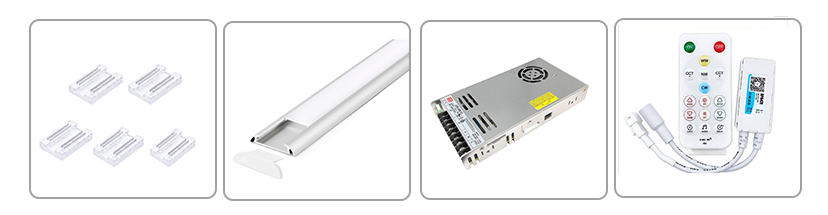

Accessories

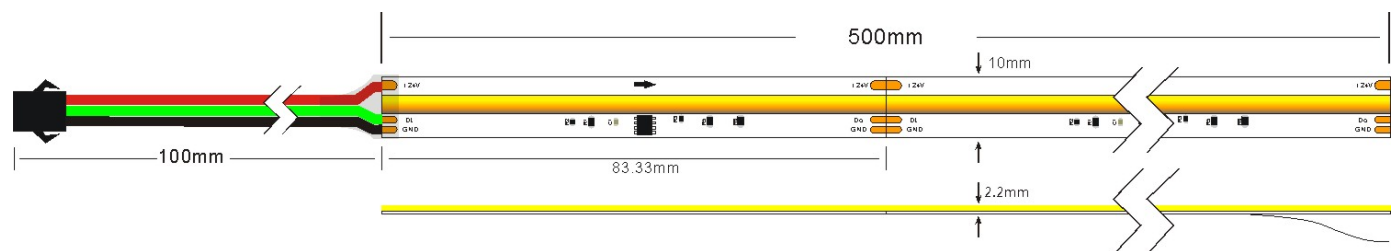

Dimensions

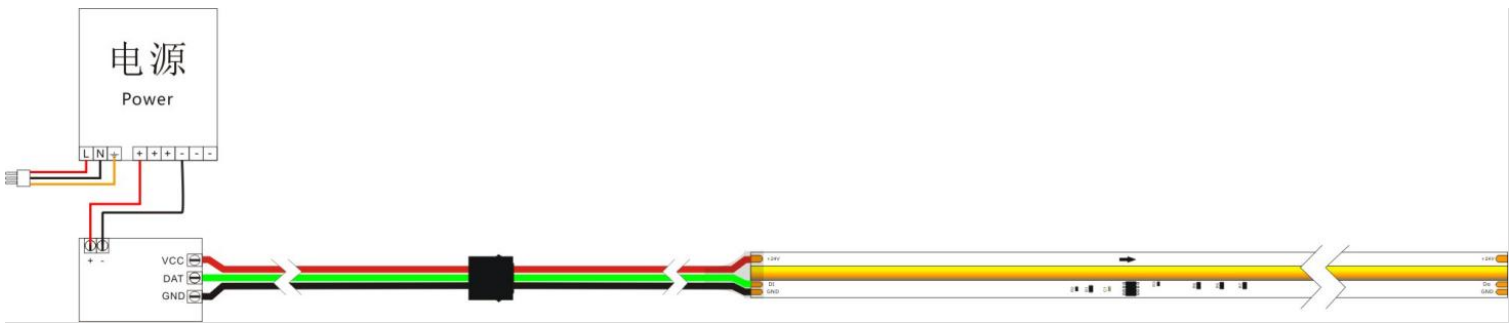

Connect Drawing
FAQ

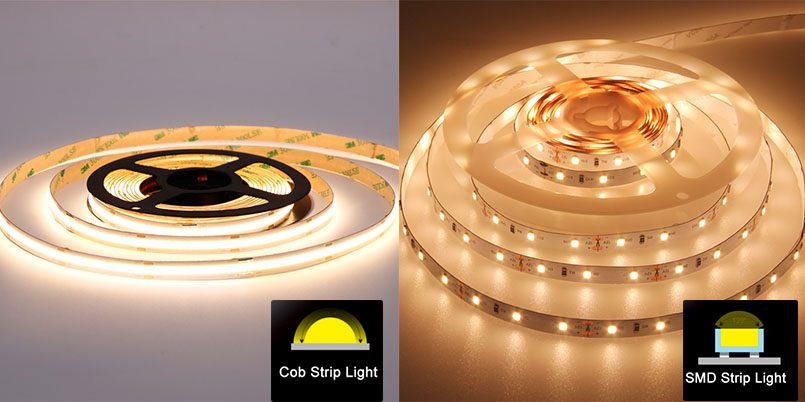

What is the Difference Between LED SMD vs COB Lighting?
SMD and COB are two widely used LED lighting technologies today, and they differ significantly in design concept and light performance.

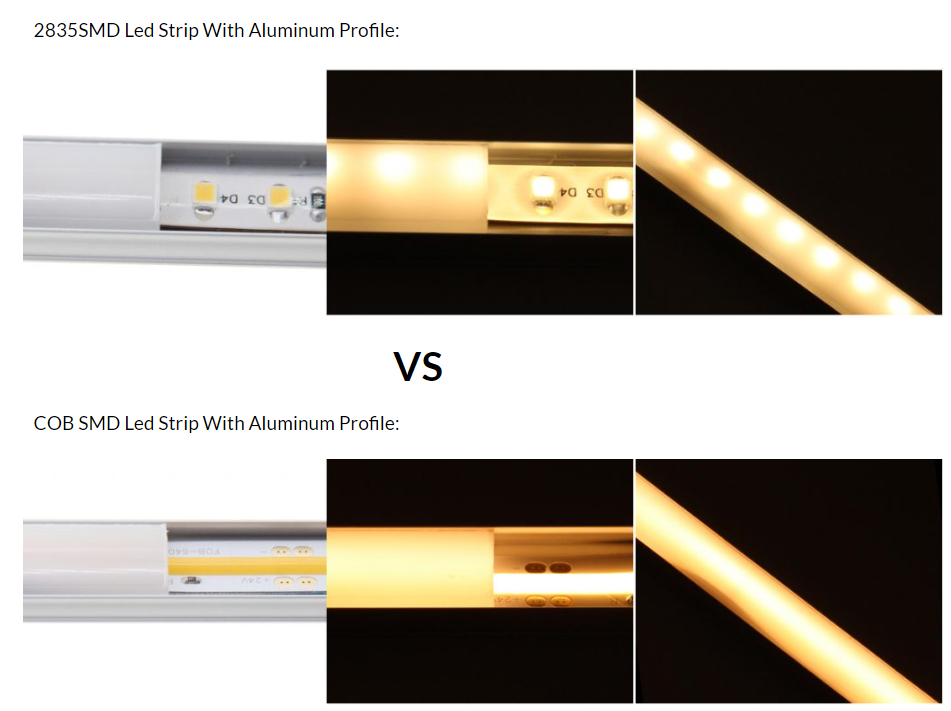

SMD LED uses individual, separately mounted LED chips, with each LED emitting light on its own and visible spacing between chips. This results in a more "point-source" light effect. While brightness performance is solid, individual light spots can become visible at close range, and uniformity is relatively average — making SMD well suited for basic lighting or decorative applications.
COB LED integrates a large number of micro chips directly onto the same substrate, forming a continuous light-emitting surface with no visible chip graininess. This produces softer, more uniform light that more closely resembles natural daylight. COB also typically offers a beam angle of up to 180°, wider than SMD's approximately 120°, allowing for more complete light coverage — making it a strong performer in cove lighting and architectural linear lighting.
In short, SMD is more cost-friendly and suited to basic lighting needs, while COB is better suited for projects seeking a dot-free, soft, uniform, and high-end visual effect.
LW Lighting also offers CSP LED strip technology. Compared with traditional COB and SMD LED strips, it delivers higher brightness output, making it well suited for projects that require strong lighting performance and high energy efficiency.
What is COB LED Strip Used For?
The biggest advantage of COB LED strips is their exceptionally soft, even light output with no visible chip graininess — which is why they are widely used in settings where visual comfort and spatial ambiance matter.
In practice, COB LED strips work well not only for general lighting but also for accent lighting and hidden lighting designs, such as under cupboard LED strip lights, kitchen countertop areas, ceiling coves, bedroom backlighting, and interior lighting for wardrobes or display cabinets. In these applications, COB strips deliver a cleaner light output — no glare, and no visible individual LED dots.
Can COB LED Strip Change Color Temperature?
Yes. When paired with a compatible dimmable LED tape light controller, COB LED strips can adjust not only brightness but, for select CCT models, color temperature as well — allowing users to freely switch between different lighting moods.
Which Is Better, SMD or COB LED?
Whether SMD or COB is the better choice depends on the specific application and lighting performance requirements.
For commercial projects, the decision is usually based on balancing visual effect with cost. When a high-end visual experience is the priority — such as for cove lighting, commercial spaces, or interior ambient lighting — COB LED strips, with their continuous light-emitting surface, spot-free output, and soft light quality, tend to be the better fit. For cost-sensitive projects or those requiring higher localized brightness, SMD LED remains a more cost-effective and flexible option.
What Are the Disadvantages of COB Lights?
While COB LED strips deliver excellent light performance, there are a few considerations worth noting. In earlier production, the flip-chip process used in COB manufacturing required higher process control for waterproof strip production, resulting in a slightly lower yield rate compared to SMD. However, as the technology has matured, stability has improved significantly, and multiple waterproofing ratings can now be achieved. Additionally, some COB products require tighter color consistency control, and slight color variation may occur in large-scale applications. Compared with some SMD strips, COB is also more geared toward soft lighting design, with relatively limited power options — making it best suited for accent lighting and linear lighting applications rather than high-output general lighting.
