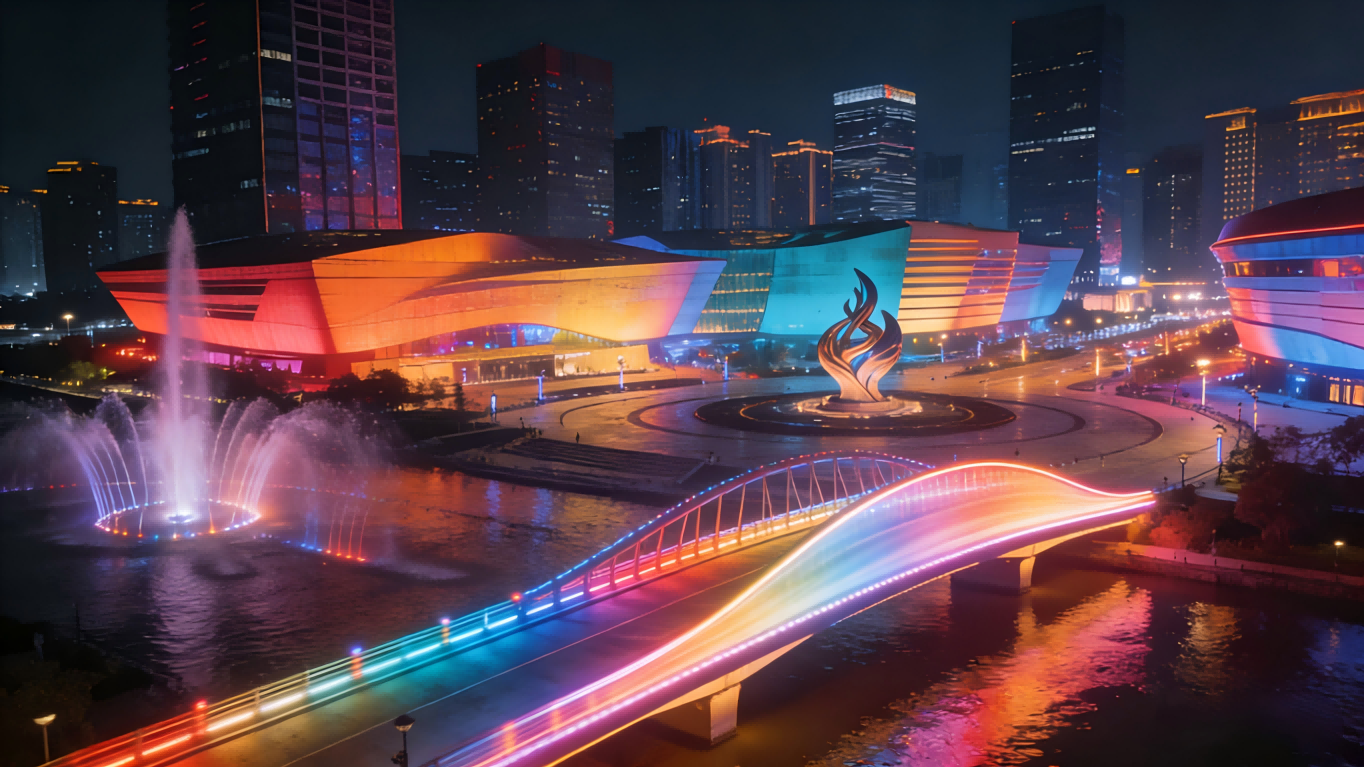

As night falls, the contours of the city begin to flow. The edges of bridges flicker with the rhythm of vibrant colors, while building facades seem to breathe as they change. Public sculptures and music fountains interact with lighting, creating a dynamic play of light and shadows. These flowing visual effects are brought to life by the Addressable RGB COB LED Strip.
With its seamless, continuous, and linear light effects, it offers a soft and smooth visual experience. Thanks to its flexible installation options and a wide range of vibrant light effects, this led light stripe is ideal for various project needs: from urban landscape lighting (bridge outlines, building facades, and ground light troughs), commercial complexes and shopping malls (immersive atmospheres, interactive lighting), stage and entertainment venues (dynamic lighting effects, visual focal points), smart home spaces (multi-zone, personalized lighting), to public art and interactive installations (creative light and shadow interactions). This 24V LED tape light can easily achieve high-quality linear lighting effects.

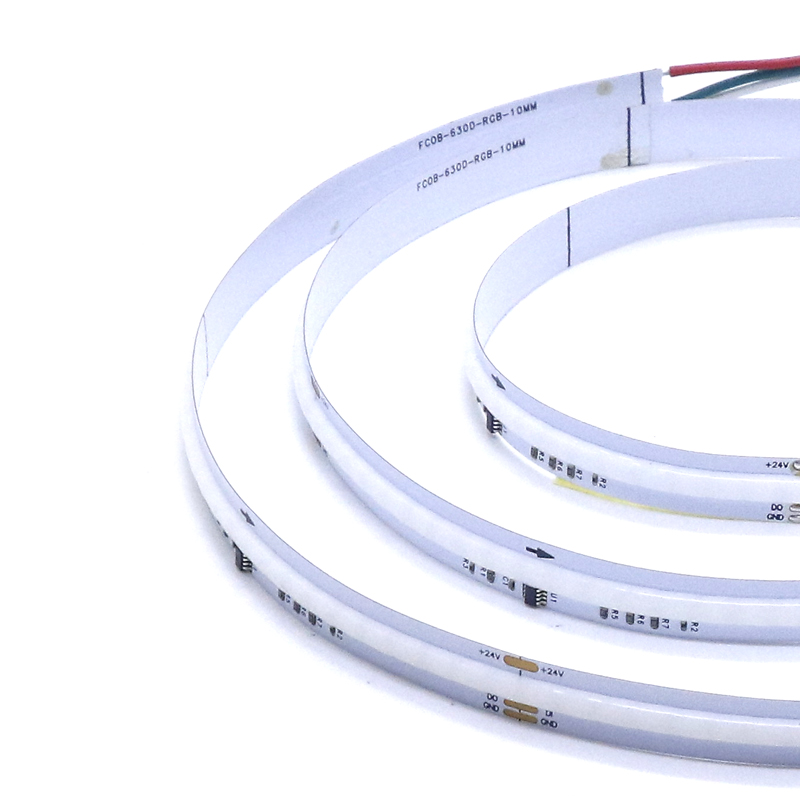

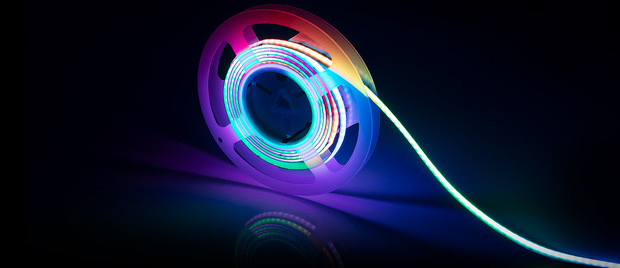

What is Addressable RGB COB LED Strip?
This is a programmable rgbic pro led strip lights, utilizing the COB (Chip On Board) packaging technology, where high-density RGB chips are directly mounted onto the PCB. This ensures a continuous and even light output with no dark spots.
Unlike traditional SMD LED strip lights, it uses the WS2811 control chip and supports the SPI control protocol, allowing for multiple lighting modes — from soft gradients and flowing chases to dynamic color transitions.
Product Features
1. Addressable control for creating rich lighting effects

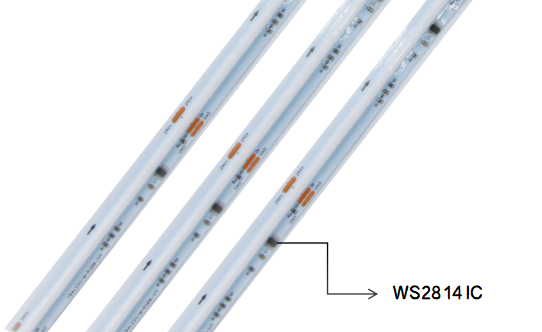

Using the WS2811 control chip and supporting SPI control, this Addressable RGB COB LED strip offers various dynamic modes such as flowing, fading, chasing, and jumping. The light transitions smoothly and naturally, and it can be programmed and customized according to the project's needs.
2. COB packaging technology for more even lighting

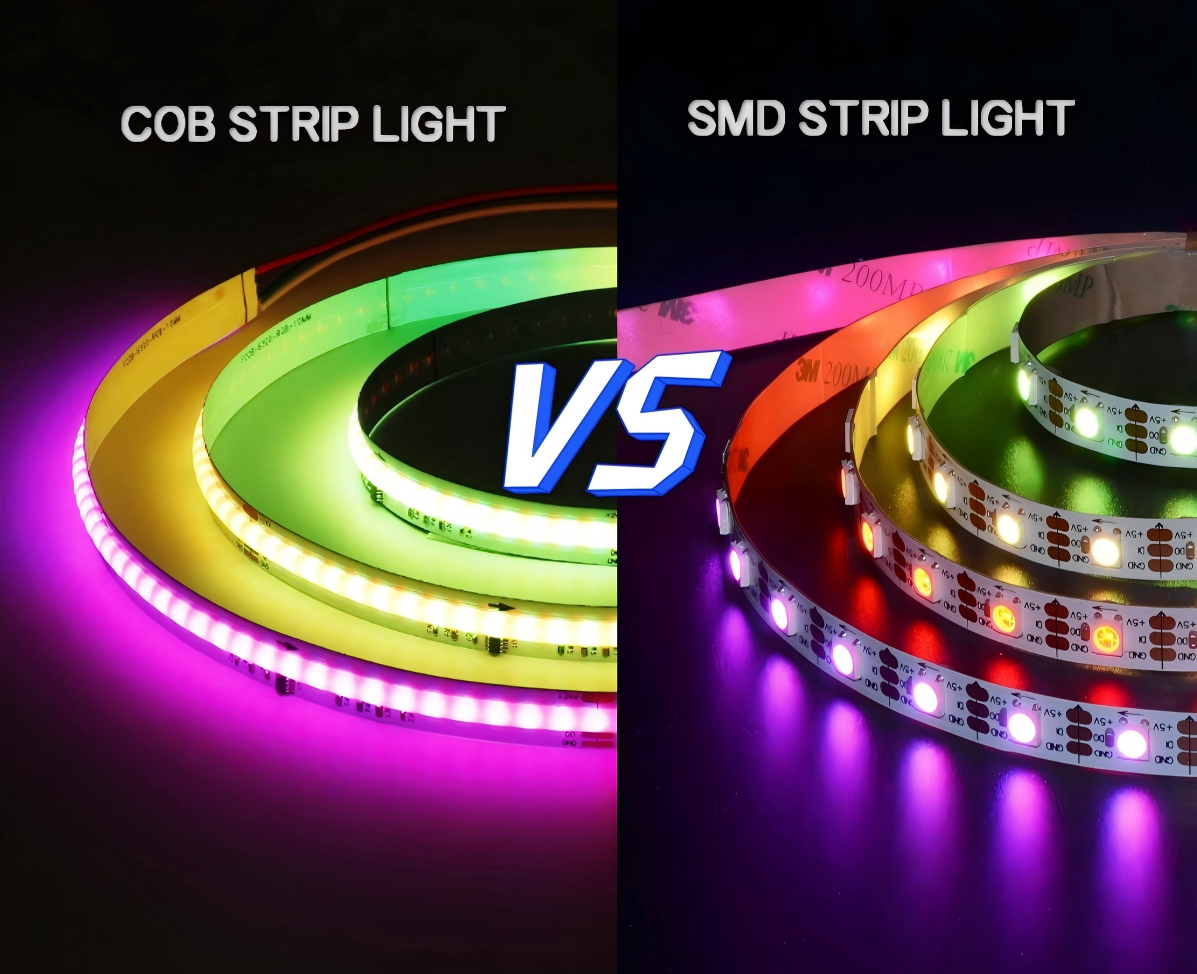

High-density RGB chips are directly mounted onto the PCB, with no visible light points, delivering continuous, soft illumination and uniform light with no dark spots. This creates a high-quality linear lighting effect. Compared to traditional 24V LED tape light, the COB LED technology effectively eliminates the pixelated effect, providing a more refined and smooth linear effect.

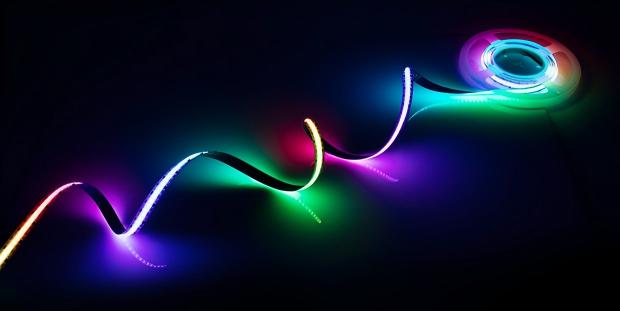

3. High Flexibility
The flexible FPCB can be easily bent, making it suitable for curved installations and complex shapes. It meets the needs of various scenarios, including architectural outlines, stage lighting, entertainment venues, and KTVs, with versatility in its application.
4. Waterproof Rating
To meet installation needs in various environments, the Addressable RGB COB LED Strip offers multiple waterproof options:
- IP20 Non-waterproof: Suitable for dry indoor environments, such as display cabinets, ceiling light troughs, or decorative lighting, providing pure and clean lighting effects.
- IP65 Waterproof with Tube: Encapsulated in a transparent waterproof tube, this version can withstand moisture and water droplets, making it ideal for kitchens, balconies, and semi-outdoor spaces.
- IP67 Extruded Silicone Waterproof: With an integrated encapsulation design, it can resist short-term immersion in water, perfect for outdoor facades, landscape lighting, and poolside environments.
Product Specification
| Part NO: | LW-COB122 |
| LED Qty: | 630pcs per meter |
| IC Qty: | 12V(14 pcs IC) |
| 24V(10 pcs IC) | |
| Input Voltage: | DC12V/DC24V |
| Watts: | 12V(8W) |
| 24V(11.5W) | |
| Color: | Addressable RGB |
| Control signal: | SPI |
| PCB color: | White |
| IP Grade: | IP20 |
| Operating temperature: | -25 to 45℃ |
| Beam angle: | 180 degree |
Our Addressable COB LED strip supports various customizations to meet different project requirements:
Packaging and Labeling: Custom packaging, manuals, labels, PCB-printed logos, etc.
Performance Customization: LED quantity, PCB width, waterproof rating, color temperature, and color rendering index (CRI) can all be customized according to your needs.

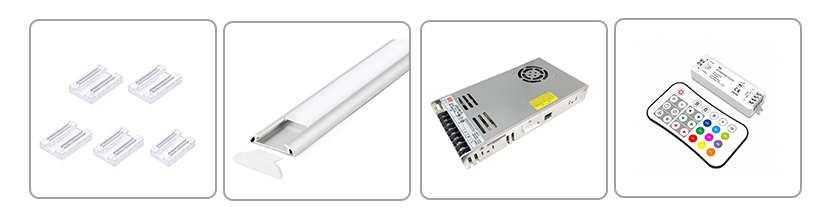

Accessories
To make your LED strip roll installation more efficient, we offer a complete range of supporting accessories:
- Connectors: Enable quick, solder-free connections to ensure stable and secure current transmission.
- Aluminum Profiles: Provide excellent heat dissipation, extend the lifespan of the LED strip, and enhance the overall aesthetic of the installation.
- Power Supplies: Deliver stable output voltage to continuously power the LED strip, ensuring long-term reliable operation.
- RGB Controllers: Precisely adjust brightness, color, and dynamic modes to meet diverse lighting needs.
Our comprehensive accessory system ensures that the bluetooth led strip installation is simple, highly compatible, and more stable in operation.

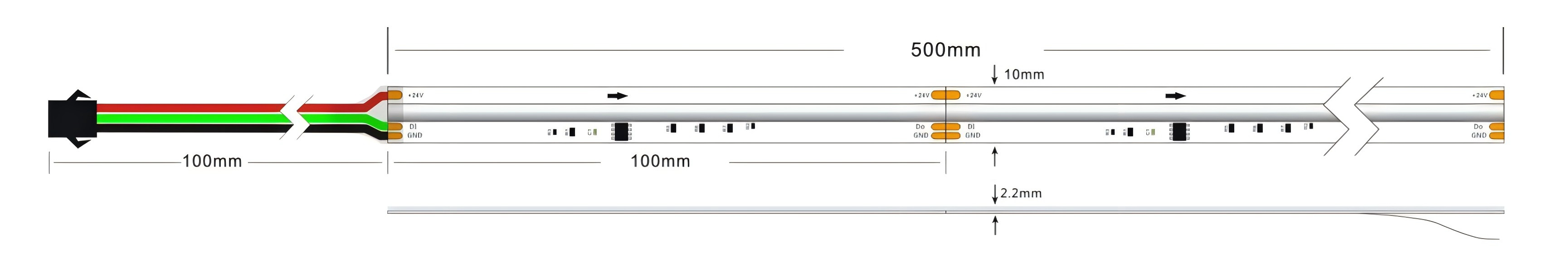

Dimensions

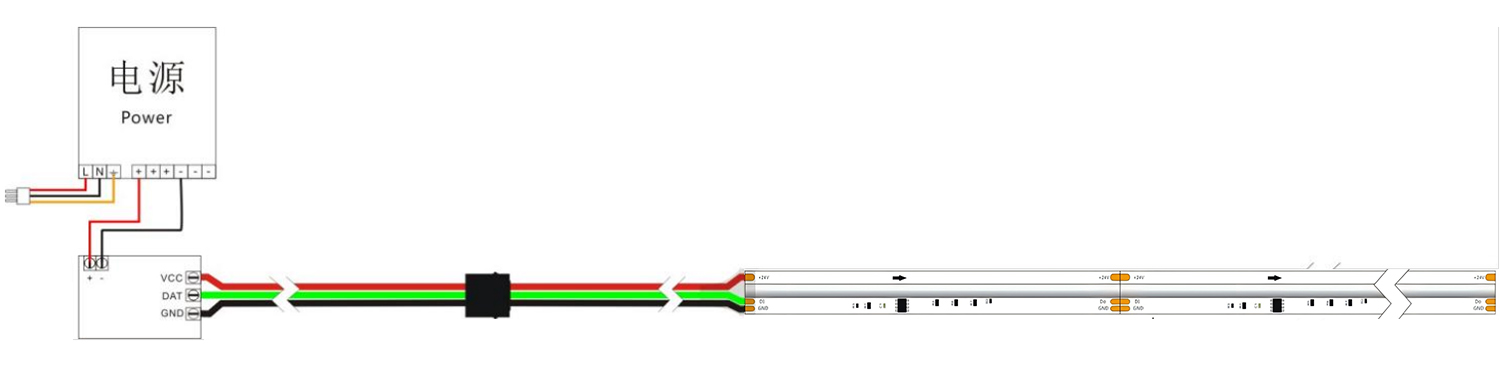

Connect Drawing
Choose LW Lighting Addressable RGB COB LED Strip to create smooth, vibrant lighting effects that enhance the spatial experience, increase interactivity, and reduce maintenance costs, ensuring that every project efficiently achieves the ideal lighting effect.
