As the demand for lighting efficiency, reliability, and adaptability across various scenarios continues to grow, solutions that combine high brightness, uniform light color, flexibility, and long-term stability have become core market demands. LW Lighting's CSP (Chip Scale Package) chip-level packaged LED strip lights have emerged as an important development direction for the next generation of light sources.
As the high luminous efficacy and excellent plasticity, CSP LED strips can cover a variety of lighting scenarios, including:

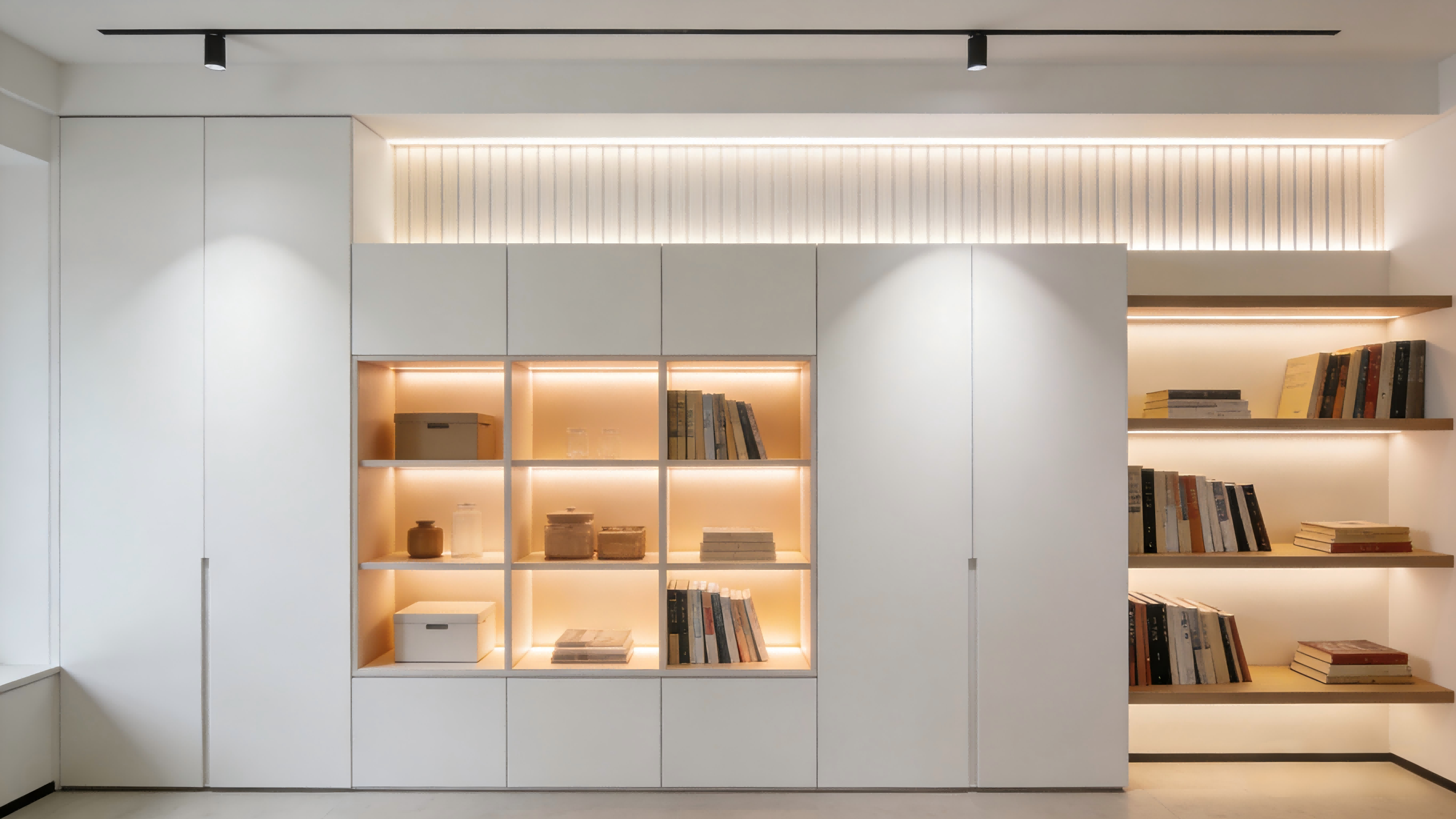

- Home decoration: Provide soft, spot-free lighting in locations like cabinets, bookshelves, and feature walls.
- Commercial space accent lighting: Suitable for retail stores, showrooms, and restaurants, enhancing display ambiance and visual effects.
- Outdoor architectural lighting: The led strip waterproof 12v version is ideal for gardens, balconies, and terraces, adapting to changing environments.
- Residential lighting: Meets the basic and ambient lighting needs of spaces like living rooms, bedrooms, and kitchens.
- Advertising signage: High brightness and uniform lighting ensure clear and striking visuals.
- Automotive and marine lighting: Can adapt to curved or narrow installation structures, providing reliable supplementary lighting.
- Stage and entertainment lighting: Works with intelligent control systems to create effects like multi-color temperature changes and dynamic flowing light.
The CSP LED strip not only enhances the lighting performance and spatial aesthetics of projects but also marks a new developmental phase in the LED strip technology cycle, becoming one of the innovative representatives of modern LED flexible LED strip lighting.
What is CSP LED Strip?
CSP LED strips, short for Chip Scale Package LED strips, are a new type of LED flexible LED strip developed using CSP (Chip Scale Package) + FPC flexible substrate technology. In simple terms, CSP refers to the LED chip itself, which is a form of LED packaging with no bracket, no gold wire, the smallest size, and the simplest structure. By applying CSP packaging technology to strip light LED lights, we get the "CSP LED strip."

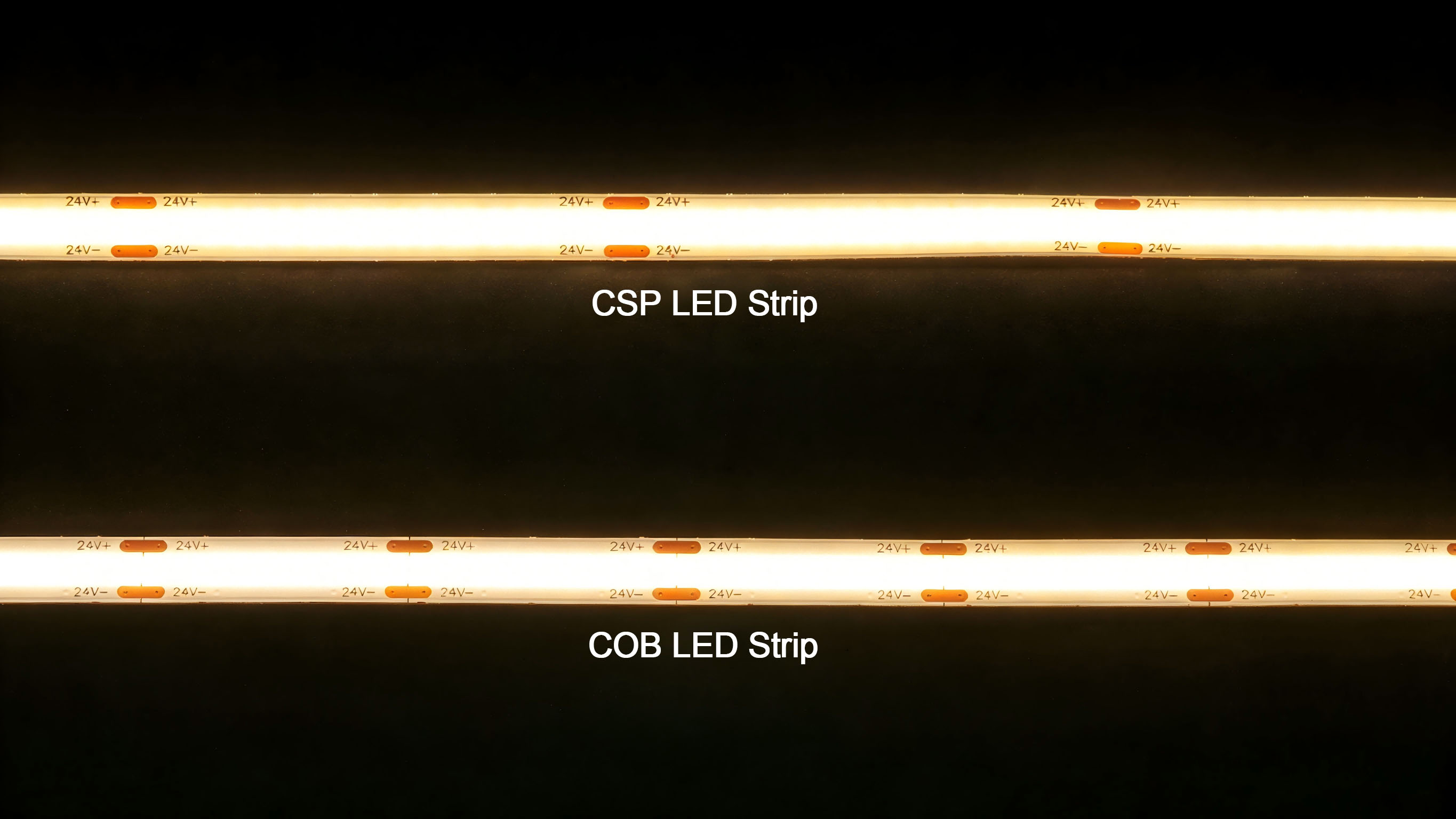

CSP LED Strip vs COB LED Strip: Key Differences
COB LED Strip uses flip-chip technology with a phosphor coating on the surface. The phosphor is excited to achieve the desired color temperature, providing uniform light without noticeable granularity. It is suitable for large-area, even lighting, such as LED under cabinet light strips or other commercial and residential applications.
In contrast, CSP LED strips use flip-chip LEDs that emit color on their own, with a protective layer of white silicone encapsulation. This results in a stable and uniform light color. CSP LED strips have a more compact structure and excellent heat dissipation, making them ideal for installations with higher space requirements or more complex shapes, such as strip light LED applications.

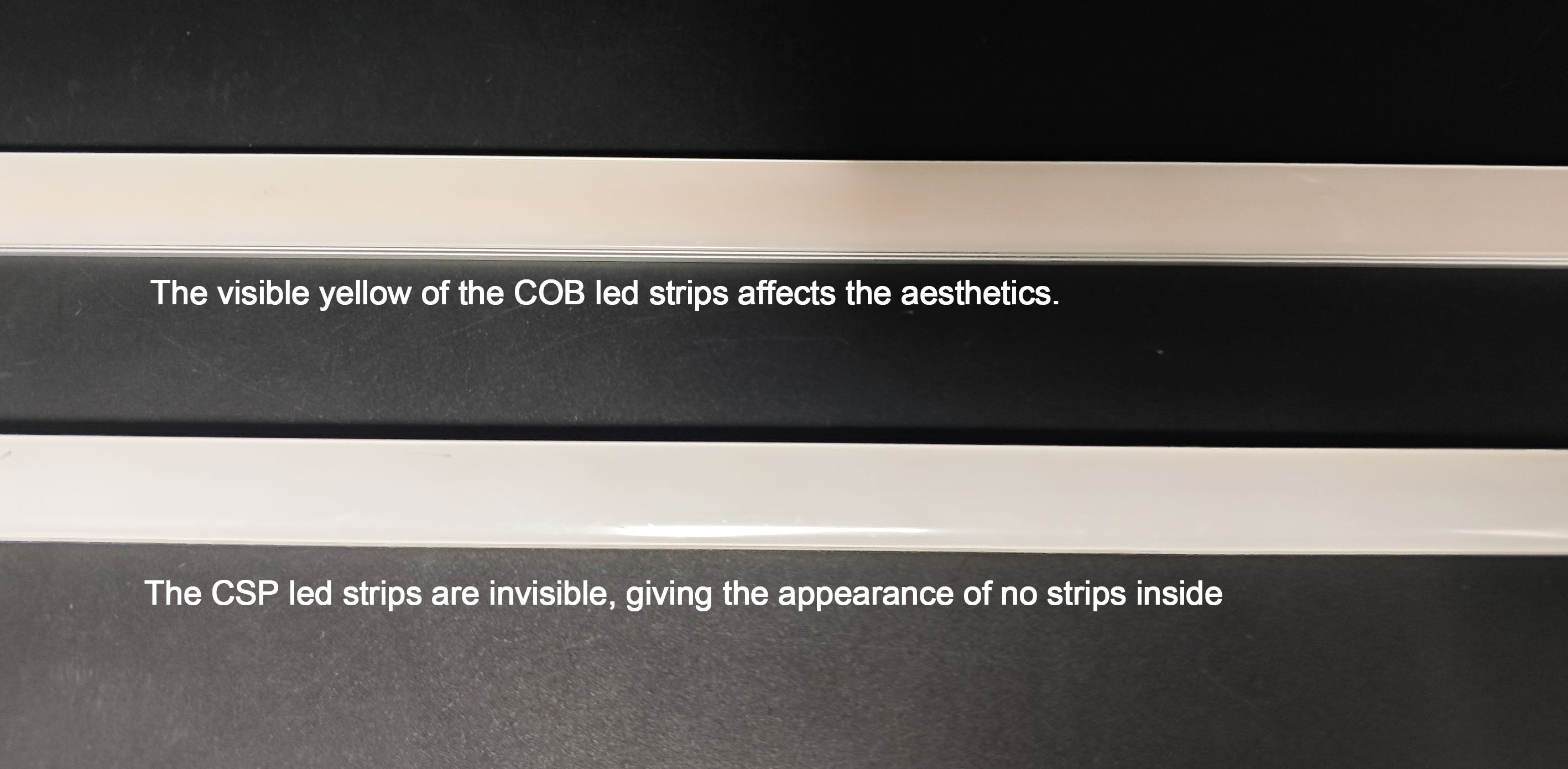

In terms of visual effects, COB LED strips may show yellowish colloid in frosted aluminum channels, while CSP LED strips, when paired with aluminum channels, deliver more even light without any yellowish traces, making them a good choice for both indoor and outdoor LED strip waterproof 12v uses.
| Characteristics | COB LED Strip | CSP LED Strip |
|---|---|---|
| Packaging Structure | Flip-chip + Phosphor | Flip-chip LED + White Silicone |
| Light Uniformity | High | High |
| Compactness | Average | More compact, excellent heat dissipation |
| Appearance | Possible yellowish colloid | Even light color, no yellow traces |
What are the main advantages of using CSP LED strips?
- Flexibility: Can be freely bent and folded, with a thin thickness and small volume, allowing for more flexible installation.
- Advanced Packaging: Utilizes "flip-chip + chip-level packaging" technology, offering low thermal resistance and high heat dissipation efficiency, making it ideal for LED flexible LED strip applications.
- High Precision: The compact structure and strong conductivity make it suitable for fine space lighting, such as LED under cabinet light strips.
- Water Resistance: When paired with silicone tubing, the protection level can reach IP67, making it ideal for outdoor environments and LED strip waterproof 12v applications.
- Stable Performance: As the size continues to shrink, electrical stability and reliability are enhanced, ensuring consistent performance in compact installations like strip light LED applications.
Product Features
1. CSP Technology
Uses "flip-chip + chip-level packaging" technology, offering low thermal resistance, high heat dissipation efficiency, and long-term stable electrical performance. Before packaging, the LED undergoes spectral treatment to ensure precise light color accuracy from the source, completely eliminating the common light spot issues often seen in traditional strip light LED.
2. High Luminous Efficiency
CSP LED strips support light emission from five sides, with an emission angle of up to 165°, providing broad and even light coverage. The surface of the chip is covered with a phosphor adhesive film, enabling single-side or multi-side light emission. This ensures high light consistency, soft and stable light color, and eliminates yellowing edges. The small size of the LED allows flexible adjustment of the installation spacing, balancing brightness and visual uniformity, making it easy to adapt to various lighting density requirements, such as in LED flexible LED strip applications.

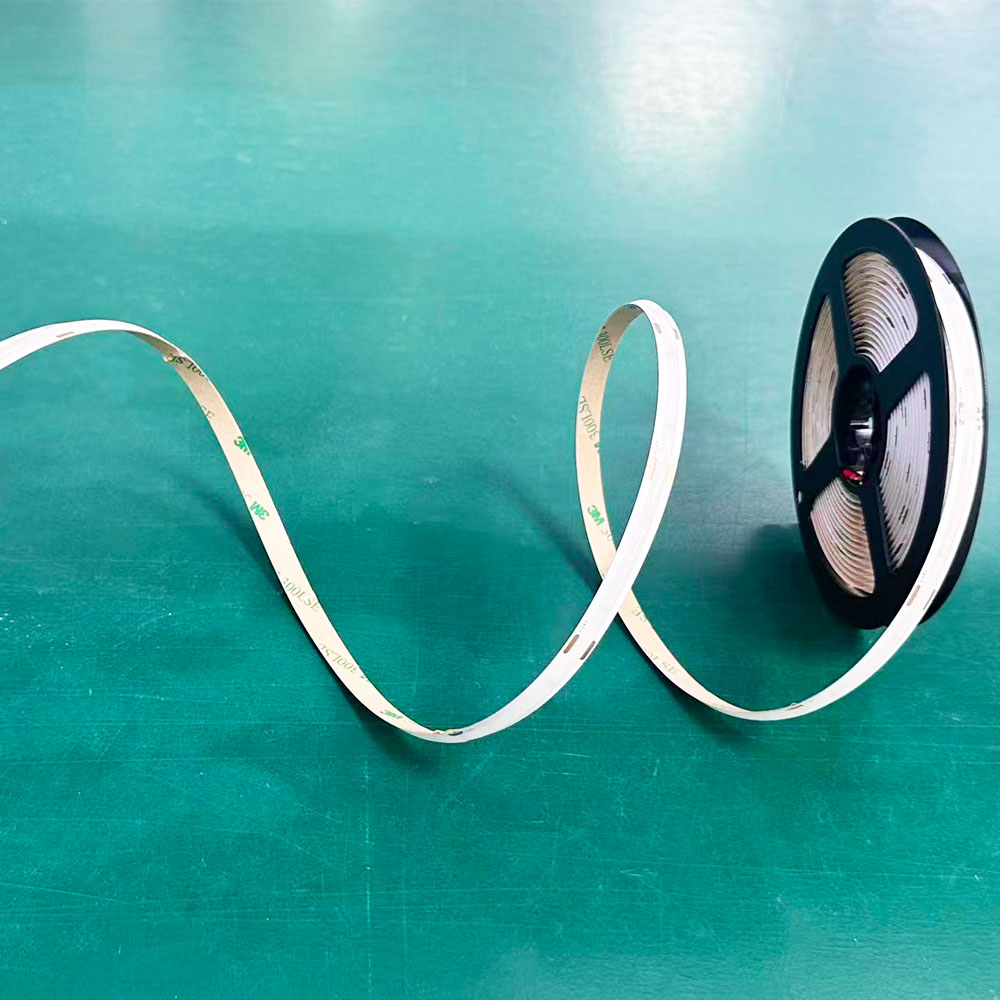

3. Stronger Flexibility
With no brackets, gold wires, or fragile structures, CSP LED strips can be freely bent and folded. The bending stress points are small, making them less prone to damage during transportation and installation. The 8mm narrow PCB design is thin and compact, making it easy to adapt to complex installation scenarios such as curved surfaces and narrow spaces, commonly seen in LED flexible LED strip applications.
Product Specification
| Item | Parameter |
|---|---|
| Model | CSP LED strip |
| Part NO | CSP001 |
| LED Qty | 480 pcs per meter |
| CRI (RA) | >90 |
| PCB Width IP20 | 8 mm |
| Input Voltage | DC24V |
| Watts | 10W |
| Luminous Flux | 110 LM / W |
| Color | 2700/3000/4000/6000K |
| PCB color | White |
| IP Grade | IP20 |
| Operating temperature | -25 to 45℃ |
| Beam angle | 180 degree |
| Certification | CE; RoHS |
| Max Run | 5M |
| Min Run | 24V 50mm |
LW Lighting CSP LED strips use environmentally friendly, high-quality materials throughout the entire product line, all of which are RoHS, CE, and REACH certified, ensuring reliable quality and compliance with environmental standards, providing a safer usage experience.
To meet the personalized needs of different scenarios, we offer comprehensive customization services to ensure that the product fits your project perfectly:
- Brand Customization: Supports exclusive designs for packaging, manuals, and product labels. We can print your brand logo on the PCB board, enhancing brand recognition and exclusivity.
- Performance Customization: Allows adjustments to the number of LED beads, PCB width, and waterproof protection level. We also offer flexible customization of color temperature and Color Rendering Index (CRI), ensuring that each light effect aligns with actual usage requirements. These customizations are ideal for applications like strip light LED and LED flexible LED strip.

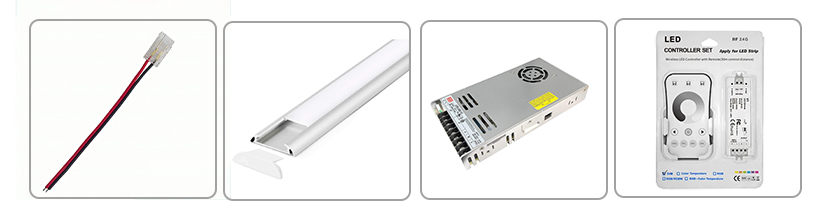

Accessories
To simplify the installation of CSP LED strips in different environments, we provide a full set of accessories, including connectors, aluminum profiles, power supplies, controllers, and joints, ensuring smooth and efficient installation.
CSP LED Strip FAQ
1. Can CSP LED Strip be customized for OEM projects?
Yes. LW Lighting provides professional OEM and ODM customization services for CSP LED strips. We can customize LED density, PCB design, waterproof rating, color temperature, CRI, color binning, private labeling, and packaging according to different project requirements. Our engineering team can also support custom product design, including specifications, labels, color boxes, and logo printing, providing a complete one-stop solution from development to production.
2. What is CSP Package and CSP LED Chip?
CSP stands for Chip Scale Package, an advanced LED packaging technology developed to reduce the size of traditional LED packages. Unlike conventional SMD LEDs, CSP LED chips have a package size almost the same as the LED chip itself, without traditional brackets and gold wires. This compact structure allows higher LED density, better heat dissipation, and a slimmer LED strip design.
3. What are the advantages of CSP LED Strip?
LW Lighting CSP LED strips feature a compact design, high LED density, and excellent lighting performance. Compared with traditional LED strips, CSP LED strips provide better light uniformity, improved heat dissipation, stronger flexibility, and a thinner profile. They are ideal for applications requiring high-density lighting and limited installation space.

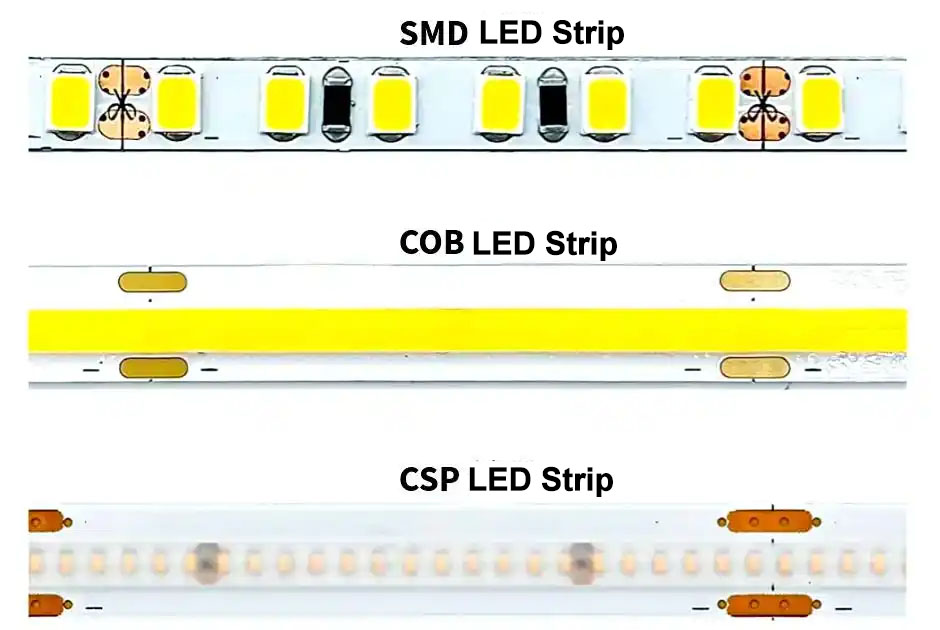

4. What is the difference between CSP LED Strip and SMD & COB LED Strip?
CSP, SMD, and COB LED strips use different LED packaging technologies and are suitable for different lighting applications.
- CSP LED Strip: Compact chip size, high LED density, and excellent heat dissipation, suitable for slim and high-density lighting designs.
- COB LED Strip: Uses continuous chip bonding technology to create a smoother, dot-free lighting effect, ideal for premium linear lighting applications.
- SMD LED Strip: Offers high cost performance and flexible options, widely used in commercial, residential, and general lighting projects.
LW Lighting can provide different LED strip solutions based on brightness, installation environment, and lighting effect requirements.
5. Does CSP LED Strip have visible light spots?
Compared with traditional SMD LED strips, CSP LED strips significantly reduce visible light spots due to their smaller chip size and higher LED density. LW Lighting CSP LED strips can achieve a smoother and more uniform lighting effect, especially when installed with aluminum profiles and diffusers.However, if LED strips are used uncovered—without a diffuser—and viewed from close range, individual light dots may still be visible.

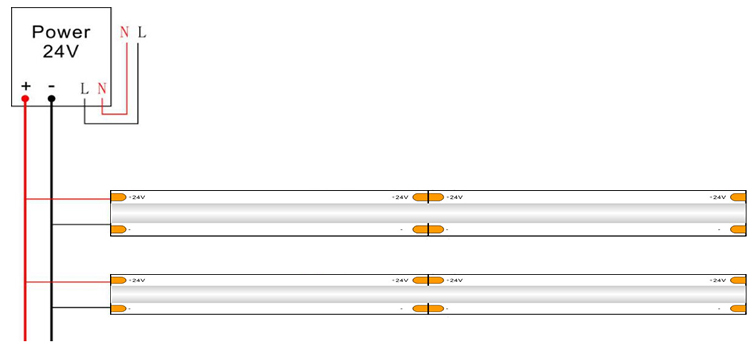

Connect Drawing
Get More Information
From technological breakthroughs to real-world applications, LW Lighting CSP LED strips redefine modern lighting standards with high efficiency, uniform light color, and flexible installation. Want to learn more about technical details and customization options?
Leave your email to receive complete product information for free and bring innovative lighting into every project space with LW Lighting.
