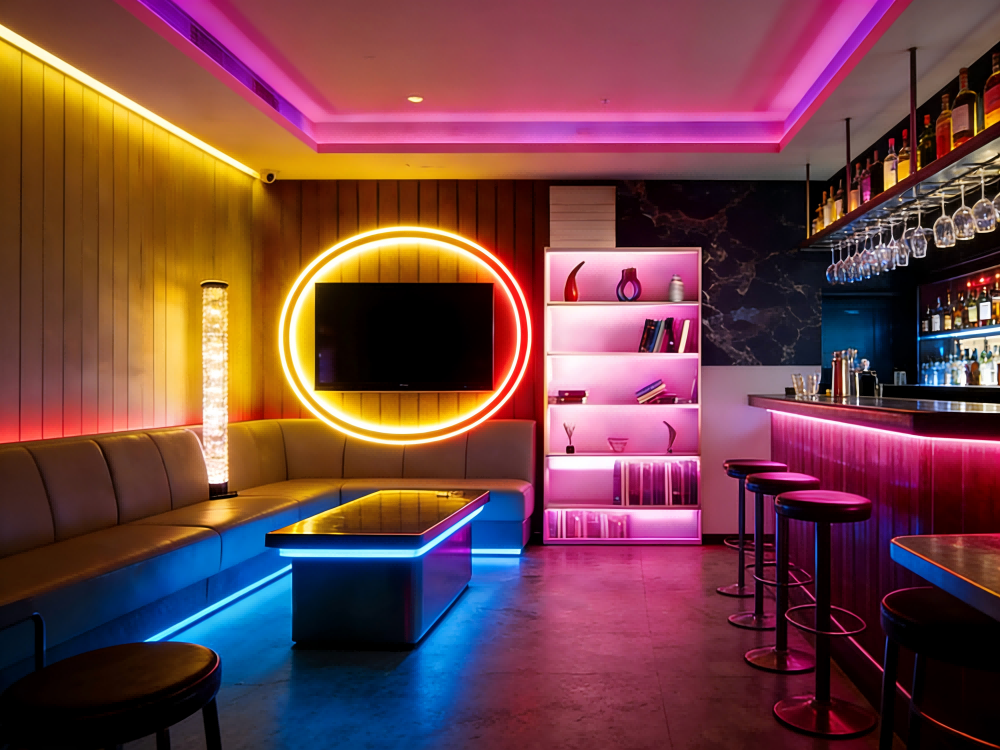

In modern commercial and living environments, the demand for lighting has long expanded beyond the simple function of “illumination.” Whether it’s the dynamic ambiance of a KTV, the soft tone of a bar, the vitality and safety of a gym, or the precise color restoration of a clothing store’s mirror lights, every detail directly impacts customer experience and the competitiveness of a project. For clients, choosing the right lighting solution is not just about aesthetics; it is a key factor in improving operational efficiency and creating a differentiated advantage.
However, traditional lighting products often face the dilemma of "single-function products struggling to adapt to multiple scenarios." In many cases, the light color fails to meet the needs of different atmospheres, dimming functionality is inconvenient, or multiple types of lights need to be combined to achieve the desired effect. This not only increases procurement costs but also complicates installation and maintenance. These issues severely limit the flexibility of commercial spaces and customer satisfaction.
The introduction of RGBCW COB LED strip lights perfectly addresses this pain point. With its multi-colour LED light strips and precise colour temperature control, the 24V LED strip offers a highly adaptable, easy-to-operate lighting solution. It meets the needs of various commercial and living spaces, enhancing the atmosphere and customer experience, ultimately leading to higher operational value.

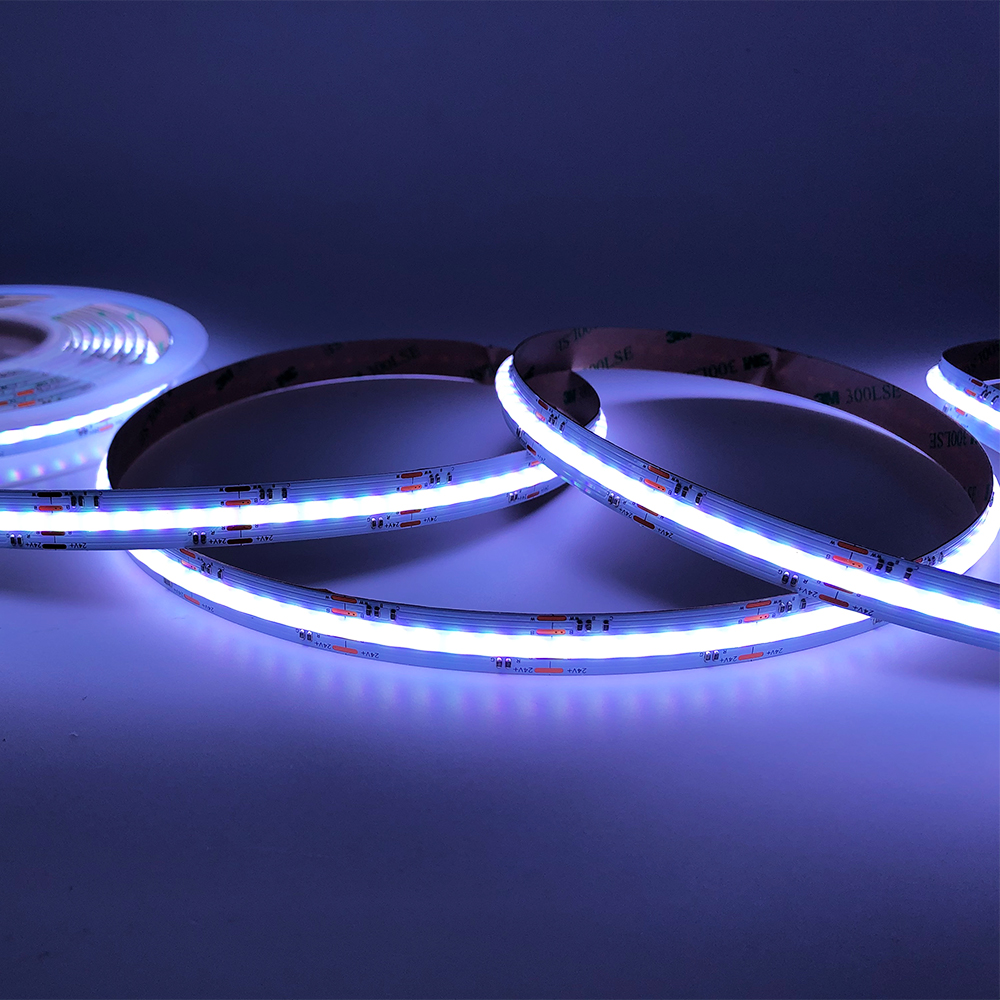

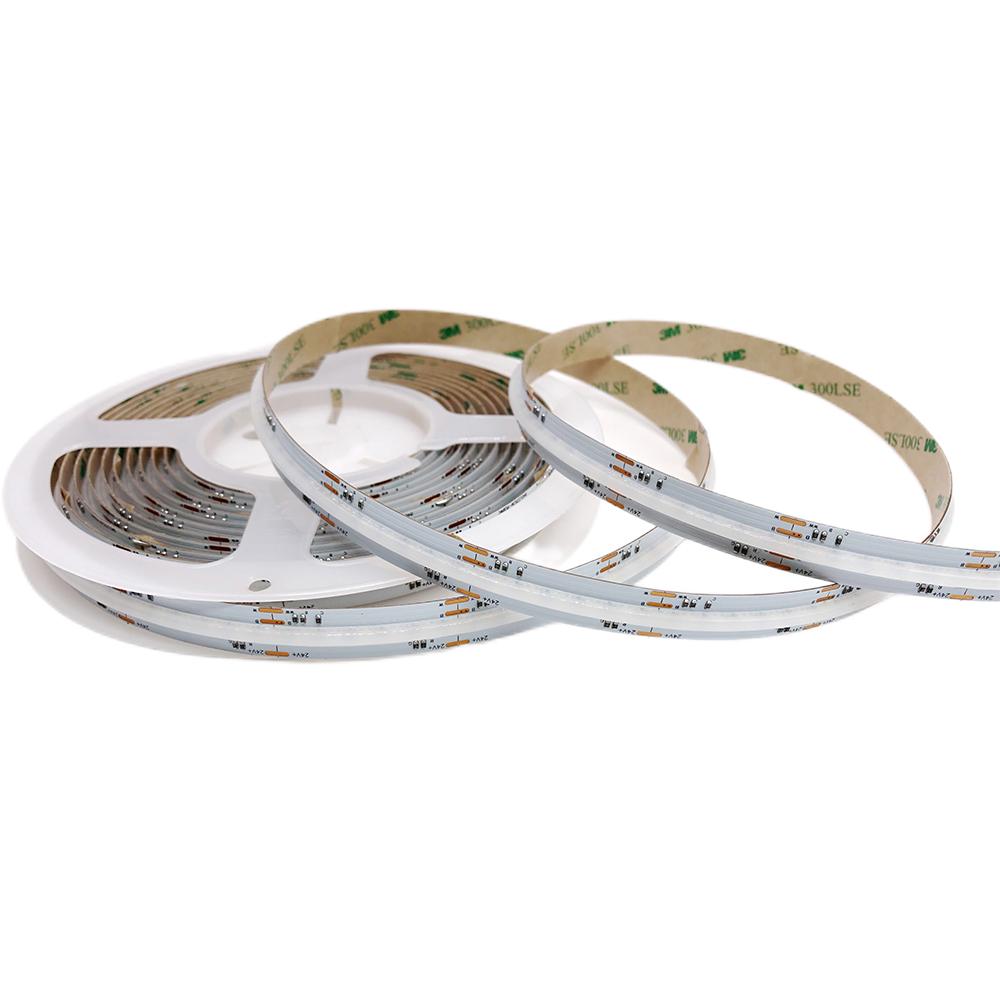

What Is RGBCW COB LED Strip?
RGBCW represents five different light sources: Red (R), Green (G), Blue (B), Cold White (CW), and Warm White (WW). By combining these five colors, the COB RGBCW LED strip can produce a variety of lighting effects, not only ideal for atmosphere lighting with multi-colour LED light strips, but also adjustable in color temperature, ranging from warm yellow to cool white light, meeting the needs of different occasions.
Product Features

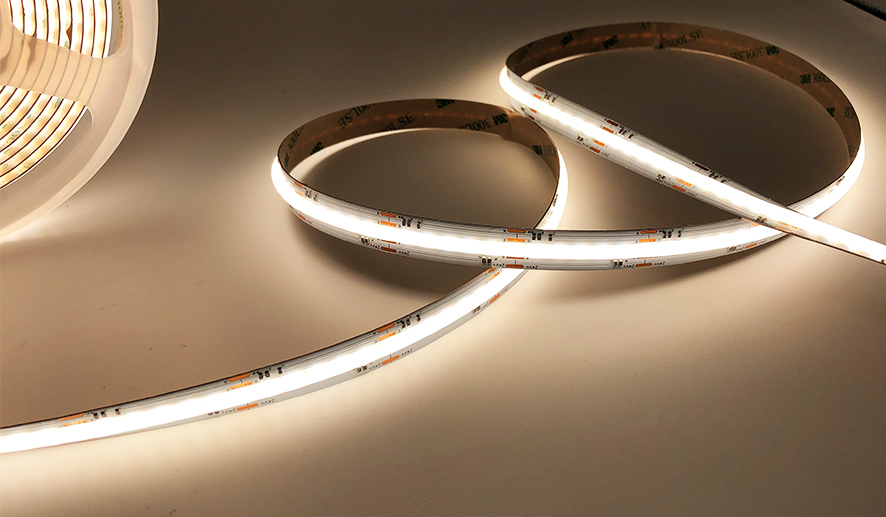

High Brightness and Even Light Effect
The RGBCW 5IN1 LED Strip adopts COB flip-chip technology, providing high-density lighting with 840 LEDs per meter. It offers color changing LED light strips with no dark spots or shadows. Even from different viewing angles, the light remains smooth and uniform, eliminating light spots and dark areas, ensuring a natural, soft lighting effect for a more refined light source experience.

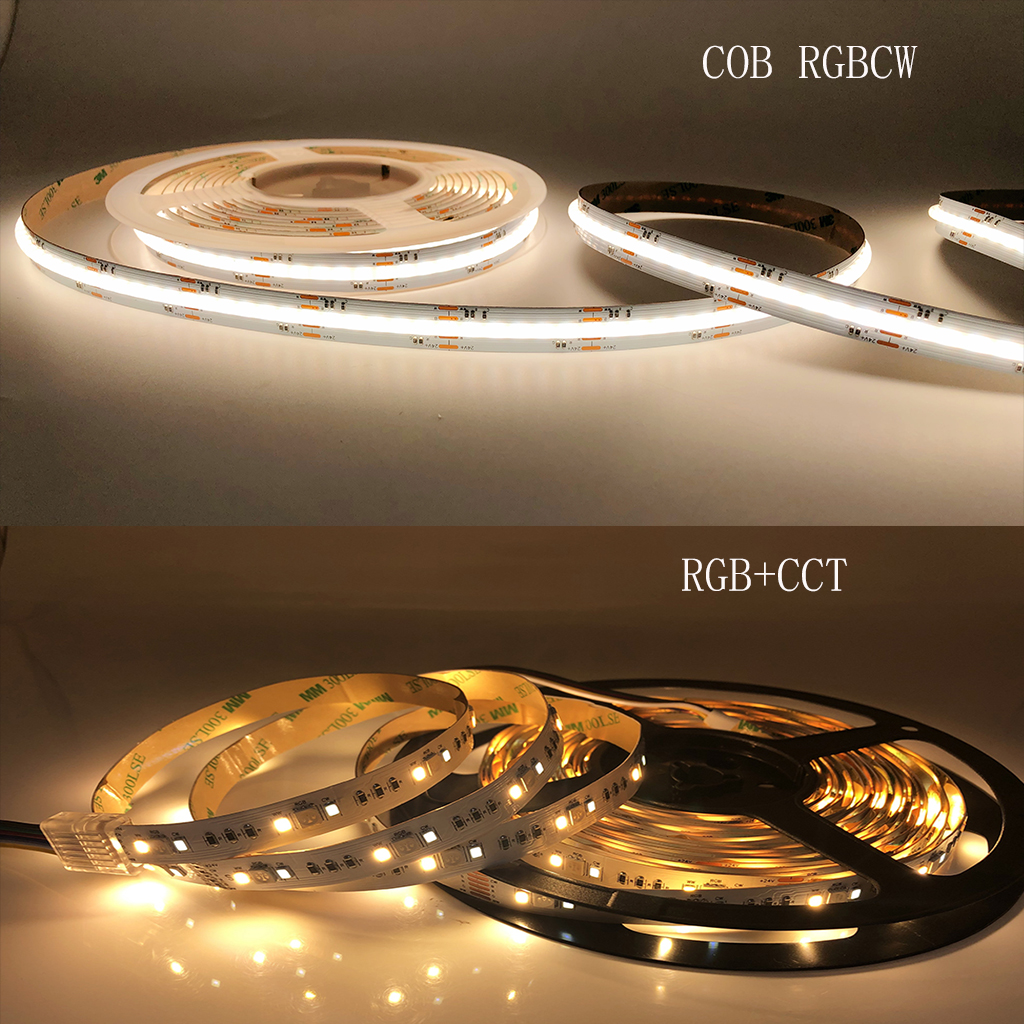

Rich Color Combinations
With the RGBCW controller, you can freely adjust the colors. It supports smartphone, remote control, and music synchronization, making it easy to create a multi-colour LED light strip effect.RGB + CW + WW combination: Combining the classic colors of red, green, and blue with cold and warm white light, each color can be independently adjusted, creating unparalleled light and shadow changes. Whether it’s vibrant, colorful lighting effects or warm white ambiance, it easily meets the needs of different scenarios.

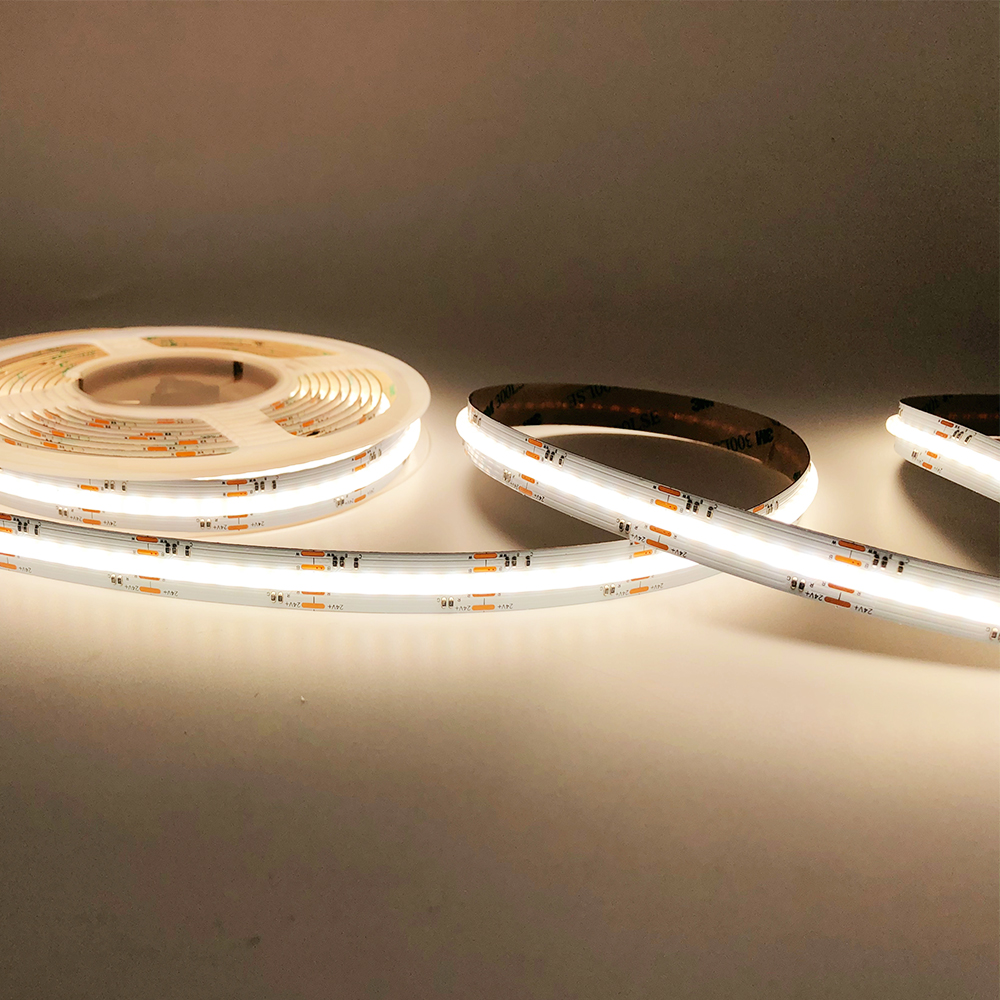

Exceptional Flexibility
LED strips can be freely cut to size and feature excellent flexibility, easily adapting to diverse application needs and seamlessly integrating into any lighting design.
Product Specification
| Part NO: | LW-COB012 |
| LED Qty: | 840pcs per meter |
| Input Voltage: | DC24V |
| Watts: | 21W |
| Color: | RGB 5 in 1(RGBCW) |
| PCB color: | White |
| PCB Width: | 12mm |
| IP Grade: | IP20 |
| Operating temperature: | -25 to 45℃ |
| Beam angle: | 180 degree |
| Certification: | CE; RoHS |
| Max Run: | 5M |
Our RGBCW COB LED strip supports multiple customizations to meet the needs of different projects:
Packaging and Labeling: Custom packaging, user manuals, labels, PCB printed logos, and more.
Performance Customization: LED quantity, PCB width, waterproof rating, color temperature, and color rendering index (CRI) can all be customized according to requirements.
Accessories

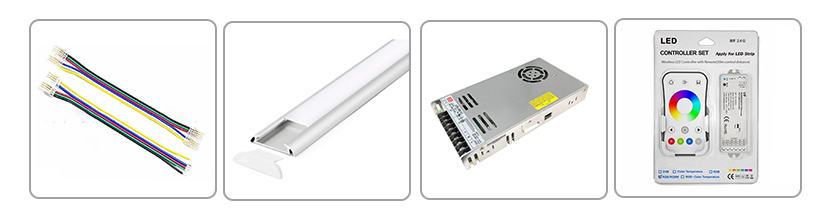

At LW Lighting, we not only provide high-quality 24V LED strip lights, but also offer a complete set of accessory solutions to help you save on procurement costs and ensure perfect compatibility between all components. The accessory sets we provide include connectors, aluminum profiles, power supplies, and LED strip light dimmers, each highly compatible with our LED strip lights, ensuring quick and stable installation while extending the lifespan of the products.
Additionally, we offer options for multi colour LED light strips, enabling flexible lighting effects that fit various environments. With our one-stop procurement service, you can easily obtain all the necessary accessories, saving time and effort while avoiding additional costs caused by incompatible accessories.

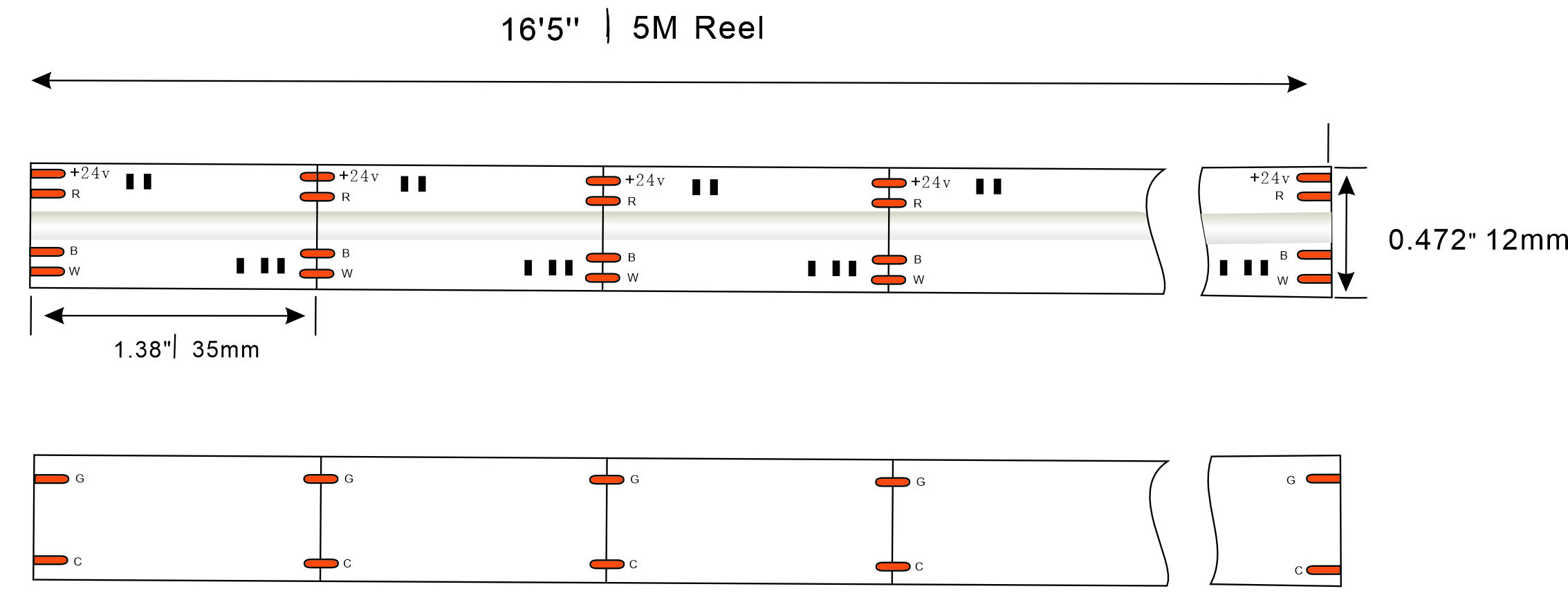

Dimensions
LW-COB012-24V-840LEDs

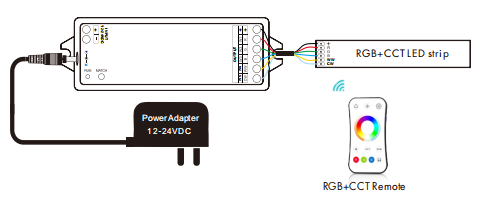

Connect Drawing
Precautions
- Before Installation: Ensure the correct parameters are matched to the scene to avoid the risk of "mis-matching."
- Protection Rating Adaptation: Choose the appropriate IP rating based on the installation environment. For humid environments (such as kitchen cabinets or bathroom mirrors), select IP65 or higher waterproof models. For outdoor semi-open environments (such as outdoor bar areas), it is recommended to use IP67. For dry indoor environments (such as gym classrooms or KTV rooms), IP20 is suitable. Using non-waterproof models in humid environments can lead to water ingress, short circuits, and damage to the LED strip lights.
- Power and Power Supply Matching: The total power must be calculated based on the LED strip length (for example, 12W per meter, so for 5 meters, it would be 60W). Choose a dedicated driver with a power rating ≥ 1.2 times the total power to avoid overloading the power supply, which could cause flickering, burning out, or insufficient power, leading to issues such as dimness or color distortion.
- Cutting Specifications: The LED strip can only be cut along the designated "cut lines" marked on the strip (usually every 5-10 cm). Cutting at other points will damage the circuit, resulting in the strip not lighting up after cutting.
How to install led strip behind tv
- Prepare the Surface: Before installing the LED strip lights, make sure the surface behind the TV is clean, dry, and free from dust or grease. Wipe it down with a clean cloth to ensure a smooth surface, enhancing adhesion.
- Peel Off the 3M Tape Protection Film: Our LED strip lights for TV are backed with high-adhesion 3M adhesive. Simply peel off the protective film on the back to start using it.
- Stick the LED Strip: Carefully stick the LED strip light along the edge of the TV or at the desired location. Press down on the strip with your hands to ensure a firm attachment.
- Connect Power and Turn On: Once the strip is installed, connect the power supply and controller, and enjoy the wonderful lighting effects brought by the strip.
How to preserve led strip lights
- Avoid Overheating: LED strip lights generate heat during operation. To extend their lifespan, avoid installing them in places prone to overheating. If installed in a closed space, ensure good ventilation, or use LED strip lights with heat dissipation features (such as aluminum profiles).
- Use Matching Voltage: Ensure that the voltage and power of the power supply match the requirements of the LED strip light. Using mismatched voltage can shorten the lifespan of the strip and even cause damage.
- Avoid Excessive Bending: While LED strip lights are flexible, excessive bending can damage the internal circuits. Avoid sharp bends or excessive twisting during installation and aim to lay the strip as straight as possible.
- Moisture Protection: If LED strip lights are used outdoors or in humid environments, select waterproof models (IP65 and above). For indoor use, avoid exposing the strip directly to damp or high-humidity environments.
- Regular Cleaning: Dust and dirt can affect the brightness of LED strip lights. Gently wipe the strip with a soft cloth to remove dust, but avoid using strong acidic or alkaline cleaners to prevent damage to the surface of the strip.
REQUEST A QUOTE
Contact us now to get detailed technical information and customized lighting solutions for RGBCW COB LED strips!
