As demand for dynamic lighting effects continues to grow across architectural lighting, commercial spaces, and the entertainment industry, traditional neon lights — limited to single-color or uniform color-changing output — can no longer meet modern projects' needs for rhythm, layering, and immersive experiences.

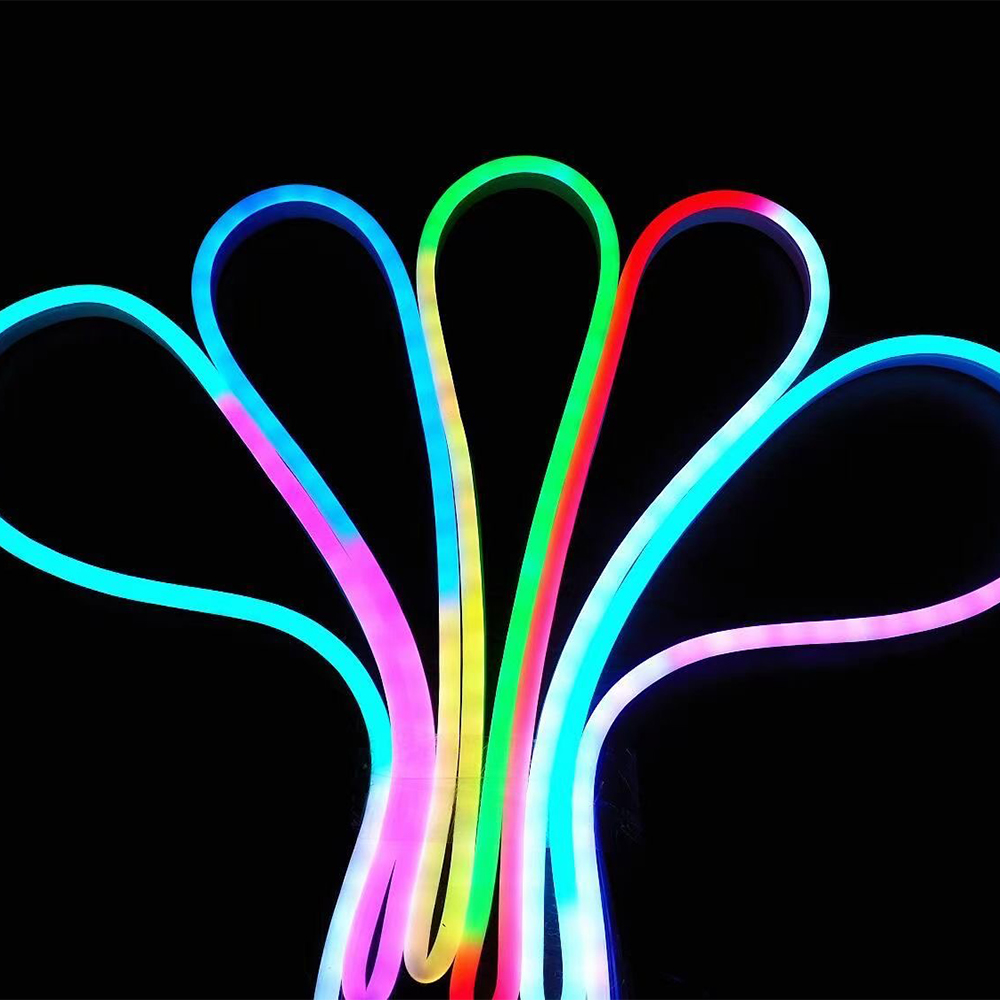

The DMX512 Addressable Neon Flex LED Strip, built on the DMX512 control protocol, is emerging as the go-to choice for next-generation linear lighting design. It combines the continuous, soft-glow aesthetic of neon with a stage-grade programmable control system, enabling independent control of every segment and every pixel to achieve full-color dynamic effects such as chasing, fading, wave animations, and music synchronization.
For any project requiring a full-color chasing DMX LED strip control system, DMX Neon Flex delivers a streamlined, professional, and highly scalable solution — with broad applications across:

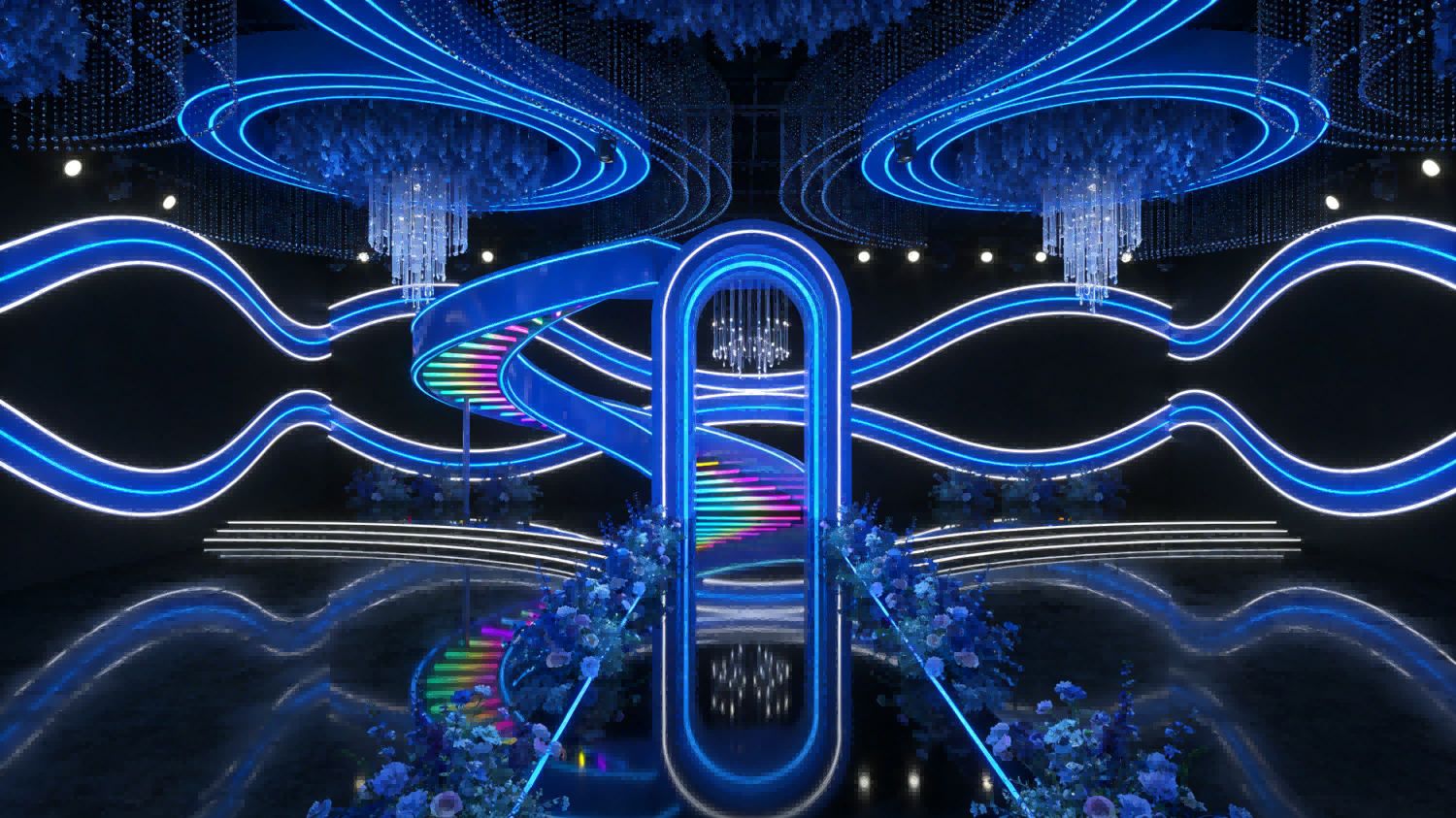

- Commercial & Entertainment Spaces
Ideal for restaurants, bars, clubs, KTV venues, casinos, entertainment centers, and home theaters. Via DMX512, chasing, fading, and music-sync effects dramatically enhance ambiance and immersive experience. - Architectural Decoration & Landscape Lighting
Widely used in building facade and outline lighting, bridge edge lighting, landscape contouring, and public space illumination. The continuous, uniform linear light output clearly defines architectural structures and improves nighttime visibility. - Advertising Displays & Brand Visuals
Perfect for billboards, light boxes, window backlighting, neon signage, channel letters, and edge lighting for glass or acrylic panels. Spot-free and UV-free, it is well-suited for long-term display and brand identity lighting. - Outdoor & Specialty Applications
Suitable for both indoor and outdoor decorative lighting, holiday and DIY installations, landscaping, and custom projects. Where protection requirements are met, it balances decorative effect with functional indicator lighting.
What Is DMX512 Addressable Neon Flex LED Strip?

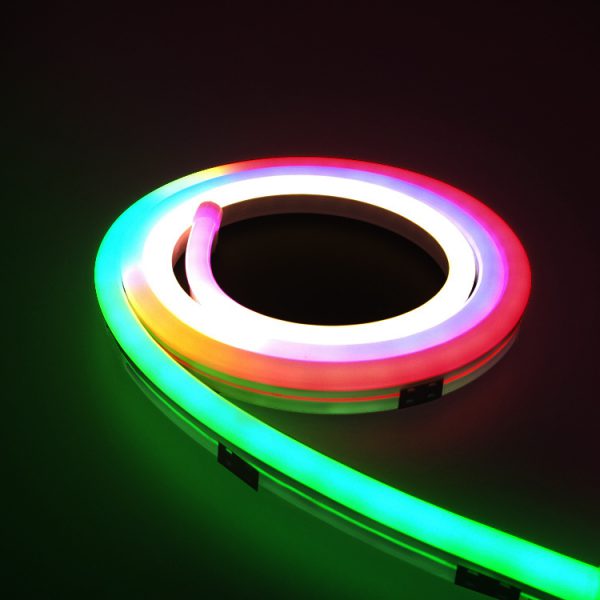

The DMX512 Addressable Neon Flex LED Strip is a linear lighting solution that combines a DMX-controllable DMX LED strip with a high-transmittance silicone neon housing. Through an integrated silicone encapsulation structure, the strip maintains a soft, continuous neon appearance while offering both flexibility and structural stability — making it suitable for a wide range of complex installation environments.

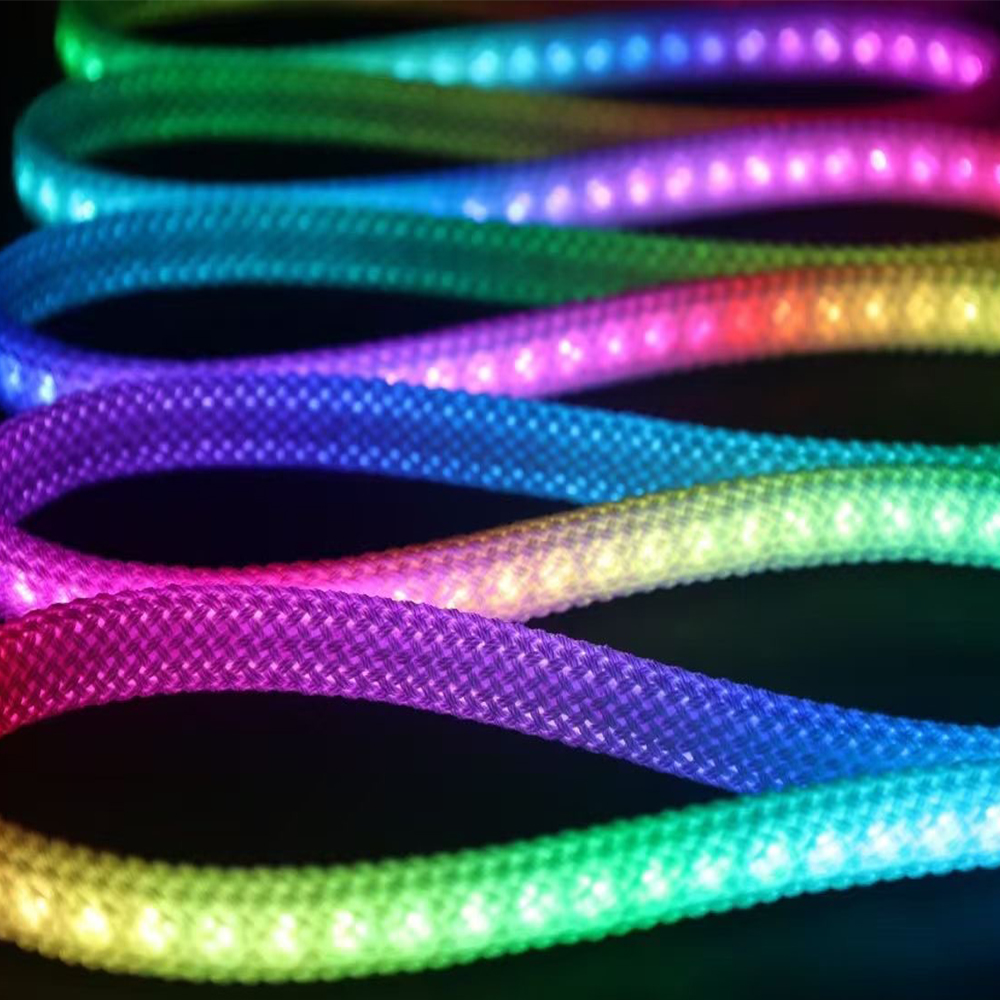

Controlled via the DMX512 digital communication protocol, it is compatible with standard DMX control systems for high-precision lighting management. Unlike conventional whole-unit controlled strips, the DMX addressable neon flex supports independent control of individual LEDs or LED segments, moving far beyond simple color changes to deliver a full spectrum of dynamic visual effects — including fading, chasing, flowing, marquee, and strobing — meeting the demands of architectural illumination, commercial spaces, and entertainment lighting where sophisticated light programming is essential.
How Are LED Neon Strip Lights Made?
Currently, two well-established manufacturing processes are used to produce LED neon strip lights: the sleeve insertion method and the integrated extrusion molding method. Both approaches achieve a balance between flexibility and uniform light output, but differ in structural design, customization flexibility, and intended applications.
(1) Inserting the LED Strip into a Sleeve
This process begins by producing the LED strip and the silicone neon sleeve separately. The LED strip is then inserted into the sleeve, which contains anti-breakage support inserts to secure the strip in place and prevent shifting or damage during transportation or installation. The assembly is then sealed at both ends to form a complete neon strip.
Proper installation of the end caps is critical to waterproofing performance: adhesive is applied inside the end caps and around the exterior of the neon strip connector before the caps are fixed in place. Once treated, the strip delivers effective waterproofing suitable for a wide range of indoor and outdoor environments.
(2) Extrusion Molding
Integrated extrusion molding is a process where the LED strip and silicone material are extruded together directly during production, forming a complete, unified strip structure. This method provides superior waterproofing performance.
- Raw Material Mixing: Liquid silicone (Part A and Part B) is blended in the correct ratio, with a diffusion agent added to promote even light distribution and reduce glare.
- Extrusion: The machine extrudes the mixed silicone through a specialized mold. Simultaneously, the pre-assembled LED strip is fed into the mold, where the silicone encapsulates it to form an integrated neon tube.
- High-Temperature Curing: The extruded strip passes through a high-temperature tunnel oven, where the silicone rapidly vulcanizes, hardens, and sets into its final form.
- Cutting & Spooling: The finished strip is automatically cut to the customer's required length (e.g., 5 meters per reel) and wound onto reels for packaging.
Product Features
High-Brightness RGB LEDs: Equipped with SMD5050 LED RGB strip lights chips paired with external DMX512 driver ICs, each LED is individually addressable and programmable, making it easy to create dynamic lighting effects.
Flexible Programming: Supports an "install first, program later" workflow — any animation effect can be configured directly via the controller, offering a straightforward and convenient operation experience.

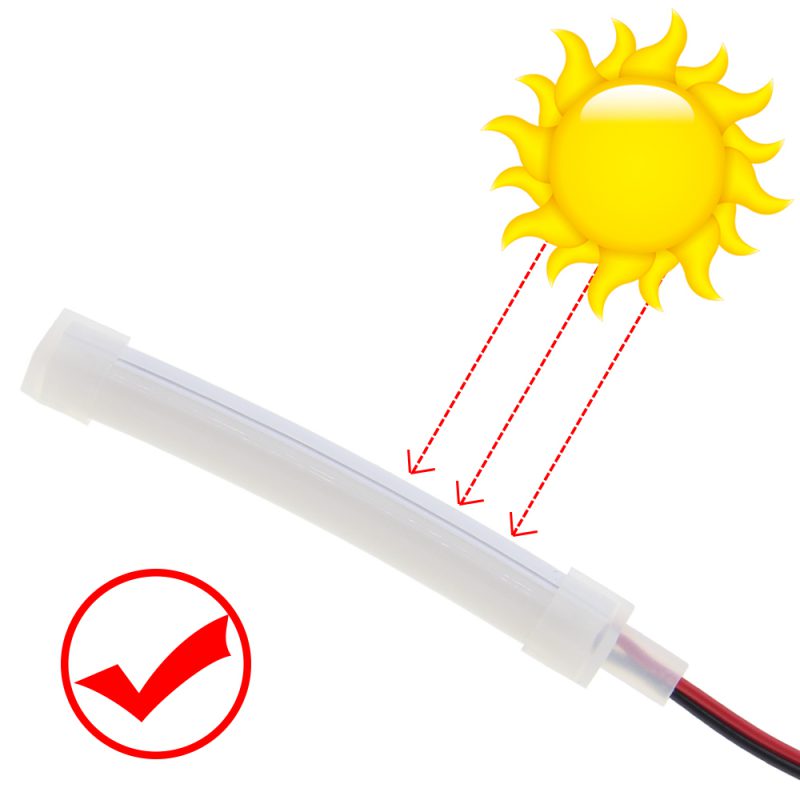

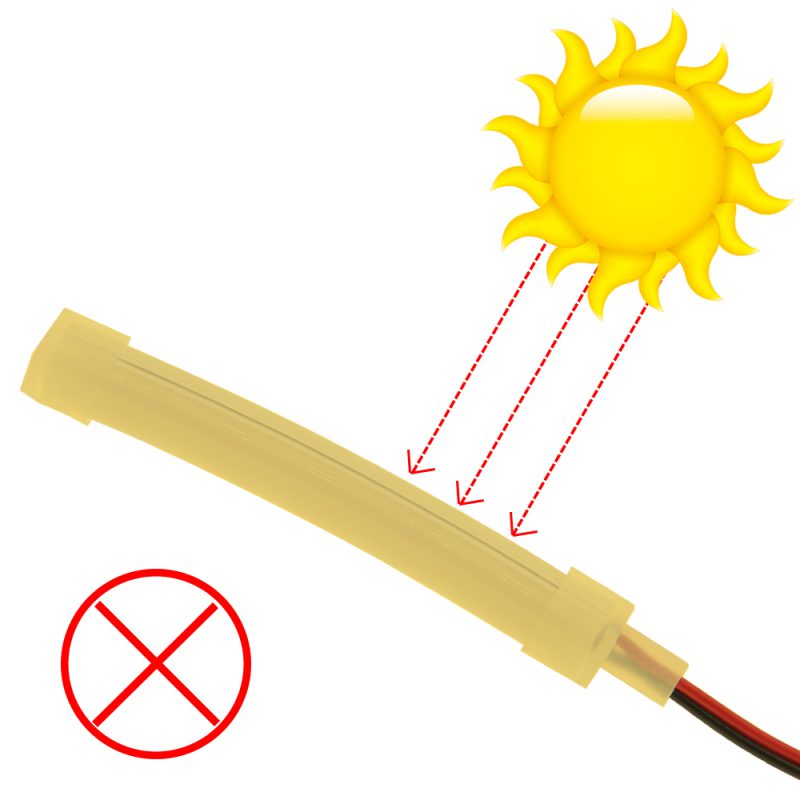

Premium Silicone Material: Made from high-transmittance, eco-grade silicone that maintains color stability and resists yellowing. It also offers resistance to saline solutions, acids and alkalis, corrosive gases, fire, and UV exposure — ensuring consistently bright and uniform light output over extended use.
DMX512 Control Compatibility: Fully compatible with and expandable to the DMX512 (1990) protocol. Single-wire parallel control topology delivers strong interference resistance and supports longer transmission distances.
Product Specification

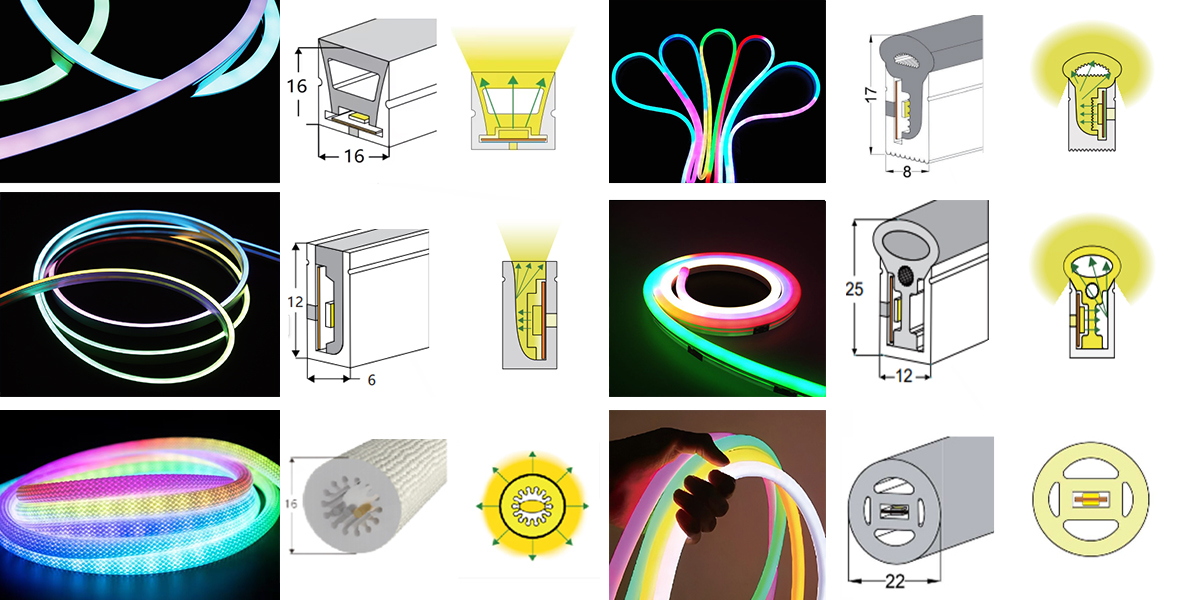

To meet the diverse needs of different clients, LW Lighting offers the DMX512 Addressable Neon Flex DMX LED strip in a wide range of specifications — including 16×16, 08×17, 12×6, 12×25, D16, and D22 — while also supporting full customization of dimensions, colors, working voltage, brightness, and LED count based on customer requirements.
Accessories

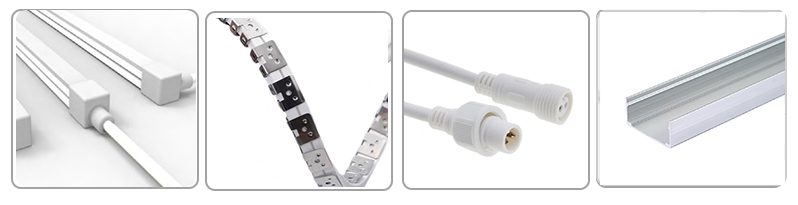

To ensure smooth installation of the DMX Addressable Neon Flex LED Strip, we offer a comprehensive range of practical accessories that make project execution more efficient and reliable:
- End Caps: Available in multiple cable exit configurations — straight, left-exit, and right-exit — to flexibly accommodate different installation requirements while protecting the strip connectors and enhancing overall aesthetics.
- Waterproof Connectors: Male-to-female connector design allows for quick, tool-free connections, while reinforcing the strip LED waterproof performance and weather resistance of the strip.
- Aluminum Profiles: Provide solid structural support and effective heat dissipation, extending the lifespan of the strip while delivering a clean, professional finished appearance.
- Screws & Clips: Ensure the strip and profile are firmly secured, resulting in a neat and tidy installation.
- DMX512 Controller: Enables precise pixel-level control and vibrant multi-color dynamic effects, bringing richer and more expressive animation to the strip.
With these accessories, the DMX Addressable Neon Flex LED Strip can be installed quickly across a wide range of applications — maintaining durability while elevating overall visual impact and spatial expression.
REQUEST A QUOTE
With their flexible design, uniform light output, and outstanding waterproofing performance, DMX512 LED RGB strip lights are rapidly becoming the preferred solution for architectural illumination, commercial decoration, and creative lighting projects. Choosing high-quality silicone-encapsulated strips, the right bending configuration, and professional waterproof treatment ensures long-term stable outdoor performance and the visual results you're aiming for.
To find the right LED neon led strip lights with remote or customization plan for your project, feel free to reach out to our professional team. LW Lighting will provide tailored product recommendations and installation guidance based on your environmental conditions and design requirements.
