What Is DMX512 Addressable LED Strip?

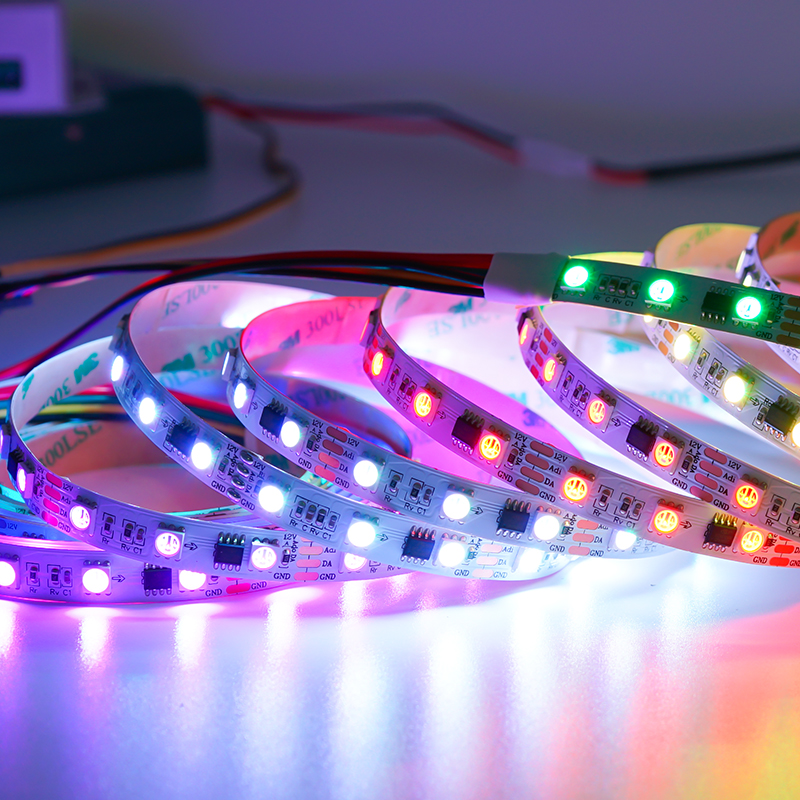

The DMX512 Addressable LED Strip is a high-performance smart led light strips solution driven by the DMX512 protocol, with its core advantage lying in precise segment control. The driving specifications of the control IC (Integrated Circuit) vary depending on the input voltage.

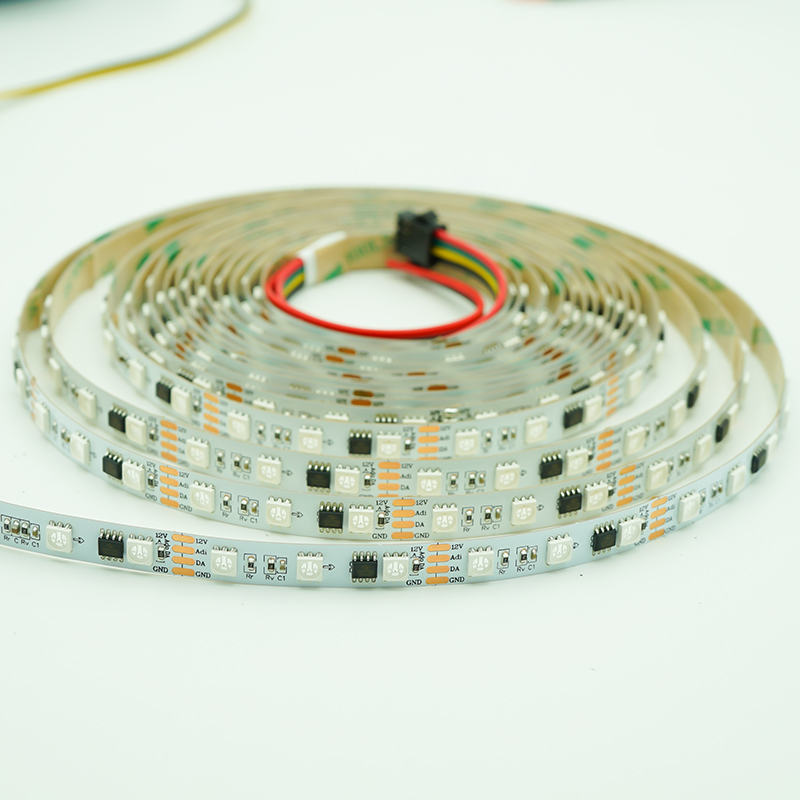

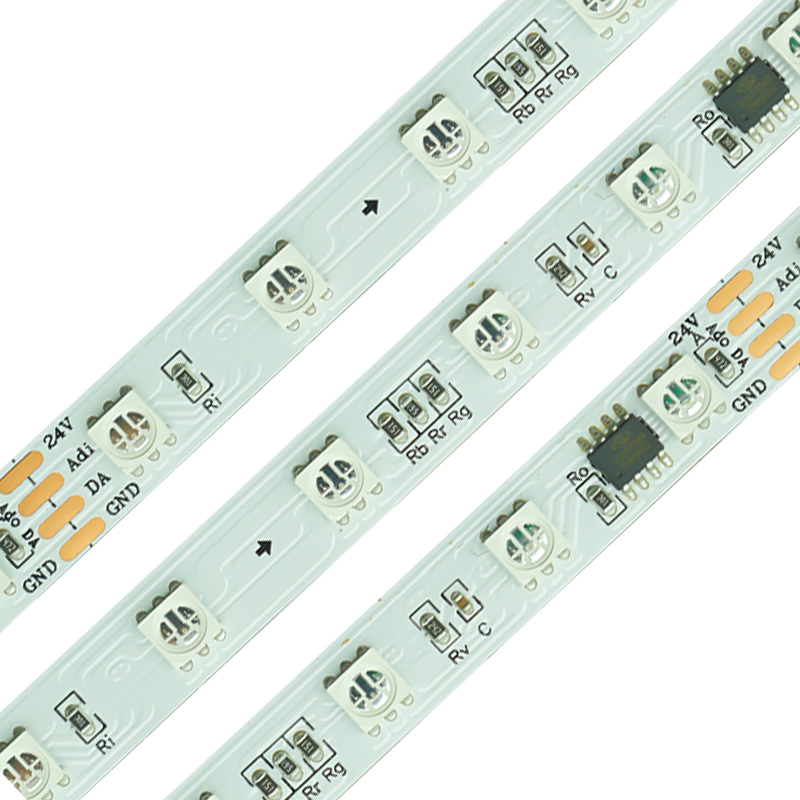

Regarding the 24v vs 12v led strip configurations: in the 12V version, each IC drives 3 RGB LEDs, while in the 24V version, each IC drives 6 RGB LEDs. Each segment (3 or 6 LEDs) can be independently cut to fit various installation requirements. This feature allows each group of LEDs to have its brightness and color adjusted individually, enabling complex dynamic patterns such as chasing, fading, and strobing through professional programming.
What is the DMX512 Protocol?
The DMX512 (Digital Multiplex) protocol provides a flexible digital control framework for stage and architectural lighting design, ensuring precise synchronization across all fixtures. As the foundational architecture for intelligent lighting, the "512" signifies that the system can support up to 512 control channels. In smart led light strips applications, each channel typically controls the Red, Green, Blue, or monochromatic brightness of a specific LED group. This protocol enables both precise synchronization and independent control of multiple fixtures. Simply put, DMX512 acts as the "brain" of the lighting system, directing all devices to operate independently or in coordination based on preset logic.

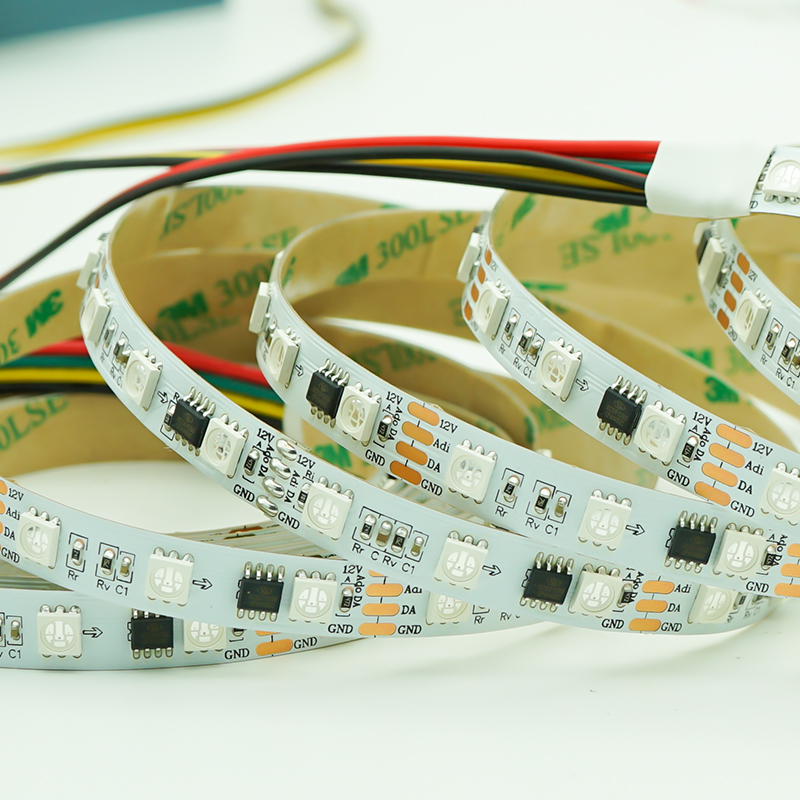

Currently, DMX512 strips utilize integrated external ICs, with common pin specifications such as SOP8, SOP10, and SOP16. While circuit designs vary slightly among manufacturers, mainstream IC suppliers like Link ASIC, Titan Micro, Sunmoon, and Mysemi ensure stable and reliable performance. This reliability makes the technology ideal for demanding environments, ranging from commercial facades to specialized boat led strips where signal stability is critical.
Product Features
- High Reliability: The individually programmable led lights architecture ensures that if one LED group fails, it does not affect the rest of the strip. This significantly reduces maintenance costs and makes it particularly suitable for application scenarios requiring long-term, stable illumination.
- Programmable: Utilizing the DMX512 (1990) control protocol, each group of LEDs can have its color and brightness adjusted. This allows for limitless programming to achieve rich dynamic lighting effects, such as professional stage lighting setups.
- High Brightness: These strips provide vivid, bright, and energy-efficient lighting. The brightness is fully adjustable, allowing for optimal visual impact with minimal power consumption.
- Superior Anti-Interference: The dmx led tape effectively resists noise interference, ensuring stable signal transmission. Whether installed indoors or in complex outdoor environments, it guarantees consistent lighting performance and synchronization.
Product Specification
Below is LW Lighting’s product specification
LW Lighting offers comprehensive customization options for our fancy color-changing series to meet diverse project requirements:
- Packaging & Branding: Custom packaging, user manuals, labels, and PCB logo printing.
- Performance Customization: We can adjust the LED density, PCB width, waterproof ratings, color temperatures, and Color Rendering Index (CRI). Whether you need a high-density individually programmable led lights for intricate indoor designs or specialized boat led strips with enhanced environmental protection, we can tailor the specifications to your exact needs.
Accessories

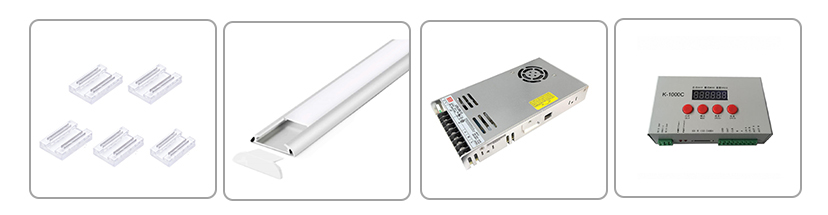

To ensure stable system operation, LW Lighting provides a full range of matching accessories, including connectors, aluminum profiles, power supplies, and controllers. We offer a one-stop solution for your smart led light strips to simplify the installation and deployment process for any project
Dimensions

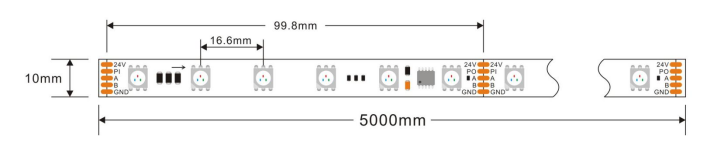

LD0035-24V-60LEDsM
How to Use the DMX512 System?
A DMX512 system primarily consists of a control terminal, signal transmission links, and the execution terminal (LED strips). There are two common connection methods, which can be selected based on the type of strip used:

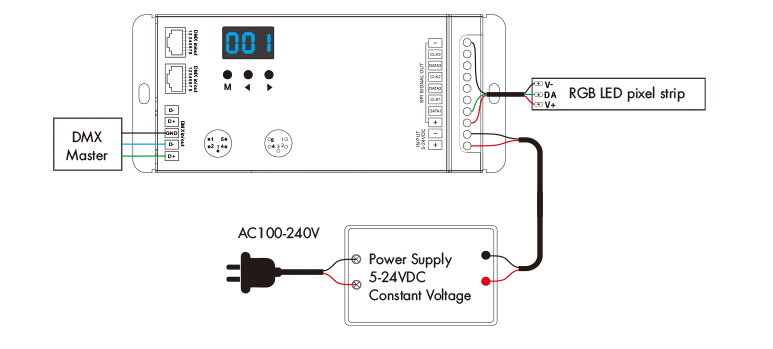

Controller + Signal Decoder + Standard LED Strips: This setup is suitable for conventional strips that lack a built-in DMX signal receiving chip. The decoder acts as a "signal translator," converting the DMX control signals from the controller into driving signals that the strip can recognize.

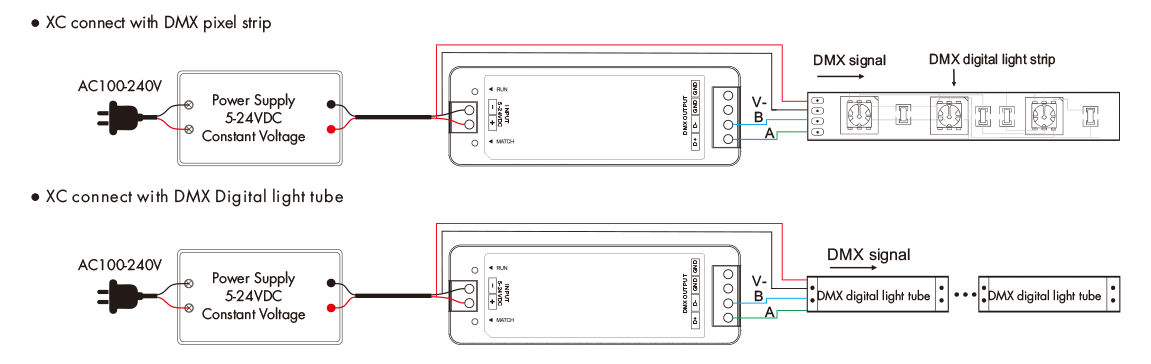

Controller + LED Strips with Built-in DMX Chips (Recommended): In this more advanced setup, the DMX signal from the controller is received and processed directly by the chips integrated into the dmx led tape.
Core Principles of DMX Signal Transmission
The DMX512 protocol is based on the RS-485 standard and utilizes differential signal transmission. This method significantly reduces signal interference and enhances transmission stability. In DMX512, data is transmitted in 8-bit bytes, with each channel ranging in value from 0 to 255.
Compared to the SPI (Serial Peripheral Interface) protocol, the most significant advantage of DMX512 is its support for long-distance transmission and parallel multi-device control.
DMX512 Channel Load Calculation
A central feature of the DMX512 protocol is its support for up to 512 control channels. Each "unit load" occupies a specific number of channels, which directly determines the total number of units that can be connected.
- Channel Allocation: Channel requirements vary by product. For a standard full-color RGB individually programmable led lights, 3 channels are required to control Red, Green, and Blue separately.
- Load Capacity Calculation: The formula is: Total Channels ÷ Channels per Unit = Maximum Units. For example, with an RGB strip occupying 3 channels, a single DMX universe can support approximately 170 units.
How to Address the DMX512 Series Addressable LED Strips?
First, we need to understand why "addressing" (writing code) is necessary. While series like TM1934 or MT16703 can be used directly upon connecting to a controller, why does the DMX512 series require this extra step?
The difference lies in the signal transmission. Common strips like TM1934 and MT16703 use a serial connection, where each LED (or chip) is connected in sequence, passing the control signal from one pixel to the next.
In contrast, the DMX512 series utilizes a parallel connection. Each LED group (or chip) connects directly to the control bus as an independent entity.
Wiring and Addressing Method for DMX512 LED Strips:
- Wiring: Connect the A, B, and GND wires from the input end of the dmx led tape to the address writer. Connect the two power wires to the power supply.
- Setup: Turn on the address writer and select the "Write Address" function.
- IC Selection: Choose the IC series corresponding to your product, then select the specific IC model.
- Channel Configuration: Set the channel count—select "3" for RGB or "4" for RGBW/RGBWW applications.
- Execution: Click "Test" or "Write." Once the process is successful, power off the system and restart it.
Industry Trends
With the rapid advancement of smart lighting and building automation technologies, the DMX512 protocol continues to play a vital role. In the construction of smart cities, architectural facade lighting, and dynamic light shows for entertainment venues.
LW Lighting is committed to a client-centric approach, providing a full-chain service that includes specification customization, technical guidance, and comprehensive after-sales support.
