In modern lighting design, color-chasing LED strips play a pivotal role.Their rich and dynamic color effects not only add depth and visual impact to stage performances, but also serve critical functions across a wide range of applications — including concert lighting control, bar and KTV environments, commercial buildings, hotels, nightclubs, and urban landscape illumination. These strips offer flexible color switching and dynamic effect transitions, allowing each space to achieve its own distinctive atmosphere.
To deliver precise control over these lighting effects and seamless switching between multiple modes, a professional LED light strip and controller setup is essential. The controller strip LED regulates brightness, color, and effects to ensure the lighting perfectly aligns with project requirements — whether for a stage, a commercial space, or a public venue — consistently delivering the ideal visual experience.
What Is an Engineering-Grade Controller?
LW Lighting's engineering-grade LED light strip with controller solutions are built on proprietary chip algorithms to deliver precise circuit-level driving and control of LED strips. Engineered for the complex demands of large-scale lighting projects, they support millisecond-level dimming, full-gamut color tuning, and seamless multi-scene switching — addressing core industry pain points such as light synchronization deviation and load instability at the source.
How It Works for LED Controller
LW Lighting controllers are built on a three-tier architecture: signal parsing, command conversion, and drive output. Compatible with multiple input sources — including remote controls, smartphone apps, and sensors — they leverage constant-current drive technology and high-precision PWM (pulse-width modulation at ≥20kHz) to achieve seamless 0–100% brightness adjustment, full-gamut RGBW color mixing, and adaptive color temperature tuning from 2700K to 6500K. This eliminates flickering and color distortion at the source.
Types of Engineering-Grade Controllers
The right controller shapes not only the brightness and color performance of your LED strips, but also the ease of operation and the overall quality of the lighting result. LW Lighting controllers are available in the following categories:
Online Controllers Series
Also known as synchronous controllers, these units retrieve data from a computer in real time and transmit it directly to the LED fixtures for precise control. Well-suited to fixed installations that don't require frequent adjustments — such as signage and decorative LED light strip with controller setups — they are straightforward to operate and function as fully standalone systems.

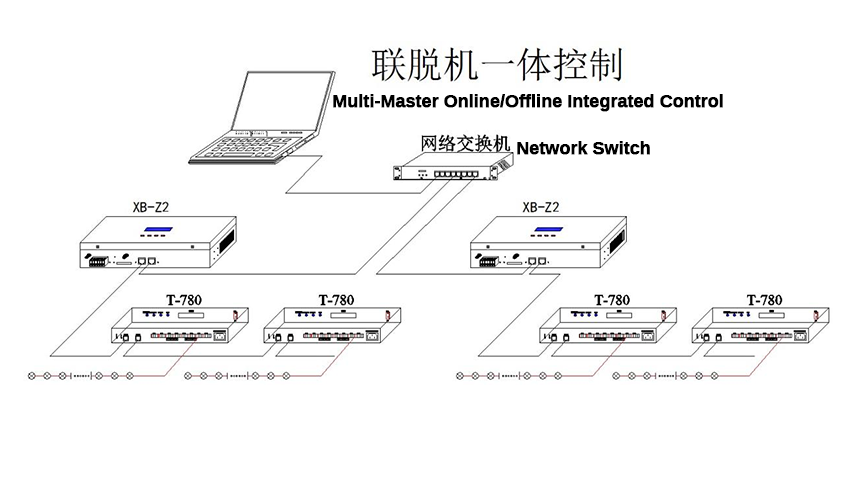

Key models include the XB-809 and XB-Z2 master controllers, which coordinate multiple sub-controllers to maintain consistent lighting effects across the entire installation. The sub-controller lineup — the T-790 and T-760 — handles independent control of specific zones or devices, offering the flexibility needed for multi-zone lighting environments.
 |
 |
| XB-Z2 | XB-809 |

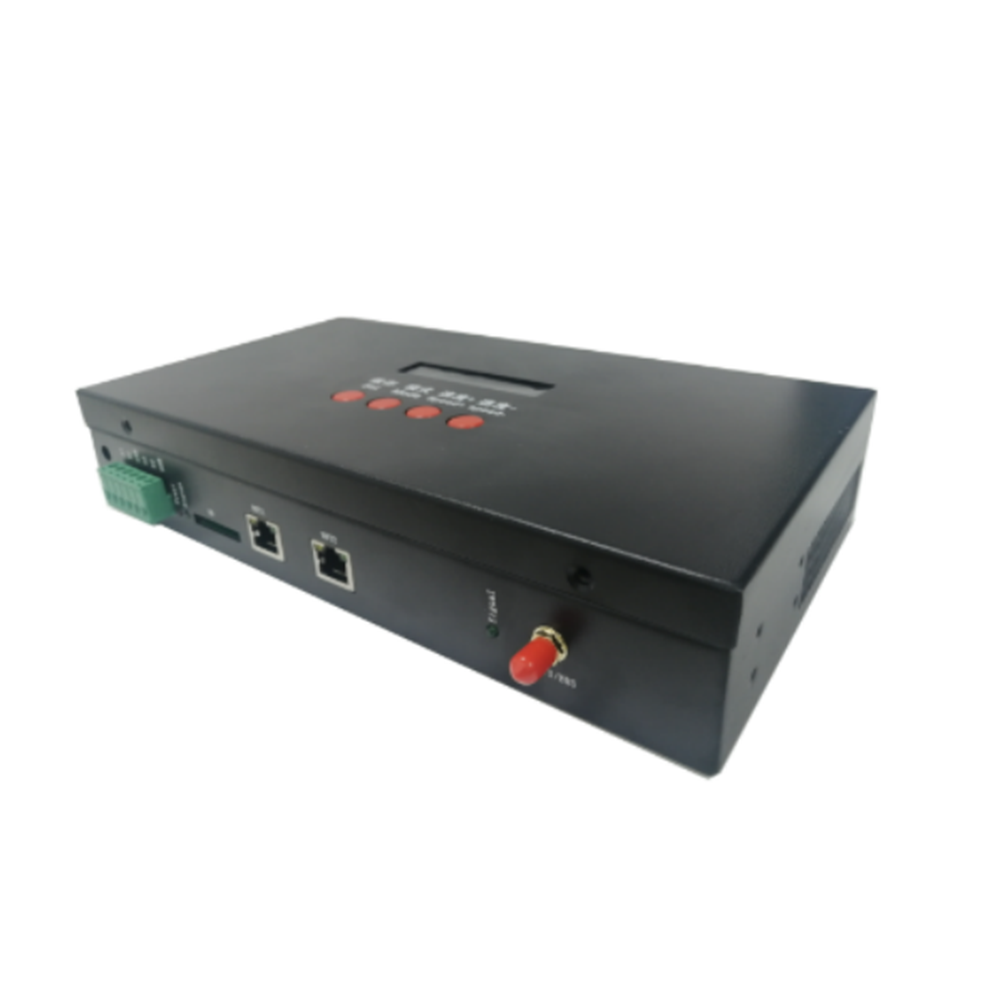

XB-Z2 Master Controller — System Features
- High Load Capacity: Supports up to 100,000 pixels or 50 sub-controller units, meeting the demands of large-scale installations.
- Satellite Sync: Dual-mode GPS/BDS synchronization enables precise scheduled control and automatic playback of holiday lighting effects.
- Offline Playback: No internet connection required. Stores up to 32 effect files on an SD card with support for loop playback and adjustable playback speed.
- Smart Configuration: Works seamlessly with LedEdit-K software for one-click address writing — simple and efficient to set up.
- Broad Compatibility: Supports T-780, T-790, and T-760 sub-controllers. The master controller offers both automatic and manual ID assignment for sub-units, with the flexibility to number multiple controllers simultaneously or configure each one individually.

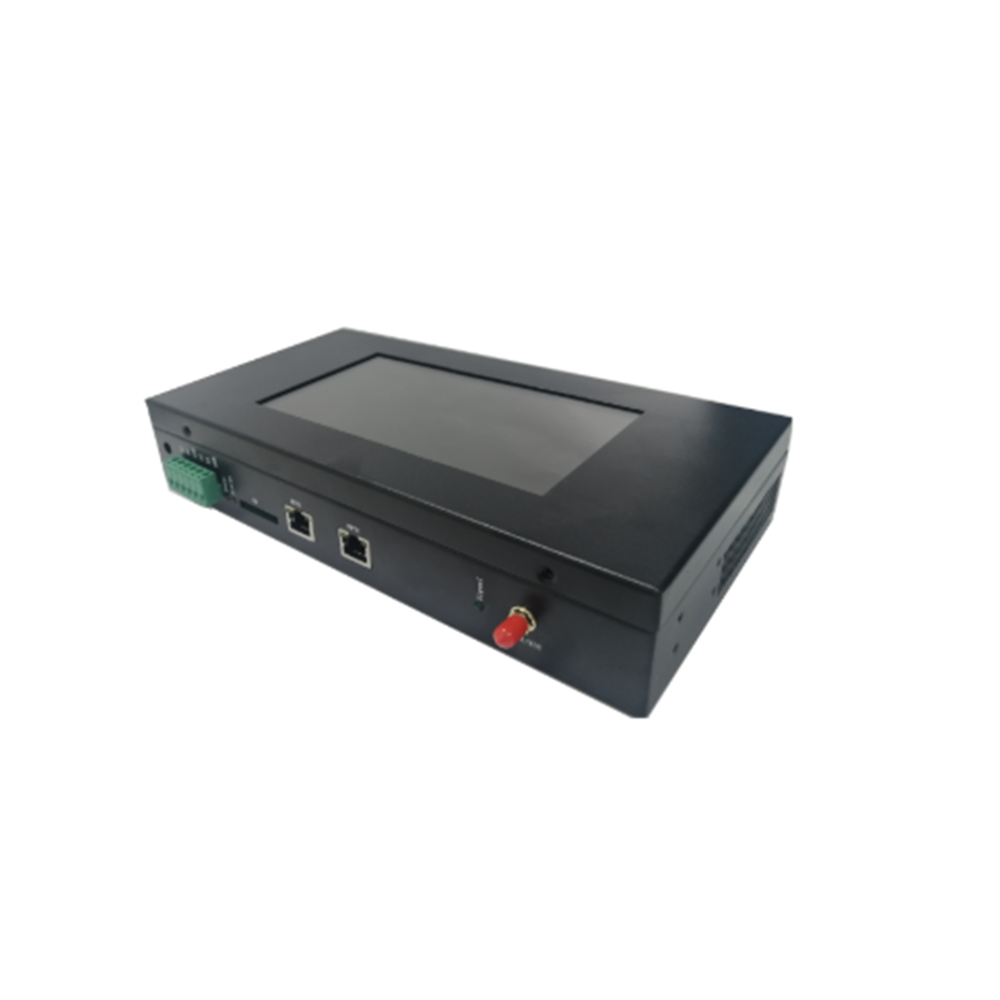

XB-809 System Features
- Large Touchscreen Display: Provides an intuitive operating interface with real-time controller status monitoring, ensuring fast and convenient operation.
- High-Performance Capacity: Supports up to 160,000 pixels or 60 sub-controller units, making it well-suited for large-scale lighting systems.
- Multiple Sync Modes: Equipped with GPS/BDS satellite sync and wireless RF sync for precise scheduling and reliable lighting control.
- Smart Remote Management: Enables remote control via Bluetooth and 4G networks, with support for real-time adjustments through a PC or smartphone app.
- Scheduling & Encryption: Built-in timed playback and multi-level encryption enhance the security and reliability of the control system.
- Third-Party Integration: Compatible with MODBUS/UDP protocols for seamless integration with third-party systems.
 |
 |
| T790 | T760 |

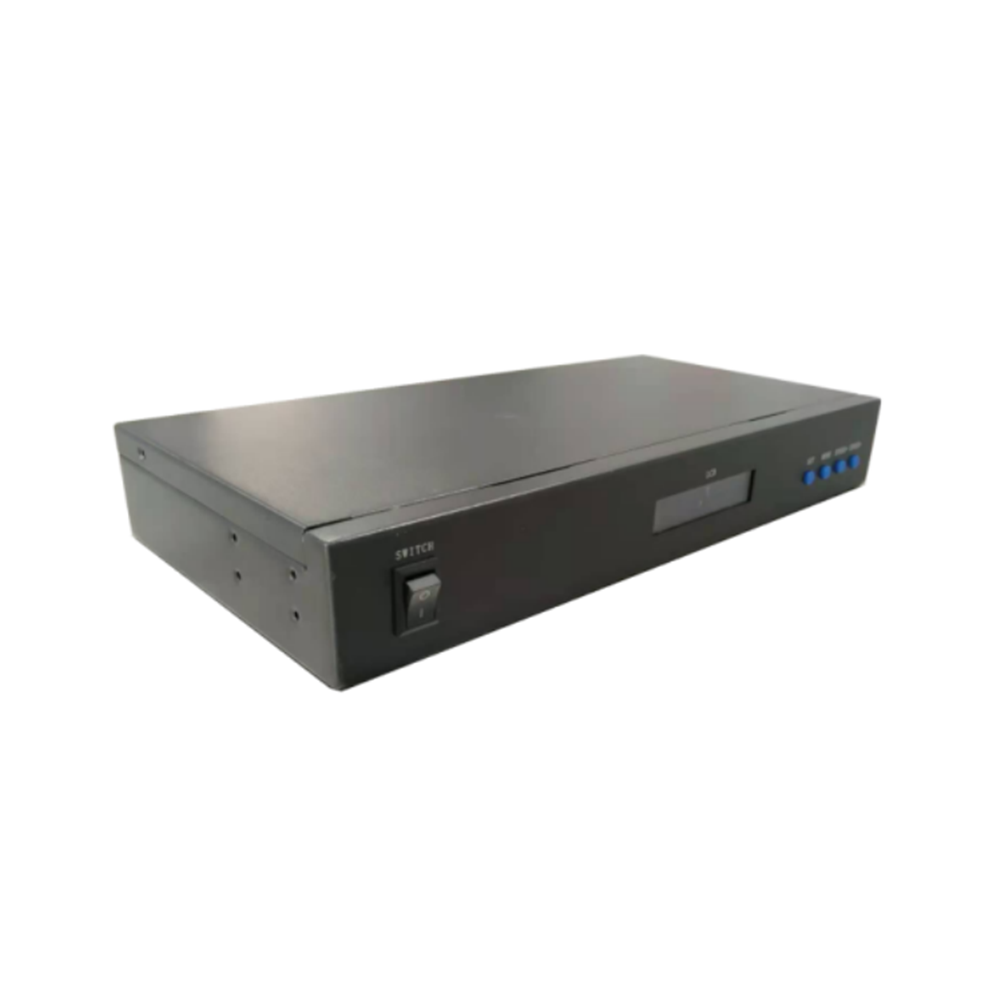

T-790 Features & Functions
- Multi-Port Output: 8 output ports supporting 170/512/1,024 pixels per port (depending on strip IC type).
- Dual Protocol Output: Compatible with DMX512/1990 international standards as well as SPI/TTL serial protocols.
- High-Speed Data Rate: Supports 250K/500K/750Kbps transmission rates, fully compatible with DMX512 fixtures.
- Flexible Load Capacity: When operated via MagicJS software, the T-790 controller strip LED supports 1 to 6 fixture units per port (each unit driving up to 170 pixel nodes).

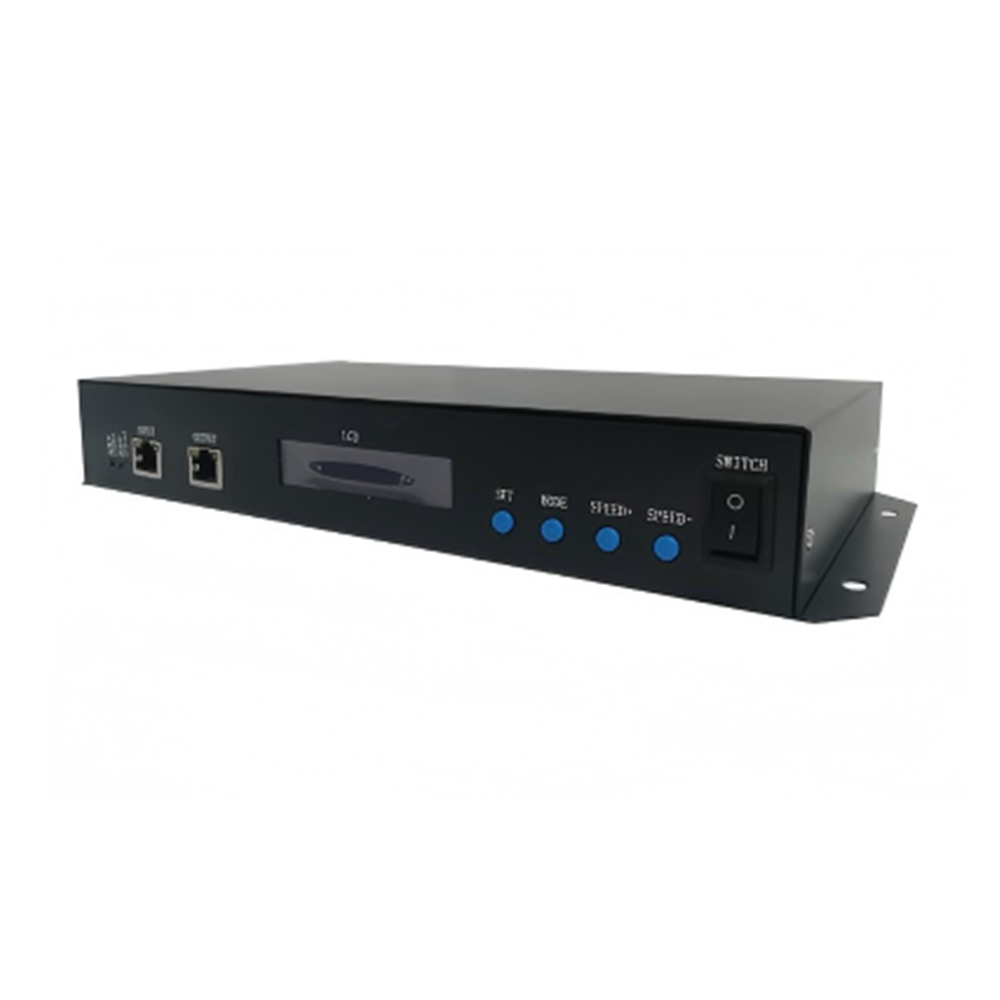

T-760 System Features
- Multi-Port Output: 8 output ports, each supporting up to 1,024 pixels (TTL & single-wire DMX512).
- Dual Protocol Output: Compatible with DMX512 international standard and extended protocols, as well as SPI/TTL serial protocols.
- High-Speed Data Rate: Supports 250K/500K/750Kbps transmission rates, fully compatible with DMX512 fixtures.
- Flexible Load Capacity: When operated via MagicJS software, each port supports 1 to 6 fixture units (each unit driving up to 170 pixel nodes).
Standard Offline Controller Series
An offline controller reads data directly from an SD card to control LED fixtures independently — no computer connection required. Ideal for small to medium-scale lighting projects, these controllers offer a straightforward and user-friendly control solution, supporting a wide range of scenes and effect switching.
Key models include: K-1000C, K-4000C, and K-8000C
 |
 |
 |
| K-1000C | K-4000C | K-8000C |
K-1000C System Features
1. Large Touchscreen Display: Provides an intuitive operating interface with real-time controller status monitoring, ensuring fast and convenient operation.
2. High-Performance Capacity: Supports up to 160,000 pixels or 60 sub-controller units, making it well-suited for large-scale lighting systems.
3. Multiple Sync Modes: Equipped with GPS/BDS satellite sync and wireless RF sync for precise scheduling and reliable lighting control.
4. Smart Remote Management: Enables remote control via Bluetooth and 4G networks, with support for real-time adjustments through a PC or smartphone app.
5. Scheduling & Encryption: Built-in timed playback and multi-level encryption enhance the security and reliability of the control system.
6. Third-Party Integration: Compatible with MODBUS/UDP protocols for seamless integration with third-party systems.

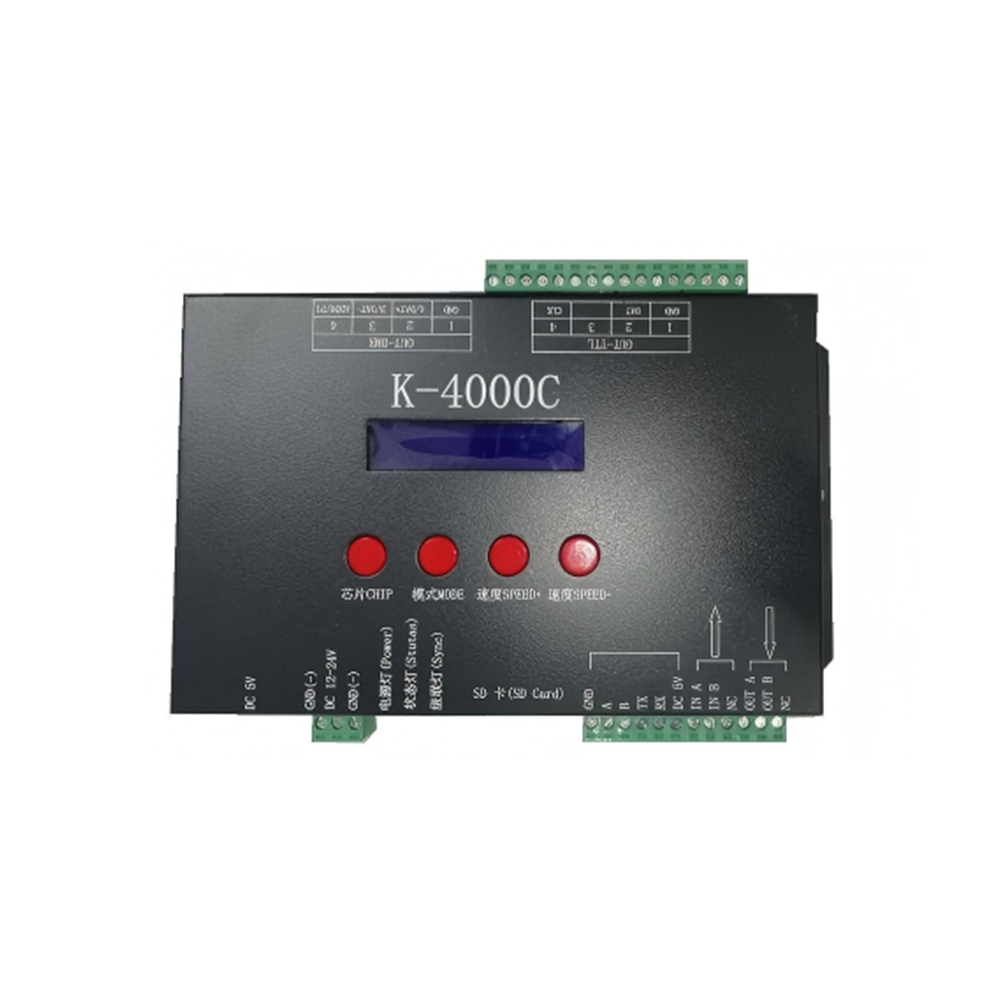

K-4000C System Features
1. Grayscale control from 32 to 65,536 levels, with software-based Gamma correction.
2. Compatible with point, line, and surface light sources, supporting both regular and irregular fixture configurations.
3. Four output ports, each supporting up to 512/1,024 fixtures per port (DMX fixtures: up to 512 pixels based on 3-channel configuration).
4. Playback content is stored on an SD card, with support for up to 32 effect files. Compatible SD card capacity: 128MB–32GB.
5. Can be used as a standalone unit or daisy-chained with multiple controllers. Cascading uses opto-isolated connections for enhanced interference resistance and stability. Maximum cascading distance between two units is 150 meters; pure copper cable of at least 0.5mm² is required.
6. The IC load type can be locked via software or left unlocked, allowing manual selection through the IC selection button on the controller — offering greater flexibility and convenience.
7. DMX fixture IC controllers feature a built-in address writing function. One-click address assignment is also supported when used with LedEdit-K V3.26 or later.
8. Supports 4-channel (RGBW) pixel fixtures, or splitting into individual single-channel pixel points.
9. Built-in effects support both 3-channel RGB and 4-channel RGBW configurations.
10. Supports MODBUS third-party control integration.
11. Enhanced TTL and RS-485 differential (DMX) signal output.
12. Comes with 22 built-in test effects and a dedicated DMX512 channel testing function.

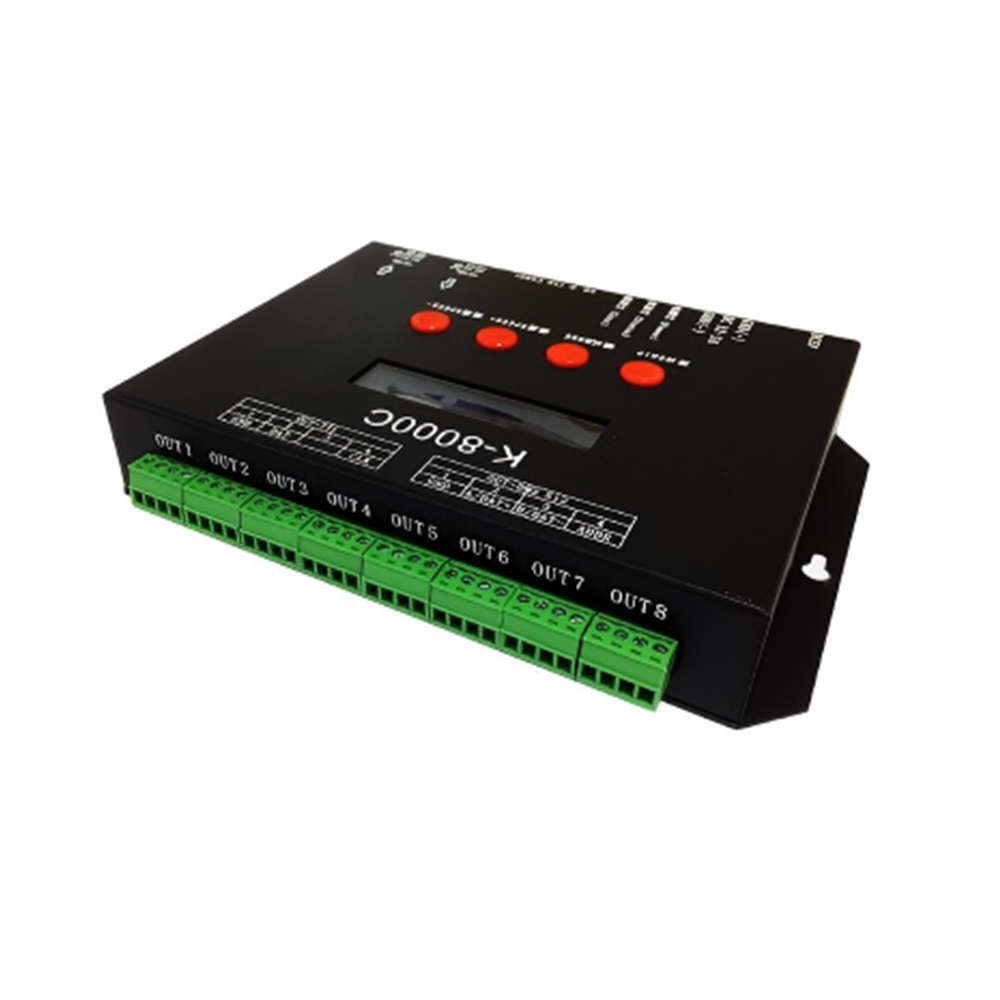

K-8000C System Features
1. Grayscale control from 256 to 65,536 levels, with software-based Gamma correction.
2. Compatible with point, line, and surface light sources, supporting both regular and irregular fixture configurations.
3. Eight output ports, each supporting up to 512/1,024 fixtures per port (DMX fixtures: up to 512 pixels).
4. Playback content is stored on an SD card, with support for up to 32 effect files. Compatible SD card capacity: 128MB–32GB.
5. Can be used as a standalone unit or daisy-chained with multiple controllers. Cascading uses opto-isolated connections for enhanced interference resistance and stability. Maximum cascading distance between two units is 150 meters; pure copper cable of at least 0.5mm² is required.
6. The IC load type can be locked via software or left unlocked, allowing manual selection through the IC selection button on the controller — offering greater flexibility and convenience.
7. DMX fixture IC controllers feature a built-in address writing function. One-click address assignment is also supported when used with LedEdit-K V3.26 or later.
8. Supports 4-channel (RGBW) pixel fixtures, or splitting into individual single-channel pixel points.
9. Enhanced TTL and RS-485 differential (DMX) signal output.
10. Comes with 22 built-in test effects.
Stage Lighting Controllers (DMX Console Compatible)
DMX controllers are purpose-built for high-end stage lighting and large-scale illumination projects. Supporting the standard DMX512 protocol, they deliver precise device coordination and dynamic lighting effect control. Suitable for a wide range of complex applications — from live stage performances to architectural façade lighting — these LED light strip and controller solutions provide the reliability and flexibility that demanding projects require.
Key models include: XB-Z2-L, S-8000L (DMX console compatible), AN404 Controller, Artnet Controller, and CL804P Controller.
 |
 |
| XB-Z2-L | S-8000L |

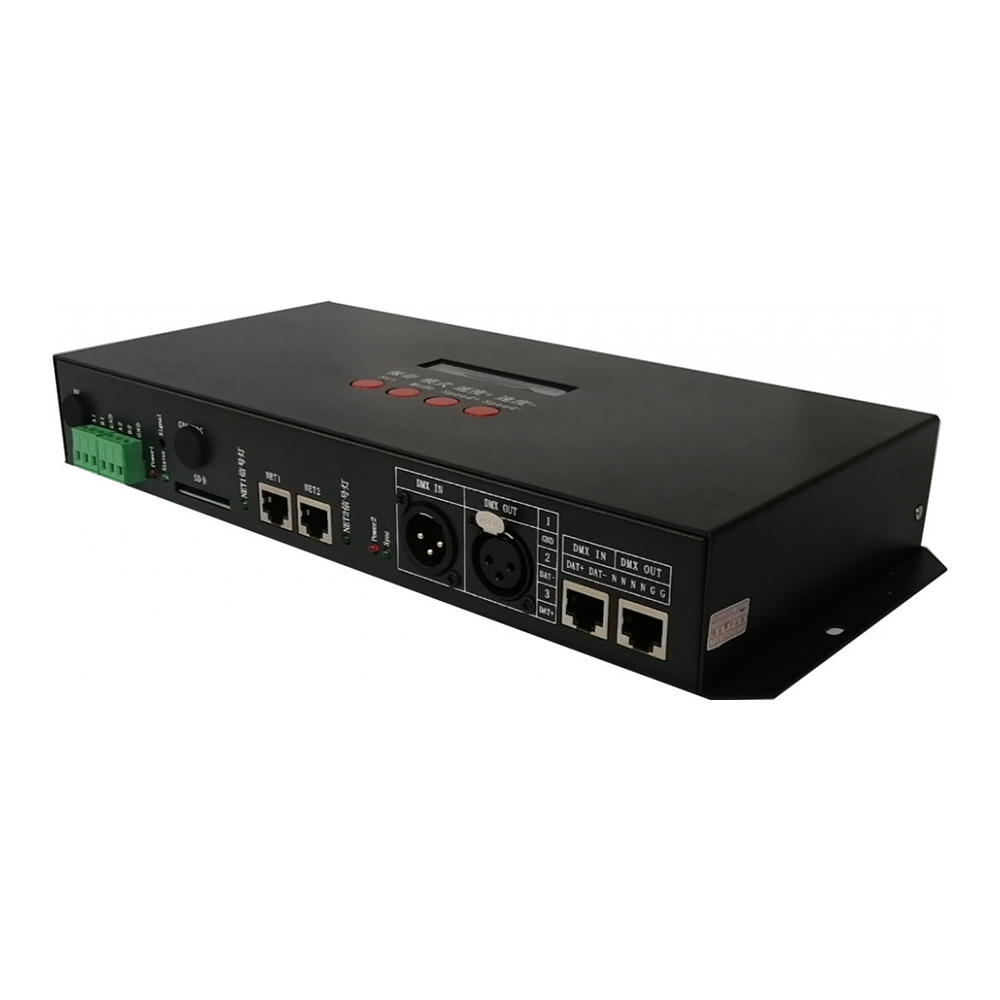

XB-Z2-L System Features
- High-performance capacity supporting up to 100,000 pixels or 50 sub-controller units.
- Integrates GPS/BDS satellite sync and offline playback into a single unit for reliable and convenient operation.
- Supports flexible custom scheduling and multi-level encryption.
- Features console control integration, enabling unified management across console, master controller, and sub-controllers in a single workflow.

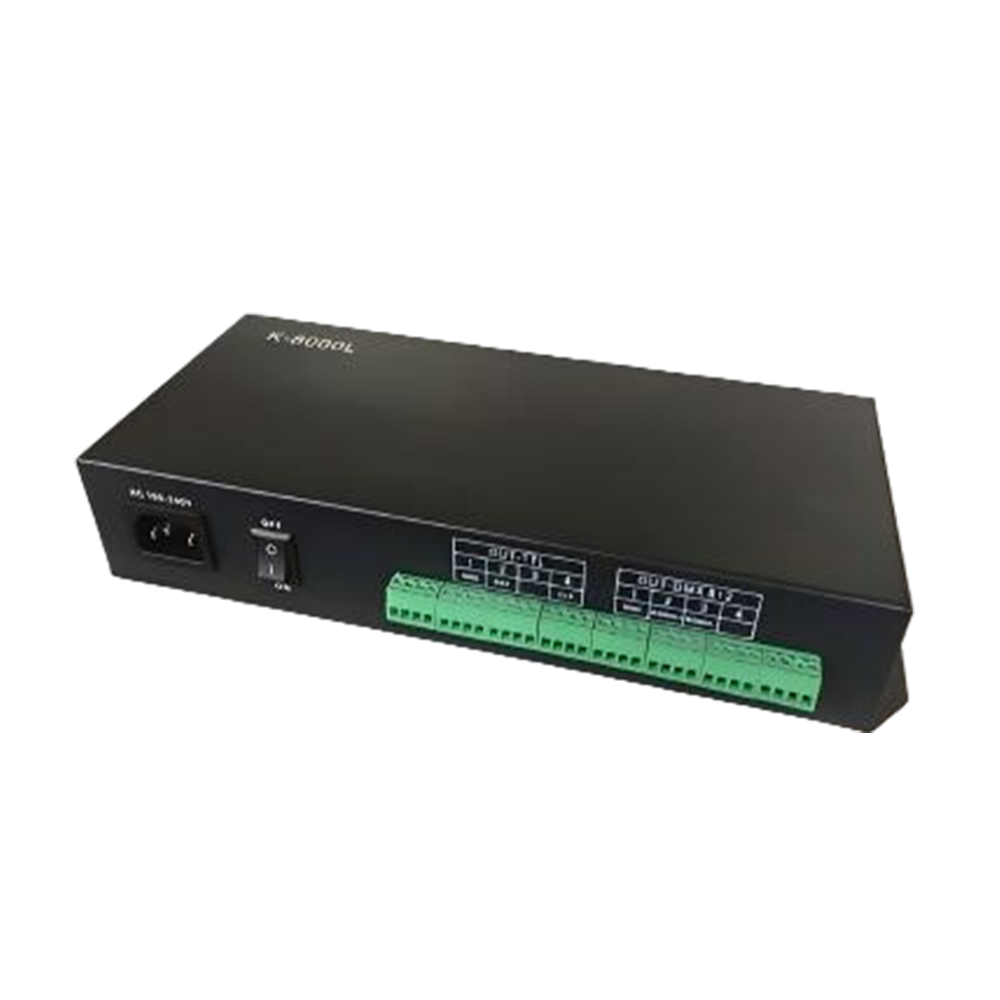

S-8000L System Features
- Grayscale control from 32 to 65,536 levels, with software-based Gamma correction.
- Compatible with point, line, and surface light sources, supporting both regular and irregular fixture configurations.
- Eight output ports, each supporting up to 512/1,024 fixtures per port (DMX fixtures: up to 512 pixels).
- Playback content is stored on an SD card, with support for up to 16 effect files. Compatible SD card capacity: 128MB–32GB; supports FAT and FAT32 formats.
- Can be used as a standalone unit or daisy-chained with multiple controllers. Cascading uses opto-isolated connections for enhanced interference resistance and stability. Maximum cascading distance between two units is 150 meters; pure copper cable of at least 0.5mm² is required.
- Supports 4-channel (RGBW) pixel fixtures, or splitting into individual single-channel pixel points.
- Enhanced TTL and RS-485 differential (DMX) signal output.
- Comes with 16 built-in lighting effects (default internal IC: 1903).
 |
 |
 |
| AN404 Controller | Artnet Controller | CL804P Controller |

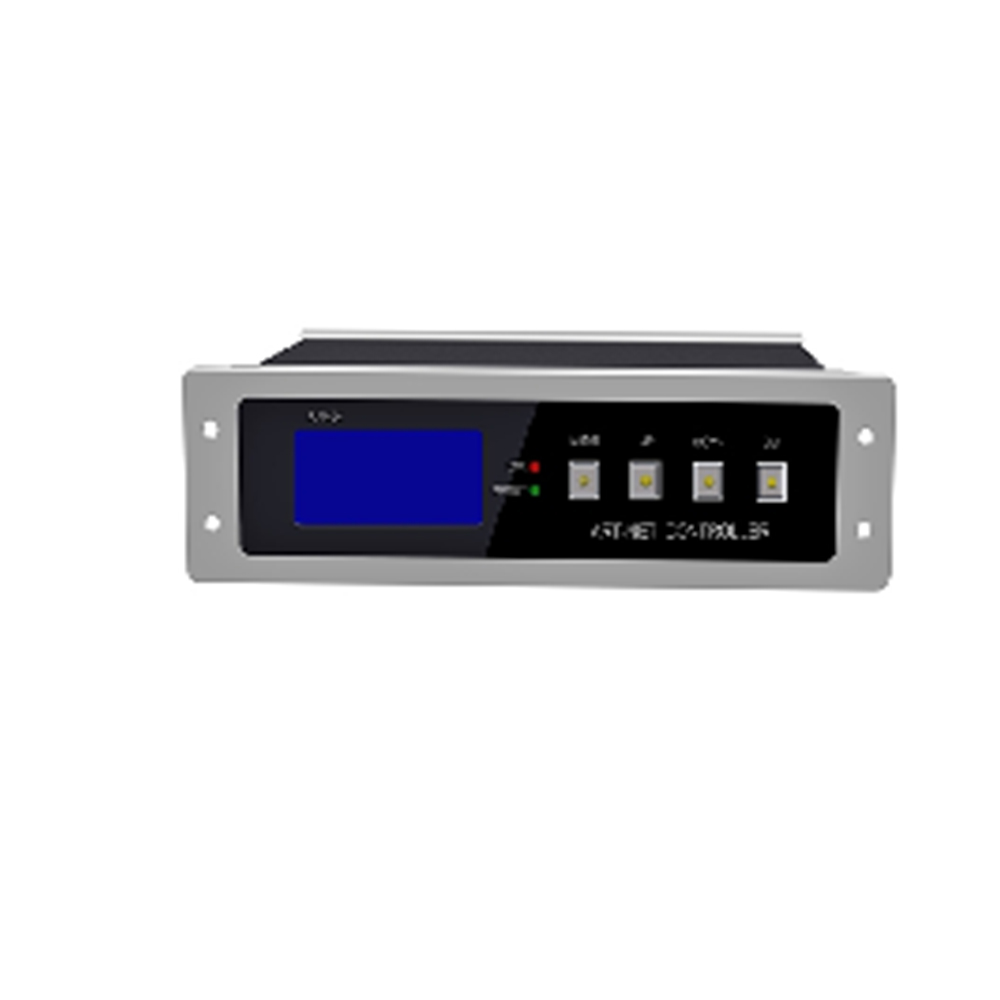

AN404 Controller
The AN404 is a versatile multi-function device designed for professional lighting control. It supports a wide range of communication protocols and operating modes, making it suitable for DMX, Art-Net, sACN (Streaming ACN), and SD card offline control applications.
Key Functions & Modes
- DMX Mode: Operating on the traditional lighting control protocol, the AN404 can directly control DMX fixtures via its DMX interface. Setup requires connecting the power and signal lines (e.g., green terminal to the controller, GDP+/D- to the fixture), followed by configuring channel addresses and parameters through the controller.
- Art-Net & sACN Mode: Supports networked control, allowing connection to a PC or other devices over a local area network (e.g., using MADRIX software). Configuration requires setting the IP address, subnet mask (e.g., 2.0.0.2), DMX Universe, and selecting the desired protocol mode (Art-Net or sACN).
- SD Card Mode: Enables offline playback by storing program files on an SD card. The controller automatically reads and executes the lighting sequences — ideal for installations that do not require real-time control.
- Additional Features: Select models support pixel-level control (including RGBW LED light strip with controller setups), with color and effect parameters — such as Fade and Pitch — adjustable via hardware buttons or software.

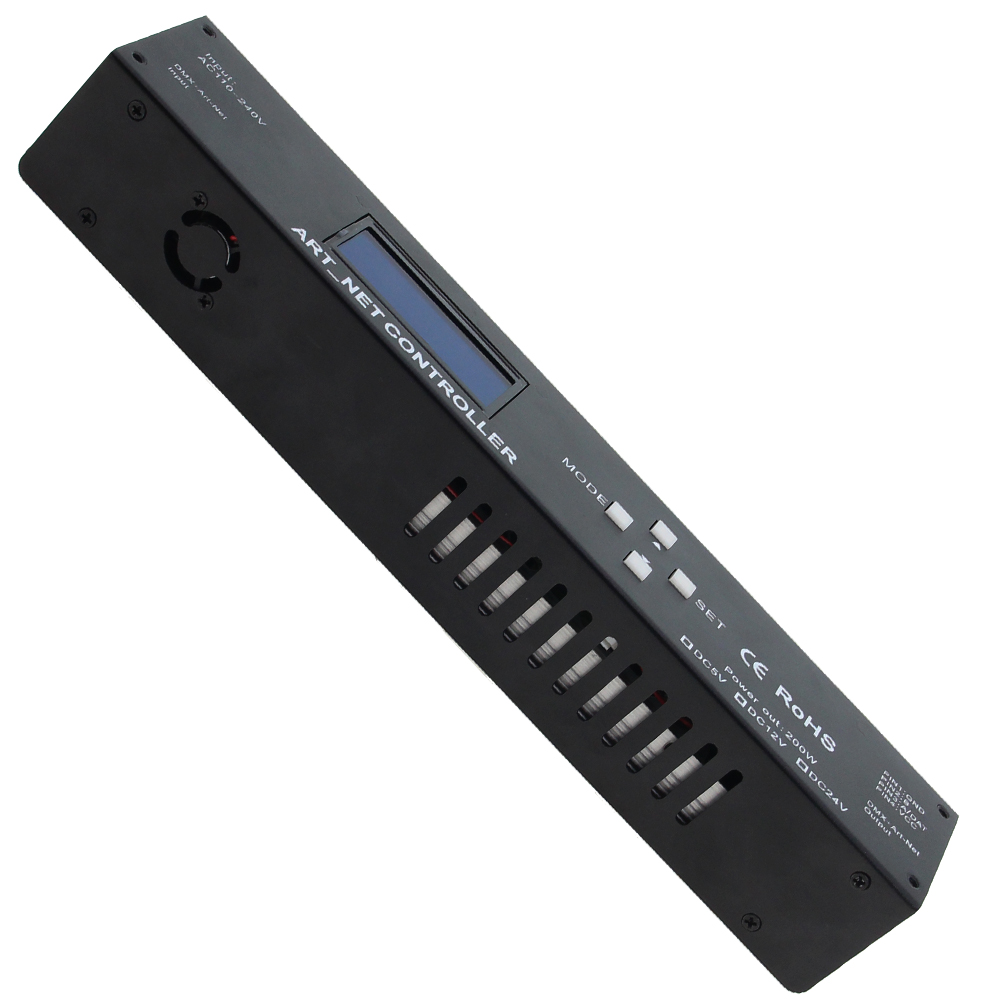

Artnet Controller
An ArtNet controller is a professional lighting control device that serves as a bridge between DMX512 signals and Ethernet networks, enabling lighting data to be transmitted over a network for remote control of stage fixtures, LED screens, and other equipment. Operating on the ArtNet protocol — which is based on UDP packet transmission — it supports long-distance transmission and multi-device synchronization, making it widely used in large-scale events, theatres, and permanent installations.
Key Functions
- Signal Conversion: Converts DMX512 signals into ArtNet network data, or vice versa, ensuring compatibility between devices running different protocols.
- Multi-Channel Output: Supports simultaneous output across multiple DMX512 universes (e.g., 512 channels or more), with pixel-level control capacity (up to 5,440 pixel nodes), meeting the demands of complex LED light strip and controller designs.
- Network Integration: Connects via Ethernet switches or routers to enable distributed control. Some units feature a built-in switch function to simplify cabling.
- Protocol Extension: In addition to ArtNet, select controllers also support RDM (Remote Device Management) protocol, allowing address configuration and status monitoring of connected fixtures.
In practice, ArtNet controllers are commonly paired with lighting consoles (such as the MA2) or software platforms (such as Madrix) for live control, simulation, and long-distance signal transmission.

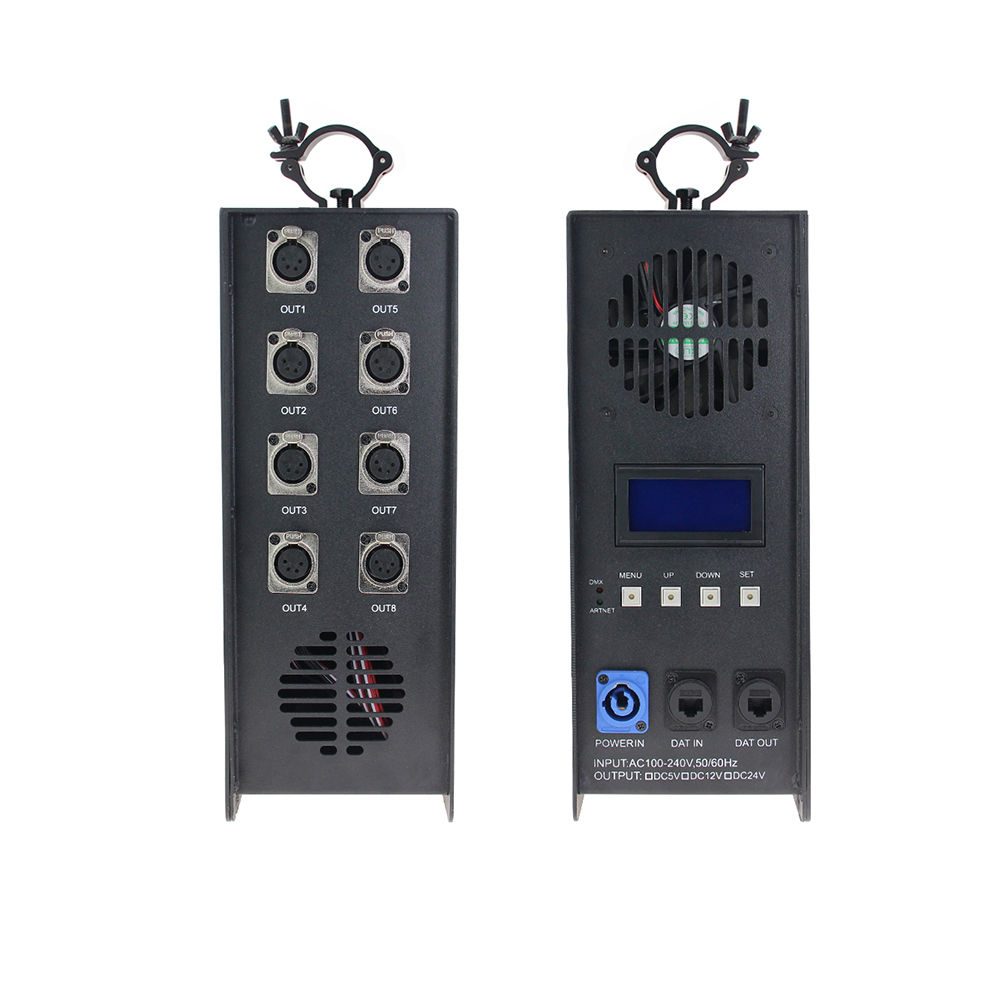

CL804P Controller Product features:
- Input voltage: AC110——220V
- 65536 gray scale control;
- 8 ports,each port support 680 pixels;
- Two signal modes, ARTNET mode and SD card mode;
- Support effect recording and offline control,31effectscan be recorded;
- Built-in power supply, simple wiring, easy to use;
Based on the ArtNet protocol Ethernet driver, this controller strip LED converts ArtNet network data packets into standard DMX512 or SPI data. It offers two control modes — ArtNet and SD card — supporting effect recording and offline playback. The controller features 8 output ports, each supporting up to 680 pixels.
Widely applicable to stage performance lighting control systems, live events, bar lighting, and more.

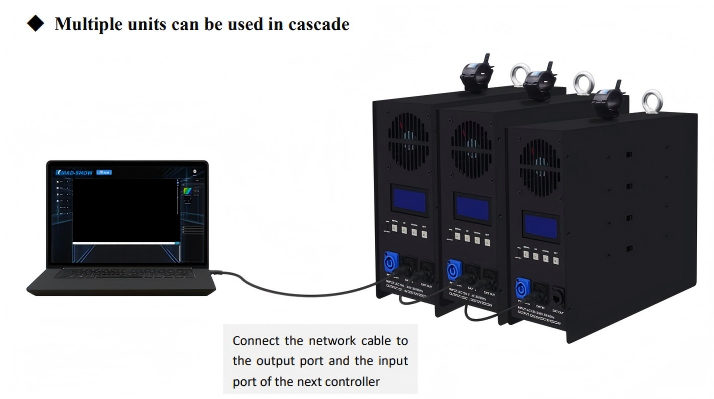

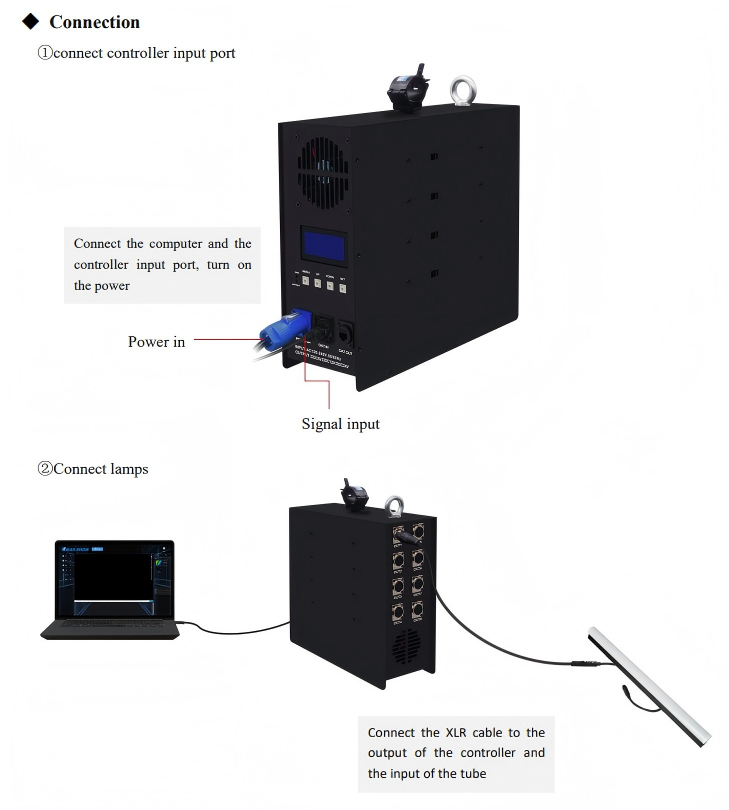

Connection Diagram
REQUEST A QUOTE
As lighting technology continues to advance, LED control systems are becoming increasingly integral to all types of illumination projects. Whether for stage performances, commercial lighting, or urban landscape installations, choosing the right dimmer switch led strip lights and control solution is essential.
If you are looking for an efficient and reliable led light strip and controller solution, LW Lighting's engineering-grade controllers are built to deliver. We offer a diverse range of controller products alongside comprehensive technical support and customized services, helping you bring your lighting design vision to life.
Contact us today for expert technical guidance and tailored solutions designed around your application.

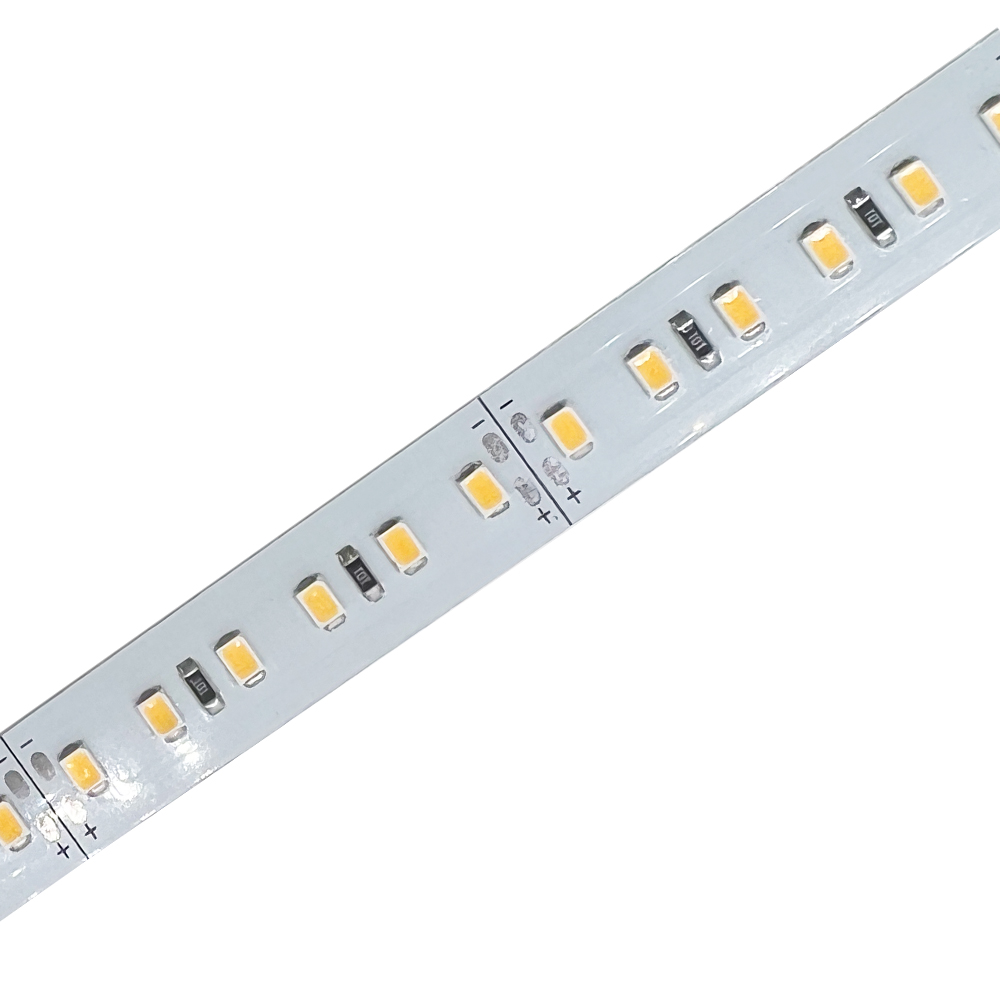

Everything You Should Know About 2835 Rigid LED Strips Before Choosing the Right Lighting Solution
