Bendable LED Strip for Curved & Creative Lighting
If your project requires embedding lighting into curved structures, letter shapes, round frames, or if you need lighting to bend in tight spaces — then the bendable LED strip is the flexible lighting solution for these design scenarios. Its wiring method allows the strip to follow the shape's edges like "flowing light," maintaining a seamless lighting effect without shadows or dark spots at the bends.
It combines two major breakthroughs in LED technology: Visible light LEDs, which have been around since 1962, laid the foundation for the development of light sources. In the 21st century, the maturity of flexible FPC circuits and silicone encapsulation enabled the LED strips to bend easily. Low-voltage power supply (5V/12V/24V) and adhesive LED light strips ensure easy and safe installation.

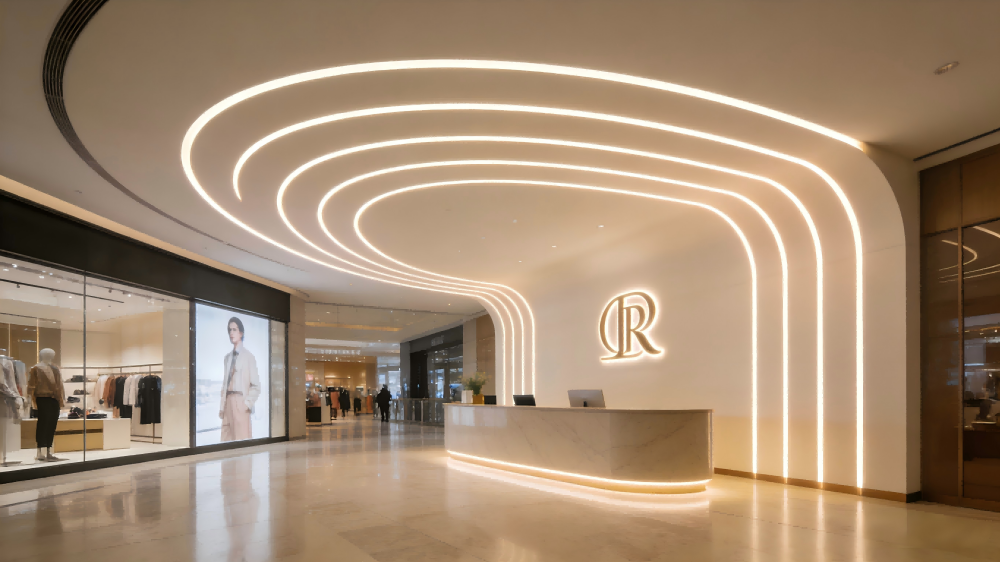

The S-shaped LED strip / zigbee led strip offers strong curve adaptability and high flexibility, designed specifically to handle arcs, corners, and various irregular shapes, providing designers and engineers with a flexible lighting solution that fits along curved lines. This makes it an excellent choice for a curved mirror LED strip solution.
It performs exceptionally well in the following scenarios:

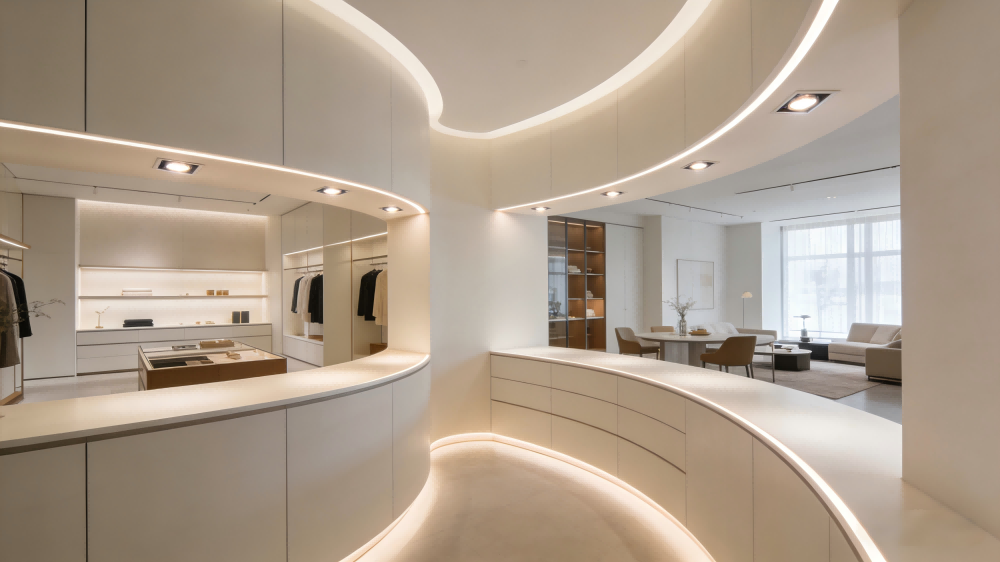

- Commercial and display interiors: Suitable for mall window displays, hotel lobby lighting designs, and can be freely installed along curved ceilings and logo outlines, enhancing installation efficiency while reducing cutting and joining time.
- Creative designs / exhibition installations: Can be arranged to follow artistic shapes, providing soft lighting with no glare in photos, quickly creating visually appealing light paths.

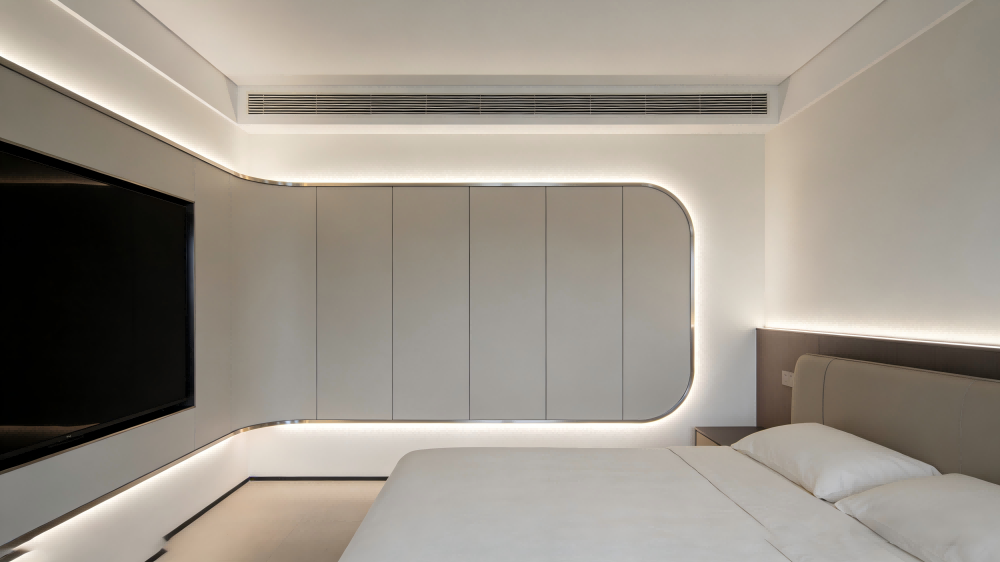

- Home space ambient lighting: Ideal for TV walls, cabinet curved edges, and bedhead shapes, with a small minimum bending radius, flexible layout options, and low-voltage power supply for safer home use. Additionally, customizable LED strips are perfect for tailoring lighting solutions to specific design needs.
What is S Shape Bendable LED Strip？

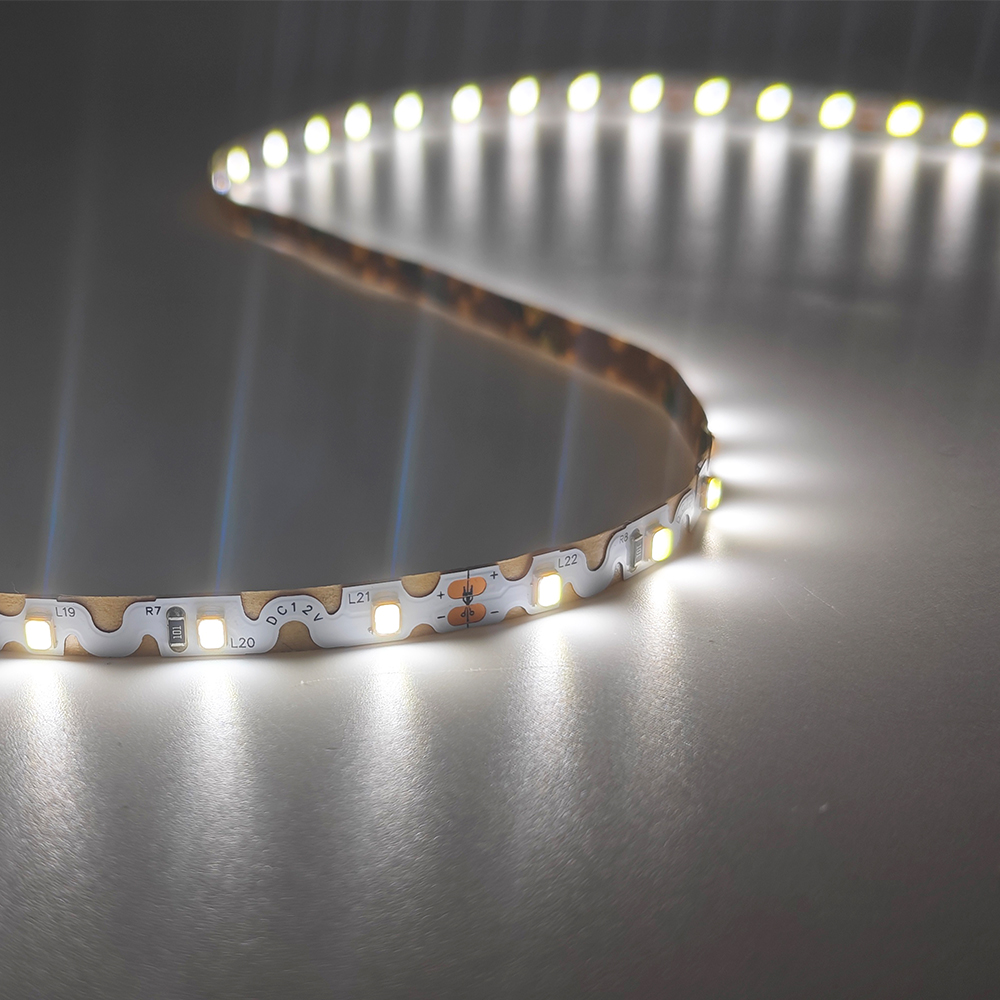

The S-shaped LED strip is a flexible lighting solution specifically designed for curved paths, corners, and irregular shapes.

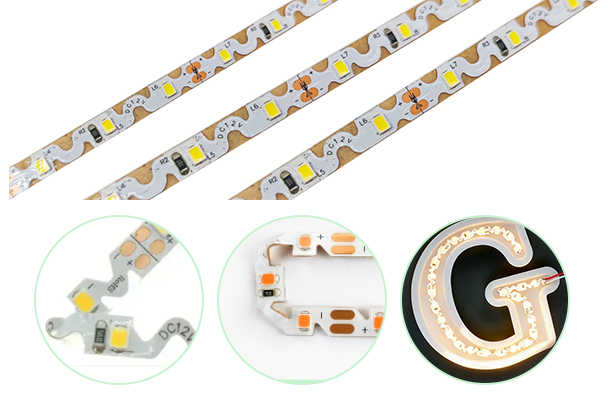

It features an S-shaped / Z-shaped PCB arrangement, with the edges of the board cut to a gear-like shape. The LEDs serve as the light source, offering high luminous efficiency, energy-saving properties, long lifespan, and environmental benefits.
Common LED chip models include 2835, 3528, and 5050, which can meet a variety of usage needs. This bendable LED strip is an ideal choice for projects requiring flexibility, and it is available in customizable LED strips to suit unique design requirements.
What is the Advantage of S-shaped/Zigzag Design
The core competitive advantage of the S-shaped LED strip lies in its unique S-shaped / Zigzag design, which manifests in three key aspects:
Continuous Light Output
The LEDs are arranged along the S-shaped / Zigzag path, and with the optimized current routing on the PCB board, the structure ensures uninterrupted light output, improving the consistency of the light effect.
Better Adaptation to Shapes
The S-shaped / Zigzag PCB structure naturally follows curves and corners without the need for external force to reshape it, allowing the strip to conform to irregular surfaces. This reduces the dependence on manual intervention during installation, making it more versatile for various design needs.
More Dynamic Visual Decoration
Breaking away from the traditional linear design, the alternating curves and angles introduce dynamic lines into the space, making the lighting itself a part of the scene's decoration. This solution balances both functionality and aesthetics, offering flexibility for creative applications with customizable LED strips.
What are the biggest differences compared to ordinary LED strip lights?
| Project | Ordinary LED Strip | S-shaped (Zig-Zag) LED Strip |
|---|---|---|
| Flexibility | Can only be bent slightly | Can be bent in multiple directions, easily conforming to curves |
| Installation Difficulty | Requires frequent cutting and splicing | Can be laid along curves, with fewer cuts and faster installation |
| Light Performance | Dark spots may appear at bends | Smooth, continuous light output without interruptions |
| Applicable Scenarios | Primarily straight structures | Curves, letters, logos, and irregular shapes |
How does the S-shaped structure solve the challenges of corners and letter/logo shapes?
The S-shaped structure naturally adapts to curves and angles, effectively addressing the installation and lighting issues that ordinary LED strips face. This is reflected in three key aspects:
1. Solving Corner Issues: No Bending, No Damage, No Shadows
- Ordinary LED Strips: 90° right angles or curved corners require forced bending, which can easily damage the LEDs or circuits, and dark spots will inevitably appear at the bends.
- S-shaped LED Strips: With the S/Z-shaped structure, the strip naturally follows the corners, without the need for forced bending. The LEDs are evenly spaced, and the light output is continuous and uninterrupted.
2. No More Frequent Cutting for Logos/Letter Shapes
- Ordinary LED Strips: Letters (such as "O", "S", "R") or irregular logos require frequent cutting and splicing, creating visible seams and uneven light distribution.
- S-shaped LED Strips: Can be laid along the contours of shapes, with its own curved/angled structure naturally conforming to the lines, ensuring the LEDs are evenly distributed, and the lighting remains continuous and clear.
3. Reduced Cutting and Splicing, Lower Cost, and Better Aesthetics
- Ordinary LED Strips: Frequent cutting wastes materials, and multiple connections increase installation time. Exposed connections also affect the aesthetics.
- S-shaped LED Strips: Highly flexible, it can naturally bend and extend, greatly reducing the need for cuts and joints. This saves materials and labor time, and avoids the negative visual impact of exposed connections, ensuring a seamless look.
Product Specifications
Below is LW Lighting’s Product Specification

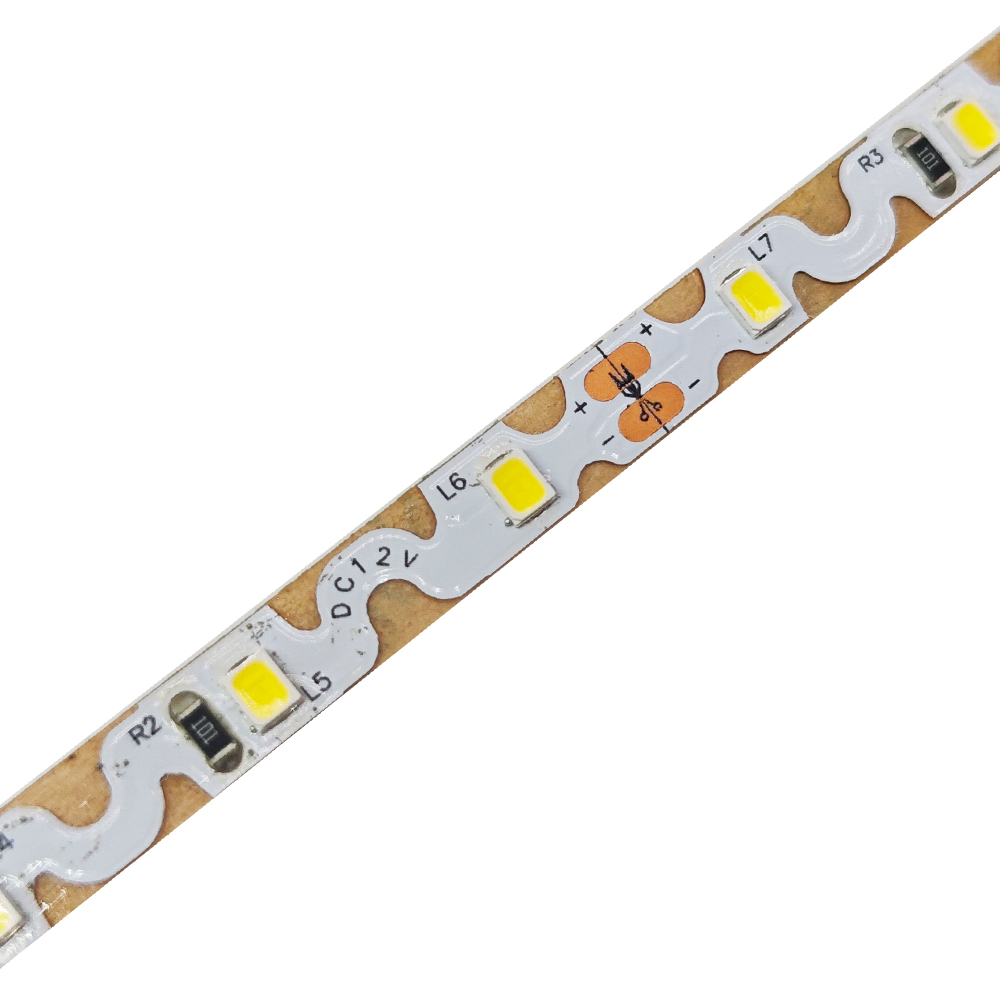

| Name | 2835 S Shape LED Strip |
| Part NO: | S0001 |
| LED Qty: | 60 pcs per meter |
| CRI (RA) | >80 |
| PCB Width IP20: | 6 mm |
| Input Voltage: | DC 12V |
| Watts: | 6W |
| Color: | 2700/3000/4000/6000K |
| PCB color: | White |
| IP Grade: | IP20 |
| Operating temperature: | -25 to 45℃ |
| Beam angle: | 120 degree |
| Certification: | CE; RoHS |
| Max Run: | 5M |
Our S-shaped LED Strip supports multiple customizations to meet the needs of different projects:
- Packaging and Labeling: Custom packaging, instruction manuals, labels, and PCB printed logos can be tailored to your specifications.
- Performance Customization: We can customize the number of LEDs, PCB width, waterproof rating, color temperature, and Color Rendering Index (CRI) based on your specific requirements

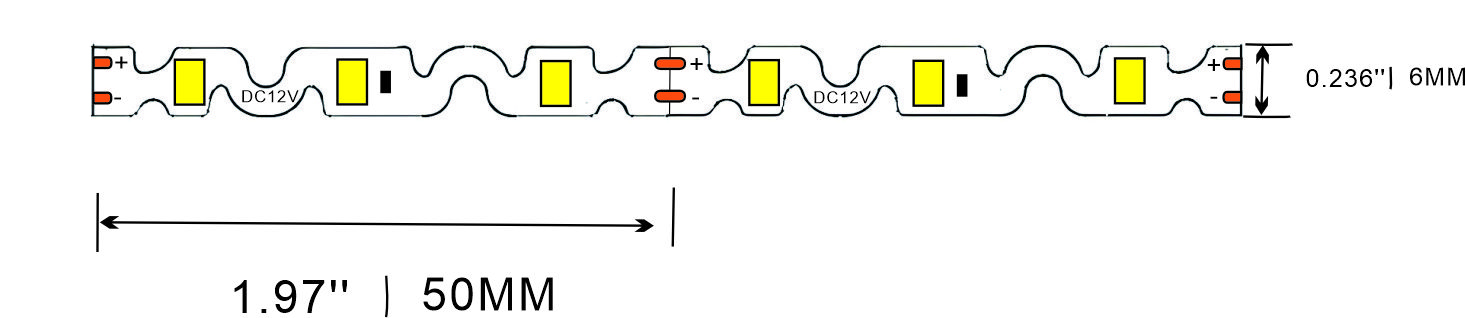

Dimensions

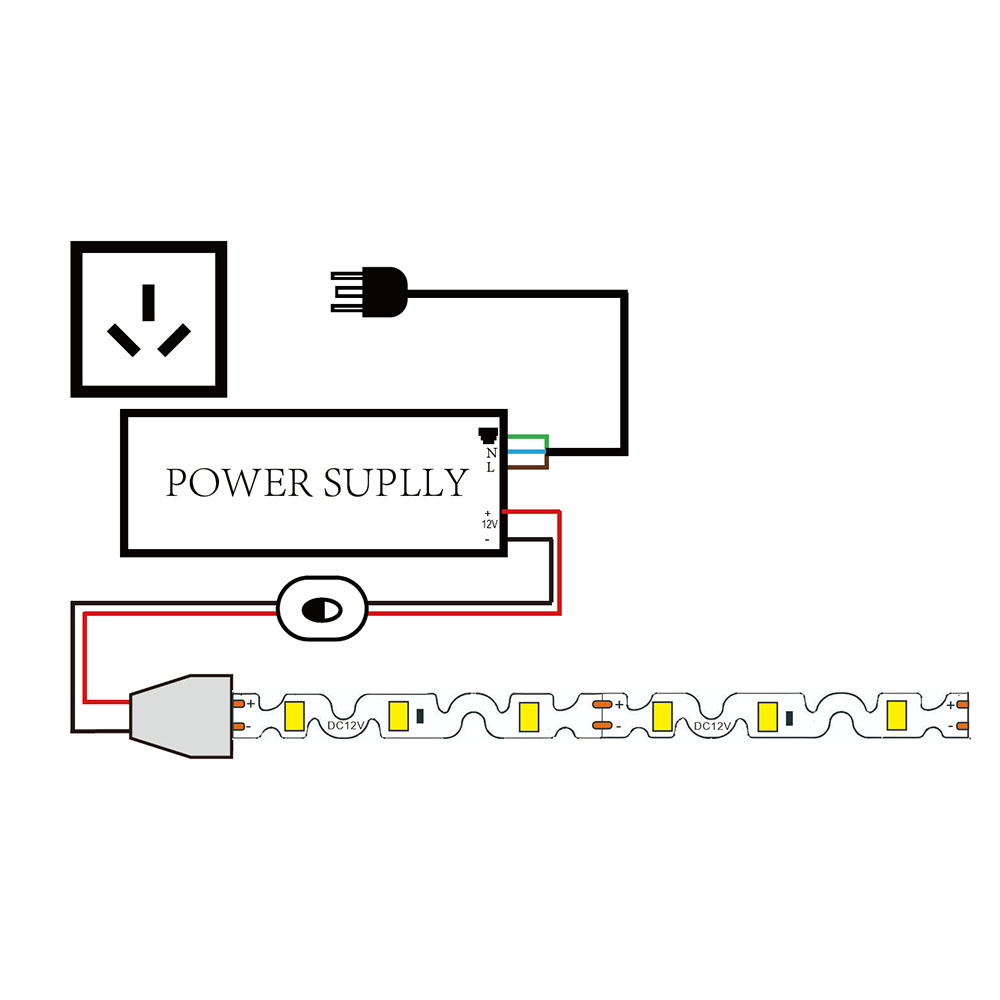

Connect Drawing

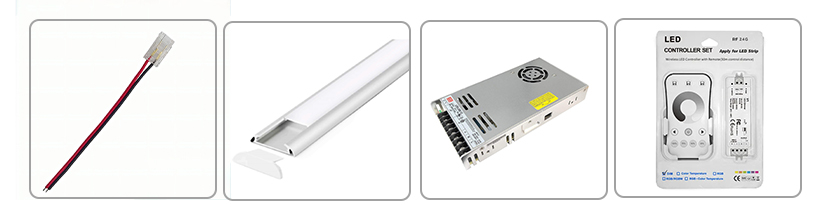

Accessories
We offer a range of accessories to support the installation of your LED strips, including aluminum profiles, power supplies, controllers, and various connectors, ensuring smooth and efficient installation.
Common Misconceptions and Solutions
Many people mistakenly believe that LED strips can only be installed in straight lines, and when it comes to corners or curves, they must be forcibly bent. There is also a concern that bending will damage the strip, cause uneven brightness, or shorten its lifespan.

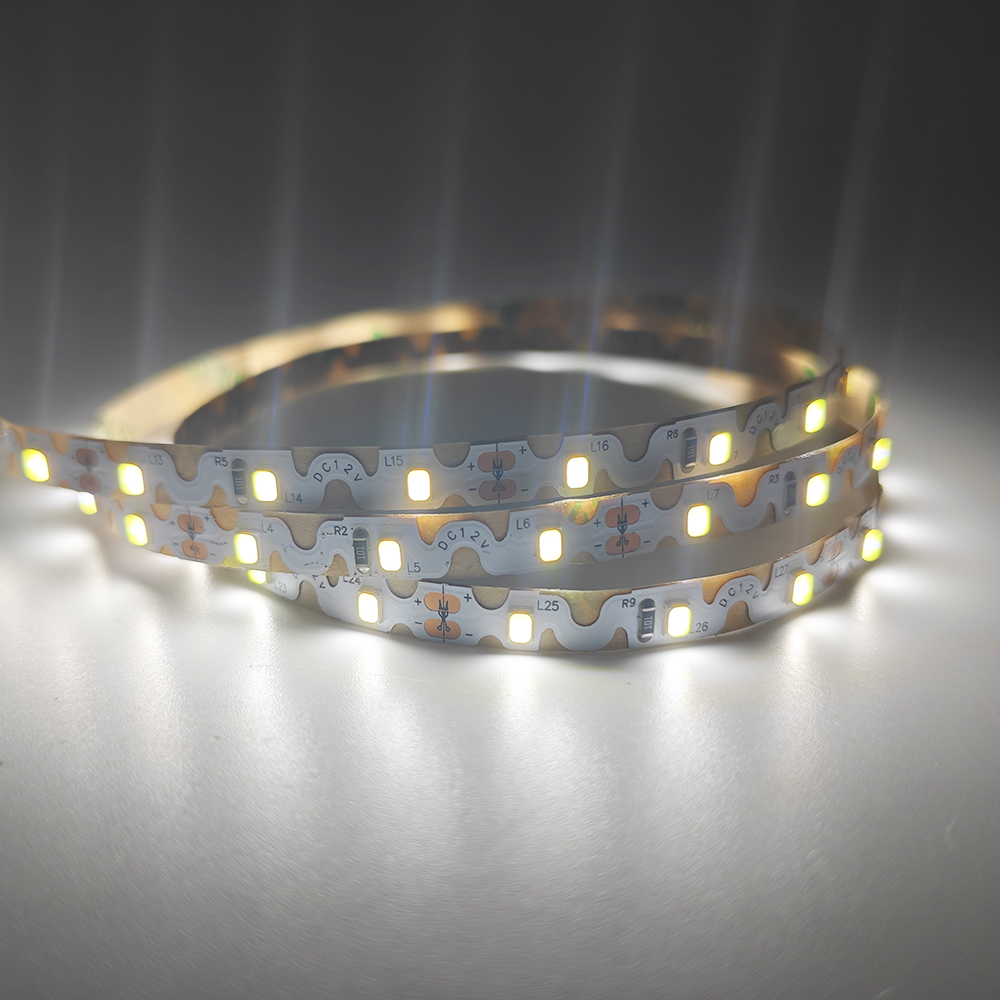

The S-shaped LED strip uses flexible PCB, allowing it to bend freely on both horizontal (up to 90°) and vertical planes. Simply following the recommended bending radius will prevent damage. Its S-shaped design not only significantly enhances installation flexibility in corners, curves, and complex shapes but also adds a dynamic visual effect, something traditional straight LED strips cannot achieve.
The S-shaped LED strip fundamentally solves the limitations of straight LED strips in creative designs, providing uniform lighting, easy installation, and aesthetic visual appeal. It is the ideal choice for advertising sign lighting. We now offer free samples of the Zigzag / S-shaped LED strip for testing — feel free to contact us anytime!
REQUEST A QUOTE
Some Case Studies of LW Lighting Collaboration

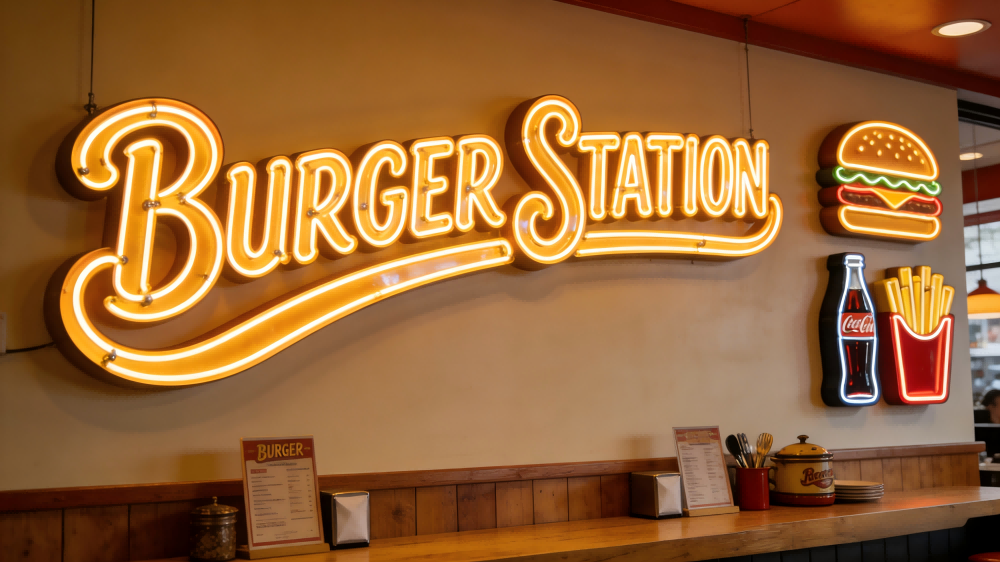

Chain Restaurant Cooperation
Customized S-shaped LED strips for an American-style burger chain, perfectly outlining the decorative logo. The ambient lighting in the curved areas of the store was enhanced, and the solution was used in 15 additional stores.

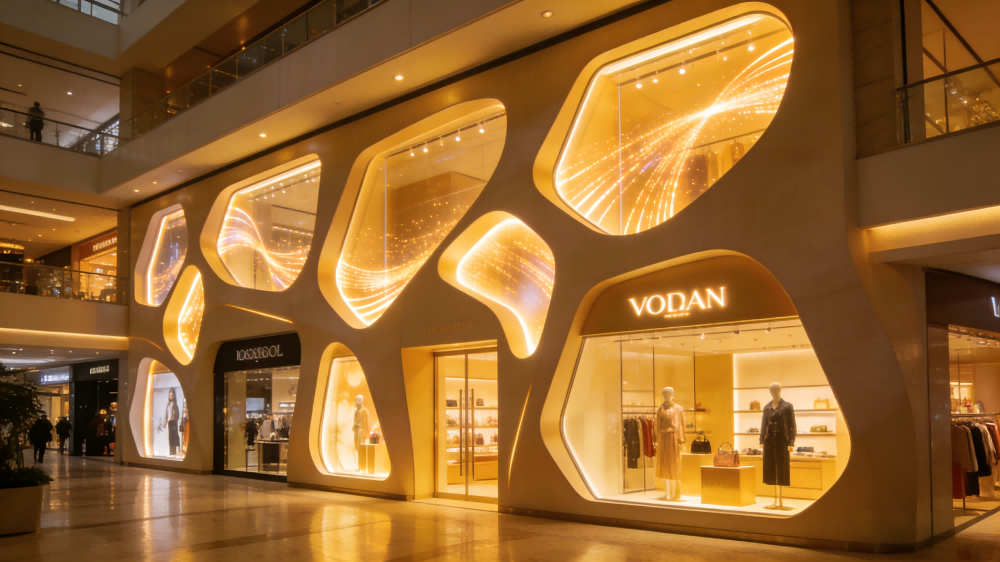

Shopping Mall Lighting
Adapted to various brand window displays with irregular shapes, restoring the true colors of the products. The lighting on the curved ceiling in the atrium became a popular photo spot, exceeding the expected foot traffic by 30% during the grand opening.
High-End Furniture Showroom
Integrated bendable LED strips into custom furniture lighting, perfectly fitting curved edges while ensuring safety with low-voltage power. This contributed to a 25% increase in showroom order conversion rates, establishing the company as a long-term supplier.

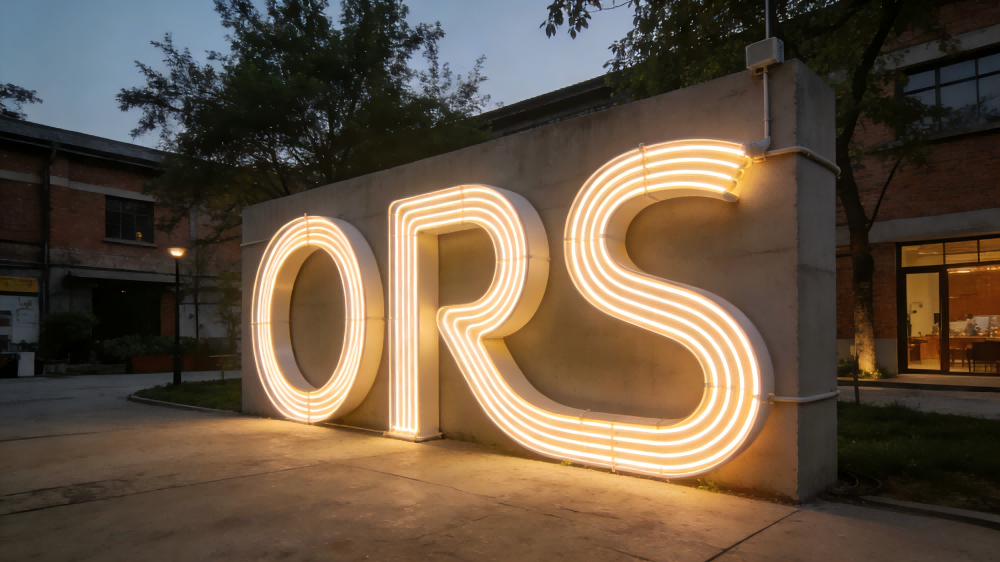

Cultural Creative Park Installation
Used protective LED strips for outdoor art installations, creating flowing light and shadow effects that increased traffic to the park. Several collaborations followed, providing lighting for future art exhibitions.
From restaurant signage to cultural landmarks, LW Lighting empowers success with reliable products and customizable LED strips, delivering tailored solutions for every project.
Leave your email now, and we will provide you with a free, exclusive lighting customization plan and professional technical support to help bring your creative ideas to life quickly.
