In today’s rapidly evolving smart lighting market, there is a surging demand for programmable, dynamic lighting solutions that balance performance with cost-efficiency. Among the various digital lighting options available, the ws2812b led light strip has emerged as a premier choice for professionals, thanks to its mature technology and competitive pricing.

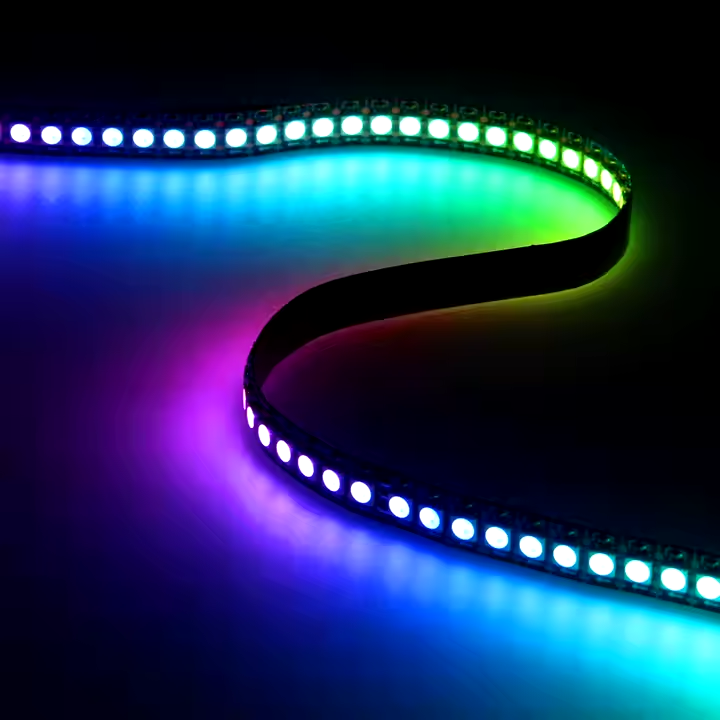

This addressable led light strip integrates the RGB LED and control chip into a single pixel, allowing for individual control and point-to-point addressing via a simple one-wire signal. While delivering high-quality dynamic effects—such as chasing, fading, flowing water, and music-syncing—this design significantly reduces system complexity and overall material costs. This makes it an ideal commercial led strip for projects that require vibrant animations on a strict budget.

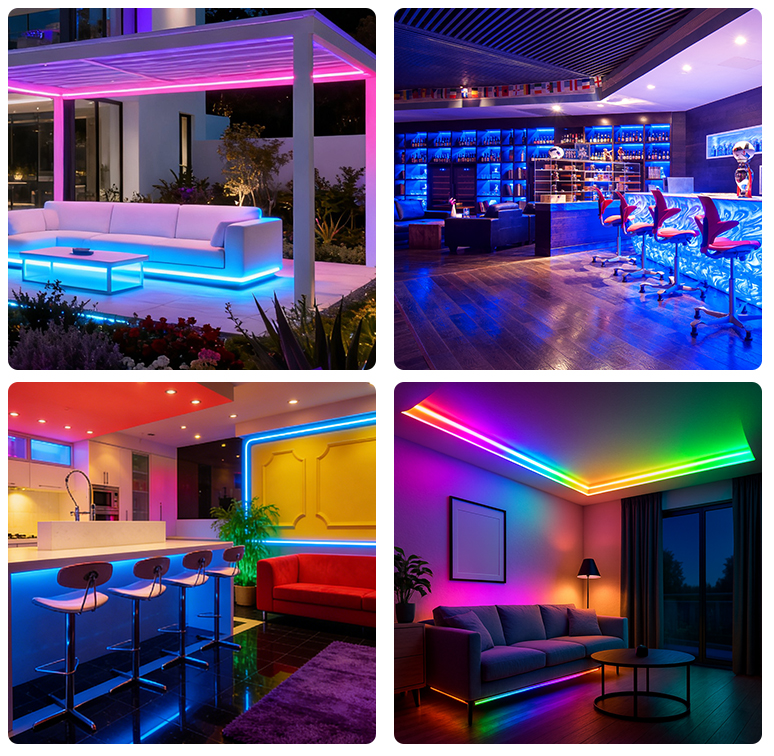

Consequently, the w2812 led strip is widely utilized in decorative lighting, retail displays, stage effects, holiday installations, and interactive setups. In this article, we will provide a comprehensive analysis of this digital strip—covering its working principles, core advantages, and typical application scenarios. We will also compare the differences between the SK6812 and WS2812B to offer a practical selection guide for contractors and wholesalers.

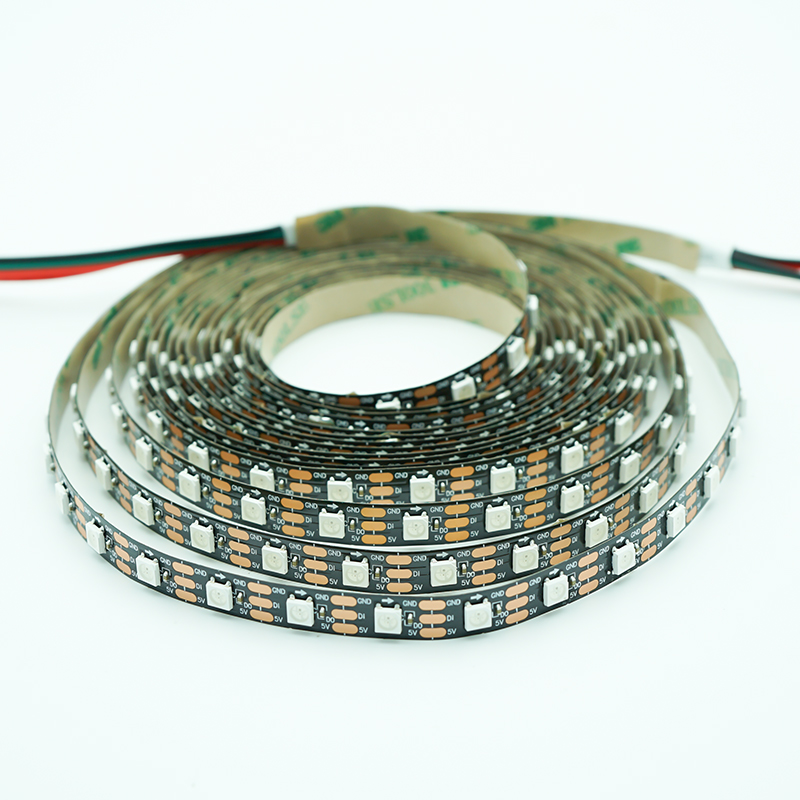

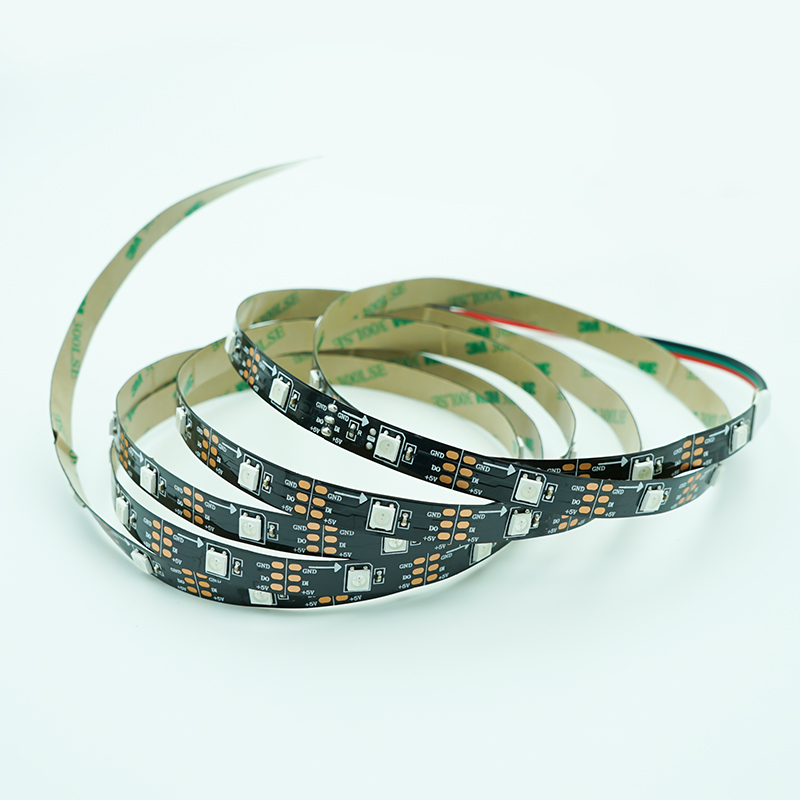

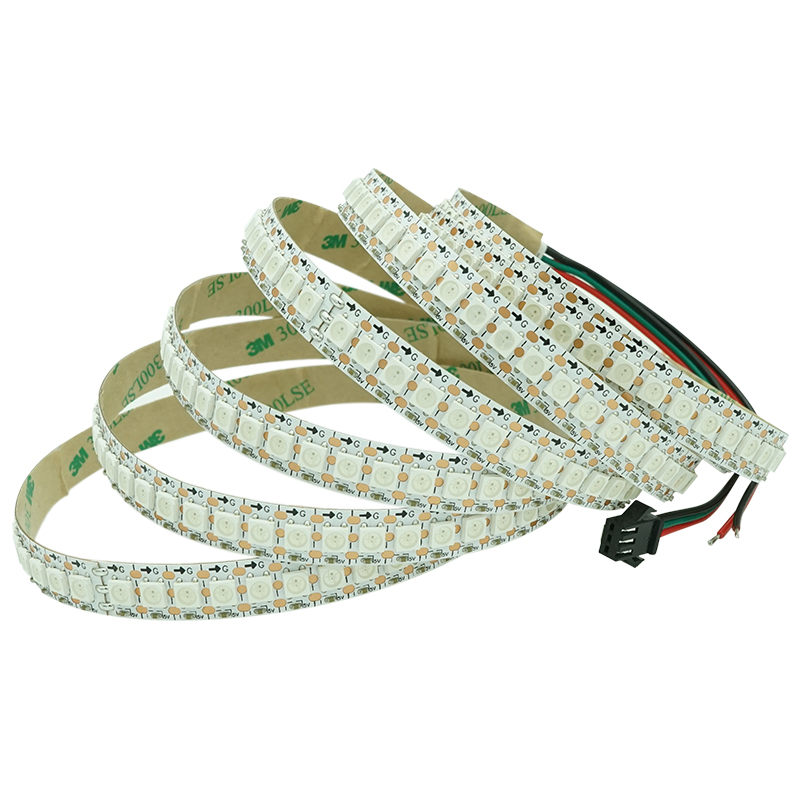

The led light strip ws2812 operates on a 5V low-voltage power supply and is a digitally programmable strip that integrates RGB LED beads with a control chip. Each bead has a built-in control circuit, allowing for independent adjustment of color and brightness to achieve rich dynamic effects. Control signals are transmitted via one data line and two power lines, enabling each bead to display colorful changes like an individual pixel. This ws2812b led light strip is a highly versatile addressable led light strip for various projects.

Each pixel of the ws2812b led light strip contains an internal driver circuit, eliminating the need for complex external control components and wiring designs. This not only reduces production costs and failure rates but also simplifies system layout, making installation more convenient.

Furthermore, this addressable led light strip offers the following advantages:

• Individually Programmable: Each bead can be controlled independently to achieve various dynamic effects such as text, animation, gradients, and chasing lights.
• High Brightness & Energy Efficiency: Suitable for long-term use with a lifespan of tens of thousands of hours.
• Flexible Extension: Easily extended through series connection; a single data line can control up to 500 beads at a 30Hz refresh rate.
• Strong Compatibility: Compatible with most controllers to realize engineering-grade or creative lighting solutions.

Compared to traditional 5050 RGB strips, the advantage of the w2812 led strip lies in its ability to display different colors in segments. While standard 5050 strips can only display a single color across the entire length, the led light strip ws2812 offers greater creativity and flexibility for complex lighting designs and interactive installations.

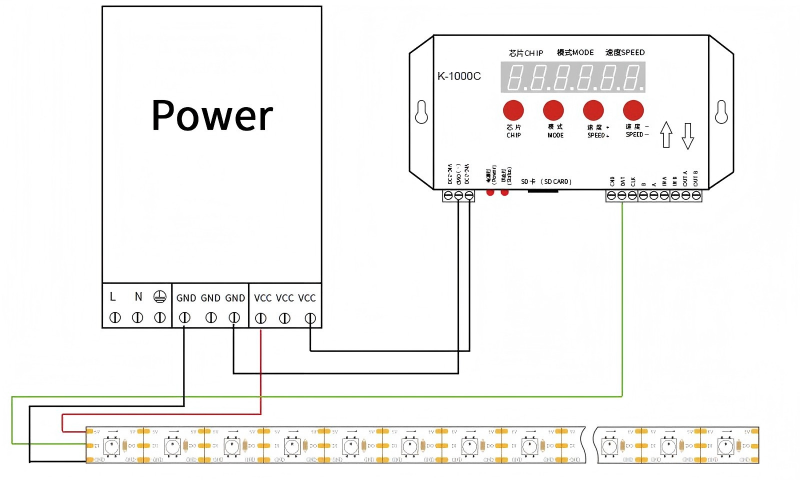

The working principle of the led light strip ws2812 is based on controlling the brightness and color of LEDs via serial communication. It utilizes a single-wire data transmission method, where the data line is responsible for carrying both the control signals and the lighting data.

During operation, the controller first sends a start signal to notify the strip that data transmission is beginning. Subsequently, each LED receives brightness instructions for the red, green, and blue channels in sequence—much like actors performing according to a script. Once the data transmission is complete, the strip automatically updates its display to achieve rich effects like gradients, chasing lights, and animations. This efficient protocol makes the ws2812b led light strip a top choice for dynamic projects.

The advantages of this serial control method include:

• Simpler Wiring: Only one data line is required to control the entire strip.
• High Scalability: Easily extended through series connections, supporting large-scale dynamic lighting designs.
• Flexible Operation: Compatible with microcontrollers, Arduino, or engineering-grade controllers to achieve customized animations.

Through this method, the addressable led light strip not only makes complex dynamic lighting simple and controllable but also significantly improves wiring efficiency and project cost-control capabilities.

1. Individual Pixel Control

Utilizing 130nm process integrated circuits, each LED features a built-in IC to achieve one-lamp-one-control. This ensures that every LED can be individually addressed with precise color and brightness control. The beads are driven by a constant-current IC, providing stable output and uniform brightness for delicate, natural light transitions.

2. High-Performance Display Effects

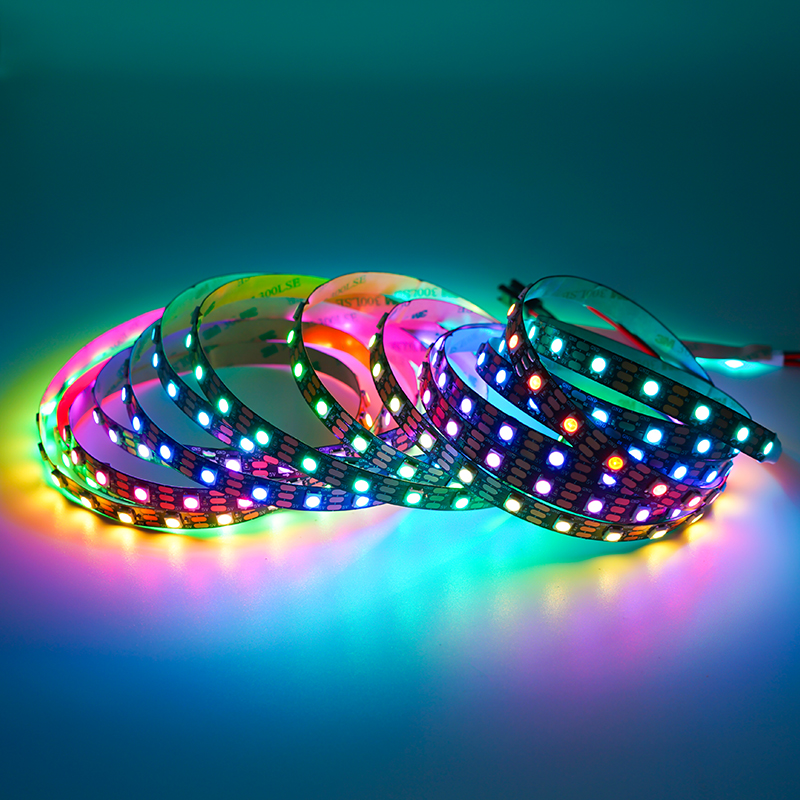

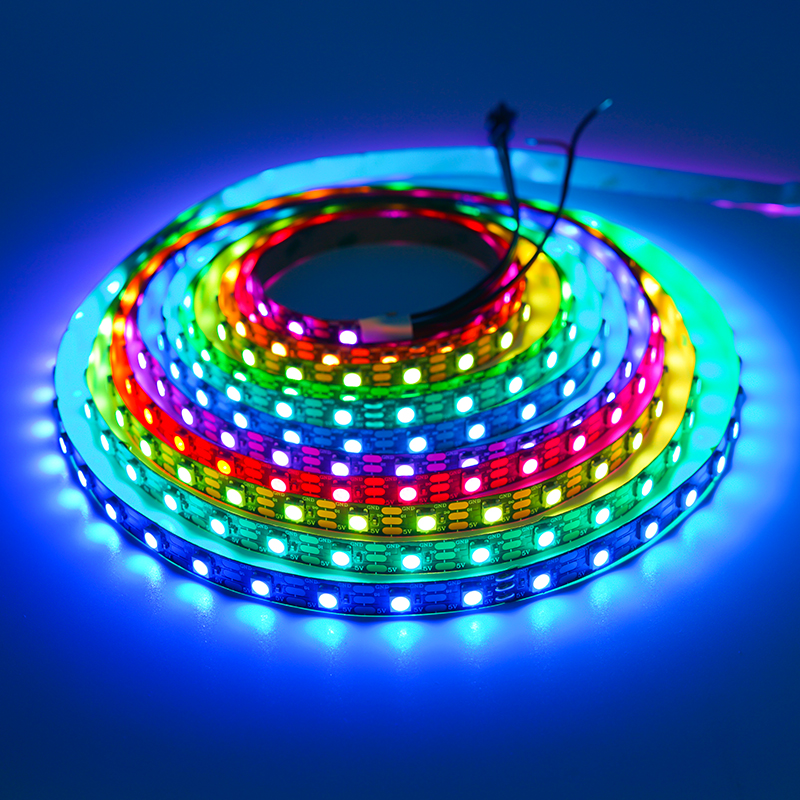

Supporting 256 levels of grayscale control, the small pixel pitch ensures strong visual continuity and smooth color transitions. It can display video animations, images, text, and various dynamic effects—including chasing, flowing water, running, gradients, breathing, strobing, clockwise/counter-clockwise horse racing, and simulated lightning.

3. Flexible Cutting and Customization

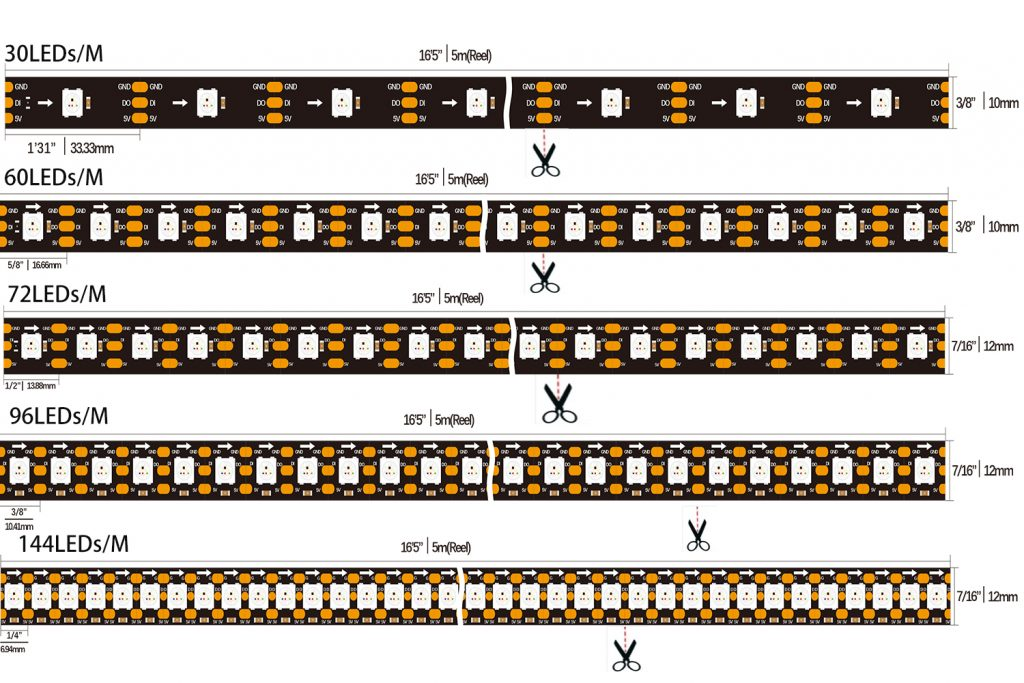

Since each LED operates on an independent circuit, the w2812 led strip can be freely cut or soldered along the cutting lines to meet different length and spatial requirements. It supports large-scale series connection, making it easy to implement long-distance and complex-shaped layouts.

Below is LW Lighting’s product specification

LW Lighting's dynamic series supports a wide range of customization options to meet specific project requirements:

• Packaging and Branding: Customized packaging, user manuals, labels, and PCB logo printing are available.
• Performance Customization: We can adjust the LED density, PCB width, waterproof ratings, color temperature, and Color Rendering Index (CRI) according to your project needs.

The relationship between the SK6812 and the WS2812B is one of product iteration: the WS2812B is an optimized upgrade of the original WS2812, while the SK6812 can be regarded as a high-performance advanced version of the ws2812b led light strip.

A core advantage of these two strips is their compatibility; their interface protocols and color channel sequences are identical. This means they can be connected in series within the same circuit system and are interchangeable in most scenarios. This compatibility significantly enhances the flexibility of circuit design and the convenience of component replacement for any addressable led light strip project.

In terms of working principles, both the SK6812 and the w2812 led strip utilize a single-wire data transmission scheme, though the SK6812 typically offers superior data transmission stability.

A primary difference lies in the color options. While the led light strip ws2812 primarily uses an RGB three-channel solution (where white light is generated by mixing the three colors), the SK6812 product line is more comprehensive. It includes monochromatic white, RGB, and RGBW versions. The RGBW variant can output pure white light directly, making it better suited for applications with specific requirements for white light accuracy.

When selecting a ws2812b led light strip, engineers should make decisions based on key factors such as project scale, lighting effect requirements, voltage and power needs, waterproof ratings, and controller compatibility.

First, choose the appropriate LED density (such as 30, 60, or 72 LEDs/m) to ensure the conductivity and suitability of the material.

Secondly, based on the lighting effects required for the project, such as gradients or chasing lights, select an addressable led light strip that supports high grayscale and high refresh rates.

Voltage and power requirements must match the power supply to ensure long-term efficient operation. Meanwhile, the waterproof rating should be selected according to the operating environment (such as indoor or outdoor). Finally, ensure the controller is compatible with the w2812 led strip to achieve precise control and dynamic effects.

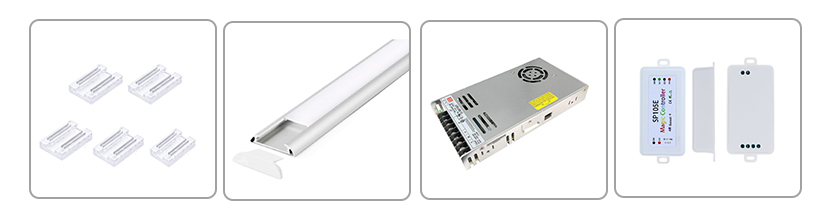

To ensure the performance and installation convenience of the WS2812B Digital RGB LED Strip, LW Lighting provides a one-stop accessory procurement solution, covering key components required for installation, control, and power management:

• Aluminum Profiles: Perfectly paired with the ws2812b led light strip, providing light diffusion, heat dissipation, and protection. Various styles and sizes are available, suitable for recessed coves, walls, cabinets, and retail displays.
• Power Supplies: Providing stable low-voltage 5V DC output to ensure long-term efficient operation. These are adaptable to different lengths and power requirements, meeting the demands of large-scale engineering projects.
• Controllers: Since the led light strip ws2812 features built-in SMD5050 ICs, it is compatible with most digital controllers. This allows for easy single-lamp programming, point-to-point addressing, and rich dynamic effects with multiple lighting modes.

By properly configuring these accessories, customers can quickly complete a high-performance, programmable, and flexible addressable led light strip system. This saves wiring complexity and debugging time, enhancing both engineering efficiency and visual impact.

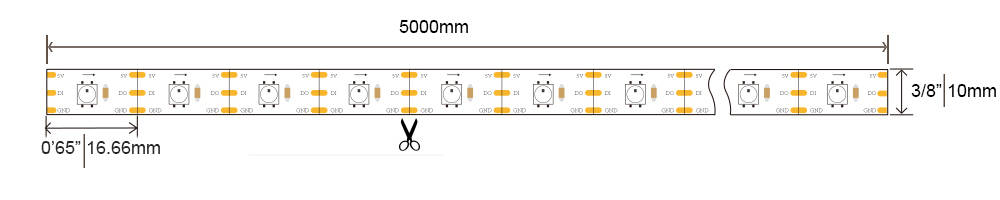

LW-D0001-5V-30LEDs/M

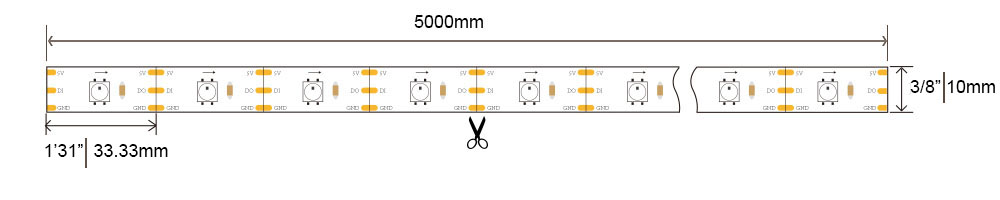

LW-D0002-5V-60 LEDs/M

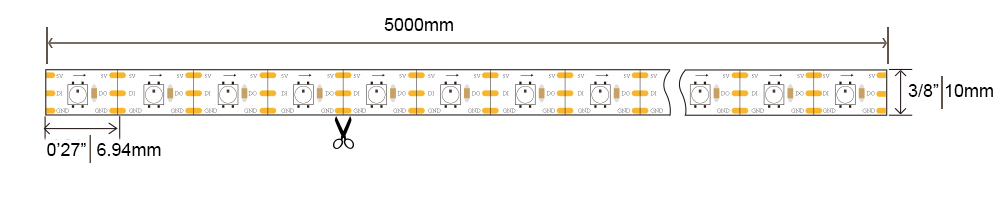

LW-D0005-5V-144 LEDs/M

As an experienced LED solution provider, LW Lighting is committed to offering customers high-quality, stable, and cost-effective digital lighting products. We provide a one-stop service, including accessories, technical support, and customized solutions, helping contractors quickly achieve their project goals.

Contact LW Lighting today to obtain samples, customized plans, and professional support for your ws2812b led light strip project. Let us help you achieve a perfect balance between cost-effectiveness and superior quality for your next commercial led strip installation!
