With the continuous iteration and upgrading of smart lighting technology, addressable light strips have become a central highlight of modern lighting design, especially in the field of urban illumination projects. These are used for main road lighting, landmark building facades, bridge and riverfront lighting, and plaza landscape projects. Through programmable dynamic light effects, these strips can showcase unique urban cultural characteristics—such as displaying gradient colors and dynamic patterns for holiday themes (e.g., xmas led strip lights) or creating permanent night light shows—thereby enhancing the city's nighttime image and boosting the nighttime economy.
The WS2814 RGBW smart led tape has become a market bestseller due to its core features: individual pixel control and full-color programmability. It flexibly enables diverse dynamic effects like chasing, flowing, breathing, and strobing. In addition to urban illumination, it is widely applied in the following core scenarios:
- Stages and Large Events: Used in professional stage performances, wedding planning, product launches, and exhibitions to highlight themes and attract attention through synchronized light effects.

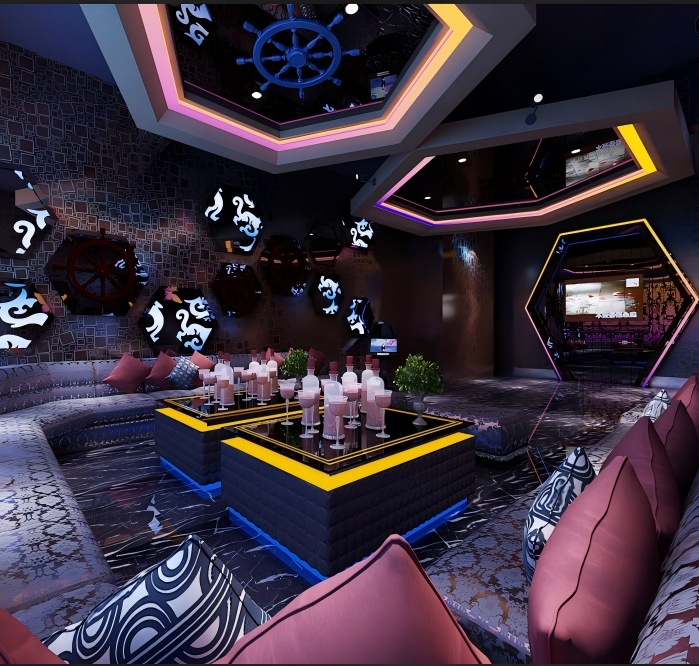

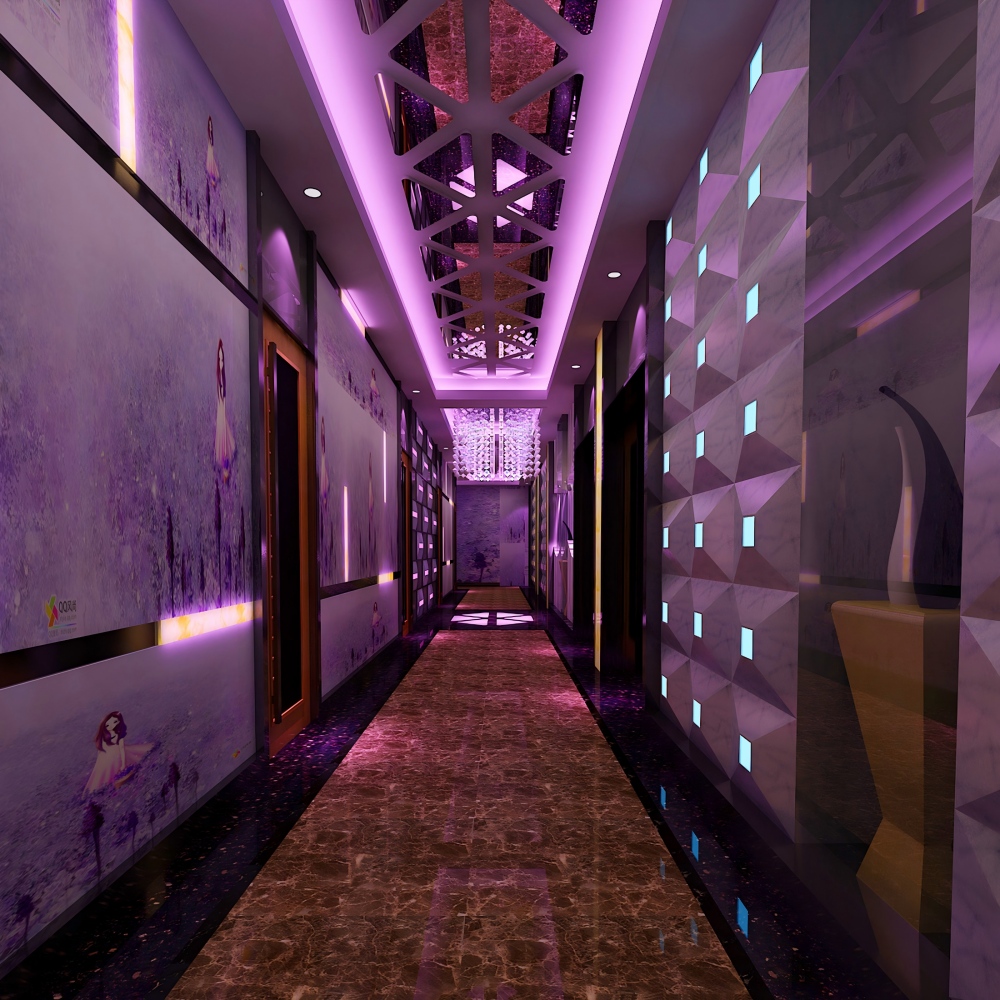

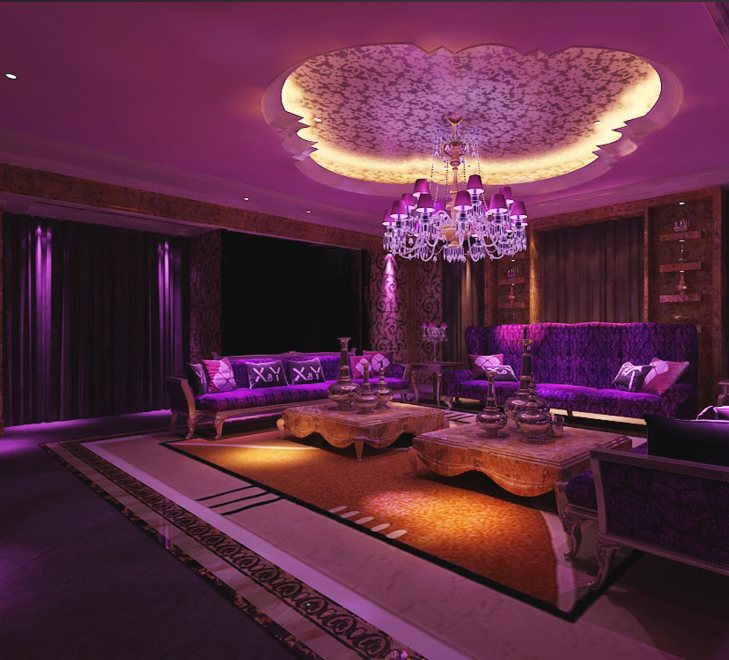

- Entertainment Venues: Including KTVs, bars, and e-sports hotels, where this led light strip tape can switch lighting effects to meet scene requirements, creating an immersive atmosphere and enhancing the entertainment experience.
- Commercial Spaces: Perfectly suited for display lighting in brand apparel stores, accurate color temperature restoration in beauty shops, and dynamic traffic attraction in mall windows. By combining low-saturation pastels with high-CRI white light, this best led tape enhances product texture and conversion rates.
What is WS2814 RGBW Smart LED Strip?

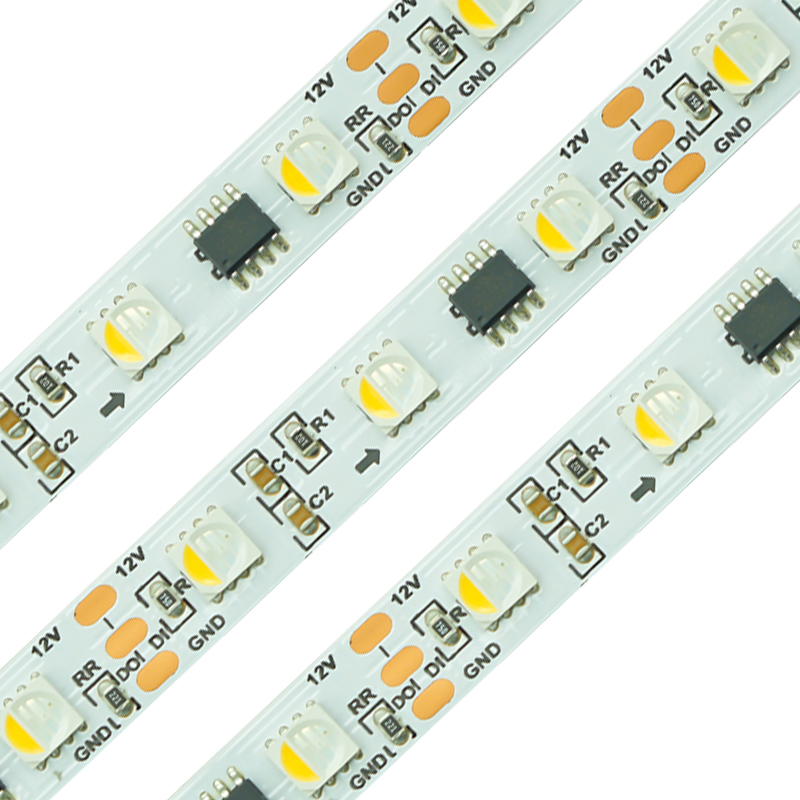

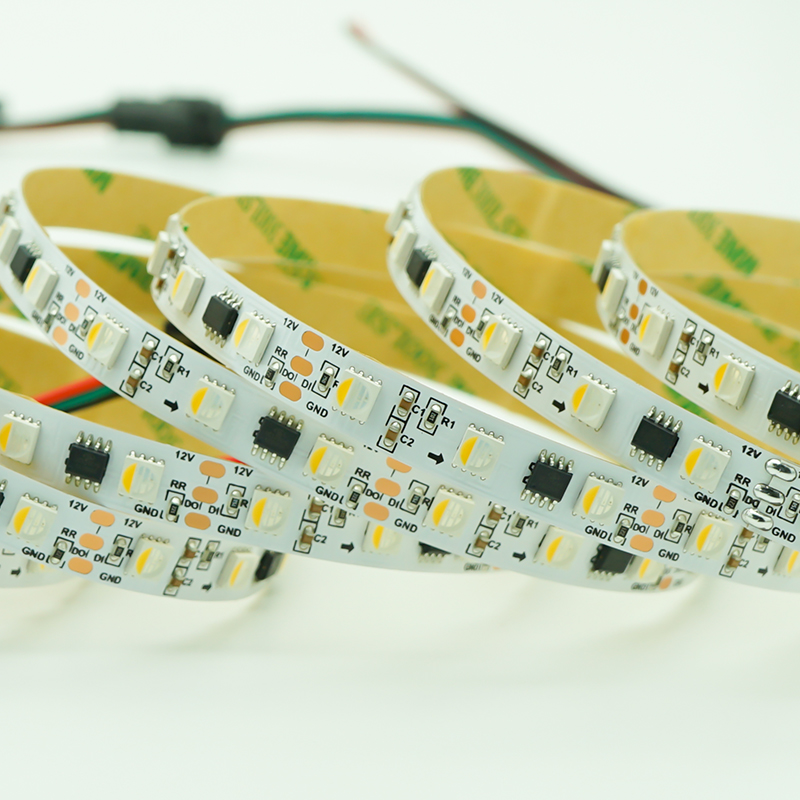

The WS2814 RGBW smart led tape is an addressable light strip controlled by the WS2814 IC. Its core innovation lies in adding a white sub-pixel to the traditional RGB (Red, Green, Blue) base, creating a four-color pixel and four-channel control mode. Through software programming, this led light strip tape can achieve a wide variety of lighting effects. Furthermore, it is easy to install and provides both perfectly comfortable white light and low-saturation pastel colors simultaneously, making it the best led tape for scenarios that require a seamless balance between colored and high-quality white lighting.
WS2814, TM1824, TM1814, and SM16704 IC Solutions
The WS2814, TM1824, TM1814, and SM16704 are widely used digital control ICs designed to drive and manage LED beads. These ICs all feature a 4-channel design (RGBW) and typically operate at 12V or 24V. For this led light strip tape, the 12V version controls 3 LEDs per segment, while the 24V version controls 6 LEDs. Notably, the SM16704 can directly replace the TM1814 to meet diverse project requirements.
A key distinction lies in the signal transmission reliability. The TM1824, TM1814, and SM16704 do not support break-point continuous transmission. This means that if a single LED bead fails, it may disrupt the signal for all subsequent LEDs, causing the entire strip to malfunction.
In contrast, the WS2814 is equipped with a break-point continuous transmission function, making it the best led tape solution to prevent a single point of failure from compromising the overall lighting effect. This high reliability makes it particularly suitable for large-scale installations, such as led strip lights living room projects or high-end commercial displays, where consistent performance is essential.

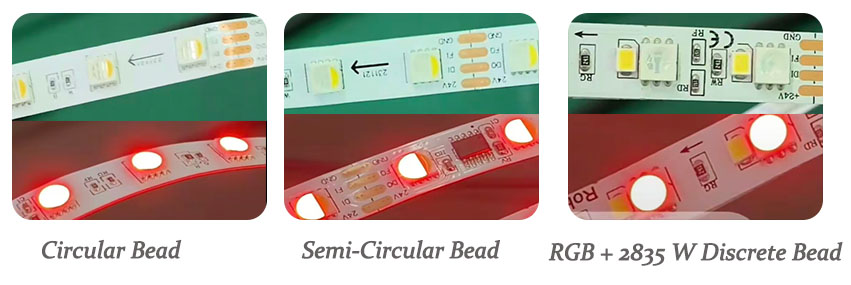

RGBW LED Bead Solutions
Currently, there are three primary RGBW LED bead solutions in the market. These options differ significantly in structural design and cost, catering to different procurement needs:
- Integrated Circular Bead Solution: Featuring a fully integrated circular encapsulation, it offers uniform light output and stable color. Due to its complex process and higher cost, it is primarily used for mid-to-high-end quality projects.
- Semi-Circular Bead Solution: With a semi-circular luminous design, this option balances light efficiency and cost-effectiveness. As a mid-cost choice, it is the mainstream selection for led light strip tape.
- RGB + 2835 W Discrete Bead Solution: RGB and white LEDs are combined independently, with RGB supporting high or standard brightness customization. The simplified process offers a significant cost advantage, making it the best led tape choice for large-scale, cost-sensitive projects.
Product Features
Premium PCB Materials: Utilizing double-sided film and 2oz 3535 copper, this best led tape ensures superior conductivity and heat dissipation, thereby extending the overall lifespan of the strip.

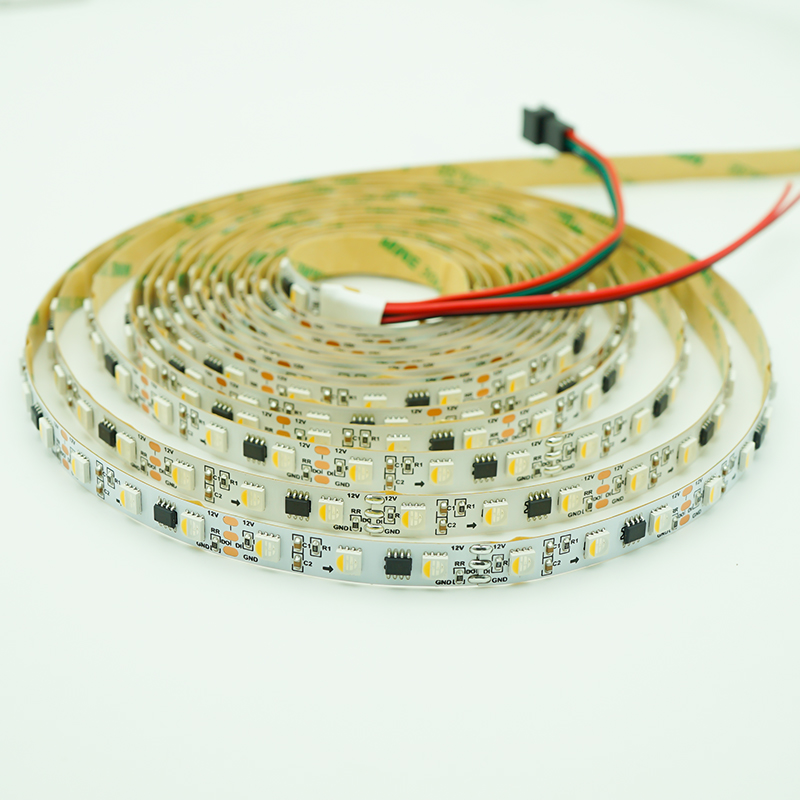

Four-Channel Control IC: The WS2814 four-channel IC integrates independent drivers for Red, Green, Blue, and White. Compared to traditional RGB strips, it adds a high-CRI white light channel to balance atmospheric colors with functional white lighting, meeting the dual needs of commercial displays and urban illumination.
Break-point Continuous Transmission: If a fault occurs at a certain point (such as a disconnected circuit), the signal can skip the failure point and continue transmitting, allowing the subsequent beads of the smart led tape to function normally.
Lighting Effects: When paired with a controller, the RGBW led light strip tape can achieve vibrant effects such as magic color flowing, chasing, strobing, breathing, and gradients.
Product Specification
Below is LW Lighting’s product specification
| Part No: | Input Voltage | IC type | LED Quantity | IC QTY | PCB width: | Color | Max Power | Min Cut | IP Grade | Control signal: |
| LW-D0032 | 12V | WS2814 | 60leds/m | 20 | 10mm | Addressable RGBW | 18W/M | 50mm | IP20 | SPI |
| LW-D0032 | 24V | WS2814 | 60leds/m | 20 | 10mm | Addressable RGBW | 18W/M | 100mm | IP20 | SPI |
LW Lighting’s addressable light strips support a wide range of customization options to meet diverse project requirements:
- Packaging & Branding: Custom packaging, manuals, labels, and PCB logo printing.
- Performance Customization: Parameters such as LED density, PCB width, waterproof ratings, color temperature, and Color Rendering Index (CRI) can be adjusted to create the best led tape for your specific needs.

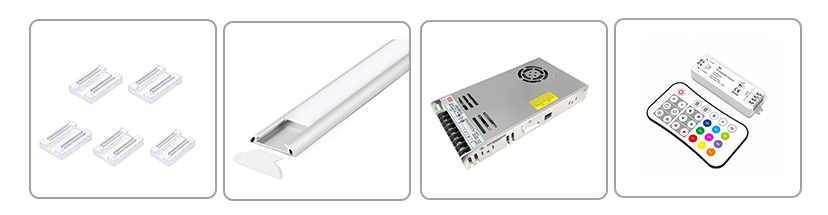

WS2814 RGBW LED Strip Accessories
To build a reliable and high-performance WS2814 RGBW LED strip system, choosing the right accessories is just as important as selecting the LED strip itself. LW Lighting offers a complete range of compatible accessories, including LED connectors, aluminum profiles, power supplies, and SPI controllers, making installation easier while ensuring stable performance and long-term reliability.
If you'd like to learn more about selecting the right accessories, explore these helpful guides:
- LED Connectors: Learn how to choose the right connector for different LED strip types and installation methods.
- LED Aluminum Profiles: Discover how aluminum channels improve heat dissipation, protect LED strips, and create a cleaner lighting finish.
- LED Power Supplies: Find out how to select the correct power supply based on voltage, wattage, and installation requirements.
- LED Controller Systems: Explore compatible controllers for addressable LED strips and learn how to achieve dynamic lighting effects.
Dimensions

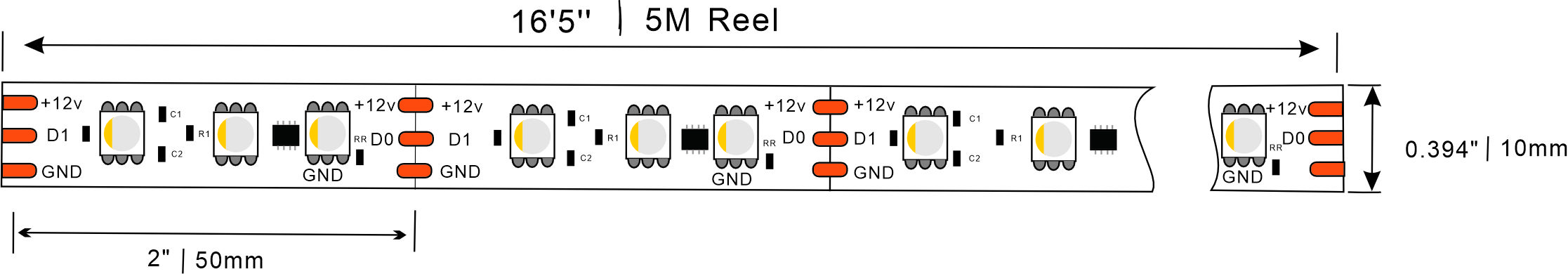

LW-D0032-12V-10mm-60LEDs

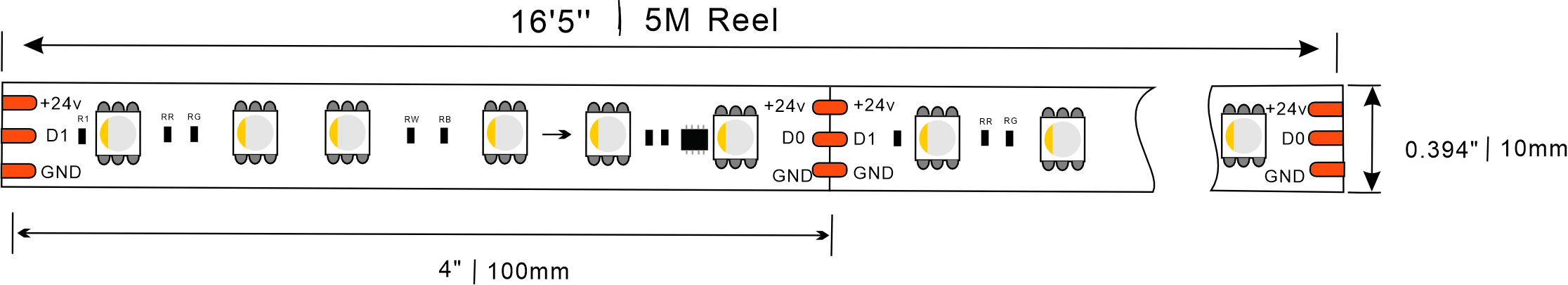

LW-D0032-24V-10mm-60LEDs
WS2814 RGBW LED Strip Installation Guide
Step 1. Connect the LED Strip to the Controller
Connect the WS2814 RGBW LED strip to a compatible controller and ensure the signal direction is correct. Always follow the arrow markings on the LED strip, as the data signal must flow from the controller to the DI (Data In) side of the strip.
For a typical 24V WS2814 RGBW LED strip:
- Connect the +24V wire (usually red) to the controller’s positive output terminal (V+).
- Connect the strip’s DI (Data In) wire (commonly green) to the controller’s DATA output terminal.
- Connect the strip’s GND wire (usually black or white) to the controller’s negative terminal (GND).
Please note that wire colors may vary between different manufacturers. Always check the markings on the LED strip (V+ / DI / GND) before wiring to ensure the connections are correct.
Step 2. Connect the Power Supply
Once the controller and strip are connected, connect the power supply's positive and negative terminals to the controller. Make sure the voltage matches the strip's specifications (12V or 24V).
Step 3. Test the System
After powering on, check that both RGB and white (W) channels are working properly, and confirm that colors, brightness, and dynamic effects all display correctly.
Step 4. Secure the Installation
Once the system is confirmed to be running stably, secure the strip and cables in place to prevent loose connections caused by pulling or shifting.
Please take a look at our installation video:
FAQ
1. What is the difference between WS2814 and WS2812B?
The following is a comparison between the WS2814 and the WS2812B.
| Feature | WS2814 | WS2812B |
|---|---|---|
| LED Type | RGBW | RGB |
| White Light | Dedicated white LED (W) | No dedicated white LED |
| Color Quality | More accurate white light and pastel colors | White is created by mixing RGB, which may appear bluish |
| Operating Voltage | DC12V / DC24V (commonly) | DC5V |
| Pixel Control | Individually addressable | Individually addressable |
| Signal Backup | Supports breakpoint resume (backup data transmission on many versions) | No backup data signal |
| Long-Distance Installation | Better for longer runs due to higher voltage options | More voltage drop over long distances |
| Typical Applications | Architectural lighting, commercial projects, hotels, retail displays | DIY projects, gaming setups, decorative lighting |
2. Is WS2814 individually addressable?
Yes. The WS2814 LED strip supports individual addressable control when used with a compatible SPI controller. Each IC controls a group of LEDs independently, allowing you to create programmable lighting effects such as color chasing, flowing patterns, running lights, and dynamic animations.
On 12V WS2814 LED strips, each IC typically controls 3 LEDs, while on 24V versions, each IC usually controls 6 LEDs. This design helps reduce voltage drop and makes WS2814 an excellent choice for longer lighting installations without sacrificing dynamic lighting performance.
3. Does WS2814 support warm white?
Yes. The WS2814 RGBW LED strip supports a dedicated white channel (W) in addition to RGB channels, allowing it to produce high-quality white lighting. The W channel can be customized with different color temperatures, such as warm white (2700K–3000K), neutral white (4000K), or cool white (6000K–6500K), depending on the lighting requirements.
4. Which Controllers Work Best with WS2814?
WS2814 RGBW LED strips require a compatible SPI controller or programmable LED controller to achieve individually addressable pixel control and dynamic lighting effects. Common controller types include SPI controllers, WiFi/Bluetooth controllers, and engineering-grade controllers such as the K-1000C.
Choosing the right controller depends on your project requirements.
For small installations or decorative lighting, a compact SPI controller is usually sufficient. WiFi/Bluetooth controllers turn the strip into a smart LED tape solution, allowing users to adjust colors, brightness, and effects directly from a mobile app.
For larger-scale projects such as commercial displays, architectural lighting, or stage lighting, an engineering-grade controller with stronger output capacity and more advanced programming features is recommended.
