Can You Cut an LED Strip Anywhere? A Complete Guide to Cutting LED Strip Lights
LED strip lights are typically supplied in full reels — 5 meters, 10 meters, or even longer — but in real-world installations, it's rare to use an entire reel as-is. Whether you're working on a cabinet, a ceiling, a wall, or a display space, installation often calls for trimming the strip to match the exact dimensions of the space.
So, can you cut led strip lights freely, wherever you like? The answer depends on how the strip is designed. Most conventional LED strips need to be cut at the marked cutting points printed along the strip, while some strips with specially engineered circuits allow for more flexible cutting, and a few products can even be trimmed at virtually any point along their length. In other words, whether can led strip lights be cut anywhere isn't simply a matter of voltage or LED chip type — it comes down to the specific circuit structure and design of the product.
Cutting in the wrong spot can leave some LEDs unable to light up, or even prevent the remaining section of the strip from working properly.
This article walks through the cutting principles behind LED strips, where the cutting points are located, the cutting intervals for different strip types, how to cut and reconnect strips correctly, and what to watch out for after cutting — giving you a complete picture of how LED strips should be trimmed and used.
Which LED Strips Can Be Cut?
Before cutting an LED strip, you first need to confirm the strip type and whether the product actually supports cutting. Most common LED strips can be trimmed at their designated cutting points, but the cutting method and spacing vary from product to product.
Common cuttable LED strip types include SMD LED strips, COB LED strips, CSP LED strips, addressable LED strips, neon LED strips, and high-voltage LED strips. Some strips must be cut at fixed cutting points, while others with specialized designs offer more flexible cutting options.
SMD LED Strips
Common SMD LED strips — 2835, 3528, 5050, 2216, 3014, 335, 2018, and similar — generally support cutting.
These standard strips typically have clearly marked cutting positions on the PCB, such as scissor icons, cut lines, or copper pads. The cutting interval can differ depending on the voltage, LED density, and circuit design of the product.
For example, a 12V LED strip might have a cutting point every 50mm, while a 24V LED strip might have one every 100mm.
So for SMD LED strips, you can't judge the cutting interval simply by the LED chip model — it's better to go by the cutting marks and specifications printed on the actual product.

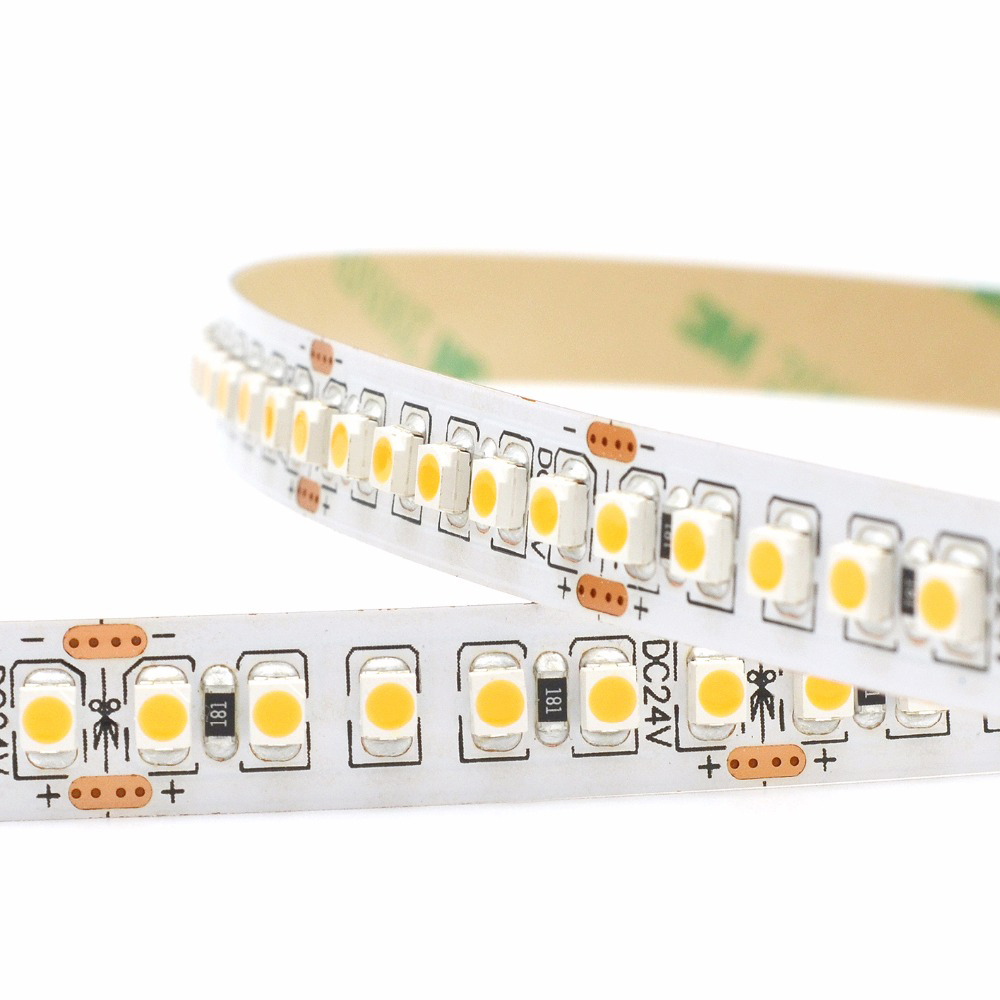

3528 LED Strip 5050 LED Strip

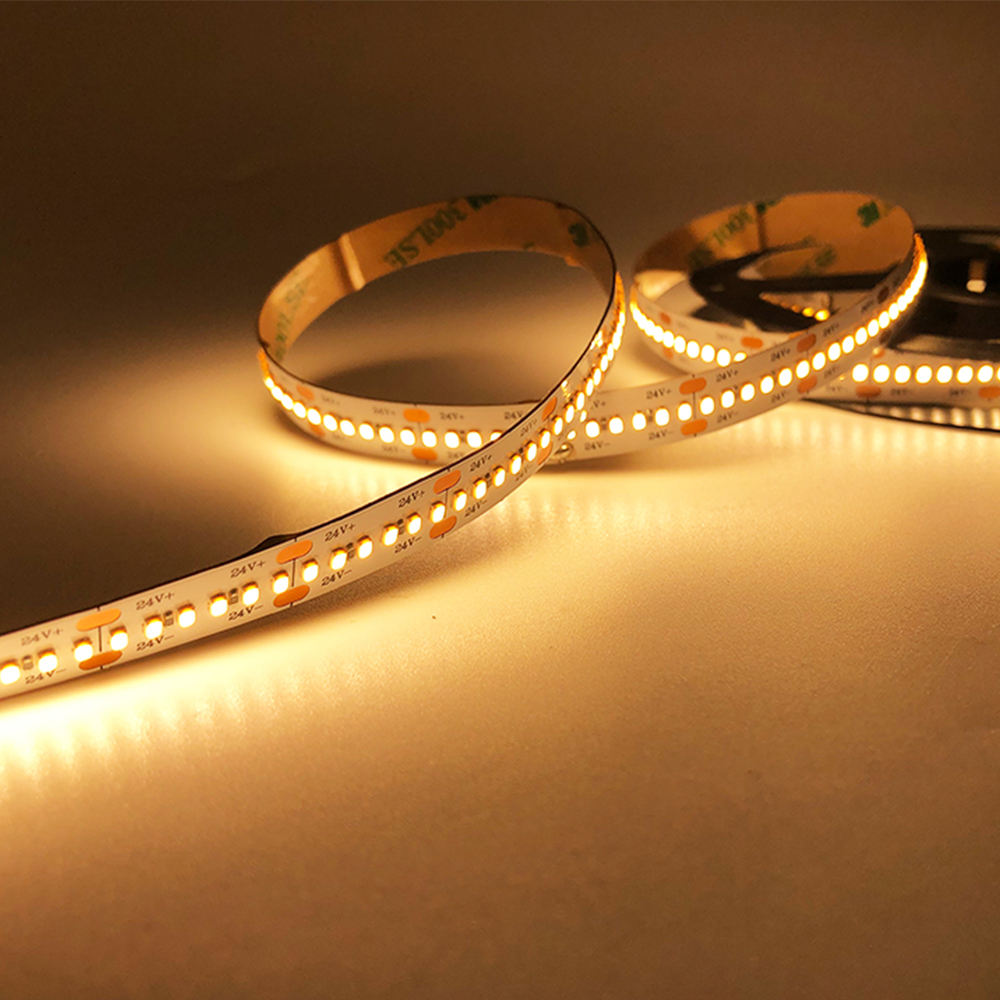

2018 LED Strip 335 LED Strip

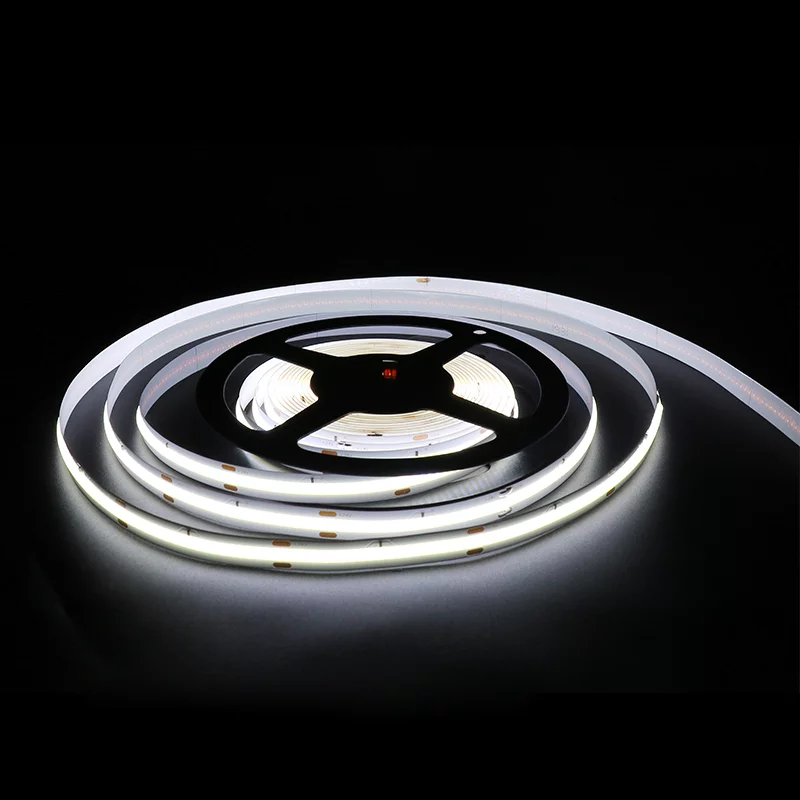

COB LED Strips

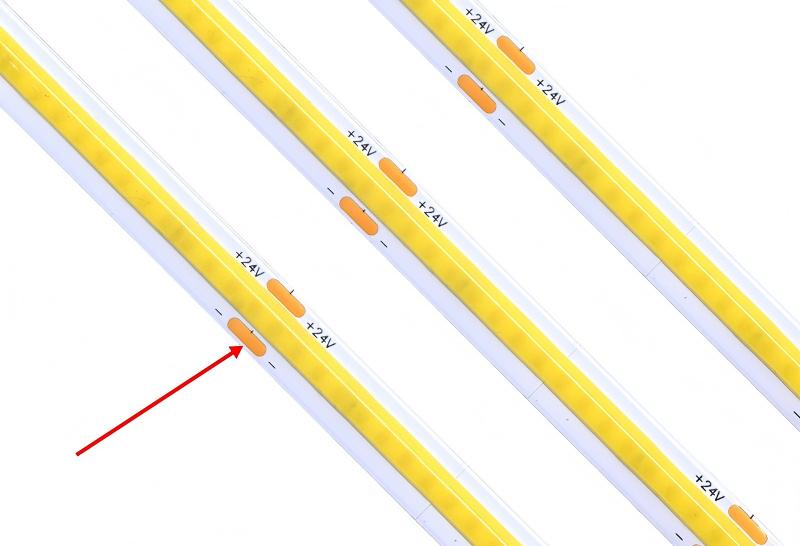

COB LED strips can be cut as well. Traditional COB LED strips usually have fixed cutting points, and the interval can vary between products.
In recent years, freely cuttable COB LED strips have started being used in lighting projects that require precise length control. These products break past the fixed-interval limitation of traditional strips, allowing more flexible trimming based on the actual installation length.
Compared with standard LED strips, freely cuttable COB LED strips offer these advantages:
- More flexible cutting positions
- No restriction to fixed cutting intervals
- More precise matching to the actual installation length
- Less material waste from length mismatches
- Better suited to curved, arced, or irregular installations
For projects that need precise length control, curved wiring, or complex installation structures, a freely cuttable COB LED strip is the more convenient choice.
That said, not every COB LED strip supports cutting at any point. Whether a given product can you cut led strip anywhere depends on its specific circuit design and product specifications.

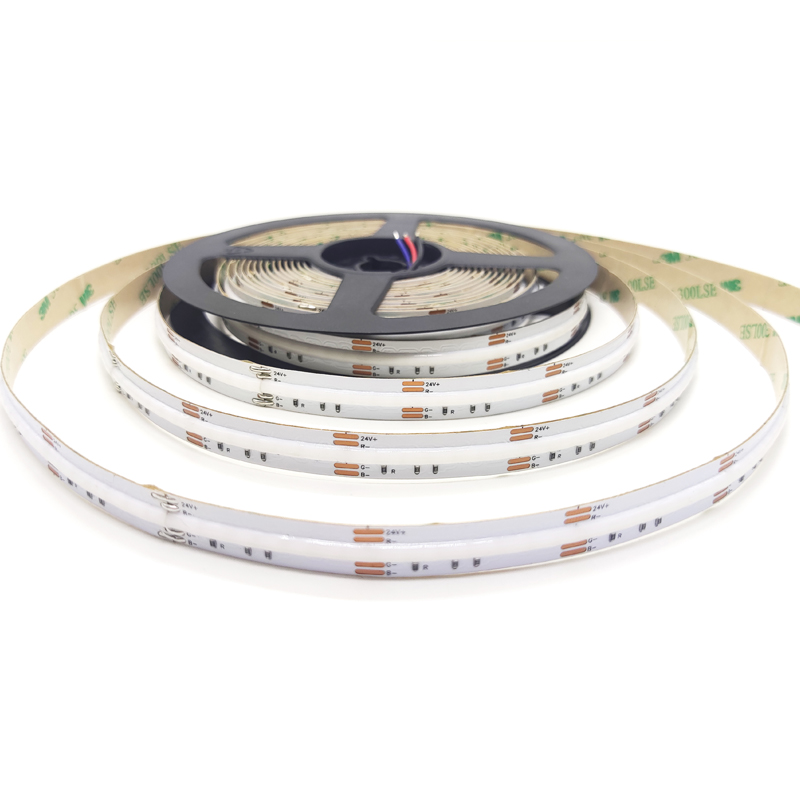

COB RGB LED Strip COB LED Strip
CSP LED Strips
CSP LED strips use Chip Scale Package technology, with smaller LED chips that allow for a more compact light source layout.
Like COB strips, CSP LED strips can be cut according to the product's design.
When cutting a CSP LED strip, first locate the cut lines or copper pads marked on the PCB, and cut at those designated positions.

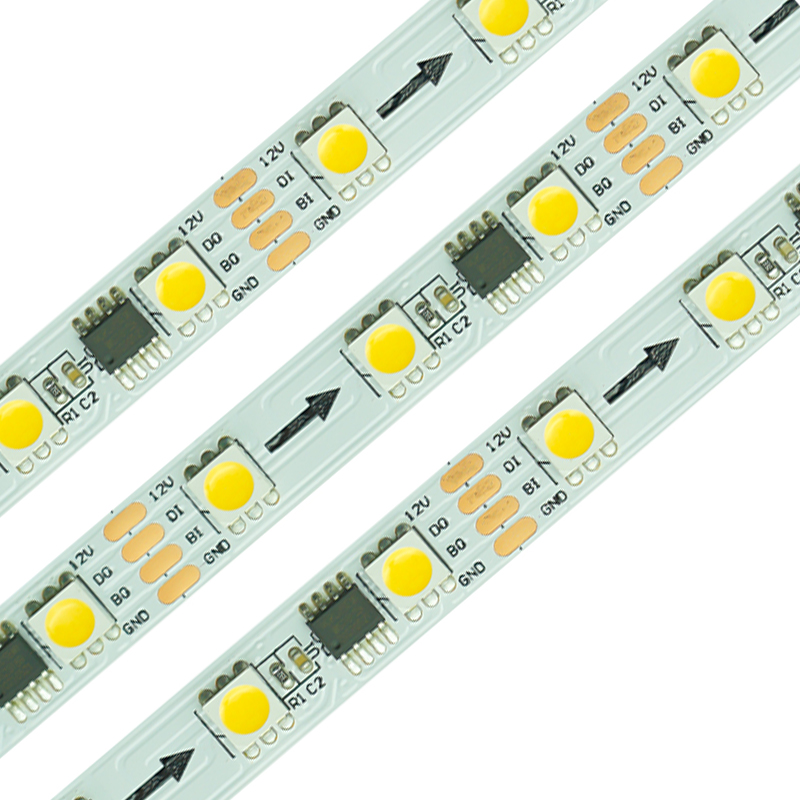

Addressable LED Strips

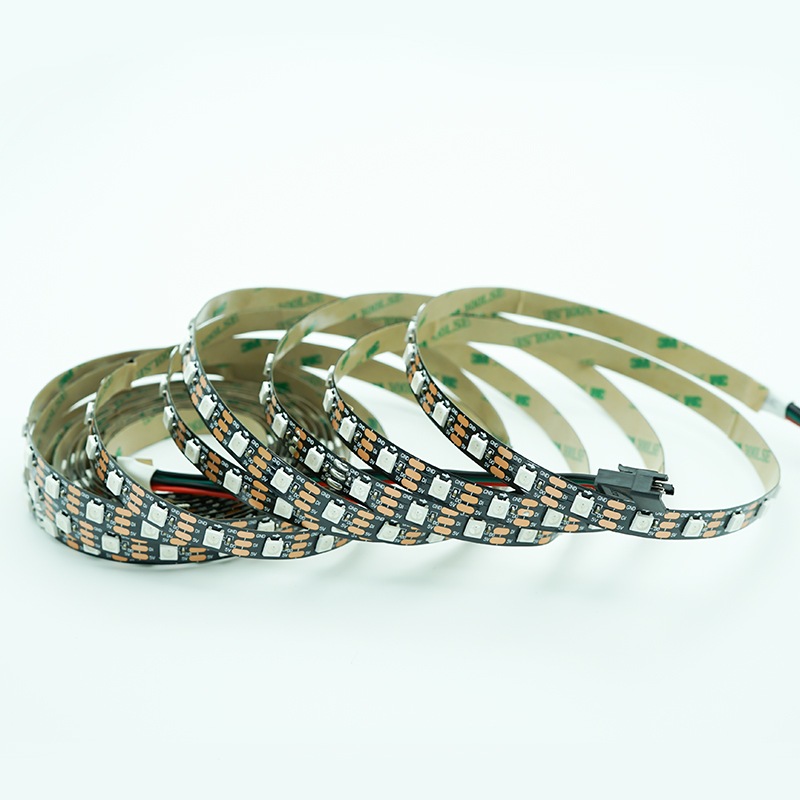

Addressable LED strips such as WS2812B, WS2813, and SK6812 generally support cutting too.
These strips typically set cutting points at each individual pixel or circuit unit, since every pixel has its own control data — commonly one LED per cut for 5V strips, three LEDs per cut for 12V, and six LEDs per cut for 24V.
When cutting, besides paying attention to the positive and negative power terminals, you also need to watch the Data In / Data Out direction. Cutting in the wrong spot or connecting in the wrong direction can cause the pixels downstream to stop displaying correctly.
Neon LED Strips
Neon LED strips are usually encased in a silicone housing, so the cutting method differs from bare-PCB strips.
Most cuttable neon strips have designated cutting positions marked on the housing or strip surface. Cuts should be made along these marks to avoid damaging the internal PCB or LED components.
If the strip will be used outdoors or in damp environments, the cut ends will need to be resealed afterward to restore waterproof protection.
High-Voltage LED Strips
AC 220V high-voltage LED strips can you cut led light strips as well, but only at the cutting positions specified by the manufacturer — this must be followed strictly.
Cutting intervals vary between high-voltage LED strip products; some may have a cutting point every 50mm or 100mm, while others may only have one every meter.
Compared with low-voltage strips (12V, 24V), high-voltage LED strips connect directly to mains voltage, so cutting, wiring, and end-sealing all require extra care.
High-Voltage Strip Precautions
1.Make sure the power supply voltage matches the strip's rated voltage (220V AC).
2.Always disconnect the power before installing, cutting, or wiring.
3.Cut only at the designated cutting marks. After cutting, make sure all connection points are properly insulated and waterproofed.
4.Do not fold or crush the strip. Installation by a qualified electrician is recommended.
5.Do not use in high-heat, damp, or corrosive environments. Inspect cables and connectors regularly.
6.Once cut and reconnected, the strip is for indoor use only.
Different LED strip types don't all cut the same way. SMD, COB, CSP, addressable, neon, and high-voltage LED strips can all typically be cut, but the interval and method depend on the specific product design. For standard strips, always cut at the designated points; for special products that support cutting anywhere, you can trim more flexibly based on the actual installation length. If you're unsure where to cut, check the product specification sheet or consult the manufacturer first rather than cutting directly.
Where Should You Cut an LED Strip?
Finding the Cutting Marks
Most cuttable LED strips have clearly marked cutting positions printed on the PCB or the strip's surface.
The most common markers include:
- Scissor icons
- Solid or dashed cut lines
- Copper contacts on the PCB
- Gaps between LED circuit units
Once you've located these marks, cut along the designated position — don't just pick a random spot between two cutting points and cut there.
For example, if a 12V LED strip has a cutting point every 50mm, and the length you actually need is 47mm, you should cut at the nearest designated cutting point rather than cutting directly at the 47mm mark.
For special LED strips that support cutting at any point, this fixed-interval restriction doesn't apply — but you should still follow that specific product's instructions.
Checking the Copper Pads
Besides looking for scissor icons, you can also identify the cutting position by the copper pads on the PCB.
These copper pads are typically located between two LED circuit units, and they also serve as the connection points for soldering wires or attaching connectors afterward.
A typical cutting position usually looks like this:
LED circuit unit → copper pad → LED circuit unit
When cutting, try to cut along the designated line so that both resulting ends retain a complete, usable copper pad for connections.
If the copper pad has already been cut away or the PCB itself is damaged, soldering or connecting afterward becomes much harder.
Why You Can't Just Cut Anywhere
Traditional LED strips are made up of multiple independent circuit units. Within each unit, the LEDs, current-limiting components, and PCB traces are connected in a specific way, and the manufacturer sets the corresponding cutting positions based on that circuit design.
Designated cutting points are usually located between two complete circuit units.
If you cut at the designated position:
complete circuit unit → cutting point → complete circuit unit
Each resulting segment can still retain a complete circuit structure, and can be connected to power or reconnected independently.
But if you cut straight through the middle of a circuit unit instead:
complete circuit unit → incorrect cut → damaged circuit
this can break the PCB traces, leaving some LEDs without proper power, or even causing the entire remaining section to stop working.
So for LED strips designed with fixed cutting intervals, the cutting position matters more than the exact length you measured. If the length you need doesn't line up neatly with the cutting interval, it's better to choose a strip that supports cutting anywhere.
Cutting Intervals for LED Strips by Voltage and Type
Cutting LED Strips by Voltage
Once you've confirmed the strip type, you'll also want to know the cutting intervals for the different voltage levels — 5V, 12V, and 24V.

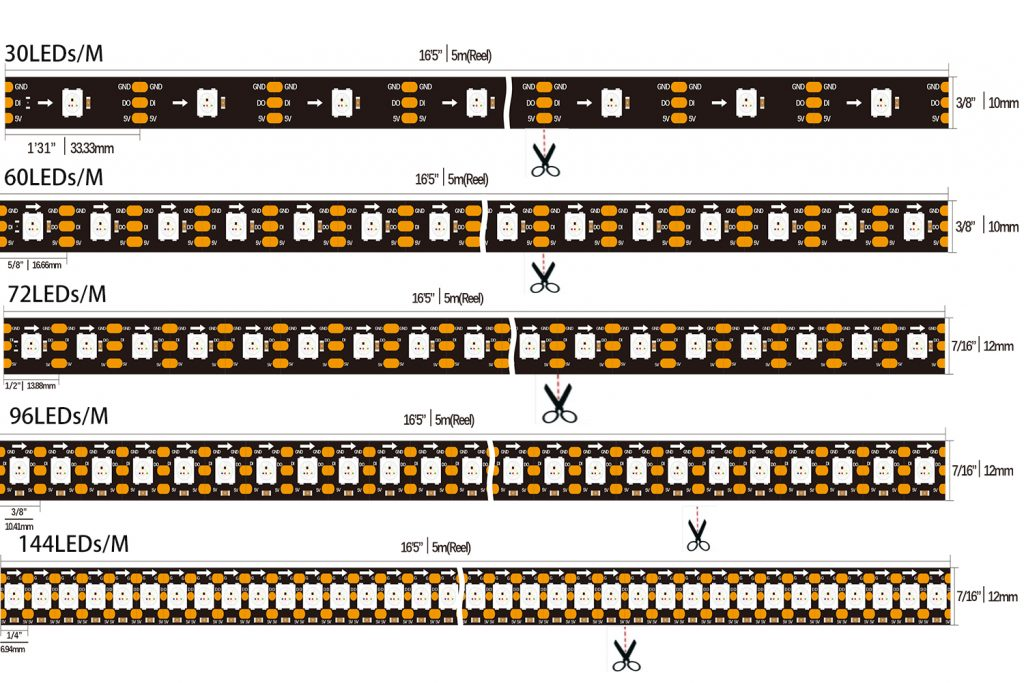

(1) 5V LED Strips (e.g., WS2812B addressable strips)
Cutting interval: one cutting point per LED (since 5V strips run at low voltage, each LED chip is powered independently).
Characteristics: Well suited to fine-grained control, such as music-reactive effects or chase lighting. But cutting in the wrong spot will leave the LEDs downstream unlit.

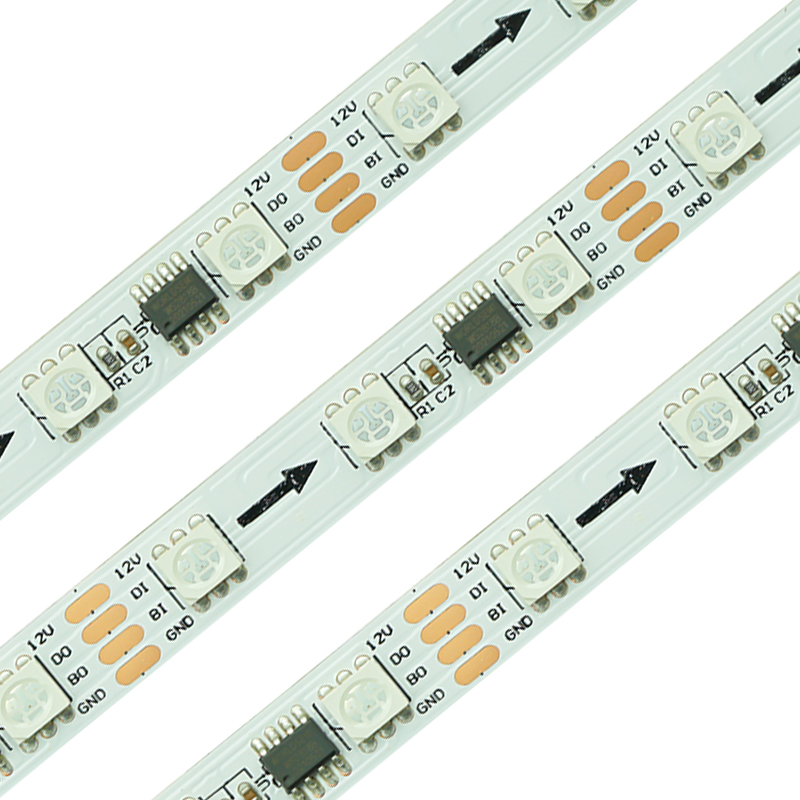

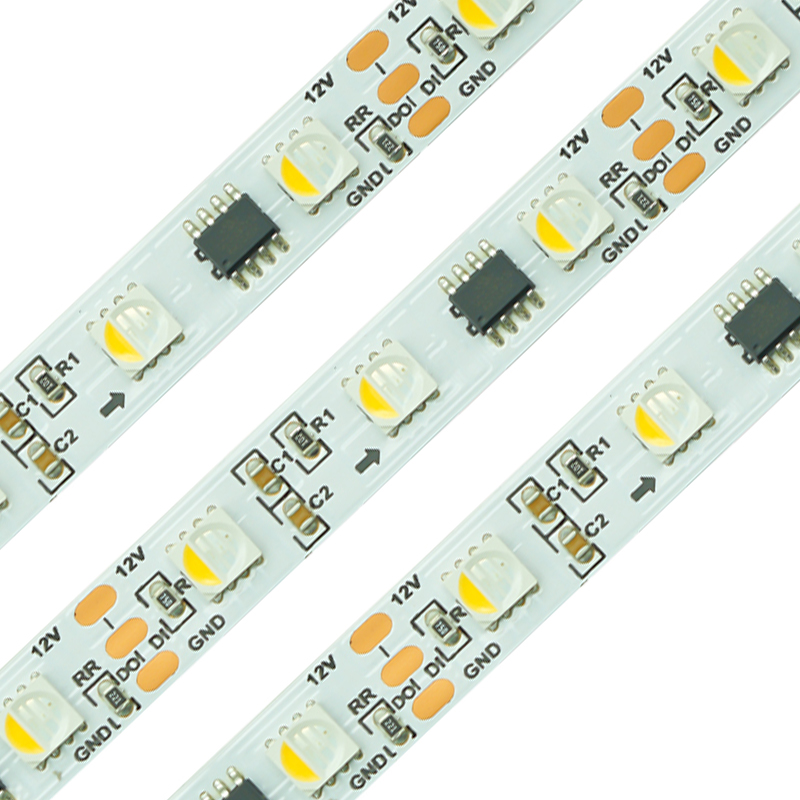

(2) 12V LED Strips (the most common type)
Cutting interval: typically every group of 3 LEDs (cuttable at the copper pad between each group).
For example, with 2835 or 5050 strips at 60 LEDs/meter, that works out to a cutting point roughly every 5cm.
Characteristics: After cutting, each group of 3 LEDs can operate independently. If you cut through the middle of a group, that group won't light up.

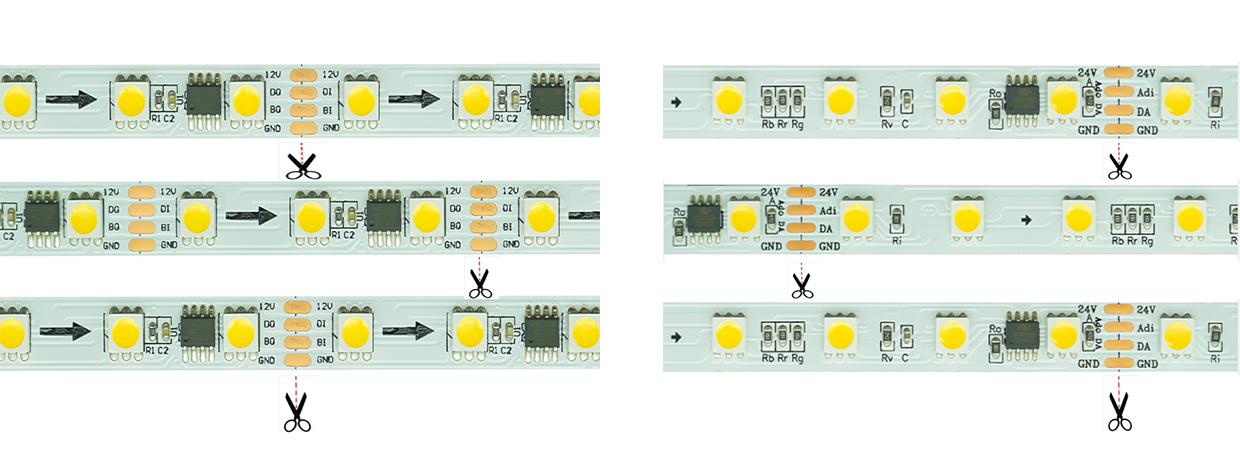

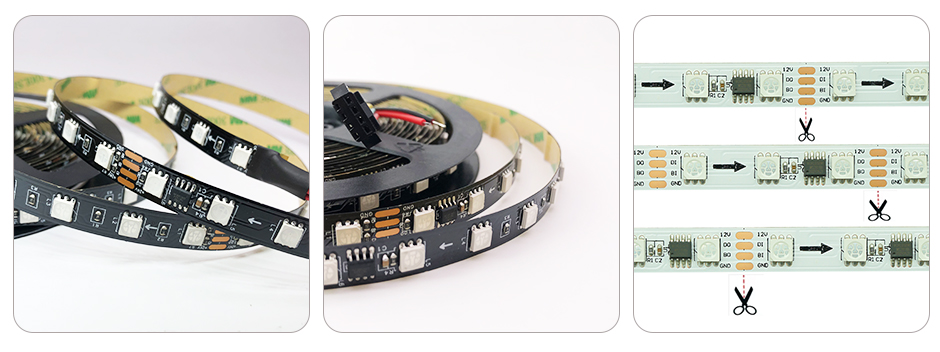

(3) 24V LED Strips (suited to longer runs)
Cutting interval: typically every group of 6 LEDs (a longer interval than 12V strips).
For example, with a 24V 5050 strip at 60 LEDs/meter, that works out to a cutting point roughly every 10cm.
Cutting spacing of different LED bead models
How to Cut an LED Strip Correctly
Cutting an LED strip isn't complicated, but doing it the right way helps avoid damaging the LED chips, the PCB circuitry, or the connection points you'll need later.
Before you start, gather a sharp pair of scissors and a ruler. Measure the actual length of strip you need, then locate the corresponding cutting mark or copper pad on the PCB and cut at that designated position.
Cutting methods and intervals vary across different types of LED strips, so before you begin, confirm whether the product supports cutting and identify the specific cutting positions.
Turn Off the Power
Before cutting an LED strip, always turn off the power and disconnect the strip from its power source.
Never cut a strip while it's still powered, especially with 220V high-voltage LED strips. Make sure the strip is fully disconnected from power before cutting, connecting, or reinstalling it.
Measure the Length You Need
Use a ruler to measure the length of strip required for the installation location, and mark it accordingly.
Keep in mind that standard LED strips generally have fixed cutting intervals. If your measured length doesn't line up exactly with a cutting point, choose the designated cutting position closest to the length you need, rather than cutting at an arbitrary spot just to hit an exact measurement.
For LED strips that support cutting at any point, you have more flexibility to determine the trim length based on your actual needs.
Locate the Cutting Point
Once you've confirmed the length, find the correct cutting position on the strip's PCB.
Common cutting marks include:
- Scissor icons
- Cut lines
- Copper pads
- Gaps between circuit units
If the markings on the strip aren't clear, check the product specification sheet or installation instructions to confirm the exact cutting position.
Cut Along the Marked Line
Once you've found the correct cutting point, use sharp scissors to cut cleanly along the marked position.
Keep the cut edge as clean as possible, and avoid cutting into the LED chips, resistors, or other electronic components.
For strips that will need soldering or a connector afterward, try to keep the copper pads on both sides of the cut fully intact to make later connections easier.
Inspect the Cut End
After cutting, check that the cut edge is clean, and confirm that the PCB, copper pads, and surrounding components haven't been noticeably damaged.
If you'll be reconnecting the strip later, also check:
- Whether the copper pads are intact
- Whether the PCB has cracked or split
- Whether the positive/negative markings are still clear
- Whether the connection points are intact on multi-channel strips such as RGB or RGBW
For waterproof LED strips, the cut end will also need proper waterproofing and resealing before final installation.
What Happens If You Cut an LED Strip in the Wrong Place?
LED strips need to be cut at the position specified by the product's manufacturer. Cutting in the wrong spot can damage the strip's internal circuit structure and prevent some of the LEDs from working properly.
Here are a few specific outcomes that can result:
Part of the Strip May Stop Working
If the cut lands in the middle of a complete circuit unit, the severed section may not form a complete power circuit.
In this case, some of the LEDs may fail to light up.
For example, a 12V LED strip is typically made up of multiple LEDs grouped into a single circuit unit. If you cut through the middle of that unit instead of at the designated point, the LEDs in that group may stop working.
The Circuit May Be Interrupted
The PCB inside an LED strip carries continuous conductive traces. Cutting in the wrong place can sever these traces directly, preventing current from flowing normally.
If a critical trace is cut, it can also affect the power supply to the circuit units further down the strip.
For this reason, standard LED strips should always be cut along the manufacturer's designated cut lines or copper pads.
The Remaining Section May Not Light Up
An incorrect cut can affect not just the section removed, but the remaining strip as well.
If the cut damages the circuit structure, the remaining section may show:
- The entire section failing to light up
- Some LEDs staying dark
- Flickering
- Abnormal brightness
So if a strip doesn't work properly after cutting, start by checking the cutting position, the positive/negative connections, and the power supply voltage.
What Should You Check After Cutting an LED Strip?
Once you've cut and reconnected an LED strip, don't move straight to final installation. It's best to check the power supply, connections, and the strip's condition first, and confirm everything is working before installing it permanently.
Match the Power Supply Voltage
First, confirm that the strip's rated voltage matches your power supply's output voltage.
- 5V LED strip → use a 5V power supply
- 12V LED strip → use a 12V power supply
- 24V LED strip → use a 24V power supply
Never connect a power supply with a mismatched voltage rating to the strip — doing so can prevent the strip from working correctly, or even damage the LED components.
Check the Power Supply Capacity
Beyond voltage matching, you also need to confirm that the power supply's output capacity can handle the actual power demand of the strip after cutting.
If you're running a longer length of strip with an underpowered supply, you may see:
- Insufficient brightness
- Dimming toward the far end of the strip
- Flickering
- Power supply overload
Before installation, choose a power supply based on the strip's actual length and power draw per unit length, and leave some headroom in capacity.
Check the Polarity
When connecting a cut LED strip, confirm the positive and negative terminals.
Single-color LED strips are usually marked with "+" and "–," while multi-channel strips like RGB or RGBW need each channel connected correctly.
Reversed polarity can prevent the strip from lighting up. For addressable LED strips, also double-check the Data In / Data Out connection direction.
Check Color Temperature Consistency
If you're splicing multiple strip segments together or installing them in the same lighting area, check that the color temperature and light color match across the different sections.
This matters especially on the same wall, cabinet, ceiling, or continuous linear lighting run — using strips from different batches or models can introduce slight differences in color temperature or brightness that affect the overall look.
So before final installation, it's a good idea to power on all the segments you plan to splice together and test them side by side, checking:
- Whether the color temperature matches
- Whether the brightness matches
- Whether the light color looks consistent
- Whether there's any noticeable difference in brightness
For strips at different color temperatures — 2700K, 3000K, 4000K, 6000K, and so on — it's especially important to confirm the specifications match. If color consistency is a priority, it's best to use LED strips of the same model, specification, and batch wherever possible.
Restore Waterproofing
If you've cut a waterproof LED strip, the original sealed structure at the cut end has likely been compromised.
Before reinstalling, reseal the cut end according to the product's requirements — for example, using a compatible end cap, sealant, or other waterproofing method.
Keep in mind that cutting an LED strip doesn't automatically preserve its original IP rating. If the product will be used outdoors, in a damp environment, or anywhere else that calls for waterproofing, make sure the cut end is properly treated.
Test Before Final Installation
After cutting and reconnecting, it's best to run a full power-on test before mounting the strip in its final location. Check:
- Whether the strip lights up properly
- Whether brightness is even across the whole strip
- Whether any LEDs fail to light up
- Whether there's flickering or unusual heat
- Whether the color and control work correctly on RGB/RGBW strips
- Whether the connections are secure
Once everything checks out, you can install the LED strip in its final position.
FAQ — Frequently Asked Questions
Where not to cut LED lights?
For LED strips designed with fixed cutting intervals, you shouldn't cut through an LED chip, a resistor, or at a random point between two designated cutting marks. For example, with a 2835 or 5050 strip at 60 LEDs/meter, there's typically a cutting point every 10cm. If you cut through the middle of that group, those LEDs simply won't light up.
Always cut along the scissor icon, cut line, or copper pad marked on the product.
Why did my LED lights stop working after I cut them?
Common causes include:
1.Cutting at the wrong position, which damages the circuit
2.A mismatch between the power supply voltage and the strip's rated voltage
3.Insufficient power supply capacity
4.Reversed positive/negative connections
5.A connector that doesn't match the strip's specifications
6.PCB or LED damage from excess heat during soldering
Start by checking the cutting position, the power supply, and the connections, then run a power-on test.
Can you cut LED strip lights if they're too long?
Yes — as long as the LED strip actually supports cutting. For standard LED strips, cut at the designated intervals. If the length you need doesn't line up exactly with those intervals, choose the nearest suitable cutting point rather than cutting at a random spot.
Can you cut LED light strips multiple times?
Yes. For strips designed with fixed cutting intervals, as long as each cut is made at a designated position, a full reel can be divided into multiple sections to match your installation needs.
Just keep in mind that every cut creates a new connection end, so when splicing multiple sections together, you'll also need to consider connection method, power supply capacity, and the installation environment.
Where can I safely cut an LED light strip?
Most LED strips should be cut only at the positions the manufacturer specifies — a scissor icon, a cut line, or a copper pad. Cutting intervals vary between products, so check the specific specifications before cutting.
That said, you generally can't cut led strip lights anywhere you like — that flexibility is limited to a smaller category of specially designed products that support cutting at any point along their length. Always check the product documentation to know which category your strip falls into.
Can you cut LED strips and have them still work?
Yes. As long as the strip is cut at the correct position and the circuit isn't damaged in the process, the remaining section will typically keep working. If you need to reconnect it, you can either solder the connection or use a solderless connector that matches the strip's specifications.
How to know if an LED strip is cuttable?
1.Look for a scissor icon or cut line: most cuttable LED strips have a small scissor symbol printed on them, or a clear marked line between the copper pads — these indicate safe cutting points.
2.Check the manufacturer's datasheet or packaging: it usually states whether the strip can be cut and at what interval (e.g., every 3 LEDs, every 5cm, etc.).
3.Look for small gaps between LED sections along with exposed copper pads — these are the points designed for cutting.
4.If it's not clear from the product itself, contact the supplier to confirm.
5.Check the voltage and type: for example, 12V strips are typically cuttable every 3 LEDs, and 24V strips every 6 LEDs.
6.COB strips are cuttable too, but check carefully, since the interval can vary.
7.AC (high-voltage) LED strips are usually cuttable every 50mm, 100mm, or 1 meter, and the exact interval differs by manufacturer — but it's essential to properly insulate and protect both cut ends to prevent electric shock.
8.When in doubt, don't cut: cutting without proper guidance can damage the strip or make it unsafe to use. If you're not sure, send a photo of the product to sales@ledworker.com and we'll help you identify the correct cutting points.
Contact Us
Everything You Should Know About 2835 Rigid LED Strips Before Choosing the Right Lighting Solution
Durable 2835 Rigid LED Strip featuring high-brightness SMD2835 LEDs, reliable heat dissipation, and flexible customization for commercial and architectural lighting.
How to Upgrade Traditional LED Lighting with S1-B(WT) WiFi Triac Dimmer Controller
Bring smart control to existing Triac dimmable LED strips without replacing fixtures or drivers. The S1-B(WT) delivers smooth, flicker-free dimming with app, RF remote, push switch, and voice control in one compact solution.
Unified Power Supply Solutions for Multiple LED Strips/ How to Power Multiple LED Strips with One Solution
Learn how to connect multiple LED strip lights to one power supply. Discover wiring methods, power calculations, voltage drop solutions, and installation tips.
Recommended News
