WT5 5-in-1 LED Controller Installation Guide: One Controller for Multiple LED Strip Types
In LED strip lighting projects, different LED strips often require different control methods. Using separate controllers for Single Colour, CCT, RGB, RGBW and RGBCCT LED strips can make product selection and inventory management more complicated.
What Is the WT5 Controller?

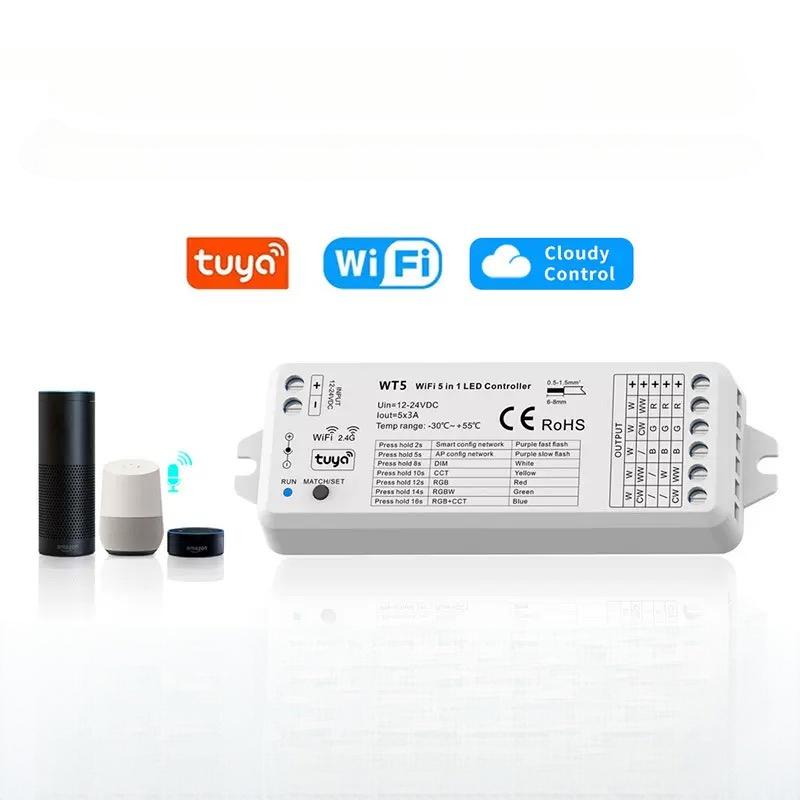

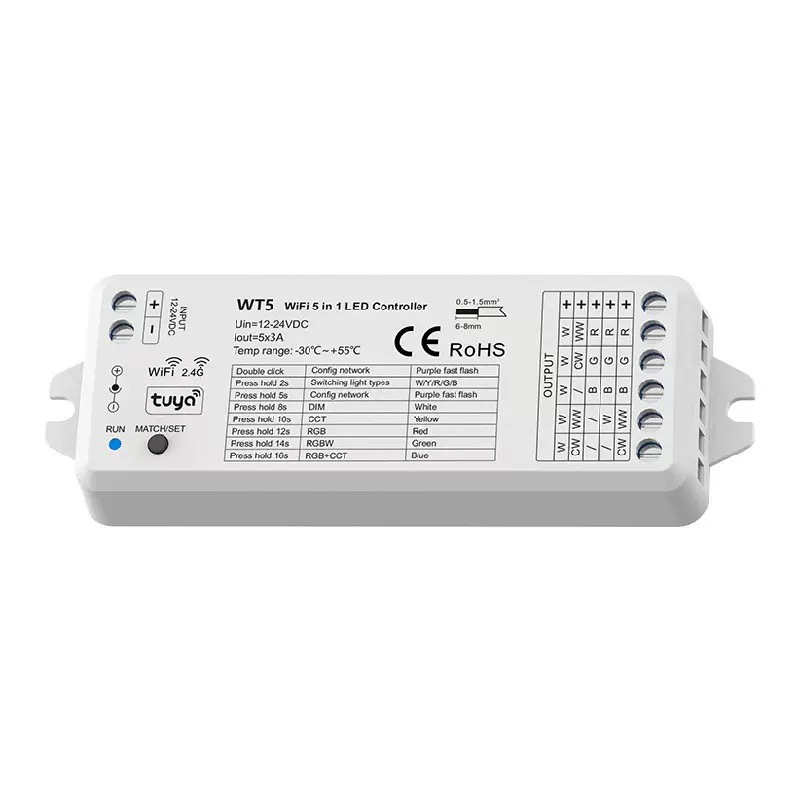

The WT5 is a 5-in-1 LED controller that supports multiple LED strip types through different operating modes, providing a more flexible control solution for LED lighting projects.
The WT5 supports:
This means one rgb led strip controller can support different LED strip types depending on the project requirements.
With WiFi APP control and compatible RF remotes, users can adjust brightness, colours and colour temperature.
How to Install the WT5 Controller
The basic wiring is: AC Power → Constant Voltage Power Supply → WT5 Controller → LED Strip
First, select a constant-voltage power supply that matches the LED strip voltage, such as 12V or 24V.
Then connect the power supply to the WT5 input and connect the LED strip to the corresponding output terminals.
For every led strip and controller system, the voltage must be compatible. For example, a 24V LED strip should be used with a 24V constant-voltage power supply.
Expand More LED Strips with the EV5 Signal Amplifier
Every controller has a limited output capacity. When the LED strip length increases or higher-power LED strips are used, the total load may exceed the capacity of one WT5 controller.
In this case, the system can be expanded with an EV5 signal amplifier.

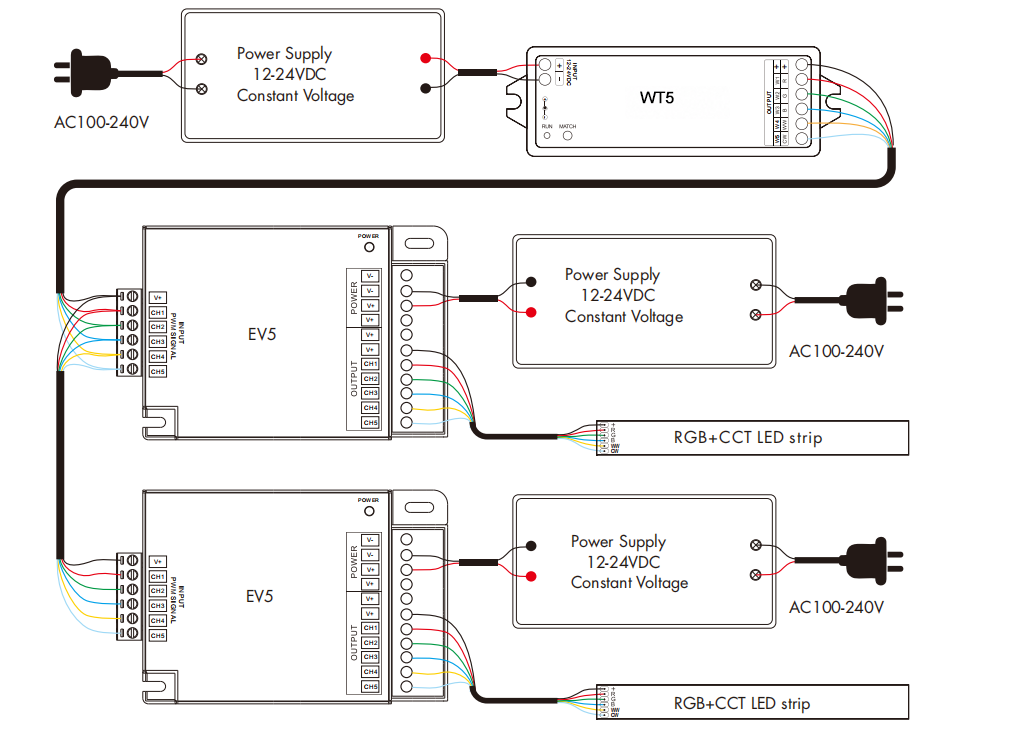

The connection can be simplified as:
WT5 → EV5 Signal Amplifier → Additional LED Strips
The EV5 receives the control signal from the WT5 and synchronises the control of additional LED strips. By adding EV5 amplifiers and additional power supplies, larger lighting systems can be expanded while maintaining the same colour, brightness or colour temperature.
This provides a more flexible solution for larger led tape controller projects.
Important Installation Tips
Before installation, check the total power consumption of the LED strips and make sure the controller and power supply can support the required load.
For long-distance installations, voltage drop should also be considered. Even if the controller has sufficient output capacity, additional power injection may be required to maintain consistent brightness and colour.
For smart wifi led strip projects, stable WiFi coverage should be confirmed before installation.
If you are comparing bluetooth led strip lights, it is also important to check the communication method used by the controller, as different products may use WiFi, Bluetooth, RF or other wireless technologies.
Where Can the WT5 Be Used?
With support for multiple LED strip types, the WT5 is suitable for:
· Residential ambient lighting
· Cabinet and wardrobe lighting
· Hotels and villas
· Commercial displays
· Bars and entertainment venues
· RGB and RGBCCT lighting
· Architectural outline lighting
· Smart LED lighting projects
One Controller for a More Flexible LED Lighting System
The WT5 provides a flexible solution for controlling Single Colour, CCT, RGB, RGBW and RGBCCT LED strips.
When one controller is not enough for a larger installation, EV5 signal amplifiers and additional power supplies can be used to expand the system.
From residential lighting to larger commercial projects, selecting the right controller, power supply and signal expansion solution can help create a more stable, flexible and scalable LED lighting system.
